IMPORTANT SAFEGUARDS

When using this appliance, always exercise basic safety

precautions, including the following:

1. Read all of the instructions before using this appliance.

2. Use this appliance only for its intended purpose as described in this

use and care guide.

3. This wine & beverage center must be properly installed in accordance

with the installation instructions before it is used. See grounding

instructions in the installation section.

4. Never unplug your wine & beverage center by pulling on the

power cord. Always grasp the plug firmly and pull straight out

from the outlet.

5. Unplug your wine & beverage center before cleaning or before

making any repairs. Note: If for any reason this product requires

service, we strongly recommend that a certified technician

performs the service.

6. Repair or replace immediately, all electric power cords that have

become frayed or otherwise damaged. Do not use a cord that

shows cracks or abrasion damage along its length, the plug or

the connector end.

7. This wine & beverage center should not be recessed or built-in in an

enclosed cabinet. It is designed for freestanding installation only.

8. If your old wine cellar is not being used, we recommend that you

remove the door and leave the shelves in place. This will reduce

possibility of danger to children.

9. Do not operate your wine & beverage center in the presence of

explosive fumes.

10. Do not store foods in wine & beverage center as interior

temperature may not be cool enough to prevent spoilage or

may cause bacteria growth.

SAVE THESE INSTRUCTIONS

English

Thank you for using our Haier

product. This easy-to-use manual

will guide you in getting the

best use of your wine &

beverage center.

Remember to record the model

and serial number. They are on

a label in back of the wine &

beverage center.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

DANGER

Risk of child entrapment. Before you throw away your old

wine cellar, take off the doors. Leave the shelves in place so

that children may not easily climb inside.

English

PAGE

Important Safeguards ................................................................ 1

Parts And Features ..................................................................... 4

Installing Your Wine & Beverage Center ................................. 5

Unpacking Your Wine & Beverage Center.......................................... 5

Leveling Your Wine & Beverage Center.............................................. 5

Proper Air Circulation....................................................................... 5

Electrical Requirements ..................................................................... 6

Installation Limitations....................................................................... 6

Use of Extension Cords..................................................................... 6

Wine & Beverage Center Features And Use................................ 7

Initial Set Up ................................................................................... 7

Temperature Adjustment.................................................................... 7

Flex Temperature Zone ..................................................................... 7

Shelving.......................................................................................... 8

Interior Light .................................................................................... 8

Normal Operating Sounds................................................................ 8

Proper Wine & Beverage Center Care and Cleaning.............. 9

Cleaning and Maintenance............................................................... 9

Power Interruptions........................................................................... 9

Vacation and Moving Care............................................................... 9

Troubleshooting ........................................................................10

Warranty Information..............................................................11

table of contents

English

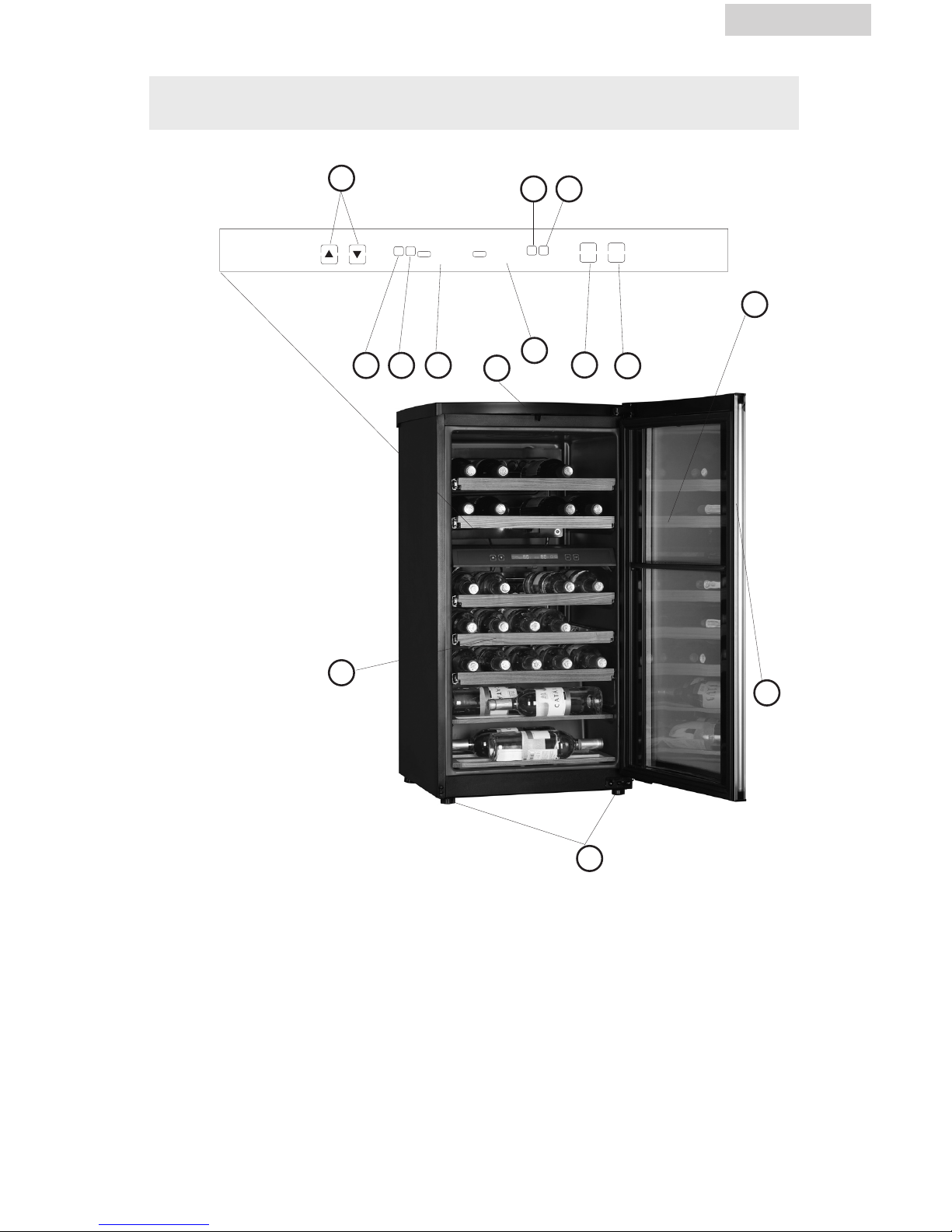

1. Red Wine Indicator

2. White Wine Indicator

3. LED Temperature Display - Upper

Compartment

4. LED Temperature Display - Lower

Compartment

5. Temperature Set Button

6. Interior Light Button

7. Temperature Adjustment (up/down)

8. Full-Length Recessed Door Handle

9. Auto Light Switch

10.Adjustable Leveling Legs

11.Interior Shelves

12.Tinted Double Panel Glass Door

Red White Upper Lower

88 ˚F 88 ˚F Red White Set Light

1 2

3456

1 2

English

Parts and features

Unpacking Your Wine & Beverage Center

1. Remove all packaging material. This includes the foam base and all

adhesive tape holding the wine & beverage center accessories inside

and outside.

2. Inspect and remove any remains of packing, tape or printed

materials before powering on the wine & beverage center

Leveling Your Wine & Beverage Center

• Your wine & beverage center has four leveling legs which are located

in the front and rear corners of your wine & beverage center. After

properly placing your wine & beverage center in its final position, you

can level your wine & beverage center.

• Leveling legs can be adjusted by turning them clockwise to raise your

wine & beverage center or by turning them counterclockwise to lower

your wine & beverage center. The wine & beverage center door will

close easier when the leveling legs are extended.

Proper Air Circulation

• To assure your wine & beverage center works at the maximum

efficiency it was designed for, you should install it in a location where

there is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the wine &

beverage center:

Sides……………2” (50mm)

Top....................2” (50mm)

Back..................2” (50mm)

• Do not overfill your wine & beverage center for optimal wine &

beverage cooling.

Note: If your wine & beverage center has been tilted for any reason,

wait 24 hours before plugging it in.

English

installing your wine & beverage center

Electrical Requirement

• Make sure there is a suitable power Outlet (115 volts, 15 amps

outlet) with proper grounding to power the wine & beverage center.

• Avoid the use of three plug adapters or cutting off the third grounding

in order to accommodate a two plug outlet. This is a dangerous

practice since it provides no effective grounding for the wine &

beverage center and may result in shock hazard.

Installation Limitations

• Do not install your wine & beverage center in any location not

properly insulated or heated, e.g. garage etc. Your wine &

beverage center was not designed to operate in temperature settings

below 55˚ Fahrenheit.

• Select a suitable location for the wine & beverage center on a hard

even surface away from direct sunlight or heat source, e.g. radiators,

baseboard heaters, cooking appliances etc. Any floor unevenness

should be corrected with the leveling legs located on the front and

rear bottom corners of the wine cellar.

• Your wine & beverage center is designed for freestanding installation

only. It is not designed for built-in application.

Use of Extension Cord

• Avoid the use of an extension cord because of potential safety

hazards under certain conditions. If it is necessary to use an extension

cord, use only a 3-wire extension cord that has a 3-blade grounding

plug and a 3-slot outlet that will accept the plug. The marked rating of

the extension cord must be equal to or greater than the electrical

rating of the appliance.

English

• The wine cellar is preset from the factory to automatically

to accommodate temperature requirements for red or white wines.

• The wine cellar can be set to any temperature between 39˚ and 65˚F

in either of the compartments to accommodate your wine

storage requirements. To set the temperature hold the “Set” button for

about 3 seconds. You will notice the temperature display blink for the

upper compartment. Press the up or down arrow button to increase

or decrease the temperature setting. Once the desired temperature

is attained, press the “Set” button. Doing this, the electronic control

panel will memorize the setting. The temperature display will revert

back to display the inside temperature. It may take some time to

reach the set temperature.

• Once the tempurature is set for the upper compartment, you will

notice the temperature display blink for the lower compartment.

Again press the up or down arrow button to increase or decrease

the temperature. Once the desired temperature is attained, press the

“Set” button. Doing this, the electronic control panel will memorize

the setting. The temperature display will revert back to display the

inside temperature. It may take some time to reach the set

temperature.

Initial Setup

Once you have plugged the unit into an electrical outlet, let the unit run for at

least 30 minutes to acclimatize itself before making any adjustments. During this

time, depending on the internal temperature, the red or white wine light will stay

on for the upper compartment and red or white wine light will stay on for the

lower compartment. The LED display will show the current internal temperature.

Temperature Adjustments: See fig. # 1

fig. # 1

Red White Upper Lower

88 ˚F 88 ˚F Red White Set Light

This offers wine lovers a whole new level of storage flexibility.

Flex Temp allows the top and bottom compartments to each be set at a

temperature between 39˚F - 65˚F, independent of each other, allowing

you to store wine your way.

Flex Temperature Zone

English

wine & beverage center features and use

Beverage Center Temperature Adjustments

• When using either zone (section) for beverages, recommended tem-

perature setting is between 39˚- 45˚F.

Note: Do not force oversized beverage cans or bottles to prevent

damage to shelves.

Shelving

• The shelves are designed for appearance and easy cleaning. Larger

bottles or Magnums can be more easily accommodated at the cross

shelves at the bottom of the wine & beverage center.

• There are 5 glide-out shelves for easy storage and removal of

your wine.

Interior Light See fig. #1

• To complement the look of your wine collection, a soft light has been

built into the wine cellar. Simply push the “Light” button and the light

comes on, push again for off. For maximum energy efficiency, leave

light off when not viewing your collection.

• When door is open the light will go on. Upon closing the door,the

light will go off.

Normal Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of

the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off.

English

Warning: To avoid electric shock always unplug your

wine & beverage center before cleaning. Ignoring

this warning may result in death or injury.

Caution: Before using cleaning products, always read and

follow manufacturer’s instructions and warnings to

avoid personal injury or product damage.

General:

• Prepare a cleaning solution of 3-4 tablespoons of

baking soda mixed with warm water. Use sponge or

soft cloth, dampened with the cleaning solution, to

wipe down your wine & beverage center.

• Rinse with clean warm water and dry with a

soft cloth.

• Do not use harsh chemicals, abrasives, ammonia,

chlorine bleach,concentrated detergents, solvents or

metal scouring pads. SOME of these chemicals may

dissolve, damage and/or discolor your wine &

beverage center.

• Clean door gaskets every three months according to

general instructions. Gaskets must be kept clean and

pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of

gaskets will keep the gasket pliable and ensure a

good seal.

Cleaning and Maintenance

Door Gaskets:

• Occasionally there may be power interruptions due to thunderstorms

or other causes. Remove the power cord from AC outlet when a

power outage occurs. When power has been restored, replug power

cord to AC outlet.

• For long vacations or absences, unplug the wine & beverage center

and clean the door gaskets according to “General cleaning” section.

Leave doors open, so air can circulate inside.

• When moving always move the wine & beverage center vertically. Do

not move with the unit lying down, as possible damage to the sealed

system could occur.

Note: After moving, wait for 24 hours before plugging in the

wine & beverage center.

Power Interruptions

Vacation and Moving Care

English

ProPer wine & beverage center

care and cleaning

Autres manuels pour HVZ040ABH5S - Dual-Zone Wine Cooler

Table des matières

Langues :

Autres manuels Haier Réfrigérateur

Haier

Haier JF-NU100B Manuel utilisateur

Haier

Haier HRB-701F Manuel utilisateur

Haier

Haier HR-858FK Manuel utilisateur

Haier

Haier HRZ-98AA Manuel utilisateur

Haier

Haier HBM450WH1 Manuel utilisateur

Haier

Haier HNSE05 Manuel utilisateur

Haier

Haier A3FE742CMJ Manuel utilisateur

Haier

Haier HRF-265F Manuel utilisateur

Haier

Haier HTD647SS Manuel utilisateur

Haier

Haier HR-136 Manuel utilisateur

Haier

Haier HYC-509 Manuel utilisateur

Haier

Haier HRFN-250DAA Manuel utilisateur

Haier

Haier HB25FSSAAA Manuel utilisateur

Haier

Haier RRTG21PABB - 20.7 cu. Ft. Refrigerator Instructions de montage

Haier

Haier HRF-663ASA2 Series Manuel utilisateur

Haier

Haier DD400RS Manuel de la liste des pièces

Haier

Haier HBC-200 Manuel utilisateur

Haier

Haier HTF-508DGS7 Manuel utilisateur

Haier

Haier HRF-800DGS8 Manuel utilisateur

Haier

Haier HSW02 Manuel utilisateur

Haier

Haier HSW79F18CIMM Manuel utilisateur

Haier

Haier HCR17BG Manuel utilisateur

Haier

Haier HSL04WNBSS Manuel utilisateur

Haier

Haier HRB10N2 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
