Haier HRF-288K Series Manuel utilisateur

Refrigerator HRF-288K/318K/348K

HRF-288K/318K/348K-SERIES

REFRIGERATOR

Service Manual

Features

lMore reasonable compare between quality and price

lDrawer storage in freezer

lLow noise design

lkeeping-moisture crisper

lCFC-free design

lMany series for your selections and Low price

Haier Group

Serial number: ER03SM0119-02

ersion number: 00.00

Edition: 2003-05-02

Refrigerator HRF-288K/318K/348K

CONTENT

1. Content……………………………………………………. 1

2. Product code illumination and Series Introduction…… 2

3. Specifications……………………….……..……………………. 3

4. Safety precautions……………………………………….……... 4

5. Parts and Functions…………………………………………. 7

6. Function Schedule……………………………......…….………. 8

7. System Flow Chart……………..………………………...…… 9

8. Circuit Diagram………………………………..….….….…… 10

9. Maintenance Service and Trouble Shooting…….……. …. 11

10. Exploded View(HRF-288k/318K/348K)………………… 31

11. List of Parts(HRF-288k/318K/348K)……….………….… 32

CONTENT

Refrigerator HRF-288K/318K/348K

Product code illumination and Series Introduction

H R F — 288 k

H R F — 318 k

H R F — 348 k

Haier product

Refrigerator

Freezer

Gross capacity (according to

export country standard)

Family Line K series

Product code illumination and Series Introduction

Haier product

Refrigerator

Freezer

Gross capacity (according to

export country standard)

Family Line K series

Freezer

Gross capacity (according to

export country standard)

Family Line K series

Refrigerator

Haier product

Refrigerator HRF-288K/318K/348K

Specifications

Models HRF-288k HRF-318k HRF-348k

Net capacity (L) 218 238 258

Color Grey Grey Grey

Power Supply (V/Hz) 220-240~/50 220-240~/50 220-240~/50

Rated Input Power (W) 120 120 120

Power Consumption (kW.·h/24h) 0.77 0.79 0.81

Net Weight (kg) 61 64 68

Gross Weight (kg) 65 69 73

Unit Dimension (D*W*H) (mm) 615*550*1555 615*550*1650 623*600*1650

Packing Dimension (D*W*H) (mm) 720*610*1620 720*610*1715 723*657*1715

Container Quantity 40’ (PCS) 83 78 69

Container Quantity 40’HC (PCS) 83 78 69

Specifications

Refrigerator HRF-288K/318K/348K

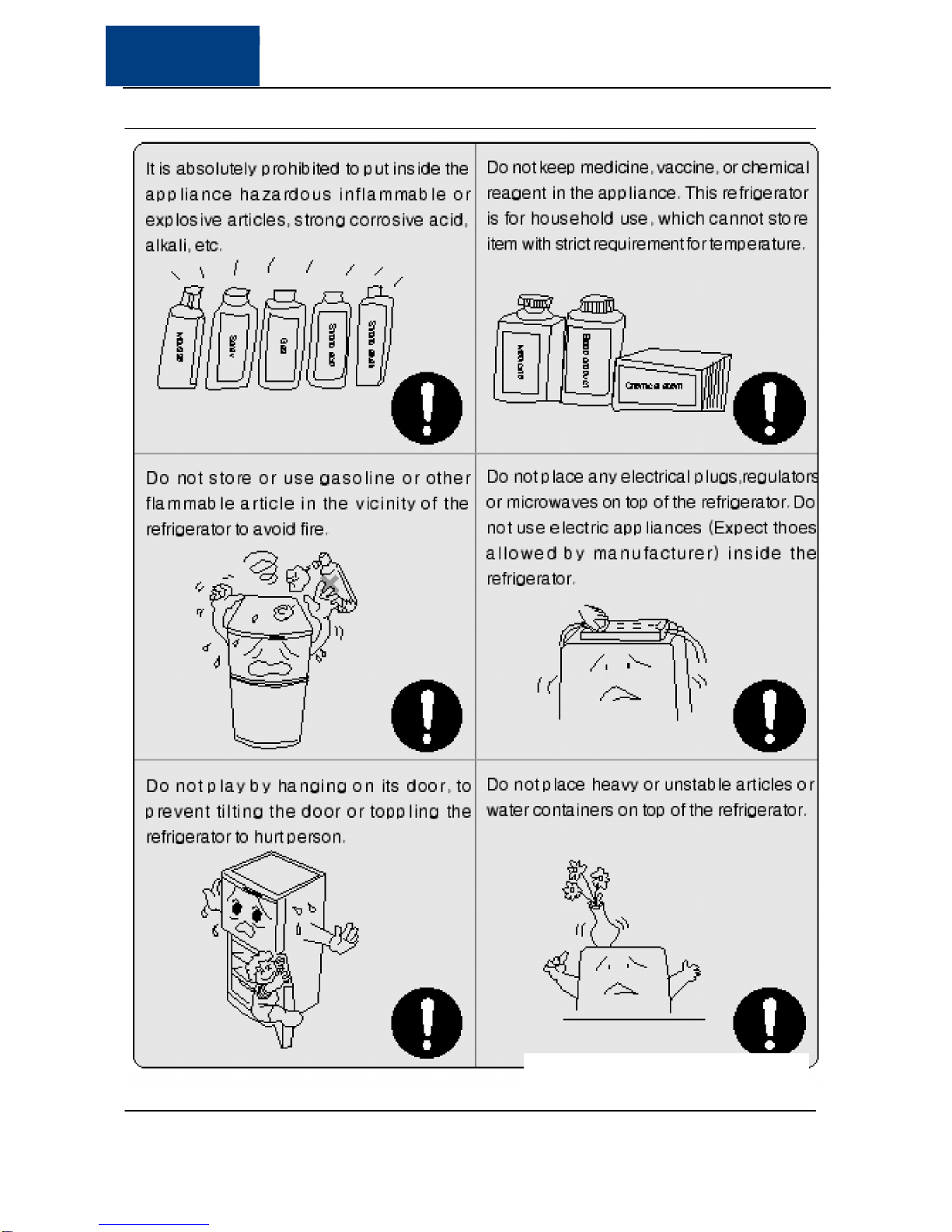

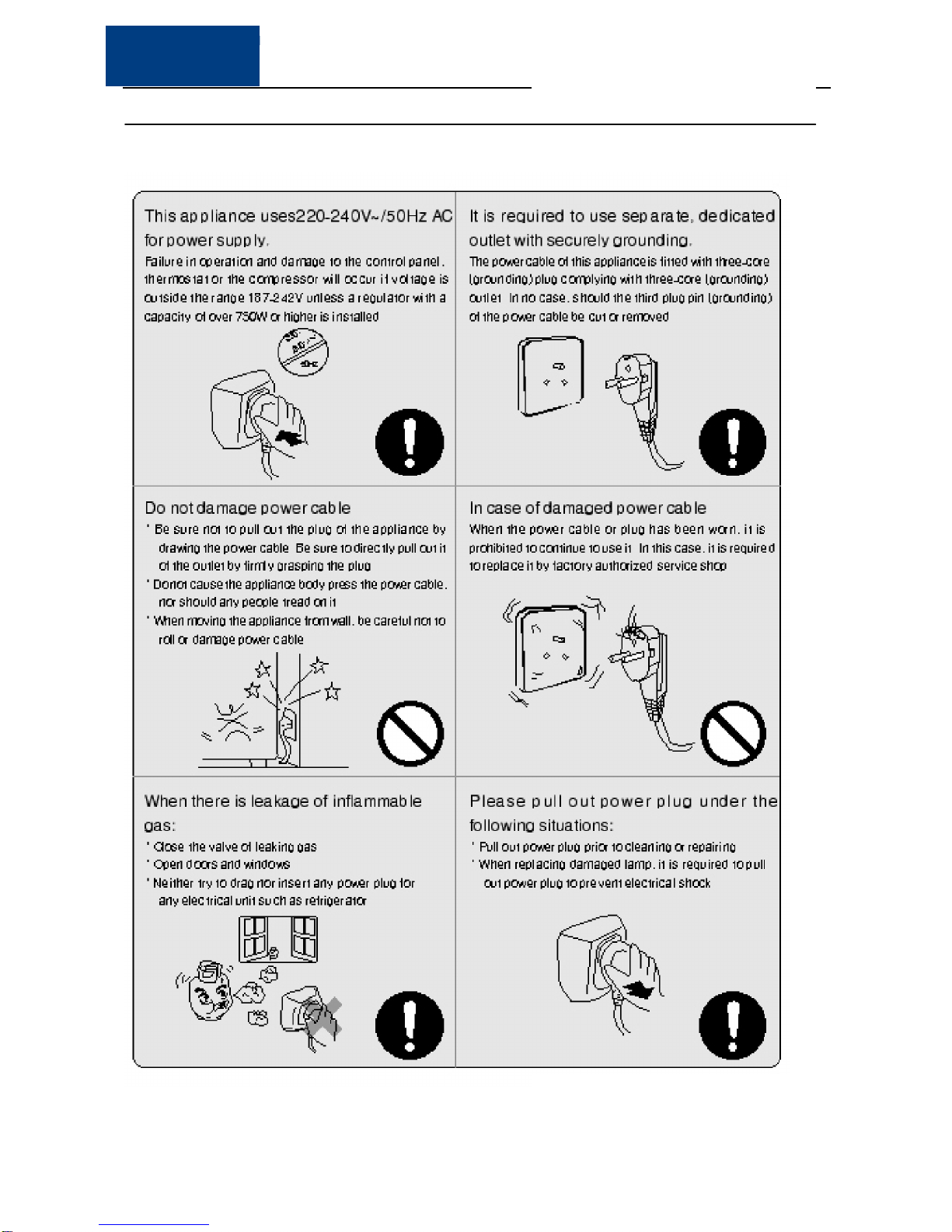

Safety precautions

Refrigerator HRF-288K/318K/348K

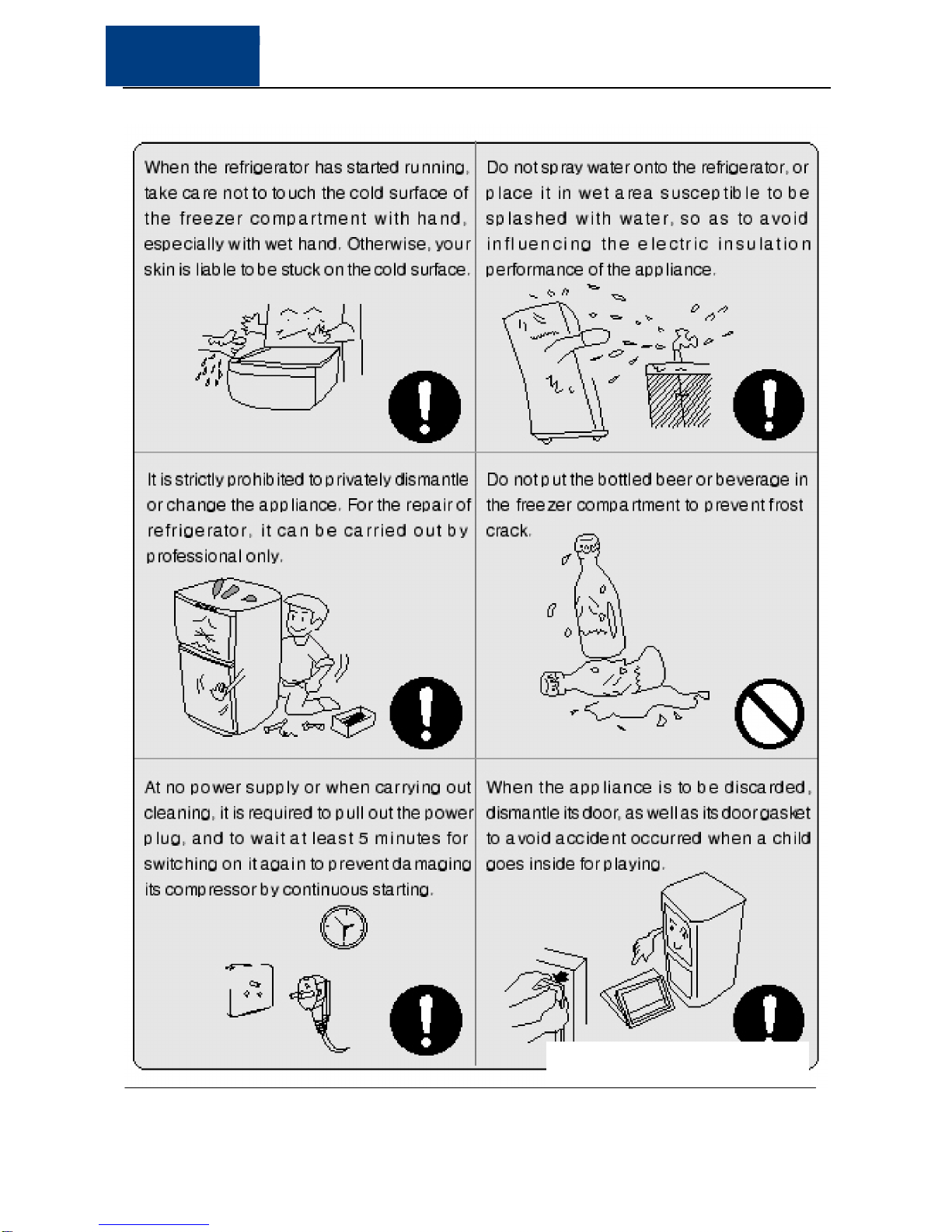

Safety precautions

Refrigerator HRF-288K/318K/348K

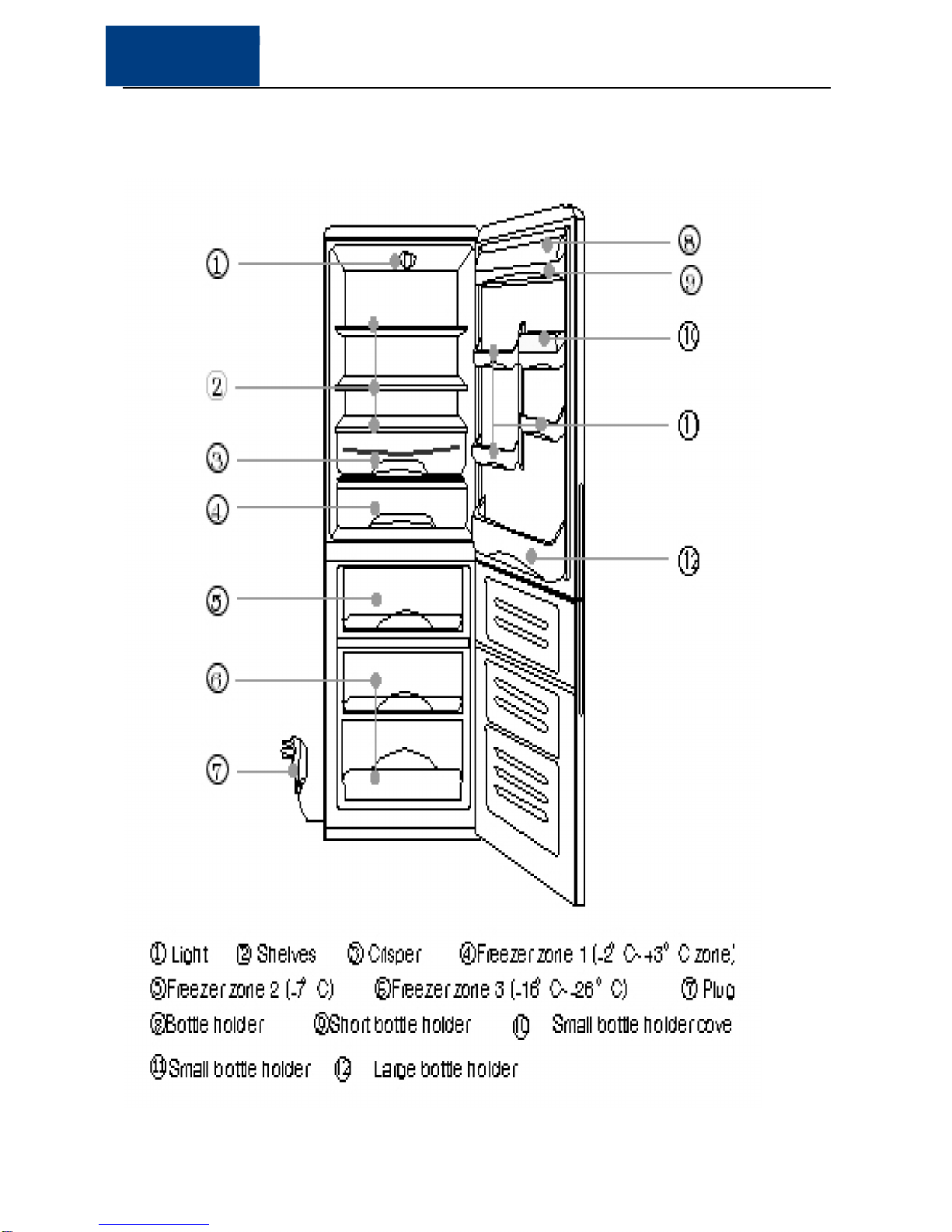

Parts and Functions

Refrigerator HRF-288K/318K/348K

Parts and Functions

Refrigerator HRF-288K/318K/348K

Function Schedule

1More beneficial for you

2Drawer storage in freezer

2Low noise design

3More beneficial for you

4keeping-moisture crisper

5CFC-free design

Function Schedule

Refrigerator HRF-288K/318K/348K

System Flow Chart

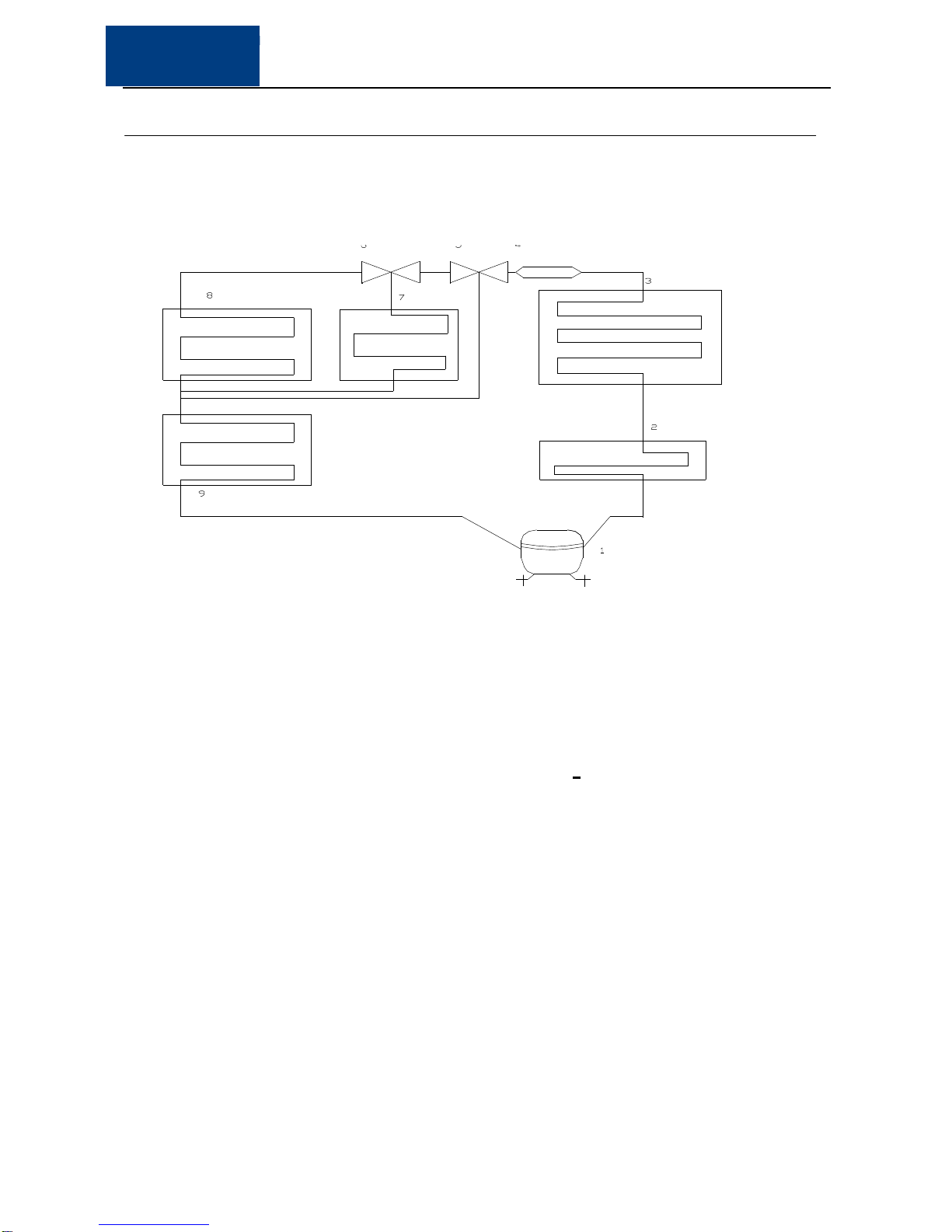

1 Schematic diagram of System Flow Chart

HRF-288K/318K

1 Compressor 2 Hot Tube 3 Condenser

4 Dry Filter 5 electromagnetism valve I

6 electromagnetism valve

7 Evaporator for frezzer Compartment II

8 Evaporator for Refrigerator Compartment

9 Evaporator for frezzer Compartment I

2 Brief Description of System Flow Chart

The refrigerating system (for HRF-288K/318K/348K SERIES) of direct

cooling dual-system refrigerator belongs to the category of dual circulating

system. It is formed by a single system.The refrigerant flows in the sequence:

1->2->3->4->5->6->7.

System Flow Chart
