USER GUIDE FOR REFRIGERATOR

AND

E-WASTE GUIDELINE MANUAL

I SMILE BECAUSE I AM HAIER

Haier Customer Care Toll Free (24x7)-1800-200-9999 Website:

“Source Euromonitor International Limited; retail volume sales in units based on 2011 data.

www.haier.com/in www.facebook.com/haierindia

Live Smart. Live Green. SMARTER LIFE BETTER PLANET

ECO LIFE

Major Appliances

World’s

DearFriend,

HappyInspiredLiving!

Thankingyou

At the outset, we at Haier thank you for your interest in our range of

products. A unique and international range of appliances designed

solely with the purpose of making modern life simpler. And how! The

entireHaierrange ofappliances ranging fromRefrigerators,Televisions,

Washing machines, Air-conditioners, Microwave ovens, Dishwashers,

Wine Coolers, Freezers, Visicoolers, and Chocolate Coolers combines

the best of technology,features, performance and styling.All,a result of

ourperfectunderstandingofyourlifestyleandneeds.

But what is a great product without great service? Leaving no stone

unturned in giving you the bestof service, we have also established an

extensivenetworkofauthoriseddealersandauthorisedservicecenters,

so that you get a lifetime of great and timely service for your Haier

Appliance.

It has been an honor and a pleasure bringing these hi-tech products to

youandwehopethatyougetasmuchhappinessusingthemaswehave

got,puttingthemtogetherforyou.

SETTING UP 1

KNOW YOUR REFRIGERATOR 4

REFRIGERATOR TEMPERATURE CONTROL 8

FOOD STORAGE DO’S & DON'T’S 11

REFRIGERATOR MAINTENANCE 12

-KEEPING THE REFRIGERATOR FRESH

GENERAL INFORMATION 13

TROUBLE SHOOTING 15

E-WASTE GUIDELINE MANUAL 14

METHOD TO FIX THE EXTRA LONG LEGS. (LONG LEGS ARE ONLY FOR SELECTED MODELS)

Now fix the 2 small legs

at the back on the

compressor mounting

plate as shown in the picture.

Keep the refrigerator

in steady position.

If needed be adjust

the legs to balance the

level.

Remove the front 2

legs by rotating

anti-clock wise.

Fix the extra long

adjustable legs in the front

where small legs were fitted.

Now If needed be adjust

the legs to balance the

level.

Keep the refrigerator in

standing position& align

with base stand (A) portion.

Keep the refrigerator

in steady position.

Remove the front 2

(L1 & L2) legs by

rotating anti-clock wise.

Fix the previous remove leg

(L1 & L2) in Base Stand

bottom front side, as per

see the picture.

METHOD OF BASE STAND INSTALLATION (BASE STAND ONLY FOR SELECTED MODELS)

L1 L2

Refrigerator has 2 inbuilt adjustable legs to balance the refrigerator. Haier has provided 2 extra adjustable long legs to increase the refrigerator height. This also helps

to clean the floor below the refrigerator easily.

Mark is applicable for Selected Models

HRD-1903/1904/1905 HRD-2014/2015

HRD-2454/2455 HRD-2714/2715

/190 /201 HRD-2104/2105/210

/245 /271

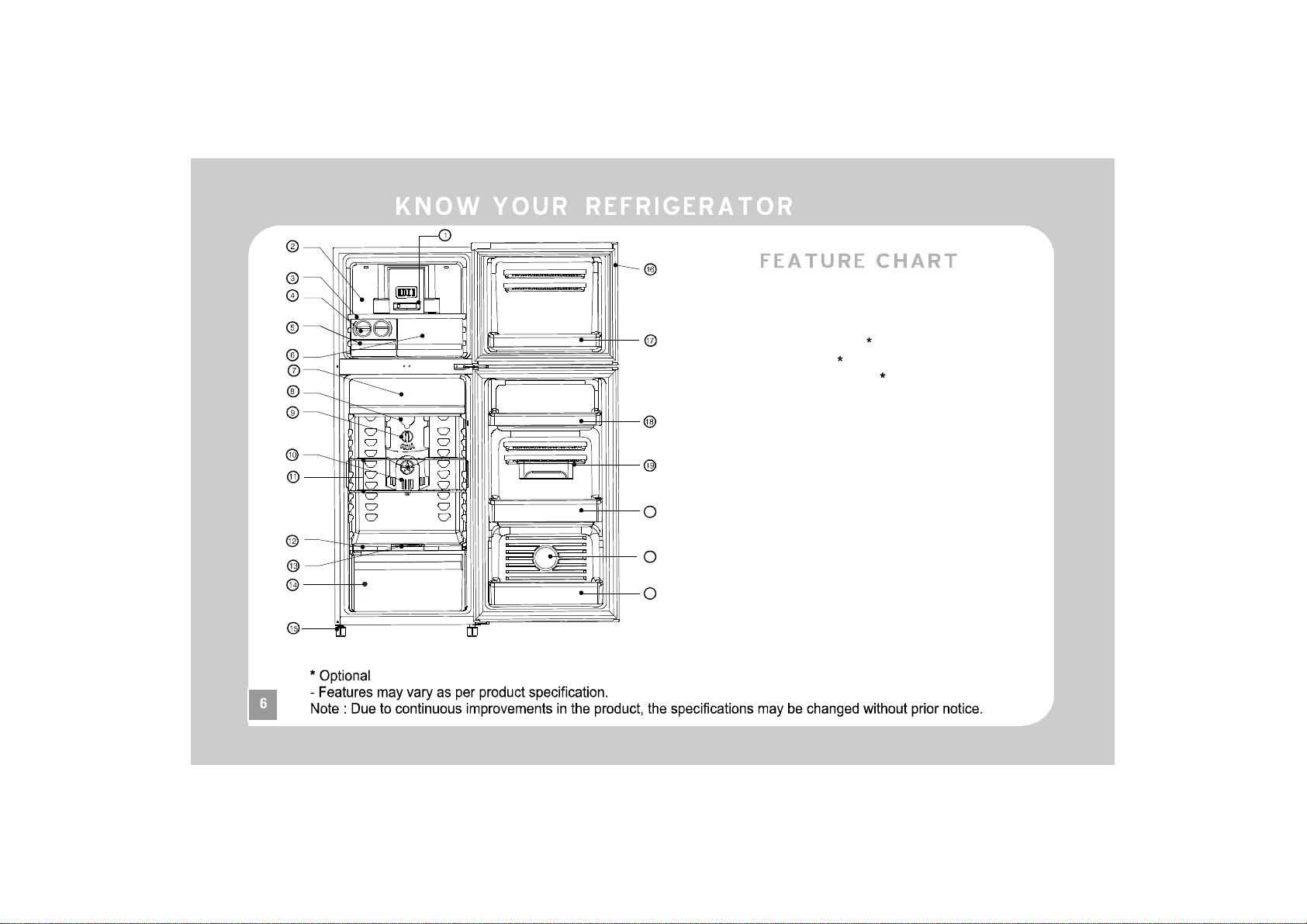

1. Freezer Box

2. Chiller Tray

3. Cabinet Shelves

4. Crisper Cover

5. Vegetable Box

6. Adjustable Legs

7. Temperature Control Knob

8. Door Rack Full Small

9. Lock

10. Sliding Tray

11. Door Rack Full Big

12. V/C Fresh

13. Door Rack Full Big

HRF-2203/2204/2205 HRF-2683/2684/2685

7. Chilled Room

10.

Freezer Temp Control

Freezer air-duct cover

Freezer Shelf

Refrigerator Temp Control

Toughened

Cover

Humidity Control

14. Adjustable Legs

16.

Utility Pocket

19. Sliding Pocket

20.

Twist Ice Tray

Ice Zone

6. Ice cream Zone

Refrigerator light

3 D Cooling System

11. Glass Shelves/

Wire Shelves

12. Vegie Zone

13. Vegie Zone

15. RemovableAntifungal Door Gasket

17. Freezer Utility Space

18.

Bigger bottle Space

21. VC Fresh

HRB-2603/2604/2605 HRB-2953/2954/2955

HRB-3203/3204/3205
