SAFETY PRECAUTIONS
When using this appliance, always exercise basic safety precautions,
including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the installa-
tion instructions before it is used. See grounding instructions in the installa-
tion section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note:If for any reason this product requires service, we strongly recommend
that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove
the doors and leave the shelves in place. This will reduce the possibility of
danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the refrigerator compartment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
9) This refrigerator should not be recessed or built-in an enclosed cabinet. It is
designed for freestanding installation only.
10) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
English
1
Thank you for using our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your refrigerator.
Remember to record the model and
serial number. They are on a label
in back of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
English
2
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or refrigerator, take off the doors. Leave the
shelves in place so that children may not easily climb inside.
Table Of Contents
PAGE
Safety Precautions ..........................................................................1
Parts And Features ..........................................................................4
Installing Your Refrigerator ............................................................5
Unpacking Your Refrigerator ................................................................5
Proper Air Circulation ..........................................................................5
Electrical Requirements ........................................................................5
Use of Extension Cords ........................................................................6
Install Limitations..................................................................................6
Door Alignment ..................................................................................6
Refrigerator Features And Use..........................................................7
Operating Your Refrigerator..................................................................7
General Features ................................................................................7
Defrosting And Draining ......................................................................8
Normal Operating Sounds ..................................................................8
Proper Refrigerator Care and Cleaning........................................9
Cleaning and Maintenance ..................................................................9
Power Interruptions ............................................................................10
Vacation and Moving Care ................................................................10
Troubleshooting ............................................................................11
Warranty Information....................................................................11
English
3
Parts And Features
English
4
2
3
4
5
6
1

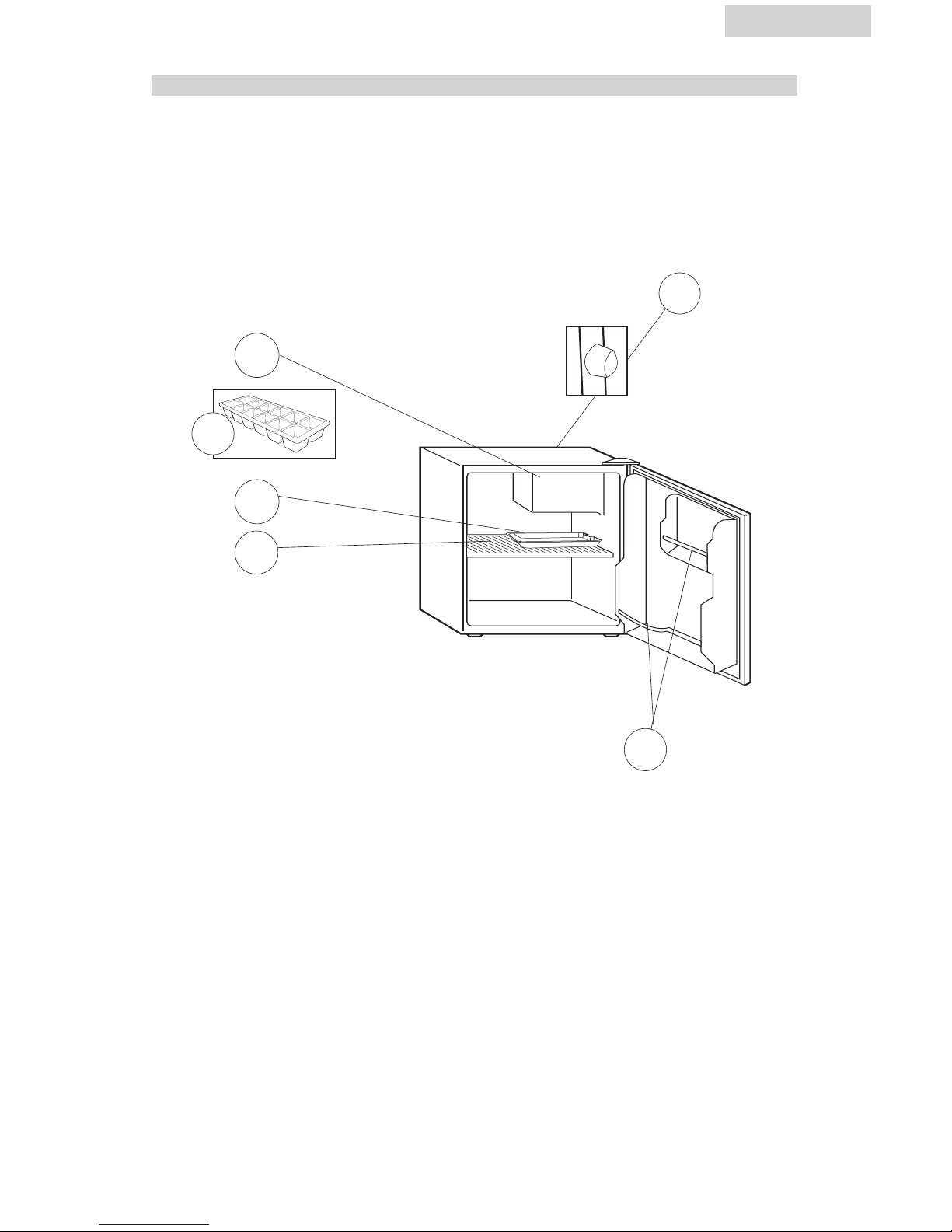

1. Freezer Compartment
2. Ice Cube Tray
3. Drip Tray
4. Full Width Shelf
5. Temperature Control (not shown
rear mounted)
6. 1 Full and 1 Half Door Storage
Width Shelf
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materi-
als before powering on the refrigerator.
• To assure your refrigerator works at the maximum efficiency it was
designed for, you should install it in a location where there is proper
air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………3/4 "(19mm)
Top ....................2" (50mm)
Back ..................2" (50mm)
• Make sure there is a suitable power Outlet (115 volts, 15 amps out-
let) with proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding
in order to accommodate a two plug outlet. This is a dangerous prac-
tice since it provides no effective grounding for the refrigerator and
may result in shock hazard.
Installing Your Refrigerator
Unpacking Your Refrigerator
Proper Air Circulation
English
5
Electrical Requirements
•Avoid the use of an extension cord because of potential safety haz-
ards under certain conditions. If it is necessary to use an extension
cord, use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot outlet that will accept the plug. The marked rating
of the extension cord must be equal to or greater than the electrical
rating of the appliance.
• Do not install your refrigerator in any location not properly insulated
or heated e.g. garage etc. Your refrigerator was not designed to
operate in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface
away from direct sunlight or heat source e.g. radiators, baseboard
heaters, cooking appliances etc.
1. Remove the top hinge cover by using a flathead screwdriver.Place
the head under the front edge of the cap and gently lift.
2. Loosen the top hinge screws using a Phillips head screw driver.
3. Adjust the door or put a spacer in between and tighten the screws.
4. Replace the top hinge cover by aligning the rear of the cover with the
rear of the hinge. Press firmly on the front of the cover until it snaps
in place.
Install Limitations
English
6
Use of Extension Cord
Door Alignment (see fig.#1)
fig. 1
Refrigerator Features And Use
General Features
Your refrigerator will automatically maintain the temperature level you select. The
temperature control dial has 7 settings plus off. 1 is the warmest. 7 is the coldest.
Turning the dial to 0 stops cooling in both the refrigeration and freezer sections.
At first, set the dial to 4 and allow 24 hours to pass before adjusting the temper-
ature to your needs.
(Note: If the refrigerator has been placed in a horizontal or tilted position for
any period of time wait 24 hours before plugging the unit in.)
Refrigerator Interior Shelves
To remove or replace a full-width slide-out shelf: (see fig. # 2)
1. Gently tilt the shelf up and slide forward until the shelf has been completely
removed.
2. To replace the shelf, gently slide the shelf back.
English
7
fig. 2
English
8
Defrosting Your Refrigerator (see fig. # 3)
•For maximum energy efficiency, defrost freezer section whenever frost
accumulates to a thickness of 1/4" or more on freezer walls. Note that
frost tends to accumulate more during the summer months.
• To defrost freezer, remove food and ice cube tray from the freezer
section. Your model requires you to place the drip tray under the
freezer section (see Fig. 3). To defrost turn the temperature control
dial to the 0 position. Defrosting may take a few hours. To speed up
defrost time, keep the door open and place a bowl of warm water in
the refrigerator.
• During the defrost cycle, water will accumulate in the drip tray. The
drip tray may also need to be emptied during the defrost process. Do
not leave unattended.
• After defrosting, empty and wipe down the drip tray, as well as the
interior of the refrigerator. You may now reset your refrigerator to the
desired temperature and return food.
Normal Operating Sounds You May Hear
•Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
fig. 3
English
9
Proper Refrigerator Care and
Cleaning
Cleaning and Maintenance
Toavoid electric shock always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury.
Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
•Rinse with clean warm water and dry with a soft
cloth.
•Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your refrigerator.
• Clean door gaskets every three months according
to general instructions. Gaskets must be kept clean
and pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of
gaskets will keep the gasket pliable and assure a
good seal.
Door Gaskets:
General:
Caution:
Warning:
