Haier HC17SF10RB Manuel utilisateur

Order NO.Ref1403S005V0

◎2014(HAIER ELECTRICALAPPLIANCES COR. LTD)

Allrightreserved.Unauthorizedcopyinganddistributionisaviolationoflaw.

Refrigerator

SERVICE MANUAL

MODEL: HC17SF10RB

HC27SF10RW

HC27SF10RB

Haier Group

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It

dose not contain warnings and cautions to advice non-technical individuals of potential dangers in attempting to service a product.

Product powered by electricity should by serviced or repaired only by experienced professional technicians. Any attempt to service

or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

WARNING

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

Contents

Chapter 1 General Information .............................................................................................................3

1-1. General Guidelines........................................................................................................................3

1-2. Insurance Test...............................................................................................................................3

1-3. How to read this Service Manual...................................................................................................4

Chapter 2Product Feature ....................................................................................................................5

2-1. SPECIFICATIONS.........................................................................................................................5

2-2. External views ...............................................................................................................................6

Chapter 3 Disassembly.........................................................................................................................7

3-1. Thermostat disassembly................................................................................................................7

Chapter 4 System flow principle ...........................................................................................................9

4-1. Refrigeration flow chart..................................................................................................................9

Chapter 5 Circuit diagram...................................................................................................................10

5-1. Brief principle diagram.................................................................................................................10

Chapter 6 Trouble shooting ................................................................................................................11

6-1.Compressor parameter.................................................................................................................11

6-2. Normal phenomena.....................................................................................................................12

6-3. No cooling....................................................................................................................................14

6-4. Refrigerator compressor no start.................................................................................................15

6-5.Noisy.............................................................................................................................................17

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

Chapter 1 General Information

1-1. General Guidelines

When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have

been overheated or damaged by the short circuit. After servicing, see to it that all the protective devices

such as insulation barriers, insulation papers shields are properly installed. After servicing, make the

following leakage current checks to prevent the customer from being exposed to shock hazards.

1) Leakage Current Cold Check

2) Leakage Current Hot Check

3) Prevention of Electro Static Discharge (ESD) to Electrostatic Sensitive

1-2. Insurance Test

1. Check if there is any leak of current.

2. Cut out the power supply before the repair to avoid an electrical shock hazard.

3. In the case of a live-line test, insulating gloves should be worn to avoid potential electrical shock.

4. Confirm the rated current, voltage and capacity before testing with any kinds of instruments.

5. Watch if the upper door is open when we check something at a lower position.

6. Take out every part in the cabinet before moving the machine, especially things like panels (e.g.

glass shelf).

7. Please wear intact cotton gloves when repair any parts of the evaporator, so that scratches by

the sharp fins can be avoided.

8. If there is a breakdown with the refrigeration system, please surrender the machine to the service

center, else the leaked refrigerant may pollute the atmosphere.

9. The refrigerator use AC of 115V with a frequency of 60Hz.

10. A big fluctuation of voltage may cause a start failure of the refrigerator, a burn-out of the control

panel and compressor, or an abnormal sound from the compressor in operation.

11. Take care not to damage the supply line. Don’t yank at the line; pull the plug out gently from the

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

receptacle. Don’t press the line under the cabinet or step on it. Take care not to roll on or damage the

supply line when moves the machine from the wall.

12. In the case of leakage of inflammable gases like carbon monoxide, open the door and windows.

Don’t pull out or insert the plugs of the appliance.

13. Don’t touch the refrigeration surface of the freezing compartment when the refrigerator is in

operation, especially when our hand is wet, else we may be glued to the surface.

14. Pull out the plug of power supply during clearance or power outage. Wait at least five minutes to

resume the power supply in order to prevent damage to the compressor caused by continuous restart.

Photo used in this manual

The illustration and photos used in this Manual may not base on the final design of products, which may

differ from the products in some way.

1-3. How to read this Service Manual

1-3-1. Using Icons

Icons are used to attract the attention to specific information. The meaning of each icon is described in the

table below:

Note:

A “note” provides information that is not indispensable.

Caution:

A “caution” is used when there is danger that the reader, through incorrect manipulation, may damage

equipment, loose data, get an unexpected result or has to restart (part of) a procedure.

Warning:

A “warning” is used when there is danger of personal injury.

Reference:

A “reference” guides to find additional information on a specific topic.

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

Chapter 2Product Feature

2-1. SPECIFICATIONS

1 Model HC17SF10RB HC27SF10RW/B

Product description Refrigerator Refrigerator

2 Key features

Total net capacity L 52 76

Defrosting (H=manual A=automatic) H H

Kind of coolant R600A 20g R600A 22g

3 Technical data

Voltage / frequency V/Hz 115V/ 60Hz 115V/ 60Hz

Temperature range °C -2-5 -2-5

Input power W 85 85

4 Product net dimensions

Unitdimensions (H/W/D) mm 505×495×465 685×495×465

Net weight kg 15.5 18

Packingdimensions (H/W/D) mm 492×479×454 664×479×454

Gross weight kg 17 20

5 Service

User instruction (languages) English English

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

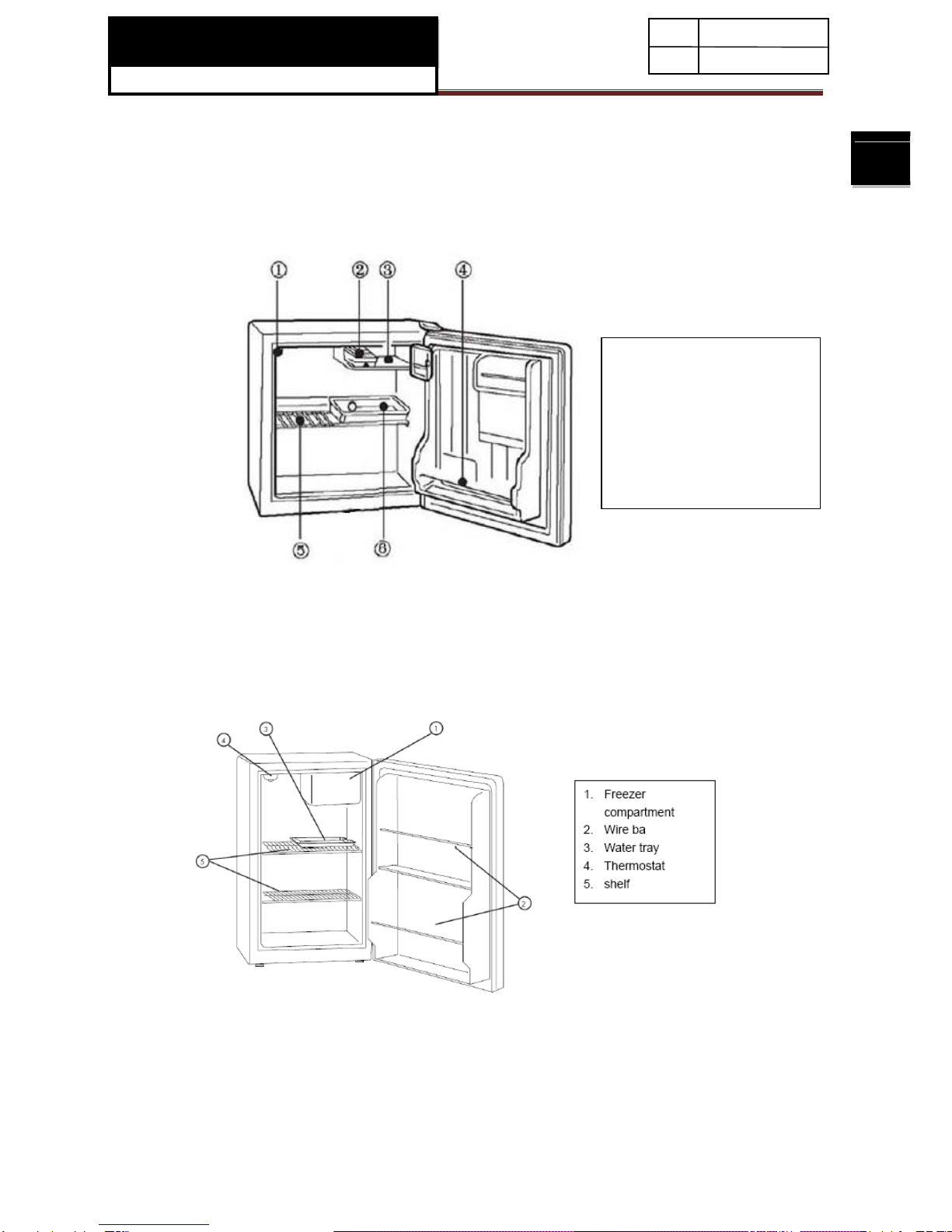

2-2. External views

HC17SF10RB

HC27SF10RW/B

1. Thermostat

2. Ice tray

3. Freezer compartment

4. Bottle rack

5. Shelf

6. Water tray

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

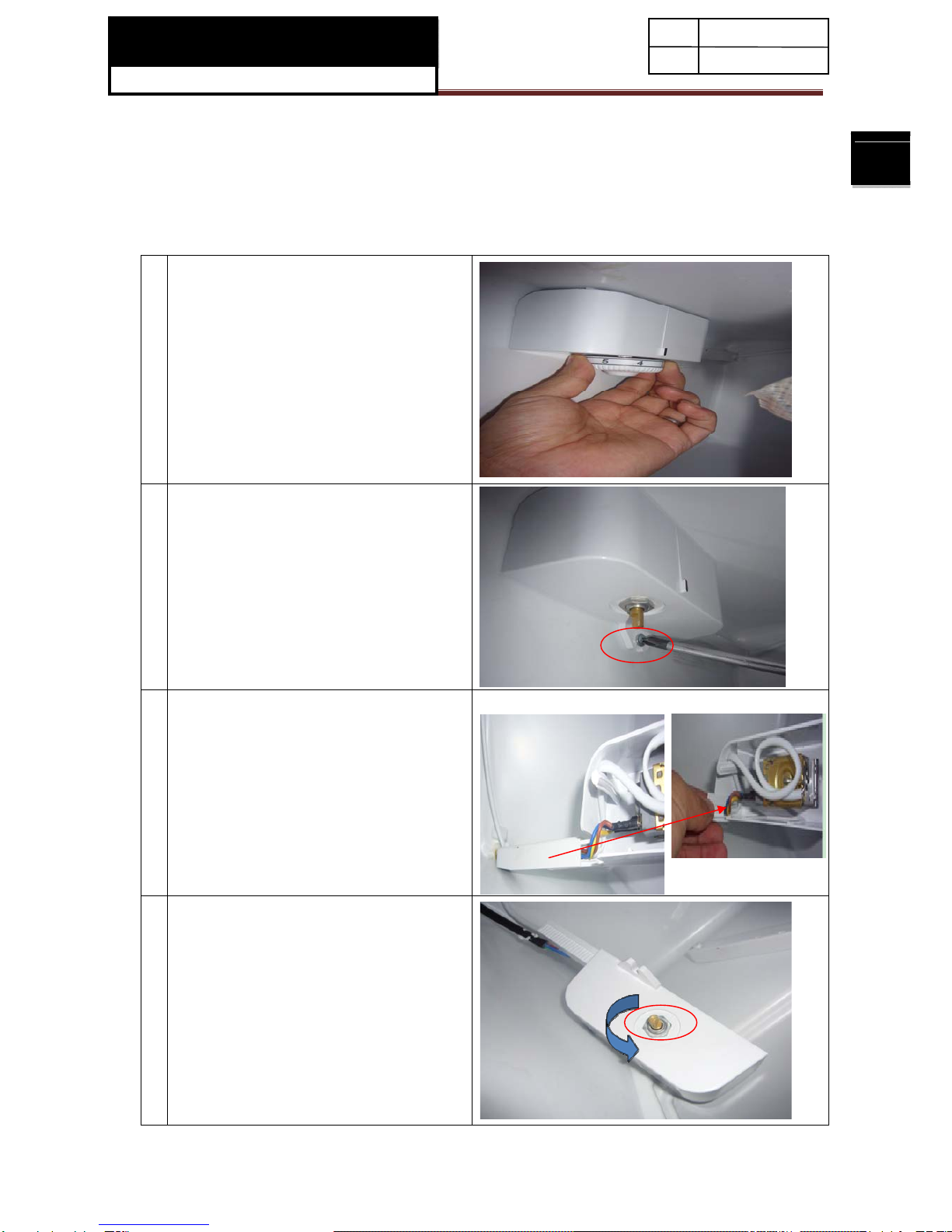

Chapter 3 Disassembly

3-1. Thermostat disassembly

1 First take down the thermostat knob

2 Unscrew the screw like the picture

3 Take down the wire groove

Rotate the thermostat axes

counter-clockwise and take down the

thermostat

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

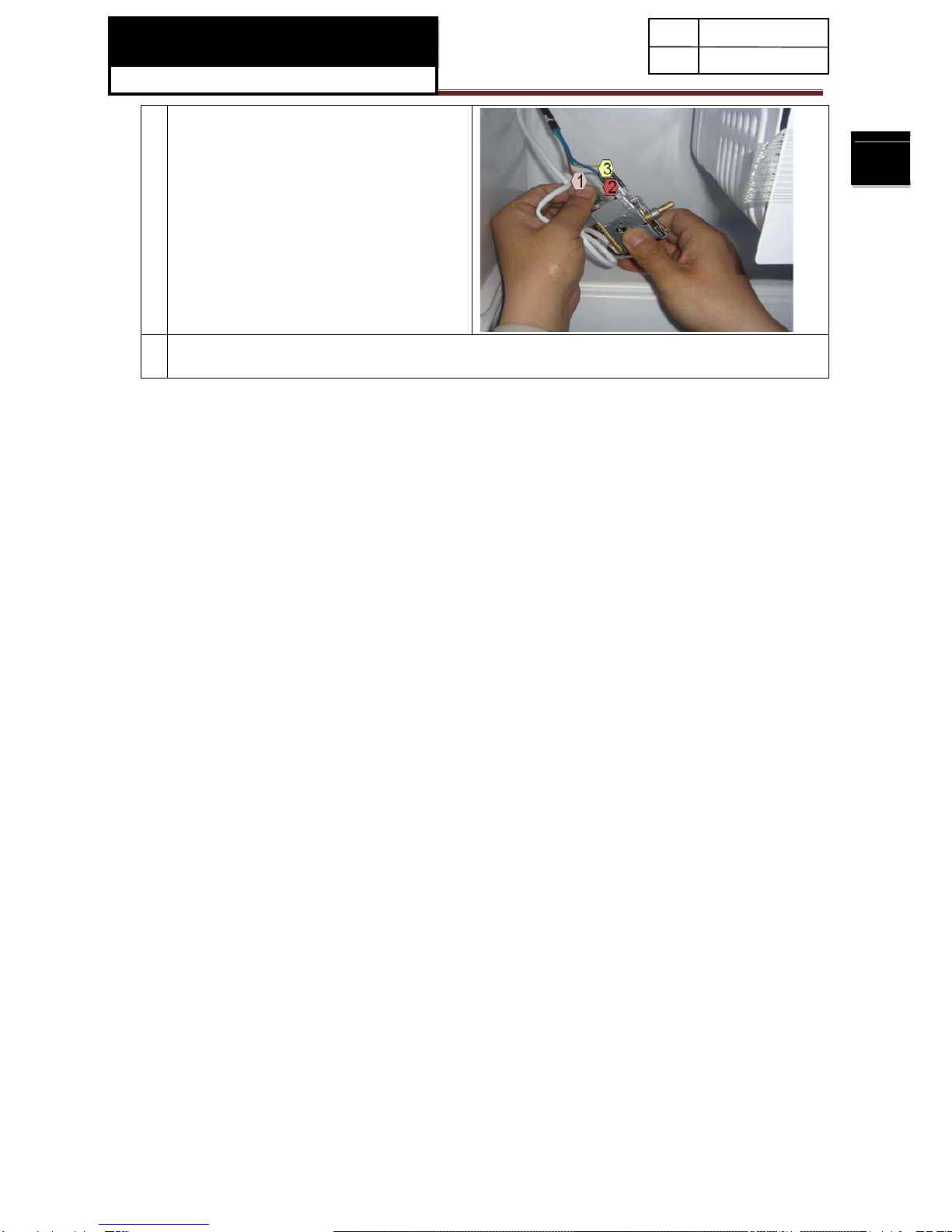

Disconnect the thermostat terminal

according to the order of the picture.

And then remove the thermostat.

6 Install the thermostat according to the reverse order.

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

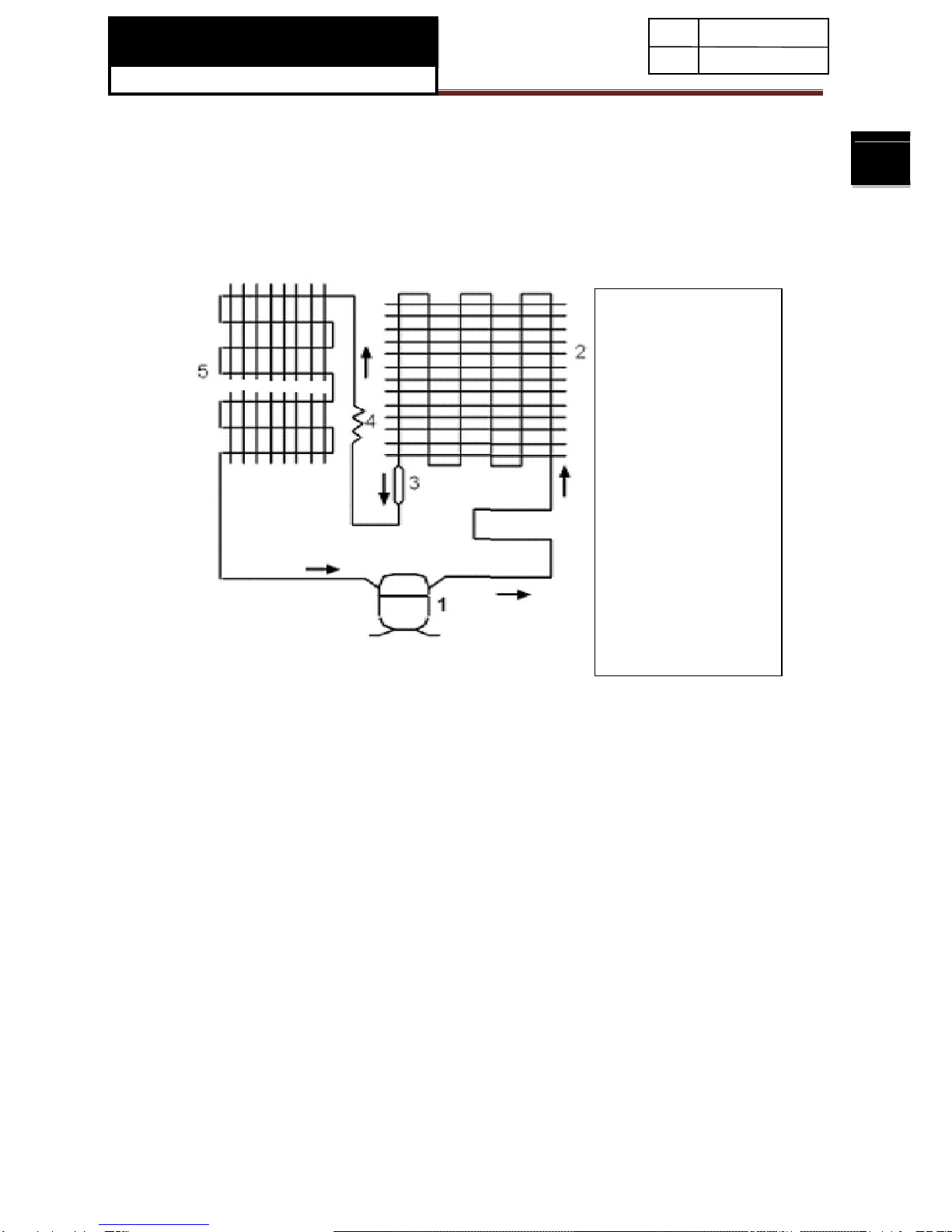

Chapter 4 System flow principle

4-1. Refrigeration flow chart

1 Compressor

2Condenser

3Filter drier

4Capillary tube

5Evaporator

SERVICE

MANUAL

Model: HC17SF10RB/HC27SF10RW/B

Issue 2014-3-10

Rev. Ref1403S005V0

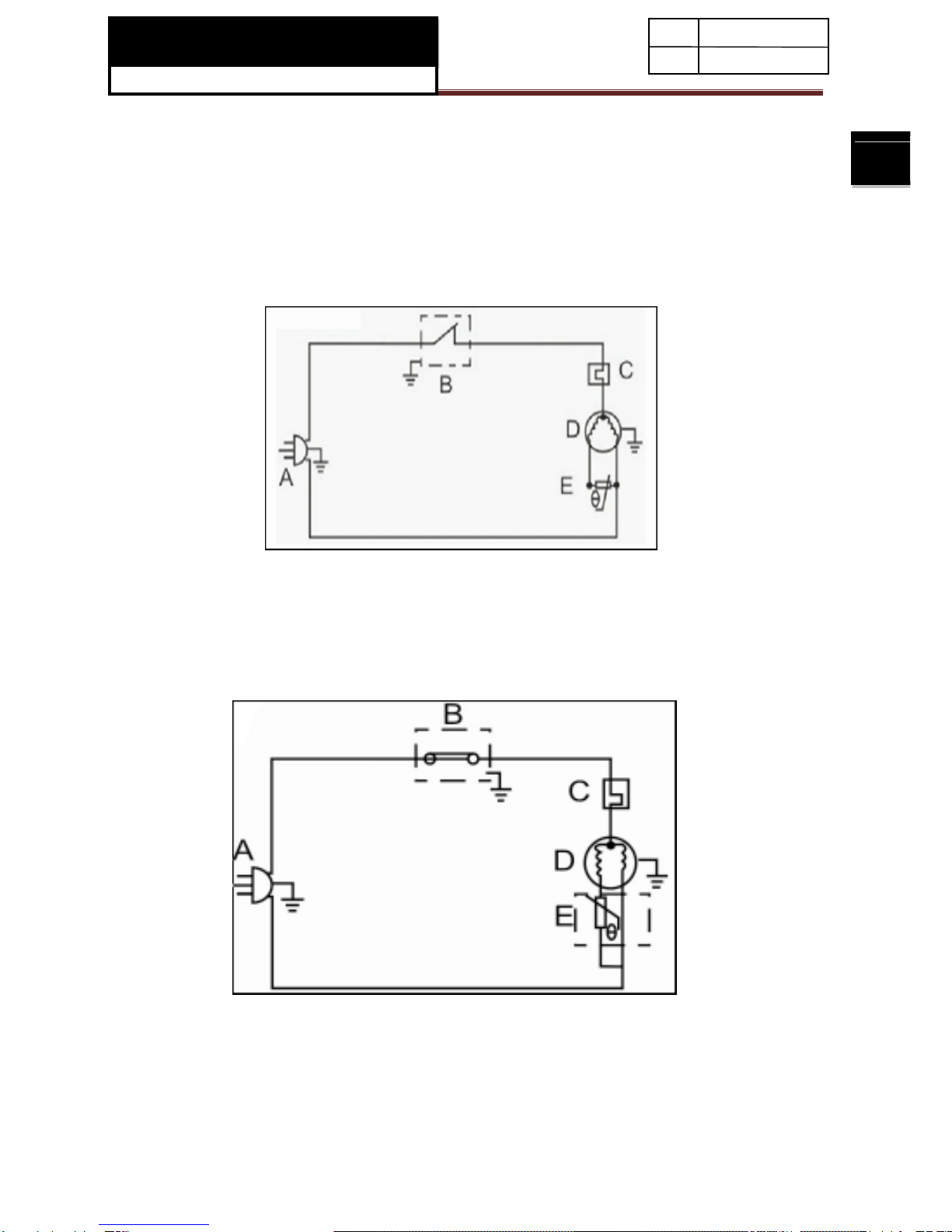

Chapter 5 Circuit diagram

5-1. Brief principle diagram

HC17SF10RB:

A POWERPLUG B THERMOSTAT C OVERLOAD PROTECTOR

D COMPRESSOR E PTC

HC27SF10RW/B:

A POWERPLUG B THERMOSTAT C OVERLOAD PROTECTOR

D COMPRESSOR E PTC
