LET50C800HF

Welcome

Important Information

01 Safety Warnings

Safety notice

Warning and cautions

Main Parameter

Base Stand Assembly Instruction

02 Introduction

Wall Mounting Installation Guidelines

Front Control Panel

Rear/Side Sockets 9

Connecting to your Haier TV

Common Interface

Remote Control

03 Remote Control

Teletext 13

Installation Guide

04 Operation

CHANNEL MENU 15

Auto Tuning (DVB-T) 15

Auto Tuning (DVB-C) 16

DTV Manual Tuning (DVB-T)

DTV Manual Tuning (DVB-C)

ATV Manual Tuning

PICTURE MENU 18

SOUND MENU 18

TIME MENU 18

OPTION MENU

LOCK MENU

EPG Menu(Electronic Program Guide) 19

PVR function 20

Prepare to record the program 20

Record the program 21

Play the record 21

Timeshift function 22

Prepare to record the program 22

USB Drive Storage Format 22

Record a paused DTV program

to USB storage device 22

Timeshift limitations 23

USB Player 24

Trouble shooting

05 Trouble shooting

Specification 28

Program edit

CI information

Thanks for buying this 50" LED LCD TV . This guide will help you set up and begin using your TV.

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE.

FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN

THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF

CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE

CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR

SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE

THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT

DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

Now you can get started!

01 Safety warnings

50" Full HD 1080P Digital

Remote control

Instruction Manual

Quick start guide

AAA ba x2ttery

LED LCD TV

Scart Cable x 1

Stand

the

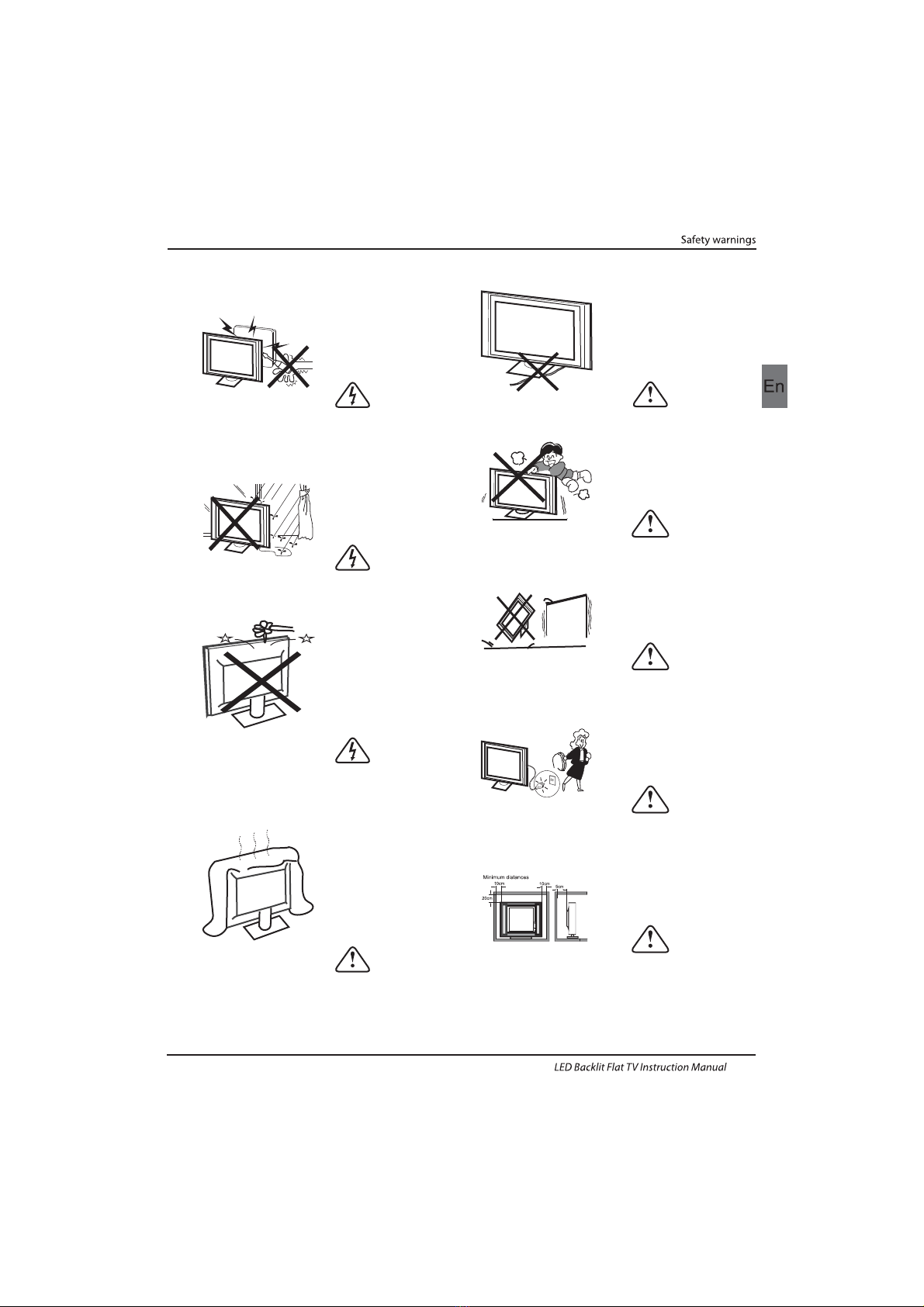

Safety notice

EN-3

WARNING: TO avoid any injury caused by lean of

the product,please always ensure the whole

product was placed within the table surface in

horizontal.

Dim:515*320mm(不包括底座）

Warning

High voltages are used in the operation of this

television receiver. Do not remove the cabinet

back from your set. Refer servicing to qualified

service personnel.

Warning

To prevent fire or electrical shock hazard, do

not expose the television receiver to rain or

moisture.

Warning

Do not drop or push objects into the

television cabinet slots or openings. Never

spill any kind of liquid on the television

receiver.

Caution

Do not block the ventilation holes in the back

cover. Adequate ventilation is essential to

prevent failure of electrical components.

Caution

Do not trap the power supply cord under the

television receiver.

Caution

Never stand on, lean on, or suddenly push the

television or its stand. You should pay special

attention to children. Serious injury may result if

it should fall.

Caution

Do not place your television on an unstable cart,

stand, shelf or table. Serious injury to an

individual , and damage to the television, may

result if it should fall.

Caution

When the television receiver is not used for an

extended period of time, it is advisable to

disconnect the AC power cord from the AC

outlet.

Caution

If the television is to be built into a compartment

or similar enclosure, the minimum distances must

be maintained. Heat build-up can reduce the

service life of your television, and can also be

dangerous.

WARNING AND CAUTIONS

EN-4

INSTALLATIONCAUTION

*Locate the TV in the room where light does

not strike the screen directly.

*Total darkness or a reflection on the picture

screen can cause eyestrain. Soft and indirect

lighting is recommended for comfortable

viewing.

*Allow enough space between the TV and the

wall to permit ventilation.

*Avoid excessively warm locations to prevent

possible damage to the cabinet or premature

component failure.

*Do not cover the ventilation openings when

using theTV.

Main parameter

Main features

4 NICAM；

5 T；ime-shift

HDMI interface and SCART

Interface；

High luminance, wide viewing

angle；

Used as Television, display terminal,

PC display；

Never tamper with any components inside the

TV, or any other adjustment controls not

described in this manual. All LED-TV's are high

voltage electrical equipment.

When you clean dust or any water drops off the

SCREEN or CABINET or around any of the

buttons or connectors, the power cabled should

be removed from the power socket. Wipe the TV

with a soft, dry, dust free cloth.

During thunderstorms, unplug the power cable

and aerial / antenna cable to prevent damage to

your TV and any other devices connected to it.

All repairs to this TV should only be performed

by qualified TV service

personnel.

02 Introdution

Introduction

EN-5

Panel

TV System PAL-B/G 、I、D/K

SECA M- B/G 、D/K、L

Video Signal System PAL/SECAM

Input Power Voltage AC 100 -240 V 50/60Hz

Power consumption

Audio Output Power （THD 7%）2x8W

Signal Input Analog RGB(PC) x1; PC audio x1

High-Definition Multimedia Interface (HDMI)x2

Composite Input x 1

YPbPrx1

Mini SCART x 1

120W

CI x 1

USB x 1

RF Co-Ax x 1

Horizontal definitio n（T V line）Composite Video input >=350

YPbPr >=400

Standby Power consumption <0.50W

PRESET MODE

1024x768

1280x1024

640x480 60 31.47

800x600 60 37.88

48.36

63.98

RESOLUTION V.Freq.(KHz) H.Freq.(KHz)

1360x768 60 47.7

Introduction

EN-6

1920x1080 60 66.64

Base Stand Assembly Instruction

1. Place the TV with the display side down on a

flat surface. Use a cloth to protect

the

display Position the stand base plate onto the

bottom of the stand pole.

2. Attach the stand base plate to the stand pole

by firmly tightening the supplied screws.

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness or a

reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for

comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature

component failure.

Please do not attempt to rotate the TV on the stand.

Introduction

EN-7

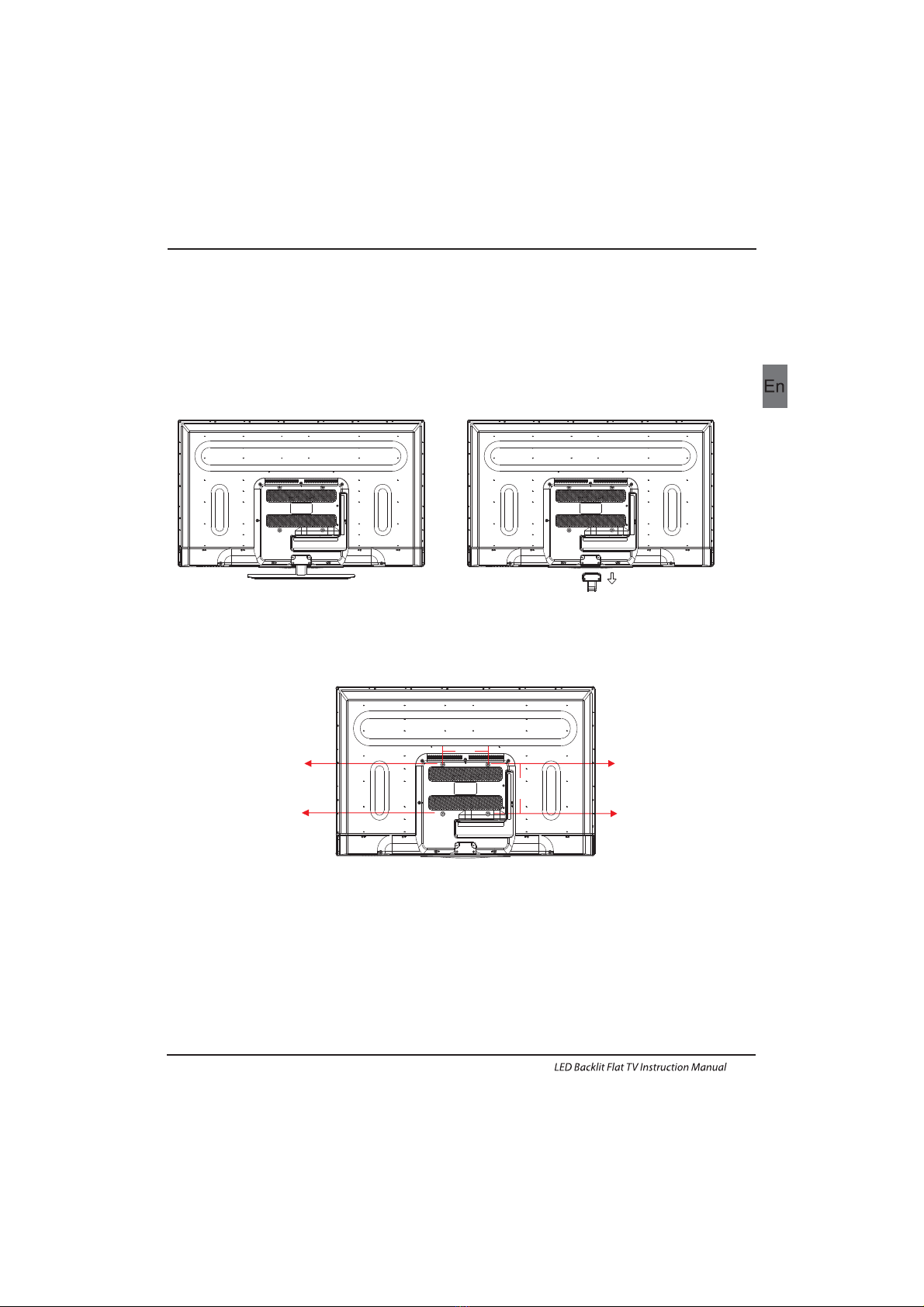

WALL MOUNTING INSTALLATION GUIDELINES

2.Remove the screws from the lower part of the

television, where the base joins to the TV, and take

away the stand (put the stand somewhere safe for

future use).

1.Place the LED LCD Television onto a solid

surface. Please place some soft material

over the front of the screen to protect it

from any damage.

3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)

via the four VESA standard holes on the back of the television.

Introduction

EN-8

This television can be wall mounted as follows:

M6x9

200mm

AC-INPUT

100-240V~50/60Hz

YPb PrVIDEO L R HDMI2

Rear/Side Sockets

Remote control sensor.

Indicator LED:

BLUE: POWER ON. RED: STAND BY.

Key board.

1SOURCE

Display the input source menu.

MENU Display main MENU.

CH+/CH- In TV mode,press CH+ or CH- to change

the channel up and down.

In MENU, press CH+ or CH- to select items .

STANDBY

VOL+/VOL- Adjust sound level.

In MENU,adjust the item that you selected.

Introduction

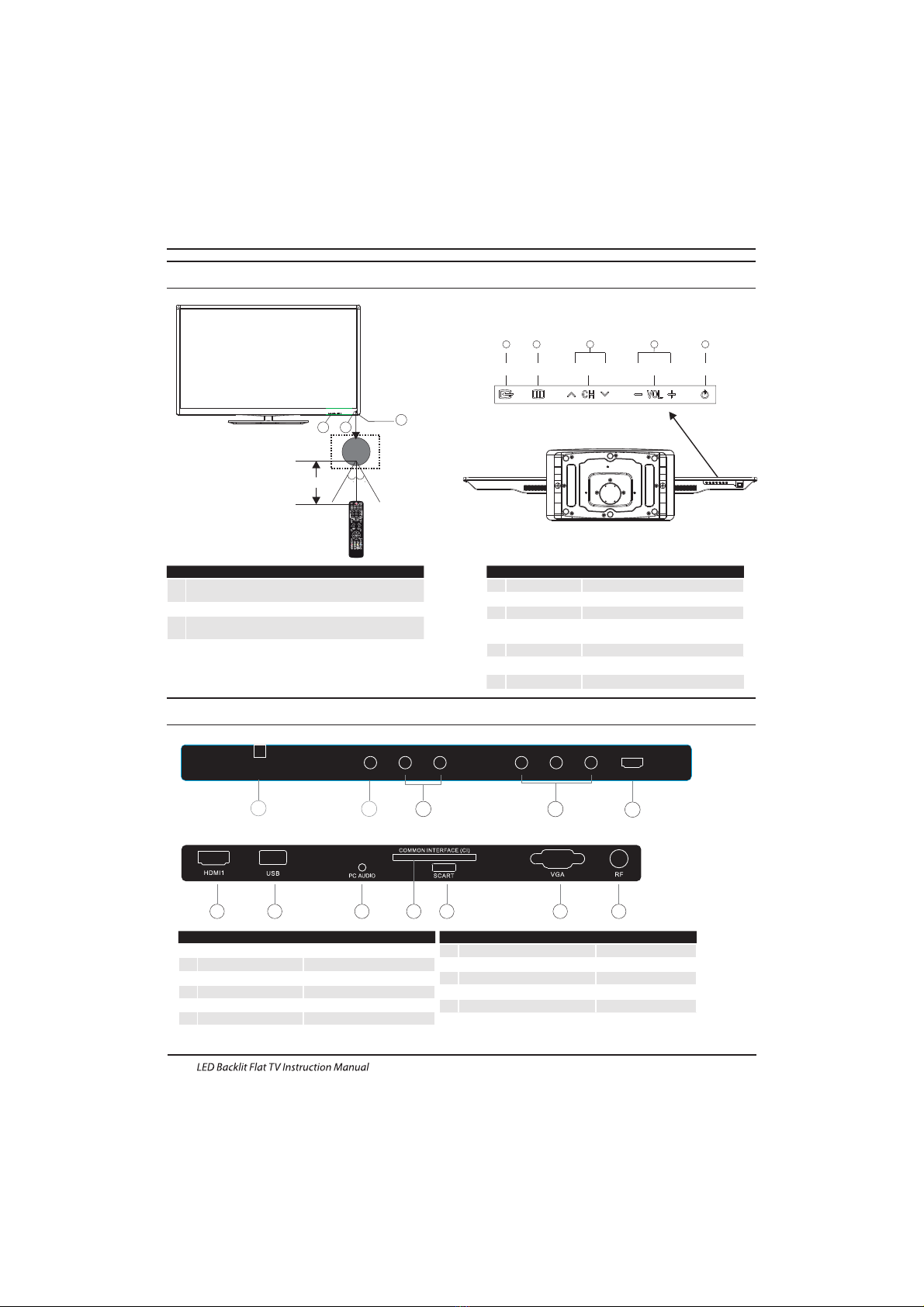

Front control panel

EN-9

1AV

input

YPbPr

input

5input

input

SCART

input

8PC AUDIO input

L/R AUDIO

345

6 7 8 10

911 12

AC Power Source

HDMI2

input

HDMI1

USB

COMMON INTERFACE(CI)

VGA INPUT

ANT

30 30

SOURCE

MENU CH+ CH- VOL+ STANDBYVOL-

2 3 4 5

≤8m

input

input/output

input
