Table of Contents

Characteristic Functions 1

Important Safety Instructions 2

Technical Specifications 5

The Technical Specifications for Final Product 5

Technical Specifications for TV 6

VGA Display Mode 6

Power Management 6

Packing Listing 6

Installation & Connection 7

Antenna Connection 7

Power Connection 8

Computer Connection 8

AV1 Video Signal Connection 9

AV2 Video Signal Connection 10

YPbPr/YCbCr Input Connection 11

Position of Control Keys 12

Remote Control 13

Basic Operation Instruction 15

Power On 15

Standby 15

Signal Source Selection 15

Menu Operation Instruction 15

PICTURE 16

SOUND 17

OSD 18

ADVANCE 18

TV 19

Simple Troubleshooting 22

HDMI digital port Connection 8

Characteristic Functions

1. LCD panel with no glint and low radiation can ease eyes' fatigue and protect

eyes.

2. High-quality LCD panel is adopted with high brightness, high contrast, wide

viewing angle, and super fast response time. Super fast response time can

greatly eliminate the shadow of moving images.

3. TV/Monitor with two in one and multiple input ports can easily switch among the

Modes.

4. De-interlacing image disposal is adopted. Today's most advanced technique for

movement compensation, can completely improve the saw tooth and vague

edges of the athletic picture.

5. There are four smart sound modes and four smart image modes.

6. Dynamic contrast technology can obviously improve the definition and contrast

of the picture

7. Tuner for frequency synthesis can support full auto search and manual search.

8. With perfect timing function, you can set time to turn off. It will be turned off in

state of no signals, too.

9. Auto Adjustment can help you to setup the image into the best performance in a

few seconds instead of complicated adjustment in PC mode.

10. Auto color balance adjustment technology can make the machine to reach the

best color setting in PC mode.

11. Support hi-definitionYPbPr and double HDMI.

12. All functions can be realized with remote control, which is really a convenient

operation.

13. Power is designed to save energy. The standby power consumption is less

than1.5W.

14. Input ports include VGA, YPbPr, HDMI, S-Video, CVBS, USB and TV.

15. Output ports include AV and Earphone.

16. Support USB interface, you can look through picture of JPG format and play

music files of Mp3 format.

Important Safety Instructions

Thank you to choose the LCD TV made by our company, a valuable product with

excellent quality and multiple functions. This machine will bring you more

audiovisual enjoyment. Its design can insure user s safety. All machine are strictly

tested before leaving factory. But incorrect use can lead to electric shock or fire. In

order to insure safety and extend its life, please read below regulations carefully

before using it and comply with the following safety instructions.

When the following troubles occur, please pull out the plug and call the

professional engineers to repair.

A. The cable or plug is damaged.

B. The product was fallen down or the case is

damaged.

C. Obvious abnormal situation occurs. In spite

of correct operation according to the user

manual but it still can't work normally.

D. Some abnormal substances or liquid fall into it.

E. Unusual sound or smell sends out.

There is high voltage inside the machine but no parts which can be repaired by

users themselves. In order to assure the people's safety, please do not open

the case to repair it by yourself. If it is needed to repair, please contact qualified

engineer to repair.

Please put this machine in the place of well

ventilation, instead of extremely hot, cool or

moist, and direct sunlight.

The slots on the case is designed to release

heat so as to assure that all inside components

will not reach an extra high temperature and

can work normally for a long time. Please do

not cover the holes while place it.

Unless there is good ventilation installation,

please do not put this machine in inlaid device.

Please do not place it on an unstable position

so as to avoid falling off.

Do not place the LCD TV near water source,

like a bathtub, pool, washing machine, or moist

Important Safety Instructions

cellar and similar environment.

During a thunder rain weather, do not touch

the power cord and antenna cable. Please

pull out the power line and aerial plugs for

preventing thunder and lightning damage to

this machine.

All cables can be connected or pull out only after power supply is turned off.

The power cord must be taken off before you

clean the machine. Do not use the liquid

cleanser or aerosol cleanser. It is

recommended to use a wet soft cloth to clean

the machine. Do not use the alcohol,

impregnant or ammoniac liquid to wipe the

screen.

If you will not use the machine for a long time, please pull out the power cord.

Do not keep the sleeping mode for too long time.

Read the manual and marking label before using the machine, and keep the

user manual for later use.

Don't use the attachments which are not recommended by the machine

manufacturer as they may cause hazards.

The power cord must be placed correctly so as to avoid be trample or crush.

Please do not make the power socket overloaded or the power cord extended.

Otherwise it will cause fire or electrical shock.

The LCD panel is fragile and expensive. The surface of the panel is easy to be

scratched. Please do not use the hard thing to knock, press, score the panel.

Otherwise it will be harmful for the panel. The exchange cost is very high.

All technical specification on this instruction book and outer package are

subject to change without notice. If the instruction book has slight difference

with actual operation, please take the actual operation as standard.

Important Safety Instructions

When the MAINS plug or an appliance coupler is used as the disconnect device,

the disconnect device shall remain readily operable.

The machine should not suffer from waterdrop

or watersplash, do not place the vessel with

water (or other liquids) on it, for like this it is

possibly to cause fire or electric shock.

The attaching plug should be inserted into the

power point completely, otherwise it may cause

spark to bring fire.

Please do not put candle, ash-tray, incense, inflammables or explosive nearby

this machine.

Please do not stretch into any sharp object, metal or liquid, or touch the signal

attachment or the inner of radiation hole, in order to avoid short circuit and

product damage, or possibly causing electric shock. Especially pay attention

when there are children on the spot.

Please do not use the machine immediately when moving the machine from low

temperature place to high temperature one, or install and use at the place of

facing air conditioning, otherwise it may cause the condensation in the

machine, to cause fault.

Must be careful when moving this machine, avoiding being struck, especially

pay attention to protect the screen part. In addition, if using handcart, must

note the injury as the product is overturned from the handcart because of hard

braking, overexerting and uneven ground.

Technical Specifications

The Technical Specifications for Final Product

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Panel Surface Disposal

Power Supply

Power Consumption of Speaker

Control Area of Remote Control

Operating Environment

Temperature

Humidity

Atmosphere Pressure

Storage Environment:

Temperature

Humidity

Atmosphere Pressure

Dimension (L H W)

Unpacking: Excluding base

Including base

Packing

Weight

Net Weight

Gross Weight

1366 768

1360 768@60Hz

16.7M

Anti Glare

100V-240VAC 60/50Hz

10W+10W

8M 30

5 C ~ 40 C

10%~85%

86kpa-104kpa

-20 C ~55 C

5%~95%

86kpa-104kpa

104mm

652 498 104mm

0.4215mm 0.4215mm

575.770mm 323.710mm

652 449

770 570 200mm

10.5Kg

12.5Kg

1366 768

1360 768@60Hz

0.51075mm 0.51075mm

697.6845mm 392.256mm

16.7M

Anti Glare

100V-240VAC 60/50Hz

10W+10W

8M 30

5 C ~ 40 C

10%~85%

86kpa-104kpa

-20 C ~55 C

5%~95%

86kpa-104kpa

12.5Kg

16.0Kg

786 531 110mm

786 577 110mm

900 660 220mm

Technical Specifications

VGA Display Mode

Power Management

Note: Recommended mode:1360X768@60Hz

This product is complied with EPA Energy Star Standard and compatible with VESA

DPMS Standard.

Note: All the specifications in the user manual or on the packing carton may be

changed without additional notice.

Details are listed as follows:

Packing Listing

1. LCD TV

2. User Manual

3. Power Cable (or the machine itself has power cable)

4. Remote Control

(Excluding base subassembly)

Mode Resolution

VGA

SVGA

XGA

WXGA

720X400

640X480

800X600

1024X768

1360X768

70Hz

60Hz

Refresh

Mode

Standby

LED Indicator

Off

Lighting

Power Consumption

140W (26")

170W (32")

1.5W

Technical Specifications for TV

1.Supported Systems PAL+SECAM or PAL+NTSC

2.Storage channels: 199

3.TV(RF): 75 Imbalance

4.AV Video-Input: 75 ,1VP-P, RCA

5.AV Audio-Input: 20K , 500mV RMS

6.YPbPr/HDMI Video Input: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

No.

Antenna Connection

It is better to use outdoor antenna or CATV cable if you want to watch the colorful and

hi-definition pictures.

Attention:

Please turn off TV power before the outdoor antenna is connected to the TV signal

input port. Outdoor antenna can't be located near the high voltage cables. Please pull

out the plug of outdoor antenna to avoid thunder shock in thunder weather.

Installation & Connection

Power Connection

Notes:

1.This machine uses AC 100-240V, 60/50Hz.

2.If a long time at leisure, please disconnect

it from power supply.

Computer Connection

Please connect one end of VGA cord with the output port of the computer (available

for both desktop or laptop computer),

and another end of VGA cord with the

input port of the VGA on its rear cover.

HDMI digital port Connection

Connect external HDMI high signal

source to HDMI digital input port of this

machine through HDMI digital connector

cable; push"SOURCE" button to select

"HDMI" signal source.

Installation & Connection

Audio/Video machine with HDMIinterfaces

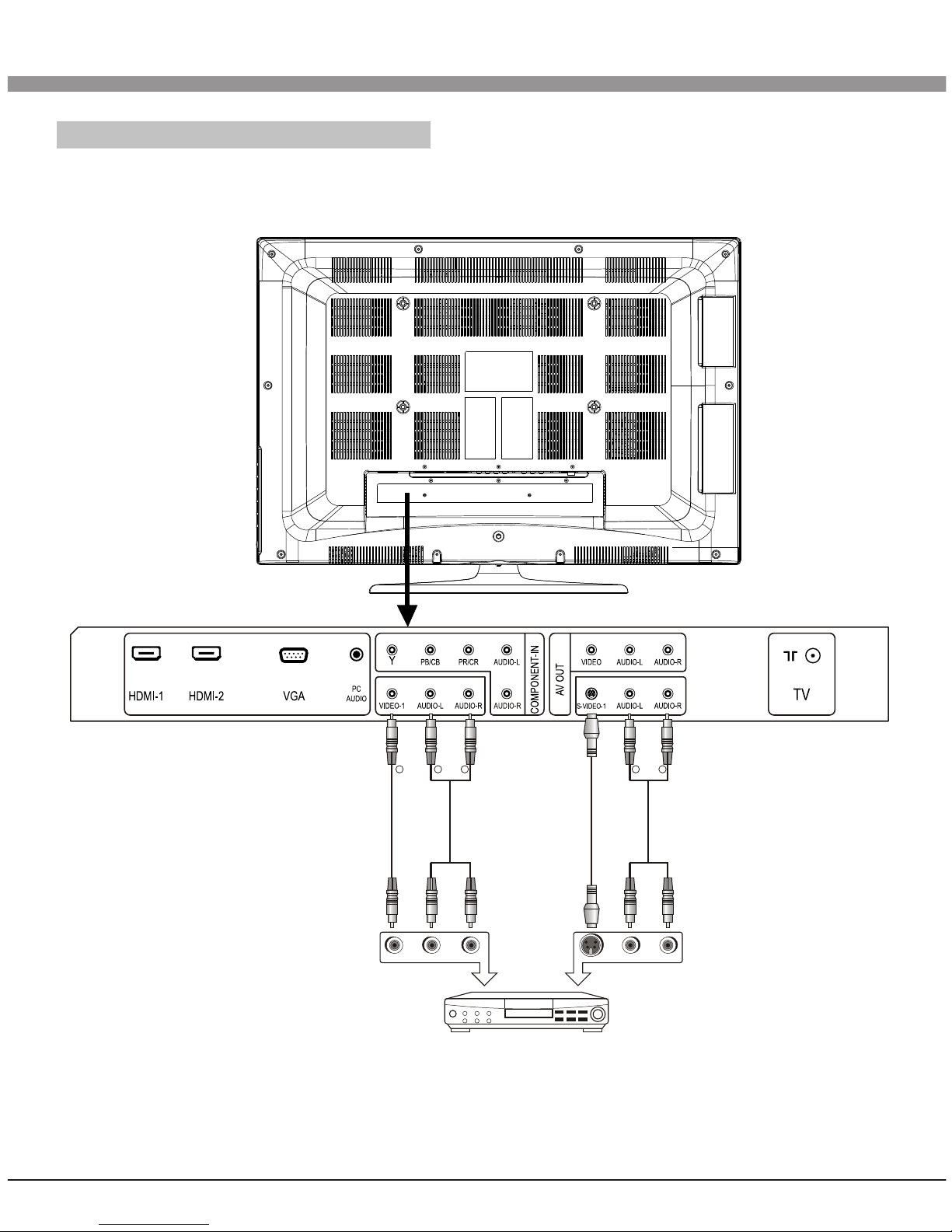

AV1 Video Signal Connection

Through composite cable, connect AV equipment VIDEO output termination to this

machine VIDEO input, and AV equipment AUDIO output termination to this machine

AUDIO input, respectively.

Installation & Connection

WWRR

YYWWRR

Y Yellow (VIDEO)

W White (AUDIO-L)

R Red (AUDIO-R)

CVBS, DVD Playeror other machine

with CVBS/S-Video.

Table des matières

Autres manuels Haier Téléviseur LCD

Haier

Haier L26TA5A Manuel utilisateur

Haier

Haier HL26K1 - K-Series - 26" LCD TV Manuel utilisateur

Haier

Haier HLT10 Manuel utilisateur

Haier

Haier L39B2180a Manuel utilisateur

Haier

Haier HLE20BB Manuel utilisateur

Haier

Haier LE32B7500 Manuel utilisateur

Haier

Haier LT32A1 Manuel utilisateur

Haier

Haier LE32D2320 Manuel utilisateur

Haier

Haier L26A9A Manuel utilisateur

Haier

Haier L32R1, L40R1, L42R1 Manuel utilisateur

Haier

Haier HL32D2 Manuel utilisateur

Haier

Haier L32M3F Manuel utilisateur

Haier

Haier 15HL25S - 15" LCD TV Manuel utilisateur

Haier

Haier LET26C400HF Manuel utilisateur

Haier

Haier LE50K6600UG Manuel utilisateur

Haier

Haier LTF42M1C Manuel utilisateur

Haier

Haier L26A9A-A1 Manuel utilisateur

Haier

Haier LE40B8000TF Manuel utilisateur

Haier

Haier LT26K1 Manuel utilisateur

Haier

Haier LE24C700 Manuel utilisateur

Haier

Haier L15TA11W Manuel utilisateur

Haier

Haier L42A9 Manuel utilisateur

Haier

Haier LY22K3CWW2 Manuel utilisateur

Haier

Haier LE32B7500 Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur
