Haier HC61F Manuel utilisateur
115V, 60 Hz
Made in China
Fabriqué en Chine
Hecho en China
Haier America
New York, NY 10018
Printed in China
HC61F/HC92F/HC125F
Issued: June - 04
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the "Haier Customer
Satisfaction Center" at 1-877-337-3639.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des
consommateurs ‘Haier Customer Satisfaction Center’ au 1-877-337-3639.
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al
Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A).
NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA
Part #RF-9999-184
Beverage Center
HC61F
HC92F
HC125F
(HC92F)
Minibar
User Manual-
Guide de l’Utilisateur-
(Las funciones pueden
variar según el modelo)
Manual del Usuario-
(Features may vary by model)
(Les caractéristiques peuvent
varier en fonction du modèle)
Model #
Modèle
Para Modelo de
Refrigerador de Bebidas
SAFETY PRECAUTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the follow-
ing:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This beverage center must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your beverage center by pulling on the power cord.
Always grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your beverage center before cleaning or before making any
repairs. Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) If your old beverage center is not being used, we recommend that you
remove the doors and leave the shelves in place. This will reduce the
possibility of danger to children.
7) This beverage center should not be recessed or built-in an enclosed
cabinet. It is designed for freestanding installation only.
8) Do not operate your beverage center in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
For Future Reference
1
English
2
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your beverage center.
Remember to record the model and
serial number. They are on a label in
back of the beverage center.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
DANGER
Risk of child entrapment. Before you throw away your old beverage center,
take off the doors. Leave the shelves in place so that children may not easily
climb inside.
English
Table Of Contents
PAGE
Safety Precautions ..........................................................................1
Parts And Features ..........................................................................4
Installing Your Beverage Center....................................................5
Unpacking Your Beverage Center ............................................................5
Installing Door Handle ............................................................................5
Leveling Your Beverage Center ................................................................5
Proper Air Circulation ............................................................................5
Electrical Requirements............................................................................6
Use of Extension Cords ..........................................................................6
Install Limitations ....................................................................................6
Door Alignment......................................................................................7
Door Reversal.........................................................................................8
Beverage Center Features And Use..................................................10
General Features..................................................................................10
Beverage Center Interior Shelves ..........................................................10
Normal Operating Sounds....................................................................12
Proper Beverage Center Care and Cleaning............................13
Cleaning and Maintenance ..................................................................13
Power Interruptions ..............................................................................14
Vacation and Moving Care ..................................................................14
Troubleshooting..............................................................................15
Warranty Information ..................................................................16
English
3
Parts And Features
1. Full-Width Storage Shelf (style
and quantity vary with model)
2. See-through Glass Door
3. Handle (type varies per model)
4. Interior Light (not in all models)
5. Temperature Control
(location varies per model,
refer to page 10)
6. Removable Wine Rack
English
4
1
2
3
4
(HC61F)
6
5
4
5
6
fig. # 1
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the beverage center accessories inside and
outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the beverage center.
1. Match the two screw holes in the handle to the
pre-drilled holes on the left side of the door as you
are looking at it.
2. Using a Phillips Head Screwdriver insert and tighten
the two screws to attach the handle to the unit.
• Your beverage center has leveling legs which are located at the bottom
of your beverage center. After properly placing your beverage center in
its final position, you can level your beverage center.
• Leveling legs can be adjusted by turning them clockwise to raise your
beverage center or by turning them counterclockwise to lower your
beverage center. The beverage center door will close easier when the
leveling legs are extended.
• Also, there is an adjustable support for the lower door hinge. (see fig.5)
After leveling the Beverage Center, adjust the hinge support, up or down
as needed until it rests on the surface on which that unit is placed.
• To assure your beverage center works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation and electrical connections.
• The following are recommended clearances around the beverage center:
Sides……………3/4 "(19mm)
Top....................2" (50mm)
Back..................2" (50mm)
Installing Your Beverage Center
Unpacking Your Beverage Center
Proper Air Circulation
Leveling Your Beverage Center
5
English
Installing Handle (not available on all models) (see fig. #1)
English
Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the beverage center.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the beverage center and
may result in shock hazard.
• Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a
3-slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of the
appliance.
• Do not install your beverage center in any location not properly
insulated or heated e.g. garage etc. Your beverage center was not
designed to operate in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the beverage center on a hard even surface
away from direct sunlight or heat source e.g. radiators, baseboard
heaters, cooking appliances etc. Any floor unevenness should be
corrected with the leveling legs located at the bottom.
Install Limitations
6
Use of Extension Cords
7

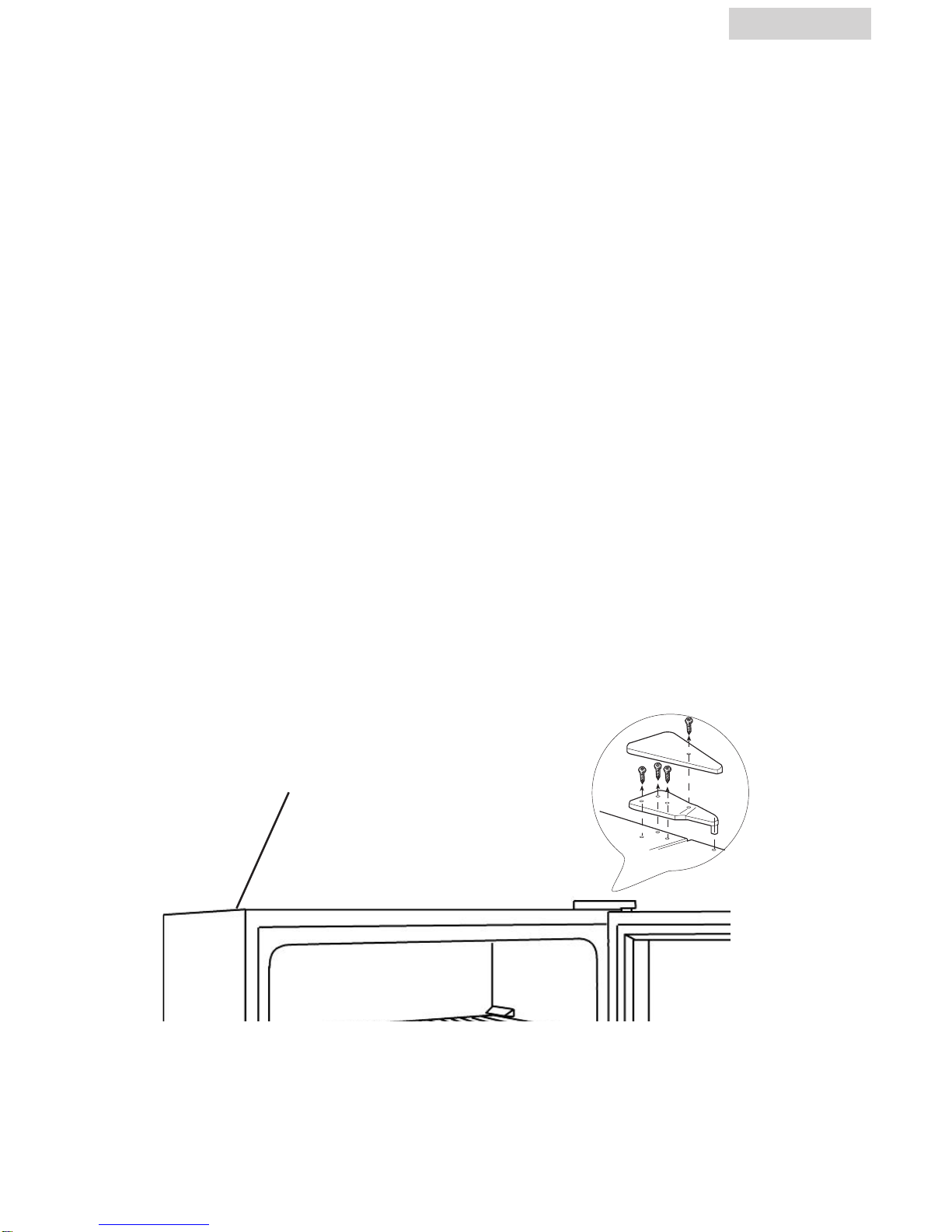

1. Remove hinge cover screw.
2. Remove the top hinge cover.
3. Loosen the top hinge screws using a Phillips Head Screwdriver.
4. Adjust the door or put a spacer in between and then tighten the screws.
5. Replace the top hinge cover.
Door Alignment (see fig. # 2)
fig. # 2
English
English
8
Reversing the Door Hinge
1. Using a Phillips Head Screwdriver remove the screws from the door
handle. Place the screws and handle to the side. (See fig. #1)
2. Remove the top hinge cover screw and then remove
the top hinge cover. (see fig. # 2)
3. Using a Phillips Head Screwdriver, loosen and remove the
screws holding the top hinge in place. (see fig. # 2)
4. Remove the top hinge and carefully lift off the door.
5. Remove the screw hole plug from the opposite side and
insert the plug in the screw hole openings of the just
removed screws. (see fig. # 3)
6. Unscrew the door pin from the bracket of the lower
hinge by turning counter clockwise. Move the pin to the
opposite hole and tighten. (see fig. # 4) Tilt unit slightly towards back
and remove the lower hinge support. (see fig. # 5)
7. Loosen the screws holding the lower hinge bracket
and remove the hinge.(see fig. # 4)
8. Align the holes in the lower hinge bracket to the
corresponding holes in the opposite side of the cabinet.
Insert and tighten the screws.(see fig. # 4) Tilt unit slightly back to
replace the lower hinge support. Adjust up or down as needed until it
is just touching the surface on which that unit is placed. (see fig. # 5)
9. Align the bottom hole on the left side of the door with the
pin of the lower hinge and slide into place.
fig. # 3
screw hole plugs
