Haier HAIDSJ53MB1 Manuel utilisateur

HAIER

ENGLISH

Instruction Manual For Induction Hob























Ръководство за употреба на индукционен плот

HAIDSJ53MB1

-

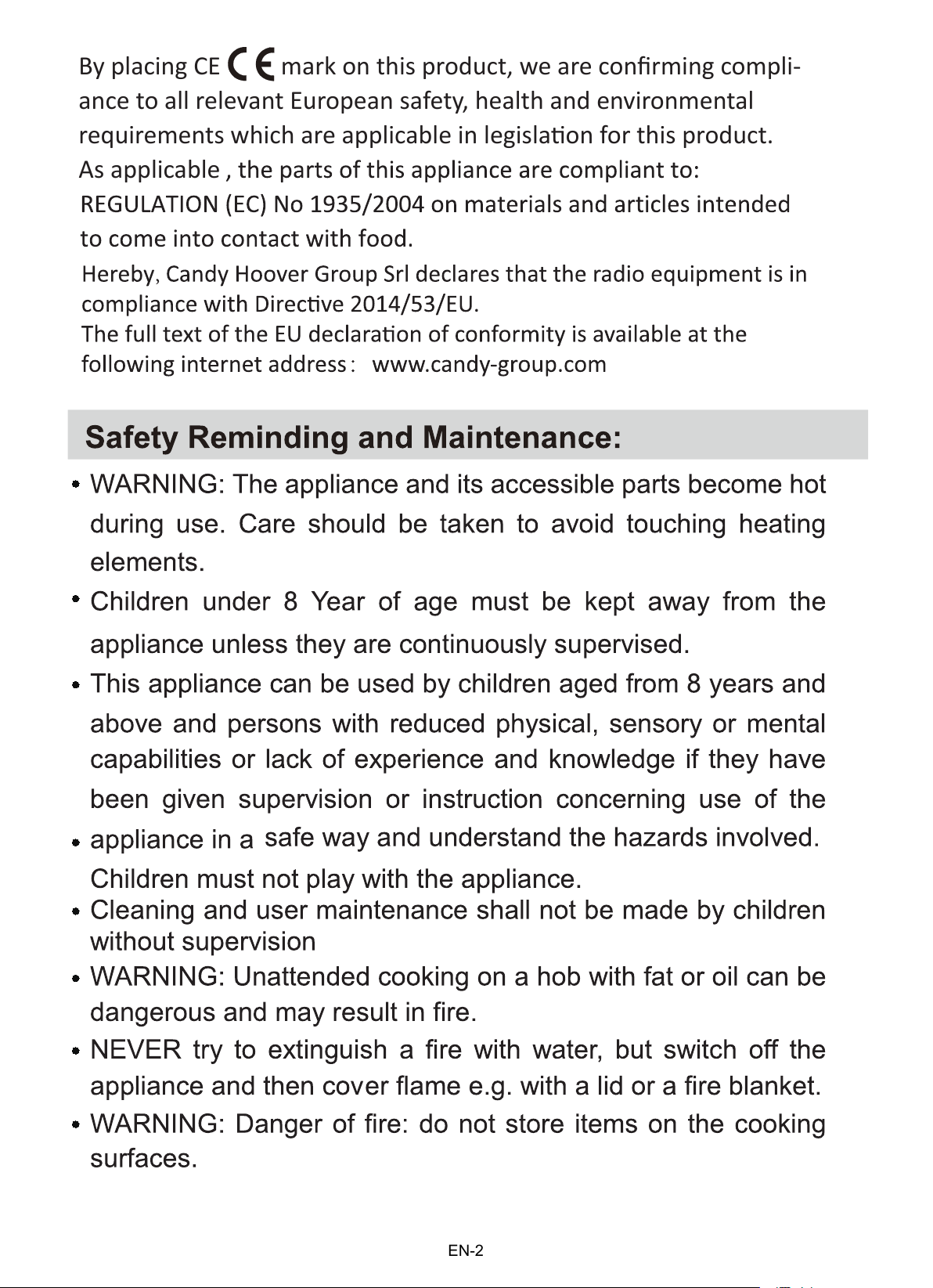

ance to all relevant European safety, health and environmental



As applicable

EN-2

EN-3

ENGLISH

Haier

EN-4

Haier

EN-5

ENGLISH

1. Max. 1500/2000 W zone

2. Max. 1500/2000 W zone

3. Max. 3000/3600 W zone

4. Glass plate

5. Control panel

1. Heating zone power controls

2. “Cook with me function” control

3. Timer control

Keylock

5. ON/OFF control

. 4

EN-6

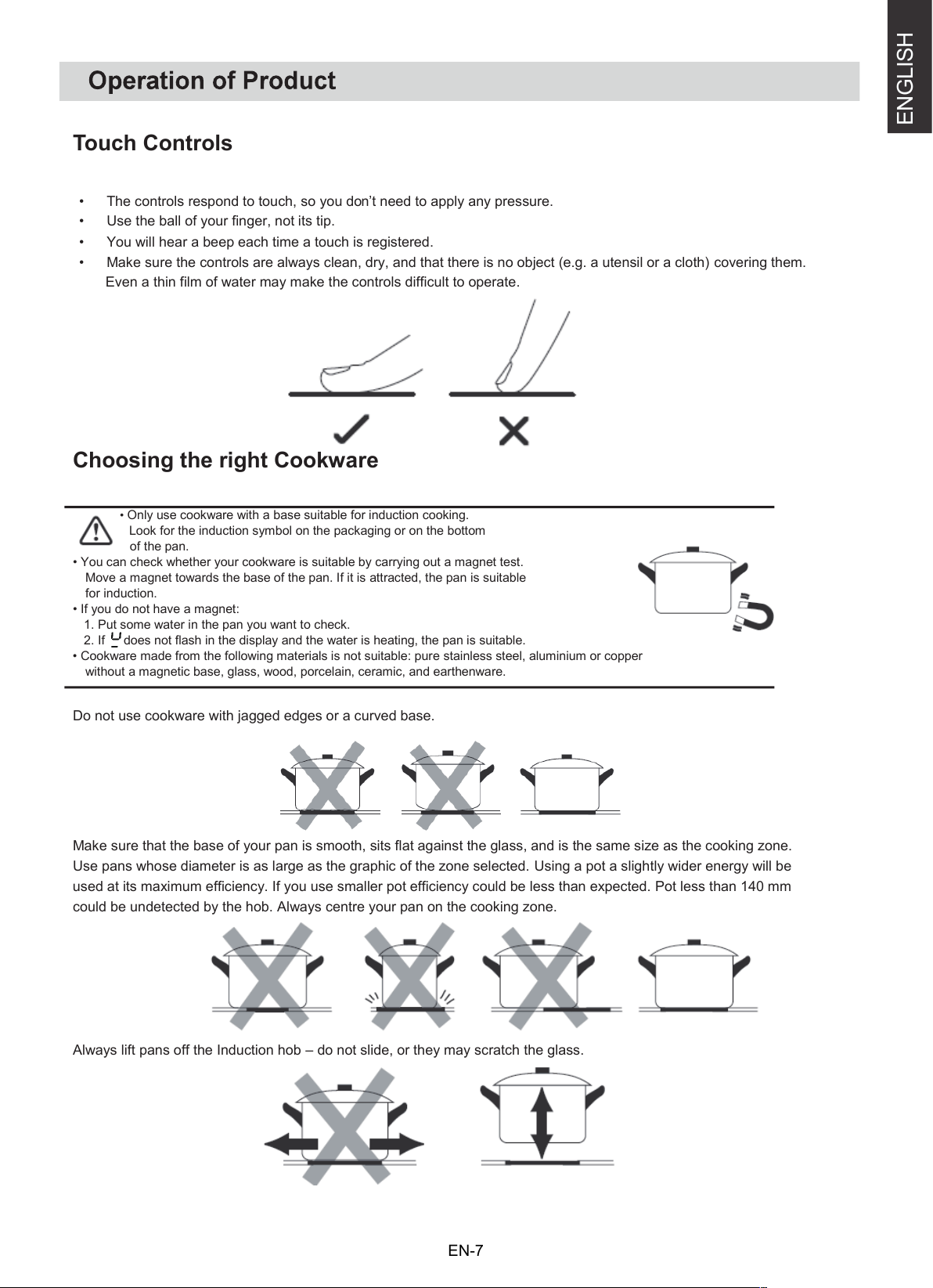

•The controls respond to touch, so you don’t need to apply any pressure.

• Use the ball of your finger, not its tip.

•You will hear a beep each time a touch is registered.

• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them.

Even a thin film of water may make the controls difficult to operate.

• Only use cookware with a base suitable for induction cooking.

Look for the induction symbol on the packaging or on the bottom

of the pan.

• You can check whether your cookware is suitable by carrying out a magnet test.

Move a magnet towards the base of the pan. If it is attracted, the pan is suitable

for induction.

• If you do not have a magnet:

1. Put some water in the pan you want to check.

2. If does not flash in the display and the water is heating, the pan is suitable.

• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper

without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone.

Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be

used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm

could be undetected by the hob. Always centre your pan on the cooking zone.

Always lift pans off the Induction hob – do not slide, or they may scratch the glass.

Touch Controls

Choosing the right Cookware

EN-7

ENGLISH

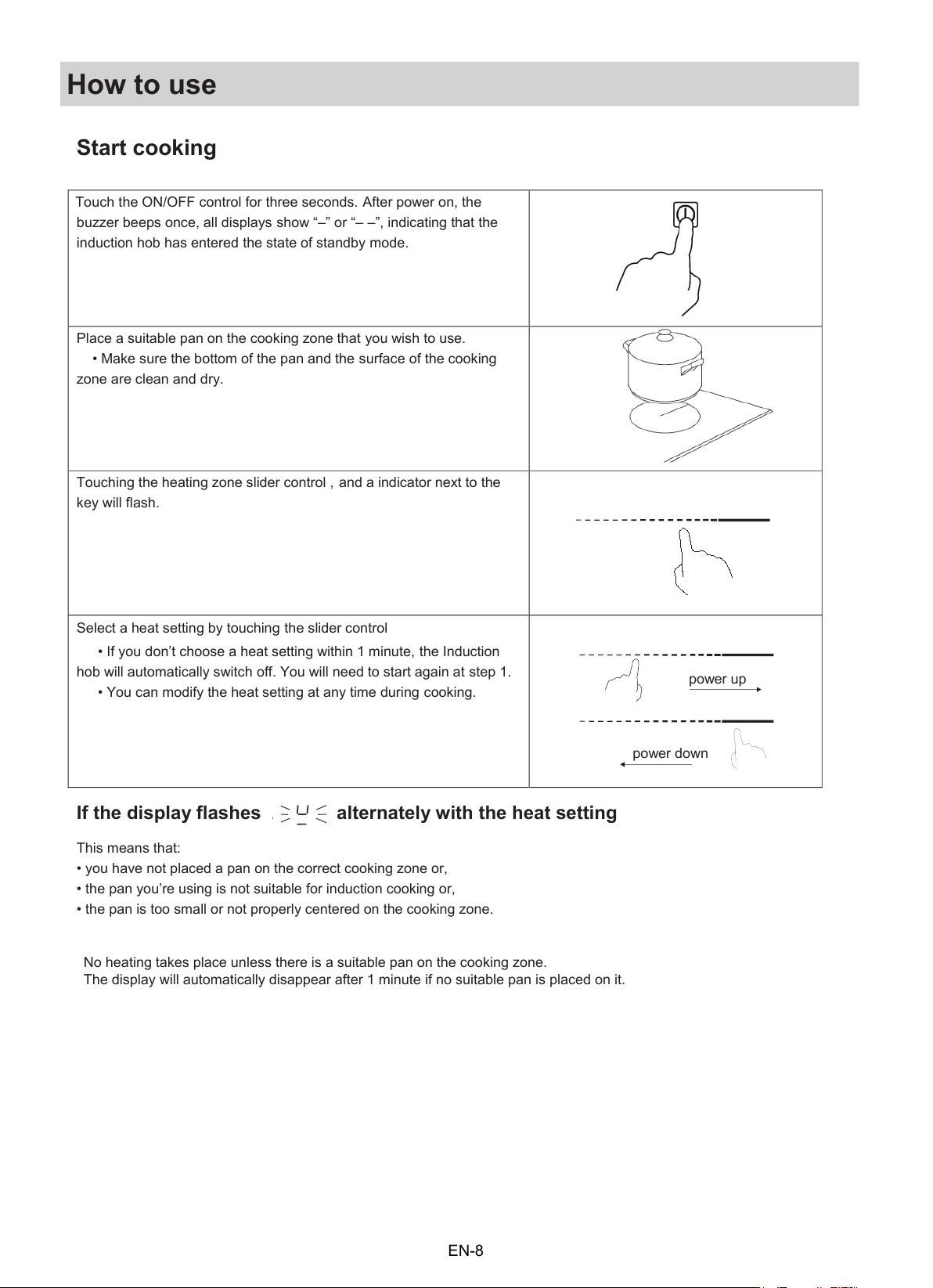

How to use

Touch the ON/OFF control for three seconds. After power on, the

buzzer beeps once, all displays show “–” or “– –”, indicating that the

induction hob has entered the state of standby mode.

Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the surface of the cooking

zone are clean and dry.

Touching the heating zone slider control , and a indicator next to the

key will flash.

Select a heat setting by touching the slider control

• If you don’t choose a heat setting within 1 minute, the Induction

hob will automatically switch off. You will need to start again at step 1.

• You can modify the heat setting at any time during cooking.

If the display flashes alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or,

• the pan you’re using is not suitable for induction cooking or,

• the pan is too small or not properly centered on the cooking zone.

Start cooking

EN-8

power up

power down

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically disappear after 1 minute if no suitable pan is placed on it.

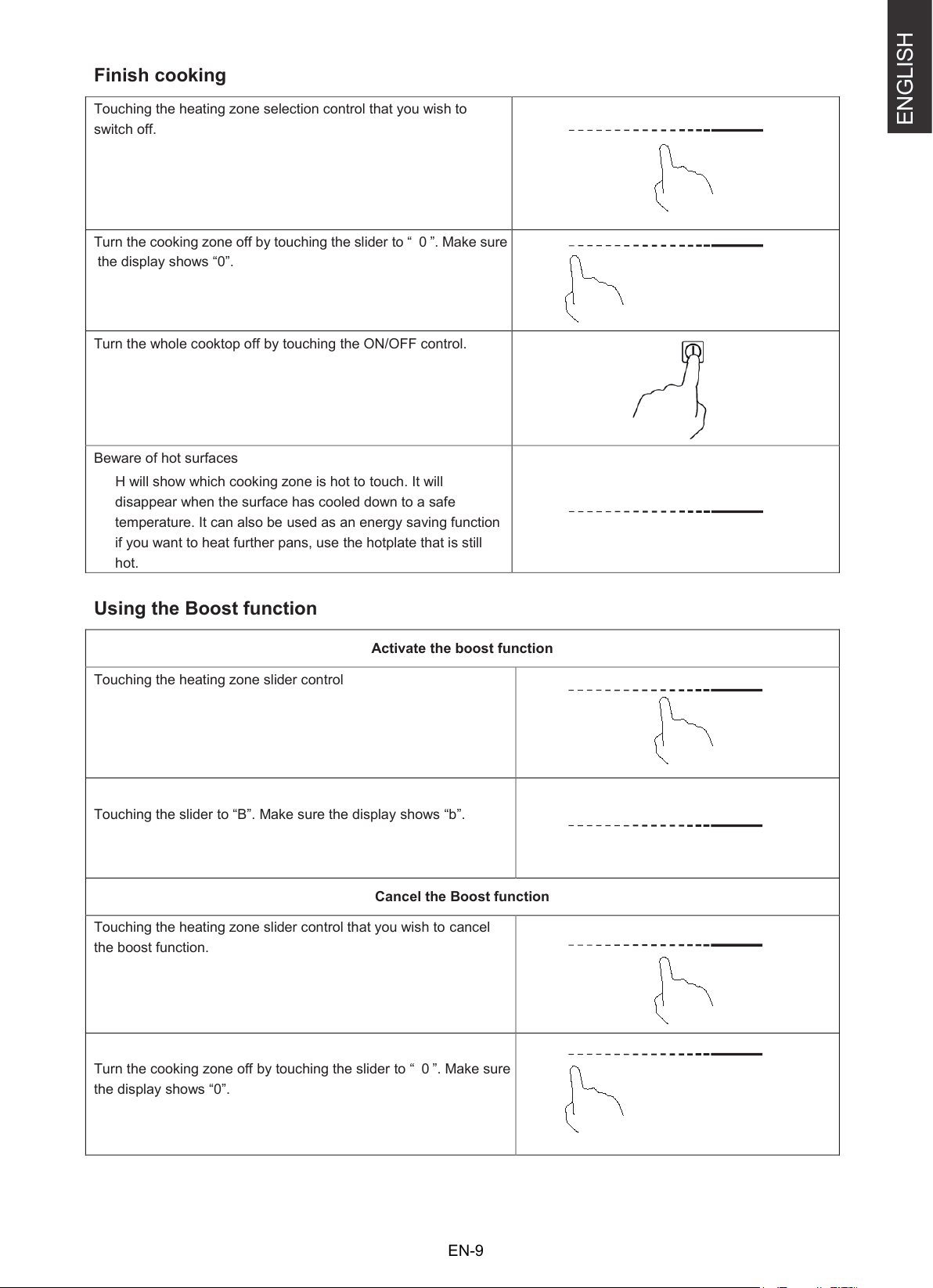

Touching the heating zone selection control that you wish to

switch off.

the display shows “0”.

Turn the whole cooktop off by touching the ON/OFF control.

Beware of hot surfaces

H will show which cooking zone is hot to touch. It will

disappear when the surface has cooled down to a safe

temperature. It can also be used as an energy saving function

if you want to heat further pans, use the hotplate that is still

hot.

Activate the boost function

Touching the heating zone slider control

Touching the slider to “B”. Make sure the display shows “b”.

Cancel the Boost function

Touching the heating zone slider control that you wish to cancel

the boost function.

the display shows “0”.

Finish cooking

Using the Boost function

Turn the cooking zone off by touching the slider to “ 0 ”. Make sure

EN-9

ENGLISH

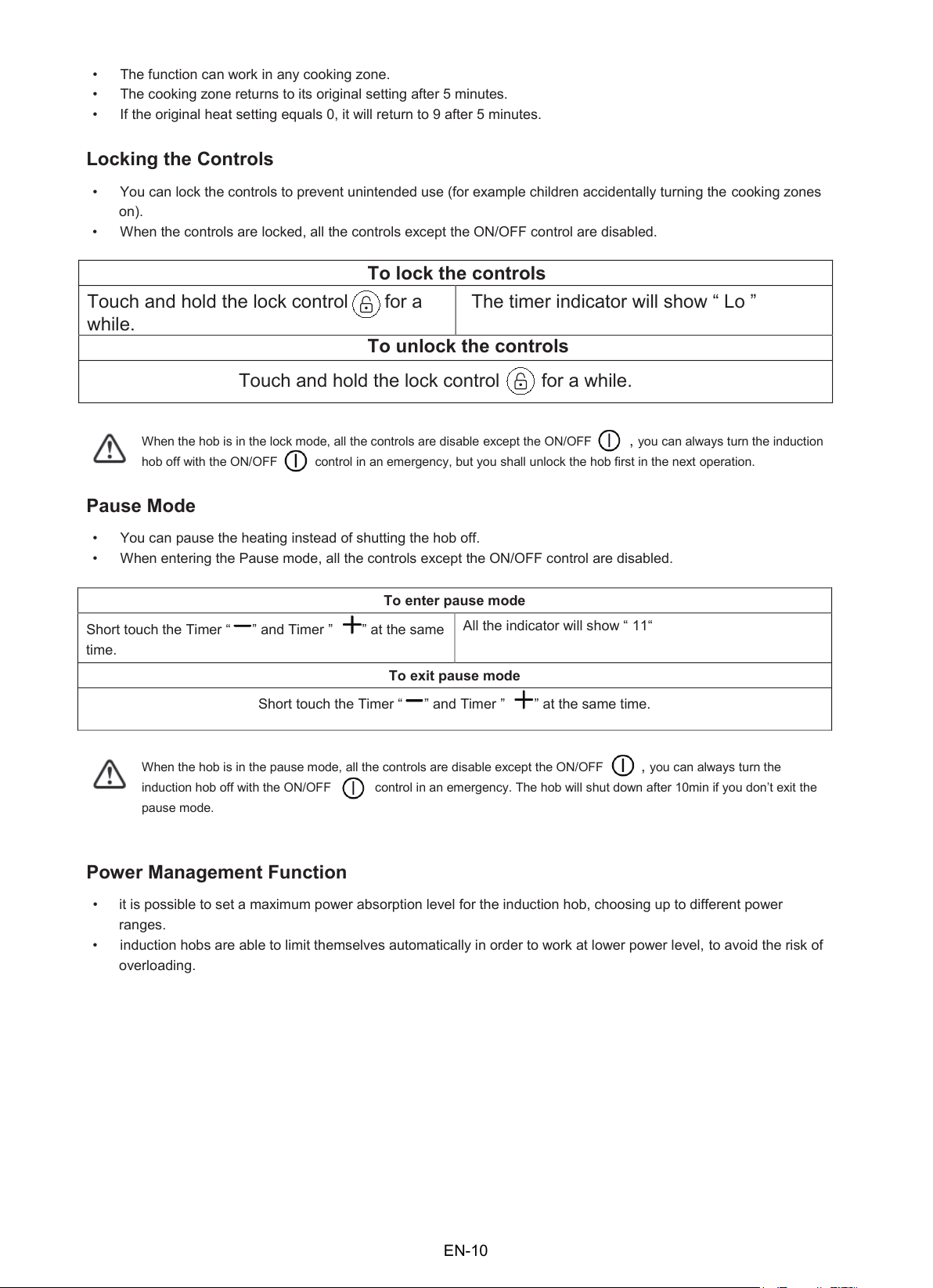

•The function can work in any cooking zone.

•The cooking zone returns to its original setting after 5 minutes.

• If the original heat setting equals 0, it will return to 9 after 5 minutes.

•You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones

on).

•When the controls are locked, all the controls except the ON/OFF control are disabled.

When the hob is in the lock mode, all the controls are disable except the ON/OFF , you can always turn the induction

hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

•You can pause the heating instead of shutting the hob off.

•When entering the Pause mode, all the controls except the ON/OFF control are disabled.

To enter pause mode

Short touch the Timer “ ” and Timer ” ” at the same

time.

All the indicator will show “ 11“

To exit pause mode

Short touch the Timer “ ” and Timer ” ” at the same time.

When the hob is in the pause mode, all the controls are disable except the ON/OFF , you can always turn the

induction hob off with the ON/OFF control in an emergency. The hob will shut down after 10min if you don’t exit the

pause mode.

• it is possible to set a maximum power absorption level for the induction hob, choosing up to different power

ranges.

•induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of

overloading.

Locking the Controls

Pause Mode

Power Management Function

The timer indicator will show “ Lo ”

To lock the controls

To unlock the controls

Touch and hold the lock control for a

while.

Touch and hold the lock control for a while.

EN-10
