Haier CRDE400AW Manuel utilisateur
Model # RDE400AW/R,RDE200AW,CRDE400AW/R,CRDE200AW
Cycles
Very
Damp
Dry
Cooldown
Cyclecompleted
Extendtrumble
Louder
Softer
Off
Cycle
Signal
PermanentPress
On
Off
Wrinkle
Care
Timed
Cycles
MoreTime
LessTime
AutoDry
TimedDry
TimeRemaining
On/Off
Power
Pause
Start
Temp
Level
Dryness
AirOnly(NoHeat)
High
Medium
Low
Electric Dryer
Seche-linge Genesis
Secadora Electrica
User Manual
Modele # RDE400AW/R,RDE200AW,CRDE400AW/R,CRDE200AW
Guide de l Utilisateur
Para Modelo de # RDE400AW/R,RDE200AW,CRDE400AW/R,CRDE200AW
Guide del Usuario
Delicate
Normal
Normal
More
Less
Heavy
Cotton
Costomized
BulkyItems
RackDry
Quality Innovationg Style

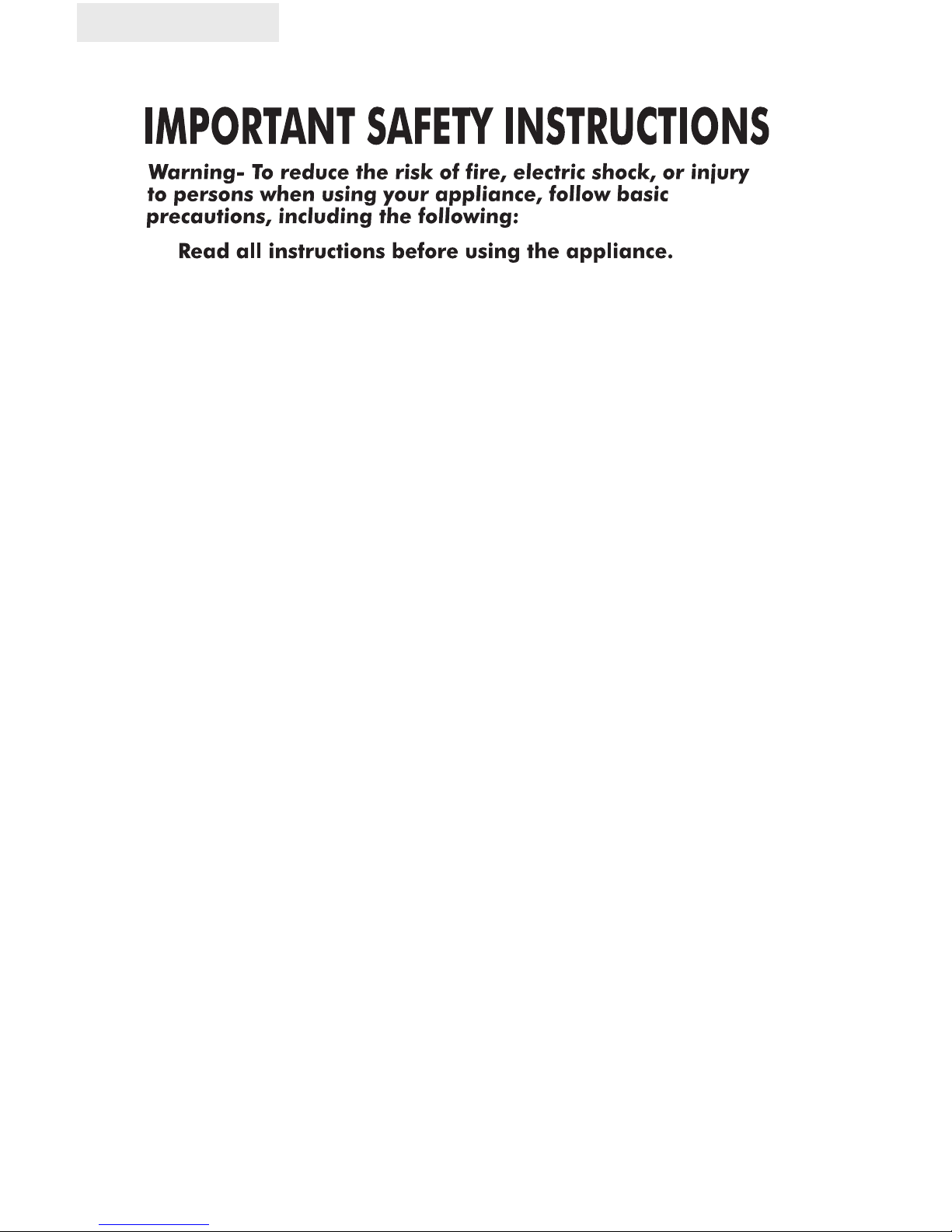

2. Do not dry articles that have been previously cleaned in,washed in,
soaked in,or spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off vapors that
could ignite or explode.
3. Do not allow children to play on or in the appliance. Close
supervision
of children is necessary when the appliance is used near
children.

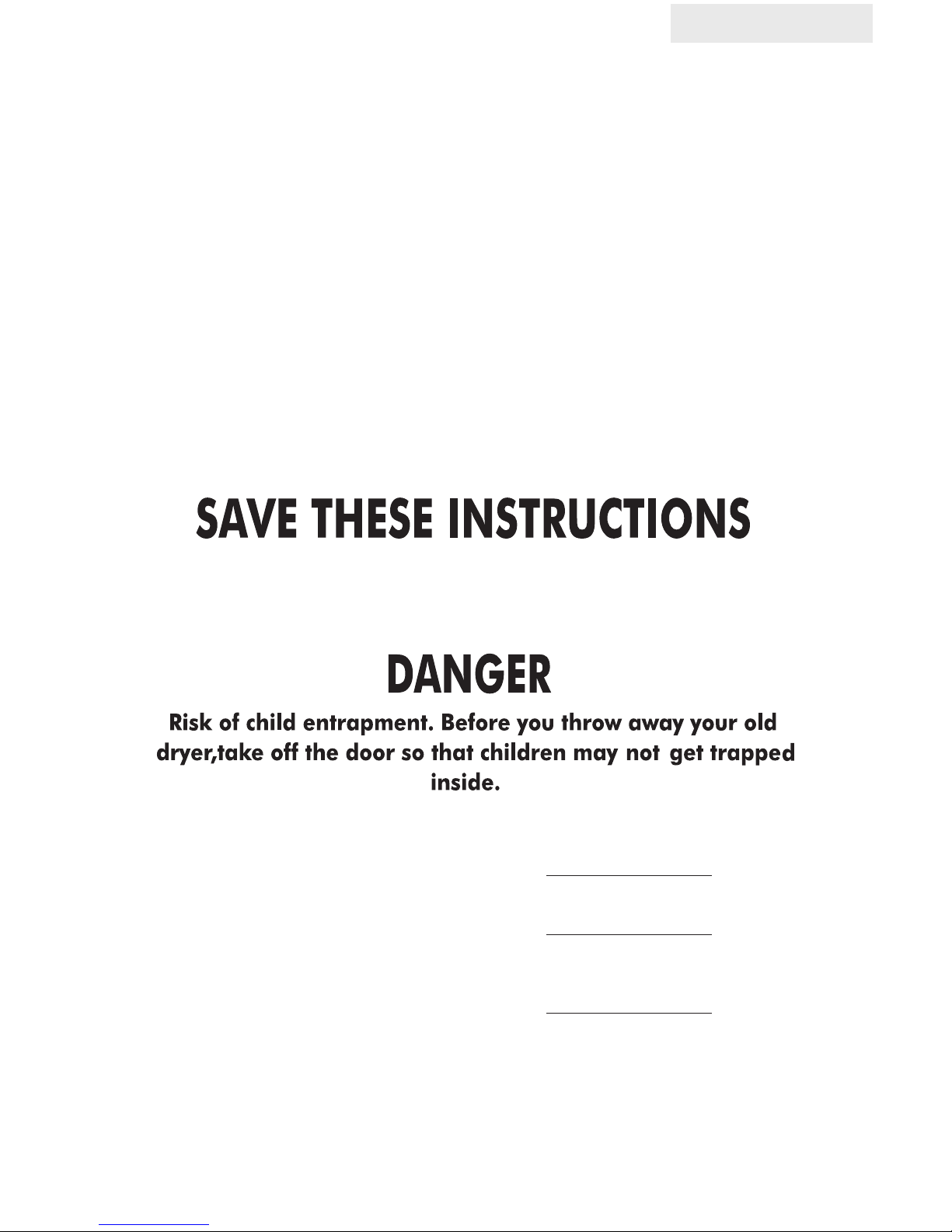

4. Before the appliance is removed from service or discarded, remove the
door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to water
And/or to the weather.
8. Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-repair
instructions that you understand
and have skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or
product.
10. Do not usefabric softeners or products to eliminate static unless
recommended by the manufacturers of the fabric softener or
product
11.Clean lint screen before or after each load.
12.Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust and dirt.
13.The interior of the appliance and the exhaust duct should be cleaned
periodically by qualified service personnel.
14.Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire
15.If material has been used with any flammable liquids or solids, it
should
not used in the dryer until all traces of the flammable liquids
and its fumes have been removed.
1.
1
English
7. Do not tamper with controls.
16. This dryer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions
in the installations sections.
17. Proper grounding must be ensured to reduce the risk of electric shock
and force. Check with a qualified electrician or service personnel if
you
are in doubt as to whether the dryer is properly grounded.
18. Use the dryer only for its intended purpose, drying clothes.
19. Always disconnect dryer from electrical supply before attempting any
service. Disconnet power cord by grasping the plug,not the cord.
20. Replace worn power cords and/or loose plugs.
21. To reduce the risk of electric shock or fire, do not use extension cords or
adapters to connect dryer to electrical power source.
2
English
product. This easy-to-use manual
will guide you in getting the best
use of your dryer.
Thank you for using our Haier
Remember to record the model and
serial number. They are on a label
in back of the dryer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
3
Tables Of Contents
PAGE
Safety Instructions
............................................................................
1
OPERATING INSTRUCTIONS
............................................................
13-22
..........................................................
13
Other Features
.................................................................................
21
Normal Operating Sounds
.................................................................
22
Tips
.................................................................................................
22
Care and Cleaning Guide
...............................................................
23
Troubleshooting
..............................................................................
24
INSTALLATION INSTRUCTIONS
.......................................................
4-12
Tools and Materials Required
..............................................................
4
Electrical Requirements
......................................................................
4
Unpacking Your Dryer
........................................................................
4
Exhaust System Connections
..........................................................
5
Requirements and Instructions
............................................................
5
Materials
............................................................................................
6
Location of Your Dryer
........................................................................
7
Installation in Mobile Home
...............................................................
7
Electrical Connections
....................................................................
9
Requirements and Instructions
.............................................................
9
3-Wire Cord Connections
...................................................................
10
4-Wire Cord Connections........................................................................................
11-12
Understanding the Control Panel
Auto Dry cycle
Timed Dry cycle
Rack Dry cycle
.................................................................................
.................................................................................
...................................................................................
20
20
16-18
......................................................................
16
Load clothes into dryer
..................................................................
15
Preparations before drying
English
WARRANTY
..............................................................................
24
4
INSTALLATION INSTRUCTIONS
Phillips head and flathead screwdrivers
Channel-lock adjustable pliers
1/2 inch open end wrench
Carpenter s level
Measuring tape (12ft. Min.)
Duct tape
Rigid or flexible metal 4 inch (10.2 cm) duct
Vent hood
1. Remove all packaging material. This includes the foam base and all adhesive
tape holding the dryer accessories inside and outside.
2. Inspect and remove any remains of packaging, tape or printed
materials before using the dryer.
Tools and Materials Required
Electrical Requirements
Unpacking Your Dryer
English
Select a suitable location for the dryer on a hard even surface away from
direct sunlight or heat sources, baseboardheaters, cooking appliances etc.
Any floor unevenness should be corrected with leveling legs located on the
bottom of the dryer.
U.S. Only
Power supply:
3 or 4 wire,240 Volt, 30Amp,60Hz, 1 Phase Power Supply Cord Kit (not
supplied when sold in the United States) – Purchase to meet local electrical codes.
The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 Type
SPDT RATED AT 240 Volt AC minimum, 30 Amp.,with 3 open end spade lug
connectors with upturned ends or closed loop connectors and marked for use with
clothes dryers. If being installed ina manufactured (mobile) home,thedryer MUST
employ a 4-conductor power supply cord. NEMA 14-30 type SRDT or ST (as
required) rated at 240 Volt AC Minimum, 30 Amp., with 4 open end spade lug
connectors with upturned ends or closed loop connectors and marked for use with
clothes dryers. See Electrical Connections for A 4-Wire System.
Canada. Only
Candian models are supplied with the appropriate power cord.
5
Exhaust System Connections
Requirements and Instructions
1. Do not use plastic flexible duct to exhaustthe dryer. Excessive lint can build up
inside system and create a fire hazard and restrict air flow. Restricted airexhaust
flow will increase dryer times. If your present system is made up of plastic duct or
metal foil duct, replace it with a rigid or flexible metal duct. Ensure present duct
is free of any lint prior to installing dryer duct.
2. If the dryer is not exhausted out doors, some fine lint will be expelled
into the laundry area. An accumulation of lint in any area of the home can
create a health and fire hazard. To reduce risk of fire, dryer MUST BE
EXHAUSTED OUTDOORS.
3. Do not allow combustible material (for example: clothing,
draperies/curtains, paper) to come in contact with venting system. The dryer
must not be exhausted into a chimney, a wall, a ceiling, or any concealed space
of a building which can accumulate lint, resulting in a fire hazard.
4. Exceeding the length of duct pipe or number of elbows allowed in
the "Maximum Length" charts can cause an accumulation of lint in
the exhaust system. Plugging the system could create a fire hazard,
as well as increase drying times.
5. Do not screen the exhaust ends of the vent system, nor use any screws
or rivets to assemble the exhaust system. Lint can become caught in the screen,
on the screws or rivets, clogging the duct work and creating a fire hazard as well
as increasing drying times. Use an approved vent hood to terminate the duct out-
doors, and seal all joints with duct tape. All male duct pipe fittings must be
installed downstream with the flow of air.
Explosion hazard:
Do not install the dryer where gasoline or other flammables are kept or stored.
If the dryer is installed in a garage, it must be minimum of 18 inches (45.7 cm)
above the floor. Failure to do so can result in death, explosion, fire or burns.
English
6
Materials
English
Although vertical orientationof the exhaust system isacceptable. Certain
extenuating circumstances could affect the performance of the dryer:
1. Only rigid metal duct work should be used.
2. Ventingvertically through aroof may expose the exhaust system to down
drafts causing an increase in vent restriction.
3. Running the exhaust system through an area not insulated may cause
condensation and faster accumulation of lint.
4. Compression of crimping of the exhaust system will cause an increase in vent
restriction.
The exhaust system should be inspected and cleaned a minimum of every 12
months with normal usage. The more the dryer is used the more often you should
check the exhaust system and vent hood for proper operation.
Use only 4 inch (10.2cm) diameter (minimum) rigid of flexible metal duct and
approved vent hood which has a swing-out damper hat open when the dryer is
in operation. When the dryer stops, the dampers automatically close to prevent
drafts and the entrance of insects and rodents. To avoidrestricting the outlet,
maintain a minimum of 12 inches (30.5cm) clearance between the vent hood and
the ground or any other obstruction. The vent flap should be able to move freely.
7
Do Not Install Your Dryer:
In an area exposed to dripping water or outside weather conditions.
In an area where it will come in contact with curtains, thick carpet,
or anything that will obstruct the flow of combustion and ventilation air.
On carpet. Floor must be solid with a maximum slope of 1inch (2.54 cm).
Location of Your Dryer
English
Dryer must be exhausted outside (outdoors, not beneath the mobile home)
using metal ducting that will not support combustion. Metal ducting must be
4 inches (10.16 cm) in diameter with no obstructions. Rigid metal duct is
preferred.
If dryer is exhausted through the floor and area beneath the mobile home is
enclosed, the exhaust system must terminate outside the enclosure with the
termination securely fastened to the mobile home structure.
Refer to previous pages for other important venting requirements.
Installation must conform to current Manufactured Home Construction &
Safety Standard.
Installation in Mobile Home
8
Correct Incorrect
Correct Incorrect
Correct Incorrect
English
9
Electrical Connections
Requirements and Instructions
1. This appliance must be properly grounded. Electrical shock can result if the
dryer is not properly grounded. Follow the instructions in this manual for
Proper grounding.
2. Do not use an extension cord with this dryer. Some extension cords are not
designed to withstand the amounts of electrical current this dryer utilizes and
can melt, creating electric shock and/or fire hazard. Locate the dryer within
reach of the receptacle for the length power cable to be purchased, allowing
Some slack in the cord. Refer to the electrical requirements in this manual for
The proper power cord to be purchased.
3. A UL approve strain relief must be installed onto power cable. If the the strain
relief is not attached, the cord can be pulled out of the pulled out of the
dryer and can be cut by any movement of the cord, resulting in electrical
shock.
4. Do not use an aluminum wire receptacle with copper wired power cord and
plug (or vice versa). A chemical reaction occurs between copper and
aluminum and can cause electrical shorts. The proper wiring and receptacle
is a copper wired power cord with a copper wired receptacle.
Danger: Improper connection of the equipment grounding conductor can
result in a risk of electrical shock. Check with a licensed
electrician if you are in doubt as to whether the appliance is
properly grounded.
English
Note: Dryers operating on 208 Volt power supply sill have longer drying times
than operation on240 Voltpower supply.
Ce manuel convient aux modèles suivants
5
Table des matières
Autres manuels Haier Séchoir
Haier
Haier HDY60M Manuel utilisateur
Haier
Haier HD80-26A Manuel utilisateur
Haier
Haier QFD15 Series Instructions originales
Haier
Haier HDY-C70 HA AA Manuel utilisateur
Haier
Haier HDY60M Manuel utilisateur
Haier
Haier Ginesis HLF103Q Manuel utilisateur
Haier
Haier HDHP80AN1 Manuel utilisateur
Haier
Haier HD70-01 ME Manuel utilisateur
Haier
Haier GDG480BW Manuel utilisateur
Haier
Haier HDV40A1 Manuel utilisateur
Haier
Haier HDY-M40 Manuel utilisateur
Haier
Haier HDY5-1 Manuel utilisateur
Haier
Haier HLP141E Manuel utilisateur
Haier
Haier HDY-D70-E Manuel utilisateur
Haier
Haier RDE350AW - 6.5 Cu. Ft. Electric Dryer Manuel utilisateur
Haier
Haier GDZ5-1 Manuel utilisateur
Haier
Haier HD90-A636 Manuel utilisateur
Haier
Haier HDY60M Manuel utilisateur
Haier
Haier HD90-A3Q979U1 Manuel utilisateur
Haier
Haier Ginesis HLF103Q Manuel utilisateur
Manuels Séchoir populaires d'autres marques
Indesit
Indesit IDV 75 Manuel utilisateur
Infiniton
Infiniton SD-DG85C Manuel utilisateur
BOMANN
BOMANN WT 5019 Manuel utilisateur
Alliance Laundry Systems
Alliance Laundry Systems TMB795C Manuel utilisateur
Asko
Asko T793C Manuel utilisateur
Kenmore
Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
