Haier D545E Manuel utilisateur

Dehumidifier

D_humidificateur

Dehumidificador

Amana User Manual

D545E/D565E

Guide de I'Utilisateur

D54SE/D565E

Manual del Usuario

D54SE/D565E

Before operating this dehumidifier, please read these instructions completely,

Safety Precautions

Do not fold or knot the power cord.

Make sure the plug is inserted firmly and propedy into the outlet.

Do insert multiple plugs into the electrical socket.

Make sure the plug is clean.

Before turning off the dehumidifier, unplug the power cord,

Do not plug in the power cord if hands are wet.

CAUTION

Do not place anything on top of the control panel,

Do not cover the machine's air vents.

Do not allow children to climb on or play with the machine,

Do not wet the machine or control panel.

Keep flammable materials away from the machine.

Contact a professional for service and repair.

Table Of Contents

page

Safety Precautions ............................................................................................ 1

Important Safety Information ........................................................................ 3-4

Features Diagram ........................................................................................ 5-6

Part Names .................................................................................................... 5

Control Panel .................................................................................................. 6

Operation ........................................................................................................ 7

Specifications .................................................................................................. 7

Operation Instructions ...................................................................................... 8

Start Operation .............................................................................................. 8

When Tank is Full .......................................................................................... 8

Continuous Drainage ...................................................................................... 8

Installing Drainage PVC Hose .......................................................................... 8

Caution .......................................................................................................... 9

Maintenance/Emergency .................................................................................. 9

Troubleshooting .............................................................................................. 10

Warranty Information ...................................................................................... 11

English

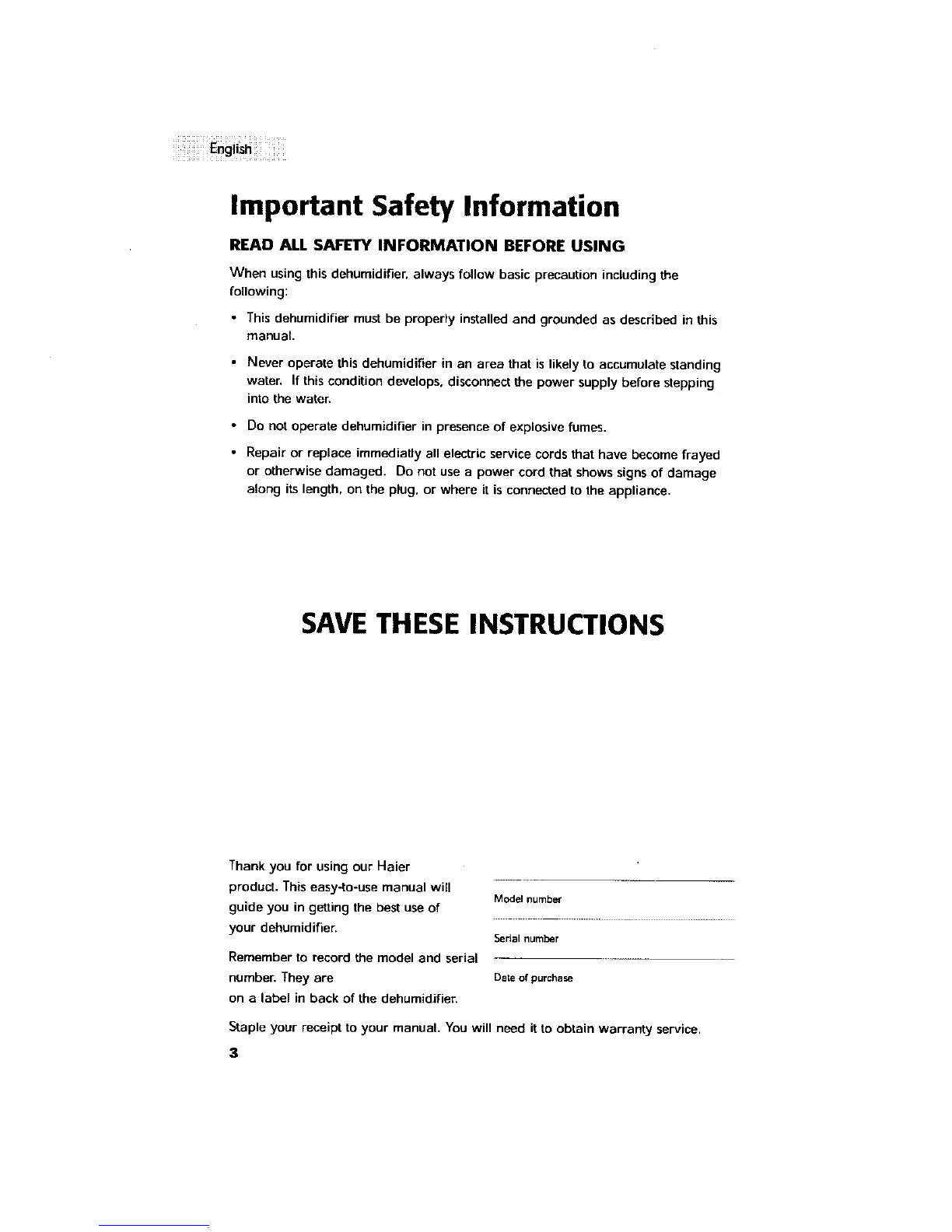

Important Safety Information

READ ALL SAFETY INFORMATION BEFORE USING

When using this dehumidifier, always follow basic precaution including the

following:

•This dehumidifier must be properly installed and grounded as described in this

manual.

• Never operate this dehumidifier in an area that is likely to accumulate standing

water, If this condition develops, disconnect the power supply before stepping

into the water.

• Do not operate dehumidifier in presence of explosive fumes.

•Repair or replace immediatly all electric service cords that have become frayed

or otherwise damaged. Do not use a power cord that shows signs of damage

along its length, on the plug, or where it is connected to the appliance.

SAVE THESE INSTRUCTIONS

Thank you for using our Haler

product. This easy-to-use manual will

guide you in getting the best use of

your dehumidifier.

Remember to record the model and serial

number, They are

on alabel in back of the dehumidifier.

Model number

Serial number

Date of pu]-chsse

Staple your receipt to your manual. You will need it to obtain warranty service.

Before Using your Dehumidifier

Read this manual carefully, It contains instructions to help you use, maintain and

enjoy you dehumidifier.

UNPACK YOUR DEHUMIDIFIER

• Remove all packing material Thisincludesfoam, inserts& adhesive tape.

•Inspectany remains of packing, tape or printed material, or accessories before

dicarding it.

ELECTRICAL REQUIREMENT

•Make sure there isa suitable power outlet (115Volts 15 Amps) with proper

grounding.

GROUNDING

•Thisdehumidifier mustbe grounded.

• Grounding reducesthe risk of electricshock by providing an escapewire for the

electric current,

•The power cord has a grounding plug. Plug it in to an outlet that is properly

installed and grounded.

Warning- Improper use of the grounding plug can result in a risk of electric shock,

Call a qualified electrician if you don't understand the grounding

instructions or if you are not sure if the humidifier is properly grounded.

If the wall outlet is not grounded, please contact an electrician to have it

replaced with aproperly grounded outlet,

Do not, under any circumstances,cut or remove the third

(ground) prong from the power cord.

USE OF EXTENSION CORD

• Avoid the use of extension cord because of potential safety hazards under certain

condition.

•If it is necessary to use an extension cord, use:

A) Only 3-wire extension cord that has 3-blade grounding plug and grounded

wall outlet that will accept the plug.

[3) The mark rating of the extension cord must be equal or greater thatn the

electrical rating of the dehumidifier.

Features Diagram

Front

PART NAMES

Rear

1. Dehumidified Dry Air Vent

2. Control Panel

3. Handle

4. Power Supply Cord

5, Continuous Drainage Outlet

(Capped for bucket drainage)

6, Moist Air Intake

7. Air Filter

8. Rotating Wheels

9. Drainage Bucket

CON'IROL PANE].

H.. .rl t__m

I Oir (D

OFF Q

1. Current Temp/Timer Set Display

When machine is running, it displays the current temperature. Press the "Timer" button to

set the machine to shut off automatically after aspecified amount of time. 10 seconds after

displaying the timer, the display will change back to current temperature.

2. Timer On

Indicator

3. Fan Speed

Indicators

4. Fan Speed

Control

5. Timer On/Off Button

In running mode: Auto switch Off

In standby mode: Auto switch On

6. Humidistat

Adjustment Controls

7. Power On/Off Button

8. Defrost Light

When operating under low temperature conditions, automatic defrost may activate. Light

indicates that the unit is currently in defrost mode.

9, Set Humidity/Current Humidity Display

When machine is running, it displays the current humidity. Press the " _" or

"_" to set humidity. The humidity is adjusted in increments of 5%, Adjustable range is

30% to 90%. 10 seconds after setting humidity, the display will change back to current

humidity level.

10, Full Tank Lignt

When water tank is full, the Full Tank Light will light up and the dehumidifier will stop

operating automatically.

OPERATION

1. Press "ON/OF" button to begin unit operation and press the button

again to stop it.

2, If "Set Humidity" level is lower than the "Current Humidity" level, the

compressor will start up and unit will begin dehumidification,

If "Set Humidity" level is higher than the "Current Humidity" level, the unit's

fan will continue to run.

3. To change the set humidity level, press the "_ " or "_" to adjust the

humidistat in 5°,%increments between 30% and 90%.

4. For auto Switch Off when the unit is running, press "Timer" button to set unit to

shut off automatically in 1-12 hours.

5. For auto switch On, make sure the machine is in standby mode with

power cord plugged in securely Press "Timer" button to set unit to start

automatically in 1-12 hours.

6. Press "Speed" button to change the fan speed from "Low" to "High".

Specification

Model

Power

MoistureRemoval

Power input

Size or Shell

(HxWxD)

Weight

Operating

Temperature

D545E DS65E

AC 115V-60 Hz

45 pints/Day (80°F/26.7°C,60% RH) 65 Pints/Day (80°F/26.7°C,60% PJ-

520 W 740 W

23-1/32" x14-31/32" x12-19/32"

(585 x 380 x 320 ram)

35.3 Ibs/16.0 kgs 38.6 Ibs/17.5 kgs

41°F - 95°F (5°C -35°C)

Operating Instructions

START OPERATION

t. Make sure the plug is inserted firmly into the socket.

2. Make sure the water tank is placed in the proper

position. If the full tank light is on when turning on

the machine for the first time, pull out the water tank

and push it back into proper position.

WHEN FULL TANK LIGHT IS ON

When the water tank is full, the indicator light will light

up and the dehumidifier will stop operating. Empty the

water tank and place it back in its proper position, The

machine will reactivate after 3 minutes.

Note: Empty the water from the water tank

using two hands.

Continuous Drainage

The continuous drainage function can be activated using the flowing steps.

1. Prepare PVC hose to drain out water. Remove the cap

from drainage outlet.

2. Remove fiat rubber insert from cap,

3. Pull the drainage hose through the ring of

the cap. !

4, Align the hose with the water outlet on the unit first

and then fasten the cap back on to the outlet,

Note: Use provided washer for better sealant.

5, Place the bucket in its original location.

INSTALLING DRAINAGE PVC HOSE

When using the continuous drainage function, the PVC hose mustbe placed

horizontally below the drainage hole, Avoid folding the hose or placing it on an

uneven surface.

Caution!

•Do not pull the power cord to remove the plug from the socket. Always pull

on the plug.

• Do not use bug spray, oil, spray paint or other flammable materials near the

machine. This can cause damage to the plastic parts or start a fire.

•To avoid shaking, noise and water leakage, do not place the unit on an

uneven surface.

•Always keep the unit 8" (20 cm) away from the wall to allow heat to dissipate

properly. Hang clothing at least 20" (50 cm) above the machine.

• It is dangerous to insert anything into the machine.

• Close all windows to reach maximum possible efficiency.

• Keep the machine

away from all

sources of heat. !

storing the

dehumidifier, do

not place it

sideways or upside

down. Avoid

violent shaking.

MAINTENANCE

For safety reasons,make sure the dehumidifier isunplugged before servicing or

cleaning.

1, Cleaning the shell:

A. Wipe the shellwith a clean, soft cloth.

B. If the dehumidifier is very dirty use mild detergent and wipe with a

damp cloth.

C. Do not wash the machine with ahose or immerse it in water. This may

cause an electrical shortage.

2. Cleaning the air filter:

The purpose of the air filter is to filter dust and other materials from the air. If

the filter is blocked by dust the electricity usage will be greater than normal.

For optima{ moisture removal efficiency, clean the filter every two weeks.

Cleaning steps:

A. Pull the air filter out slowly.

B. Clean the filter with avacuum cleaner or wash it with

clean water and dry with a dry cloth.

C. Put the clean air filter back in place and continue to

operate the dehumidifier.

Emergency

If a problem occurs, unplug the machine and contact a qualified service center

immediately. Do not disassemble the dehumidifier yourself.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Haier Déshumidificateur

Haier

Haier HD306 - annexe 1 Manuel utilisateur

Haier

Haier DE45EK Manuel utilisateur

Haier

Haier QPHR50LZ Mode d'emploi

Haier

Haier HD458E Manuel utilisateur

Haier

Haier QDHR35 Guide de sécurité

Haier

Haier HD456E - 45 Pint Capacity Dehumidifier Manuel utilisateur

Haier

Haier HDN655E - 65 Pint Capacity Dehumidifier Manuel utilisateur

Haier

Haier QPHR50 Mode d'emploi

Haier

Haier DM30A Manuel utilisateur

Haier

Haier DE45EM Manuel utilisateur

Haier

Haier HD601E Manuel utilisateur

Haier

Haier HD451E Manuel utilisateur

Haier

Haier DE Series Manuel utilisateur

Haier

Haier HDN305 - 30 Pint Capacity Dehumidifier Manuel utilisateur

Haier

Haier QDHR20 Mode d'emploi

Haier

Haier HD458 Manuel utilisateur

Haier

Haier DM32EK Manuel utilisateur

Haier

Haier Dehumidifier Manuel utilisateur

Haier

Haier DM32M Manuel utilisateur

Haier

Haier HDN455 - 45 Pint Capacity Dehumidifier Manuel utilisateur

Haier

Haier AH102ACNAA Manuel utilisateur

Haier

Haier HD308 - 30 Pint Capacity Manuel utilisateur

Haier

Haier HD-1003 Manuel utilisateur

Haier

Haier HD Series Manuel utilisateur

Manuels Déshumidificateur populaires d'autres marques

Daitsu

Daitsu CD031IU-DFA Manuel utilisateur

Fehom

Fehom PDGT701BE Manuel utilisateur

Hitachi

Hitachi RD-190GX Manuel utilisateur

Westpoint

Westpoint MDF1-30AE Manuel utilisateur

SOLIS

SOLIS easy dry compact Manuel utilisateur

ENVIROBOSS

ENVIROBOSS EB240 Manuel utilisateur

Sinclair

Sinclair R-9112 Manuel utilisateur

Kenmore

Kenmore 580.54701 Manuel utilisateur

Demargo

Demargo DM828NF Manuel utilisateur

Altrad Lescha

Altrad Lescha LDH 600 Manuel utilisateur

BOMANN

BOMANN LE 1150 CB Manuel utilisateur

SPT

SPT SD-46 Manuel utilisateur

REMKO

REMKO SLN 40 Manuel utilisateur

Logik

Logik L20DHW12 Manuel utilisateur

Frigidaire

Frigidaire FDR30S1 - 30 Pint Capacity Dehumidifier Guide de démarrage rapide

Blitz

Blitz HHD Series Manuel utilisateur

Prem-I-Air

Prem-I-Air PD14DEN Manuel utilisateur

Klarstein

Klarstein 10032042 Manuel utilisateur
