Haier HWV10XC5 Manuel utilisateur

0010551964

HWV08XC5

HWV10XC5

1

2

10-14

12-14

15-16

16-17

18

7-9

7

7-9

11

11

3

Test power plug before each use:

1. Press ìreset ìbutton.

2 . Press ìtest ìbutton, unit should trip.

3. Press ìresetî button again for use .

Do not use if above test fail.

In the event this device trips , the cause of the malfunction is to

be corrected before further use of the device .

Important:

4

5

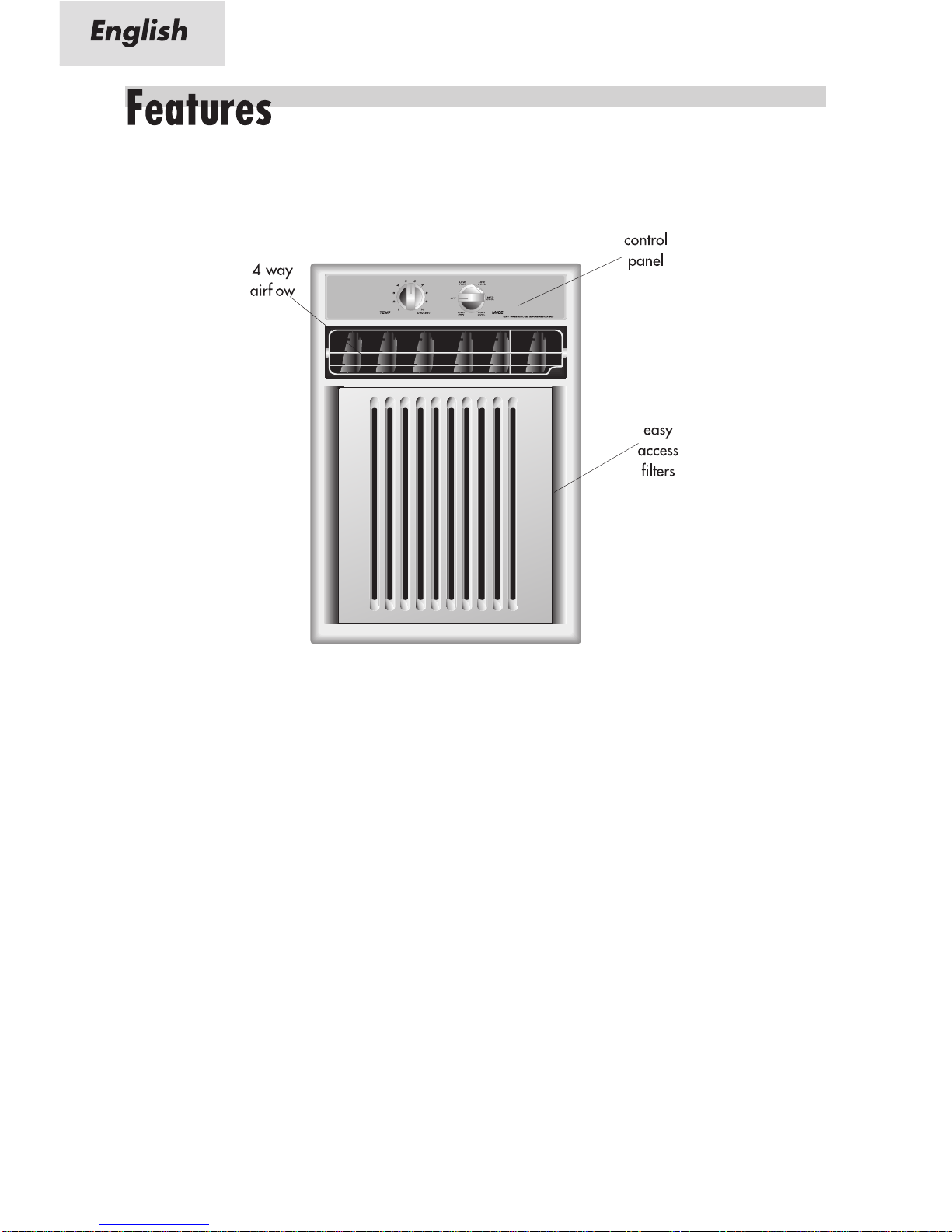

1. Temperature Set Knob

This knob adjusts the temperature of the air.

Higher the setting the cooler the air temperature.

With this knob you can set the temperature to

your desired comfort level. Min. Cool being the

warmest and Max. Cool being the coldest.

2. Function Set Knob

With this knob you can control the fan speed

as well as the cooling speed. There are 3 knob

positions on the COOL for you to select from.

LOW will circulate air at the lowest velocity

MED at the middle level and HI will circulate

at the maximum. You have 2 Fan speeds to

choose from HI and LO.

3. 4 Way Air Flow

These air directional louvers let you control

the direction of the airflow in your required

direction. The airflow can be directed

up- down - right side- left side.

4. Window Install Kit.

Enables you to install the air conditioner

in a double hung window. Extra brackets

or support may be needed depending on

your window.

6

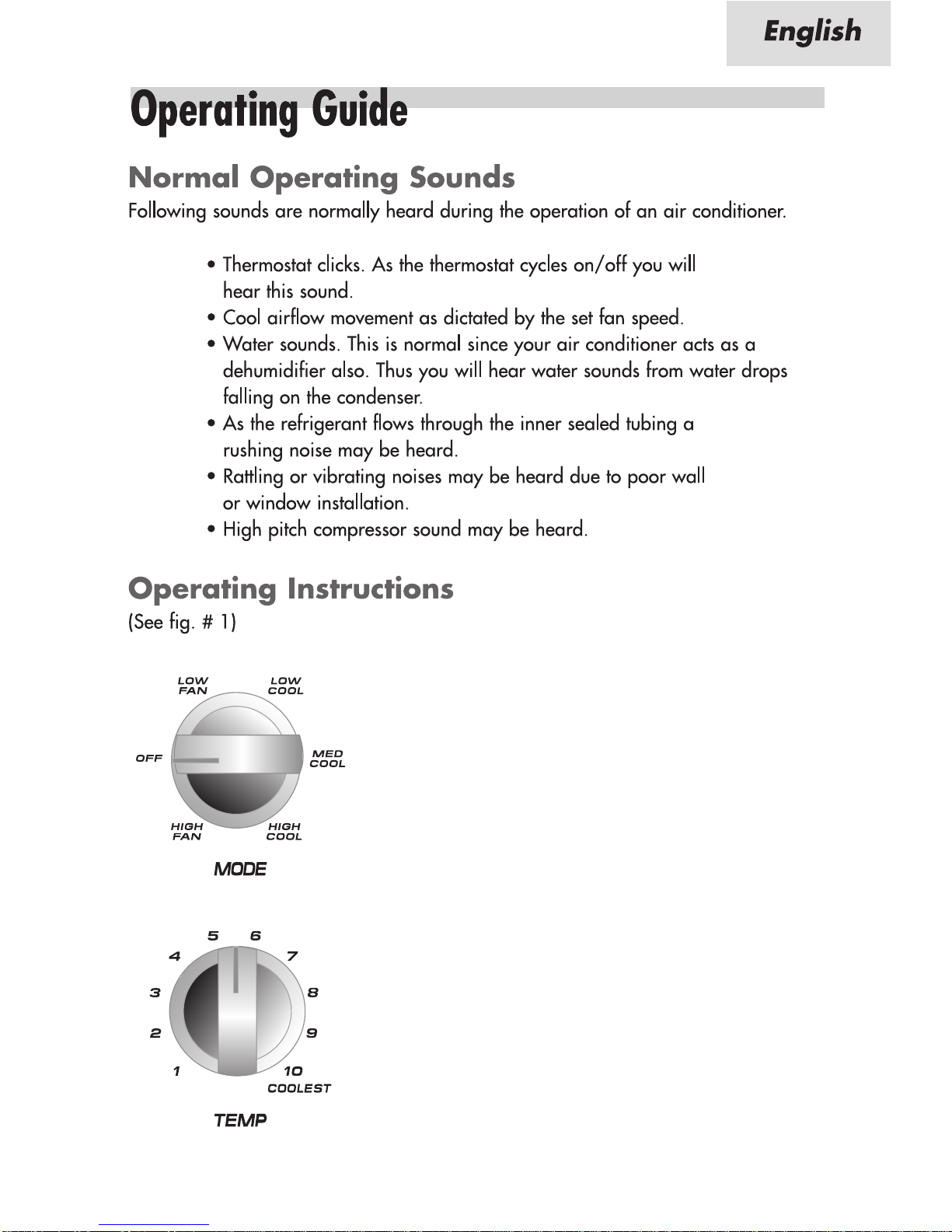

OFF

HIGH

FAN

LOW

FAN

HIGH

COOL

MED

COOL

LOW

COOL

--- Turns air conditioner off.

--- High speed fan operation without cooling.

--- Low speed fan operation without cooling.

--- Cooling with high speed fan operation.

--- Cooling with med speed fan operation.

--- Cooling with low speed fan operation.

This automatically controls the temperature of

the indoor air. Turn the knob so that arrow

point to the higher number for greater cooling.

Point the arrow to the lower number for more

moderate cooling. (i.e. the higher number the

greater cooling).

7

FOR NORMAL COOLING

1. Turn the MODE Knob to the HI COOL setting from the LOW COOL setting.

2. Set TEMP control to the desired temperature mark . If the room temperature

is not satisfactory after a reasonable time, adjust the control to a cooler or

warmer setting, as appropriate.

FOR MAXIMUM COOLING

1. Turn the MODE Knob to the HI COOL setting.

2. Set the TEMP control to the highest temperature(10).

FOR QUIETER OPERATION

1. Turn the MODE Knob to LOW COOL setting.

2.Set the TEMP control as needed.

After installing your air conditioner, plug it into the proper electrical outlet

in the wall.

CAUTION:

1. Remember the compressor of your air conditioner will not work when the

temperature goer below 65oF.

2. Also when you shut off the air conditioner wait for 3 minutes before turning

it on again. This is the compressor cycle time.

3. If you have any trouble in operating your air conditioner please refer to

the Trouble Shooting section.

8
