HWPR06XC7,HWPR08XC7

Combo Air Conditioner

C M Y CM MY CY CMY K

HEPA Filter Replacement

7-12

C M Y CM MY CY CMY K

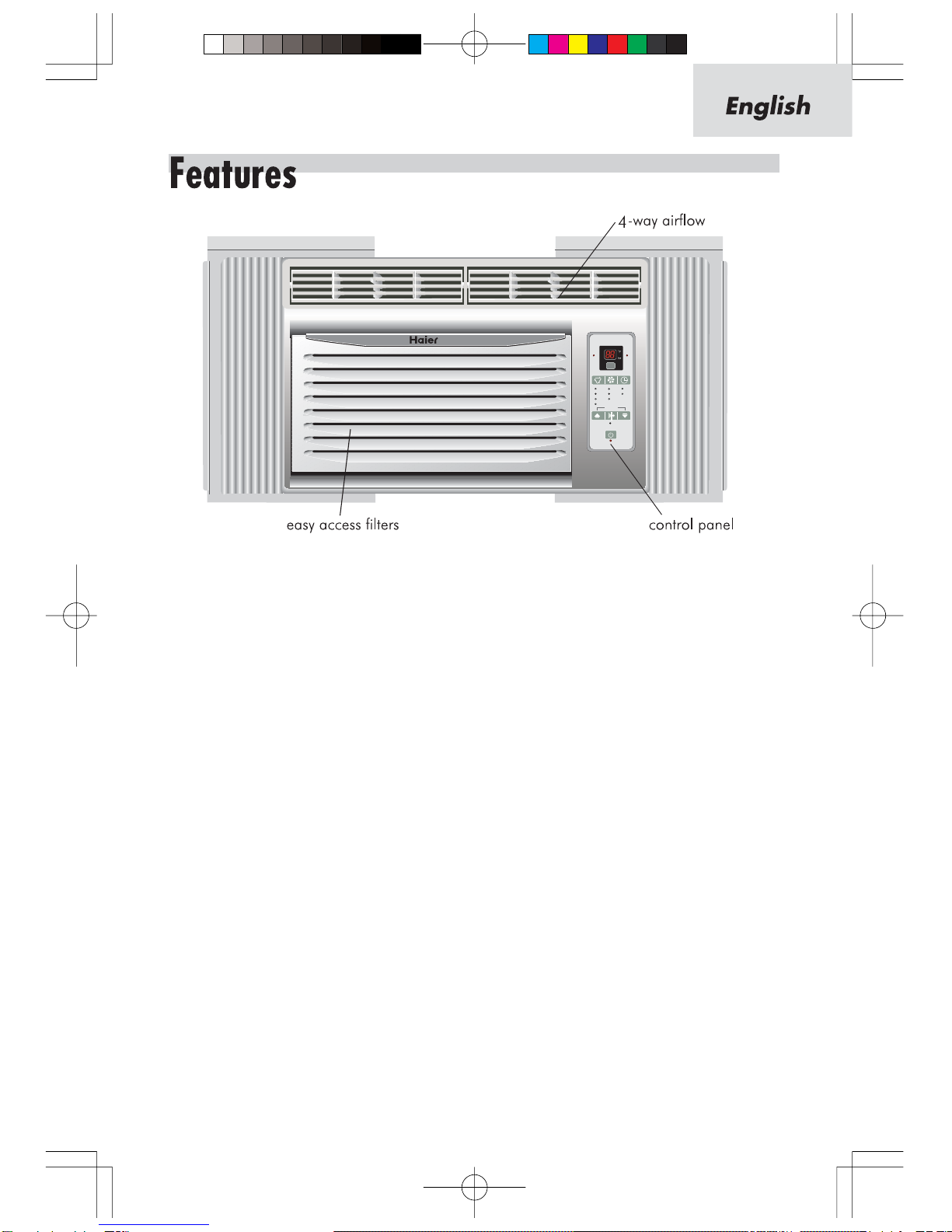

1.Thermostat

This allows you to adjust the temperature of

the air--the lower the setting,the cooler the air

temperature With this you can set the

temperature to your desired comfort level You

can set the temperature between 61o

F and 86o

2.Fan Speed

With this you can control the fan speed as well

as the A/C (cooling) speed

You have 3 levels of A/C Speed to set at your

desired level LO will circulate air at the lowest

velocity, MED at medium velocity and HIGH

will circulate at the maximum, velocity You

have 3 levels of Fan Speed to set at your

desired comfort level: HIGH, MED and LOW

3. Function

Your air conditioner has 4 Functions

a) COOL

Here the air conditioner will operate the

compressor and the desired fan speed set to

give you cold air for your comfort

b) FAN

You can run the fan without the A/C function

on cooler days The fan can be set to run at

3 speeds as desired

c) DEHUMIDIFY

This enables your air conditioner to operate

as a dehumidifier as well It will remove the

excess moisture from the air to keep your room

at a comfortable, dry stage You can use this

feature alone in case you do not wish to use

the air conditioner

d) ENERGY SAVER

When this feature is "On" , the fan will shut off

three minutes after the compressor cycles off

This will reduce energy consumption and noise

When the compressor turns back on, the fan

will turn on at the same time In the "Off"

position, the fan will not shut off when the

compressor cycles off

4.Timer

Your air conditioner can be set to go on or off

at your desire This can be ecogrammed up

to 24 hours in advance

5.4-Way Air F ow

The air directional louvers let you control the

direction of the airflow to the desired direction

The airflow can be directed up-down-right

side-left side

OFFCOOL ONLY

FAN ONLY ONHIGH

MED

MODE SPEED TIMER

TEMP / TIME

POWER

AIR CLEANING

ONLY

REMOVE

HEPA

FILTER

INSERT

HEPA

FILTER

DEHUM

ENERGY

SAVER

LOW

C M Y CM MY CY CMY K

6. Window Insta Kit

This kit enables you to install the air conditioner

in a double hung window Extra brackets or

support may be needed, depending on your

window

7.Remote Contro

This fully functional wireless remote allows you

to operate your air conditioner from a distance

You need not get up to change the settings or

the functions, or to turn the unit on or off

8.LCD Disp ay E ectronic Contro Pane

The 4-function LCD displays Room Temperature,

Temperature Setting, Timer Setting and Time

Remaining to Stop/Start the unit Electronic

Control Panel lets you set the temperature to

the exact temperature you desire

9.Air C eaning

This function can help you to reduce the dust, pollen

, mold , bacteria and any airborne particles inside

and outside your home effectively ,and keep your

family healthier

10.E ectrostatic Fi ter (not all models)

Being constructed of high efficiency purifying

substance, active carbon fabric, electrostatic

fabric, electrostatic active carbon net and other

materials, this air conditioner pruifies the air

effectively Its wavy structure increases the

capability to filter dust and smoke effectively

Due to the retention of active carbon, it has

a high purifying speed capable of strong airflow

11. How The Unit Drains

On humid days with the air conditioner in use,

moisture may collect on the pan or the bottom

of the air conditioner If the unit is positioned

properly, the moisture will gather towards the

back of the unit This will not affect the operation

of the unit and the moisture will evaporate in

time Occasionaly the moisture will flow over

the back of the pan, but this will not affect the

operation of the unit Never drill holes in the

pan under any circumstance

C M Y CM MY CY CMY K

SPEED AIR CLEANING

MODE

LIGHT LOCK

Cool airflow movement as dictated by the set fan speed

Water sounds This is normal since your air conditioner also acts as a dehumidifier

Thus you will hear water sounds from water frops falling on the condenser

As the refrigerant flows through the inner sealed tubing, a rushing noise may be

occur

Rattling or vibrating noises may be heard due to poor wall or window installation

High pitch compressor sound may be heard

After installing your air conditioner, plug it into the proper electrical outlet in the

wall Now set the air conditioner at your comfort level This fully functional wireless

remote allows you to operate your air conditioner without having to get up and

go to the unit The full function feature allows you to change the settings and turn

the unit on or off from the remote itself This control pad works the same as the

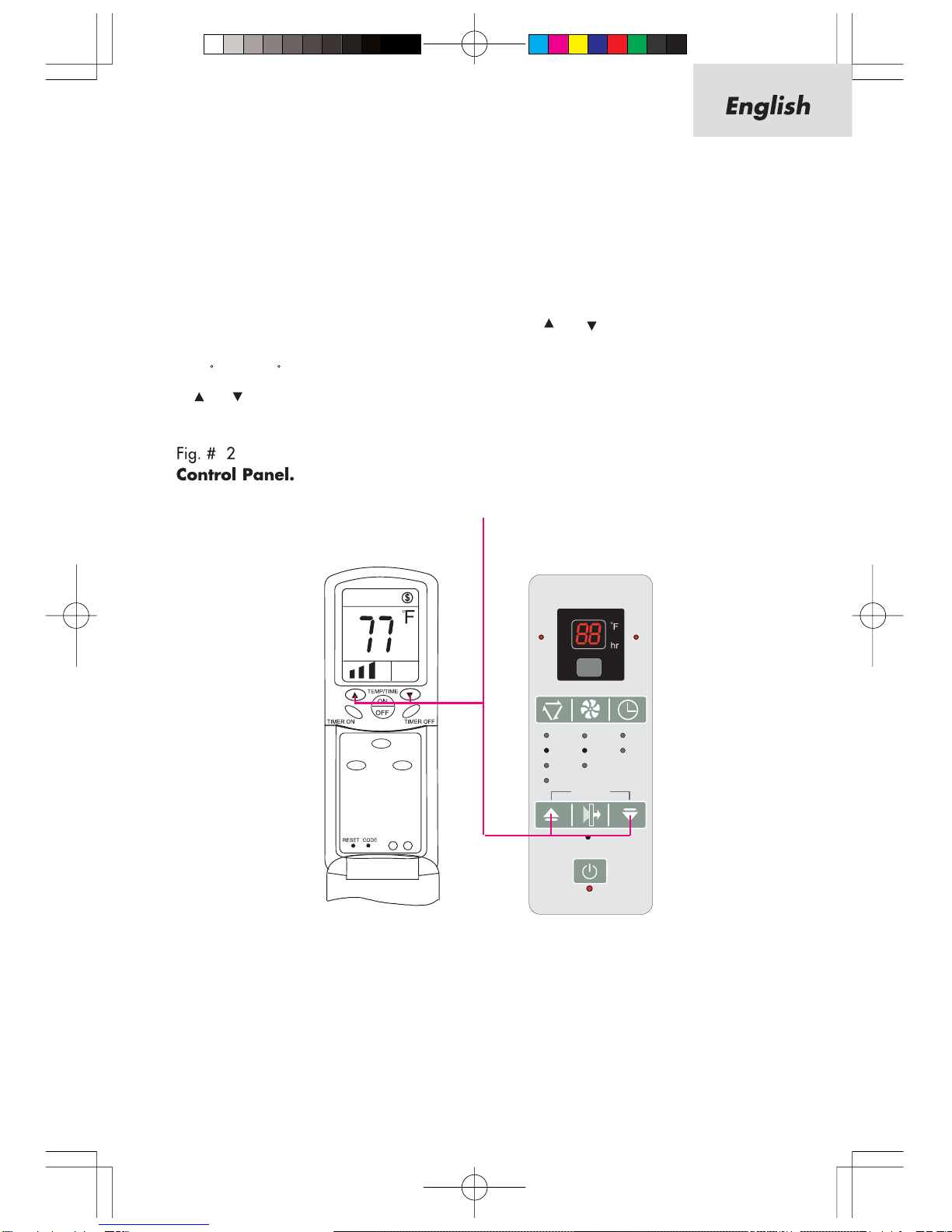

control pad on the air conditioner (See Fig #1)

The following sounds are normally heard during the operation of an air conditioner

C M Y CM MY CY CMY K

Every time you press the MODE button, it will change between FAN, COOL, ENERGY

SAVER and DEHUM (See fig #3)

SPEED AIR CLEANING

MODE

LIGHT LOCK

OFFCOOL ONLY

FAN ONLY ONHIGH

MED

MODE SPEED TIMER

TEMP / TIME

POWER

AIR CLEANING

ONLY

REMOVE

HEPA

FILTER

INSERT

HEPA

FILTER

DEHUM

ENERGY

SAVER

LOW

After you plug in the unit, it will perform a self test All the display lights will turn on

for 3 seconds The LCD display will read"88", If any display light fails to turn on you

may need service on the unit After 3 seconds, the unit will automatically go to the

stand by mode Now all lights will be off and you will automatically to to the stand

by mode Now all lights will be off and you will have to turn"ON" by pressing the

On/Off key After pressing"On/Off", the unit starts to work and enters the status of

"Fan" with the low setting You will have to press the ( ) or ( ) key on the Temp/Time

to set the temperature at your desired comfort You can choose a temperature between

61 F and 86 F Once the temperature is set you can raise or lower it by pressing the

( ) or ( ) keys The temperature setting can only be adjusted when the unit is cooling (See

Fig #2) Having set the temperature you will set the function of the air conditioner
