Haier HW-24CE03 Manuel utilisateur

Air ConditionerEdition:2006/01/19

OPERRATION

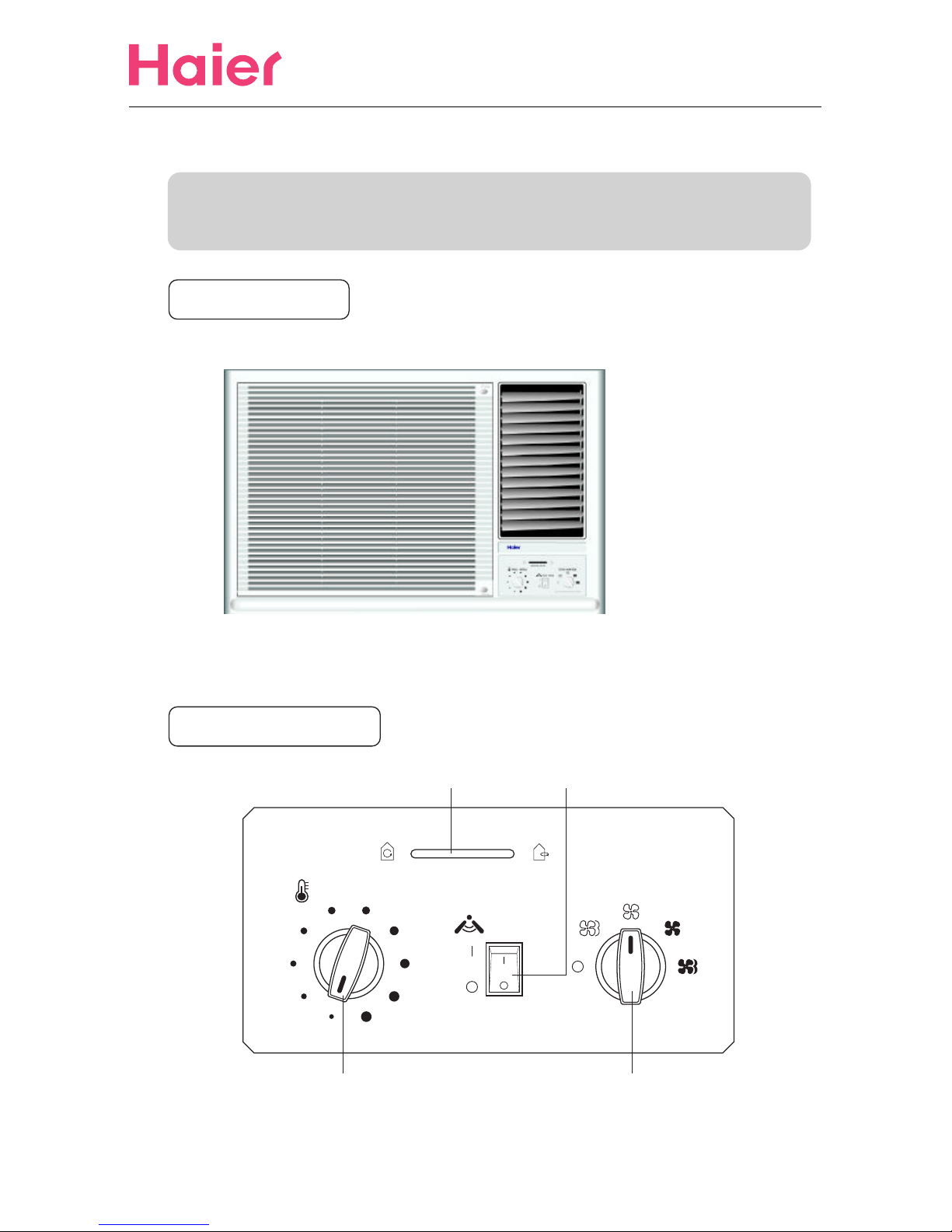

Parts Name

Machine body

Operation panel

Mode selection

Auto swing

Thermostat

Ventilation

WAIT 3 MINUTES BEFORE RESTARTING

VENTILATOR

Mode selection

Temp. setting

Auto swing

MODEL: HW-18L03(T3)

Front

Air inlet (indoor)

Air outlet (indoor)

Operation

Air Conditioner



Edition:2006/01/19

Operation Guide

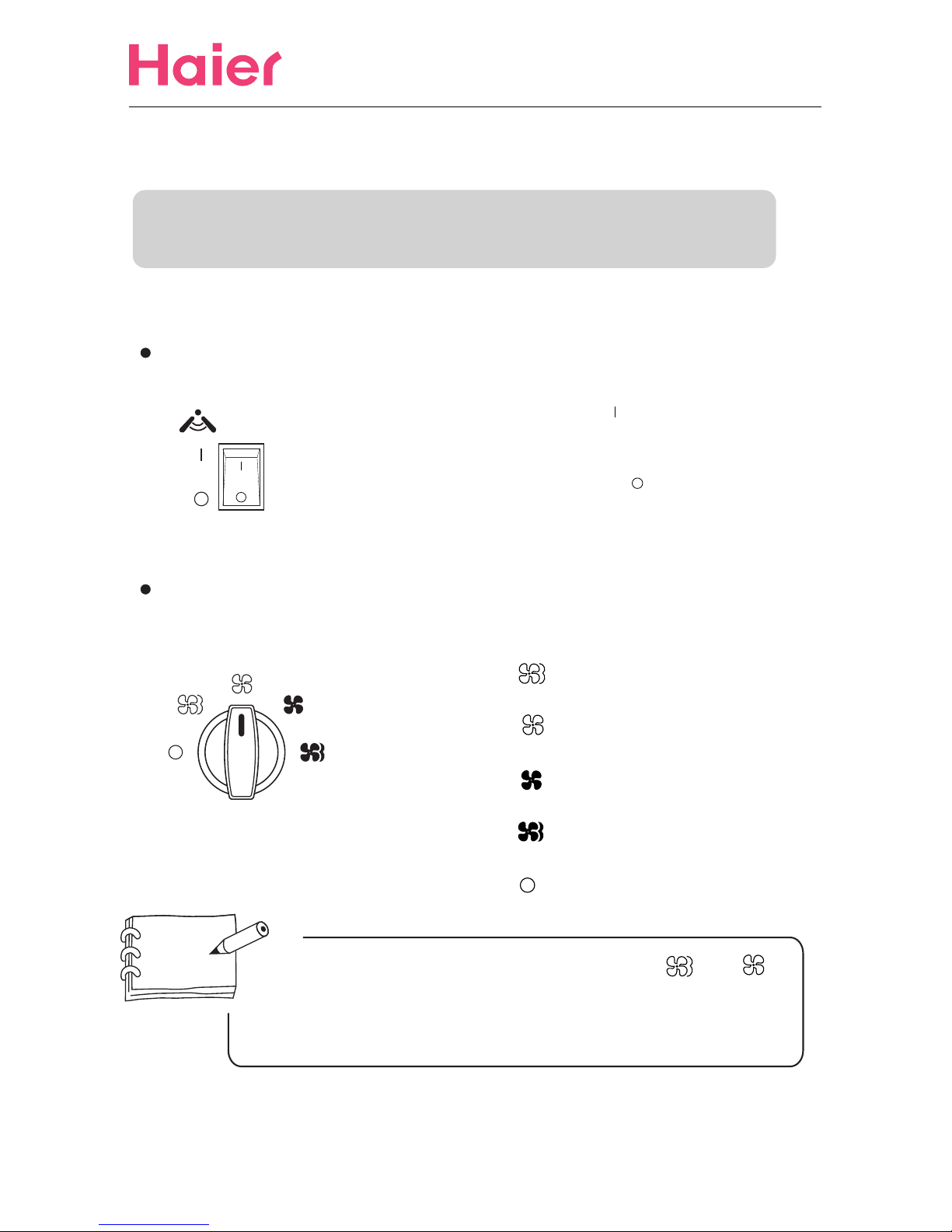

When the mode selection switch is turned to " " or " " ,

the air conditioner will only blow out air without cooling.

If the mode selection switch is turned from cooling mode to fan

mode, do not turn it back until at least 3 minutes have elapsed.

<1>

<2>

<3>

<4>

Auto swing

Mode selection

<5>

When set to " ", fan motor runs at high

speed to blow out strong air.

When set to " ", fan motor runs at low

speed to blow out gentle air.

When set to " ", air conditioner will start

cooling at low speed, blowing out gentle air.

When set to " ", air conditioner will start

speedy cooling, blowing out strong air.

When set to " ", air conditioner stops

running.

Mode selection switch controls the fan motor

speed and cooling speed.

Hint

Auto air deflector switch

When the switch is set to " ", the indicator lights

Mode selection switch

up, and vertical louvers will swing from side to side,

delivering gentle air thus making you feel very

comfortable. When it is set to " ", the indicator

goes out, and the vertical louvers stop at any position.

Air Conditioner



Edition:2006/01/19

Operation Guide

VENTILATOR VENTILATOR

In cooling mode, after you turn thermostat switch counter-clockwise,

do not turn it back until at least 3 minutes have elapsed.

Otherwise, the fuse may blow due to overload.

Do not exceed the selection range.

This switch controls the preset indoor temperature

to makethe air conditioner start or stop automatically,

so as to reduce power consumption and operate the

system both comfortably and economically.

The compressor stops running when the

set temperature is reached but the fan

continues to operate to keep an even

indoor temperature.

Remarks

Temp. setting

Ventilation Lever

When the slide lever is at

"" position, the vent door

opens to allow air, smoke or

odors to be expelled from the

room.

"" position, the vent door is

closed and the air inside the room

is circulated and conditioned.

Vertical airflow direction

Vertical Airflow Direction Vane (Airflow

direction adjustment Up-and-Down)

The Vertical Airflow Direction Vane is

manually controlled by positioning the

vane todischarge the air upward,

downward or straight out.

Thermostat switch

CAUTION

Air Conditioner



Edition:2006/01/19

Maintenance

Air filter cleaning: Please clean the air filter every two weeks

When dirt accumulates in the air filter, air circulation will be blocked, and causes

poor

Removal of air filter

(1) Loosen the air inlet by pushing " PUSH " at

both edges as shown.

(2) Open the air inlet.

(3) Hold the handle at lower part of the air filter

and draw outward to remove the air filter.

1. Gently tap the dirt off the air filter.

2. Carefully wash the air filter in warm water

(below 40 oC). To obtain better cleaning

effect, soapy water or neutral detergent

may be used.

3. Flush the air filter carefully with clean water

after removing the dirt. Let it dry

completely.

(1) Put the air filter on.

(2) Push the part marked " PUSH " until you hear a click.

Air filter cleaning

Installation of filter

Washing

air filter

PUSH

Air inlet PUSH

(1) Loose the air filter by pushing " PUSH "

at both ends of air inlet.

(2) Hold the air filter by frame and lift it

forward for approx. 5 mm.

(3) Pull it out downward .

(1) Hold the filter by its frame and push it upward along

the

groove under air inlet until it comes to a complete stop.

(2) Push the part marked with " PUSH " until you hear a

click.

For HW-18L03(T3):

For HW-24CE03:

For HW-18L03(T3):

For HW-24CE03:

WAIT3MINUTESBEFORERESTARTING

VENTILATOR

Modeselection

Temp.setting

Autoswing

PUSH PUSH

WAIT3MINUTES BEFORE RESTARTING

VENTILATOR

Modeselection

Temp.setting

Autoswing

Air Conditioner



Edition:2006/01/19

Tips For Energy Saving

Avoid opening doors and windows

as much as possible.

Use curtain or blinds.

Direct sunlight may reduce cooling

effect, so always use window

Keep heat sources away from the

air conditioner.

Do not hang clothes in the vicinity

of the air inlet. This will decrease

the cooling effect and cause abnormal

operation.

Before operating the mode selec

-tion switch, check whether the air

inlet or outlet has been blocked.

Keep away from

For longer and trouble-free operation of the unit, pay special attention to

the following:

Install the air conditioner at a location strong enough to support the unit.

Leave enough space around the air inlet and outlet for better circulation.

Avoid sites where flammable gas leaks.

Problems may occur if the unit is installed in the following areas:

Place where oil exists in the air including engine oil, seaside with

salt breeze, and hot springs area with air-borne sulfurous gas.

For Trouble-Free Operation

Air Conditioner



Edition:2006/01/19

curtain.
