OPERATION MANUAL

No.0010571994

CASSETTE AIR CONDITIONER

AB182ACBDA

AU182AFBAA

(HBU-18HD03/R1)

CONTENTS

CAUTIONS..................................................................................

THE NAME OF EACH PART AND ITS FUNCTION................

INTRODUCTION TO SPARE PARTS ...................................

GUIDE TO OPERATION .......................................................

AIR FLOW DIRECTION ADJUSTMENT PROCEDURE

..............

REMOTE CONTROLAND MALFUNCTION JUDGEMENT

.........

FOR COMFORTABLE USE ......................................................

CARE AND MAINTENANCE...............................................

WARNING OPERATION ......................................................

2-3

5-6

7-11

15-17

18-22

CAUTIONS

Disposal of the old air conditioner

Before disposing an old air conditioner

that goes out of use, please make sure

it's inoperative and safe. Unplug the

air conditioner in order to avoid the risk

of child entrapment.

It must be noticed that air conditioner

system contains refrigerants, which

require specialized waste disposal.

The valuable materials contained in a

air conditioner can be recycled.

Contact your local waste disposal

center for proper disposal of an old air

conditioner and contact your local

authority or your dealer if you have

any question. Please ensure that the

pipework of your air conditioner does

not get damaged prior to being picked

up by the relevant waste disposal

center, and contribute to

environmental awareness by insisting

on an appropriate, anti-pollution

method of disposal.

Disposal of the packaging of your

new air conditioner

All the packaging materials employed

in the package of your new air

conditioner may be disposed without

any danger to the environment.

Consult your local authorities for the name

and address of the waste materials

collecting centers and waste paper

disposal services nearest to your house.

Safety Instructions and Warnings

Before starting the air conditioner, read

the information given in the User's Guide

carefully. The User's Guide contains very

important observations relating to the

assembly, operation and maintenance

of the air conditioner.

The manufacturer does not accept

responsibility for any damages that may

arise due to non-observation of the

following instruction.

Damaged air conditioners are not to

be put into operation. In case of doubt,

consult your supplier.

All these valuable materials may be taken

to a waste collecting center and used

again after adequate recycling.

The cardboard box may be broken or cut

into smaller pieces and given to a waste

paper disposal service. The wrapping

bag made of polyethylene and the

polyethylene foam pads contain no

fluorochloric hydrocarbon.

CAUTIONS

All electrical repairs must be carried

out by qualified electricians.

Inadequate repairs may result in a

major source of danger for the user of

the air conditioner.

Do not damage any parts of the air

conditioner that carry refrigerant by

piercing or perforating the air

conditioner's tubes with sharp or

pointed items, crushing or twisting any

tubes, or scraping the coatings off the

surfaces. If the refrigerant spurts out

and gets into eyes, it may result in

serious eye injuries.

For the purpose of safety, the air

conditioner must be properly grounded

in accordance with specifications.

Always remember to unplug the air

conditioner before opening inlet grill.

Never unplug your air conditioner by

pulling on the power cord. Always grip

plug firmly and pull straight out from

the outlet.

Use of the air conditioner is to be

carried out in strict compliance with the

relative instructions set forth in the

User's Guide.

Installation shall be done by

professional people, don't install unit

by yourself.

Do not obstruct or cover the

ventilation grille of the air conditioner.

Do not put fingers or any other things

into the inlet/outlet and swing louver.

Do not allow children to play with the

air conditioner. In no case should

children be allowed to sit on the

outdoor unit.

Indoor unit

Back up switch

Swing louver

Air blows out from here.

Air flow direction is adjusted.

Air inlet grille

Takes in the indoor air.

Air filter

Removes dust or dirt out of the inlet air.

(In the Air inlet grille)

Air inlet

Outdoor unit

Air outlet

Compressor(inside of unit)

THE NAME OF EACH PART AND ITS FUNCTION

Operation

INTRODUCTION TO SPARE PARTS

Buttons and display of the wire controller.

Cautions:

On cooling only unit, heating

mode is not available.

Note:

The above information is the explanation of

the displayed information therefore varies

with those displayed in actual operation.

CLOCK

Used to set correct time.

TIMER

Used to select

TIMER ON,

TIMER OFF,

TIMER ON/OFF.

TIME

Used to set clock and

timer setting.

Used for unit start and

stop.

Power ON/OFF

MODE

Used to select AUTO

RUN, COOL, DRY,

HEAT and FAN

operation.

FAN SPEED

Used to select fan

speed: LO, MED, HI, AUTO

TEMP

Used to select your

desired temp.

SET

Used to confirm Timer

and Clock settings.

SLEEP

Used to select sleep

mode.

INTRODUCTION TO SPARE PARTS

OPERATING LAMP

Buttons and display of the wire controller.

DRY

COOL

AUTO

FAN SPEED

TIMER ON

TIMER OFF

CLOCK TEMP.

FAN OPERATION

HEAT

Clock set

When unit is started for the first time, clock should be adjusted as follows:

Press CLOCK button, "AM"or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the

button is kept depressed, time will change quickly.

After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock

starts working.

Operation

Remote control

SLEEP

Fan operation

Enjoy yourself by just a gentle press.

(1) Unit start

(2) Select operation mode

Press ON/OFF button, unit starts.

Previous operation status appears on display.

(Not Timer setting)

Power indicator lights up.

Press MODE button. For each press, operation

mode changes as follows:

Unit will run in selected mode.

stop display at " " FAN.

Wire controller can memorize settings in each operation mode. To run it next time just select

the operation mode and it will start with the previous setting.

No reselecting is needed.(TIMER ON/OFF needs reselecting)

In FAN mode, temp. can't be set.

Hints

For cooling only type no " HEAT " function.

AUTO COO DR FA

The air conditioner has the function of POWER

FAILURE RESUME.

HEA

(3) Fan

Press FAN button. For each press, fan speed

changes as follows:

Unit will run at selected fan speed.

LOW MID HIGH

(4) Unit stop

Press ON/OFF button.

Only time and room temp remains on LCD.

All indicators go out.

Vertical flap closed automatically.

GUIDE TO OPERATION

AUTO RUN, COOL,HEAT and DRY operation

Use COOL in summer.

Use HEAT in winter.

Use DRY in spring,autumn and in damp climate.

(1) Unit start

(2) Select operation mode

(3) Select temp. setting

Press ON/OFF button, unit starts.

Previous operation status appears on display

(Not Timer setting). Power indicator lights up.

Press MODE button. For each press, operation

mode changes as follows:

Unit will run in operation mode displayed on LCD.

Stop display at your desired mode.

Every time the button is pressed, temp. setting

increases 1 C.

If button is kept depressed, temp.setting will

increase quickly.

Every time the button is pressed, temp. setting

decreases 1 C.

If button is kept depressed, temp. setting will

decrease quickly.

Recommendations

Hints

Wire controller can memorize each operation

status. When starting it next time, just press

ON/OFF button and unit will run in previous

status.

Press FAN button. For each press, fan speed changes

as follows:

(4) Fan speed

Unit runs at the speed displayed on LCD.

In HEAT mode, warm air will blow out after a short

period of time due to cold-draft prevention function.

In DRY mode, when room temp. becomes 2 C higher

than temp. setting, unit will run intermittently at LOW

speed regardless of FAN setting.

Unit will start running to reach the temp. setting

on LCD.

Press ON/OFF button.

Only time and room temp remains on LCD.

All indicators go out.

Vertical flap closes automatically.

(5) Unit stop

Press TEMP button

AUTO

LOW MID HIGH

AUTO

AUTO COO DR FAHEA

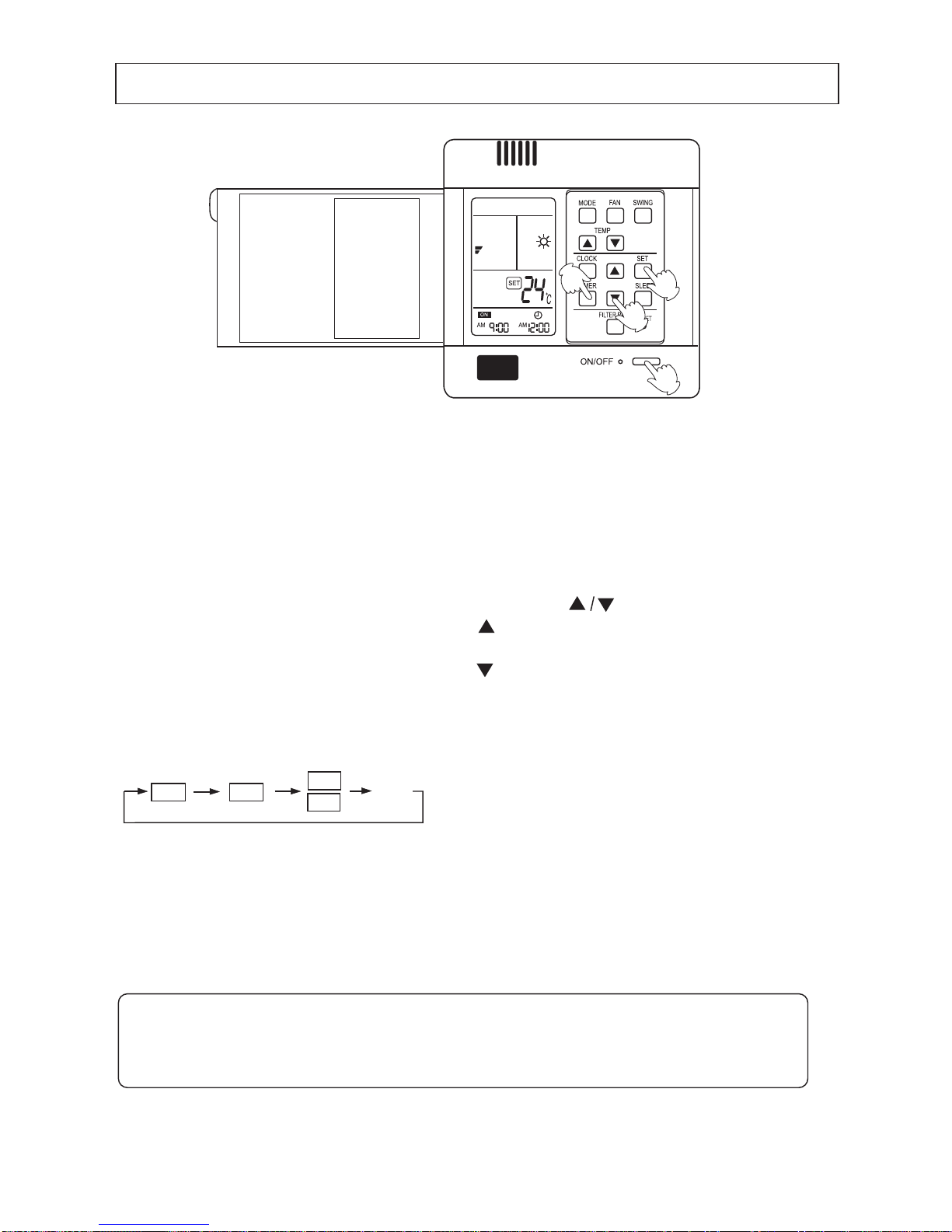

TIMER operation

Hints

Set Clock correctly before starting Timer operation.

You can let unit start or stop automatically at following time: Before you wake up in the

morning, or get back from outside or after you fall asleep at night.

Operation mode will be displayed on LCD.

Power indicator lights up.

(2)TIMER mode selection

Press TIMER button to change TIMER mode.

Every time the button is pressed, display changes

as follows:

Select your desired TIMER mode (ON or OFF)

(3)Timer setting

Press TIME button.

Every time the button is pressed, time increases 10min.

If button is kept depressed, time will change quickly.

Every time the button is pressed, time decreases 10min.

If button is kept depressed, time will change quickly.

Time will be shown on LCD. It can be adjusted within

24hours.

(4)Confirming your

After setting correct time, press SET button to confirm

"ON" or "OFF" stops flashing.

Time displayed: Unit starts or stops at x hour x min

(ON or OFF).

Timer mode indicator lights up.

TIMER ON/OFF

To cancel TIMER

Just press TIMER button several times until TIMER mode disappears.

Wire controller possesses memory function, when use TIMER mode next time, just

press SET button after mode selecting if timer setting is the same as previous one.

(1)After unit start, select your desired

operation mode.

blank

OFF

ON OFF

GUIDE TO OPERATION

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Climatiseur

Haier

Haier AU142AFBEA Manuel utilisateur

Haier

Haier QHC18 Manuel utilisateur

Haier

Haier AC122ACERA Manuel utilisateur

Haier

Haier AS35TADHRA-CL Manuel utilisateur

Haier

Haier HWF05XCJ Manuel utilisateur

Haier

Haier AS18GS1ERA - Manuel utilisateur

Haier

Haier HSU18VCK Manuel utilisateur

Haier

Haier HSU-05LE03 Manuel utilisateur

Haier

Haier HPU-20CH13 Manuel utilisateur

Haier

Haier ESA3159 Manuel utilisateur

Haier

Haier 1U25KEHFRA-NR Manuel utilisateur

Haier

Haier HPU-24FSG03T Instructions d'installation et d'utilisation

Haier

Haier GE NS16AS Manuel utilisateur

Haier

Haier HSU-09/12HA103/R2(DB) Guide d'installation et d'utilisation

Haier

Haier AS25THMHRA-C Manuel utilisateur

Haier

Haier HSU-09RR103/R2 - annexe 1 Manuel utilisateur

Haier

Haier 2U40S2SM1FA Manuel utilisateur

Haier

Haier AD842AHEAA Instructions d'installation et d'utilisation

Haier

Haier HSU-09HVD03/R2 - annexe 2 Manuel utilisateur

Haier

Haier ESA3069 - annexe 1 Manuel utilisateur

Haier

Haier 1UH071N1ERG Manuel utilisateur

Haier

Haier AS25PBAHRA Manuel utilisateur

Haier

Haier HSU-24HEA03 Manuel utilisateur

Haier

Haier HSU-09HVA104/R2 - annexe 1 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
