Haier 10515690 Manuel utilisateur

HW-09LN03

HW-12LN03

No.0010515690

WINDOW TYPE ROOM AIR CONDITIONER

4-9

10-13

14-15

2-3

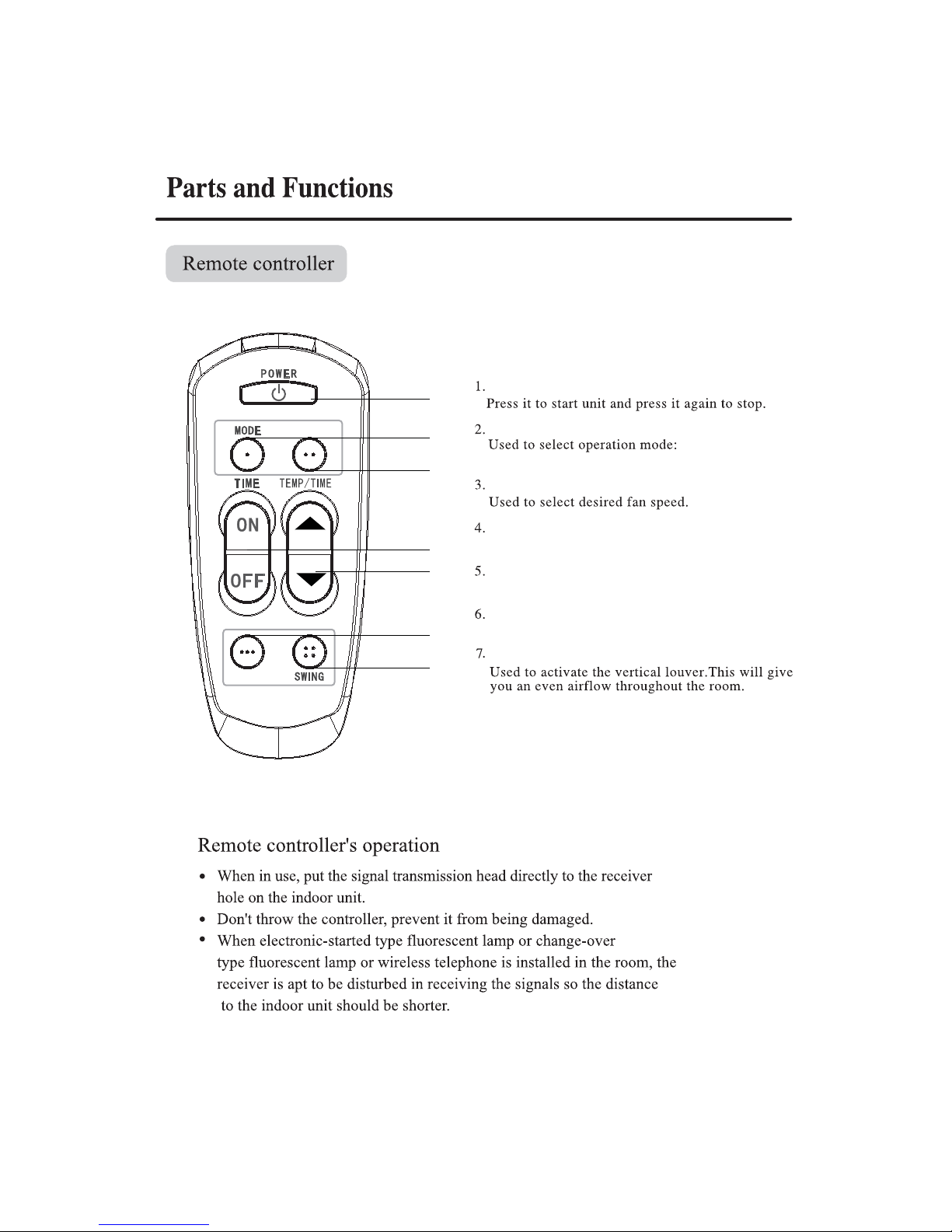

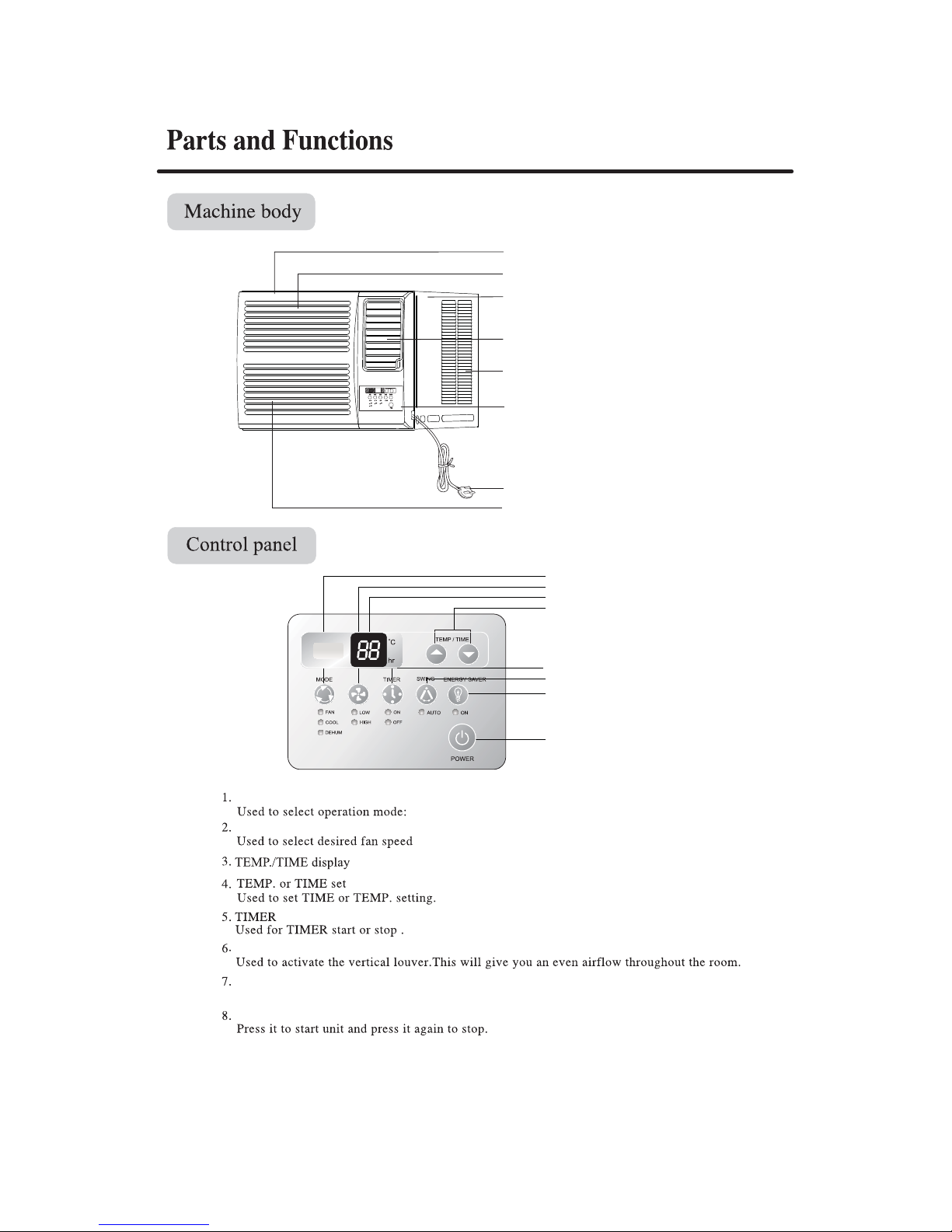

Parts and Functions

Operation Guide

Maintenance

Installation Instruction

Wiring Diagram

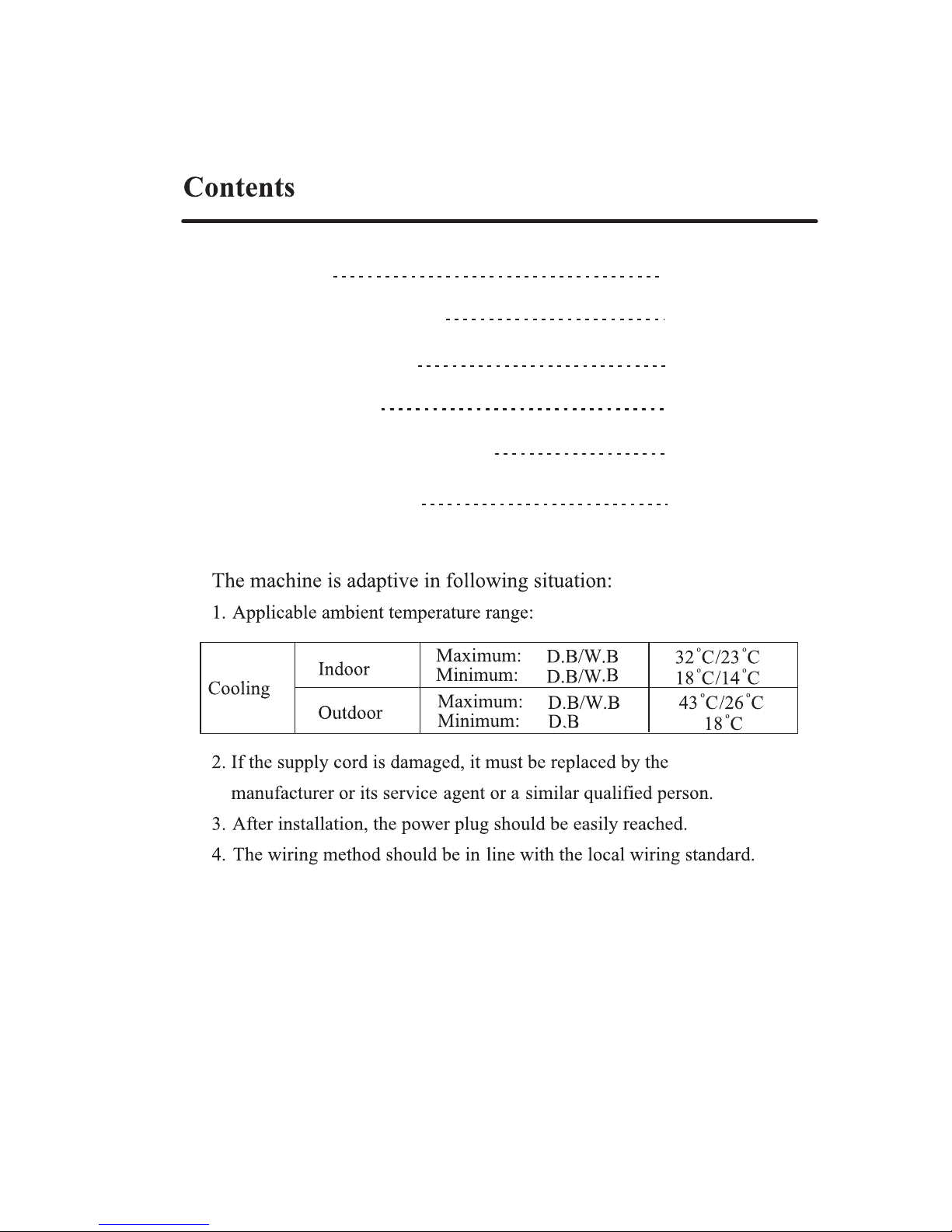

Contents

POWER

MODE

SWING

ENERGY SAVER

FAN,COOL,DEHUM.

:HIGH or LOW.

FAN SPEED

Front panel

Air inlet (indoor side)

Air outlet (indoor side)

Air inlet (outdoor side)

Display

panel

Air filter (inside)

Machine body

Power plug

Used to activate ENERGY SAVER option,reduce energy consumption and noise.

MODE

FAN SPEED

E-S

SWING

POWER

FAN,COOL,DEHUM.

FAN SPEED

ENERGY SAVER

E-S

TIMER button

Used for TIMER start or stop .

TEMP.orTIME set

Used to set TIME or TEMP. setting.

If you choose the FAN SPEED mode you can run the

Press MODE button. For each press, operation mode

changes as follows: FAN COOL DEHUM

Press POWER button

2. Select operation mode

FAN SPEED

When the COOL display lights bright,the unit will

be working under the cooling function.

COOL

at outlet

E-S

FAN SPEED

fan in one of the 2 speeds: HIGH or LOW.

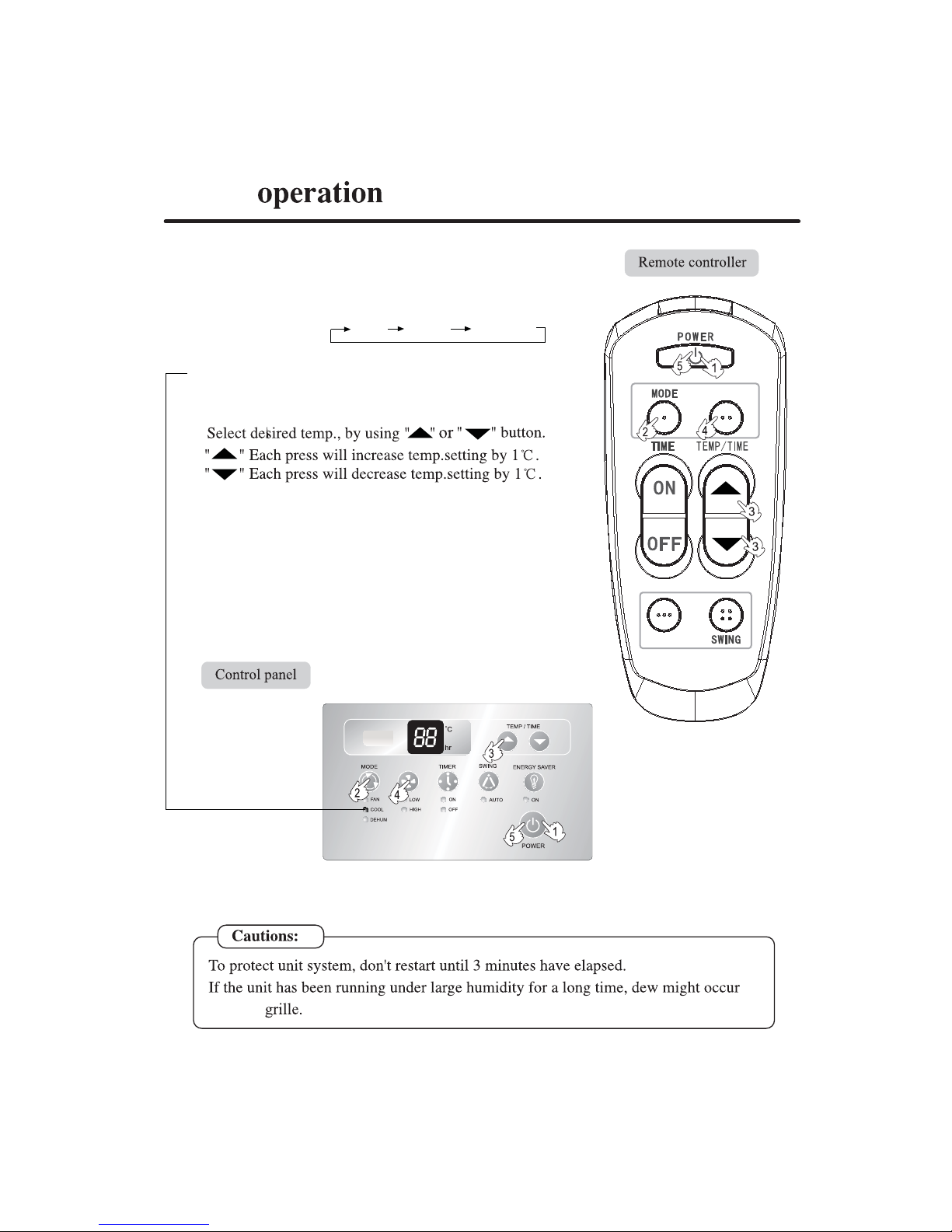

1.Start

3. Select temp. setting

4. Fan speed selection

Select desired setting.

Change air flow direction if necessary.

5. Stop

Press POWER button again.

Then select COOL operation.

Air conditioner is running under displayed fan speed.

In DRY mode, when room temperature becomes

lower than temp.setting+2oC,unit will run intermittently

at LOW speed regardless of FAN setting.

COOL operation starts when room

temp.is higher than temp.setting.

On reaching temp.setting +2 C

unit will run in mild DRY mode.

Ultra-low air flow

Temp.setting+2 C

Temp.setting

Press MODE button. For each press, operation mode

changes as follows: FAN COOL DEHUM

2. Select operation mode

If you need to only remove the moisture press the

Dehnmid button. Change air flow direction if necessary.

When the DEHUM display lights bright,The unit will be

working under the dehumidify function.

FAN SPEED

The compressor may cycle for 10 minutes on and 6 minuters off in

Dehumid mode.

E-S

FAN SPEED

1. Start

Press POWER button.

3. Select temp. setting

If you choose the FAN SPEED mode you can run the

fan in one of the 2 speeds:HIGH OR LOW.

4. Fan speed selection

5. Stop

3UHVV32:(5EXWWRQDJDLQ

DEHUMID mode

Then select DEHUMID operation.

FAN SPEED

E-S

FAN SPEED

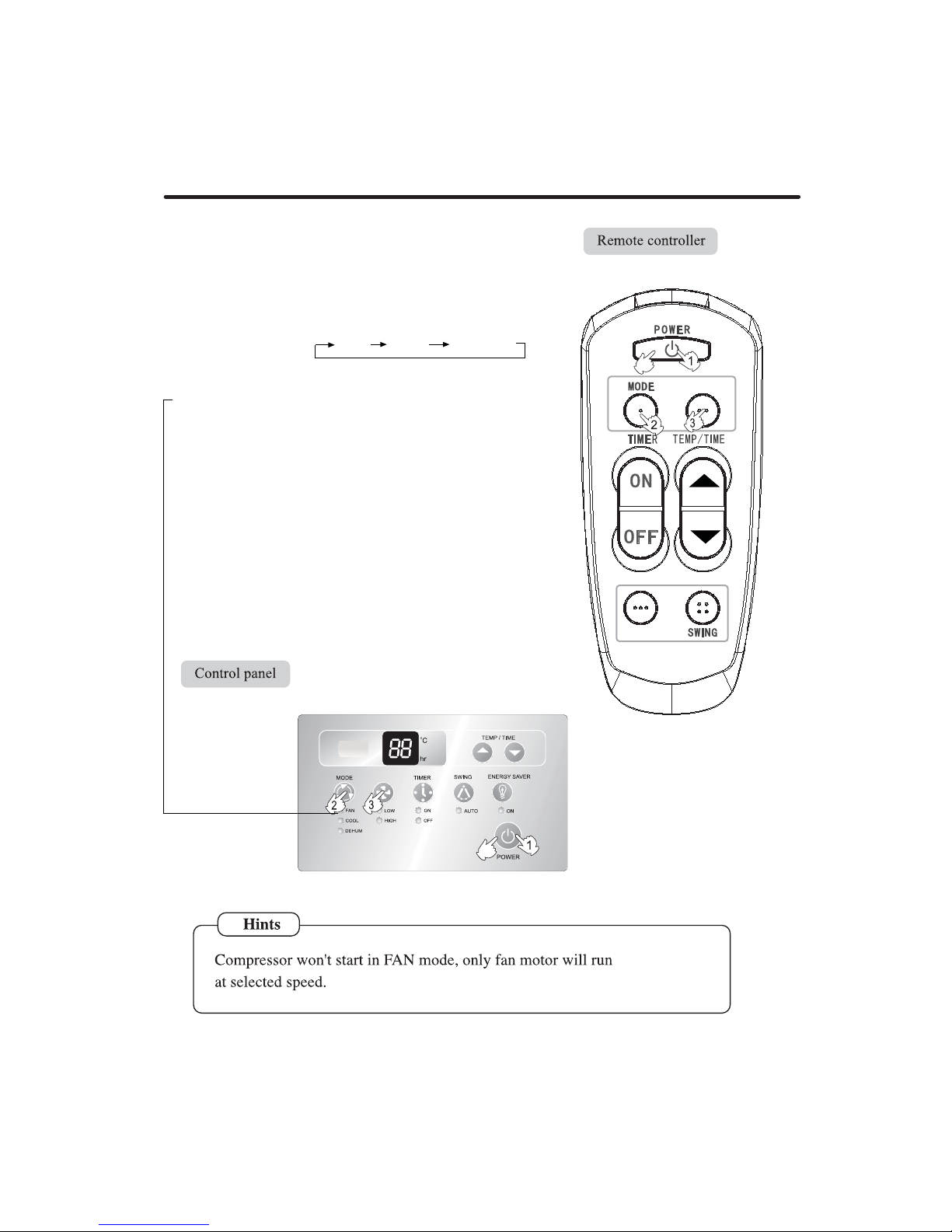

FAN operation

Press MODE button. For each press, operation mode

changes as follows: FAN COOL DEHUM

2. Select operation mode

When the FAN display lights bright ,the unit will be

working under the fan operation.

1. Start

Press POWER button.

3. Fan speed selection

4. Stop

Press POWER button again.

In some days you may want to run the FAN function.

Press the FAN button.

Here the fan runs only at HIGH or LOW speed.

Change air flow if necessary.

Then select FAN operation.

Then select COOL operation.

When the COOL display lights bright,the unit will

be working under the COOL function.

Saving energy function only can be used

when A/C working on cooling condition.

FAN SPEED

When this function is selected, the fan will

shut off three minutes after the compressor

cycles off. This will reduce energy consumption

and noise. When the compressor turns back on,

the fan will turn on at the same time. If this

function is not selected, the fan will not shut

off when the compressor cycles off.

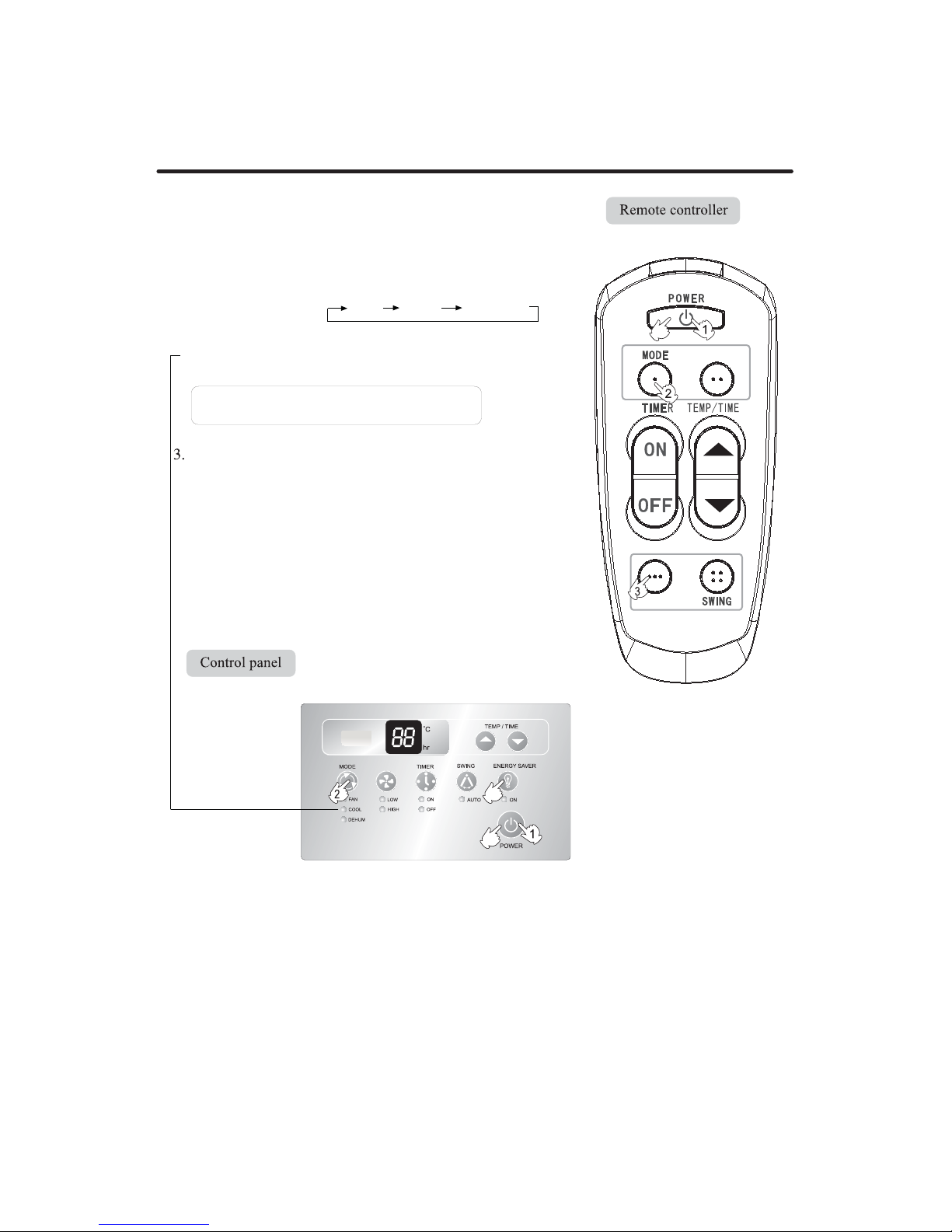

ENERGY SAVER operation

ENERGY SAVER selection

E-S

FAN SPEED

Press MODE button. For each press, operation mode

changes as follows: FAN COOL DEHUM

2. Select operation mode

1. Start

Press POWER button.

4. Stop

Press POWER button again.

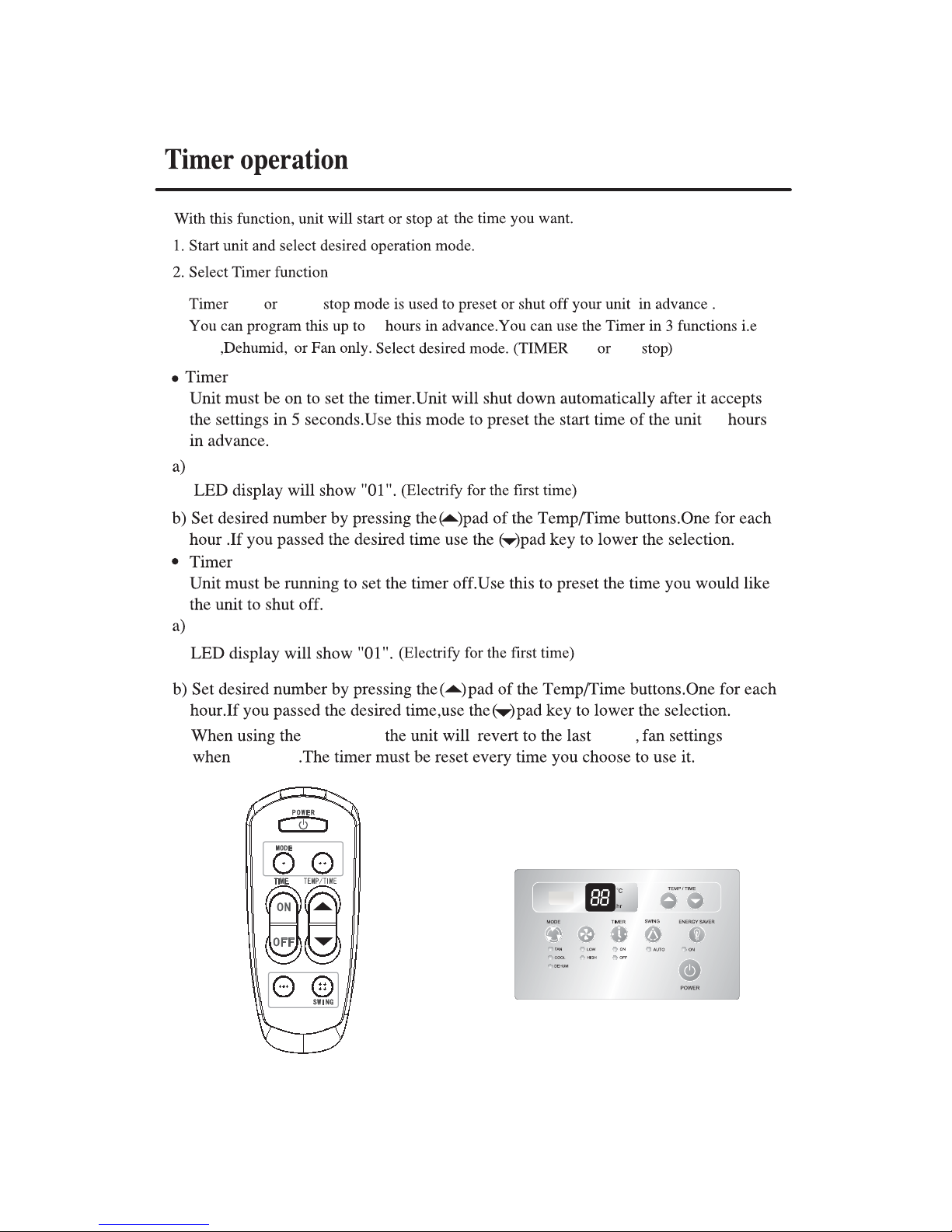

TIMER ON

restarted

mode

FAN SPEED

On Off

cool

Press "On"of remote controller or "TIMER" of control panel,

Off

Press "Off"of remote controller or "TIMER"of control panel,

E-S

FAN SPEED

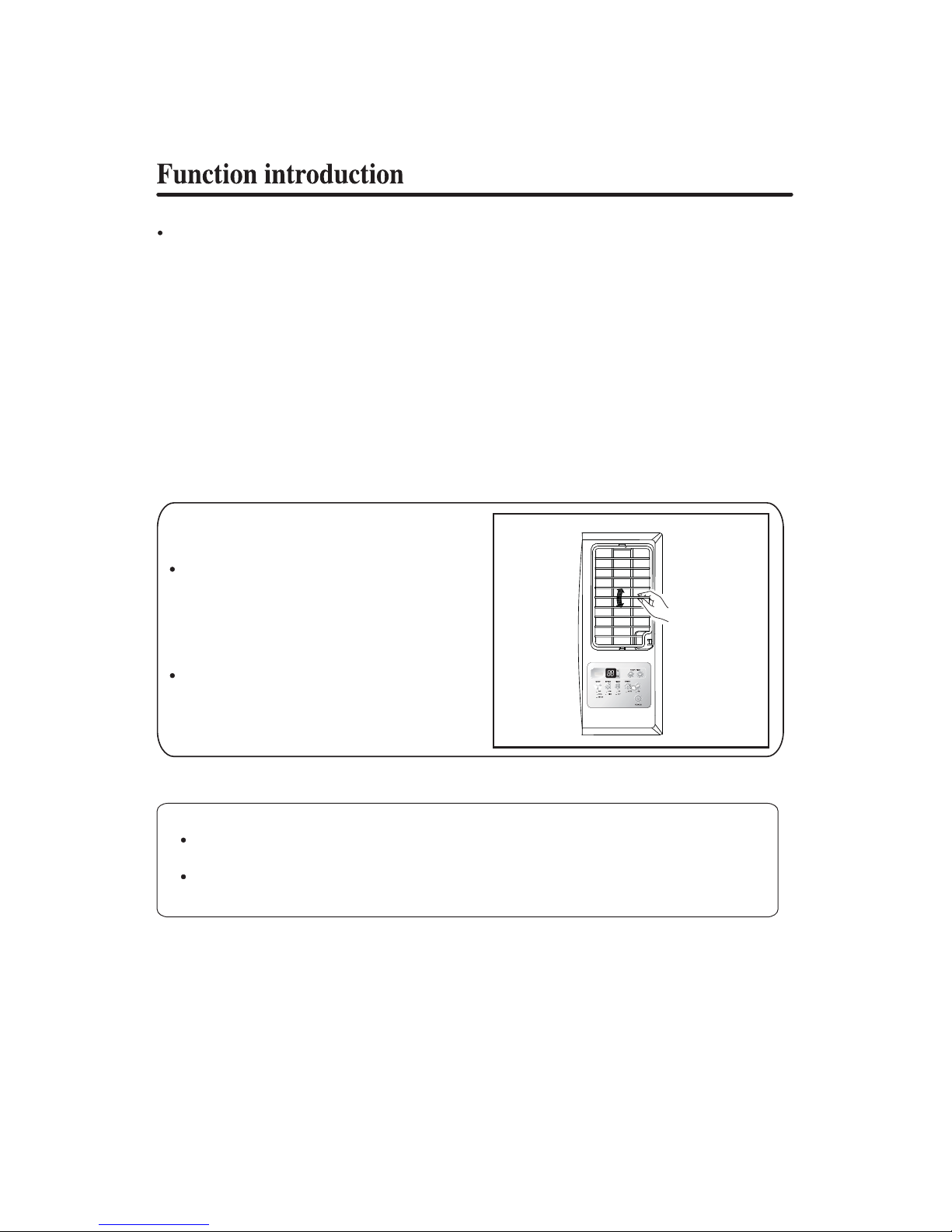

Power failure resume(please set and apply as necessary)

If sudden power failure occurs, the unit will resume original operation when power is supplied again.

Note:

When sudden power failure happens during unit operation in power failure resume mode, if the air

conditioner is not desired for use in a long period, please shut off the power supply in case that the

unit automatically resume operation when power is re-supplied, or press POWER to turn off the unit

when power resumes.

The horizontal air direction is adjusted

by setting the AUTO SWING ON .

Airflow Direction Vane

The Vertical Airflow Direction Vane is

manually controlled by positioning the

vane todischarge the air upward,

downward or straight out.

Note:

It is advisable not to keep horizontal flap at downward position for a long

time in COOL or FAN mode, otherwise , condensate water might occur.

Don't move the vertical blade with hand in order to avoid the vertical blade

abnormal, using the remote controller to adjust the move of vertical blade.

Vertical airflow direction

Operation

Adjusting of the air direction
