Hach DRB 200 Manuel utilisateur
DOC022.97.80188
DRB 200
03/2021, Edition 4
User Manual
Manuel de l'utilisateur
User Manual
Manual do Usuário
用户手册
取扱説明書
사용 설명서
Table of Contents
English...................................................................................................................................................................................................3
Français.............................................................................................................................................................................................. 13
English.................................................................................................................................................................................................23
Português.......................................................................................................................................................................................... 33
中文.......................................................................................................................................................................................................43
日本語.................................................................................................................................................................................................. 51
한글.......................................................................................................................................................................................................60
.......................................................................................................................................................................................................... 69
...................................................................................................................................................................................................... 79
2
Table of Contents
1 Specifications on page 3
2 General information
on page 3
3 Installation on page 5
4 User interface and navigation
on page 7
5 Startup on page 8
6 Operation on page 9
7 Maintenance on page 10
8 Troubleshooting on page 11
9 Replacement parts and
accessories on page 11
Section 1 Specifications
Specifications are subject to change without notice.
Specification Details
Dimensions 25 x 14.5 x 31 cm (9.8 x 5.7 x 12.2 in.)
Weight Single heating block: 2 kg (4.4 lb)
Dual heating block: 2.8 kg (6.17 lb)
Power requirements 100–240 V, +5%/–15%, 50/60 Hz, Protection
Class I
Power input Single heating block: 115 V: 300 VA; 230 V:
450 VA
Dual heating block: 115 V: 600 VA; 230 V:
900 VA
Storage temperature –40 to +60 °C (–40 to +140 °F)
Operating temperature 10 to 45 °C (50 to 113 °F)
Operating humidity 90% (non-condensing)
Temperature range 37 to 165 °C (98.6 to 329 °F)
Timer: 0 to 480 minutes
Temperature stability ± 2 °C (± 3.5 °F)
Specification Details
Heating rate From 20 to 150 °C (68 to 302 °F) in
10 minutes
Certification CE and cTUVus
Section 2 General information
In no event will the manufacturer be liable for direct, indirect, special,
incidental or consequential damages resulting from any defect or
omission in this manual. The manufacturer reserves the right to make
changes in this manual and the products it describes at any time, without
notice or obligation. Revised editions are found on the manufacturer’s
website.
2.1 Safety information
NOTICE
The manufacturer is not responsible for any damages due to
misapplication or misuse of this product including, without limitation,
direct, incidental and consequential damages, and disclaims such
damages to the full extent permitted under applicable law. The user is
solely responsible to identify critical application risks and install
appropriate mechanisms to protect processes during a possible
equipment malfunction.
Please read this entire manual before unpacking, setting up or operating
this equipment. Pay attention to all danger and caution statements.
Failure to do so could result in serious injury to the operator or damage
to the equipment.
Make sure that the protection provided by this equipment is not impaired.
Do not use or install this equipment in any manner other than that
specified in this manual.
English 3
2.1.1 Use of hazard information
DANGER
Indicates a potentially or imminently hazardous situation which, if not
avoided, will result in death or serious injury.
W A R N I N G
Indicates a potentially or imminently hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation that may result in minor or
moderate injury.
NOTICE
Indicates a situation which, if not avoided, may cause damage to the
instrument. Information that requires special emphasis.
2.1.2 Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or
damage to the instrument could occur if not observed. A symbol, if noted
on the instrument, will be included with a danger or caution statement in
the manual.
This symbol, if noted on the instrument, references the
instruction manual for operation and/or safety information.
Electrical equipment marked with this symbol may not be
disposed of in European domestic or public disposal
systems. Return old or end-of-life equipment to the
manufacturer for disposal at no charge to the user.
This symbol indicates that the marked item can be hot and
should not be touched without care.
This symbol indicates that the marked item requires a
protective earth connection. If the instrument is not supplied
with a ground plug on a cord, make the protective earth
connection to the protective conductor terminal.
2.2 Product overview
This instrument has one or two heating blocks that increase the
temperature of solutions in round sample cells to a specified temperature
for a specified time period (Figure 1). There are six stored temperature
programs and three temperature programs that are configured by the
user and saved.
4 English

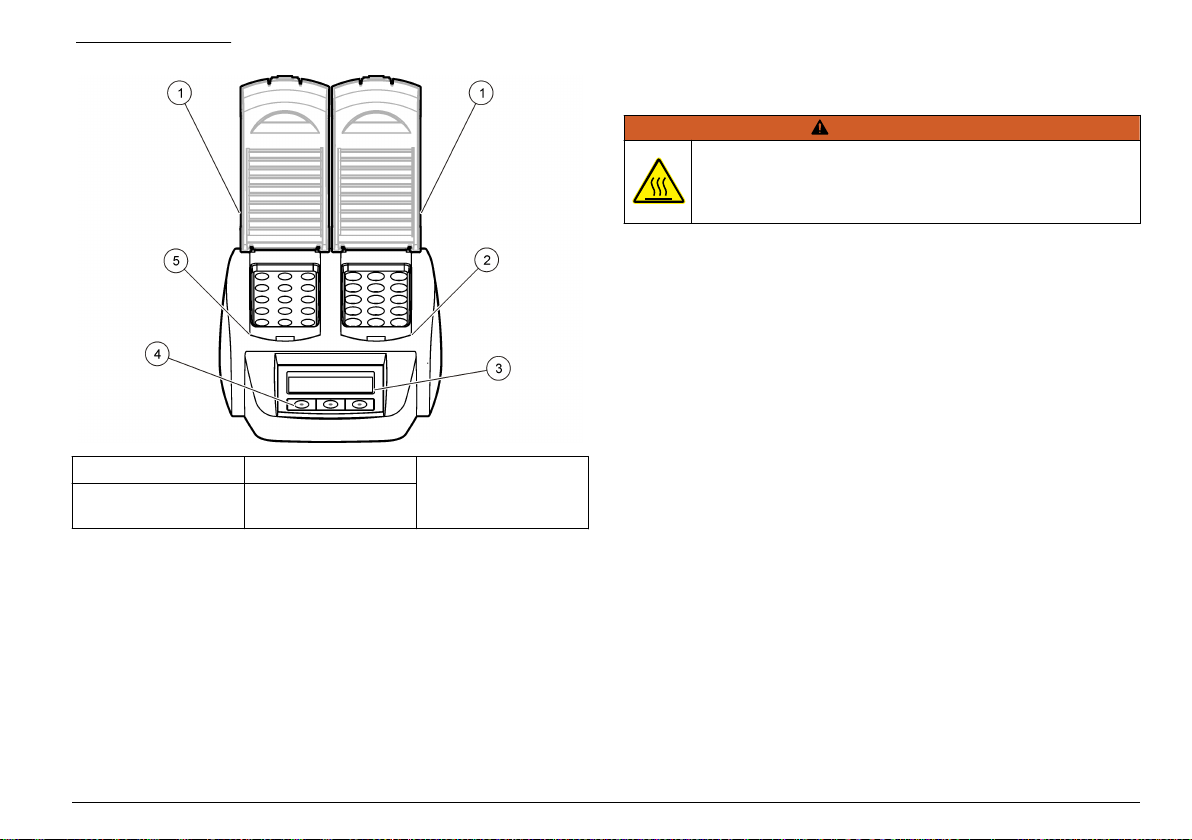

Figure 1 Front view
1 Protective cover 3 Display 5 Left heating block
2 Right heating
block
4 Keys
Section 3 Installation

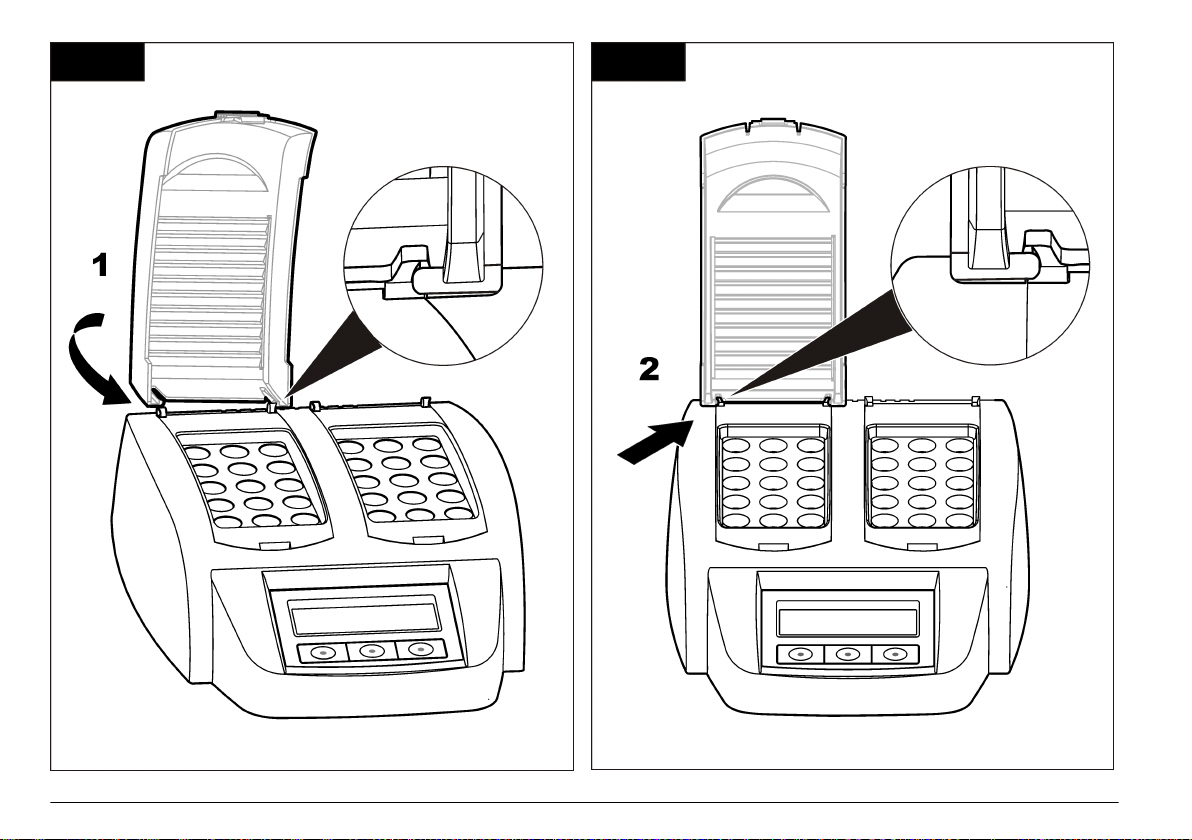

3.1 Install the protective covers
W A R N I N G
Shock and Burn Hazard. The protective cover must be
installed to prevent personal injury. The protective cover
prevents burns and power cord contact with the heating
block.
Refer to the illustrated steps that follow.
English 5
1 2
6 English
Section 4 User interface and navigation
4.1 User interface
The instrument is operated using three keys that are located below the
display (Figure 2). The function of each key is shown on the display. If
no function is shown for a key, that key is not currently active.

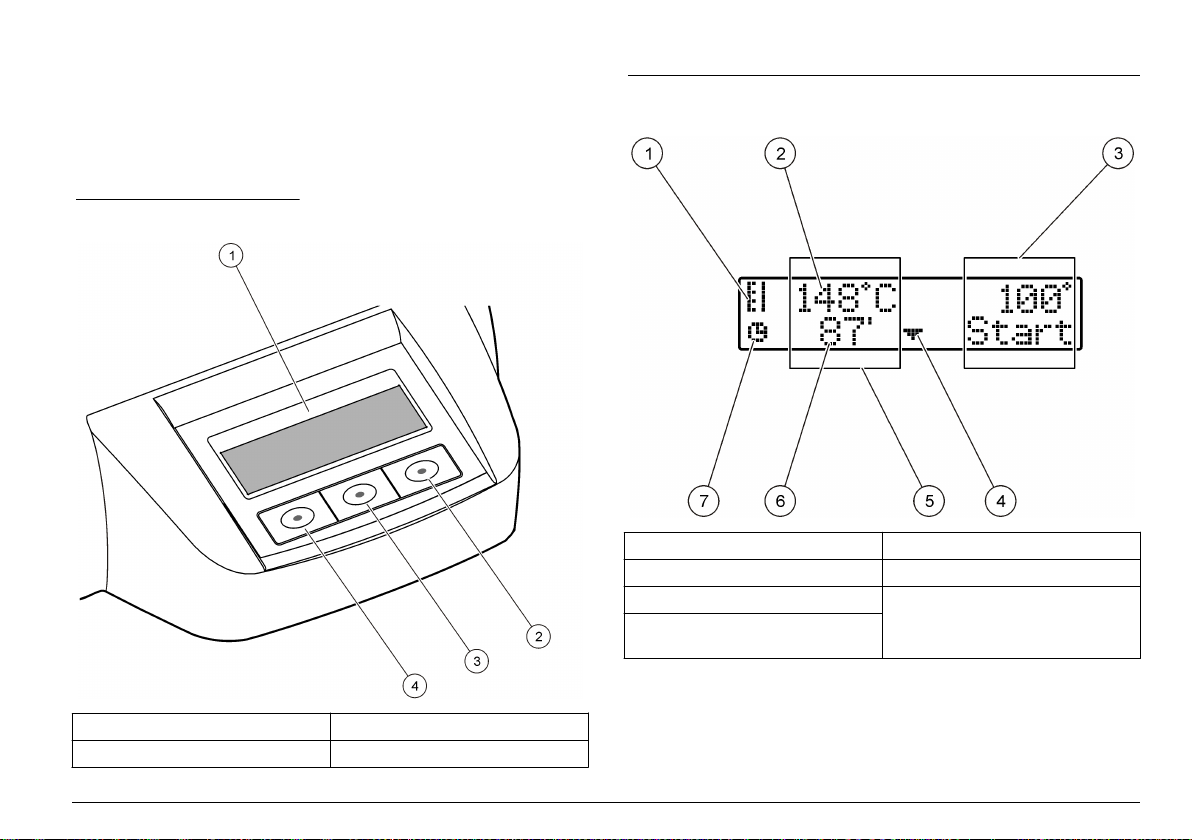

Figure 2 Keypad description
1 Display 3 Middle key
2 Right key 4 Left key
4.2 Display description
Figure 3 Screen display when a program is active on the left
heating block only
1 Thermometer symbol 5 Left heating block
2 Temperature of heating block 6 Remaining time
3 Right heating block 7 Timer symbol
4 Down arrow key (use to select
program)
English 7
Table 1 Thermometer symbols
Symbol Description
The heating block is increasing in
temperature.
The heating block is at the
selected temperature.
The heating block is decreasing in
temperature.
Section 5 Startup
5.1 Turn the instrument on
NOTICE
Do not turn the instrument off and on quickly as this can damage the
instrument. Always wait about 20 seconds before turning the
instrument on again.
1. Put the instrument on a stable, level, heat-resistant surface.
2. Connect the power cord to the power plug on the back of the
instrument.
3. Connect the power cord to a power socket with earthing contact.
4. Push the power switch on the back of the instrument to turn the
instrument on.
5.2 Select the language
To change the default language setting (English):
1. Hold down the left key and turn the instrument on.
2. Push the right arrow key to scroll through the menu. The display
goes back to the start of the menu at the end of the menu.
3. When the correct language is shown, push the key for the language.
Refer to Table 2.
Table 2 Language settings
Setting Language Setting Language
GB English E Spanish
D German NL Dutch
F French S Swedish
I Italian PL Polish
5.3 Set the display contrast
1. Hold down the middle key and turn the instrument on.
2. Push or hold down the up and down arrow keys to change the
contrast value.
3. Push OK to save the change.
8 English
Section 6 Operation
DANGER
Chemical exposure hazard. Obey laboratory safety
procedures and wear all of the personal protective equipment
appropriate to the chemicals that are handled. Refer to the
current safety data sheets (MSDS/SDS) for safety protocols.
6.1 Routine operation
CAUTION
Burn Hazard. Do not put a finger in an opening in the heating
block. Close the protective cover before increasing the
temperature of the heating block, and always keep the
protective cover closed during operation.
CAUTION
Burn Hazard. Sample cells are hot. Wear thermal insulating
material (e.g., gloves or finger cots). Do not remove a sample
cell that is greater than 80 °C. Do not put a sample cell that is
greater than 80 °C in a colorimeter.
CAUTION
Chemical Hazard. If a sample cell breaks, do not let the liquid
touch skin. Use a fume hood as necessary to remove
chemical fumes.
CAUTION
Chemical exposure hazard. Dispose of chemicals and wastes
in accordance with local, regional and national regulations.
NOTICE
To prevent sample cell and instrument damage, keep the openings in
the heating block dry. Dry the outside of sample cells fully.
NOTICE
To prevent instrument damage, immediately disconnect power if an
accidental spill occurs or a sample cell breaks, then clean the
instrument. Refer to Clean the instrument on page 10.
NOTICE
Do not cover the ventilation slits in the protective cover. The instrument
and sample cells may become too hot and decrease the accuracy of
measurement.
1. Prepare the test sample cells as specified in the analysis procedure.
2. Close the sample cells with the cap.
3. Dry the outside of the sample cells fully.
4. Turn the instrument on and open the protective cover. The last
temperature program(s) selected is shown on the display.
5. If using 16 mm tubes with a heating block with 20 mm openings, put
reducing adapters in the openings.
6. Select the correct temperature program (and digestion period if
applicable) using the keys, then push Start. Refer to Stored
programs on page 9. The temperature program is selected
independently for each heating block when there are two heating
blocks.
Note: To stop a program, push the key below the program two times.
7. When the heating block is at the selected temperature (two beeps
are heard), put the test sample cells in the correct heating block and
close the protective cover.
8. Push Start to start the program.
The time counts down to zero (0). When the digestion program is
completed, three beeps are heard and the heater turns off.
6.2 Stored programs
Table 3 gives descriptions of the stored temperature programs.
English 9
Table 3 Stored programs
Program Description
COD Increases the temperature of the sample cells to 150 °C for
120 minutes. In the cooling phase, four beeps are heard
when the sample cells are at 120 °C. Remove and carefully
invert the sample cells several times, before letting them
decrease in temperature in a rack.
TOC Increases the temperature of the sample cells to 105 °C for
120 minutes. The TOC temperature program can be used
for all Hach TOC sample cell tests.
100 °C Increases the temperature of the sample cells to 100 °C for
30, 60 or 120 minutes. For example, the “100 °C,
60 minutes” temperature program is used to:
• Digest samples using the Metals Prep Set
• Identify phosphate and chromium
• Digest heavy metals
105 °C Increases the temperature of the sample cells to 105 °C for
30, 60 or 120 minutes.
150 °C Increases the temperature of the sample cells to 150 °C for
30, 60 or 120 minutes.
165 °C Increases the temperature of the sample cells to 165 °C for
30, 60 or 120 minutes.
6.3 User programs
The DRB 200 has three temperature programs that are configured by
the user (PRG1–PRG3).
To configure a user temperature program:
1. Select a user temperature program using the keys.
2. Push Prog to enter programming mode.
3. Select a 4-character name for the program. Push the left key to
change the character. Push the right arrow key to move the cursor to
the next position. Push OK to save the change.
4. Push or hold down the up and down arrow keys to set the
temperature (37 to 165 °C). Push OK to save the change.
5. Push or hold down the up and down arrow keys to set the time (0 to
480 minutes). Push OK to save the change.
6. Push OK to save the program.
Section 7 Maintenance
CAUTION
Multiple hazards. Only qualified personnel must conduct the
tasks described in this section of the document.
NOTICE
Do not disassemble the instrument for maintenance. If the internal
components must be cleaned or repaired, contact the manufacturer.
7.1 Clean the instrument
Keep the instrument clean to get continuous and accurate operation.
CAUTION
Fire hazard. Do not use flammable agents to clean the
instrument.
CAUTION
Burn hazard. Do not clean the instrument when it is hot.
10 English
Autres manuels pour DRB 200
3
Table des matières
Langues :
Autres manuels Hach Équipement de laboratoire
Hach
Hach 900 MAX Manuel utilisateur
Hach
Hach TU5200 Manuel utilisateur
Hach
Hach POCKET TURBIDIMETER Manuel utilisateur
Hach
Hach PHC201 Manuel utilisateur
Hach
Hach HQ440d Manuel utilisateur
Hach
Hach 2100AN IS Manuel utilisateur
Hach
Hach BODTrak II Manuel rapide
Hach
Hach LOC 100 Manuel utilisateur
Hach
Hach DRB 200 Manuel utilisateur
Hach
Hach TitraLab KF1000 Series Manuel rapide
Hach
Hach 2100Q Manuel rapide
Hach
Hach ORBISPHERE 29122 Manuel utilisateur
Hach
Hach Dr Lange LCK 529 Manuel d'installation
Hach
Hach QbD1200 AutoSampler Manuel utilisateur
Hach
Hach TitraLab Manuel utilisateur
Hach
Hach SIGMA 900 Manuel utilisateur
Hach
Hach ISECL181 Manuel utilisateur
Hach
Hach PHOSPHAX sc LR Manuel utilisateur
Hach
Hach sensION+ MM374 Manuel utilisateur
Hach
Hach ORBISPHERE K1200 Manuel rapide
Manuels Équipement de laboratoire populaires d'autres marques
Agilent Technologies
Agilent Technologies 5800 ICP-OES Manuel utilisateur
Endress+Hauser
Endress+Hauser Cleanfit CPA875 Manuel utilisateur
NI
NI PXI-5422 Manuel
Collomix
Collomix Aqix Manuel utilisateur
SPEX SamplePrep
SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur
Ocean Insight
Ocean Insight FLAME-NIR+ Manuel utilisateur
