GW Instek PSB-1400M Manuel utilisateur
Multi-Range DC Power Supply
PSB-1000 Series
QUICK START GUIDE
GW INSTEK PART NO. 82SB-18000M01
ISO-9001 CERTIFIED MANUFACTURER
This manual contains proprietary information, which is
protected by copyright. All rights are reserved. No part
of this manual may be photocopied, reproduced or
translated to another language without prior written
consent of Good Will Corporation.
The information in this manual was correct at the time
of printing. However, Good Will continues to improve
its products and therefore reserves the right to change
the specifications, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng
Dist., New Taipei City 236, Taiwan.
1
SAFETY INSTRUCTIONS
This section contains the basic safety symbols that may
appear on the accompanying User Manual CD or on the
instrument. For detailed safety instructions and
precautions, please see the Safety Instructions chapter
in the user manual CD.

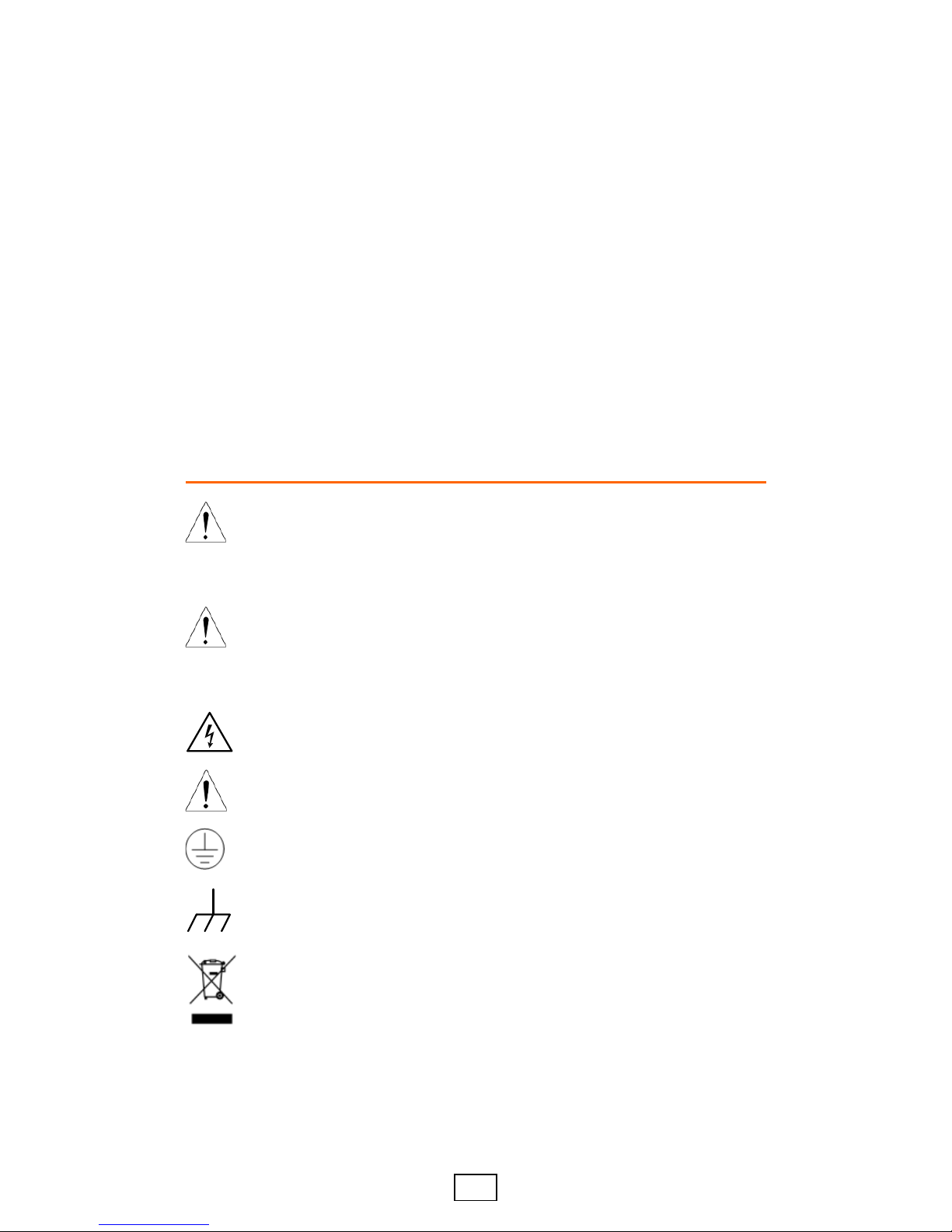

Safety Symbols
These safety symbols may appear in the user manual or
on the instrument.
Warning
Warning: Identifies conditions or
practices that could result in injury or
loss of life.
Caution
Caution: Identifies conditions or
practices that could result in damage
to the PSB-1000 or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment
as unsorted municipal waste. Please
use a separate collection facility or
contact the supplier from which this
instrument was purchased.
2

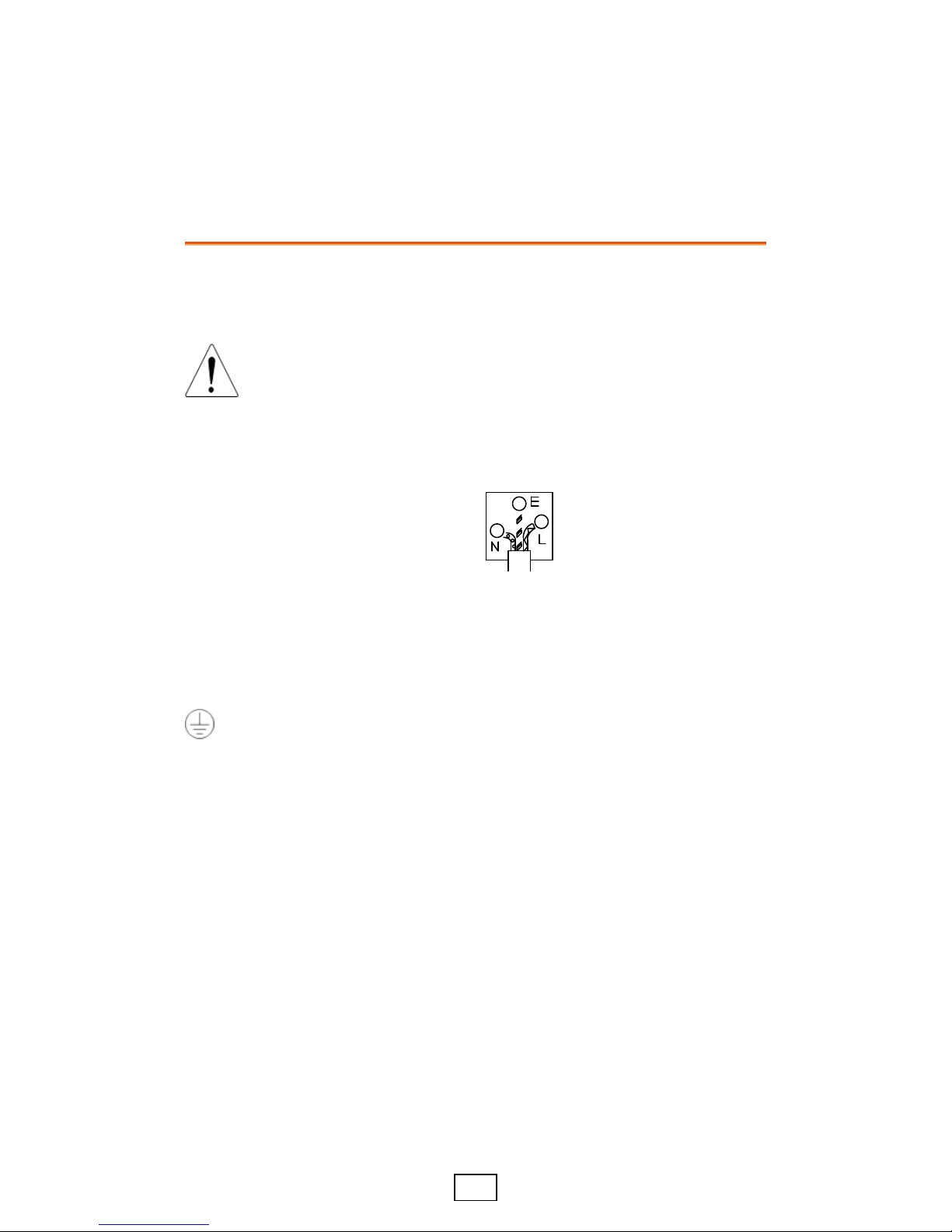

Power Cord for the United Kingdom
When using the instrument in the United Kingdom,
make sure the power cord meets the following safety
instructions.
NOTE: This lead/appliance must only be wired by
competent persons.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in
accordance with the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed as
follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable of
0.75mm2should be protected by a 3A or 5A fuse. Larger conductors
would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged
in a live socket is extremely hazardous. If a cable or plug is deemed
hazardous, turn off the mains power and remove the cable, any
fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
3
GETTING STARTED
The Getting Started chapter describes the power source
in a nutshell, including its main features and front/rear
panel introduction.
Overview
The PSB-1000 Series consists of 4 models: PSB-1400L,
PSB-1400M, PSB-1800L, and PSB-1800M. Note that
throughout the user manual, the term “PSB-1000” refers
to all the models in the PSB-1000 Series lineup, unless
stated otherwise.
Model Line Up
Model name
Output
Voltage
Output
Current
Output Power
PSB-1400L
40
40
400
PSB-1400M
160
10
400
PSB-1800L
40
80
800
PSB-1800M
160
20
800
Main Features
Performance
•Maximum output voltage of 160V
•Maximum output current of 80A
4
Features
•OVP, OCP and OTP protection
•Low AC input protection
•Sequence function
•Large 3.5 inch LCD panel
•100V - 240V power inlet
•Multi-range output power
•Bleeder circuit ON/OFF setting
•CV, CC priority start function
•Internal resistance setting
function
•Parallel master/slave operation
with active current sharing
•Remote sensing to compensate for
voltage drop in load leads
•Analog output programming and
monitoring
Interface
•Ethernet port
•USB host
•USB CDC
•GPIB (optional)
•External Control I/O
Accessories
Standard Accessories
Item
Part Number
User manual, programming manual
CD ROM
Power cord
Output terminal cover
PSW-009
Type A - B USB Cable
GTL-240
Continued on the next page...
5
Basic Accessory Kit:
M4 terminal screws and washers x2,
M8 terminal bolts, nuts and washers
x2, Analog control protection dummy
x1, analog control lock level x2, short
bar x1.
PSB-106
Optional Accessories
Item
Part Number
Analog remote control connector kit:
Socket x 1pc
Pins x 10pcs
Protection cover x 1 set
Chassis connection wire x 1
PSW-001
Simple IDC tool
PSW-002
Contact removal tool
PSW-003
Cable for 2 units of PSB-1000 units in
parallel mode connection
PSB-101
Cable for 3 units of PSB-1000 units in
parallel mode connection
PSB-102
Cable for 4 units of PSB-1000 units in
parallel mode connection
PSB-103
Cable for 2 units of PSB-1000 units in
series mode connection
PSB-104
GPIB card
PSB-105
Rack-mount adapter(JIS)
GRA-418-J
Rack-mount adapter(EIA)
GRA-418-E
Test leads: 1x red, 1x black
GTL-123
Download
Item
Description
gw_psb1k.inf
USB driver
6
Front Panel
0 - 160V , 10A
S S
F 1 F 2 F 3 F 4 F 5
PSB-1400M 0 - 160V / 0 - 10A , 400W
Multi-Range DC Power Supply
Main FUNC FileUtility
0
1
4
7
2
5
8
3
6
9
Voltage
Clear
Enter Lock
Output
Current
OVP
OCP
Local
CLR PROT. Unlock
: Long Push
17
2
4
6
15
7
9
8
10
1
16 14
13 12
11
5
3
Description
1. F1~F5 soft-keys
2. LCD display
3. Voltage, Current,
OVP/CLR PROT,
OCP keys
4. Menu keys:
Main/Local, FUNC,
Utility, File
5. Number pad
6. Scroll wheel
7. Arrow keys
8. Lock/unlock key
9. Enter key
10. Output key
11. Sense+ terminal
12. +Terminal
13. Ground terminal
14. -Terminal
15. Sense- terminal
16. USB A port
17. Power switch
7

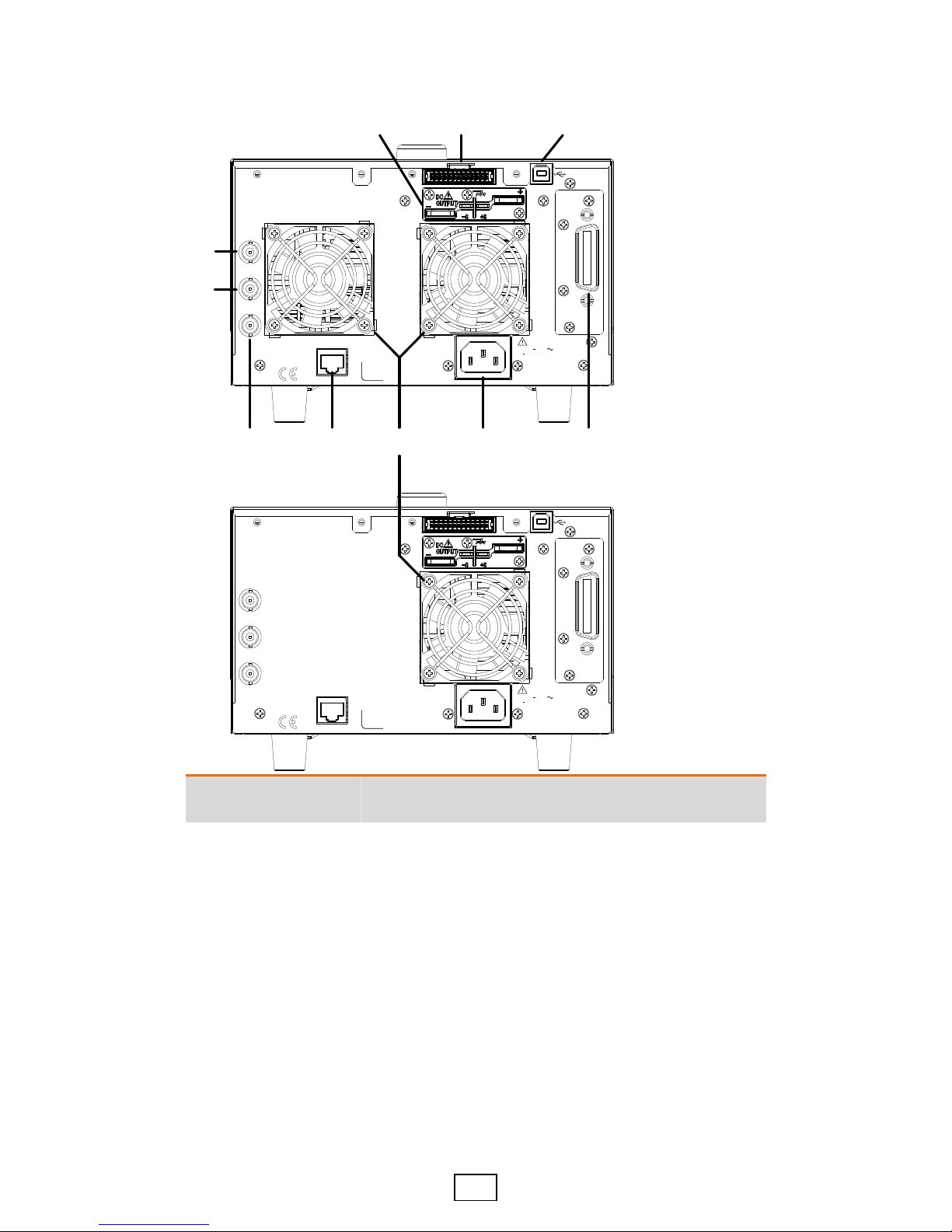

Rear Panel
TRIG IN
TRIG OUT
LAN
100 240V
1100VA MAX.
AC
47 63Hz
GPIB
SER. NO. LB
VOLT TRIG
910
1
2
7 6
543
8
TRIG IN
TRIG OUT
LAN
100 240V
550VA MAX.
AC
47 63Hz
GPIB
SER. NO. LB
VOLT TRIG
PSB-1800M/L
PSB-1400M/L
Description
1. TRIG OUT
2. TRIG IN
3. Rear panel terminals
4. J1connector
5. USB B port
6. GPIB option
7. Line input
8. Fan
x1: PSB-1800M/L
x2: PSB-1400M/L
9. LAN port
10. VOLT TRIG
8

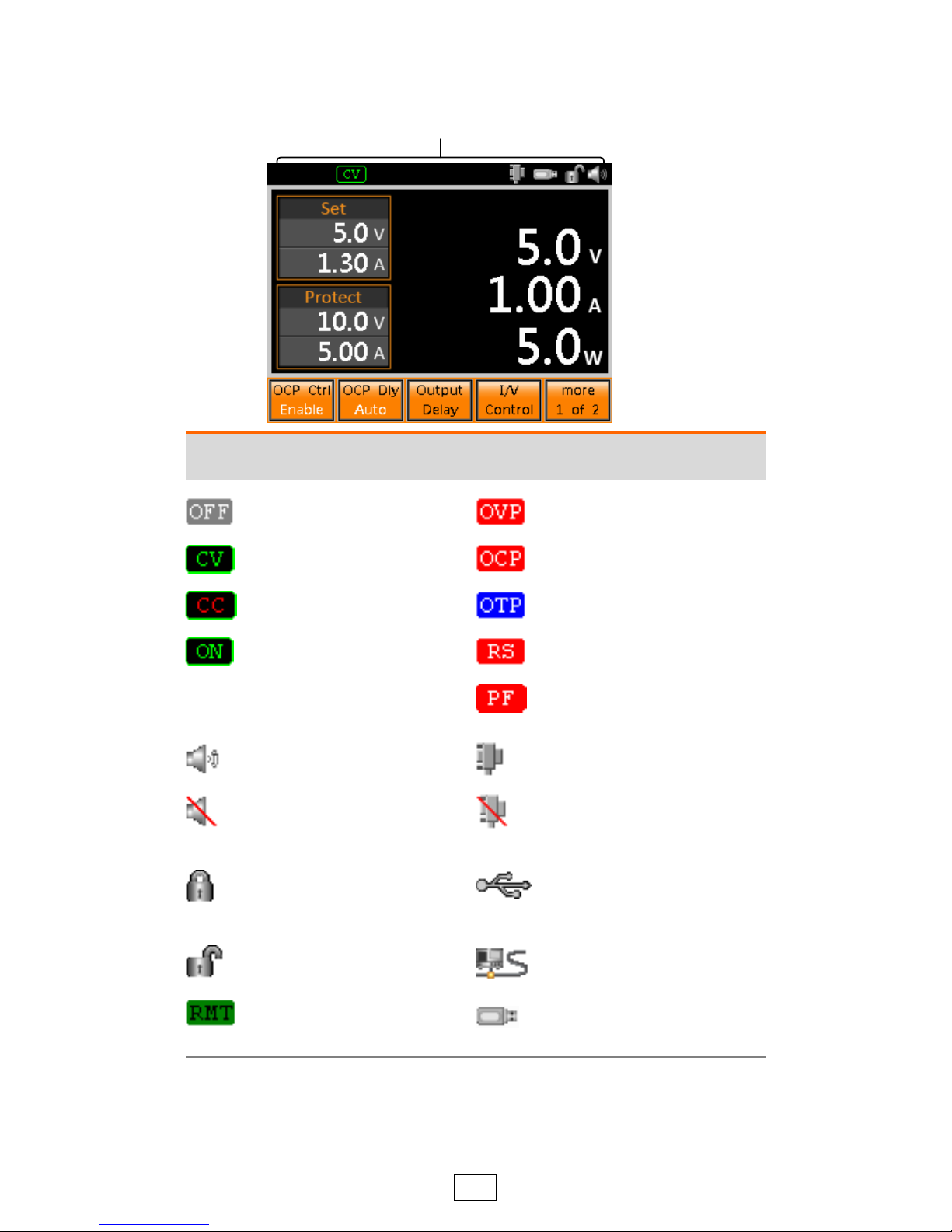

Status Bar Icons
Status bar
Description
Output OFF
OVP tripped
CV mode active
OCP tripped
CC mode active
OTP tripped
Output operating
at 105% rated
power (CP mode)
Remote sense fail
Power fail
Speaker enabled
GPIB installed
Speaker disabled
GPIB installed &
disabled
Panel lock on
Connected to PC
via USB
Panel lock off
Connected to LAN
Remote control
mode
USB flash drive
recognized
Note: Only the most common status bar icons are
shown here. Please see the user manual for more
information.
