Weatherproof Industrial Telephones

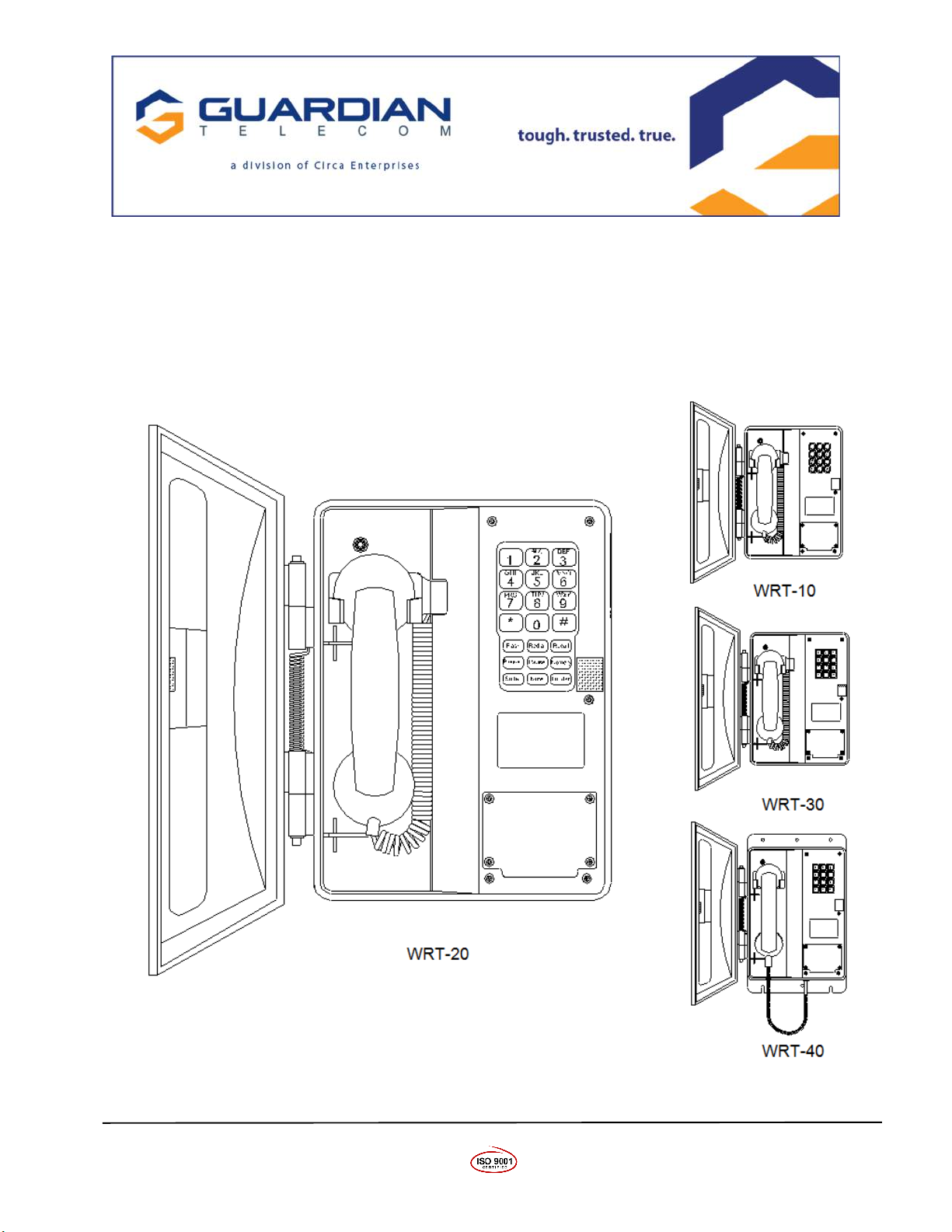

WRT Series Telephones

Installation & Operation

P005418 Rev. G 180 15 /15/2018 11:44 AM

Guardian Telecom Installation and Operation

WRT Series Telephones

Page 2

Table of Contents

Package Contents ............................................................................... 2

Overview ............................................................................................. 3

Standard Features on All Models ......................................................... 3

Features (Specific Models) .................................................................. 4

Options Available ................................................................................. 4

Accessories ......................................................................................... 4

Installing the WRT ............................................................................... 7

Setting Dialing Mode ............................................................................ 8

Field Repairs & Adjustments ................................................................ 9

Programming the WRT-20 with Membrane Keypad ........................... 10

Operating the WRT ............................................................................ 10

Specifications .................................................................................... 11

Replacement Parts ............................................................................ 12

Government Certification ................................................................... 13

Warranty ............................................................................................ 14

Disclaimer .......................................................................................... 14

Warning ............................................................................................. 14

Service Telephone Number ............................................................... 14

Feedback ........................................................................................... 14

Guardian Product Return ................................................................... 15

Cleaning Tips for Guardian Telephones ............................................. 1

Storage .............................................................................................. 1

Table of Figures

Figure 1 - Features - Typical - Standard Models .................................. 5

Figure 2 - Overall Dimensions - Standard Models ................................ 5

Figure 3 - Features WRT-20 with Optional Mounting Plate ..................

Figure 4 - Overall Dimensions WRT-20 with Optional Mounting Plate..

Figure 5 - Setting Dialing Mode & Installation ...................................... 8

Figure - Fuse Replacement .............................................................. 9

Package Contents

(1) WRT Telephone

(1) Installation & Operation Manual

Guardian Telecom Installation and Operation

WRT Series Telephones

Page 3

Overvie

WRT Series Weather Resistant Telephones

WRT telephones are designed to provide safe, reliable communication in areas prone to high

humidity, chemical vapors, dust and physical abuse. Several variations and options are available to

suit the end user’s requirements.

Standard Features

All Models

Enclosure

• weather tight, rugged Valox



& steel

• spring loaded hinged door

Faceplate

• 1 Gauge steel with wiring access to surge arrestor

Encapsulated Circuitry

• circuit boards are resistant to corrosive agents (e.g. H

S, SO

, and

), and environments with high humidity

Surge Arrestor

• protects the user in the event of a high voltage spike on the telephone

line

Fuse

• prevents damage to the electronic circuits in the event of a high

voltage spike on the telephone line

Magnetic Reed Hook Switch

• no moving parts

Tone (DTMF Operation

•

factory set to tone (DTMF) dialing

•

pulse dialing can be ordered or configured in the field

4’ Heavy Duty Handset Cord (Not Available With WRT-40

• withstands severe use

Hearing-Aid Compatible (HAC Receiver

• compatible with inductively coupled hearing-aid devices

Receiver Volume Control

• Switch in handset (on keypad of WRT-20), provides 13.5dB of range

Guardian Telecom Installation and Operation

WRT Series Telephones

Page 4

Features (Specific Models)

P6072 WRT-10

• Waterproof 3 x 4 Keypad

• 4’ Heavy duty handset cord

P6073 WRT-20

• Membrane Keypad With Features

1. weather tight

2. 10 number memory

3. Redial - last number (31 digits)

4. Recall - obtains dial tone without hanging up handset

5. Flash - 00ms timed loop break

. Pause - 3 second pause in programming

7. Mute - disables handset microphone

8. Softer/Louder – 2.7dB steps (+8.1dB/-5.4dB 3 steps up, 2

steps down)

• ’ Heavy duty handset cord

P6074 WRT-30

• Metal 3 x 4 Keypad

• 4’ Heavy duty handset cord

P6075 WRT-40

• Metal 3 x 4 Keypad

• 22” Armored Handset Cord

• Handset Retainer Clips

• Stainless Steel Mounting Plate

Options Av

ailable

Stainless Steel Mounting Plate

(MP) (Standard on WRT-40)

20’ Heavy Duty Coil Cord (20C) (Only on WRT-20)

20’ Heavy Duty Coil Cord (20VC)

(Only on WRT-10/30)

Noise Canceling Microphone (NC)

Grey Enclosure (GR)

Accessories

• P7224 Potted ring detect relay

• P7225 Weather Proof ring detect relay

• P7227 Potted off-hook detect relay

• P7232 Weather Proof off-hook detect relay

• PXXXX External Loud Ringer

Guardian Telecom Installation and Operation

WRT Series Telephones

Page 5

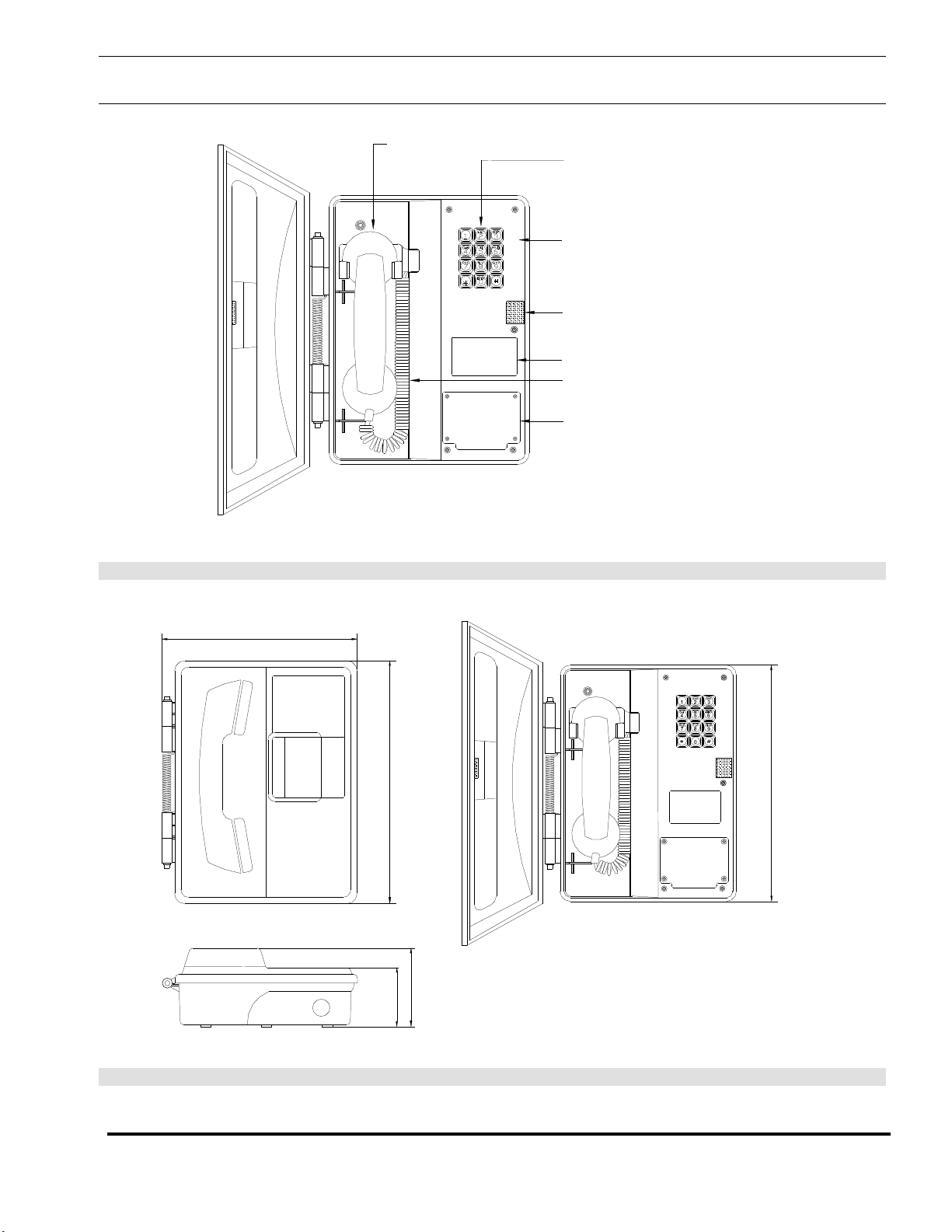

Figure 1 - Features - Typical - Standard Models

Figure 2 - Overall Dimensions - Standard Models

3.8" [97mm]

2.9" [74mm] 12.0" [305mm]

9.7" [24 mm]

11.8" [300mm]

HEAVY DUTY HANDSET CORD

3X4 KEYPAD

(WRT-10 WATERPROOF,WRT-30

& WRT-40 METAL)

MAGNETIC REED HOOK SWITCH

WIRING ACCESS PLATE

VELCRO DOOR LATCH

ID & APPROVALS

FACEPLATE - 1 GA STEEL, SATIN

COAT PRIMED AND POWDER COATED

Guardian Telecom Installation and Operation

WRT Series Telephones

Page

Figure 3 - Features WRT-20 with Optional Mounting Plate

Figure 4 - Overall Dimensions WRT-20 with Optional Mounting Plate

3.9" [99mm]

3.8" [97mm]

2.9" [74mm]

9.7" [24 mm]

13.0" [330mm]

11.8" [300mm]

.0" [152mm]

Ø0.3" [Ø7mm]

12.0" [305mm]

14.0" [35 mm]

3.0" [75mm]

FACEPLATE - 1 GA STEEL, SATIN

COAT PRIMED AND POWDER COATED

MEMBRANE KEYPAD (WRT-20)

ID & APPROVALS

WIRING ACCESS PLATE

Guardian Telecom Installation and Operation

WRT Series Telephones

Page 7

Installing the

WRT

• The WRT is set to tone dialing when shipped. If pulse dialing is required

see the section on Setting Tone/Pulse Operation.

See: Figure 5 - Setting

Dialing Mode &

Installation

• Follow all appropriate electrical codes and use only approved electrical

fittings for the installation.

• Choose a wall location that is free of obstructions and permits space for

wiring.

See: Figure 2 - Overall

Dimensions - Standard

Models

• Ensure mounting can support .5 lbs (2.95 kg) plus any additional,

foreseeable load.

• Ensure that none of the electrical connection circuits are live.

Mounting Without Optional Mounting Plate

• Use the appropriate template to locate and drill holes for mounting screws.

Use #10 or M5 screws to secure the unit to the wall. Use anchors in plaster

or cement to provide a firm grip for the mounting screws. Use sturdy hollow-

wall fasteners to mount the set to drywall.

See: Figure 2 - Overall

Dimensions - Standard

Models

• Loosen the five captive screws in the faceplate and swing the faceplate to

the left. If the set is on a vertical surface the faceplate will stay open like a

book in this position. Take care not to disturb the internal wiring.

• Secure the unit to the wall.

• Replace the faceplate. Do not over tighten the screws.

Mounting With Optional Mounting Plate

• Use the appropriate template to locate and drill holes for mounting screws.

• Secure the unit to the wall.

Wiring the WRT to the Telephone System

• Remove the wiring access cover plate.

• Bring cable into the enclosure through the conduit entrance and attach

individual wires from the exchange – Tip/Ring/Ground – to the surge

arrestor (Tip & Ring are not polarity sensitive). If a conduit hub is used,

ensure it is grounded to the ground stud.

• Replace the wiring access cover plate.

Final Check

• Check the set visually for loose screws and trapped wires. Check that the

handset hangs freely in the cradle and that the handset cord is not trapped

by the door.

• Check that the faceplate is snug to its gasket, paying particular attention to

the area around the cradle. Check that the door closes flush to the housing.

• Test the unit by calling to and from another unit on the exchange.

Guardian Telecom Installation and Operation

WRT Series Telephones

Page 8

Setting Dialing Mod

The WRT is shipped from the factory set for DTMF (Tone) dialing mode. If

loop disconnect (Pulse) dialing is required proceed as follows.

See: Figure 5 - Setting

Dialing Mode &

Installation

• Loosen the five captive screws in the faceplate and swing the faceplate to

the left. If the set is on a vertical surface the faceplate will stay open like a

book in this position. Take care not to disturb the internal wiring.

• Change the position of the Tone/Pulse jumper on the circuit board to Pulse,

as indicated on the label.

• The set will now be in pulse dialing mode, it can be returned to tone mode

by changing the position of the jumper back to the Tone position.

• Carefully replace the front plate and install all five screws. Do not over

tighten the cover screws; there is a flexible gasket between the cover and

the body. Excessive tightening of the screws deforms the gasket and

reduces the weather resistance of the set.

Figure 5 - Setting Dialing Mode & Installation

TONE/PULSE

JUMPER

GROUNDGROUND

GROUND

CONNECTION

TIP & RING

CONNECTION

Guardian Telecom Installation and Operation

WRT Series Telephones

Page 9

Field Repairs & Adjustments

Field repairs may only be carried out by qualified technicians using OEM parts.

Substitution of parts voids warranty and may pose a hazard to users of the

equipment.

See: Replacement Parts

• Disconnect the telephone from Tip and Ring power supplied by the PABX

or central office before making repairs or adjustments.

• Loosen the five captive screws in the faceplate and swing the faceplate to

the left. If the set is on a vertical surface the faceplate will stay open like a

book in this position. Take care not to disturb the internal wiring.

• Perform the necessary repairs or adjustments.

• Carefully replace the front plate and install all five screws. Do not over

tighten the cover screws; there is a flexible gasket between the cover and

the body. Excessive tightening of the screws deforms the gasket and

reduces the weather resistance of the set.

Note: Ensure that

connections are secure

efore replacing

faceplate.

Fuse Replacement

• Remove the old fuse by pushing in the end cap of the fuse holder and

turning counterclockwise to open. Insert a new 0.25 amp, 250Volt, 3AG

fast blow fuse and close the fuse holder.

See: Figure 6 - Fuse

Replacement

WARNING!

• Replace only with a 0.25 amp 250V 3AG fast blow fuse. Failure to do so

will void the warranty.

• If, on reconnecting power, the fuse fails, check the telephone system

wiring. The fuse protects the Tip and Ring line from the telephone system.

It is usually powered at 48 volts DC and must not be connected to 120 volts

AC.

Figure 6 - Fuse Replacement

FAST BLOW

0.25 AMP. 3AG

FUSE

Guardian Telecom Installation and Operation

WRT Series Telephones

Page 10

Programming

the

WRT

ith

Membrane Keypad

A direct memory access register can be assigned to each of the 10 number

keys.

Tip: You can store up to

10 num ers in memory.

Each direct memory access register can contain up to 20 characters.

Tip: Valid characters are

0-9, *, # and Pause.

• Lift the telephone handset off the hook.

• Press Program to put the phone into programming mode.

• Press Memory.

• Press a number key 0-9.

Tip: The num er

selected is assigned to

the access register.

• Enter the telephone number you want to store. Valid entries are 0-9, *, #,

and Pause (e.g., 1-800-3 3-8010).

• If your phone requires you to dial 9 – or other digit – to access an outside

line, press the appropriate key, then the Pause key, then enter the

telephone number you want to store.

• Press Program again to leave programming mode and return to normal

telephone operation.

Operating the WRT

Manual Operation:

• Lift the handset and dial manually.

Tip: Valid keys for

manual dialing are 0-9, *

and #.

Automatic Memory Dialing For the WRT-20 with Membrane Keypad

Tip: Program the WRT-

20 to use this quick

dialing method.

• Lift the handset.

• Press Memory.

• Press a number key 0-9.

• The number stored in the register will automatically dial.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Guardian Telecom Téléphone

Guardian Telecom

Guardian Telecom VR700 Manuel du propriétaire

Guardian Telecom

Guardian Telecom ACT-30 Mode d’emploi

Guardian Telecom

Guardian Telecom DP700 Manuel du propriétaire

Guardian Telecom

Guardian Telecom WRT-10-A Manuel du propriétaire

Guardian Telecom

Guardian Telecom VR81 Mode d’emploi

Guardian Telecom

Guardian Telecom ZONE 1 DTR-51-Z Manuel utilisateur

Guardian Telecom

Guardian Telecom WTT-40 Manuel du propriétaire

Guardian Telecom

Guardian Telecom DTT-50-Z Manuel utilisateur

Guardian Telecom

Guardian Telecom HR70(M) Manuel utilisateur

Guardian Telecom

Guardian Telecom DTT-30-Z Mode d’emploi

Guardian Telecom

Guardian Telecom CIR-41 Manuel du propriétaire

Guardian Telecom

Guardian Telecom FIT-80 Manuel du propriétaire

Guardian Telecom

Guardian Telecom WRR-H Series Mode d’emploi

Guardian Telecom

Guardian Telecom DTR-51 Mode d’emploi

Guardian Telecom

Guardian Telecom WTT-H Series Manuel utilisateur

Guardian Telecom

Guardian Telecom CIT-40 Manuel du propriétaire

Guardian Telecom

Guardian Telecom WTR-41-H Mode d’emploi

Guardian Telecom

Guardian Telecom WRR Series Mode d’emploi

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur
