GU Electronic HW-REV10 Manuel utilisateur

GENESIS G90 2019

- MODEL : H/W ver 10

- DATE : 2023.03.23

GU Electronic

Index

1. Main Spec

2. Block Diagram

3. Dimension

4. External Appearance

5. Connector Pin Assignment

6. Product Composition

7. DIP S/W Setting

8. Mode Change

9. Install Manual

10. Q & A

GU Electronic

1. Main Spec.

1. Input Spec. (MULTI VIDEO INTERFACE)

- 1 x Digital RGB Input (Navigation System source)

- 1 x HDMI Input (HDMI System source – Audio not support)

- 1 x LVDS Input. (Car Command System)

2. Output Spec.

- 1 x Vertual Analog Touch (Navigation System source)

- 1 x Uart Digital Touch (Navigation System source)

- 1 x USB Touch (DEX System source)

- 1 x LVDS Output (LCD Operation)

3. Power Spec.

- Input Power : 8VDC ~ 24VDC

- Consumption Power : 12Watt, Max

-Storage Temperature : 0 ~75℃

4. Switch Input mode

- Possible to select CAR model while switching mode by DIP S/W

- By button on the Commander in the car via CAN

5. Not support OSD menu

GU Electronic

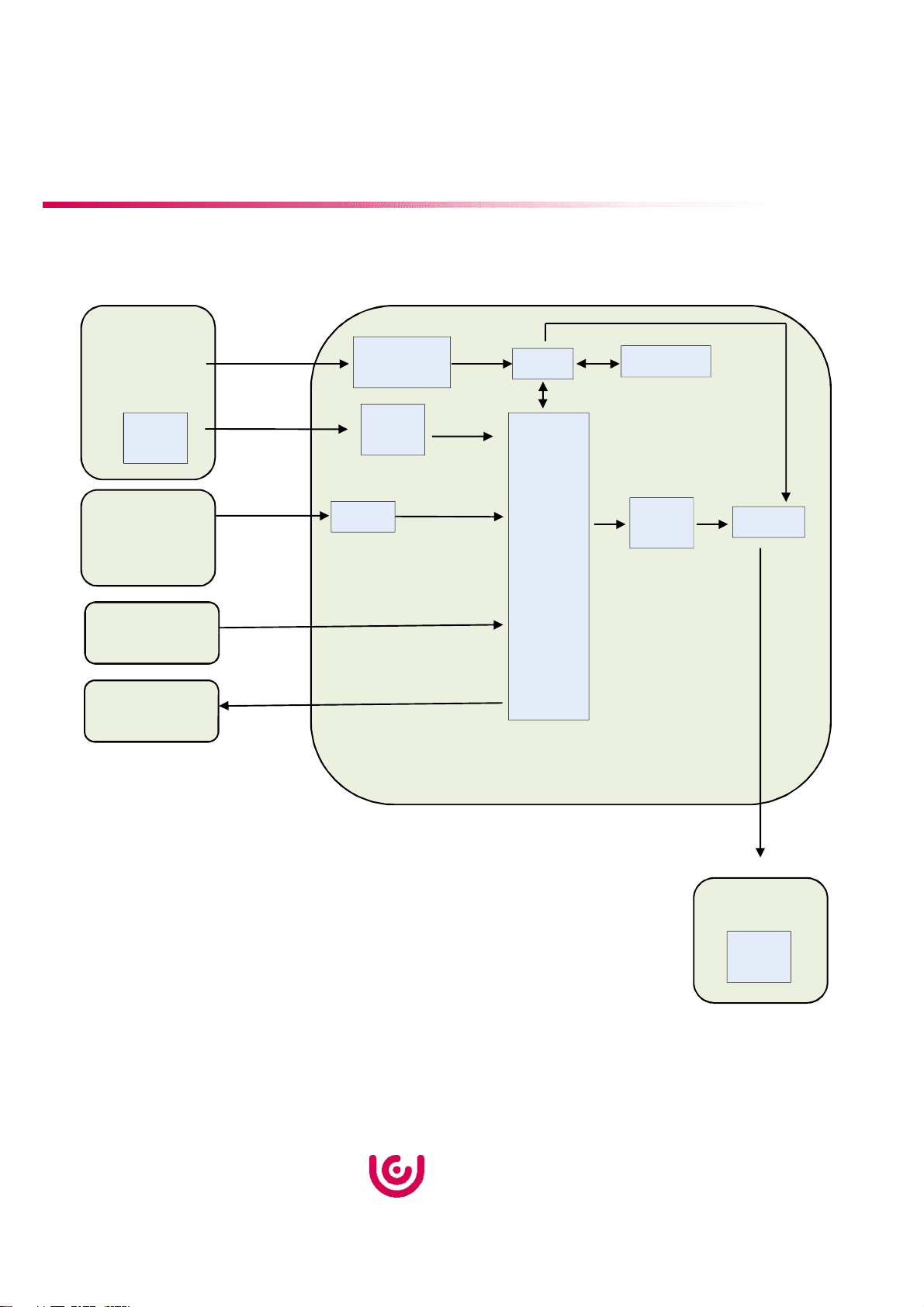

2. Block Diagram

Scaler

MCU

LVDS

INTERFACE

CAR

COMMAND

SYSTEM

LVDS

CAN

EEPROM

CAN

RECEIVER

LVDS

CAR

TFT-LCD

LVDS

RELAY

LVDS

NAVIGATION

SYSTEM

LVDS

HDMI

SYSTEM

SAMSUNG

DEX USB-TOUCH

GU Electronic

3. Dimension

* This can change under manufacturer’s circumstance

154mm * 95mm * 23mm

154mm

95mm

23mm

GU Electronic

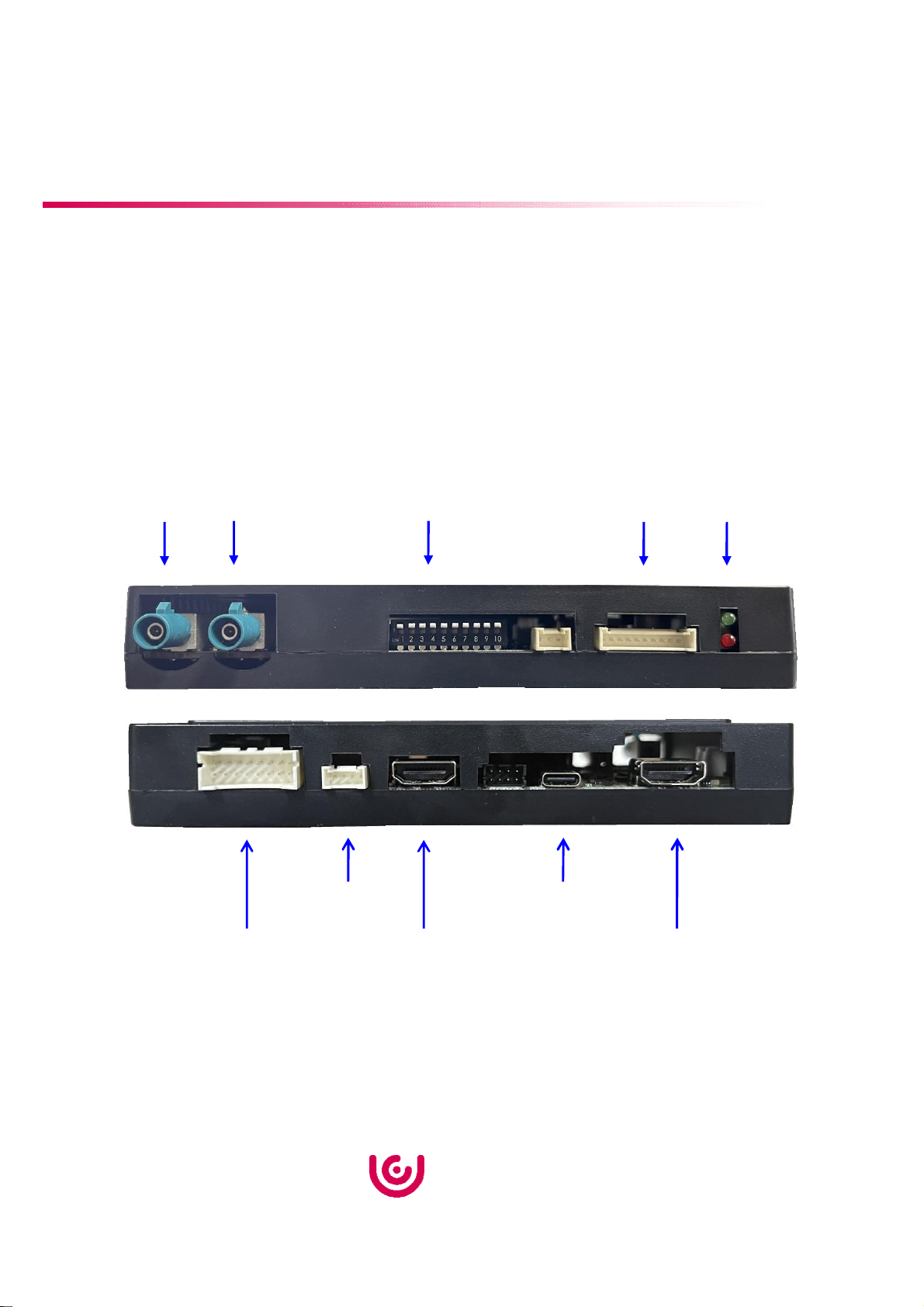

4. External Appearance

LCD-IN LCD-OUT

LED DIP S/W

PROGRAM

R-TOUCH

Digital

RGB

POWER/CAN

USB touch

HDMI

(Audio not support)

GU Electronic

4. External Appearance

LED

DIP S/W PROGRAM

R-TOUCH

Digital

RGB

POWER/CAN

LCD-IN

LCD-OUT

USB touch

HDMI

(Audio not support)

GU Electronic

5. Connector Pin Assignment

*POWER Connect

1. ACC (Red)

2. ACC (Red)

3. Rear-DET (Brown)

4. UART-TXD (Red)

5. CAN-L (Green)

6. CAN-H (Orange)

7. CAN-L (White)

8. CAN-H (Violet)

1 15

2 16

9. N.C

10. N.C

11. ACC-Power (Red)

12. Rear-Power (Red)

13. UART-RXD (Blue)

14. Mode (Green)

15. GND (Black)

16. GND (Black)

*Touch Connect

① Y-

②X-

③Y+

④X+

① ② ③ ④

* Output current

- ACC POWER = +12V, Max 200mA

- REAR POWR = +12V, Max 200mA

* UART Voltage Level

- TXD, RXD = 3.3V Level

*HDMI Connect

Standard pin

(Audio not support)

GU Electronic

6. Product Composition

Interface 1 EA

Power Cable 1 EA

LVDS-IN Cable 1 EA

LVDS-OUT Cable 1 EA

GU Electronic

7. DIP S/W Setting

* ON : DOWN , OFF : UP

PIN FUNCTION DIP S/W Selection

1 NAVI ON : Not Used

OFF : Used

2 HDMI(DEX)

ON : Not Used

OFF : Used

(Audio not support)

3 REAR TYPE ON : OEM

OFF : External

4 CAR type SEL Right Picture

Navi Model SEL Down Picture6

CAR type SEL Right Picture9

* DIP S/W Example

GENESIS G90 12.3” (2019~2021)

AVM(SVM)-HDMI

SAMSUNG-DEX

M2C/FINE/KPLAY-2
