3 SET-UP AND SAFETY

5 CONNECTION/PREPARATION

5 Connecting the antenna and the mains cable

6 Inserting batteries in the remote control

7 OVERVIEW

7 Connections on the television

8 Controls on the television

9 The remote control

11 SETTINGS

11 Setting television channels automatically

11 Changing stored channels

13 Picture settings

13 Audio settings

16 TELEVISION OPERATION

16 Basic functions

17 Zap function

17 Zoom function

18 Changing the picture format

19 PIP mode

20 TELETEXT MODE

20 TOP text or FLOF text mode

20 Normal text mode

20 Additional functions

22 CONVENIENCE FUNCTIONS

22 Convenience functions with the »Features« menu

24 USING EXTERNAL DEVICES

24 DVD player, DVD recorder, video recorder or set-top box

24 High deﬁnition – HD ready

24 Connecting a DVD player, DVD recorder, video recorder or set-top box

26 Headphones

27 Decoder or satellite receiver

28 Camcorder

28 Hi-ﬁ system/AV receiver

29 PC MONITOR MODE

29 Connecting a PC

30 SPECIAL SETTINGS

30 Setting television channels

33 INFORMATION

33 Technical data

33 Service information for dealers

33 Environmental note

34 Troubleshooting

35 Additional Information for units sold in the UK.

CONTENTS------------------------------------------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 2

ENGLISH

Please note the following information when setting up your television

set.

This television set is designed to receive and display video and audio

signals.

Any other use is expressly prohibited.

The ideal viewing distance is 5 times the screen diagonal.

External light falling on the screen impairs picture quality.

To assure suﬃcient ventilation make sure there is enough space

around it in the wall unit.

The television set is designed for use in dry rooms. If you do use it in

the open, please ensure that it is protected from moisture, such as

rain or splashing water. Do not expose the television set to any mois-

ture.

Do not place any vessels such as vases on the television, as they may

spill liquid, thus presenting a safety risk.

Place the television set on a solid, level surface. Do not place any

objects such as newspapers on the television set or cloth or similar

items beneath it.

Do not place the television set close to heating units or in direct sun-

light, as this will impair cooling.

Heat build-up can be dangerous and shortens the operating life of

the television set. For reasons of safety, have a specialist remove any

dirt deposits in the set from time to time.

Do not open the television set under any circumstances. Warranty

claims are excluded for damage resulting from improper handling.

Make sure the power cord or the power supply unit (if provided) are

not damaged.

The television set may only be operated with the mains

cable/adapter supplied.

Thunderstorms are a danger to all electrical devices. Even if the

television set is switched oﬀ, it can be damaged by a lightning strike

to the mains or the antenna cable. Always disconnect the mains and

antenna plugs during a storm.

Clean the screen with a soft, damp cloth. Only use plain water.

Only clean the television housing with the cloth provided. Only use

plain water.

SET-UP AND SAFETY ------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 3

Please note when deciding where to put the device that furniture

surfaces are covered by various types of lacquer and plastic, most

of which contain chemical additives. These may cause corrosion to

the feet of the device, thus resulting in stains on the surface of the

furniture which can be diﬃcult or impossible to remove.

The screen of your LCD television meets the highest quality

standards and has been checked for pixel faults.

Despite the great care taken in manufacturing, technological

reasons make it impossible to completely discount the possibility that

some pixels may be faulty.

Provided they are within the thresholds speciﬁed by the DIN norm,

pixel faults of this kind cannot be regarded as a defect as deﬁned by

the warranty.

Notes:

Do not connect any other equipment while the device is switched

on. Switch oﬀ the other equipment as well before connecting it.

Only plug the device into the mains socket after you have con-

nected the external devices and the antenna.

Make sure the power plug is freely accessible.

Caution:

If you want to use a wall bracket for your television, make sure

you read the assembly instructions for the wall bracket carefully

or have your specialist dealer mount it for you.

When buying the wall bracket, make sure that all the fastening

points needed on the television are there on the wall bracket and

that they are all used when it is mounted.

SET-UP AND SAFETY ------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 4

ENGLISH

Connecting the antenna and the mains cable

1Plug the antenna cable of the rooftop antenna into the »TUNER«

antenna socket on the television.

2Plug the mains cable supplied into the »AC INPUT« mains socket

of the television.

3Plug the mains cable into the wall socket.

Note:

Only plug the device into the mains socket after you have

connected the external devices and the antenna.

Only connect the television using the power cord supplied to a

suitable earthed safety socket.

Do not use an adapter plug or extension lead which does not

meet the applicable safety standards. Do not tamper with the

power cord.

CONNECTION/PREPARATION ----------------------

1 2 3

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 5

Inserting batteries in the remote control

1Open the battery compartment by removing the lid.

2Insert the batteries (Mignon type, for example UM-3 or AA,

2x1,5V). Observe the polarity (marked on the base of the battery

compartment).

3Close the battery compartment.

Note:

If the television no longer reacts properly to remote control

commands, the batteries may be ﬂat. Be sure to remove used

batteries.

The manufacturer accepts no liability for damage resulting from

used batteries.

Environmental note

Batteries, including those which contain no heavy metal, may not

be disposed of with household waste. Please dispose of used

batteries in an environmentally sound manner. Find out about the

legal regulations which apply in your area.

CONNECTION/PREPARATION ----------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 6

ENGLISH

Connections on the television

UHeadphone connection (3.5 mm jack plug).

S-VHS Video signal input for S-Video camcorder.

VIDEO Video signal input for camcorder.

L R Audio signal input for camcorder.

TUNER Antenna socket.

PC AUDIO-IN Audio signal input for PC.

PC-IN VGA VGA socket, video signal input for PC.

COMPONENT

INPUT

Y Pb Pr Video signal input (YUV signal).

AUDIO IN LR Audio signal input (YUV signal).

SPDIF OUT Audio output sockets (coaxial) for PCM signals.

For connecting to a digital multi-channel

audio/video ampliﬁer or AV receiver.

AV2 Euro/AV socket (FBAS signal, Y/C signal).

AV1 Euro/AV socket (FBAS signal, RGB signal).

HDMI1 HDMI socket, audio/video signal input (HDMI).

HDMI2 HDMI socket, audio/video signal input (HDMI).

AC INPUT Socket for the mains cable.

OVERVIEW ----------------------------------------------------------------------------------------------

AC INPUT

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 7

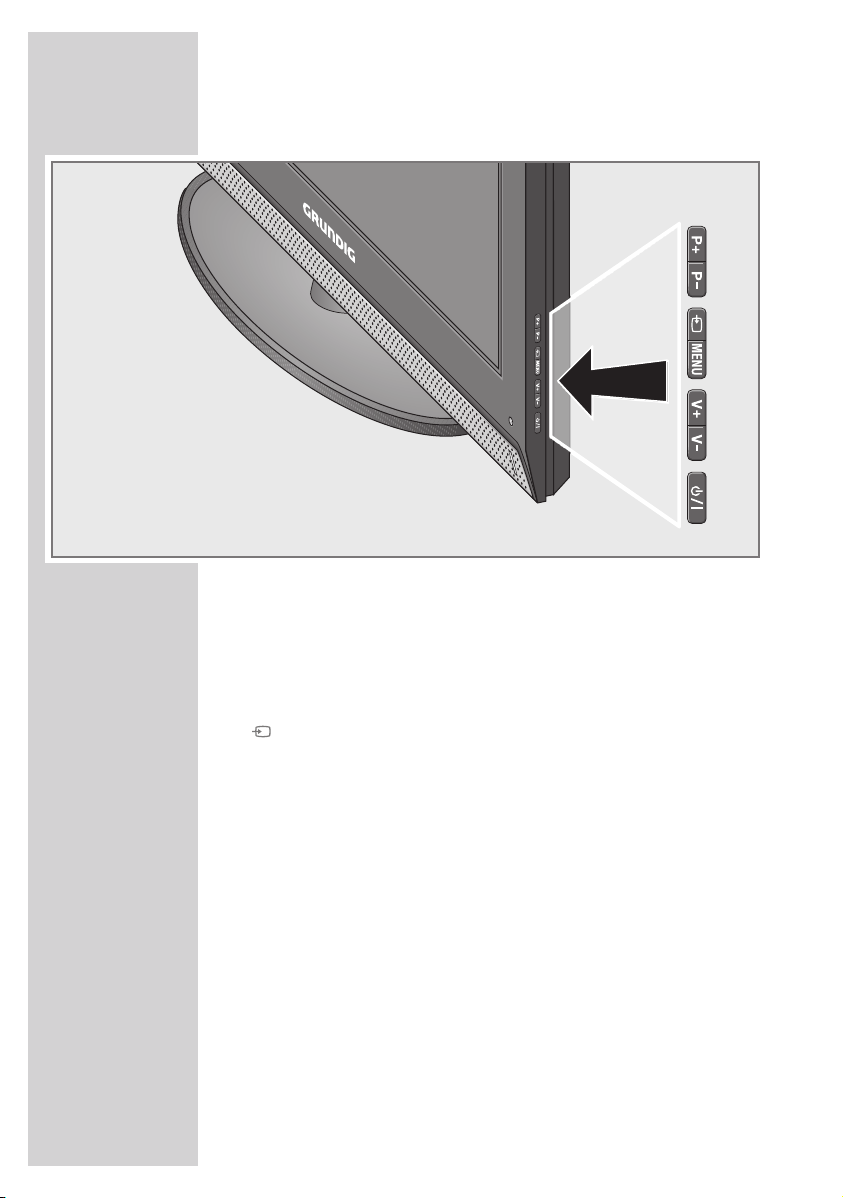

Controls on the television

8/I Switches the television on and back into standby

mode.

The only way to disconnect the television from

the mains supply is to pull the plug.

V+ V – Adjust the volume.

Select menu functions.

Opens the pre-selection for AV channels.

Select within the menu with »+ P« or »P –«,

conﬁrm with »V+« or »V–«.

MENU Opens the »MAIN MENU« menu.;

Press »P+« or »P–« to select an item.

Press »V+« or »V–« to activate a function.

Press »V+« or »V–« to set a function.

Press »MENU« to close the menu.

P+ P – Switch the television on from standby.

Channel selection.

Select a function in the menu.

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 8

ENGLISH

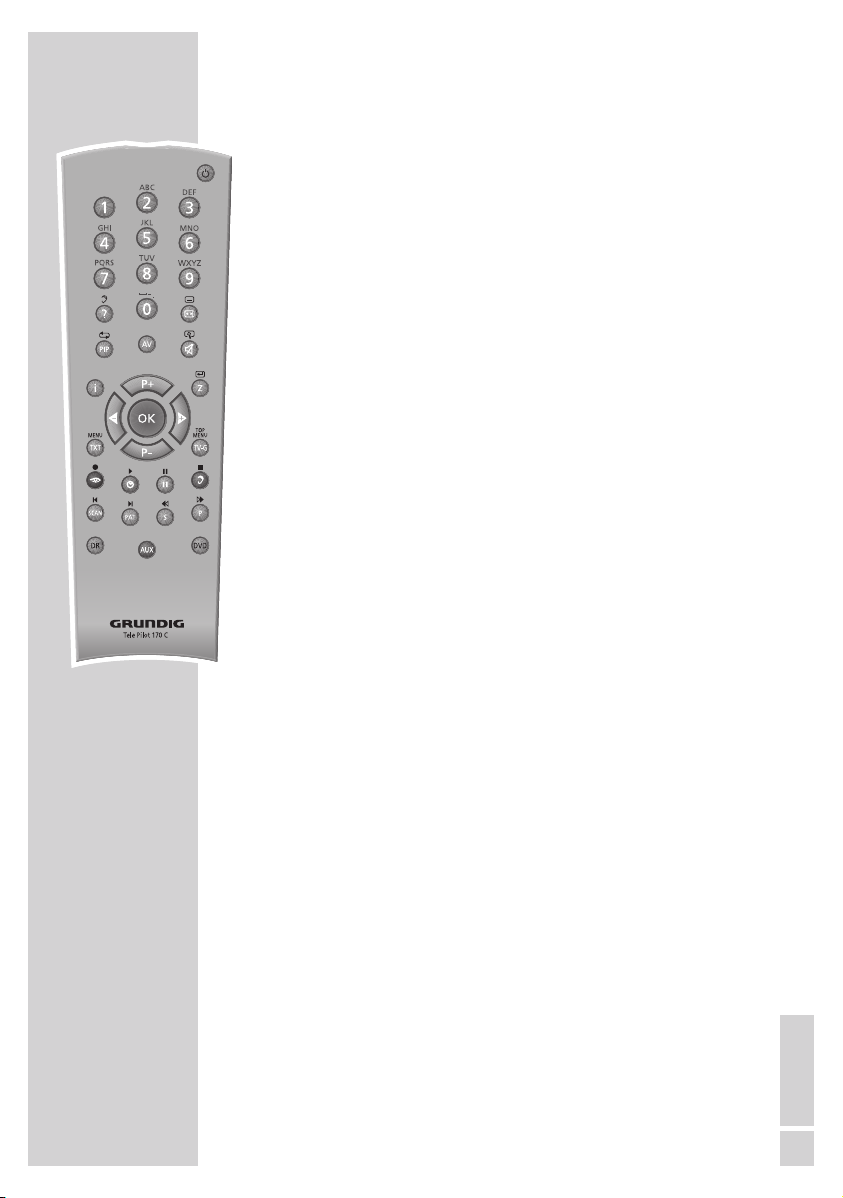

The remote control

8Switches oﬀ the television set (stand-by).

1...0 Switches the television on from standby mode

Selects channels directly.

?Displays the number and name of a station;

reveals answers in teletext mode.

ESwitches between picture formats;

switches to double character size in teletext

mode.

PIP Shows an inset picture;

activates the double window function;

switches back to normal size.

AV Opens the pre-selection for AV channels.

Then selection with P+ or P-.

dSound on/oﬀ (mute).

iCalls up the »MAIN MENU«.

ZZap function;

page stop in teletext mode.

P+, P- Switches the television on from standby;

selects stations step by step;

moves the cursor in the menus up and down.

4 3 Adjusts the volume;

moves the cursor left/right.

OK Calls up the preset channels;

activates various functions.

TXT Switches between teletext and TV modes

TV-G Key has no function.

zSelects various picture settings;

scrolls back a page in teletext mode.

¥Displays the time;

selects the next page in teletext mode.

3Freeze-frame;

selects the desired chapter in teletext mode.

FSelects various audio settings;

selects the desired topic in teletext mode.

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 9

SCAN Enlarges the picture.

PAT Selects the Split Screen function.

SSelects the sub-pages in teletext mode.

PUpdates a page in teletext mode.

DR, DVD Switches to operation of a GRUNDIG digital

receiver, GRUNDIG digital receiver with hard

disk (PDR), GRUNDIG DVD player or GRUNDIG

DVD recorder.

Keep the appropriate button (»DR«, »DVD«)

pressed down. Then press the appropriate button.

Note:

The »DR« button has been programmed for

operating a GRUNDIG digital receiver (remote

control level 1).

The »DVD« button has been programmed for

operating a GRUNDIG DVD player.

You can change this programming, see »AUX«

button.

The functions available depend on the model of

the device you are using.

Just try it out.

AUX Programming the remote control for the operation

of external devices.

Press »AUX« and hold it down and press three

numerical buttons to enter the appropriate code:

»1«, »2«, »3« for a GRUNDIG DVD player.

»4«, »5«, »6« for a GRUNDIG DVD recorder.

»1«, »4«, »7« for a GRUNDIG digital receiver

(remote control level 1).

»2«, »5«, »8« for a GRUNDIG digital receiver

(remote control level 2).

»3«, »6«, »9« for a GRUNDIG digital receiver

with hard disk (PDR).

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 10

Autres manuels pour Vision 6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Grundig TV

Grundig

Grundig ST 70-860 FR / TOP (CUC 2030 F) Manuel utilisateur

Grundig

Grundig AGANTO 40 Manuel utilisateur

Grundig

Grundig FINE ARTS 30 LW 78-8510 DOLBY Manuel utilisateur

Grundig

Grundig 32 VLE 5500 BG Manuel utilisateur

Grundig

Grundig TVR 3730R Manuel utilisateur

Grundig

Grundig AMIRA 26 LW68-9410 TOP Manuel utilisateur

Grundig

Grundig 55 GHU 8000 Manuel utilisateur

Grundig

Grundig 50 CUA 7390 Mailand Manuel utilisateur

Grundig

Grundig 40 VLE 565 BG Manuel utilisateur

Grundig

Grundig ARCANCE 55 Flat MF 55-2401/5 TOP Manuel utilisateur

Grundig

Grundig DIGI 100 CUC 1838 Manuel utilisateur

Grundig

Grundig Davio 55 Manuel utilisateur

Grundig

Grundig 58 GCU 8900B Manuel utilisateur

Grundig

Grundig Vision 7 Manuel utilisateur

Grundig

Grundig 40 VLE 827 S Manuel utilisateur

Grundig

Grundig TVR 3735 FR/TOP Manuel utilisateur

Grundig

Grundig 40 VLE 4520 BF Manuel utilisateur

Grundig

Grundig 40 GFT Manuel utilisateur

Grundig

Grundig 49 VLE 7630 WP Manuel utilisateur

Grundig

Grundig 32GFB66212011 Manuel utilisateur

Grundig

Grundig 43 GFB 6820 Manuel utilisateur

Grundig

Grundig E2000 Series Manuel

Grundig

Grundig 42 GLX 6052 Manuel utilisateur

Grundig

Grundig 40 GFS 6820 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
