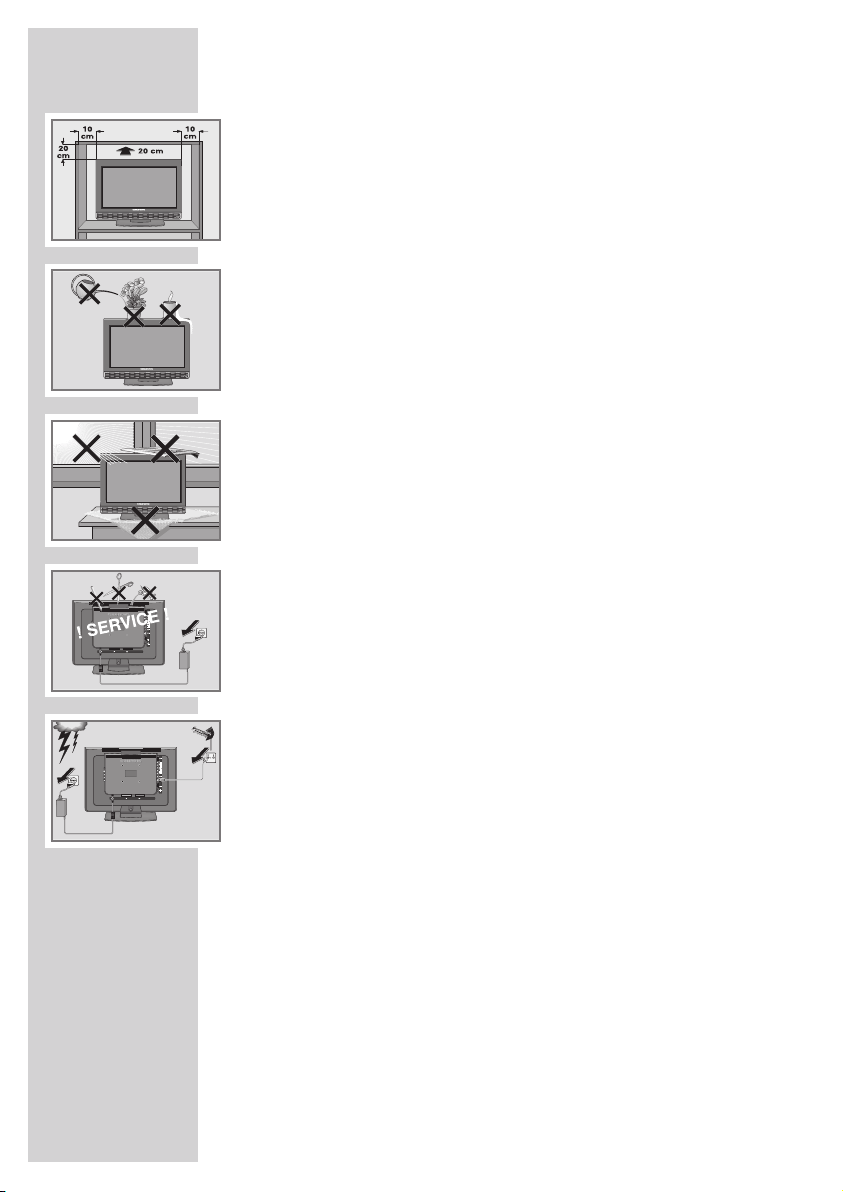

Please note the following information when setting up your television

set.

This television set is designed to receive and display video and audio

signals.

Any other use is expressly prohibited.

The ideal viewing distance is 5 times the screen diagonal.

External light falling on the screen impairs picture quality.

To assure suﬃcient ventilation make sure there is enough space

around it in the wall unit.

The television set is designed for use in dry rooms. If you do use it in

the open, please ensure that it is protected from moisture, such as

rain or splashing water. Do not expose the television set to any mois-

ture.

Do not place any vessels such as vases on the television, as they may

spill liquid, thus presenting a safety risk.

Place the television set on a solid, level surface. Do not place any

objects such as newspapers on the television set or cloth or similar

items beneath it.

Do not place the television set close to heating units or in direct sun-

light, as this will impair cooling.

Heat build-up can be dangerous and shortens the operating life of

the television set. For reasons of safety, have a specialist remove any

dirt deposits in the set from time to time.

Do not open the television set under any circumstances. Warranty

claims are excluded for damage resulting from improper handling.

Make sure the power cord or the power supply unit (if provided) are

not damaged.

The television set may only be operated with the mains

cable/adapter supplied.

Thunderstorms are a danger to all electrical devices. Even if the

television set is switched oﬀ, it can be damaged by a lightning strike

to the mains or the antenna cable. Always disconnect the mains and

antenna plugs during a storm.

Clean the screen with a soft, damp cloth. Only use plain water.

Notes:

Do not connect any other equipment while the device is switched

on. Switch oﬀ the other equipment as well before connecting it.

Only plug the device into the mains socket after you have con-

nected the external devices and the antenna.

Make sure the power plug is freely accessible.

SET-UP AND SAFETY ------------------------------------------------------------

Please note when deciding where to put the device that furniture

surfaces are covered by various types of lacquer and plastic, most

of which contain chemical additives. These may cause corrosion to

the feet of the device, thus resulting in stains on the surface of the

furniture which can be diﬃcult or impossible to remove.

The screen of your LCD television meets the highest quality

standards and has been checked for pixel faults.

Despite the great care taken in manufacturing, technological

reasons make it impossible to completely discount the possibility that

some pixels may be faulty.

Provided they are within the thresholds speciﬁed by the DIN norm,

pixel faults of this kind cannot be regarded as a defect as deﬁned by

the warranty.

Caution:

If you want to use a wall bracket for your television, make sure

you read the assembly instructions for the wall bracket carefully

or have your specialist dealer mount it for you.

When buying the wall bracket, make sure that all the fastening

points needed on the television are there on the wall bracket and

that they are all used when it is mounted.

SET-UP AND SAFETY ------------------------------------------------------------

ENGLISH

Special features of your television

This television can receive and process all analogue and all

unencrypted digital stations. This television set has an integrated

digital and analogue receiver. The digital receiver unit converts the

signals from digital stations to provide outstanding audio and picture

quality.

The TV guide (only for digital stations) tells you of any schedule

changes at short notice, and provides an overview of all the stations’

schedules for the next few days.

Detailed information on the individual stations – if it is provided by

the broadcaster – is also available in the electronic programme

guide.

The television set has a comprehensive, user-friendly menu system.

The menu is displayed on the television screen, and the functions of

the remote control buttons are explained.

Receiving digital stations

To receive digital stations you need a digital rooftop or indoor an-

tenna (passive or active indoor antenna with its own power supply).

Unlike analogue broadcasting, not every station has its own trans-

mission frequency. Instead, several stations are grouped into what

are known as bouquets on a regional or national level.

You can ﬁnd the current transmission information on teletext from var-

ious broadcasters, or look in a TV guide or on the Internet.

What is Common Interface?

Common Interface (CI) is an interface for DVB receivers.

Encoded stations can only be viewed with a CI module suitable for

the encoding system and the corresponding smart card.

The television set is equipped with a Common Interface slot into

which CI modules from various providers can be inserted.

You can insert the provider’s smart card into the CI module in order

to enable the encrypted stations you want to see.

Encrypted stations are broadcast in a digital terrestrial (DVB-T)

manner only in Scandinavian countries.

GENERAL INFORMATION----------------------------------------

ENGLISH

Connecting the antenna and the mains cable

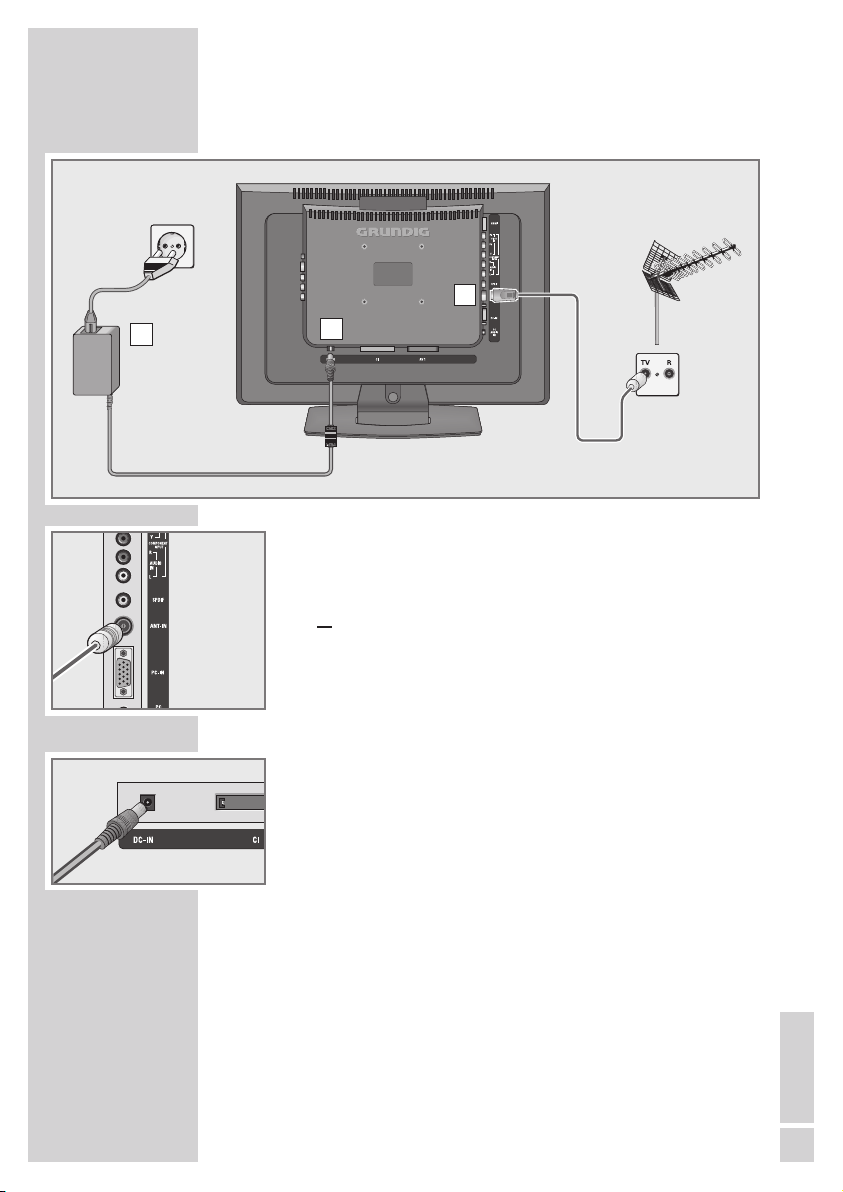

1Plug the cable of the rooftop or indoor antenna (passive or

active indoor antenna with its own power supply for digital tele-

vision stations) into the antenna socket »ANT-IN« on the tele-

vision set

Plug the rooftop antenna cable (for analogue television stations)

into the »ANT-IN« socket on the television.

Note:

When connecting an indoor antenna you may have to try it out

at diﬀerent positions until you get the best reception.

2Plug the power supply cord provided into the socket of the

device.

3 Plug the power supply cord into the »DC-IN« socket on the

television.

4Plug the mains cable into the wall socket.

Note:

Only plug the device into the mains socket after you have

connected the external devices and the antenna.

Only connect the television using the power cord supplied to a

suitable earthed safety socket.

Do not use an adapter plug or extension lead which does not

meet the applicable safety standards. Do not tamper with the

power cord.

CONNECTION/PREPARATION ----------------------

Inserting batteries in the remote control

1Open the battery compartment by removing the lid.

2Insert the batteries (Mignon type, for example UM-3 or AA,

2x1,5V). Observe the polarity (marked on the base of the battery

compartment).

3Close the battery compartment.

Note:

If the television no longer reacts properly to remote control

commands, the batteries may be ﬂat. Be sure to remove used

batteries.

The manufacturer accepts no liability for damage resulting from

used batteries.

Environmental note

Batteries, including those which contain no heavy metal, may not

be disposed of with household waste. Please dispose of used

batteries in an environmentally sound manner. Find out about the

legal regulations which apply in your area.

CONNECTION/PREPARATION ----------------------

Connections on the television

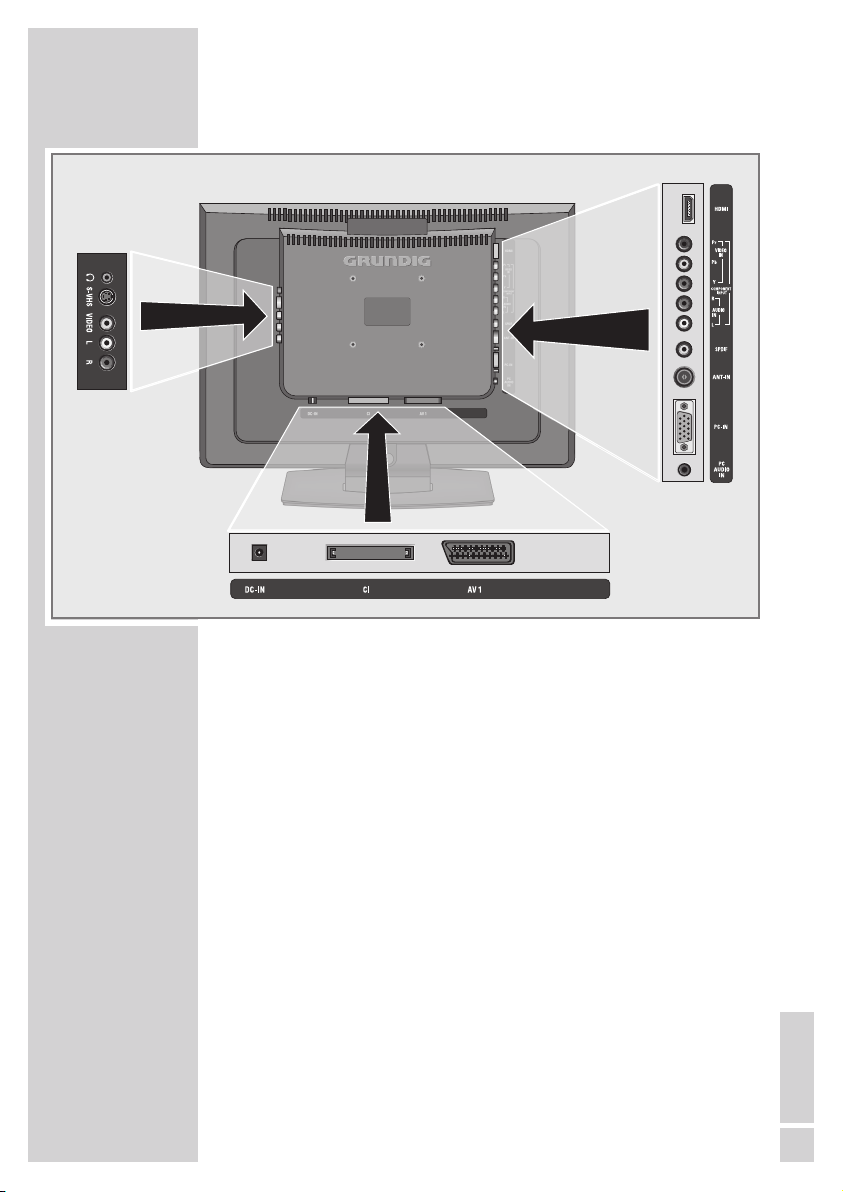

UHeadphone connection (3.5 mm jack plug).

S-VHS Video signal input for S-Video camcorder.

VIDEO Video signal input for camcorder.

L R Audio signal input for camcorder.

DC-IN Socket for power supply unit.

CI Common Interface slot.

AV1 Euro/AV socket (FBAS signal, RGB signal).

PC AUDIO IN Audio signal input for PC.

PC-IN VGA socket, video signal input for PC.

ANT-IN Antenna socket.

SPDIF OUT Audio output sockets (coaxial) for PCM signals.

For connecting to a digital multi-channel

audio/video ampliﬁer or AV receiver.

COMPONENT

INPUT

AUDIO IN LR Audio signal input (YUV signal).

VIDEO IN Y Pb Pr Video signal input (YUV signal).

HDMI HDMI socket, audio/video signal input (HDMI).

OVERVIEW ----------------------------------------------------------------------------------------------

ENGLISH

Controls on the television

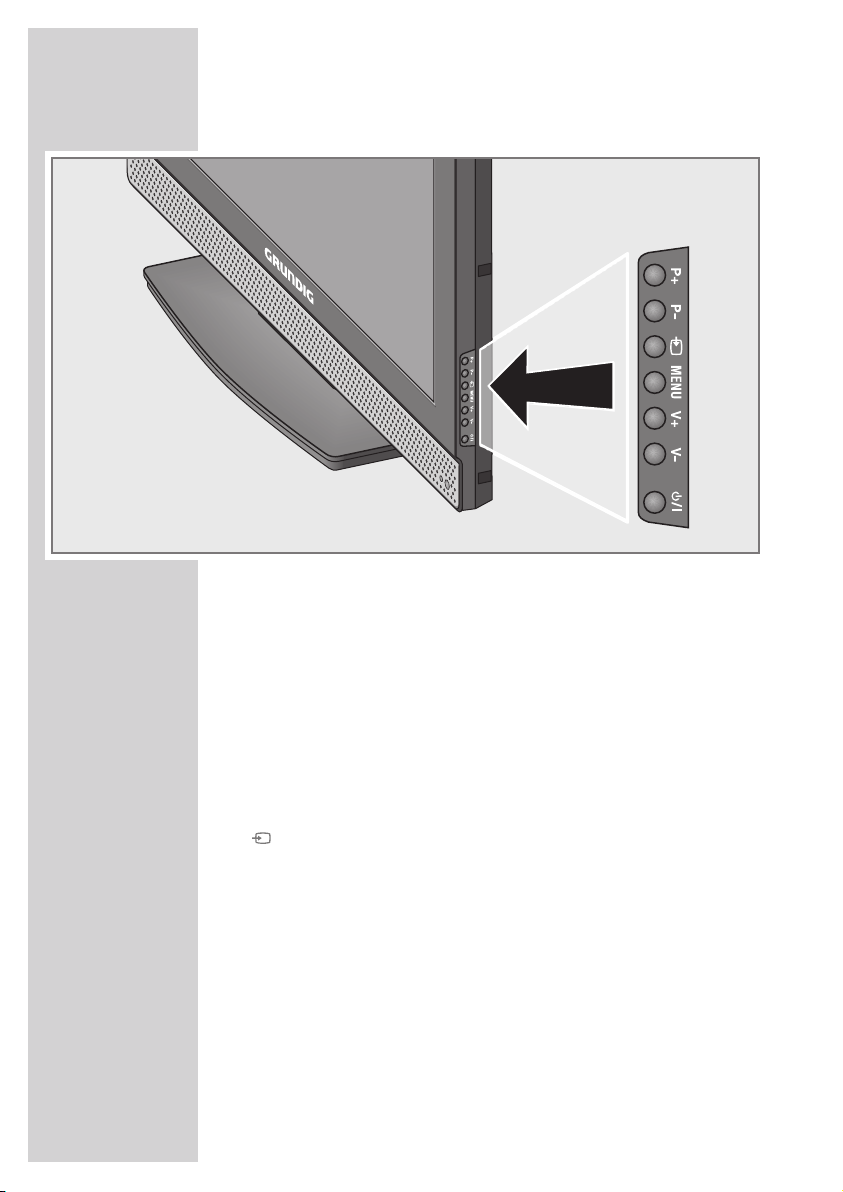

8/I Switches the television on and back into standby

mode.

The only way to disconnect the television from

the mains supply is to pull the plug.

V– V + Adjust the volume.

Select menu functions.

MENU Opens the »MAIN MENU« menu.;

Press »P+« or »P–« to select an item.

Press »V+« or »V–« to activate a function.

Press »V+« or »V–« to set a function.

Press »MENU« to close the menu.

Opens the pre-selection for AV channels.

Select within the menu with »P+« or »P–«,

conﬁrm with »V+« or »V–«.

P– P + Switch the television on from standby.

Channel selection.

Select a function in the menu.

OVERVIEW ----------------------------------------------------------------------------------------------

Table des matières

Autres manuels Grundig TV

Grundig

Grundig CUC 1836 Manuel utilisateur

Grundig

Grundig 40 VLE 7630 BP Manuel utilisateur

Grundig

Grundig 28 VLE 5500 BG Manuel utilisateur

Grundig

Grundig APOLLO 42 PW 110-7505 TOP Manuel utilisateur

Grundig

Grundig 65 GDU 7500B Manuel utilisateur

Grundig

Grundig Davio 37 Manuel utilisateur

Grundig

Grundig 32 GFB 6060 Manuel d'utilisation et d'entretien

Grundig

Grundig 32 GEH 4820 E Guide de référence

Grundig

Grundig 40 GFS 6820 Manuel utilisateur

Grundig

Grundig CUC 2080 F Manuel utilisateur

Grundig

Grundig 55GFB6625 Manuel utilisateur

Grundig

Grundig T 63-530 text Manuel utilisateur

Grundig

Grundig Vivance II 32 Manuel utilisateur

Grundig

Grundig XEPHIA 42 PW 110-5510 TOP Manuel utilisateur

Grundig

Grundig 55 VLE 6725 BP Manuel utilisateur

Grundig

Grundig 43 GFB 6722 Manuel utilisateur

Grundig

Grundig 39 GFF 6620B Guide de référence

Grundig

Grundig ARCANCE 55 Flat MF 55-2401/5 TOP Manuel utilisateur

Grundig

Grundig TVR 3735 FR/TOP Manuel utilisateur

Grundig

Grundig CUC 1952 Manuel utilisateur

Grundig

Grundig M 63-105 iDTV Manuel utilisateur

Grundig

Grundig 49 GDU 7900B Manuel utilisateur

Grundig

Grundig VISION 3 26-3830 T Manuel utilisateur

Grundig

Grundig 50 GHU 7912B Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
