EU directives
This product complies with the
following EU directives:
2014 / 53 / EU 2014/30/EC,
2014/35/EC, 2009/125/ EC, 2010/30/
EU and 2011/65/EU.
TV’s wireless system can only be used in
the countries below.
AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI,
FR, GB, GR, HU, IE, IS, IT, LI, LT, LU, LV, MT,
NL, NO, PL, PT, RO, SE, SI, SK, TR.
This device can also be operated in the
countries outside Europe.
3
ENGLISH
About your TV set
7 With your TV set, you can receive and
watch digital TV programmes over
DVB-S, DVB-T and DVB-C, along with
analogue TV.
7 Many features of the TV set require
an Internet connection. The TV set is
equipped with WLAN and a LAN port.
7
The TV set can record programmes. For
this feature you need a USB storage
device, such as an external hard drive
(not included). Recorded programmes
can only be played on the same TV set.
After the TV st is repaired, it is possible
that recorded programmes may no longer
be able to be played back.
7
You can connect various data media, for
example, an external hard drive, a USB
memory stick or a digital camera to the
USB sockets. Using the file browser, you
can then select and play the file formats
you want (for example, MP4, MP3 or
JPEG data).
7
With the Time Shift function, you can
easily stop and resume a programme with
the remote control in a fast and simple
way. Programme is recorded to the
external data medium.
Intended use
7 The TV set is designed for use in dry
rooms.
7 Use the TV set with the supplied stand or
a suitable VESA bracket.
7 The TV set is primarily intended for the
playback of TV programmes, streaming
content and audio/video material from
external devices. Any other use is strictly
prohibited.
It is not intended as an information
display or for predominant use as a
computer monitor. If a still image or a
non-full-format image is displayed for
an extended period, visible traces may
remain on the screen for some time.
This is not a defect that can be used as
the basis for a warranty claim.
Safety
WARNING
Risk of electrical accident
7 Do not open the TV set. Safety risk may
arise and also the guarantee of the
product can be void if the television set is
opened.
7 The TV set can only be operated with
the power cable or the AC/DC adapter
supplied with the product.
7 Do not operate the TV set with a
damaged power cord/AC/DC adaptor
(if supplied).
7 If the plug on the TV set has an earthing
contact, only insert the plug into a socket
with an earthing contact.
7 Plug the TV set into the mains socket only
after you have connected the external
devices and the antenna.
7 Protect the TV set from moisture. Do not
place any vessels filled with water (such
as vases) on the TV.
Fire hazard
7 To prevent the spread of fire,
keep candles or other open
flames away from this product
at all times.
7 Do not cover the ventilation slots on the
TV set.
7 Always unplug the power plug and
antenna plug during a thunderstorm.
7 Keep candles or other open flames away
from the TV set.
7 Do not expose the batteries to extreme
heat such as sunshine, fire or the like.
7 Only use batteries of the same type
(brand, size, properties). Do not use used
and new batteries together.
ENGLISH
4
WARNING
Injuries caused by falling TV set
Never place the TV set on an unstable
surface. The TV set may fall, causing
serious injury, possibly leading to death in
isolated cases.
Observe the following precautions:
7 Only use the manufacturer’s
recommended cabinets or stands.
7 Only use furniture that can safely support
the TV set.
7 Make sure that the TV set does not
protrude beyond the dimensions of the
furniture on which it is resting.
7 Do not place the TV set on tall furniture
(such as kitchen cabinets, bookshelves)
without securely anchoring the furniture
and TV set.
7 Do not place the TV set on fabric or other
materials located between the TV set and
furniture.
7 Instruct children that there is danger
associated with climbing on furniture
when the TV set is to be reached.
NOTICE
Shortened service life due to high
operating temperature
7 Do not place the TV set next to heating
units or in direct sunlight.
7 To ensure adequate ventilation, maintain
clearance of at least 10 cm around the
TV set.
Discolouration of furniture due to
rubber feet
7 Some furniture surfaces may discolour
when they come in contact with rubber.
To protect furniture, you can place a
sheet made of glass or plastic under the
stand. Do not use textile underlays or
mats such as doilies.
Electromagnetic noise
7
Devices connected to the product (satellite
receiver, DVD player, and etc.) or signal
emitting devices (router and etc.) close to
the product may cause disturbance in the
image and noise in the sound.
7
Connection cables used on the product
must be shorter than 3 m.
7
If the product cannot perform its function
due to electrostatic discharge, the user
may need to switch off and then switch
on the product.
7
A shielded, HDMI-certified and ferrite
cable must be used with the product.
Environmental information
7 Do not dispose of batteries in
the household waste. Used
batteries must be returned to
retail stores or public collection points. You
help to protect the environment in this way.
7 Be sure to dispose of packaging
materials for your product separately
according to the guidelines of local
authorities so that they can be recycled in
an environmentally safe manner.
7
If you are not using your TV set for a
while, turn it to standby mode. In standby
mode, the TV set uses very little energy
(≤ 0.5 W).
If you do not use the TV set for an
extended period, turn it off with the
power switch or unplug the power cord
from the socket. If you turn off the device
or disconnect it from the power supply,
the switch-on timer and programmed
recordings will not work.
7 Select a location for the TV set so that
no direct sunlight falls on the screen. This
allows a lower backlight to be selected,
which saves energy.
7 Do not dispose of the product
along with normal household
waste at the end of its service
life. Take it to a recycling centre for
electrical and electronic equipment.
5
ENGLISH
Packing contents
4
2
5
1
3
6
User
Manual
Standart accessory

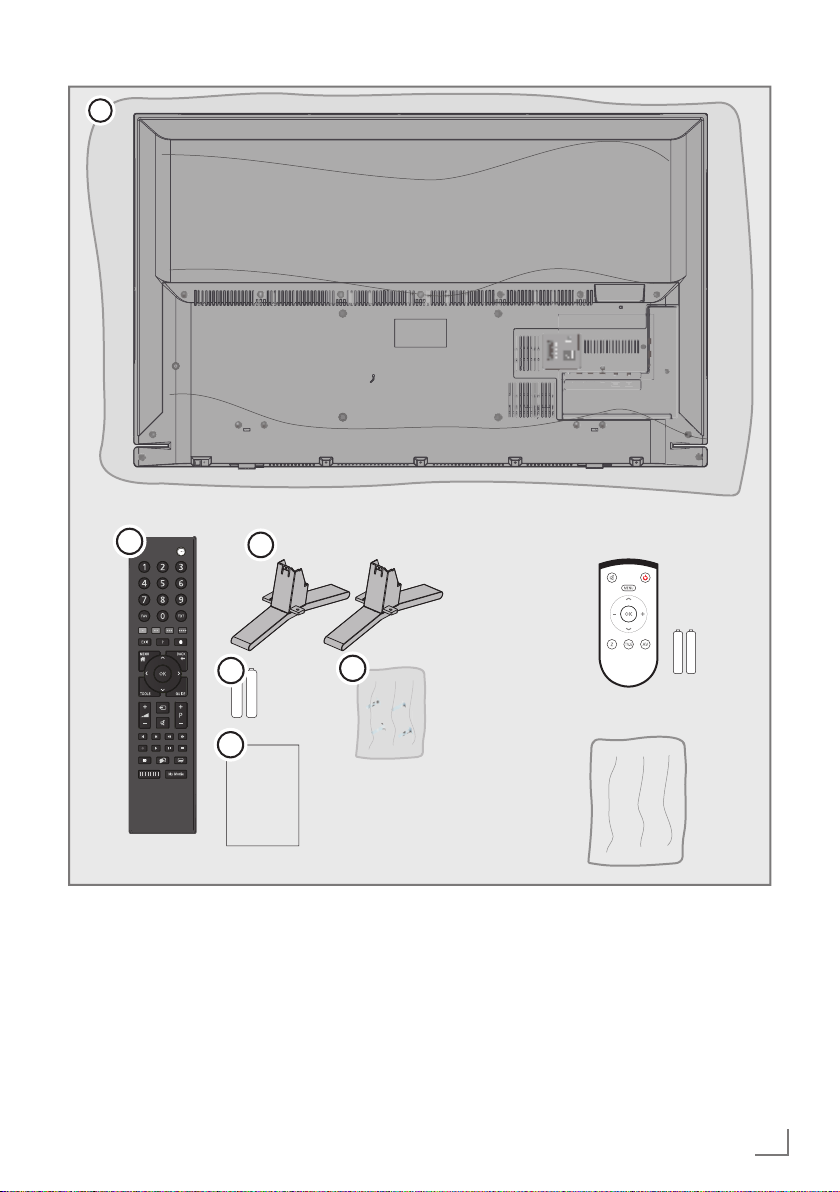

1. TV
2. Stand
3. Remote control
4. Batteries for remote controls
5. Screws and mounting instructions
for stand
6. Brief Instruction
Optional accessory
Easy-Use Remote Control
Batteries for Easy-Use remote controls
Cleaning cloth
Screws for VESA bracket
ENGLISH
6
Setting up or hanging
7 Select a location so that no direct sunlight
falls on the screen.
Setting up with stand
7 To mount the stand, refer to the
installation instructions included.
7 Place the TV set on a hard, level surface.
Preparing for mounting on
the VESA bracket
You will need:
7 A pair of scissors,
7 A crosstip screwdriver.
Follow the installation instructions for the
VESA bracket.

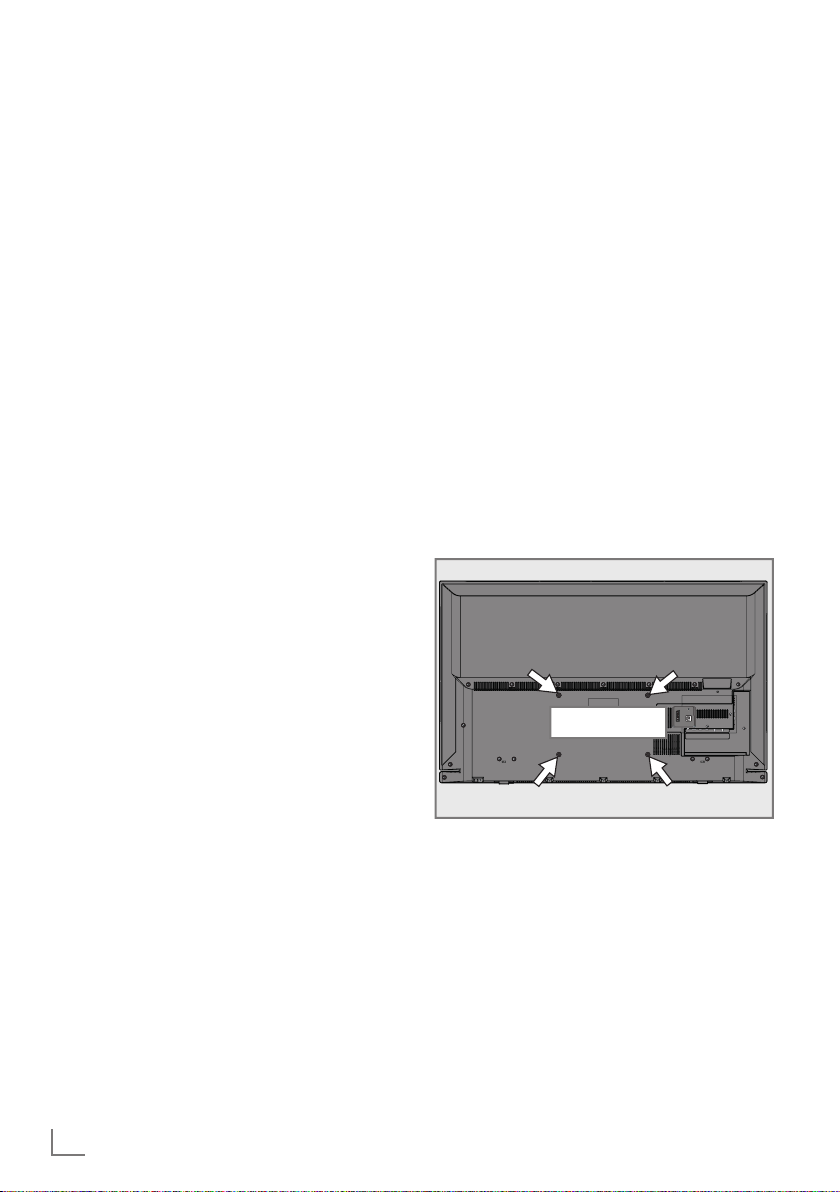

1. Place the TV set in the film on a smooth
surface with the screen facing down.
2. Cut open the film on the back side
using the scissors.
3. Connect the required cables to the
connectors on the TV set. See the
“Connections” section in this manual.
4. Tie the cables so they do not hang
down onto the floor.
5. Screw the VESA bracket onto the TV set
and mount it according to its installation
instructions.
AV/S-VHS/COMPONENT
SERVICE
SATELLITE
13/18V
max.500mA
ANT-IN
5V
max.50mA
OpticOut USB(HDD) HDMI3(ARC) HDMI2
LAN
VESA
7
ENGLISH
Connections
AV/ S-VHS/COMPONENT
SERVICE
LAN
AV / S-VHS/COMPONENT
SERVICE
LAN
ANT-IN
5V
max.50mA
Optic Out SATELLITE
13/18V
max.500mA
HDMI2HDMI3(ARC)USB(HDD)
USB1 HDMI1 +V/P-
ENGLISH
8

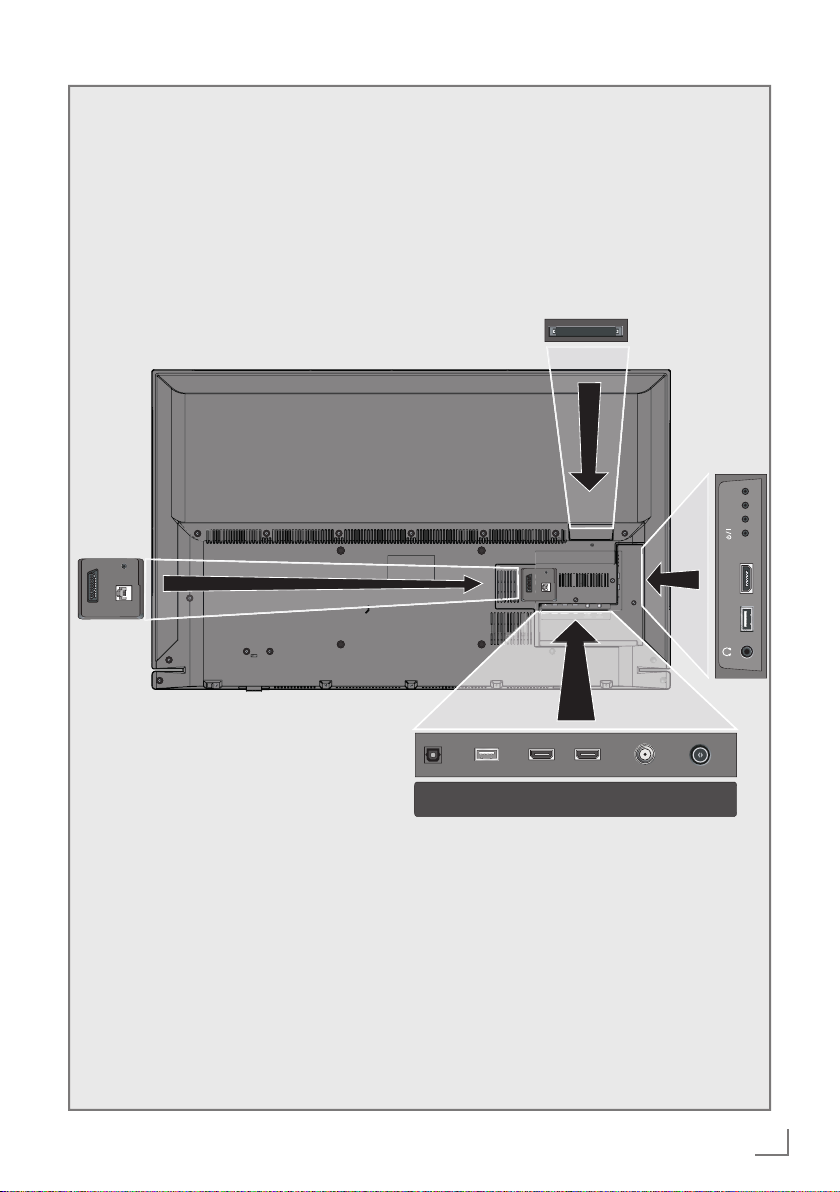

7 LAN: Network connection
7 AV / S-VHS / COMPONENT:
SCART socket, audio/video input and
output
S-VHS socket, audio/video input for
S-Video camera using a SCART-S-VHS
adapter cable.
Component socket, audio/video input
(YUV signal) using a SCART-YPbPr
adapter cable.
7 SERVICE: Service only.
7 Optic Out: optical audio output
7 USB(HDD): connect data media for re-
cording programmes, such as an external
hard disk.
7 HDMI3 (ARC): Input for digital audio
and video data with audio return chan-
nel.
7 HDMI2: Input for digital audio and im-
age data.
7 SATELLITE: for satellite antenna.
Suitable for single-cable GSCR system.
7 ANT IN: for antenna cable (terrestrial
antenna or cable connection).
7 U: Headphone jack or line output via
adapter.
7 USB1: for data media or keyboard.
7 HDMI1: Input for digital audio and im-
age data
7 CI: for CA modules for receiving en-
crypted stations.
Control elements
7 V/P: Multi-function switch
+V/P-
Multi-function switch
Switching on the TV
1. 8/I Switches the television on and back
into standby mode.
Turning the TV to standby
1. Press the multi-function switch.
2. Rock until “Switch to standby” is
selected.
3. Press.
Adjusting the volume or
changing the station
1. Press the multi-function switch.
2. Rock to select the required function.
3. Press.
4. Rocking now performs the selected
function.
9
ENGLISH
Inserting batteries into the
remote control

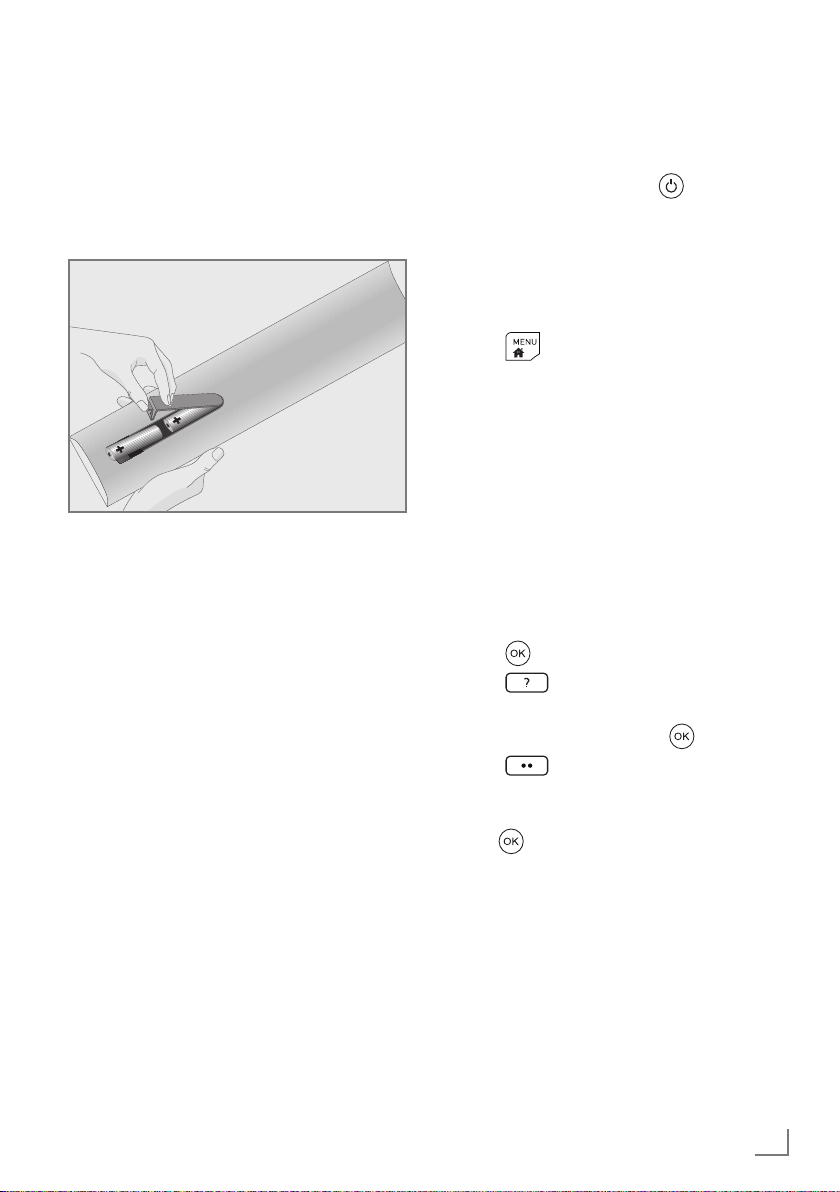

1. Open the battery compartment.
2. Insert batteries as marked on the
bottom of the battery compartment
(2 × Micro/R03/AAA).
3. Close the battery compartment.
Setting up the TV set
1. Connect the cables.
2. Insert the power plug into the socket.
3. Switch on the power switch.
4. Switch on the TV set with on the
remote control.
5. Follow the setup wizard on the screen.
Adding new TV stations
at a later point
1. Press .
2. Select »Settings«.
3. Select »Source«.
4. Select »Automatic Channel Search«.
5. Select the antenna type.
6. The next procedure depends on the
selected antenna. Follow the instructions
on the screen.
Sorting TV stations in
the channel list
1. Press .
2. Press .
3. Choose the TV station you want to
move, and highlight it with .
4. Press .
5. Use the navigation keys to move the TV
station to the new position and confirm
with .
ENGLISH
10
Remote control
Cursor Control
Moves the cursor up and
down in the menus.
Moves the cursor left/right in
menus.
Opens channel list;
activates various functions.
Turns on and off the
television set (stand-by)
Signal source
Turns volume on/off (mute)
Zapping function;
switches the menus back
one menu level
Opens the menu
Opens the Tools menu
Switches between teletext
and TV modes
Opens MyApps menu
Switches on from standby;
selects stations step by step
Adjusts the volume
Displays information
Exits menu and applica-
tions
Opens the channel list
Opens the electronic TV
guide
Switches on from standby
mode;
selects channels directly
Selects the channel list
(»ALL«, »FAV 1« to
»FAV 4«)
Record, playback, pause
or stop (only digital televi-
sion channels);
teletext on half screen
Open screen share
No function
Functions according to
the screen help, HbbTV
Opens Media Player menu
Select subtitle
Select audio channel
Next/previous image/
chapter, next/previous
track
11
ENGLISH
HbbTV
HbbTV is the interactive successor to
teletext, with content in modern design,
high-resolution images and video
sequences.
For full functionality of HbbTV, the TV must
be connected to the Internet.
After you switch to a TV station that offers
HbbTV, a corresponding message appears.
1. Turn on HbbTV with the colour key
that appears after you switch to the
TV station.
Favourites lists
You can organise TV and radio stations in
favourites lists.
Saving a station to the
favourites list
1. Press .
2. Press .
3. Select the favourites list and confirm
with .
Opening the favourites list
1. Press .
2. Select the favourites list and confirm
with .
– Now only stations that are stored in the
selected favourites lists are available.
Zapping function
This function allows you to save a station to
which you want to return during frequent
changes of the station (zapping).
1. Press to save the current station.
2. Select other stations (zapping).
3. Press to switch to the
station on which was most recently
pressed.
4. terminates the function.
Table des matières
Autres manuels Grundig TV
Grundig
Grundig CUC 1825 Manuel utilisateur
Grundig
Grundig 55 GHU 7970 B Manuel utilisateur
Grundig
Grundig CUC 1822 Manuel utilisateur
Grundig
Grundig ARCANCE 55 Flat MF 55-2401/5 TOP Manuel utilisateur
Grundig
Grundig 32 GFH 6933B Manuel utilisateur
Grundig
Grundig 43 VLX 8810 BP Manuel utilisateur
Grundig
Grundig VISION 7 47-7850 Manuel utilisateur
Grundig
Grundig 40 VLE 827 S Manuel utilisateur
Grundig
Grundig 55 GOB 9089 Manuel d'utilisation et d'entretien
Grundig
Grundig ASIS CUC 6301 Manuel utilisateur
Grundig
Grundig 40 GUS 9779 Manuel utilisateur
Grundig
Grundig 40 GFB 6820 Manuel utilisateur
Grundig
Grundig 26 LXW 68-8600 DL Manuel utilisateur
Grundig
Grundig 48 VLE 5520 WG Manuel utilisateur
Grundig
Grundig T70-1020(A) Manuel utilisateur
Grundig
Grundig SEDANCE 55 ST 55-2502/5 TOP Manuel utilisateur
Grundig
Grundig ARCANCE 70 Flat Manuel utilisateur
Grundig
Grundig ST 55-906 FR/DOLBY Manuel utilisateur
Grundig
Grundig 40 VLE 7630 BP Manuel utilisateur
Grundig
Grundig CUC 2020 FR Manuel utilisateur
Manuels TV populaires d'autres marques
Philips
Philips Colour Television Manuel utilisateur
Toshiba
Toshiba 27A10 Manuel utilisateur
Philips
Philips 42PF9630A/37 Manuel utilisateur
Hitachi
Hitachi 32FX48B Manuel utilisateur
DAEWOO ELECTRONICS
DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur
Changhong Electric
Changhong Electric uhd55b6000is Manuel utilisateur
