SET-UP AND SAFETY ______________________________________________

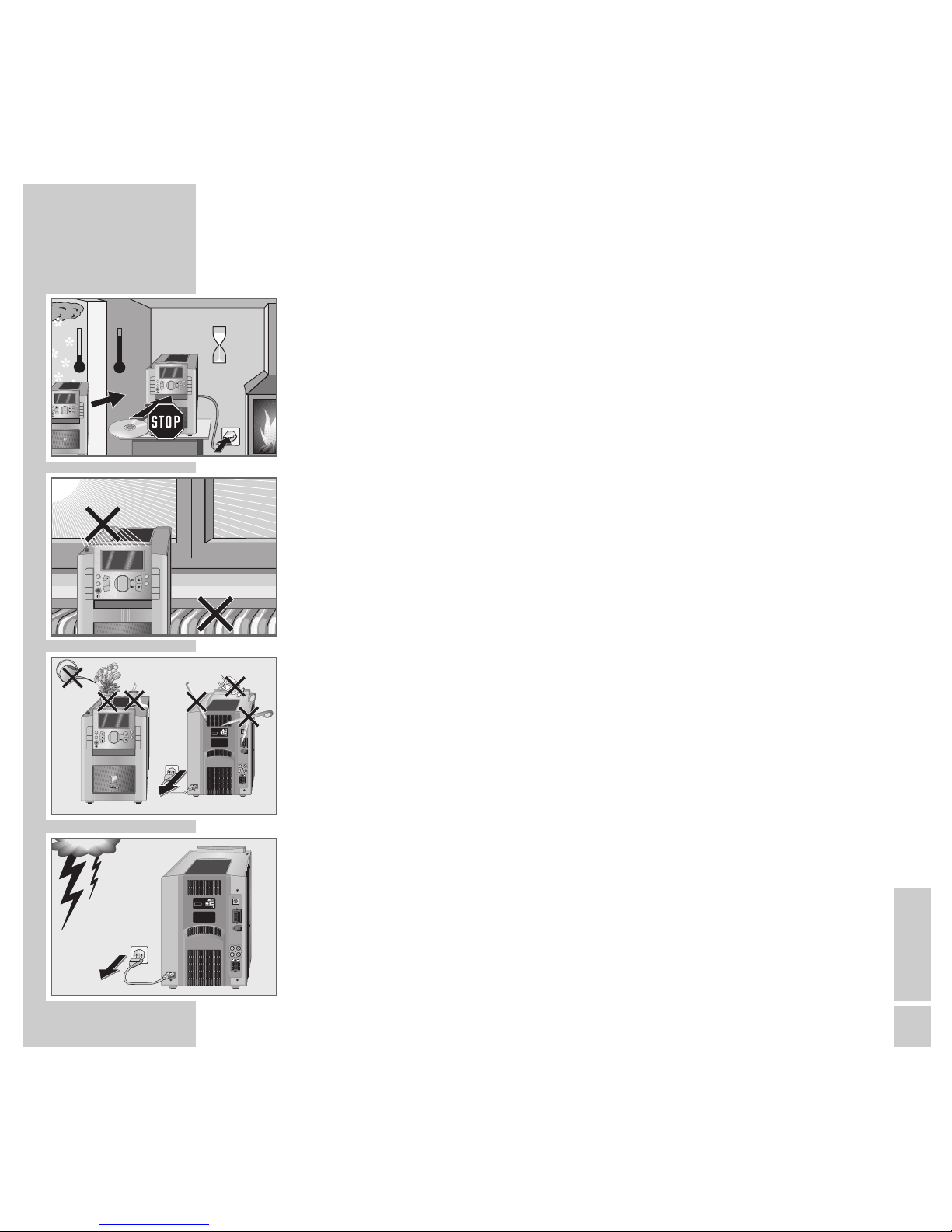

Please observe the following when setting the stereo system up:

This stereo system is designed for the playback of audio signals. Any other use

is expressly prohibited.

Furniture surfaces are covered by various types of lacquer and plastic, most of

which contain chemical additives. These additives may cause corrosion to the

feet of the unit. This may leave stains on the surface of the furniture which can be

difficult or impossible to remove.

If the stereo system is subject to sudden changes in temperature, for example if it

is brought in from the cold to a warm room, please wait for at least two hours

before operating the set.

The stereo system is designed for use in dry rooms. If you do use them in the

open, please ensure that they are protected from moisture (rain, splashes of

water).

Do not place the stereo system close to heating units or in direct sunlight, as this

will impair cooling.

Do not insert any foreign bodies in the CD or tape compartment of the stereo-

system.

Do not open the stereo system under any circumstances. The manufacturer

accepts no liability for damage resulting from improper handling.

Thunderstorms are a danger to all electrical devices. Even if the stereo system is

switched off, it can be damaged by a lightning strike to the mains or the aerial

cable. Always disconnect the mains and antenna plugs during a storm.

Always keep the CD compartment closed to prevent dust from collecting on the

laser optics.

PHONES 1

DISPLAY

MEMORY

REPEAT

REVMODE

RANDOM

INTRO

REC/

CDCOPY

TIMER

DSC

BASS

BOOST

TAPE/AUX PTY

CLEAR

SET

VOLUME TUNING TUNER/BAND

MONO/

STEREO

OPEN/

SEARCH/

SKIP

PHONES 1

DISPLAY

MEMORY

REPEAT

REVMODE

RANDOM

INTRO

REC/

CDCOPY

TIMER

DSC

BASS

BOOST

TAPE/AUX PTY

CLEAR

SET

VOLUME TUNING TUNER/BAND

MONO/

STEREO

OPEN/

HIFISTEREO MICRO SYSTEM

SEARCH/

SKIP

PHONES

AC~

OPTICAL

OUT

AMANTENNA

MAINSPEAKERS

IMPEDANCE

6ohm [ Ω]

FMANTENNA

FM75 Ω

LAUX

OUT

UMS 100

AC:230V~ 50/60Hz

G.LK07

CLASS1 LASER PRODUCT

APPAREILÀ LASER DE CLASSE 1

PRODUCTOLASER DE CLASE 1

! SERVICE !! SERVICE !! SERVICE !

PHONES

AC~

OPTICAL

OUT

AMANTENNA

MAINSPEAKERS

IMPEDANCE

6ohm [ Ω]

FMANTENNA

FM 75 Ω

LAUX

OUT

UMS 100

AC:230V~ 50/60 Hz

G.LK 07

CLASS1 LASER PRODUCT

APPAREILÀ LASER DE CLASSE 1

PRODUCTOLASER DE CLASE 1

°C2h

°C

TIMER

DSC

BASS

BOOST

PE/AUX PTY

CLEAR

SET

VOLUME TUNING TUNER/BAND

MONO/

STEREO

OPEN/

HIFISTEREO MICRO SYSTEM

SEARCH/

SKIP

PHONES 1

DISPLAY

MEMORY

REPEAT

REVMODE

RANDOM

INTRO

REC/

CDCOPY

TIMER

DSC

BASS

BOOST

TAPE/AUX PTY

CLEAR

SET

VOLUME TUNING TUNER/BAND

MONO/

STEREO

OPEN/

HIFISTEREO MICRO SYSTEM

SEARCH/

SKIP

OVERVIEW _______________________________________________________________________

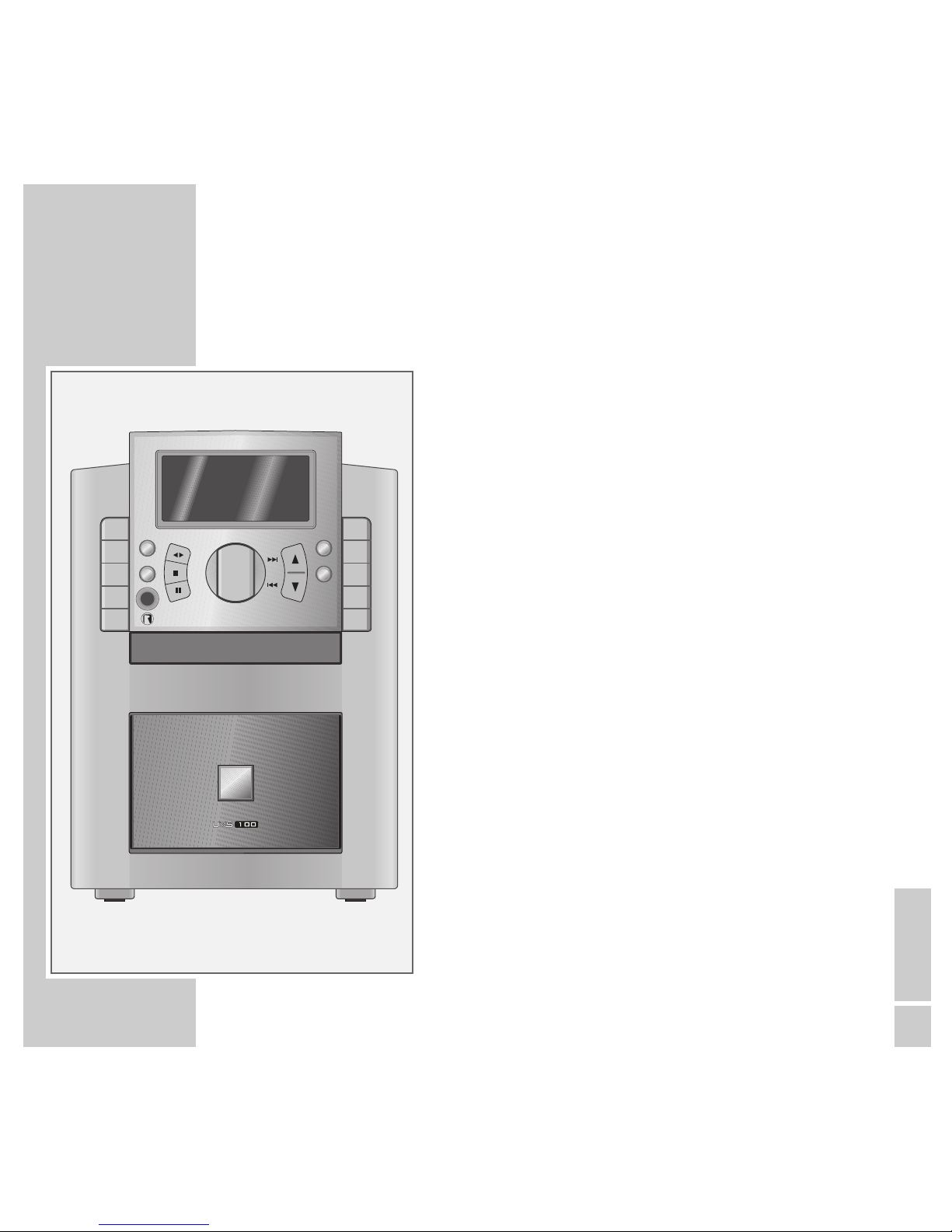

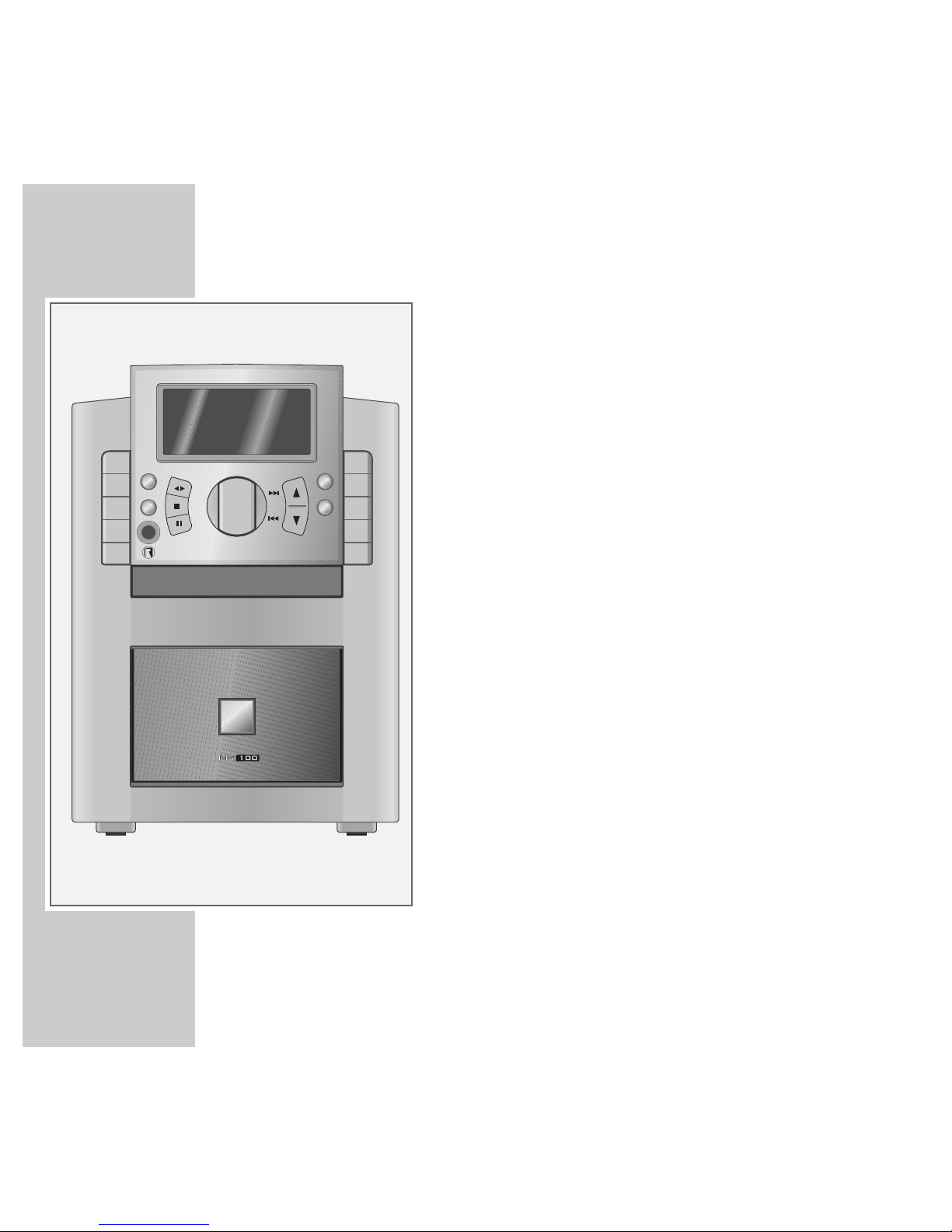

Operating elements of the stereo system

General

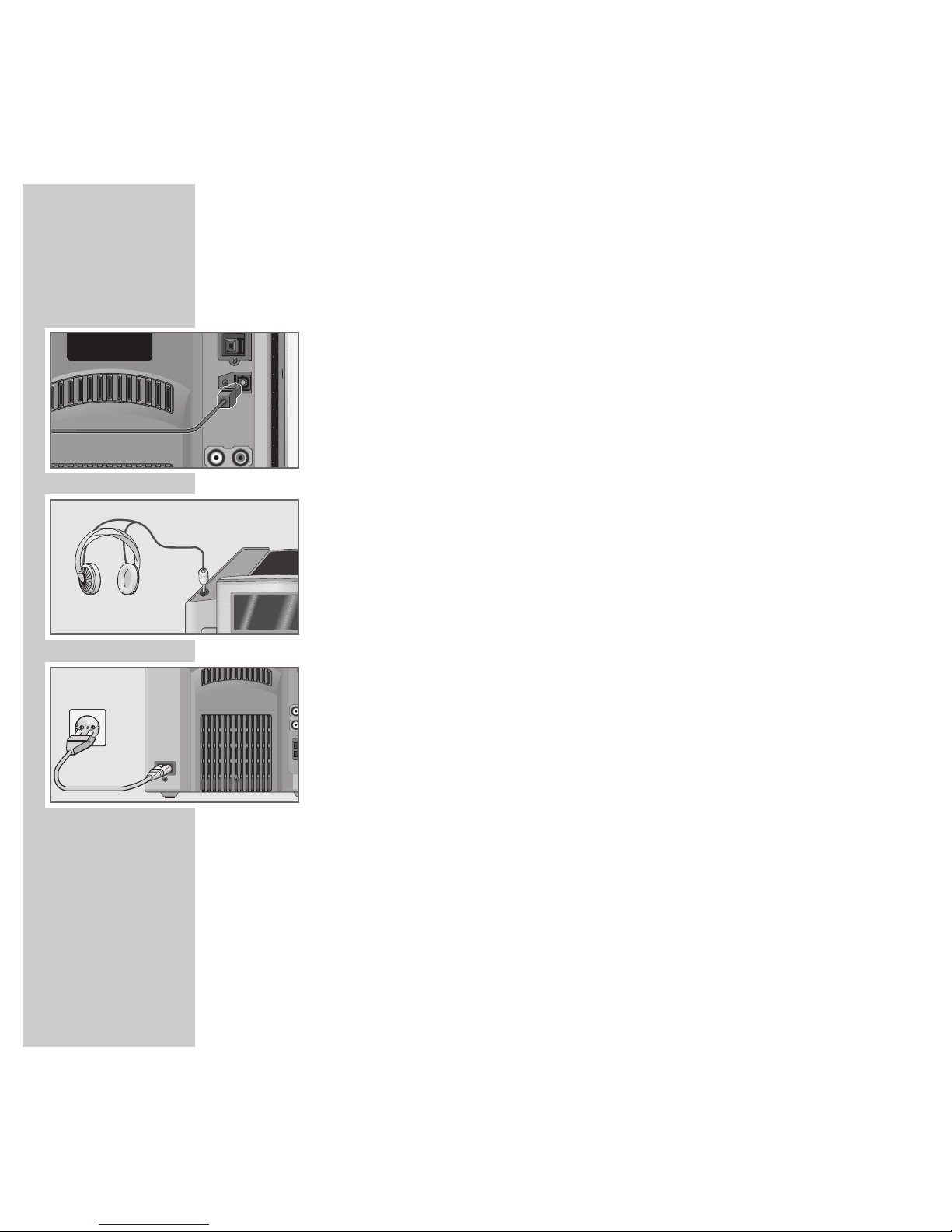

PHONES Headphone jack, for connecting a stereo

headphone set with a jack plug (ø 3,5 mm).

The loudspeakers of the stereo system are

automatically switched off.

88Switches the stereo system on and off.

TIMER For setting the switch-on timer and the recor-

ding timer.

DSC Selects the sound settings »POP«, »ROCK«,

»JAZZ«, »VOCAL« and »FLAT«.

BASS BOOST

For ”boosting” the bass.

DISPLAY For calling up various information in the dis-

play.

When switched off: switches the display

demo mode on and off.

MEMORY For saving various functions.

VOLUME + – Adjusts the volume.

II/SET For setting the clock and the timer.

DISPLAY

MEMORY

REPEAT

REV MODE

RANDOM

INTRO

REC/

CD COPY

TIMER

DSC

BASS

BOOST

TAPE/AUX PTY

CLEAR

SET

VOLUME TUNING TUNER/BAND

MONO/

STEREO

OPEN/

HIFI STEREO MICRO SYSTEM

SEARCH/

SKIP

PHONES

ENGLISH

OVERVIEW__________________________________________________________________________________

Radio mode

TUNER/ Selects the »TUNER« input source.

BAND selects the frequency band »FM« and »MW«.

TUNING/ Hold down to start the station search;

AS press briefly to change the frequency in

small steps.

/PTY Searches channel positions for the selected

Program type.

MONO/ Switches stereo broadcasts from stereo

STEREO to mono.

CD mode

CD Selects the »CD« input source.

r e Starts playback of the CD.

■/CLEAR Ends CD playback;

deletes the track memory for the CD.

II/SET Switches to playback Pause.

s6 Press briefly to select the next track;

SEARCH/SKIP

hold down to search for a particular passa-

ge.

5a Press briefly to select the previous track;

SEARCH/SKIP

hold down to search for a particular passa-

ge.

REPEAT/ Repeats a title or the entire CD.

REV MODE

DISPLAY

MEMORY

REPEAT

REV MODE

RANDOM

INTRO

REC/

CD COPY

TIMER

DSC

BASS

BOOST

TAPE/AUX PTY

CLEAR

SET

VOLUME TUNING TUNER/BAND

MONO/

STEREO

OPEN/

HIFI STEREO MICRO SYSTEM

SEARCH/

SKIP

OVERVIEW__________________________________________________________________________________

RANDOM / Selects plays back titles in random

INTRO order (Random);

plays a brief extract of all tracks on the CD

(Intro).

CD/.Opens and closes the CD compartment.

Cassette mode

TAPE/AUX Selects the »TAPE« input source.

r e Starts playback.

■/CLEAR Stops the drive functions.

SEARCH/SKIP

Fast forwards the tape to the end or

5a /s6 to the beginning.

REPEAT/ Repeats the playback of the cassette.

REV MODE

CD COPY/ Begins the recording on cassette.

RECORD

OPEN/CLOSE Opens and closes the tape compartment.

AUX operation

TAPE/AUX Press twice to select the input source »AUX«

(external device).

DISPLAY

MEMORY

REPEAT

REV MODE

RANDOM

INTRO

REC/

CD COPY

TIMER

DSC

BASS

BOOST

TAPE/AUX PTY

CLEAR

SET

VOLUME TUNING TUNER/BAND

MONO/

STEREO

OPEN/

HIFI STEREO MICRO SYSTEM

SEARCH/

SKIP

ENGLISH

OVERVIEW__________________________________________________________________________________

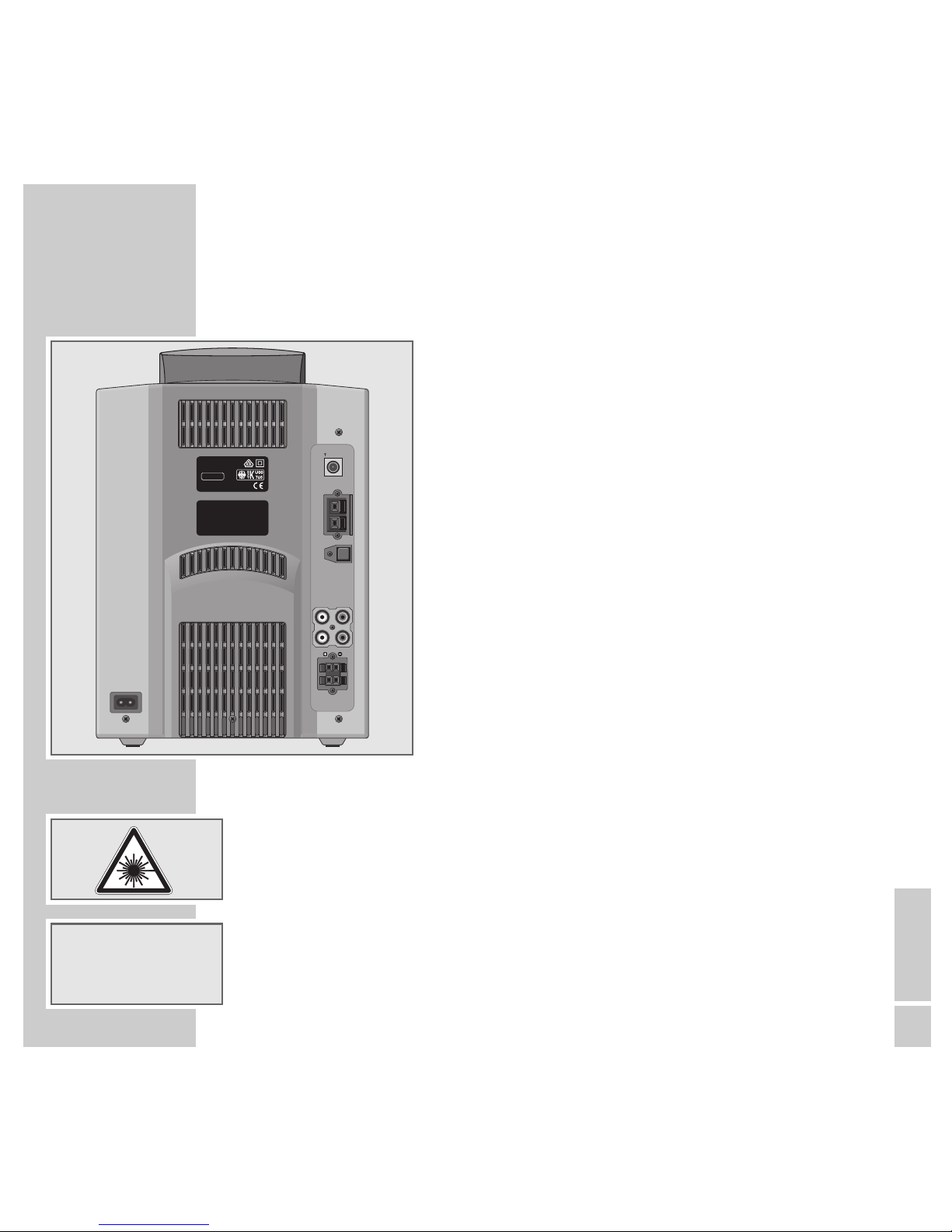

The back of the stereo system

FM-ANTENNA Antenna socket for the rooftop anten-

na or the wire aerial supplied.

AM ANTENNA Aerial terminals for the wire antenna

supplied.

OPTICAL OUT Digital audio signal output for copy-

ing a CD onto a digital recording

device.

L AUX R IN/OUT Audio signal input and ourput for an

external device.

RL + RL–

Connections for the loudspeakers

supplied.

= right channel,

= left channel.

AC ~ Socket for power cord.

The only way to isolate the stereo

unit from the mains is to pull out the

mains plug.

General instructions for laser devices

There is a plate marked CLASS 1 LASER PRODUCT on the rear of your device.

This means that the laser is designed in such a way as to ensure that the maxi-

mum permissible emission value cannot be exceeded under any circumstances.

Caution:

If operating devices or methods other than those specified here are em-

ployed, it may lead to dangerous exposure to emissions. Invisible laser

radiation is emitted if the CD compartment is opened or the safety locking

mechanism is shorted. Do not expose yourself to this radiation.

AC~

OPTICAL

OUT

AM ANTENNA

MAIN SPEAKERS

IMPEDANCE

6 ohm [ Ω]

FM ANTENNA

FM 75 Ω

LAUX

OUT

UMS 100

AC: 230V~ 50/60 Hz

G.LK 07

CLASS 1 LASER PRODUCT

APPAREIL À LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

CLASS 1

LASER PRODUCT

OVERVIEW__________________________________________________________________________________

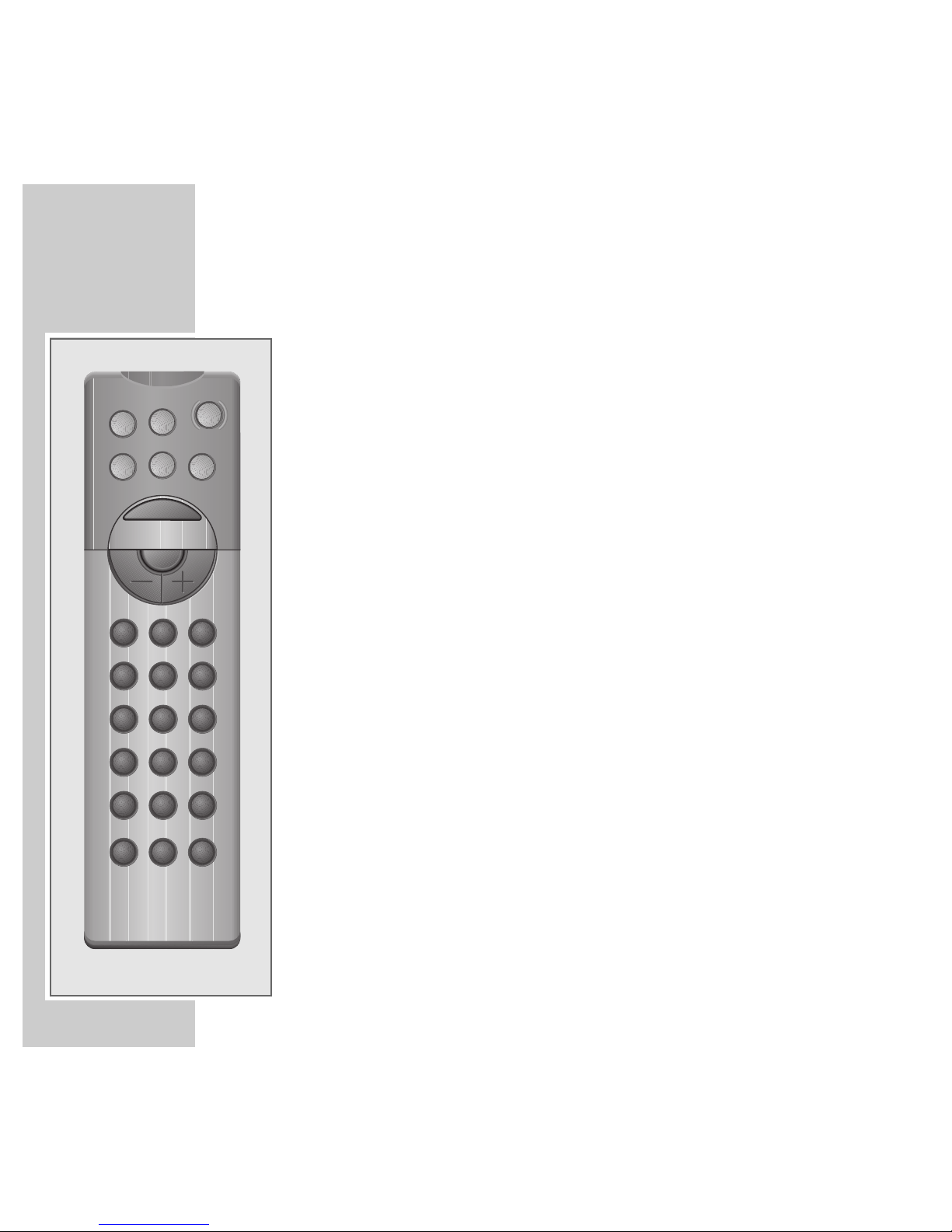

The remote control

88Switches the stereo system on and off.

5as6 In Radio mode: selects the presets;

in CD mode: for selecting a title;

keeping it pressed down enables you to search for a particular pas-

sage;

in cassette mode: Fast forward and rewind.

■In CD mode: ends playback of the CD;

in cassette mode: ends playback/recording of the cassette.

II In CD mode: switches to pause playback.

REC Begins the recording on cassette.

re In Radio mode: searches presets for the selected Program type (PTY);

in CD mode: starts playback of the CD;

in cassette mode: starts playback of the cassette, changes the run-

ning direction of the cassette.

MUTE Switches the system to and from mute mode.

VOLUME +/-

Adjusts the volume.

1. . . 0, +10

Numeric keys for various inputs.

SLEEP Switches the sleep function on and off.

DSC Selects the sound settings.

DISPLAY For calling up various information in the display;

when switched off: switches the display demo mode on and off.

OPEN/CLOSE

Opens and closes the CD compartment.

CD Selects the »CD« input source.

TAPE Selects the »TAPE« or »AUX« input sources.

TUNER Selects the »TUNER« input source, selects the »FM« and »MW« fre-

quency bands.

5$REC

SLEEP

DSC

DISPLAY OPEN/

TAPE TUNER

456

789

+10

MUTE

ENGLISH

CONNECTION AND PREPARATION _______

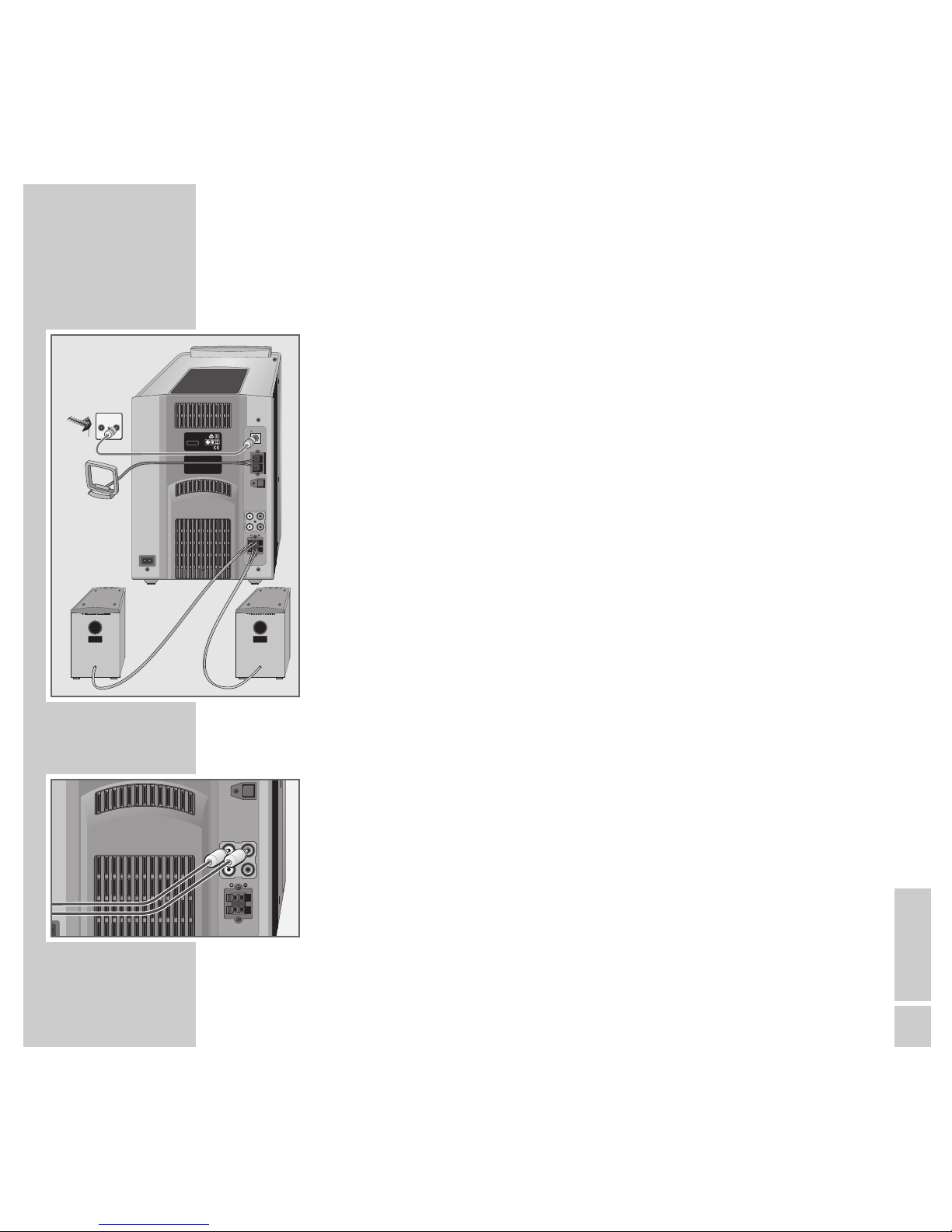

Connecting the antenna

1Insert the rooftop aerial in the »FM ANTENNA« aerial socket of the stereo

system.

Note:

If no rooftop aerial system is available, use the supplied auxiliary aerial. This

aerial enables reasonably good reception of local FM (VHF) stations.

The auxiliary aerial should not be shortened.

2Insert the wire aerial into the »AM ANTENNA« terminals on the stereo

system. Adjust the position of the wire aerial until reception is at its best.

Connecting the loudspeakers

1Insert the loudspeaker cables into the terminals »

RL + RL –

« on the stereo

system.

Connect the cable with white markings to »

«.

Connecting an external device

1Connect the sound output jacks of the external device (for example, televisi-

on, DVD-player, etc.) to the jacks »L AUX R IN/OUT« on the stereo

system using a cinch cable.

Note:

Switch off the stereo system when connecting external devices. Ensure the

stereo channels are properly connected:

R = right channel (red), L = left channel (white).

SpeakerUMS 100

NominalPowerHandling Capacity 15W

MusicPowerHandling Capacity 30W

Impedance 6Ohm

SpeakerUMS 100

NominalPowerHandling Capacity 15W

MusicPowerHandling Capacity 30W

Impedance 6Ohm

PHONES

AC~

OPTICAL

OUT

AM ANTENNA

MAIN SPEAKERS

IMPEDANCE

6 ohm [ Ω]

FM ANTENNA

FM 75 Ω

LAUX

OUT

UMS 100

AC: 230V~ 50/60Hz

G.LK 07

CLASS 1 LASER PRODUCT

APPAREIL À LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

TV R

OPTICAL

OUT

MAIN SPEAKERS

IMPEDANCE

6 ohm [ Ω]

LAUX

OUT

CONNECTION AND PREPARATION_______________________________________

Connecting a digital recording device

1Use an OPTICAL cable to connect the »CD OPTICAL OUT« jack on the ste-

reo system to the appropriate jack on the external device (e.g., MD or CDR).

– This socket enables the recording of CD playback with a digital recording

device.

Connecting headphones

1Insert the headphone plug (ø 3.5 mm) into the »PHONES« jack on the ste-

reo system.

– The loudspeakers of the stereo system are switched off.

Connecting the power cord

Note:

Check if the mains voltage on the type plate (on the bottom of the device)

corresponds to your local mains supply.

The only way to disconnect the device from the mains supply is to pull out the

plug.

1Plug the mains cable supplied into the »AC ~« socket on the device.

2Insert the mains cable plug into the mains socket.

PHONES 1

OPTICAL

OUT

LAUX

APPAREIL À LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

AC~

MAI

Autres manuels pour UMS 100

Table des matières

Autres manuels Grundig Système stéréo

Grundig

Grundig PA 2 Manuel utilisateur

Grundig

Grundig CDS 3000 DEC Manuel utilisateur

Grundig

Grundig MS 235 Manuel utilisateur

Grundig

Grundig V 23 Manuel utilisateur

Grundig

Grundig PA 6-I Manuel utilisateur

Grundig

Grundig KM 12 Manuel utilisateur

Grundig

Grundig MS 4101 Manuel utilisateur

Grundig

Grundig CDM 900 Manuel utilisateur

Grundig

Grundig Satellit 2400 Manuel utilisateur

Grundig

Grundig CDM3000 Manuel utilisateur

Grundig

Grundig UMS 200 Manuel utilisateur

Grundig

Grundig M25/00 Manuel utilisateur

Grundig

Grundig M 2100 Manuel utilisateur

Grundig

Grundig UMS 200 Manuel utilisateur

Grundig

Grundig CDM3000 Manuel utilisateur

Grundig

Grundig M 2000 BT Manuel utilisateur

Grundig

Grundig VERTIGA UMS 5101 CDC Manuel utilisateur

Grundig

Grundig M 2300 DAB+ Manuel utilisateur

Grundig

Grundig CMS 4000 BT DAB+ Manuel utilisateur

Grundig

Grundig DMS601 IP Manuel utilisateur

Grundig

Grundig CIRFLEXX UMS 4100 Manuel utilisateur

Grundig

Grundig MS 510 Manuel utilisateur

Grundig

Grundig Cirflexx UMS 4110 Piano Manuel utilisateur

Grundig

Grundig CMS 4200 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur
