Grouser Products Ag Pro Plus Manuel utilisateur

Date 2-9-2016PN: 63-18680-A

Ag Pro Plus

Steiger 350-470/NH T9

Narrow Frame

Undercarriage Installation Instructions

Purchase Date

Serial Number

Model Number

Tractor Model

Dealer

Description Page

To The Owner, Maintenance & Torque Specications 2

Safety Precautions & Unpacking Components 3

Undercarriage Installation Instructions 4-10

Lift Components, Tow Cable Components & Notes 11

Contents

To The Owner

This manual contains information concerning the operation, adjustment, and maintenance of the Ag Pro Plus

dozer system. You have purchased dependable, long lasting equipment, but only by proper care and operation

can you expect to receive the performance and long service built into our products. Please have all operators

read this manual carefully and keep the manual available for ready reference. If you have any questions or

concerns, contact Grouser Products.

Maintenance

Due to the harsh environment this equipment operates in, the following tasks should

be performed every 10 hours or less.

• Inspect all equipment before operation for existing or potential damages.

• Lubricate all joints with high quality grease.

• Inspect and tighten all bolts to torque specications on page 3.

• Make sure all non-rotating pins are secured properly.

• Check hydraulic cylinders and hoses for damage or leaks. For replacement parts, see hydraulic pages for

your specic system.

Torque Specications

All bolts should be tightened to the specications that are stated. If specications are not stated, follow torque

charts below.

Torque - Dry (ft–lbs)

SAE Grade 5 SAE Grade 8

Size UNC UNF UNC UNF

5/16 19 20 29 31

3/8 33 36 47 51

7/16 54 58 78 85

1/2 78 85 119 129

9/16 114 124 169 184

5/8 154 167 230 250

3/4 257 280 380 414

7/8 382 416 600 654

1 587 639 903 984

Torque - Dry (ft-lbs)

Size Grade 10.9

M18 x 2.00 236

M20 x 2.50 432

M22 x 2.50 394

M24 x 3.00 570

Safety Precautions

A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To

help prevent accidents, read and take the following precautions before operating this equipment. In addition

to these precautions, please follow all safety and operational instructions supply by your tractor manufacturer.

The Dozer:

1. The Ag Pro Plus Dozer should be operated only by those who are responsible and instructed to do so.

2. Read the owner’s manual carefully before using this equipment. Lack of operating knowledge can lead to

accidents.

3. Keep the dozer maintained and in good condition to ensure your safety.

4. Make sure the area around you is clear of people before moving any equipment.

5. Do not modify or permit anyone else to modify or alter the equipment and its components without rst

consulting Grouser Products.

Servicing the Dozer:

1. Read and follow all safety instructions provided by the tractor manufacturer.

2. Always use proper personal safety gear when performing maintenance on equipment.

3. Before servicing, relieve hydraulic pressure, stop engine and fully engage parking brake.

4. Escaping hydraulic uid under pressure can penetrate skin causing serious injury. If uid is injected into

skin, obtain medical attention immediately.

– DO NOT use your hand to check for leaks. Use a piece of cardboard or paper to search for leaks.

– Stop the engine and relieve trapped hydraulic pressure before connecting or disconnecting lines.

– Tighten all connections before starting the engine or pressurizing lines.

Storing the Dozer:

1. Thoroughly clean the dozer before storage. Use paint where necessary to prevent rust.

2. Check for worn or damaged parts. Install new parts as required.

3. Lubricate all pins and joints.

Unpacking Components

Unstrap and remove any components that are attached for shipping. If any components are missing, call

Grouser.

Caution:

• Always use caution when working around any equipment.

• Always wear safety glasses.

• Follow tractor manufacturer’s safety guidelines when installing this product.

2. If applicable, remove front weights, weight bracket, and toolbox. If a tow cable kit was purchased from Grouser,

the tow cable will be reinstalled in a later step.

1. Read all instructions prior to performing installation.

NOTE: When installing hardware, only nger tighten until you get to the torquing steps.

NOTE: A full diagram of the assembly with the full list of parts is on Page 8.

NOTE: Refer to Page 10 to see a picture of the undercarriage assembly on the tractor if further clarication

of location on the tractor is needed.

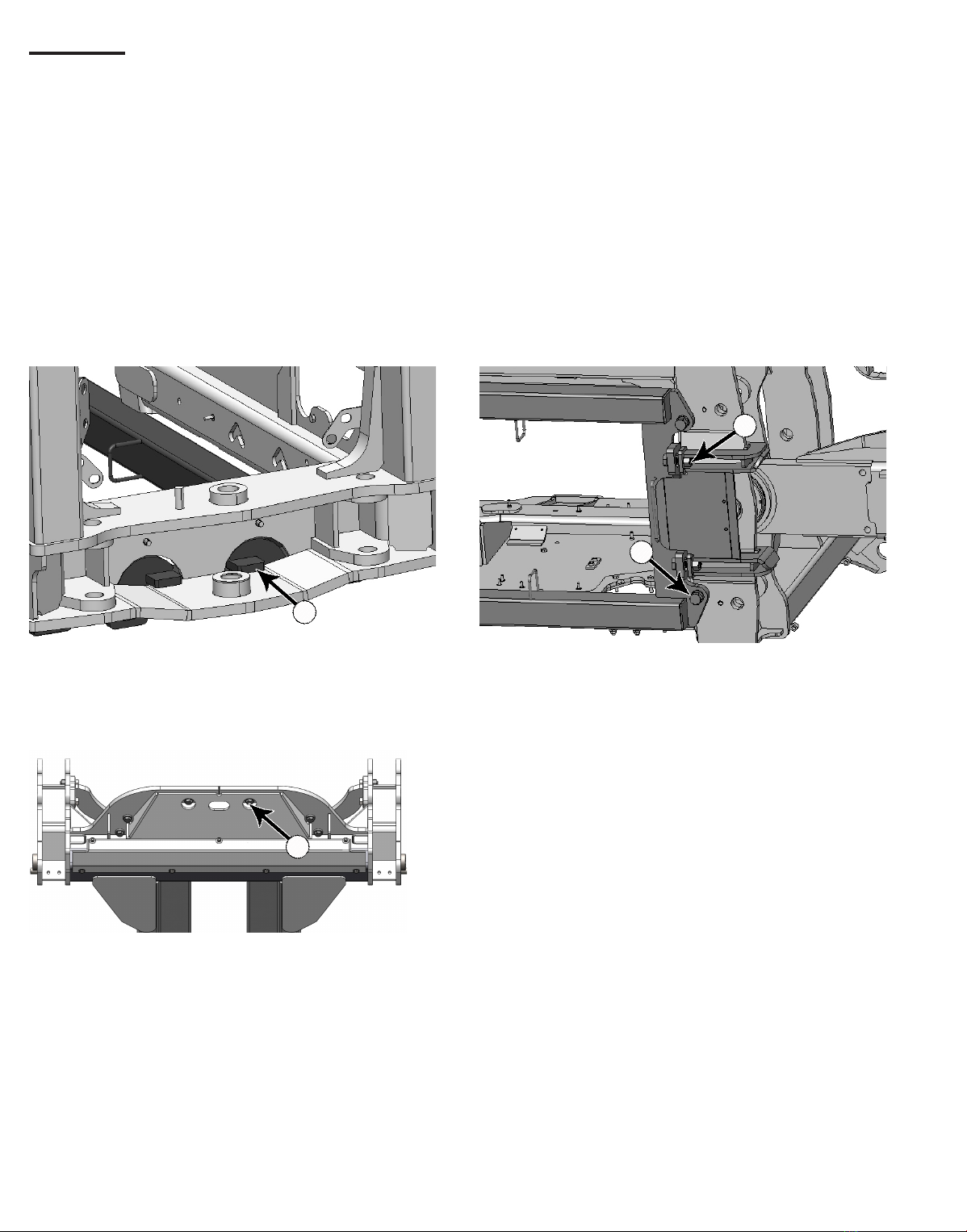

4. Position undercarriage under tractor, center on the frame of the tractor.

5. Lift the rear of the undercarriage up and set the top

plates at the rear of the undercarriage on the tractor

cross member (1). Push the undercarriage back until

the vertical push plates are rmly against the cross

member.

NOTE: Tractor frame not shown in some diagrams for clarity.

8. At the rear of the undercarriage and pivot area of

the tractor, hook the rear hose routing bracket to the

tractor frame and bolt to the rear of the undercarriage

with 1” x 3” bolts, 1” hardened washers, and 1” nuts.

The nut will t between the plates on the brackets (3).

12. Torque the front vertical 20mm bolts to 432 ft-lbs.

9. Center the bracket on the undercarriage and tractor

as close as you can. Torque the 1” bolts on the bracket

to 903 ft-lbs. There can be a gap between the bracket

and the undercarriage.

3. Remove brackets from the undercarriage to make room for installing the undercarriage on the tractor and

unscrew the 1” vertical bolts at the rear of the undercarriage.

6. Lift the front of the undercarriage up and insert

8 - 20mm x 90mm bolts with a .375” thick washer

on each bolt from the bottom through the front slots

of the undercarriage that line up with the vertical

holes on the tractor frame (2).

7. After all 8 bolts are through the tractor frame,

attach with a 3/4” hardened washer and a 20mm nut

from the top. Verify that the rear of the undercarriage

is still rmly against the cross member.

11. Torque the rear vertical 1” bolts to 500-600 ft-lbs.

10. Tighten the 1” x 2” vertical at the rear of the

undercarriage (4).

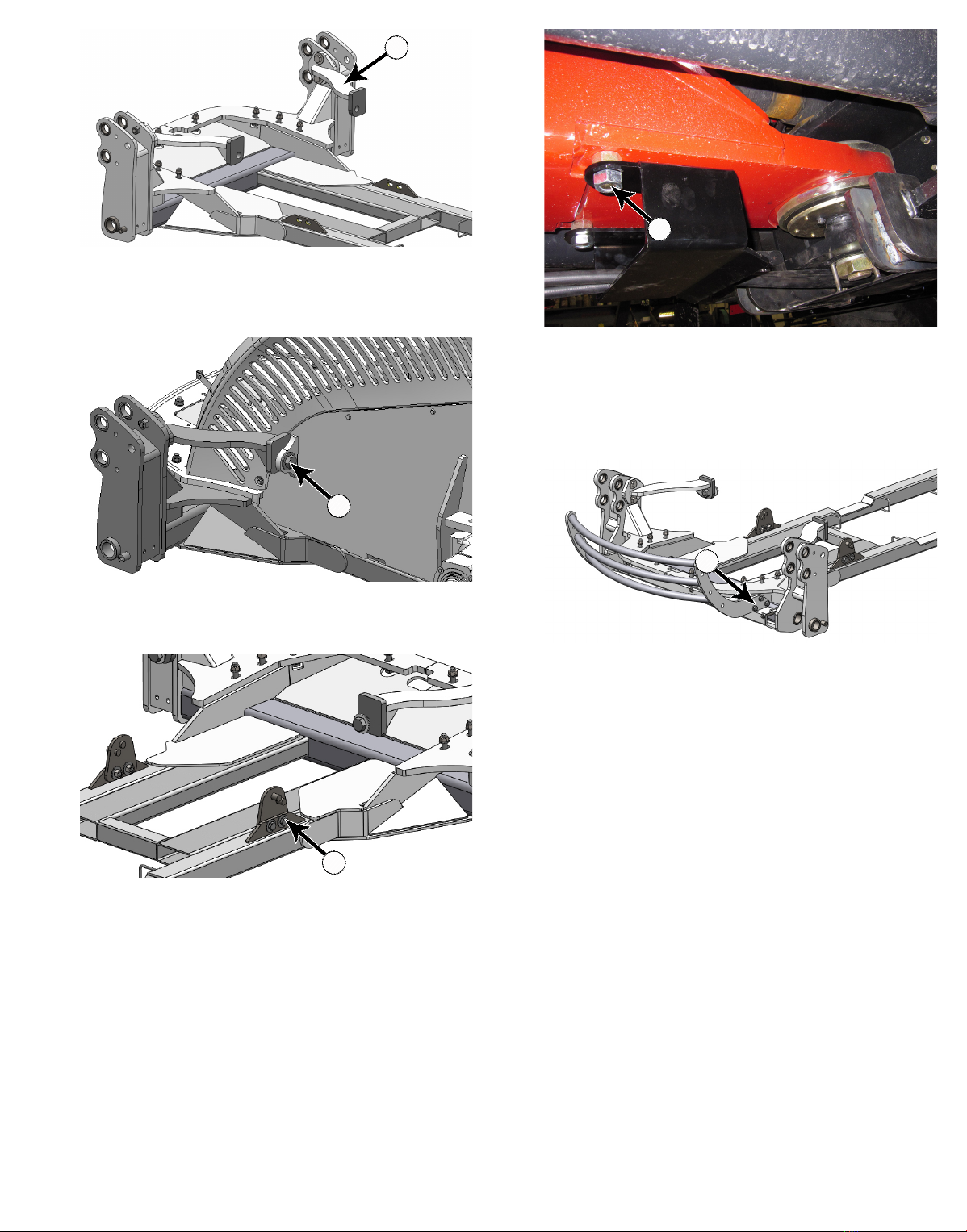

13. Attach the front upper support arms to the

undercarriage with 2 - 1” x 3-1/4” bolts, 2 - 1”

hardened at washers, and a 1” nut on the top bolt

on each side (5).

14. Attach the front upper support arms to the tractor

with a 1-1/4” x 4-1/2” bolt, a 1-1/4” at washer, and

a 1-1/4” nut on each side.

15. Install the front side tube bracket on each side

of the undercarriage. The pins on the bracket will t

into the chain down hook on the inside of the tractor

frame. Attach to the undercarriage with 2 - 3/4” x 2”

bolts, 4 - 3/4” at washers, and 2 - 3/4” lock nuts on

each side (7).

16. Torque the upper support arm 1-1/4” bolts to

1,105 ft-lbs.

17. Torque the upper support arm 1” bolts to 903

ft-lbs.

18. Torque the side tube bracket 3/4” bolts to 257

ft-lbs.

19. Attach the rear hose routing plate to the tractor

frame behind the pivot point and before the drawbar.

There will 2 bolts sticking down. Attach with a 20mm

nut on each side (8). Make sure the lip of the plate is

facing towards the front of the tractor.

20. Torque the 20mm nuts to 432 ft-lbs.

23. After rst 8 hours of use, re-torque all bolts.

24. Check all fasteners regularly to ensure proper

operation of equipment.

NOTE: If applicable, refer to Page 11 to attach the

front of the tow cable.

21. Install the grill guard to the front of the

undercarriage with 3 - 3/4” x 2-1/2” bolts, 6 - 3/4” at

washers, and 3 - 3/4” lock nuts on each side (9).

22. Torque the 3/4” bolts to 257 ft-lbs.

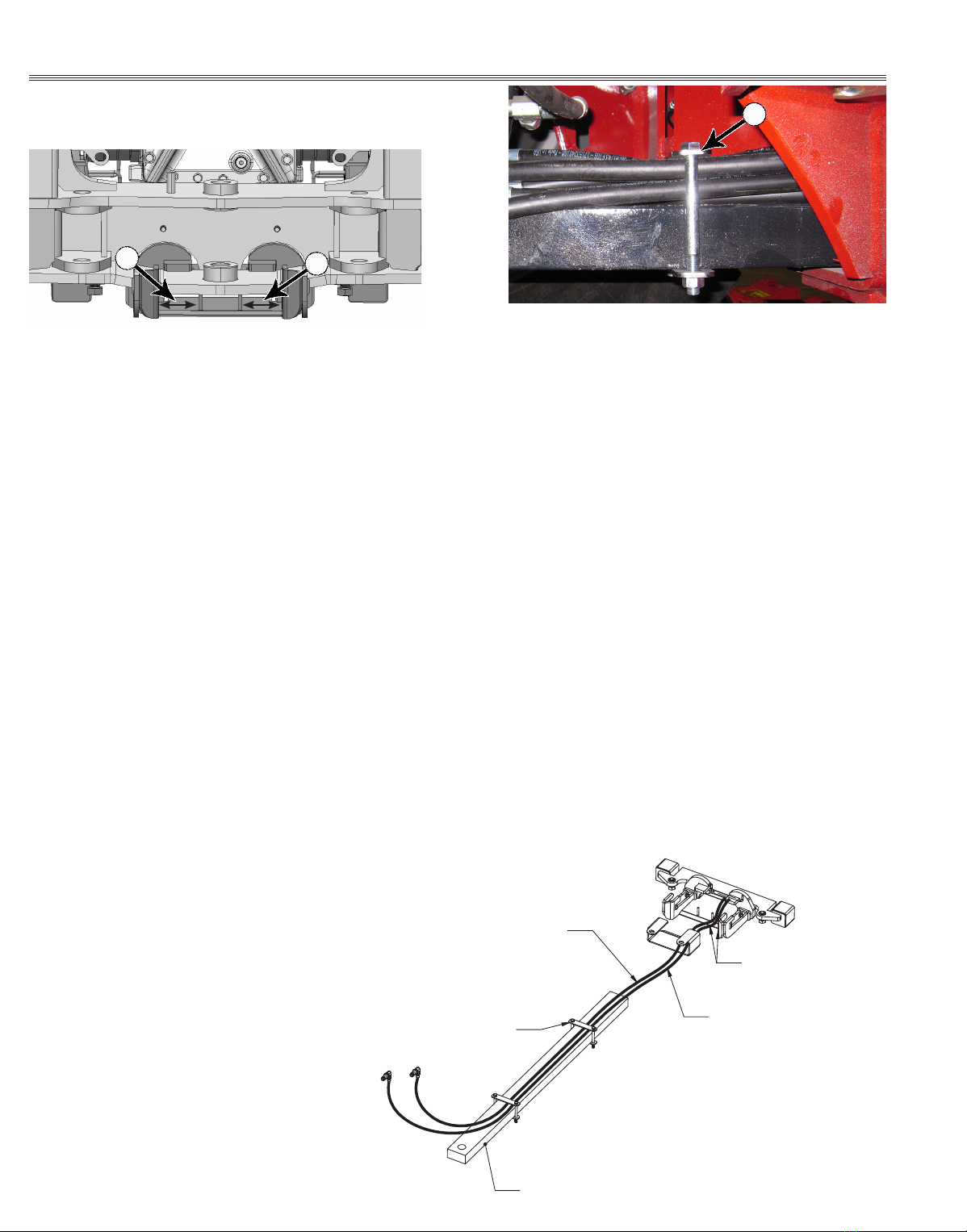

Hose Routing

1. Route hoses through the hose loops on the

undercarriage and through the large loop at the rear

of the undercarriage.

4. Use Zip Ties to group some hoses on the left and

right side of the hose routing plate. Strap the Zip Ties

over the top part of the routing plate that is bolted

to the tractor frame to keep the hoses towards the

outside of each side of the routing plate.

6. Strap the hoses to the drawbar with a set of

hose holding plates in 2 locations (2). Place 1 set

as close to the front of the drawbar as possible and

the other behind the axle before the hoses would

be routed upwards to be plugged in.

5. Continue to route the hoses down the top of the

drawbar to the back of the tractor where you can plug

them into the tractor SCV Ports.

9. Tighten the 1/2” nuts so the hoses are tight and

don’t move. If you have the nuts as far as they

go and can’t get the plates tight against the hoses,

use the provided 3/4” spacers and 1/2” washers

between the plates and the nuts to get everything

tight against the drawbar. Refer to drawing on

pages 8-9 for clarication.

2. Send hoses through the bracket at the pivot point

but stay on the outside of the rods that are by the

center large nut on the tractor. The hoses should be

between the rods and the inside plates of the bracket

(1).

3. Route the hoses through the hose routing plate

that was installed in Step #19 on Page 5.

7. Make sure to keep some slack in the hose

between the pivot point of the tractor and the rst

set of hose holding plates. The hoses will move

when the tractor moves and oscillates.

8. For each set of plates, use 2 - 1/2” x 5-1/2” bolts

and 2 - 1/2” lock nuts. If you have a 12-20 or 3-5

dozer blade, use 1/2” x 6” bolts instead.

10. Make sure you still have some slack in the

hoses by the pivot area so the hoses don’t get

pulled too tight when the tractor moves but don’t

make them too lose that they will get caught on any

debris. Turn the tractor and oscillate the tractor to

verify there is enough slack.

11. Plug the hoses into the open SCV’s at the back

of the tractor.

Only Lift Hoses Are Shown

When the tractor is fully turned

hoses won't move.

tight against hoses so

ouside bracket plates.

the rods on the bracket and the

Hoses Need to be routed between

and oscillated, the hoses will

move about 1".

Leave some slack in the hoses

for the hoses to move when the

tractor turns and oscillates.

Make sure plates are

Tractor Drawbar

NOTE: Refer to diagram at the bottom of the

page if clarication is needed for Step #6-11.

NOTE: The quantity of hoses may vary depending on blade system.

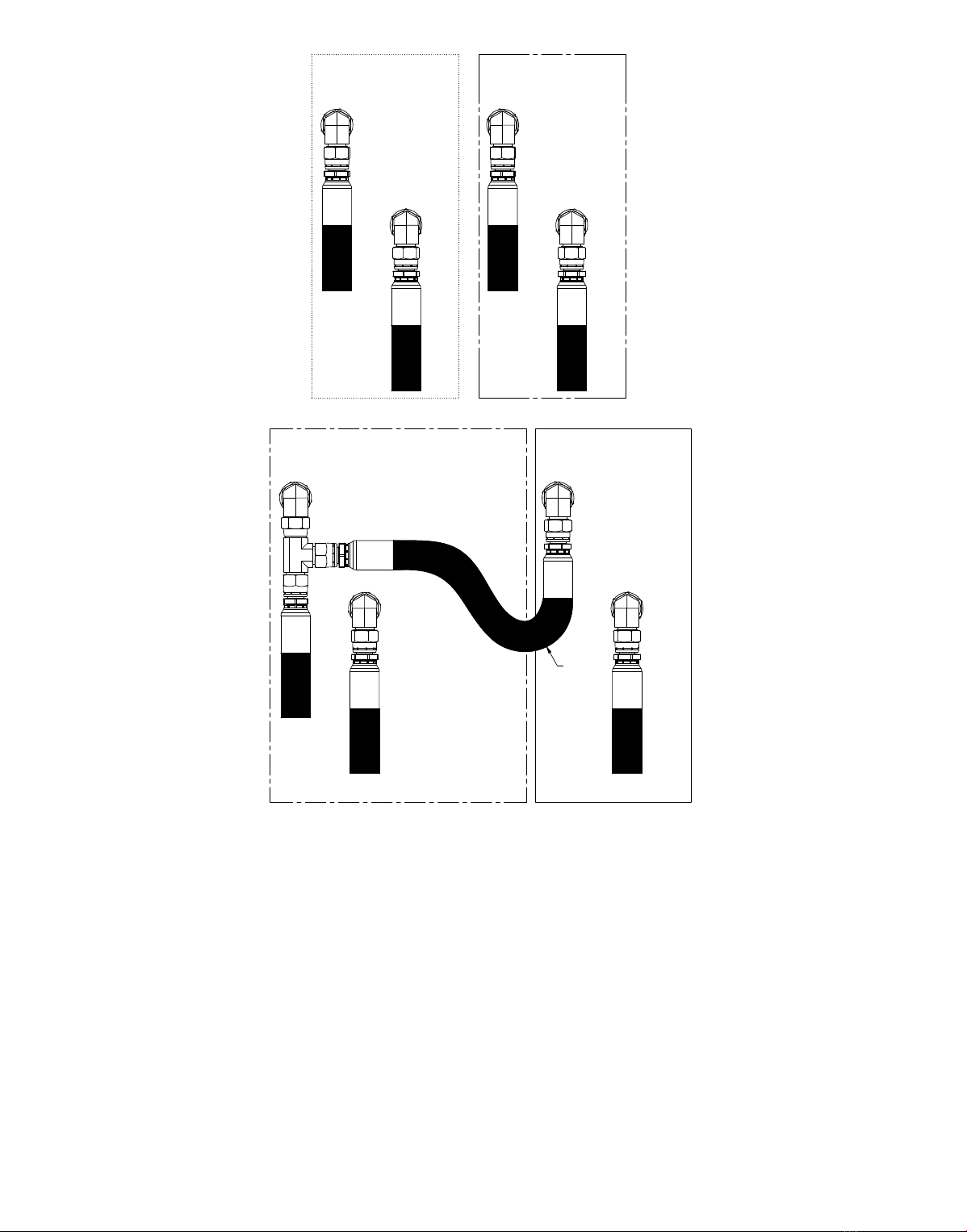

NOTE: If blade system has Dual Remote Hydraulic Angle, verify that the 35” hose is used and installed

correctly. Refer to hydraulic schematic in the Owner’s Manual & Parts Book if necessary.

Left Angle Retract

Lift - Orange

Angle - Yellow

Tilt Left

35" Hose

to Yellow at Rear of Tractor

Left Angle Extend

Lift - Orange

SCV Group C

Angle Cylinder Rod - Tee Fitting

Tilt Cylinder Rod

SCV Group A

Lift Cylinder Base

Angle - Red

Left Angle Cylinder Base

Lift Up

SCV Group B

Lift Cylinder Rod

Tilt - Green

Right Angle Retract

SCV Group D

Tilt Cylinder Base

Lift Down

Tilt - Green

Hoses Not Drawn To Scale

Tilt Right

Angle - Red at Top Arm - Change

Angle - Red

Right Angle Extend

Right Angle Cylinder Base

ITEM

NO. PART NO. QTY. DESCRIPTION

1 11-19170-L 1 Support Arm

2 11-19170-R 1 Support Arm

3 16-1510 8 20mm x 2.5mm x 90mm Hex Bolt

4 16-20124 4 1/2" x 1" Hex Bolt Gr.5 NC

5 16-20139 4 1/2" X 5" Hex Bolt Gr 5 NC

6 16-20218 4 3/4" X 2" Hex Bolt Gr.5 NC

7 16-20220 6 3/4" x 2-1/2" Hex Bolt Gr.5 NC

8 16-20558 2 1" X 2" Hex Bolt Gr. 8 NC

9 16-20562 2 1" x 3" Hex Bolt Gr.8 NC

10 16-20563 4 1" x 3 1/4" Hex Bolt Gr.8 NC

11 16-20896 2 1-1/4" x 3-1/2" Hex Bolt Gr.5 NC

12 18-17295R2 1 Rear Bracket

13 18-18059R1 1 Grill Guard Weld

14 18-18678 2 Bracket

15 44-17208R1 1 Plate

16 44-17245 4 Plate

17 44-19172 1 Hose Cover

18 53-15528 4 Round Tube

19 54-18680R3 1 Undercarriage Weld

20 57-11671 2 1-1/4" Flat Washer

21 57-20744 11 1/2" Flat Washer

22 57-20747 8 3/4" Flat Washer

23 57-20757 20 3/4" Flat Washer - 1-1/2" OD

24 57-20759 2 1.00" Flat Washer-2" OD

25 57-20819 4 1" Flat Washer Heavy Duty Gr 8 (USS)

26 57-3680 8 3/4" ID x 2.00 OD x .375" Heavy Washer CZ Plated

27 70-20599 4 1"-8 NC Hex Nut

28 70-20604 7 1/2" Center Lock Hex Nut

29 70-20607 10 3/4" Hex Center Lock Nut NC

30 70-20872-10 10 20mm Hex Nut 2.5 Pitch Class 10 Zinc

31 70-20981 2 1-1/4" Hex Nut Gr 5 NC

32* 16-20140 4 1/2" X 6" Hex Bolt Gr 5 NC

WWW.GROUSER.COM

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

18680-A

TITLE:

DWG. NO.:

THE WRITTEN PERMISSION OF GROUSER PRODUCTS INC IS PROHIBITED.

1/17/2016

Date:

GROUSER PRODUCTS INC ANY REPRODUCTION IN PART OR WHOLE WITHOUT

GROUSER PRODUCTS INC.

755 2nd Ave NW Phone 701.282.7710

West Fargo, ND 58078 Fax 701.282.8131

Steiger 350-470 - Narrow Frame

Item #32 - Used only with 12-20 Dozer Hydraulics in place of Item #5

622

30 14

827

See Detail A Below

5 or 32

Use only if needed.

See Hose Routing

Page in the Mounting

Instructions.

DETAIL A

21 21

23 4

ITEM

NO. PART NO. QTY. DESCRIPTION

1 11-19170-L 1 Support Arm

2 11-19170-R 1 Support Arm

3 16-1510 8 20mm x 2.5mm x 90mm Hex Bolt

4 16-20124 4 1/2" x 1" Hex Bolt Gr.5 NC

5 16-20139 4 1/2" X 5" Hex Bolt Gr 5 NC

6 16-20218 4 3/4" X 2" Hex Bolt Gr.5 NC

7 16-20220 6 3/4" x 2-1/2" Hex Bolt Gr.5 NC

8 16-20558 2 1" X 2" Hex Bolt Gr. 8 NC

9 16-20562 2 1" x 3" Hex Bolt Gr.8 NC

10 16-20563 4 1" x 3 1/4" Hex Bolt Gr.8 NC

11 16-20896 2 1-1/4" x 3-1/2" Hex Bolt Gr.5 NC

12 18-17295R2 1 Rear Bracket

13 18-18059R1 1 Grill Guard Weld

14 18-18678 2 Bracket

15 44-17208R1 1 Plate

16 44-17245 4 Plate

17 44-19172 1 Hose Cover

18 53-15528 4 Round Tube

19 54-18680R3 1 Undercarriage Weld

20 57-11671 2 1-1/4" Flat Washer

21 57-20744 11 1/2" Flat Washer

22 57-20747 8 3/4" Flat Washer

23 57-20757 20 3/4" Flat Washer - 1-1/2" OD

24 57-20759 2 1.00" Flat Washer-2" OD

25 57-20819 4 1" Flat Washer Heavy Duty Gr 8 (USS)

26 57-3680 8 3/4" ID x 2.00 OD x .375" Heavy Washer CZ Plated

27 70-20599 4 1"-8 NC Hex Nut

28 70-20604 7 1/2" Center Lock Hex Nut

29 70-20607 10 3/4" Hex Center Lock Nut NC

30 70-20872-10 10 20mm Hex Nut 2.5 Pitch Class 10 Zinc

31 70-20981 2 1-1/4" Hex Nut Gr 5 NC

32* 16-20140 4 1/2" X 6" Hex Bolt Gr 5 NC

WWW.GROUSER.COM

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

18680-A

TITLE:

DWG. NO.:

THE WRITTEN PERMISSION OF GROUSER PRODUCTS INC IS PROHIBITED.

1/17/2016

Date:

GROUSER PRODUCTS INC ANY REPRODUCTION IN PART OR WHOLE WITHOUT

GROUSER PRODUCTS INC.

755 2nd Ave NW Phone 701.282.7710

West Fargo, ND 58078 Fax 701.282.8131

Steiger 350-470 - Narrow Frame

Item #32 - Used only with 12-20 Dozer Hydraulics in place of Item #5

622

30 14

827

See Detail A Below

5 or 32

Use only if needed.

See Hose Routing

Page in the Mounting

Instructions.

DETAIL A

21 21

23 4

Autres manuels pour Ag Pro Plus

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Grouser Products Accessoires pour tracteurs

Grouser Products

Grouser Products 1300 Groomer Manuel utilisateur

Grouser Products

Grouser Products 1300 Groomer Manuel utilisateur

Grouser Products

Grouser Products Ag Pro Classic Manuel utilisateur

Grouser Products

Grouser Products AG PRO PLUS NANT Manuel utilisateur

Grouser Products

Grouser Products Ag Pro HD Manuel utilisateur

Grouser Products

Grouser Products FH-443 Manuel utilisateur

Grouser Products

Grouser Products 770 - Plus Manuel utilisateur

Grouser Products

Grouser Products 450 Manuel utilisateur

Grouser Products

Grouser Products Ag 240I Manuel utilisateur

Grouser Products

Grouser Products 770HD Steiger Quad 550 Manuel utilisateur

Grouser Products

Grouser Products Ag Pro Silage Special Manuel utilisateur

Grouser Products

Grouser Products Ag Pro Plus HD Manuel utilisateur

Grouser Products

Grouser Products AG240 Manuel utilisateur

Grouser Products

Grouser Products New Holland TC 40 Manuel utilisateur

Grouser Products

Grouser Products HD 19 U-Blade Manuel utilisateur

Grouser Products

Grouser Products RAM LOADER 40260 Manuel utilisateur

Grouser Products

Grouser Products 760 Manuel utilisateur

Grouser Products

Grouser Products Ag 240I Manuel utilisateur

Grouser Products

Grouser Products AG240 Manuel utilisateur

Manuels Accessoires pour tracteurs populaires d'autres marques

Land Pride

Land Pride SGC0548 Manuel utilisateur

Swisher

Swisher Versa Commercial Pro VSP50 Manuel utilisateur

matev

matev FPS-FKH-Kioti CX 2510 Manuel utilisateur

matev

matev SCA-130 Manuel utilisateur

Toro

Toro 08733 Manuel utilisateur

Avantco

Avantco A425119 Manuel utilisateur

FTS

FTS G-FTL Series Manuel utilisateur

Sami

Sami 150-50 Manuel utilisateur

CAMSO

CAMSO TTS 30 Series Manuel utilisateur

Luda

Luda tractorCam S Manuel utilisateur

HLA

HLA BALE KNIFE Series Manuel utilisateur

P.Lindberg

P.Lindberg 9059890 Instructions de fonctionnement

Ventrac

Ventrac KD482 Manuel utilisateur

Original Tractor Cabs

Original Tractor Cabs 4421381 Fiche technique

Degelman

Degelman Landroller Manuel de programmation

Bush Hog

Bush Hog BS1 Series Manuel utilisateur

MX MX A104 Manuel utilisateur

Bush Hog

Bush Hog DSP8 Manuel utilisateur
