Grizzly G0497 Guide de démarrage rapide

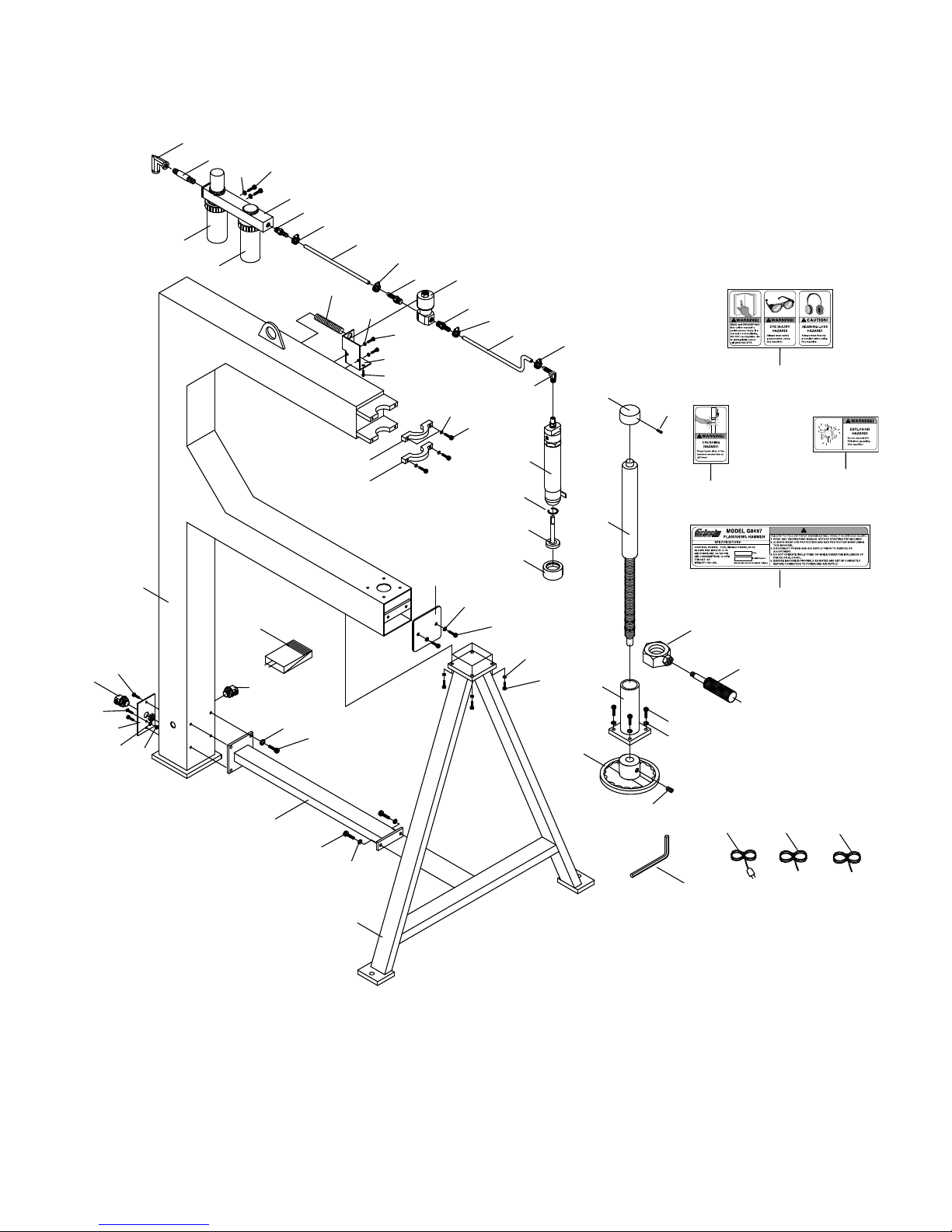

G0497 Parts Breakdown











































 

















































 





  

















 







REF PART # DESCRIPTION REF PART # DESCRIPTION

1A P0497001A MAIN HAMMER FRAME-N/S 1/07 24 P0497024 HOSE CLAMP

2 P0497002 SUPPORT BRACKET 25 P0497025 FLEXIBLE HOSE 5/16" x 9-1/16"

3 P0497003 BRACE 26 P0497026 FOOT SWITCH

4 P0497004 END COVER 27 P0497027 CORRUGATED PLASTIC TUBE

5 P0497005 UPPER HAMMER CLAMP 28 P0497028 SOLENOID VALVE

6 P0497006 LOWER HAMMER CLAMP 29 P0497029 AIR CONTROL ASSEMBLY

8 PR21M INT RETAINING RING 35MM 29-1 P0497029-1 FILTER/REGULATOR UNIT

9A P0497009A ANVIL BASE-N/S 1/07 29-2 P0497029-2 LUBRICATOR UNIT

10 P0497010 ANVIL HEIGHT SCREW 1-8 x 11 30 P0497030 HANDWHEEL

11 P0497011 LOWER ANVIL 30-1 PSS02 SET SCREW 5/16-18 X 3/8

11-1 PSS07 SET SCREW 1/4-20 x 1/2 31 PSB06 CAP SCREW 1/4-20 X 1

12 P0497012 COMBO JAM NUT 1-8 / 1/2-12 32 PSB04 CAP SCREW 1/4-20 X 1/2

12-1 P0497012-1 LOCK HANDLE 1/2-12 X 5/16 33 PSB05 CAP SCREW 1/4-20 X 3/4

13 P0497013 PNEUMATIC HAMMER 34 PSBS20 BUTTON HD CAP SCR 1/4-20 X 1/2

13-1 P0497013-1 HAMMER HEAD 35 PN07 HEX NUT 10-24

13-2 P0497013-2 HAMMER HEAD FACING 36 PLW02 LOCK WASHER 1/4

14 P0497014 SOLENOID VALVE MOUNT PLATE 37 PFS03M FLANGE SCREW M5-.8 X 6

15 P0497015 SWITCH PLATE 38 PTLW02M EXT TOOTH WASHER 5MM

16 P0497016 STRAIN RELIEF 1/2" 39 PS06 PHLP HD SCR 10-24 X 3/8

17 P0497017 SOLENOID VALVE CORD 40 P0497040 COMBO LABEL

18 P0497018 FOOT SWITCH CORD 41 P0497041 CRUSHING HAZARD LABEL

19 P0497019 POWER CORD W/5-15 PLUG 42 P0497042 EXPLOSION HAZARD LABEL

20 P0497020 CONNECTOR TUBE 43 P0497043 MACHINE ID LABEL

21 P0497021 ELBOW 1/4" NPT 44 P0497044 FLEXIBLE HOSE 5/16" x 13"

22 P0497022 90° MALE CONNECTOR 45 PAW05M HEX WRENCH 5MM

23 P0497023 MALE CONNECTOR

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JK8281 PRINTED IN TAIWAN

G0497 Parts List

Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine

MUST maintain the original location and readability of the labels on the machine. If any label is

removed or becomes unreadable, REPLACE that label before using the machine again. Contact

Grizzly at (800) 523-4777 or www.grizzly.com to order new labels.
