Grizzly H2909 Manuel utilisateur
COPYRIGHT © JANUARY, 2002 BY GRIZZLY INDUSTRIAL, INC.
1821 VALENCIA ST., BELLINGHAM, WA 98227
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
PRINTED IN TAIWAN
PARTS LIST DISCLAIMER
THIS PARTS LIST AND DRAWINGS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENT-
LY BEING SHIPPED. THE MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE
INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS PARTS LIST MAY NOT DEPICT
YOUR MACHINE EXACTLY. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART
DIFFERENCES. PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.
18 GAUGE STAPLER KIT
MODEL H2909
PARTS LIST
H2909 18 Gauge Stapler Kit -B-

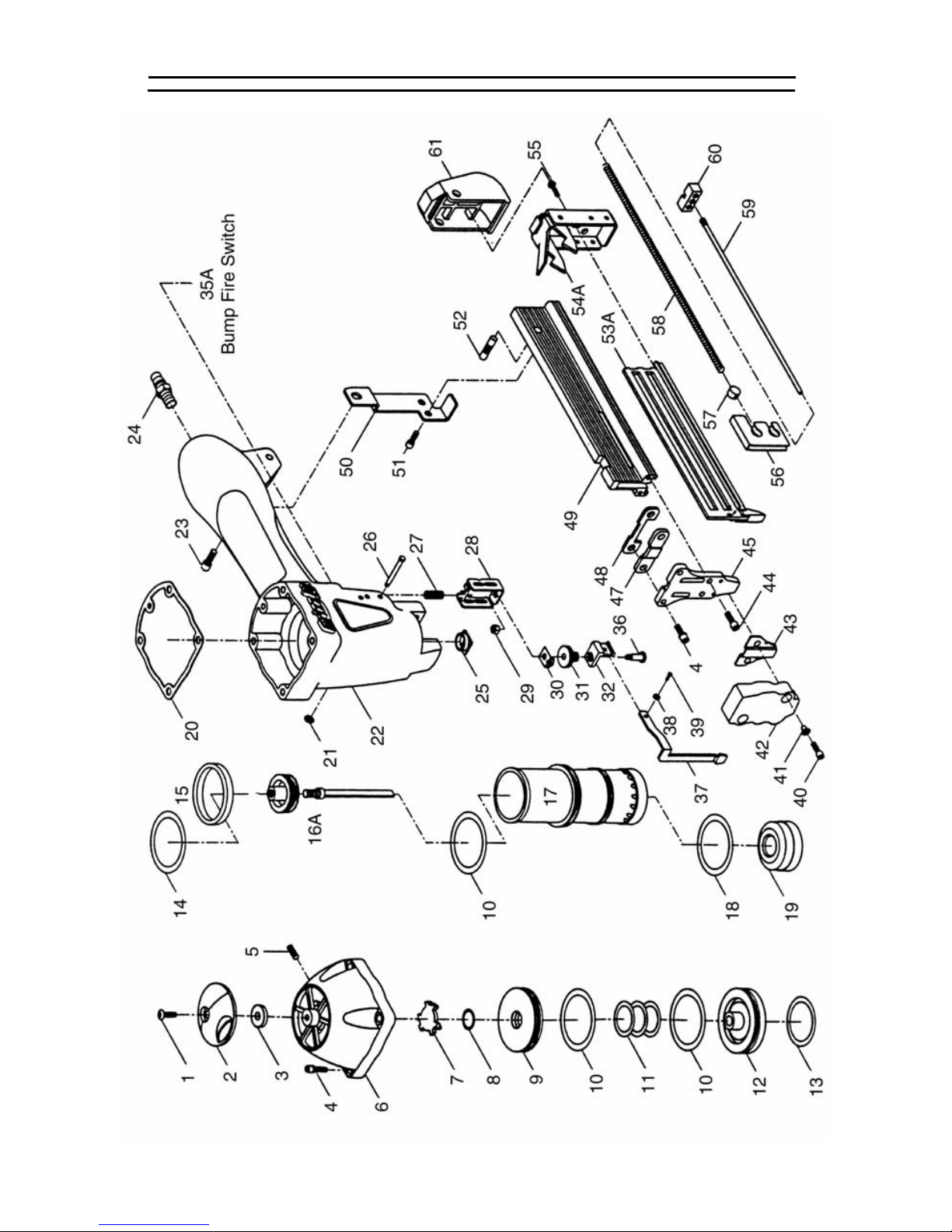

H2909 PART BREAKDOWN
H2909 18 Gauge Stapler Kit-C-
01 PH2909001 UM HD BOLT
02 PH2909002 CAP COVER
03 PH2909003 SEAL
04 PH2909004 CAP SCREW
05 PH2909005 SETSCREW
06 PH2909006 CAP
07 PH2909007 PISTON STOPPER
08 PH2909008 O-RING
09 PH2909009 COLLAR
10 PH2909010 O-RING
11 PH2909011 SPRING
12 PH2909012 PISTON HEAD VALVE
13 PH2909013 O-RING
14 PH2909014 O-RING
15 PH2909015 O-RING
16A PH2909016A PISTON ASSEMBLY
17 PH2909017 CYLINDER
18 PH2909018 O-RING
19 PH2909019 BUMPER
20 PH2909020 GASKET
21 PH2909021 O-RING
22 PH2909022 BODY
23 PH2909023 CAP SCREW
24 PH2909024 AIR PLUG
25 PH2909025 JOINT GUIDE
26 PH2909026 STEPPED PIN
27 PH2909027 SPRING
28 PH2909028 SAFETY LEVER
29 PH2909029 LOCK NUT
30 PH2909030 POSITIONING PLATE
31 PH2909031 ADJUSTMENT NUT
32 PH2909032 GUIDE PLATE
35A PH2909035A SWITCH
36 PH2909036 SET SHAFT
37 PH2909037 SAFETY LEVER
38 PH2909038 LOCK WASHER
39 PH2909039 CAP SCREW
40 PH2909040 CAP SCREW
41 PH2909041 SOCKET
42 PH2909042 NOSE COVER
43 PH2909043 NOSE COVER
44 PH2909044 CAP SCREW
45 PH2909045 NOSE
47 PH2909047 SET PLATE
48 PH2909048 SET PLATE
49 PH2909049 MAGAZINE
50 PH2909050 BRACKET
51 PH2909051 CAP SCREW
52 PH2909052 SHAFT
53A PH2909053A STAPLE GUIDE UNIT
54A PH2909054A END CORE
55 PH2909055 UM HD BOLT
56 PH2909056 PUSHER
57 PH2909057 SLIDE BLOCK
58 PH2909058 SPRING
59 PH2909059 ROD
60 PH2909060 SET BLOCK
61 PH2909061 TAIL COVER
REF PART # DESCRIPTION REF PART # DESCRIPTION
