-54- G0460/G0461 12" Sliding Table Saw
SECTION 8: PARTS

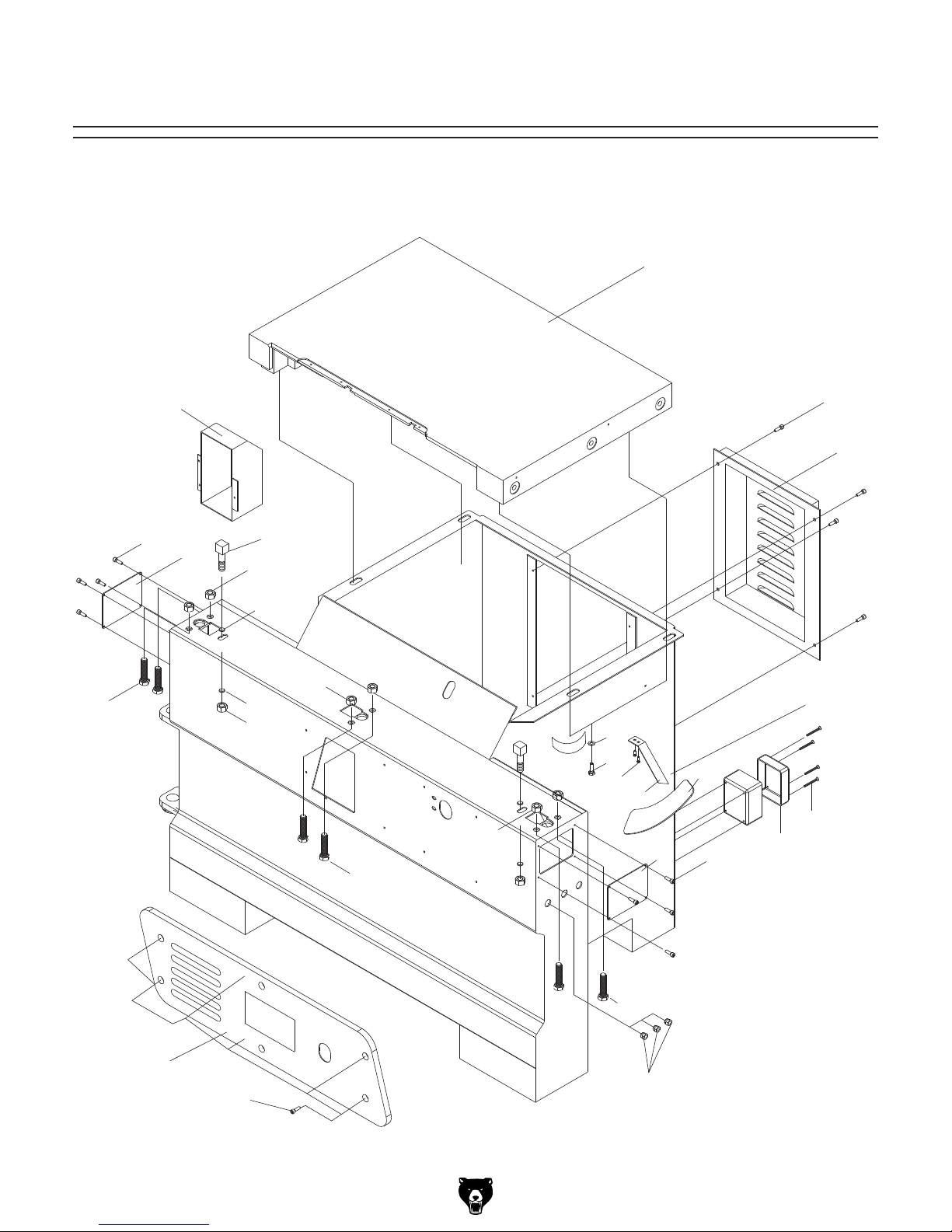

Main Body
G0460/G0461 12" Sliding Table Saw -55-
REF PART # DESCRIPTION
1 P0460001 BODY
2 P0588002 TABLE
3 PW01M FLAT WASHER 8MM
4 PSB13M CAP SCREW M8-1.25 X 30
10 P0460010 COVER PLATE
12 PSB02M CAP SCREW M6-1 X 20
13 P0588013 ADJUSTMENT BOLT COVER
14 PSB26M CAP SCREW M6-1 X 12
15 P0588015 MOTOR COVER
16 PSB49M CAP SCREW M6-1 X 60
40 PN09M HEX NUT M12-1.75
41 PW06M FLAT WASHER 12MM
78 PB137M HEX BOLT M14-2 X 30
81 PN32M HEX NUT M14-2
154 P0460154 POINTER
158 P0460158 SCALE
202 P0588202 JUNCTION BOX SCREW
278 P0588278 SCALE DUST COVER
301 P0460301 STRAIN RELIEF
307 P0588307 JUNCTION BOX
329 P0460329 POSITION SCREW
333 P0460333 PHLP HD SCR M5-.8 X 8
Main Body Parts List
-56- G0460/G0461 12" Sliding Table Saw

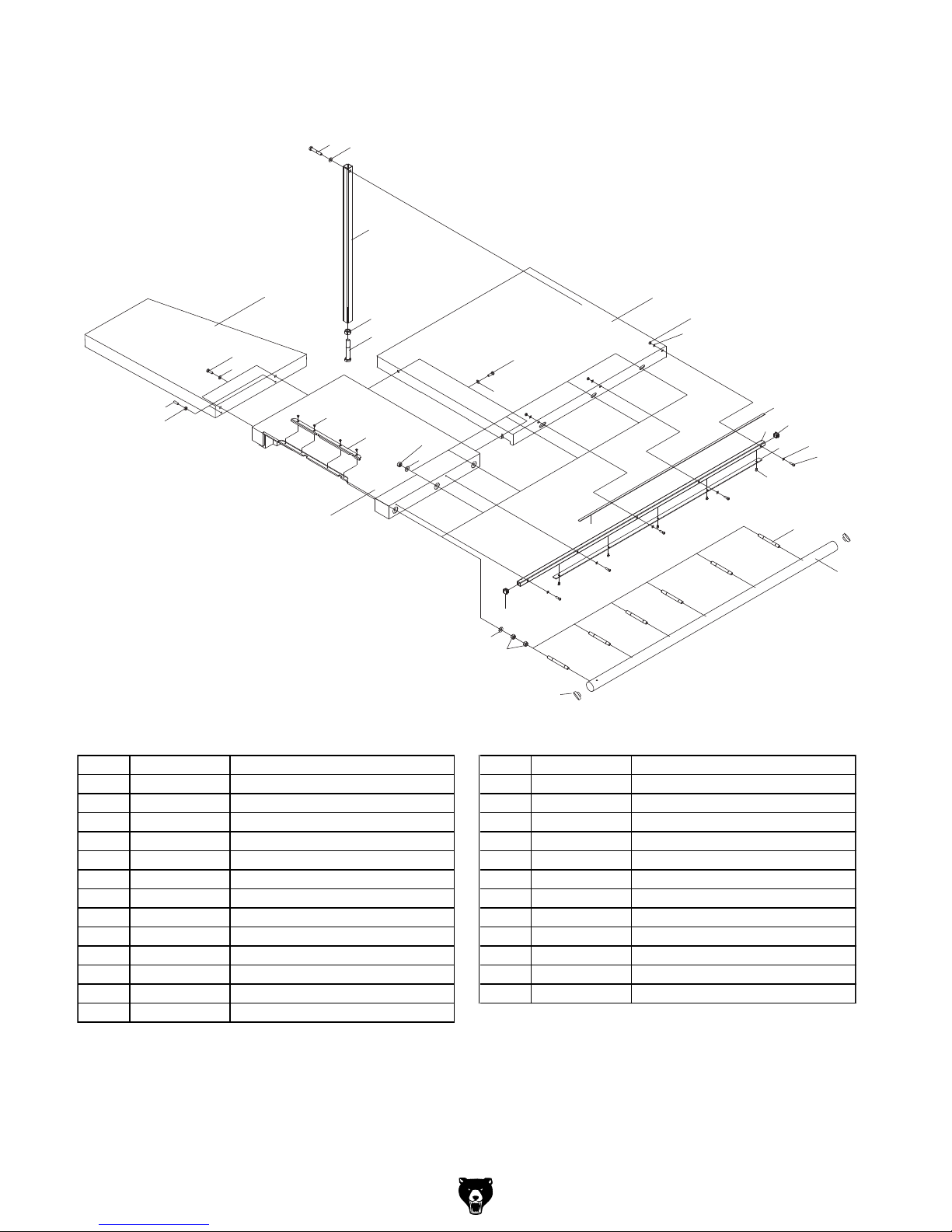

Extension Tables
REF PART # DESCRIPTION REF PART # DESCRIPTION
2 P0588002 TABLE 28 PN13M HEX NUT M16-2
3 PW01M FLAT WASHER 8MM 29 PN01M HEX NUT M6-1
8 P0588008 MAG. SWITCH 220V-75HP (G0461) 30 PW03M FLAT WASHER 6MM
17 P0588017 TABLE INSERT 31 P0588031 SCALE BAR
18 PFH07M FLAT HD SCR M5-.8 X 10 32 P0588032 SCALE BAR PLUG
19 P0588019 EXTENSION WING (FRONT) 33 P0588033 SCALE
20 PSB13M CAP SCREW M8-1.25 X 30 36 P0588036 RACK
21 PSS16M SET SCREW M8-1.25 X 10 37 PSB03M CAP SCREW M5-.8 X 8
22 PN03M HEX NUT M8-1.25 38 P0588038 RAIL
23 P0588023 EXTENSION WING (RIGHT) 39 P0588039 STUD M12-1.75 X 120
24 PB34M HEX BOLT M10-1.5 X 60 40 PN09M HEX NUT M12-1.75
25 PN02M HEX NUT M10-1.5 41 PW06M FLAT WASHER 12MM
26 P0588026 EXTENSION WING LEG 279 P0588279 FENCE RAIL PLUG 45 X 33
27 PB138M HEX BOLT M16-2 X 100
G0460/G0461 12" Sliding Table Saw -57-

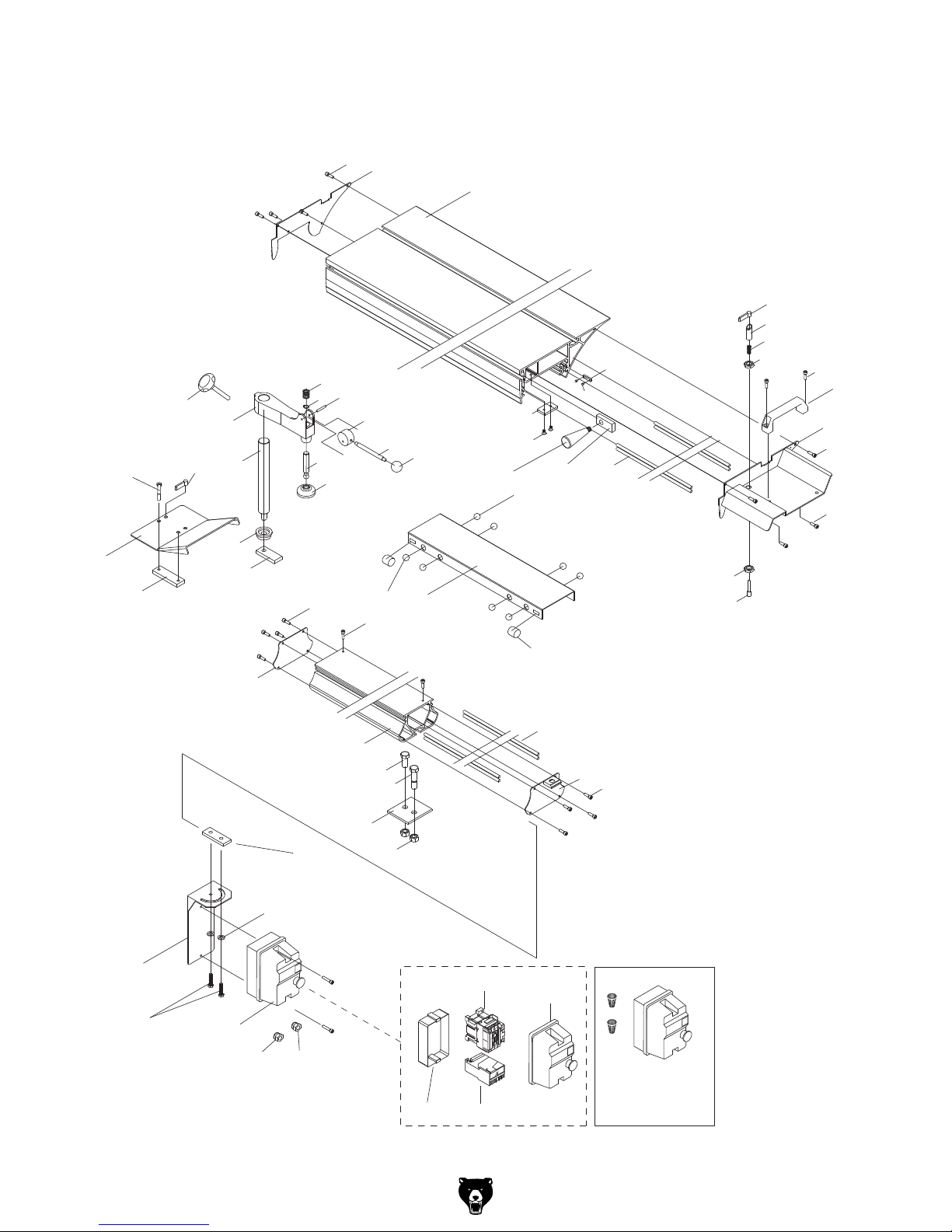

Sliding Table
-58- G0460/G0461 12" Sliding Table Saw
Sliding Table Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
3 PW01M FLAT WASHER 8MM 63 P0588063 BALL KNOB
6 P0460006 SWITCH BASE 64 P0588064 HOLD DOWN ARBOR
8 P0588008 MAG. SWITCH 220V-7.5HP 3Ø & 5HP 1Ø 65 P0588065 PLASTIC HOLD DOWN WASHER
8-1 P0588008-1 MAG. SWITCH REAR COVER 66 P0588066 T-NUT PLATE
8-2 P0588008-2 CONTACTOR 220V 67 P0588067 EDGE SHOE PLATE
8-3 P0588008-3 OVERLOAD RELAY 21-25A 68 P0588068 T-NUT PLATE
8-4 P0588008-4 MAG SWITCH FRONT COVER 69 PB74M HEX BOLT M10-1.5 X 20
9 PSB01M CAP SCREW M6-1 X 16 70 P0588070 ADJUSTABLE HANDLE M10-1.5 X 16
42 P0460042 SLIDING TABLE 71 P0460071 SLED
43 P0588043 SLIDING TABLE END COVER 72 P0588072 SLED SPONGE
44 PSB01M CAP SCREW M6-1 X 16 73 P0588073 STEEL BALL 18MM
45 P0588045 RUBBER PLATE 74 P0588074 STEEL BALL 11/16MM
46 PFH23M FLAT HD SCR M8-1.25 X 16 75 P0460075 SLIDING TABLE RAIL
47 P0588047 GIB 76 P0588076 TABLE RAIL COVER (BACK)
48 PB83M HEX BOLT M6-1 X 16 77 P0588077 TABLE RAIL COVER (FRONT)
49 P0588049 STEEL RAILS 78 PB137M HEX BOLT M14-2 X 30
50A P0588050 HANDLE 79 PB153M HEX BOLT M14-2 X 40
51A P0588051 HANDLE COVER 80 P0588080 ADJUSTMENT PLATE
52 P0588052 STOP LEVER 81 PN32M HEX NUT M14-2
53 P0588053 SLEEVE 199 P0588199 440V CONVERSION KIT (G0461)
54 P0588054 EXTENSION SPRING 259 P0588259 HOLD DOWN PLATE
55 PN13M HEX NUT M16-2 260 P0588260 KNOB M8-1.25 X 20
56 P0588056 STOP PIN 261 P0588261 HOLD DOWN SHAFT
57 P0588057 HOLD DOWN BRACKET 300 P0460300 STRAIN RELIEF PG1335
58 PR02M EXT. RETAINING RING 14MM 302 PSB14M CAP SCREW M8-1.25 X 20
59 PRP45M ROLL PIN 5 X 32 304 P0588304 PUSH HANDLE M14-2 X 16 (OPTIONAL)
60 P0588060 COMPRESSION SPRING 330 P0460330 SWITCH BASE FIX PLATE
61 P0588061 CAM 331 P0460331 HEX BOLT M8-1.25 X 20
62 P0588062 HANDLE SHAFT 332 P0460332 STRAIN RELIEF
G0460/G0461 12" Sliding Table Saw -59-

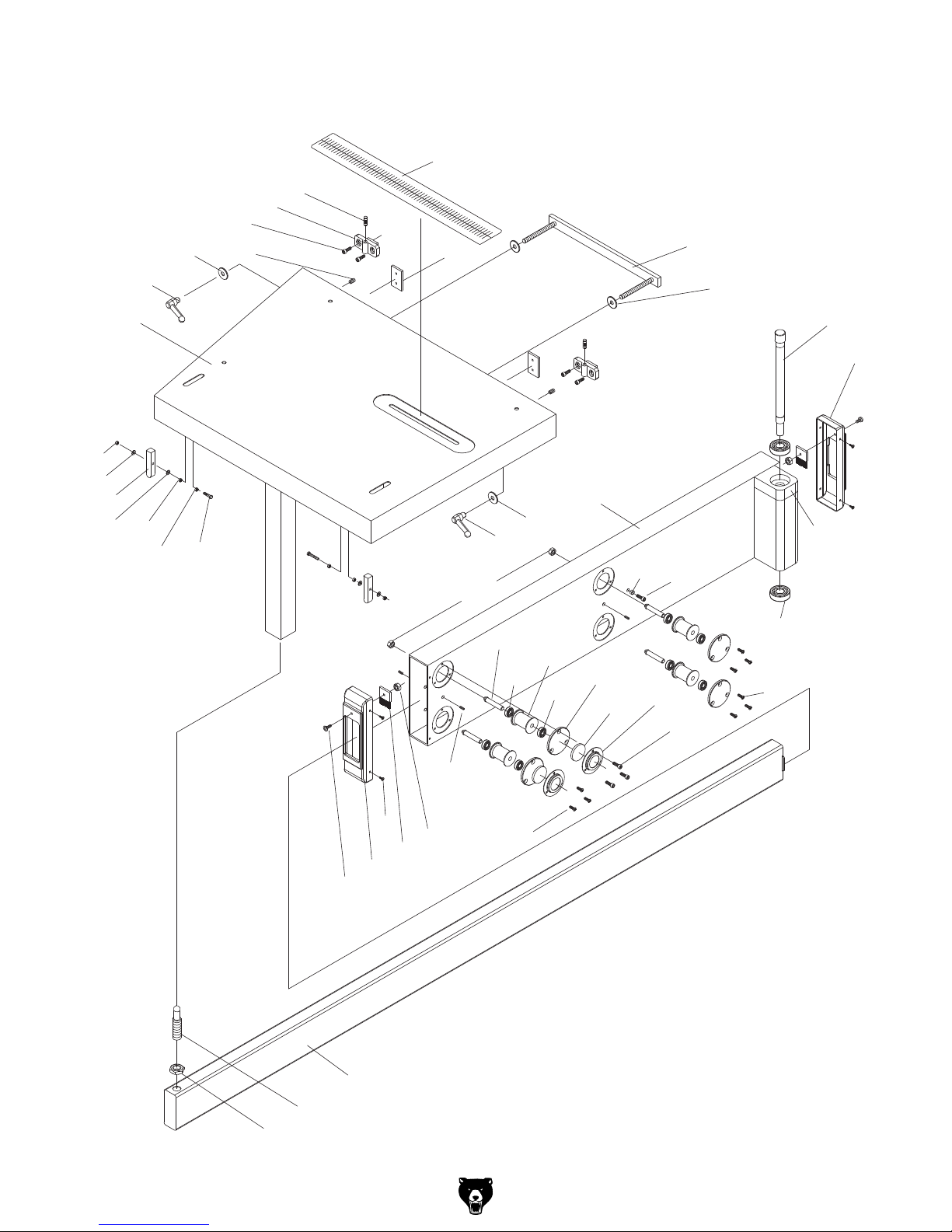

Crosscut Table
-60- G0460/G0461 12" Sliding Table Saw
REF PART # DESCRIPTION
9 PSB01M CAP SCREW M6-1 X 16
20 PSB13M CAP SCREW M8-1.25 X 30
22 PN03M HEX NUT M8-1.25
25 PN02M HEX NUT M10-1.5
29 PN01M HEX NUT M6-1
37 PSB03M CAP SCREW M5-.8 X 8
82 P0460082 CROSSCUT TABLE
84 P0588084 SUPPORT ADJUSTMENT BLOCK
85 PSB04M CAP SCREW M6-1 X 10
86 PSS09M SET SCREW M8-1.25 X 20
87 P0460087 SCALE LABEL (RIGHT)
89 P0588089 SLIDING SURFACE PLATE
90 P0588090 CROSSCUT TABLE LOCK PLATE
91 PW04M FLAT WASHER 10MM
92 P0588092 ADJUST HANDLE M10-1.5
93 P0460093 SWING ARM
93A P0460093A SWING ARM ATTACHMENT
94A P0588094A ECCENTRIC ROLLER
95A P6901 BALL BEARING 6901
96A P0588096A ECCENTRIC SHAFT
97 P0588097 ROTATE ARBOR SUPPORT
98 P0588098 MAGNET
99 P0588099 MAGNET BASE
100 PFH30M FLAT HD SCR M5-.8 X 8
101 P0588101 NYLON SCREW M12-1.75 X 12
102 P0588102 SWING ARM END
103 P0588103 BRUSH
104 PSB117M BUTTON HD CAP SCR M5-.8 X 8
105 P0588105 SWING ARM END
106 P0460106 EXTENSION SWING ARM
107 P0588107 SWING ARM ADJUST SCREW M20-2.5
108 PN28M HEX NUT M20-2.5
117 PW01M FLAT WASHER 8MM
118 PLN04M LOCK NUT M8-1.25
188 P0460188 HEX BOLT M8-1.25 X 100
189 P0588189 STOP BLOCK
262 P6204 BALL BEARING 6204ZZ
265 P0588265 SWING ARM SHAFT
Crosscut Table Parts List
G0460/G0461 12" Sliding Table Saw -61-

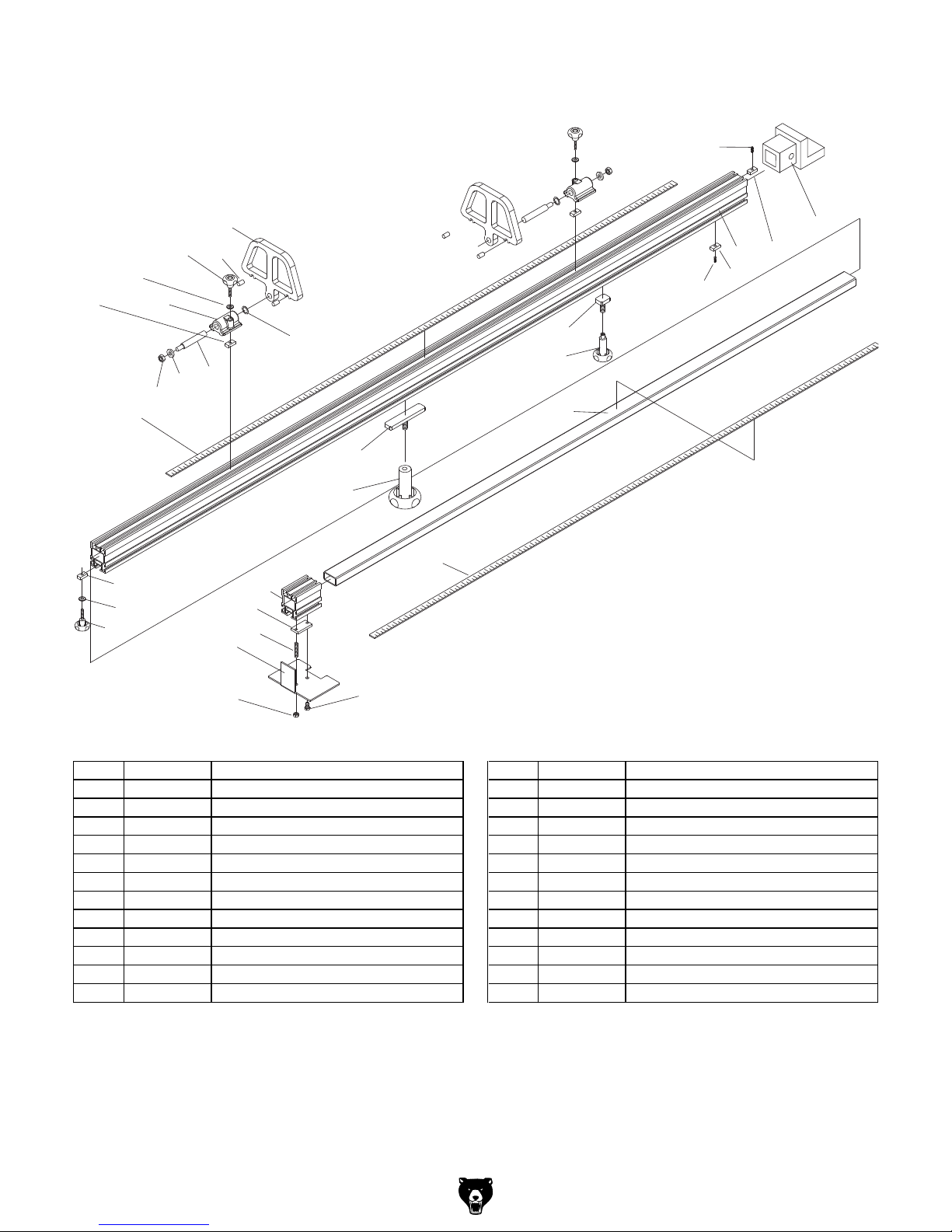

Crosscut Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
29 PN01M HEX NUT M6-1 121 PSS04M SET SCREW M6-1 X 12
109 P0588109 STOP PLATE 122 P0588122 PROTECTION BLOCK
110 P0588110 NYLON PAD 123 P0588123 T-BOLT M10-1.5
111 P0588111 KNOB M6-1 X 35 124 P0588124 KNOB M10-1.5
112 PW01M FLAT WASHER 8MM 124A P0460124A KNOB W/SHOULDER
113 PW03M FLAT WASHER 6MM 125 P0588125 LOCK PLATE M10-1.5 X 25
114 P0588114 CLAMPING BASE 126 P0460126 SCALE(SHORT)
115 P0588115 T-NUT M6-1 127 P0588127 CROSS CUTTING FENCE-SHORT BASE
116 P0588116 CLAMPING ARBOR 128 P0588128 LOCK PLATE
117 PW01M FLAT WASHER 8MM 129 PSS29M SET SCREW M6-1 X 35
118 PLN04M LOCK NUT M8-1.25 130 P0588130 CROSS FENCE SUPPORT PLATE
119 P0460119 SCALE (LONG) 131 PS31M PHLP HD SCR M6-1 X 35
120 P0460120 CROSSCUT FENCE 263 P0460263 SCALE TUBE
-62- G0460/G0461 12" Sliding Table Saw

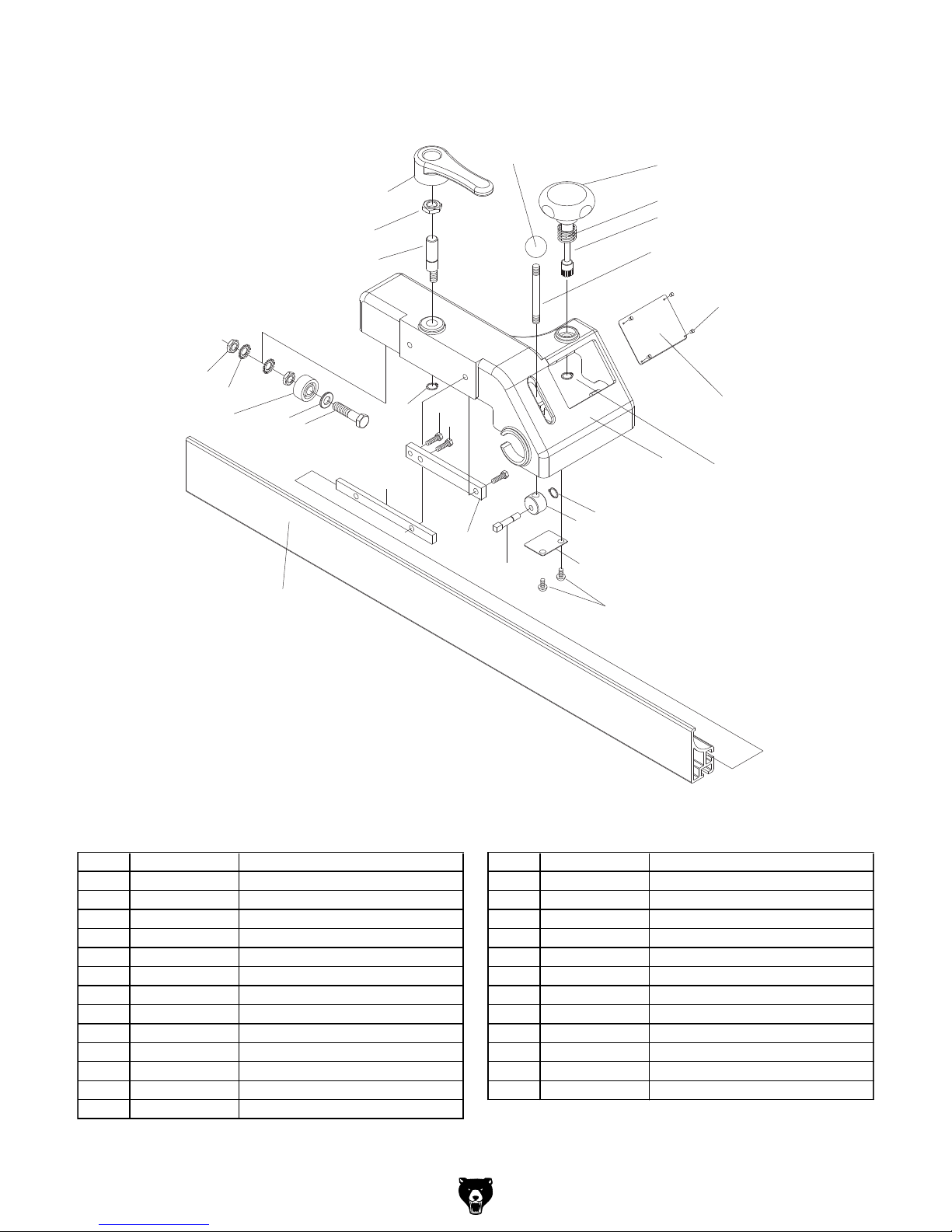

Rip Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
41 PW06M FLAT WASHER 12MM 143 P0588143 ECCENTRIC SHAFT
28 PN13M HEX NUT M16-2 144 P0588144 ROLLER
63 P0588063 BALL KNOB 145 PB33M HEX BOLT M12-1.75 X 50
104 PSB117M BUTTON HD CAP SCR M5-.8 X 8 146 PSB14M HEX BOLT M8-1.25 X 20
132 P0588132 RIP FENCE BASE 147 PB28M HEX BOLT M8-1.25 X 60
133 PR06M EXT RETAINING RING 16MM 148 P0588148 RIP FENCE PLATE
134 P0588134 WARNING LABEL PLATE 149 P0588149 LOCK BLOCK (LONG)
135 P0588135 RIVET 150 P0588150 LOCK BLOCK (SHORT)
136 PR36M EXT RETAINING RING 7MM 151 P0588151 ECCENTRIC SHAFT
137 P0588137 KNOB SHAFT 152 P0588152 HOLD PLATE
138 P0460138 KNOB SHAFT W/GEAR 153 P0588153A ECCENTRIC
139 P0588139 COMPRESSION SPRING 305 PN09M HEX NUT M12-1.75
140 P0588140 KNOB M14-1.75 306 PTLW12M EXT TOOTH WASHER 12MM
142 P0588142 FENCE CLAMP HANDLE
G0460/G0461 12" Sliding Table Saw -63-

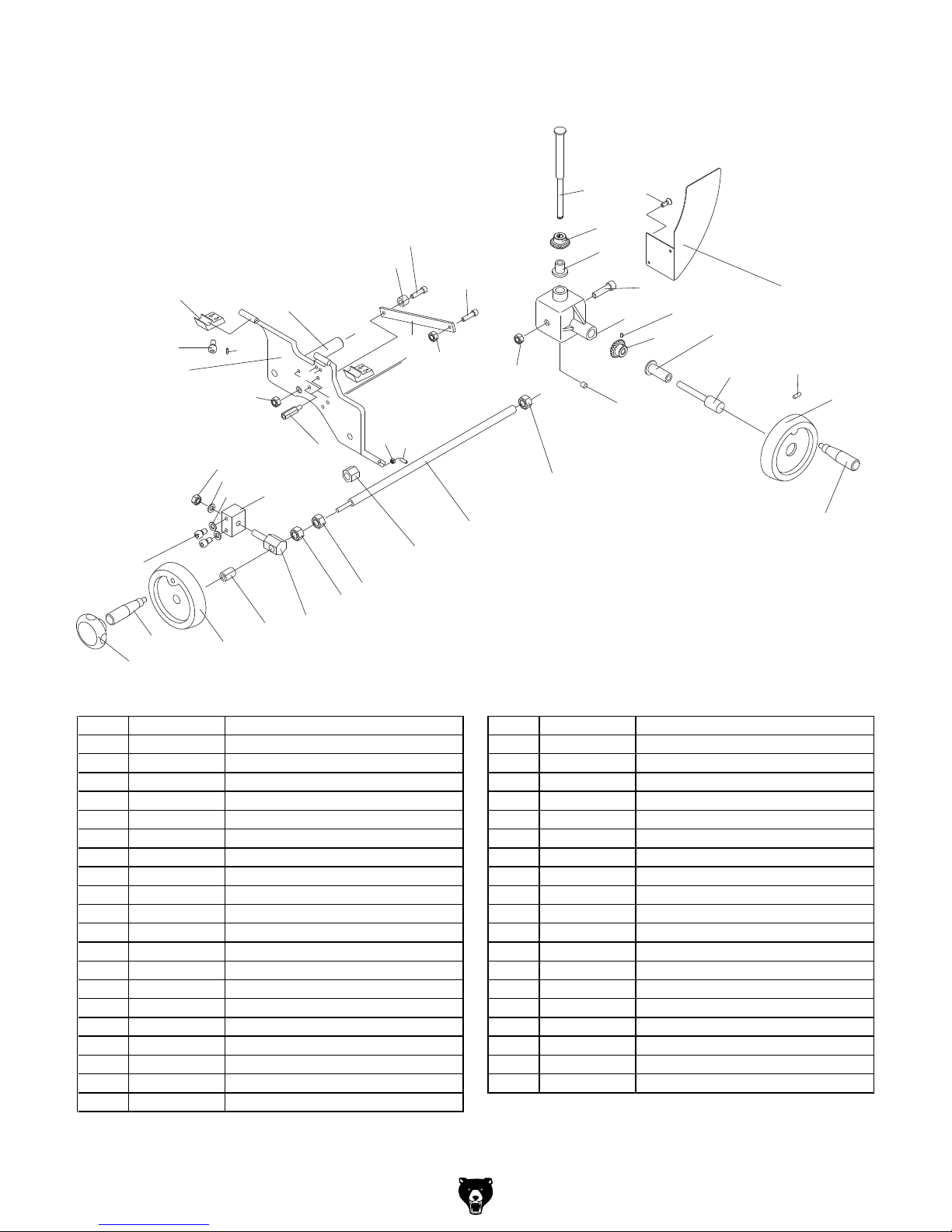

Tilt Assembly
REF PART # DESCRIPTION REF PART # DESCRIPTION
3 PW01M FLAT WASHER 8MM 175 PSB40M CAP SCREW M8-1.25 X 35
13 P0588013 ADJUSTMENT BOLT COVER 177 PLN07M LOCK NUT 16-2
22 PN03M HEX NUT M8-1.25 178 P0588178 WORM
29 PN01M HEX NUT M6-1 179 P0588179 WORM GEAR
40 PN09M HEX NUT M12-1.75 180 P0588180 COPPER SLEEVE
41 PW06M FLAT WASHER 12MM 181 PSB54M CAP SCREW M16-2 X 40
44 PSB01M CAP SCREW M6-1 X 16 182 P0588182 GEAR BOX
118 PLN04M LOCK NUT M8-1.25 183 PSS11 SET SCREW 1/4-20 X 1/4
156 PSB40M CAP SCREW M8-1.25 X 35 184 P0588184 COPPER SLEEVE
160 P0588160 HAND WHEEL 185 PSS59M SET SCREW M8-1.25 X 14
161 P0588161 HAND WHEEL COLLAR 186 P0588186 HAND WHEEL SHAFT
162 P0588162 SHAFT NUT 187 P0588187 HAND WHEEL
163 P0588163 SHAFT NUT BASE 190 P0588190 FOLDABLE HANDLE HL-80
164 P0588164 TW-NUT 192 P0588192 ARBOR PLATE
165 P0588165 LEAD SCREW NUT 226 P0460226 HANDWHEEL HANDLE
166 P0588166 LEAD SCREW TW-16 8 TEETH/ INCH 264 P0588264 KNOB M10-1.5
169 P0588169 COVER SUPPORT M6-1 X 25 266 P0588266 COVER (UPPER)
170 P0588170 SET SHAFT 275 P0588275 ROTATE PART LOCK
171 P0588171 BODY ARBOR 276 PRP42M ROLL PIN 3 X 20
173 P0588173 CRANK ARM 277 PSB14M CAP SCREW M8-1.25 X 20
174 P0588174 PULLEY COLLAR
