Grizzly H0594 Manuel utilisateur

Introduction

This 8,000 RPM air sander requires 90 PSI and

6 CFM. Air inlet is 1/4" NPT. Requires 31/2" x 81/2"

sanding sheets. (You can cut a standard 9" x 11"

sanding sheet into thirds and trim each piece to

size.)

Inventory

A. Pneumatic Jitterbug Sander ....................... 1

MODEL H0594

PNEUMATIC JITTERBUG

SANDER

INSTRUCTION SHEET

Figure 2. Attaching sanding sheet.

Figure 1. Model H0594.

Assembly and Attaching Abrasives

To assemble the sander and attach the sand-

paper:

1. Install a 1⁄4" NPT male quick-disconnect fitting

(not included) into the air inlet.

2. Press one clamp open, insert one end of the

sandpaper between the clamp and the base

as shown in Figure 2 and release pressure

on the clamp to secure the paper.

3. Fold the sandpaper over the sander, and

secure the paper in the opposite clamp, mak-

ing sure the paper fits snugly as shown in

Figure 3.

Figure 3. Attaching sandpaper on opposite side.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BL8253 PRINTED IN TAIWAN

EYE INJURY HAZARD!

Always wear safety glasses

when using this tool to

prevent serious personal

injury.

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service.

DUST HAZARD!

Always wear respirator when

using this tool.

Operation

To operate the sander:

1. Plug the tool into compressed air.

2. Hold the sander and press the throttle lever

(Figure 4) to operate.

Figure 5. Lubricating directly into air fitting.

3. Turn the regulator knob (Figure 4) to adjust

the sanding speed.

4. Remove pressure on the throttle lever to stop

the sander.

5. When the sandpaper loses its effectiveness,

disconnect the sander, remove sandpaper

from the clamps, and replace with a new

sheet.

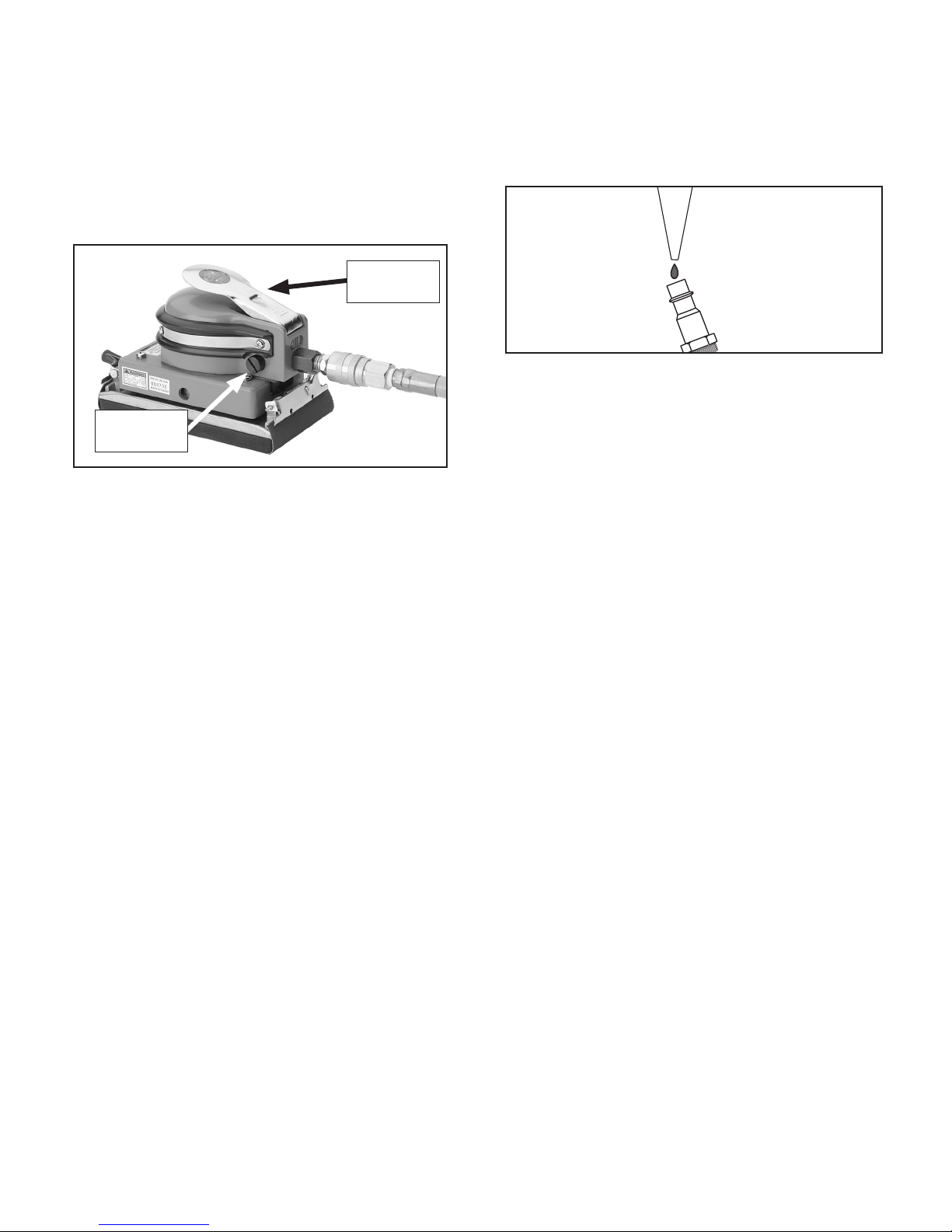

Figure 4. Sander controls.

Maintenance

Lubricate at the beginning of the sanding task.

Place one or two drops of pneumatic tool oil

directly into the air fitting as shown in Figure 5.

Regulator

Knob

A filter/lubricator/regulator setup is not recom-

mended, as excess oil in the tool could spray onto

the workpiece.

Run the sander for a few minutes to eject excess

oil, then wipe the tool down with a rag and begin

sanding. Oil the tool after use or storage.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

Throttle

Lever

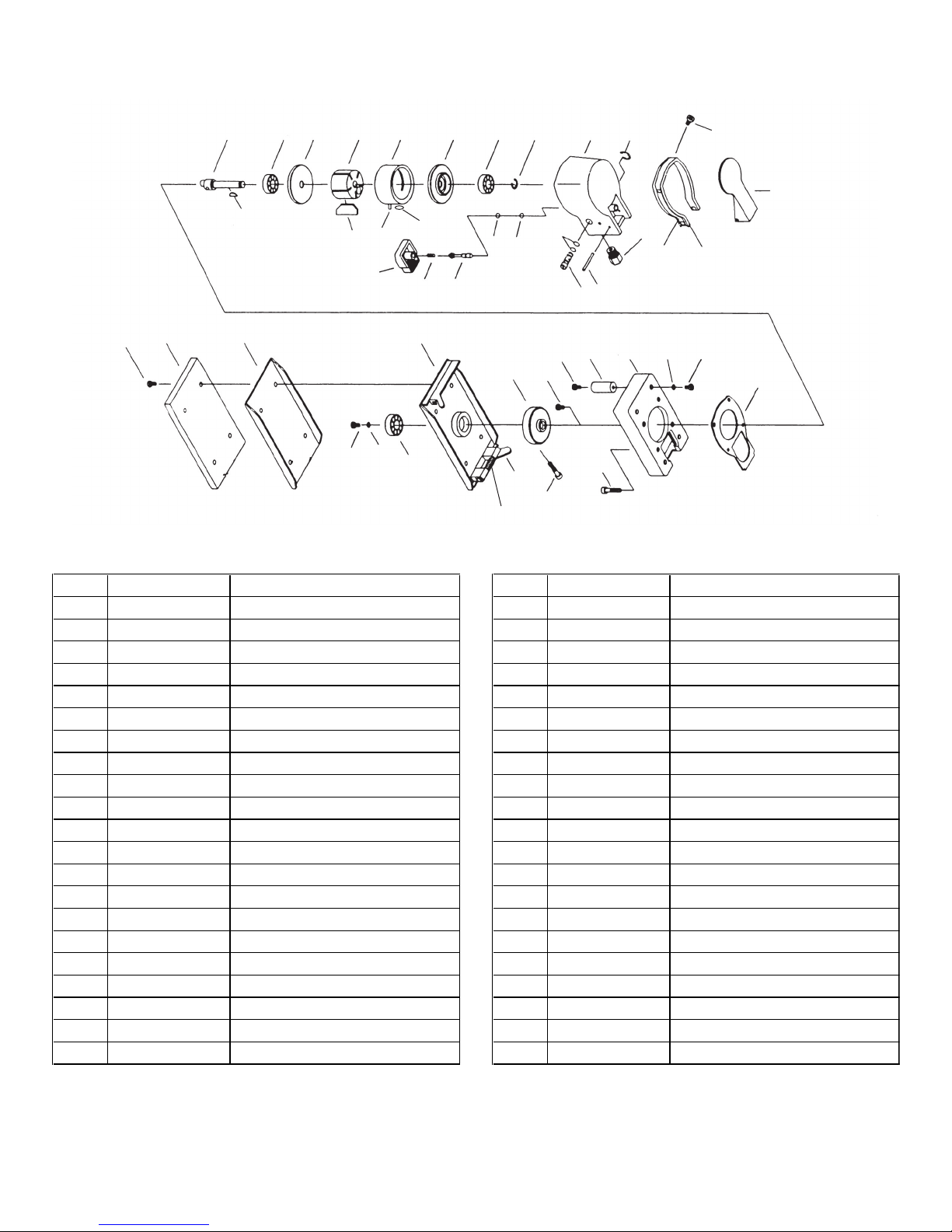

H0594 Parts Breakdown and List



















 







 

 



 









































 





REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PH0594001 MOTOR HOUSING 24 PH0594024 ROTOR SHAFT

3 PH0594003 MUFFLER 25 PH0594025 ROTOR KEY

4 PH0594004 HOUSING ADAPTOR 26 PH0594026 BASE

5 PH0594005 SPRING 27 PH0594027 GASKET

6 PH0594006 O-RING 28 PS09M PHLP HD SCR M5-.8 X 10

7 PH0594007 PLUNGER 29 PLW01M LOCK WASHER 5MM

8 PH0594008 SPEED REGULATOR 30 PH0594030 RUBBER MOUNT

9 PH0594009 O-RING 31 PH0594031 BALANCER

10 PEC08M E-CLIP 16MM 32 PH0594032 BALANCER LOCK SCREW

11 PH0594011 ROLL PIN 2.7 X 36 33 PH0594033 CAP SCREW

12 PH0594012 GRIP BAND 34 PH0594034 CAP SCREW

13 PH0594013 RUBBER GRIP 35 P6200 BALL BEARING 6200ZZ

14 PS07M PHLP HD SCR M4-.7 X 8 36 PH0594036 WASHER

15 PH0594015 THROTTLE LEVER 37 PH0594037 SHAFT LOCK SCREW

16 PH0594016 RETAINING RING 38 PH0594038 SHOE PLATE

17 P6200 BALL BEARING 6200ZZ 39 PH0594039 PAPER CLAMP ASSY

18 PH0594018 END PLATE 40 PH0594040 SANDING PAD

19 PH0594019 CYLINDER 41 PH0594041 STAINLESS STEEL PLATE

20 PH0594020 LOCATING PIN 42 PH0594042 O-RING

21 PH0594021 O-RING 43 PS09M PHLP HD SCR M5-.8 X 10

22 PH0594022 ROTOR 44 PH0594044 TORSION SPRING

23 PH0594023 ROTOR BLADE 45 PS05M PHLP HD SCR M5-.8 X 8
