Grizzly G1015 Manuel utilisateur

KNIFE BELT SANDER/BUFFER

MODEL G1015

PARTS LIST

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

REVISED OCTOBER,1999. PRINTED IN U.S.A.

PARTS LIST DISCLAIMER

This parts list and drawings represent the configuration of the machine as it is currently being shipped. The machine configuration can change as product

improvements are incorporated. If you own an earlier version of the machine, this parts list may not depict your machine exactly. Contact Customer Service

if you have any questions about part differences. Previous parts list versions are not available on-line.

-2- G1015 Knife Belt Sander/Buffer

DIAGRAMS & PARTS LISTS

25 23

G1015 Knife Belt Sander/Buffer -3-

01 P1015001 MOTOR BASE

02 P1015002 MOTOR CASE

03 PS11 PAN HD SCREW 5⁄16" - 18 X 11⁄4"

04 PLW01 LOCK WASHER 5⁄16"

05 PNO2 NUT 5⁄16" - 18

06 P1015006 STATOR WINDING

07 PCP004 CONTACT PLT, LG, INT PT

08 PLW03 LOCK WASHER 3⁄16"

09 PS01 PAN HD SCREW 10 - 24 X 1⁄2"

10 P1015010 ROTOR / SHAFT

11 P1015011 FAN

12 P1015012 CENTRIFUGAL SWITCH

13 P1015013 END BELL

14 P6206 BEARING

16 PS12 PAN HD SCREW 1⁄4" - 20 X 5⁄8"

17 P1015017 CORD CLAMP

18 PS13 PAN HD SCREW 3⁄16" - 24 X 1⁄2"

19 P1015019 POWER CORD

20 P1061018 ON/OFF SWITCH

21 PS01 PHLP HD SCREW 10 - 24 X 1⁄2"

22 PC300B CAPACITOR 300 MDF

23 P1015023 CAPACITOR COVER

24 P1015024 CAPACITOR CLAMP

25 PS06 PAN HD SCREW 3⁄16" - 24 X 3⁄8"

26 P1015026 COVER PLATE

27 PW06 WASHER 1⁄4"

28 PS06 PAN HD SCREW 3⁄16" - 24 X 3⁄8"

29 P1015029 WHEEL FLANGE

31 P1015031 NUT, LEFT-HAND

REF PART DESCRIPTION REF PART DESCRIPTION

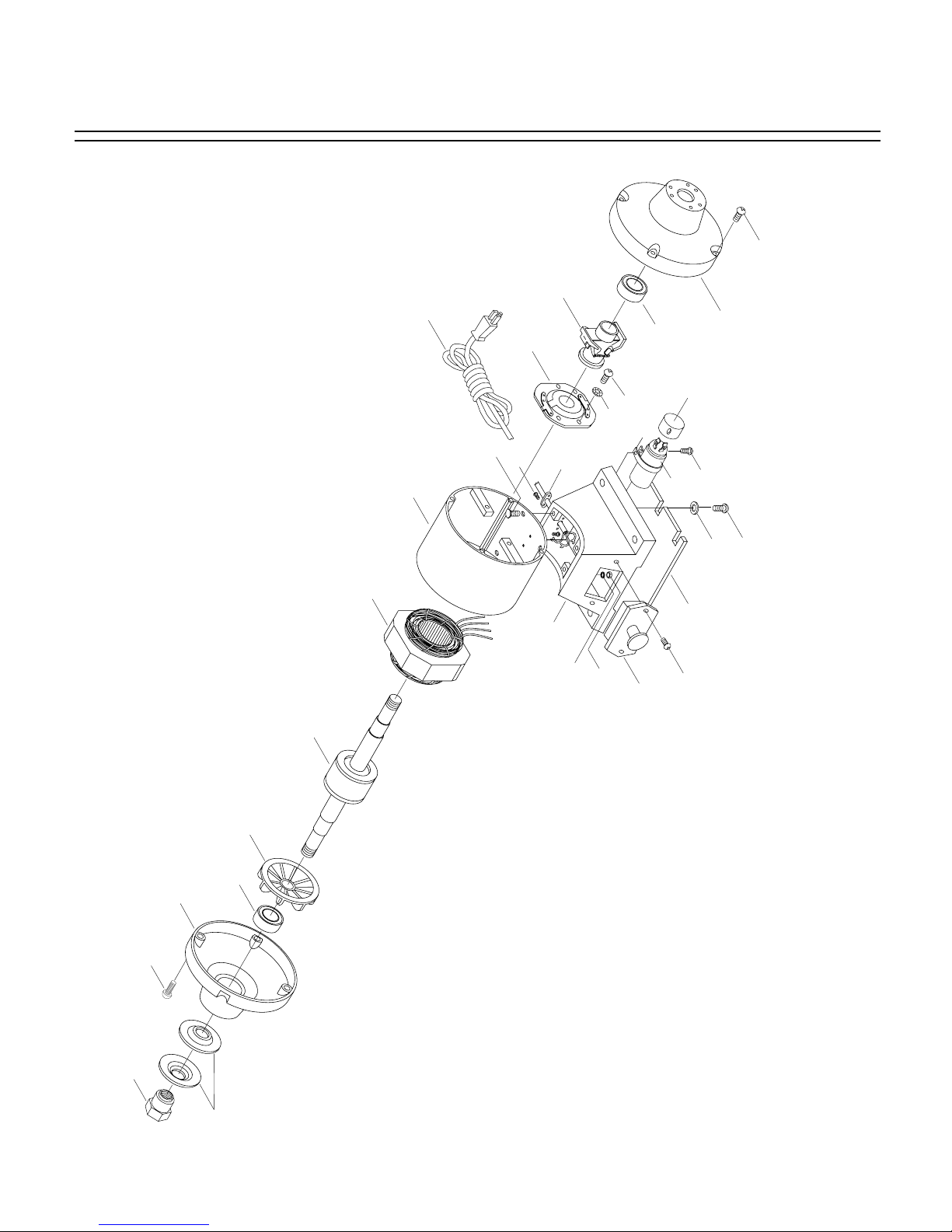

MOTOR ASSEMBLY

-4- G1015 Knife Belt Sander/Buffer

81 78

75A

36A

33C

81A

42A

41A

39A

32A

52A

54 53A 46A 51

47 68 6650 65

57 56A

62A

63 43

48 55A 59

58A 64 67

45 77

6970

38A

60 61

81 34

88 87

G1015 Knife Belt Sander/Buffer -5-

30 P1015030 NUT, RIGHT-HAND

32A P1015032A MOUNTING ARM BRACKET

33C P1015033C PIVOT ARM BRKT/BUSHING

34 PSB03 CAP SCREW 5⁄16" - 18 X 1"

35 PSS08 SETSCREW 5⁄16" - 18 X 1⁄2"

36A P1015036A PIVOT ARM

37 PSS09 SETSCREW 3⁄8" - 16 X 1⁄2"

38A P1015038A SHAFT 1"

39A P1015039A HAND KNOB 3⁄8"-16

40 PW07 WASHER 5⁄16"

41A P1015041A COLLAR FOR 1" SHAFT

42A PSB35 CAP SCREW 1⁄4" - 28 X 5⁄8"

43 P1015043 SPRING

44 P1015044 UPPER SHAFT BRACKET

45 PSS05 SETSCREW 5⁄16" - 18 X 1⁄4"

46A P1015046A TRACKING BRACKET

47 PSB04 CAP SCREW 1⁄4" - 20 X 1⁄2"

48 P1015048 PIVOT BRACKET

49 P1015049 SHAFT

50 P1015050 TRACKING LEVER

51 PNO8 NUT 3⁄8" - 16

52A P1015052A TRACKING KNOB

53A P1015053A SPRING

54 PW01 WASHER 1⁄2"

55A P1015055A TENSION BAR

56A P1015056A TENSION KNOB SHAFT

57 P1015057 TENSION KNOB

58A PRP03M ROLL PIN 5 X 20

59 PSB05 CAP SCREW 1⁄4" - 20 X 3⁄4"

60 PSS10 SETSCREW 1⁄4" - 20 X 5⁄8"

61 PNO5 NUT 1⁄4" - 20

62A P1015062A SPRING BUSHING

63 PSB06 CAP SCREW 1⁄4" - 20 X 1"

64 P1015064 AXLE

65 P1015065 PIVOT BUSHING

66 PSS03 SETSCREW 1⁄4" - 20 X 3⁄8"

67 P1015067 WHEEL GUARD

68 PSS05 SETSCREW 5⁄16" - 18 X 1⁄4"

69 P6204 BEARING

70 PW06 FLAT WASHER 1⁄4"

71 PSB04 CAP SCREW 1⁄4" - 20 X 1⁄2"

72 P1015072 IDLER WHEEL

73 P1015073 DRIVE WHEEL

74 P1015074 SHOE BRACKET

75 P1015075 SHOE

75A P1015075A GRAPHITE PAD 2 X 9

76 PSB07 CAP SCREW 5⁄16" - 18 X 3⁄4"

77 PRP05 ROLL PIN 1⁄8" X 1"

78 P1015078 TOOL REST BRACKET

79 P1015079 TOOL REST BRACKET

80 PSB03 CAP SCREW 5⁄16" - 18 X 1"

81 PW07 WASHER 5⁄16"

81A P1015081A SPACER

82 PSB07 CAP SCREW 5⁄16" - 18 X 3⁄4"

83 P1015083 TOOL REST

84 G2745 SANDING BELT

85 P1015085 COMPLETE MOTOR

86 PSB11 CAP SCREW 5⁄16" - 18 X 11⁄4"

87 PB19 CAP SCREW 1⁄4" - 20 X 1⁄2"

88 P1015088 MOUNTING ADAPTER

89 P1015089 WHEEL FLANGE

REF PART DESCRIPTION REF PART DESCRIPTION

SANDING ARM ASSEMBLY
