Grizzly H6238 Manuel utilisateur

Adjustable Drill

Press Support

MODEL H6238

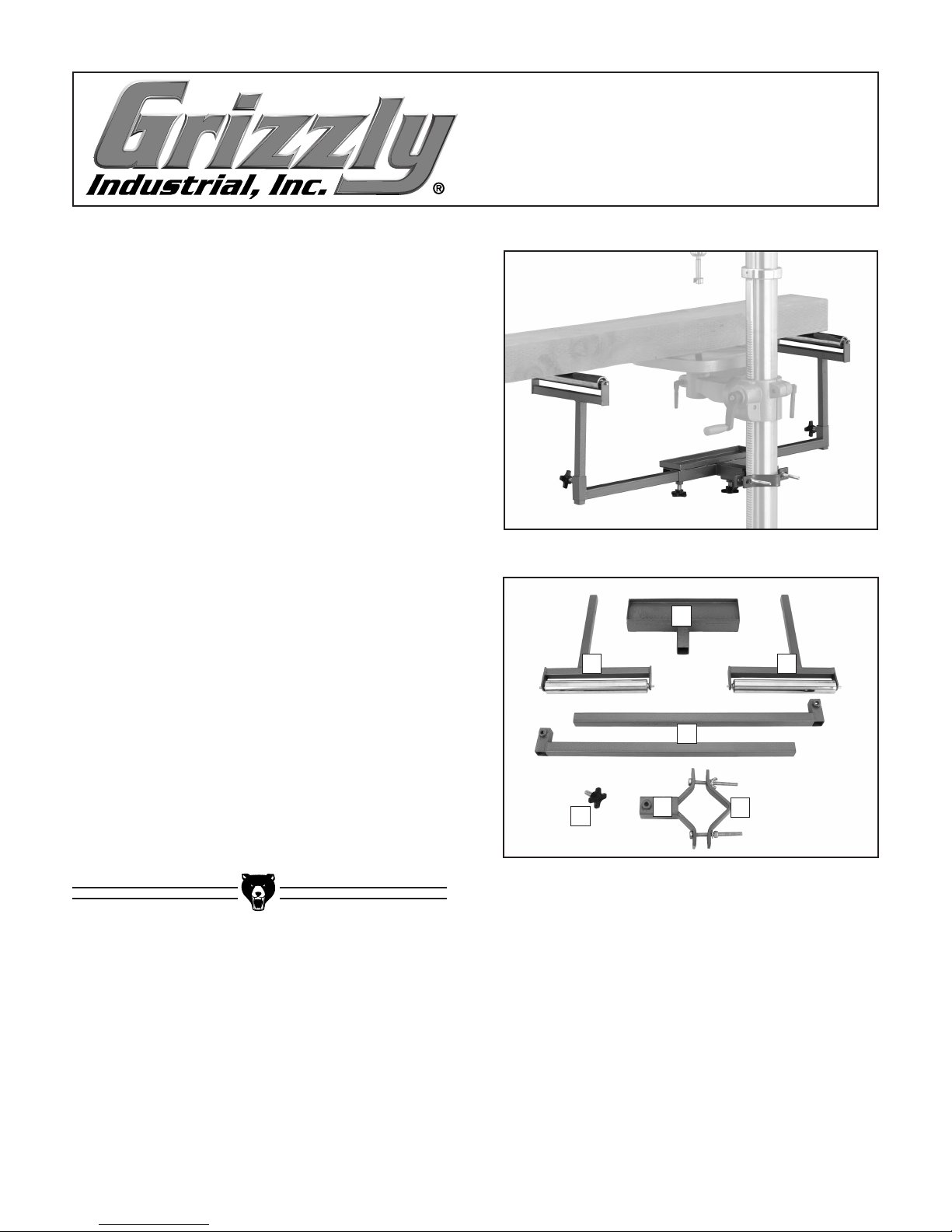

Introduction

The Model H6238 Adjustable Drill Press Support

(Figure 1) provides stability and control for drilling

long workpieces.

The Model H6238 was carefully packed when

it left our warehouse. If you discover this unit

is damaged after you have signed for delivery,

please immediately call Customer Service at

(570) 546-9663 for advice.

Save the containers and all packing materials for

possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condi-

tion of your shipment, you should inventory the

contents.

Inventory (Figure 2)

A. Column Clamp ............................................ 1

B. Clamp Plate ................................................ 1

C. Center Support ........................................... 1

D. Extension Arms .......................................... 2

E. Roller Supports ........................................... 2

F. Lock Knob M10-1.5 .................................... 5

Clamp Hardware ..........................................

—Hex Bolts M8-1.25 x 100 ........................ 2

—Lock Nut M8-1.25 ................................... 1

—Wing Nut M8-1.25 ................................... 1

Figure 2. Inventory.

Figure 1. Adjustable Drill Press Support.

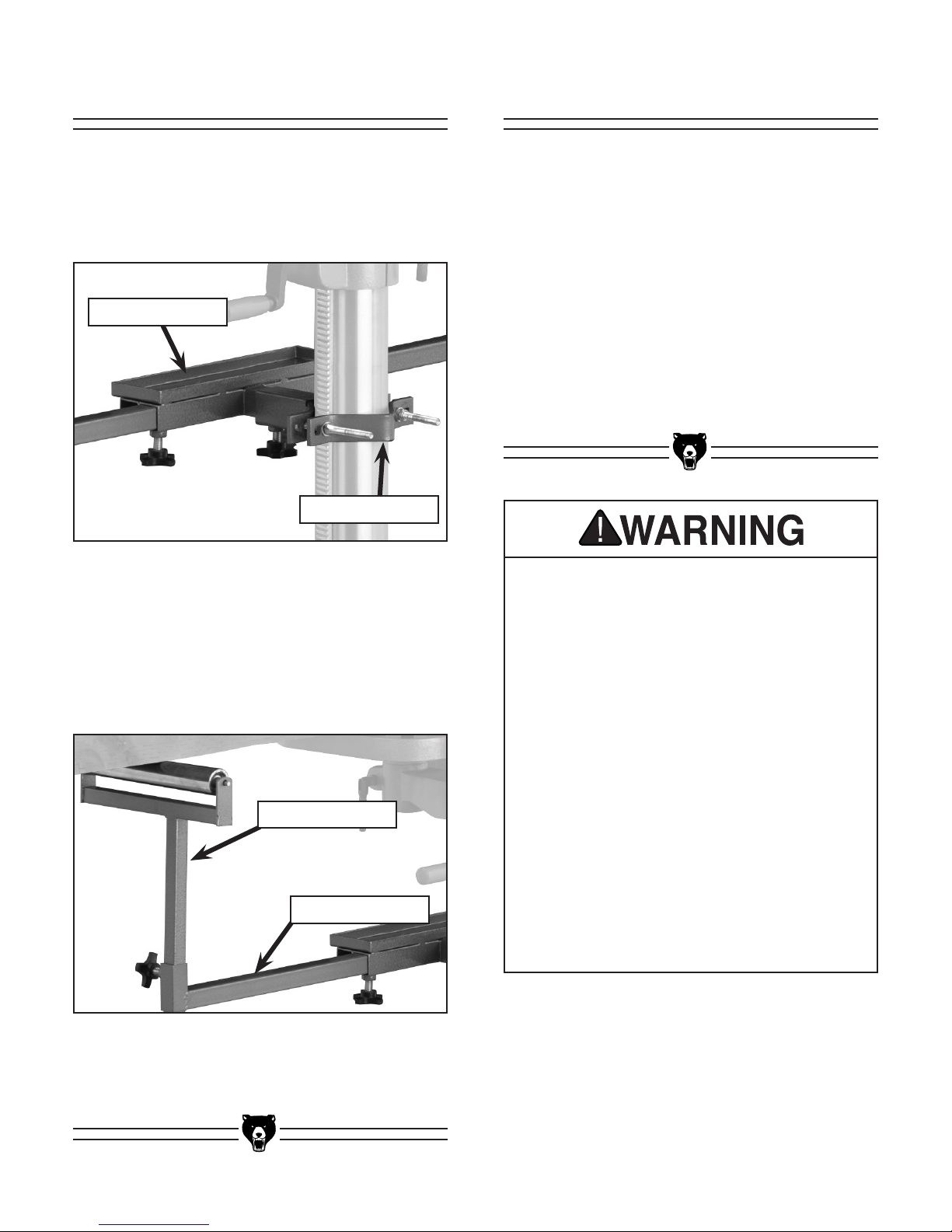

1. Use the hex bolts with a lock nut on one side

of the column clamp and a wing nut on the

other side to clamp the drill column as shown

in Figure 3.

ASSEMBLY

Figure 3. Column clamp.

1. Loosen the wing nut on the column clamp

and rotate the drill press support perpendicu-

lar to the drill head. Tighten the wing nut.

2. Place a straightedge on the drill press table

and adjust the roller supports until they are

the same height as the drill press table.

3. Move the extensions in or out as necessary to

accommodate the length of the workpiece.

If you need additional help with these procedures,

call our service department at: (570) 546-9663.

ADJUSTMENTS

Failure to follow these instructions will

result in serious personal injury:

1. The addition of the Drill Press Support

increases the tipping hazard. Bolt the drill

press to a solid surface to prevent tipping.

2. Make sure the extension arms are inserted at

least 2" into the center support.

3. Use additional supports for extra long or

unusually heavy workpieces.

4. Push extension arms in when not in use to

reduce obstructions in your shop.

5. Center the workpiece to prevent tipping.

6. DO NOT exceed the weight capacity of the

drill press table.

2. Slide the center support into the column

clamp and secure with a lock knob as shown

in Figure 3.

3. Insert the extensions into the central support

and secure with lock knobs (Figure 4).

Figure 4. Support assembly.

4. Slide the roller supports into the extensions

and secure with lock knobs (Figure 4).

Center Support

Column Clamp

Roller Support

Extension Arm

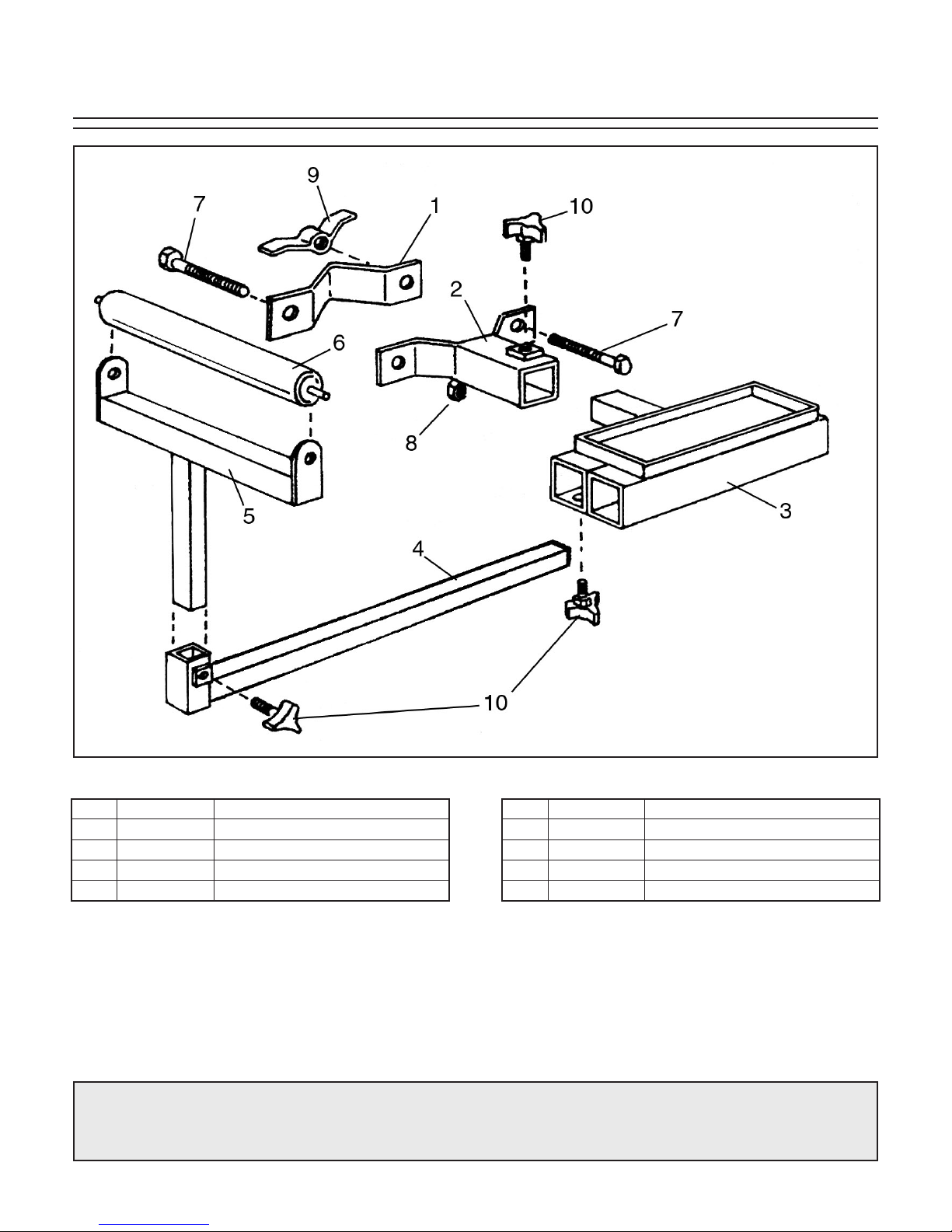

REF PART # DESCRIPTION

1 PH6238001 CLAMP PLATE

2 PH6238002 COLUMN CLAMP

3 PH6238003 CENTER SUPPORT

4 PH6238004 EXTENSION ARM

5 PH6238005 ROLLER SUPPORT BRACKET

REF PART # DESCRIPTION

6 PH6238006 10" ROLLER

7 PB45M HEX BOLT M8-1.25 X 100

8 PLN04M LOCK NUT M8-1.25

9 PWN02M WING NUT M8-1.25

10 PH6238010 LOCK KNOB M10-1.5

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#EW6462 PRINTED IN CHINA

PARTS BREAKDOWN
