Grizzly G0626 Guide de démarrage rapide
G0626/G0627 Downdraft Table -25-

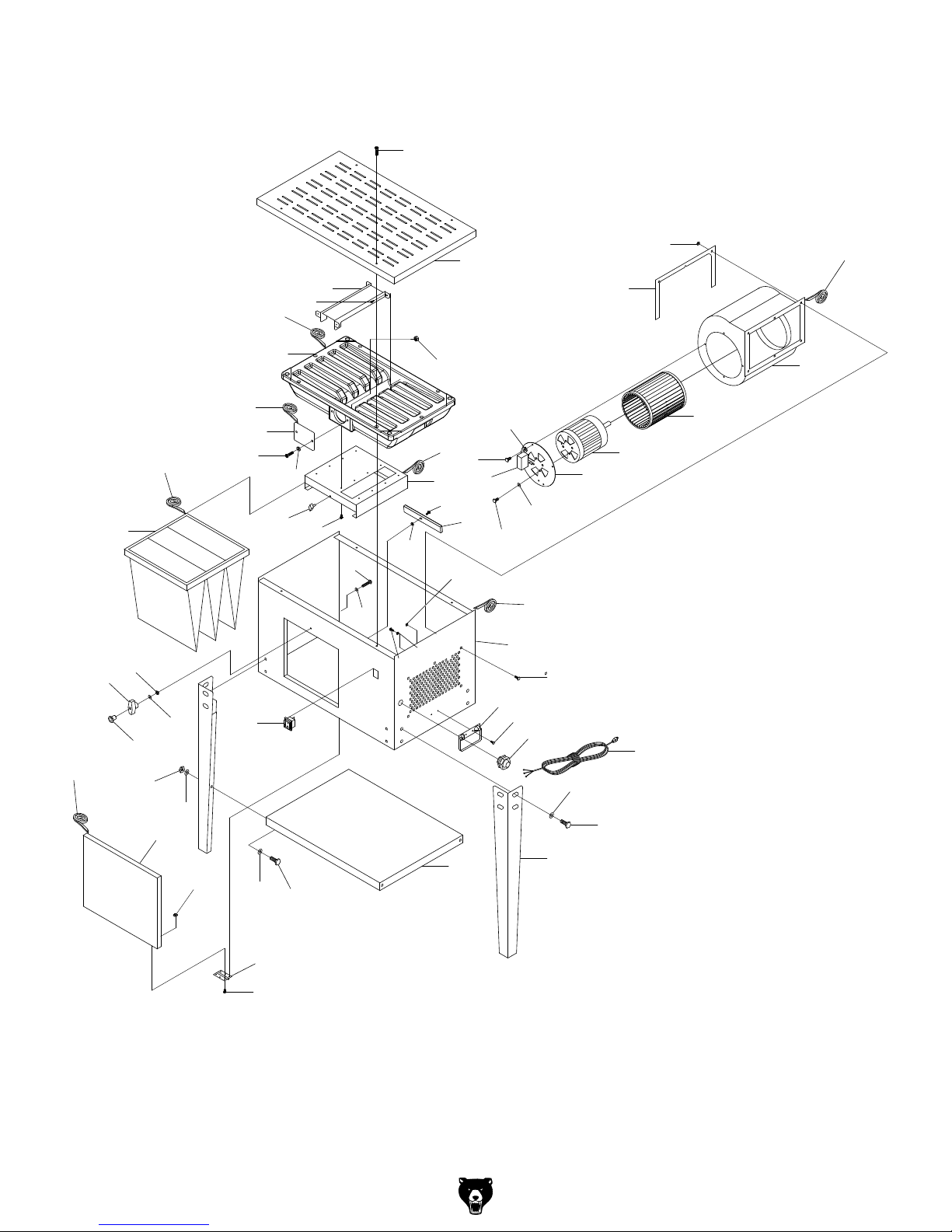

G0626 Parts Breakdown
-26- G0626/G0627 Downdraft Table
G0626 Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0626001 TABLE TOP 31 P0626031 KNOB M5-.8
2 PFH15 FLAT HD SCR 1/4-20 X 1 1/2 32 P0626032 SWITCH
3 P0626003 DUST DEFLECTOR 33 P0626033 HANDLE
4 PHTEK5M TAP SCREW M4 X 12 34 PS38M PHLP HD SCR M4-.7 X 10
5 P0626005 TABLE BASE 35 PN04M HEX NUT M4-.7
6 P0626006 OUTLET COVER 36 P0626036 STRAIN RELIEF
7 PB31 HEX BOLT 1/4-20 X 1 37 P0626037 POWER CORD
8 P0626008 GASKET 38 P0626038 LEG
10 PN05 HEX NUT 1/4-20 39 PW07 FLAT WASHER 5/16
11 P0626011 DUST FILTER CASE 40 PB07 HEX BOLT 5/16-18 X 3/4
12 P0626012 KNOB M6-1 X 14 41 P0626041 BASE SHELF
13 P0626013 TAP SCREW M5 X 12 42 PW07 FLAT WASHER 5/16
14 P0626014 FILTER BAG 43 PB07 HEX BOLT 5/16-18 X 3/4
15 P0626015 BLOWER SUPPORT 44 PN02 HEX NUT 5/16-18
16 PN05 HEX NUT 1/4-20 45 P0626045 CABINET DOOR
17 P0626017 BLOWER HOOD 46 P0626046 DOOR HINGE
18 P0626018 IMPELLER 47 PS38M PHLP HD SCR M4-.7 X 10
19 P0626019 MOTOR 57 P0626057 INT TOOTH WASHER 5MM
20 P0626020 MOTOR SUPPORT 58 PN06M HEX NUT M5-.8
20-1 P0626020-1 CAPACITOR 16MFD 250VAC 59 P0626059 GASKET
21 PS38M PHLP HD SCR M4-.7 X 10 60 P0626060 GASKET
22 PS68M PHLP HD SCR M6-1 X 10 61 P0626061 GASKET
23 PW06 FLAT WASHER 1/4 62 PN04M HEX NUT M4-.7
24 PS02 PHLP HD SCR 1/4-20 X 3/4 63 P0626063 TAP SCREW M5 X 12
25 PS06M PHLP HD SCR M5-.8 X 20 64 P0626064 GROUNDING BAR
26 P0626026 TABLE CABINET 65 P0626065 INT TOOTH WASHER 5MM
27 PS54M PHLP HD SCR M5-.8 X 45 67 P0626067 GASKET
28 PN06M HEX NUT M5-.8 68 P0626068 GASKET
29 P0626029 FLAT WASHER 3/16 69 P0626069 GASKET
30 P0626030 KNOB 5/16-18
G0626/G0627 Downdraft Table -27-

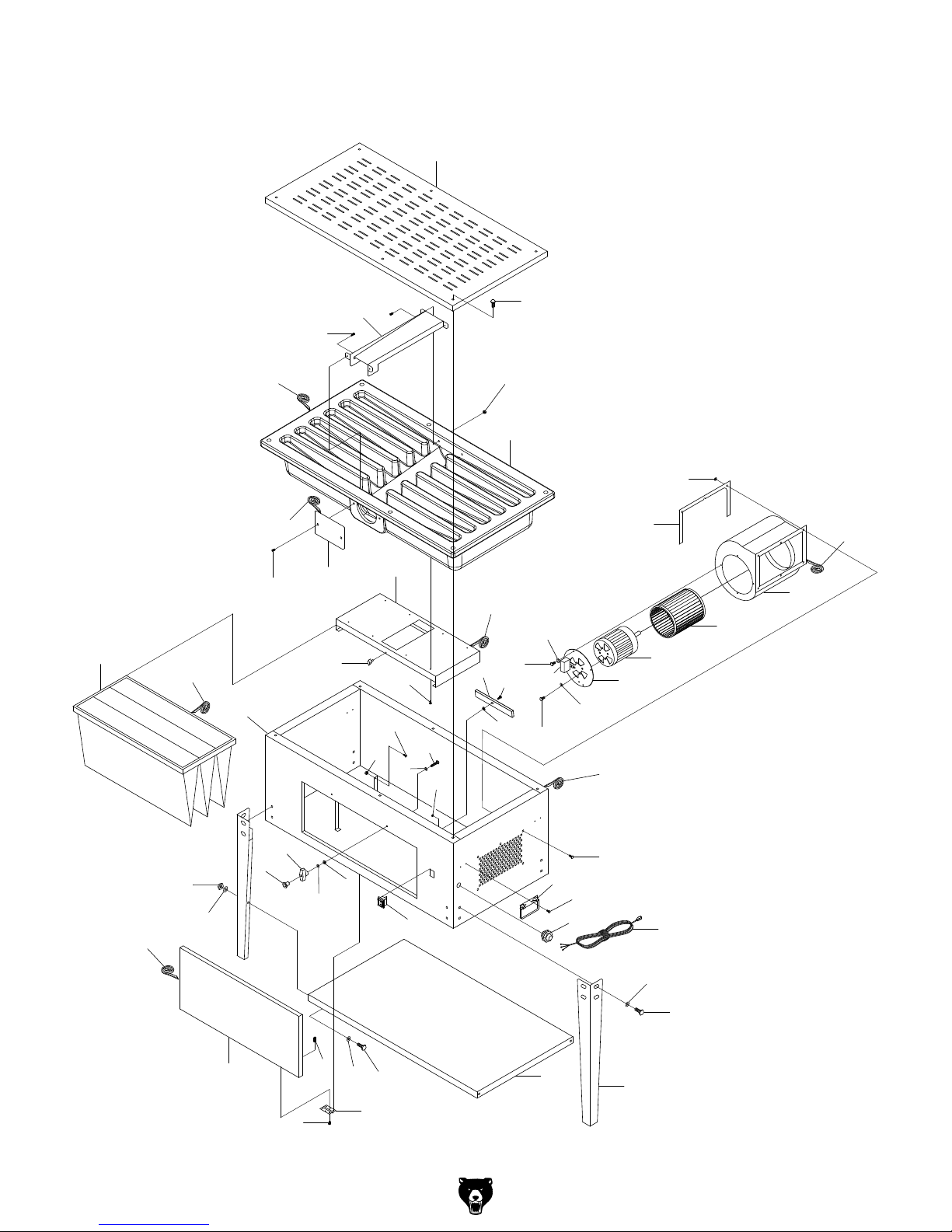

G0627 Parts Breakdown
-28- G0626/G0627 Downdraft Table
G0627 Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0627001 TABLE TOP 31 P0626031 KNOB M5-.8
2 PFH15 FLAT HD SCR 1/4-20 X 1 1/2 32 P0626032 SWITCH
3 P0627003 DUST DEFLECTOR 33 P0626033 HANDLE
4 PHTEK5M TAP SCREW M4 X 12 34 PS38M PHLP HD SCR M4-.7 X 10
5 P0627005 TABLE BASE 35 PN04M HEX NUT M4-.7
7 PN05 HEX NUT 1/4-20 36 P0626036 STRAIN RELIEF
8 P0627008 OUTLET COVER 37 P0626037 POWER CORD
9 PB31 HEX BOLT 1/4-20 X 1 38 P0627038 LEG
10 P0627010 GASKET 39 PW07 FLAT WASHER 5/16
11 P0627011 DUST FILTER CASE 40 PB07 HEX BOLT 5/16-18 X 3/4
12 P0626012 KNOB M6-1 X 14 41 P0627041 BASE SHELF
13 P0627013 TAP SCREW M5 X 12 42 PW07 FLAT WASHER 5/16
14 P0627014 FILTER BAG 43 PB07 HEX BOLT 5/16-18 X 3/4
15 P0627015 BLOWER SUPPORT 44 PN02 HEX NUT 5/16-18
16 PN05 HEX NUT 1/4-20 45 P0627045 CABINET DOOR
17 P0627017 BLOWER HOOD 46 P0626046 DOOR HINGE
18 P0627018 IMPELLER 47 PS38M PHLP HD SCR M4-.7 X 10
19 P0627019 MOTOR 57 P0627057 INT TOOTH WASHER 5MM
20 P0627020 MOTOR SUPPORT 58 PN06M HEX NUT M5-.8
20-1 P0626020-1 CAPACITOR 16MFD 250VAC 59 P0627059 GASKET
21 PS38M PHLP HD SCR M4-.7 X 10 60 P0627060 GASKET
22 PS68M PHLP HD SCR M6-1 X 10 61 P0627061 GASKET
23 PW06 FLAT WASHER 1/4 62 PN04M HEX NUT M4-.7
24 PS02 PHLP HD SCR 1/4-20 X 3/4 63 P0627063 TAP SCREW M5 X 12
25 PS06M PHLP HD SCR M5-.8 X 20 64 P0627064 GROUNDING BAR
26 P0627026 TABLE CABINET 65 P0627065 INT TOOTH WASHER 5MM
27 PS54M PHLP HD SCR M5-.8 X 45 68 P0627068 GASKET
28 PN06M HEX NUT M5-.8 69 P0627069 GASKET
29 P0627029 FLAT WASHER 3/16 70 P0627070 GASKET
30 P0626030 KNOB 5/16-18
G0626/G0627 Downdraft Table -29-
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at (800) 523-4777 or www.grizzly.com to order new labels.

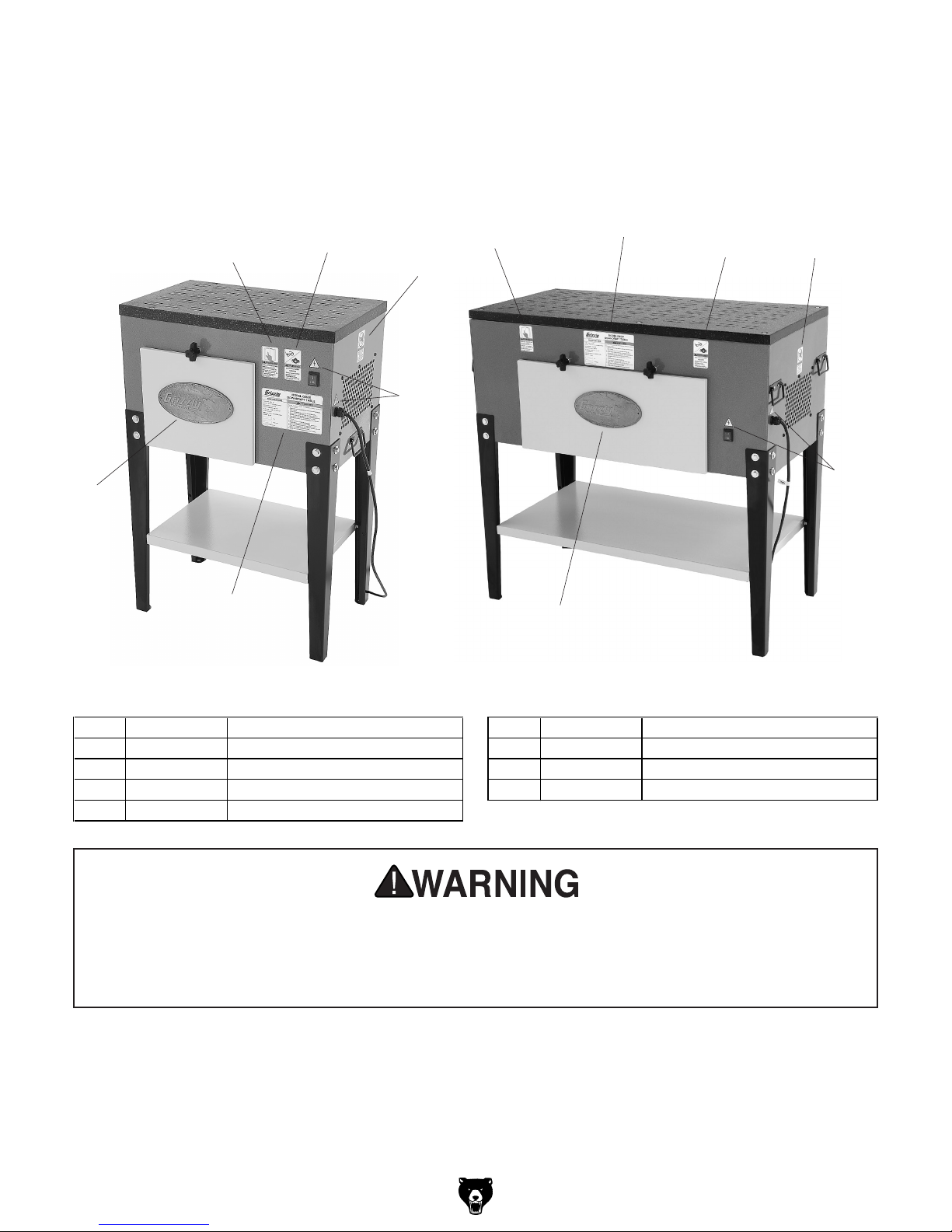

G0626/G0627 Safety Label Placement
REF PART # DESCRIPTION REF PART # DESCRIPTION
48 P0626048 G0626 MACHINE ID LABEL 53 P0626053 NO HANDS IN OUTLET
48 P0627048 G0627 MACHINE ID LABEL 54 PLABEL-14 ELECTRICITY LABEL
49 G8588 GRIZZLY NAMEPLATE 55 PPAINT-1 GRIZZLY GREEN TOUCH UP PAINT
50 PLABEL-43 RESPIRATOR/GLASSES LABEL 56 PPAINT-11 GRIZZLY PUTTY TOUCH UP PAINT
52 PLABEL-12A READ MANUAL - VERTICAL
48 50 53
54
49
52
53
54
52
48
49
50
