Introduction

This Micro Die Grinder allows extreme flexibility

in all kinds of environments. No-load speed is

56,000 RPM and requires 90 PSI of air pressure

with 7 CFM of compressor capacity. Collet size

is 1⁄8".

Inventory

A. Micro Die Grinder ....................................... 1

B. 1⁄4" NPT Air Fitting ....................................... 1

C. Collet Wrenches ......................................... 2

D. Oil Bottle ..................................................... 1

Operation

Insert your 1⁄8" tool bit into the collet and tighten

with the collet wrenches provided. Make sure

the tool you use is rated for 56,000 RPM or less.

Connect air fitting to your regulated air source.

MODEL H0591

MICRO DIE GRINDER

INSTRUCTION SHEET

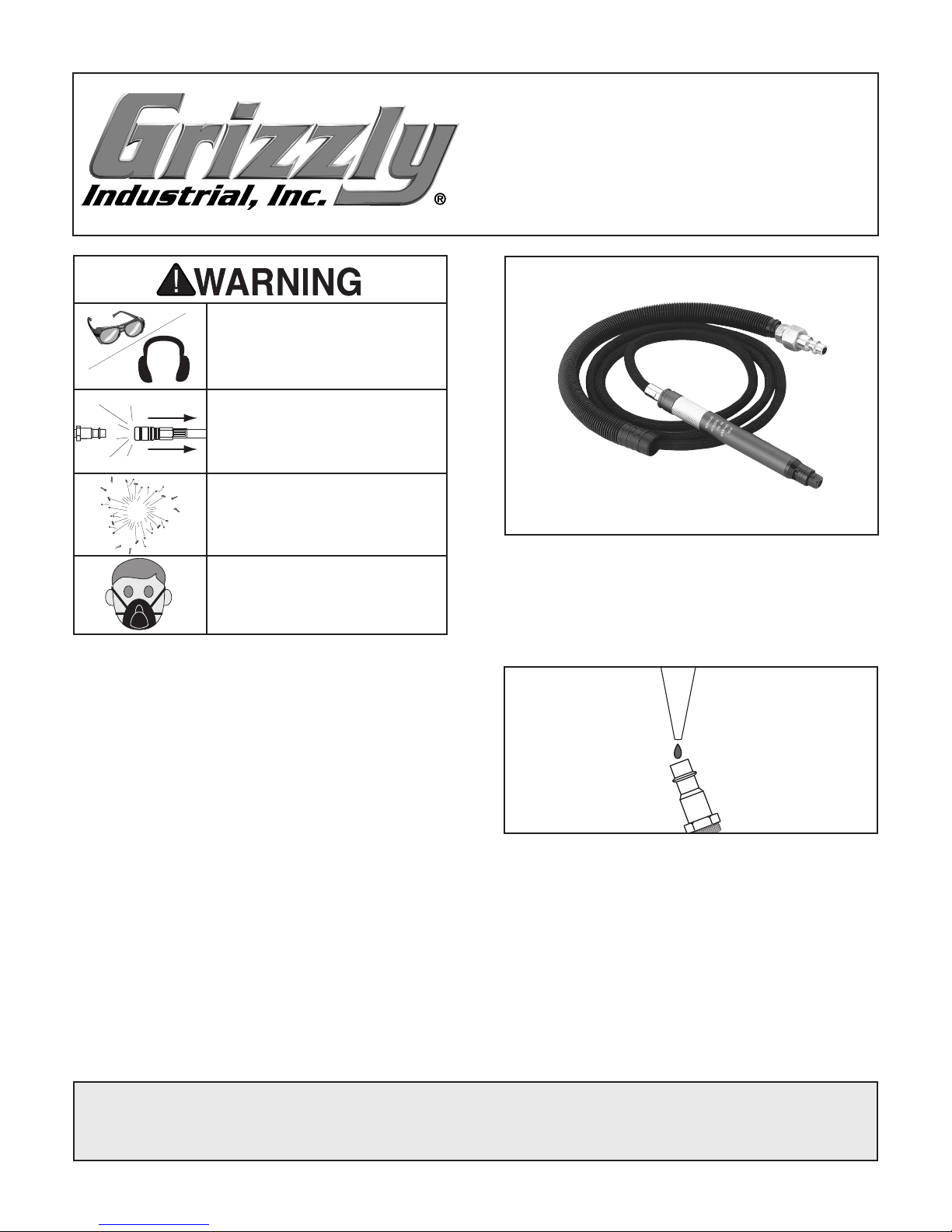

Figure 1. Model H0591.

Figure 2. Lubricating directly into air fitting.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8127 PRINTED IN TAIWAN

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EXPLOSION HAZARD!

Never exceed 90 PSI!

Only use cutters rated for

56,000 RPM or less!

EYE/EAR INJURY HAZARD!

Wear safety glasses and

hearing protection during

use of this tool!

Micro die grinder MUST have 3-4 drops of oil

directly dropped into the air fitting before each use

as shown in Figure 2.

RESPIRATORY HAZARD!

Grinding produces fine

dust. Wear the appropriate

protection during use!

H0591 Parts Breakdown and List





      















   





REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PH0591001 HOUSING PLUG 14 PH0591014 CYLINDER

2 PH0591002 REAR END HOLDER 15 PH0591015 ROTOR BLADES

3 PH0591003 SCREW 16 PH0591016 ROTOR

4 PH0591004 O-RING 17 PH0591017 LATERAL

5 PH0591005 BUSHING 18 PH0591018 SPACER

6 PH0591006 SLIDING KNOB 19 PH0591019 BALL BEARING

7 PH0591007 PIN 20 PH0591020 SPINDLE

8 PH0591008 INTAKE STEEL TUBE 21 PH0591021 FRONT COVER

9 PH0591009 SLEEVE 22 PH0591022 COLLET

10 PH0591010 INTAKE PLATE 23 PH0591023 COLLET NUT

11 PH0591011 BALL BEARING 24 PH0591024 WRENCH SET

12 PH0591012 BEARING PLATE 25 PH0591025 OIL BOTTLE

13 PH0591013 PIN
