GreenWorks C-220 Manuel utilisateur

40V LITHIUM-ION BATTERY CHARGER

Read all safety rules and instructions carefully before operating this tool.

Owner’s Manual

TOLL-FREE HELPLINE: 1-833-493-5483

C-220

C-400

www.greenworkselite.com

CONTENTS

Contents .............................................................................................................................. 2

Product Specications ......................................................................................................... 2

Important Safety Instructions .............................................................................................. 3

Symbols............................................................................................................................... 5

Know Your Charger.............................................................................................................. 6

Operation............................................................................................................................. 7

Maintenance ...................................................................................................................... 10

Troubleshooting....................................................................................................................11

Limited Warranty.................................................................................................................... 12

PRODUCT SPECIFICATIONS

CHARGER WARRANTY

CHARGEUR

GARANTIE DE

GARANTÍA DE LA

CARGADOR

YEAR/ANS/AÑOS

40V Lithium-ion Battery Charger

Model ............................................................................................................................C-220

Input ......................................................................................................120VAC 50/60Hz 1.5A

Output .................................................................................................................40V DC 2.2A

Weight .......................................................................................................... 1.48 lbs (0.67 kg)

Class .................................................................................................. Class 2 Battery Charger

40V Lithium-ion Battery Charger

Model ............................................................................................................................C-400

Input .......................................................................................... 120VAC 50Hz/60Hz 2.6A max

Output ................................................................................................................... 40V DC 4A

Weight .......................................................................................................... 2.29 lbs (1.04 kg)

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS – SAVE

THESE INSTRUCTIONS

DANGER – TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, CAREFULLY FOLLOW THESE

INSTRUCTIONS

Read and understand all instructions before using this product. Failure to follow all

instructions listed below may result in electric shock, re, and/or serious personal injury.

WARNING

FOR INDOOR USE ONLY.

CAUTION

Risk of Electric Shock.

Dry location use only.

Store indoors, and do not expose to rain or water, avoid direct sunshine.

CAUTION

RISK OF FIRE OR ELECTRIC SHOCK, DO NOT CONNECT OUTPUT TERMINALS.

CAUTION

CHARGE ONLY RECHARGEABLE GW ELITE 40V LI-ION BATTERY PACK L-300 /

L-600, OTHER TYPES OF BATTERIES MAY BURST CAUSING PERSONAL INJURY AND

DAMAGE.

• SAVE THESE INSTRUCTIONS - This manual contains important safety and operating

instructions for battery charger C-220 / C-400.

• Before using battery charger, read all instructions and cautionary markings on

battery charger, battery, and product using battery.

• To reduce the risk of re and electric shock, store in a temperature- and humidity-

controlled indoor area relatively free of conductive contaminants.

• Use of an attachment not recommended or sold by the battery charger manufacturer

may result in a risk of re, electric shock, or injury to persons. Following this rule will

reduce the risk of electric shock, re, or serious personal injury.

• Do not abuse cord or charger. Never use the cord to carry the charger. Do not pull the

charger cord rather than the plug when disconnecting from the electrical outlet. Damage to

the cord or charger could occur and create an electric shock hazard. Bring to an authorized

service center if cords are damaged.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise

damaged in any way. Take it to an authorized service center for electrical check to

IMPORTANT SAFETY INSTRUCTIONS

determine if the charger is in good working order.

• Do not cover the ventilation slots on the top of the charger. Do not set the charger on a

soft surface i.e. blanket, pillow. Keep the ventilation slots of the charger clear.

• Do not probe the charger with conductive materials.

• Do not disassemble charger. Take it to an authorized service center when service or repair

is required. Incorrect reassembly may result in a risk of electric shock or re.

• Disconnect charger from the power supply when not in use. This will reduce the risk of

electric shock or damage to the charger if metal items should fall into the opening. It also will

help prevent damage to the charger during a power surge.

• Do not use a damp cloth or detergent to clean the battery or battery charger. Clean /

wipe down with a dry cloth.

• Do not allow the battery pack or charger to overheat. If they are warm, allow them to

cool down. Recharge only at room temperature.

• Unplug the charger before cleaning and when there is no battery pack in the charger.

• Do not try to connect two chargers together.

• Do not allow liquid inside the charger.

• Do not try to use the charger for any other purpose than what is presented in this

manual.

• Save these instructions. Refer to them frequently and use them to instruct others who

may use this tool. If you loan someone this tool, loan them these instructions also to prevent

misuse of the product and possible injury.

• Conrm the voltage in each country before using the charger.

• If the shape of the plug does not t the power outlet, use an attachment plug adaptor

of the proper conguration for the power outlet.

WARNING(PROPOSITION 65)

This product and some dust created by power sanding, sawing, grinding, drilling, and other

construction activities may contain chemicals, including lead, known to cause cancer, birth

defects or other reproductive harm. Wash hands after handling.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the product better and

safer.

SYMBOL NAME DESIGNATION/EXPLANATION

V Volts Voltage

Hz Hertz Frequency (cycles per second)

W Watts Power

Direct Current Type or a characteristic of current

Wet Conditions Alert Do not expose to rain or use in damp locations.

Read The Operator’s Manual

To reduce the risk of injury, user must read and

understand operator’s manual before using

this product.

Safety Alert Precautions that involve your safety.

The following signal words and meanings are intended to explain the levels of risk associated

with this product.

SYMBOL SIGNAL MEANING

DANGER Indicates an imminently hazardous situation, which, if not avoided,

will result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which, if not avoided,

could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which, if not avoided,

may result in minor or moderate injury.

CAUTION (Without Safety Alert Symbol) Indicates a situation that may result

in property damage.

KNOW YOUR CHARGER

The safe use of this product requires an understanding of the information on the product and in

this operator’s manual as well as a knowledge of the project you are attempting. Before using

this product, familiarize yourself with all operating features and safety rules.

Electrical Contacts

LED Lights Cooling Air Port

LED Lights

Electrical Contacts

Cooling Air Port

Wall Mounting Holes

Power Cord

Wall Mounting Holes

OPERATION

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

WARNING

Changes or modications to this unit not expressly approved by the manufacturer for compliance

could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING

Do not allow familiarity with products to make you careless. Remember that a careless fraction of a

second is sufcient to inict serious injury.

WARNING

Do not use any attachments or accessories not recommended by the manufacturer of this product.

The use of attachments or accessories not recommended can result in serious personal injury.

CAUTION

Charge in a well ventilated area. Do not block charger vents. Keep them clear to allow proper

ventilation.

CHARGING PROCEDURE

Note: The battery is not shipped fully charged. It is recommended to fully charge before rst use

to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a

memory and may be charged at any time.

OPERATION

Low voltage charging:

If the battery has been stored with little to no charge for a long period of time, the charger will go

into recovery mode, which will take 20 hrs to fully charge the battery. This will enhance the life of

the battery. Once it is fully charged, the next charge will return to standard charging.

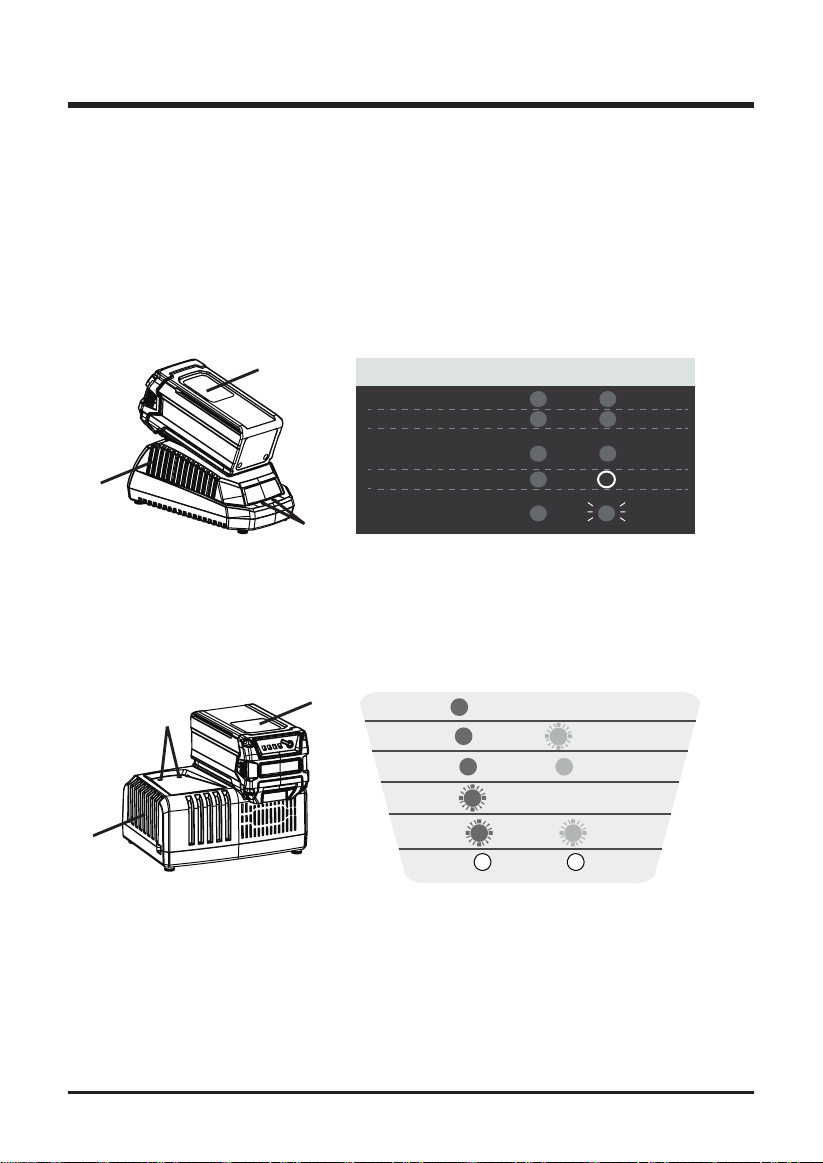

1. Plug the charger (1) into an AC power outlet.

2. Insert the battery pack (2) into the charger (1).

This is a diagnostic charger. The Charger LED Lights (3) will illuminate in specic order to

communicate the current battery status. They are as follows:

False Defect Note:

When the battery is inserted into the charger, and the status LED ashes, remove the battery

from the charger for 1 minute, then reinsert. If the status LED indicates normal than the battery

pack is good. If the status LED is still blinking, remove the battery pack and unplug the charger.

Wait 1 minute and plug the charger back in and reinsert the battery pack. If the status LED

indicates normal than the battery pack is good. If the status LED is still blinking then the battery

pack is defective and needs to be replaced.

False Defect Note:

When the battery is inserted into the charger, LED 1 ashes RED and LED 2 ashes Green,

remove the battery from the charger for 1 minute, then reinsert. If the status LEDs indicate

normal, then the battery pack is good. If the status LED 1 and LED 2 are still blinking, remove the

battery pack and unplug the charger. Wait 1 minute and plug the charger back in and reinsert the

battery pack. If the status LEDs indicate normal than the battery pack is good. If the status LED 1

and LED 2 are still blinking then the battery pack is defective and needs to be replaced.

CHARGING PROCEDURE (LED INDICATOR)

BATTERY IS CHARGING:

FULLY CHARGED:

BATTERY IS TOO WARM:

(REMOVE FOR APPROX. 30

MINUTES TO ALLOW TO COOL)

DEFECTIVE BATTERY:

(REMOVE AND REPLACE WITH

NEW BATTERY IF THIS OCCURS)

NO BATTERY PRESENT

GREEN

ORANGE

OFF

RED

RED RED

RED

BLINKING

C-220

C-400

3STAND BY

RED OFF

OFF

RED

LED 1

BLINKING

RED

BLINKING

GREEN

BLINKING

GREEN

BLINKING

RED

CHARGING

FULLY CHARGED

HIGH TEMP.

ERROR

GREEN

LED 2

OPERATION

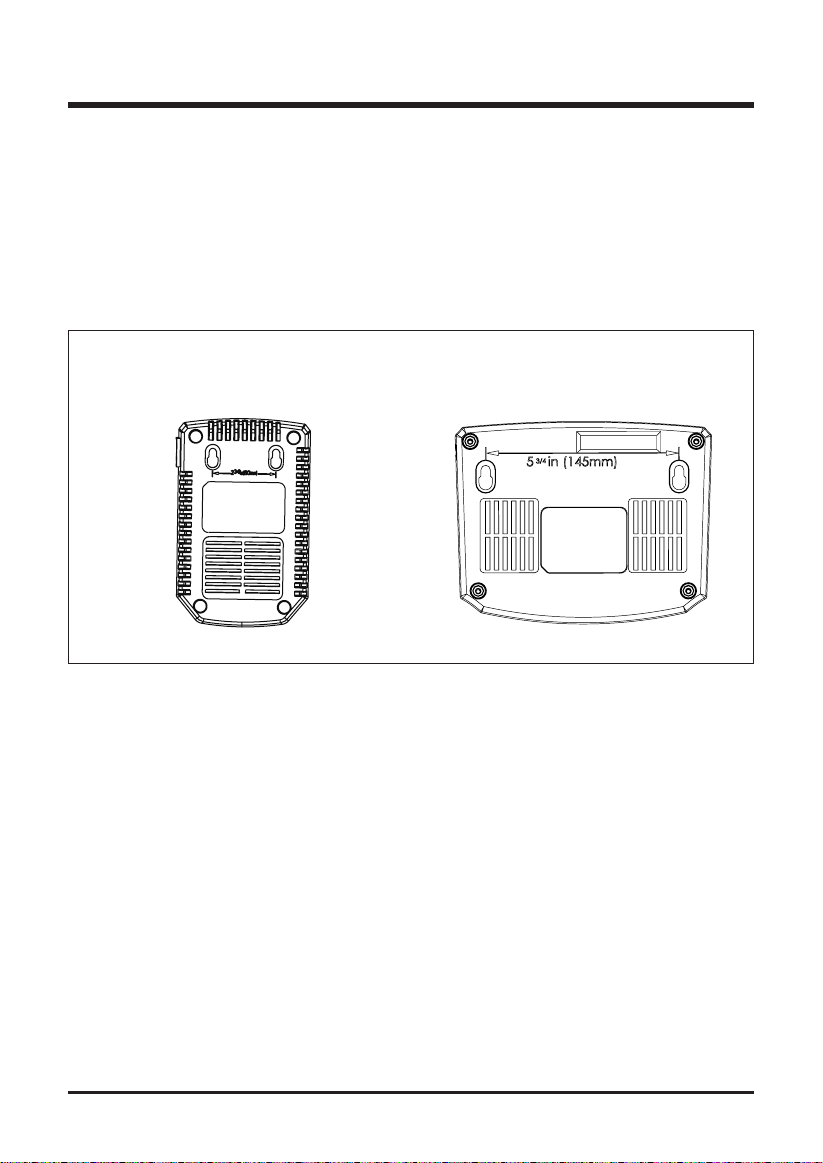

CHARGER MOUNTING

1. This charger can be installed hanging on a wall using two #8 screws (not included).

2. Locate the placement for the charger to be wall mounted.

3. If fastening to wood studs use 2 wood screws (not included).

4. C-220: Drill two holes 2 3/8 in. on center ensuring they are level.

C-400: Drill two holes 5 3/4 in. on center ensuring they are level.

5. If fastening to drywall use wall anchors (not included) and screws to secure the charger to the

wall.

6. This power unit is intended to be correctly orientated in a vertical or oor mount position.

Note: If the battery and the charger won’t be used for a long time, remove the battery from the

charger and pull out the ac power plug.

C-220 C-400

MAINTENANCE

WARNING

To avoid serious personal injury, always remove the battery pack from the tool when cleaning or

performing any maintenance.

WARNING

When servicing, use only identical GW ELITE replacement parts. Use of any other parts may

create a hazard or cause product damage.

GENERAL MAINTENANCE

• Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep

the air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse

the air vents in water. Always wear safety goggles or safety glasses with side shields when

using compressed air to clean the tool. If the operation is dusty, also wear a dust mask.

• Wipe off the housing and the plastic components using a dry, soft cloth. Do not use strong

solvents or detergents on the plastic housing or plastic components. Certain household

cleaners may cause damage and may cause a shock hazard.

STORAGE

• Always remove the battery pack before storing the charger or anytime the charger is

unplugged.

• Do not place the battery pack in the sun or a warm environment. Keep at normal room

temperature.

• If the battery will not be used for 3 months or more, please store the battery in a room

temperature environment. Please fully charge before storage.

WARNING

Do not at any time let brake uids, gasoline, petroleum-based products, penetrating oils, etc. to

come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may

result in serious personal injury.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels GreenWorks Chargeur de batteries

GreenWorks

GreenWorks BT 80 Li 4.0 Manuel utilisateur

GreenWorks

GreenWorks 29717 Manuel utilisateur

GreenWorks

GreenWorks 29972 Manuel utilisateur

GreenWorks

GreenWorks CAG801 Manuel utilisateur

GreenWorks

GreenWorks 29652 Manuel utilisateur

GreenWorks

GreenWorks 2900802 Manuel utilisateur

GreenWorks

GreenWorks G24C Manuel utilisateur

GreenWorks

GreenWorks 2902402 Manuel utilisateur

GreenWorks

GreenWorks G24X2C Manuel utilisateur

GreenWorks

GreenWorks 29807 Manuel utilisateur

GreenWorks

GreenWorks CAG834 Manuel utilisateur

GreenWorks

GreenWorks 29482 Manuel utilisateur

GreenWorks

GreenWorks CAF806 Manuel utilisateur

GreenWorks

GreenWorks CK24B220 Manuel utilisateur

GreenWorks

GreenWorks 29462 Manuel utilisateur

GreenWorks

GreenWorks 29332 Manuel utilisateur

GreenWorks

GreenWorks 29842 Manuel utilisateur

GreenWorks

GreenWorks 2938202 Manuel utilisateur

GreenWorks

GreenWorks 29972 Manuel utilisateur

GreenWorks

GreenWorks 2924107 Manuel utilisateur

GreenWorks

GreenWorks CAM811 Manuel utilisateur

GreenWorks

GreenWorks 29692 Manuel utilisateur

GreenWorks

GreenWorks GC 400 Manuel utilisateur

GreenWorks

GreenWorks 2901302 Manuel utilisateur

Manuels Chargeur de batteries populaires d'autres marques

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Manuel utilisateur

Enelion

Enelion Vertica Manuel utilisateur

RCA

RCA CHU6 Manuel utilisateur

ANSMANN

ANSMANN ALCT 6/24-10 Manuel utilisateur

Hitachi

Hitachi UC 18YRSL Guide de dépannage

Olympus

Olympus B-20 LPC Manuel utilisateur

Exibel

Exibel ZH1708143 Manuel utilisateur

Lenmar

Lenmar Mach 1 Manuel utilisateur

CTEK

CTEK MXS 5.0 Manuel utilisateur

ABB

ABB HT842379 Manuel utilisateur

Nitecore

Nitecore Superb Charger SC4 Manuel utilisateur

Renogy

Renogy RBC2125DS-21W Manuel utilisateur

Braun

Braun BWC02M Manuel utilisateur

CTEK

CTEK MXS 3.6 Manuel utilisateur

Black & Decker

Black & Decker BDV090 Manuel utilisateur

Trinity

Trinity DPD Manuel utilisateur

Hulkman

Hulkman Sigma 1 Manuel utilisateur

IKEA

IKEA koppla Manuel utilisateur
