Greenheck 331-2856 Instructions d'installation et d'utilisation

Item No. Qty. Description

921⁄2in. Dia. Hose Clamp

10 9 1⁄4in.- 20 x 1⁄2in. Bolt

11 10 1/4 in.-20 Spinlock Nut

12 1 1⁄4in.- 20 x 1⁄2in. Press Stud

13 1 Standoff Bracket

14 1 Side Bracket without Bearing

15 1 1" Dia. Bearing

16 1 Crankarm Assembly

Tools Required:

Wrenches:

(1) 3⁄8in., (2) 1⁄2in., (1) 7⁄16 in.,

and (1) 3⁄4in.

Item No. Qty Description

1 1 External Plate

2 1 Lower Support Bracket

3 1 Side Bracket with Bearing

4 1 Upper Support Bracket

5 1 1⁄2in. Rod

6 1 Actuator Siemens Cat 11

7 1 Crankarm

8 8 1⁄4in.- 20 x 1⁄2in. Bolt

Document Number 483438

Siemens #6 Actuator

Model 331-2856 & 332-2856

UL Listed Pneumatic Actuator with Spring Return

Installation, Operation and Maintenance Manual

Note: For dampers installed in ducts or sleeves.

This Siemens actuator is a pneumatic actuator with a 11 square inch effective diaphragm area and a 4 inch stroke.

It extends to its holding position when air pressure is applied and spring returns to its fail position when the air

supply is interrupted. This model has a maximum air pressure of 25 psi.

Kit No. Actuator

914989 Pneumatic Actuator 331-2856

914990 Pneumatic Actuator 332-2856

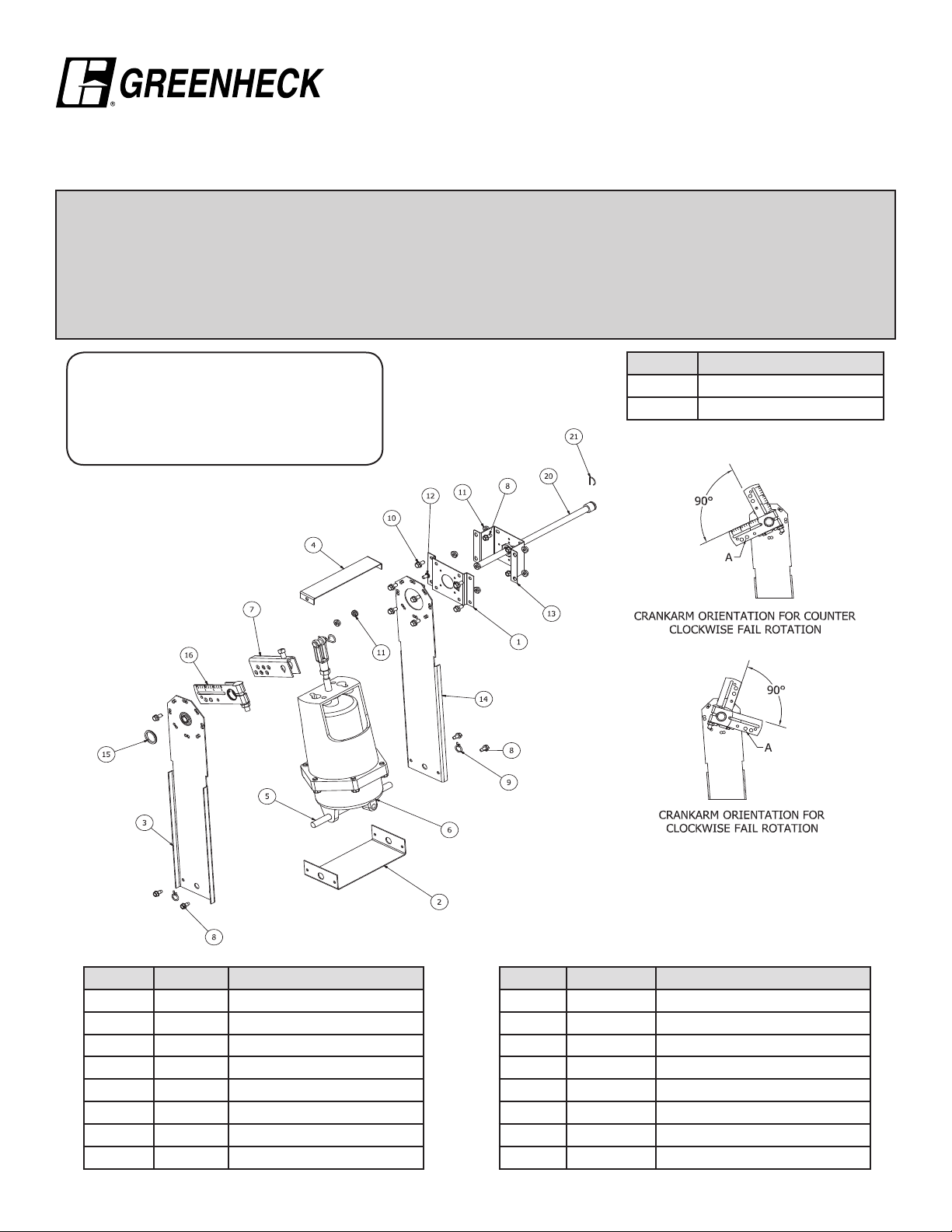

Note the damper shaft rotation for fail direction

and orient the linkage appropriately. Position

the crankarm in one of the positions shown.

Attach the crankarm to the clevis on the

actuator with the clevis pin and the hitch pin

supplied through hole "A" shown.

Copyright © 2018 Greenheck Fan Corporation

483438 Siemens #6 Rev. 1 August 2018

Instructions:

1. Run the supply pressure to the actuator and regulate it to a maximum of 25 psi.

2. Apply air pressure to the actuator. The damper blades should fully open or close and return to the fail position when

power is disconnected; if they do not, adjustments can be made by resetting the crankarm position on the damper or

actuator shaft or by changing the distance from the actuator face to the center of the hole in the clevis.
