Gree U match UMAT18HP230V1AD Manuel utilisateur

Models:

Indoor Unit Outdoor Unit

UMAT18 P230V1AD UMAT18 P230V1AO

UMAT24 P230V1AD UMAT24 P230V1AO

UMAT30 P230V1AD UMAT30 P230V1AO

UMAT36 P230V1AD UMAT36 P230V1AO

UMAT42 P230V1AD UMAT42 P230V1AO

UMAT48 P230V1AD UMAT48 P230V1AO

S IM CONCEA ED DUCT

AIR CONDITIONING & HEATING SYSTEM

INSTA ATION MANUA

Thank you for choosing a

Slim Concealed Duct

unit for your customer.

Please read this installation manual carefully before installing and starting up the

U-Match System. Take a moment to fill out the product and installation form on the

back cover. Retain both the manual and installation record for future reference.

Table of Contents

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Suggested Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Standard Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation Site Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 9

Indoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12

Outdoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

Piping Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-19

Ductwork Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22

Power and Wiring Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-25

Controller Installation and setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27

Testing and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-30

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-32

Diagnostic Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-36

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

SAFETY PRECAUTIONS

Please read the following before installation.

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that follow this

symbol to avoid possible injury or death.

This mark indicates procedures which, if improperly performed,

might lead to the death or serious injury of the user.

This mark indicates procedures which, if improperly performed, might

possibly result in personal harm to the user, or damage to property.

Notice is used to address practices not related to personal injury.

General Safety Precautions

1. Instructions for installation and use of this product are provided by the manufacturer.

For proper operation, the system must be installed in accordance with this

installation manual.

2. Installation must be performed in accordance with local laws, regulations and

National Electrical Codes (NEC).

3. If refrigerant leaks while work is being carried out, ventilate the area. Do not allow

refrigerant to come in contact with a flame as it produces toxic gas.

4. Disconnect all electrical power to the indoor and outdoor units until the system is

ready for start-up and checkout.

5. When installing or repairing the system, use only R410A refrigerant. Do not

mix refrigerant with other gases. If air or other gas enter the refrigeration system,

the pressure inside the system may rise to an abnormally high value and cause

damage or injury.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING

CAUTION

NOTICE

WARNING

Indoor unit

Outdoor unit

NOMENC ATURE

UMAT 18 1 A D

Series Designation

UMAT – U-Match Series

Product Type

S- System

O - Outdoor Units

H- Indoor High Wall

D - Indoor Duct

C - Indoor Cassette

F - Indoor Floor/Ceiling

Revision Level

Style/Color Designation

Electrical Rating

230V - 208/230V60Hz 1PH

115V- 115V 60Hz 1PH

HP 230V

Cooling Capacity

18 - 18,000 BtuH

24 - 24,000 BtuH

30 - 30,000 BtuH

36 - 36,000 BtuH

42 - 42,000 BtuH

48 - 48,000 BtuH

Model Type

AC - Cooling Only

HP - Heat Pump

HC - Heat/Cool

Example: UMAT18HP230V1AD

UMAT 18 1 A O

Series Designation

UMAT – U-Match Series

Product Type

S - System

O - Outdoor Units

H - Indoor High Wall

D - Indoor Duct

C - Indoor Cassette

F - Indoor Floor/Ceiling

Revision Level

Style/Color Designation

Electrical Rating

230V - 208/230V 60Hz 1PH

115V - 115V 60Hz 1PH

HP 230V

Cooling Capacity

18 - 18,000 BtuH

24 - 24,000 BtuH

30 - 30,000 BtuH

36 - 36,000 BtuH

42 - 42,000 BtuH

48 - 48,000 BtuH

Model Type

AC - Cooling Only

HP - Heat Pump

HC - Heat/Cool

Example: UMAT18HP230V1AO

SYSTEM REQUIREMENTS

REFRIGERANT CHARGE

INDOOR UNIT E ECTRICA REQUIREMENTS

PIPE SIZE in (mm)

Notes: Insulate both refrigerant lines, separately.

Communication Cable: Recommended cable - 18/2 AWG stranded bare copper conductors T N 600V unshielded wire

Note: Use shield cable if installation is in close proximity of RF and EMI transmitting devices.

Unit Size

(BtuH)

18,000 1/4 (6) 1/2 (12) 10 (3) 25(7.5) 66 (20) 49 (15)

24,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 98 (30) 49 (15)

30,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 98 (30) 49 (15)

36,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 98 (30) 49 (15)

42,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 164 (50) 98 (30)

48,000 3/8 (10) 5/8 (15) 10 (3) 25(7.5) 164 (50) 98 (30)

Min ine

Max. Pre-Charge

Max ine

Max Elevation

ength

ine ength

ength

(ID over OD)

iquid Suction/Gas

ine ine

Unit Size Refrigerant Factory System Additional

(BtuH) Type Charge oz (kg)* Charge oz/ft (g/m)

18,000 R410A 49.4 (1.4) 0.3 (30)

24,000 R410A 78.4 (2.2) 0.6 (60)

30,000 R410A 84.6 (2.4) 0.6 (60)

36,000 R410A 123.2 (3.6) 0.6 (60)

42,000 R410A 131.2 (3.8) 0.6 (60)

48,000 R410A 141.8 (4.1) 0.6 (60)

Unit Size Voltage Min Circuit Max Overcurrent Main Power

(BtuH) Amps (MCA) Protection (MOCP) Wire Size (AWG)

18,000 208/230v - 1ph 60hz 1.0 15 14

24,000 208/230v - 1ph 60hz 2.0 15 14

30,000 208/230v - 1ph 60hz 2.0 15 14

36,000 208/230v - 1ph 60hz 3.0 15 14

42,000 208/230v - 1ph 60hz 3.0 15 14

48,000 208/230v - 1ph 60hz 5.0 15 14

OUTDOOR UNIT E ECTRICA REQUIREMENTS

Unit Size Voltage Min Circuit Max Overcurrent Main Power

(BtuH) Amps (MCA) Protection (MOCP) Wire Size (AWG)

18,000 208/230v - 1ph 60hz 17.0 25 10

24,000 208/230v - 1ph 60hz 24.0 40 10

30,000 208/230v - 1ph 60hz 24.0 40 10

36,000 208/230v - 1ph 60hz 29.0 45 8

42,000 208/230v - 1ph 60hz 31.0 50 8

48,000 208/230v - 1ph 60hz 45.0 70 6

*Precharge amount for up to 25-ft of refrigerant pipe.

REFRIGERANT INE ENGTHS ft (m)

• Standard Wrench

• Adjustable/Crescent Wrench

• Torque Wrench

• ex Keys or Allen Wrenches

• Drill & Drill Bits

• ole Saw

• Pipe Cutter

• Screw drivers (Phillips & Flat blade)

• Manifold and Gauges

• Level

• R410A Flaring Tool

• Clamp on Amp Meter

• Vacuum Pump

• Safety Glasses

• Work Gloves

• Refrigerant Scale

• Micron Gauge

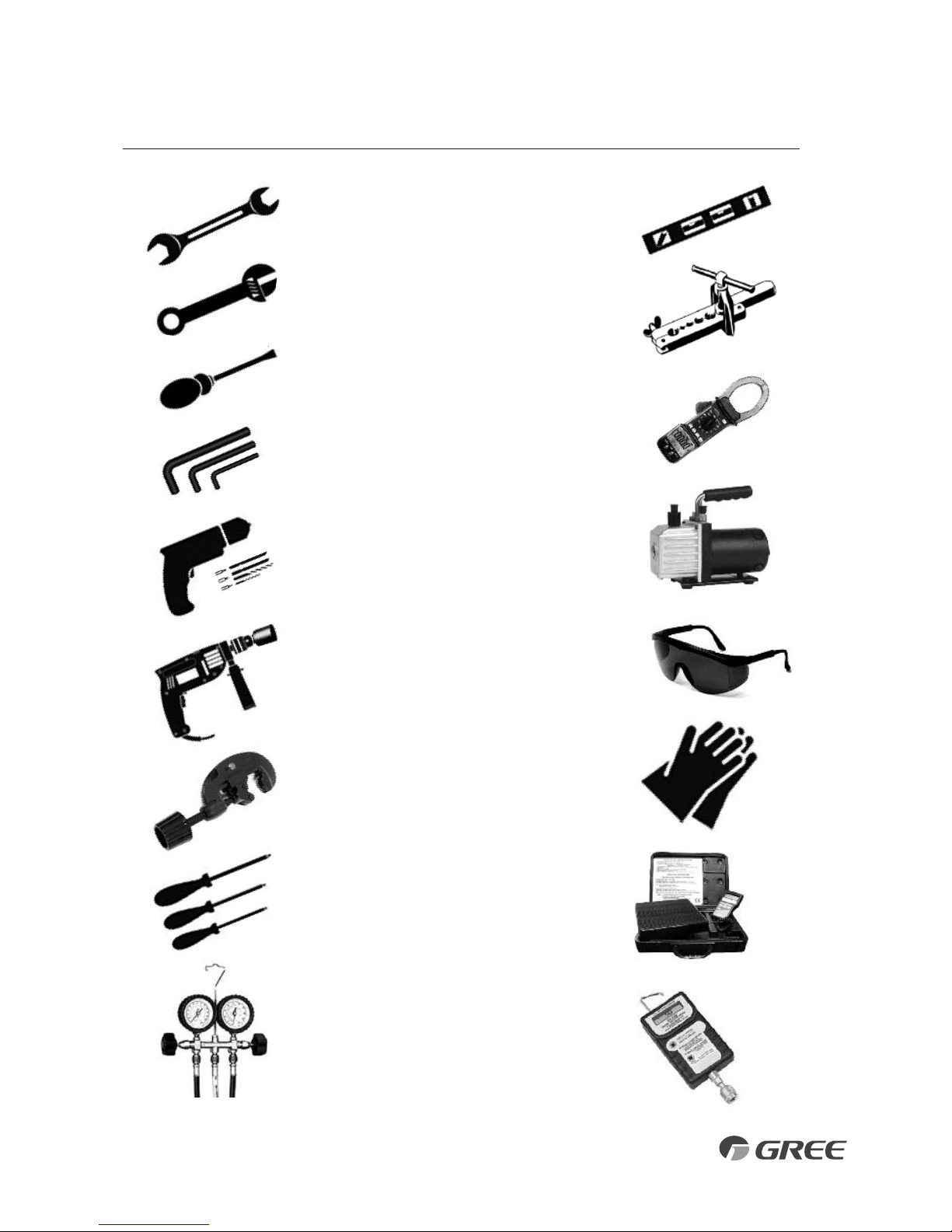

SUGGESTED TOO S

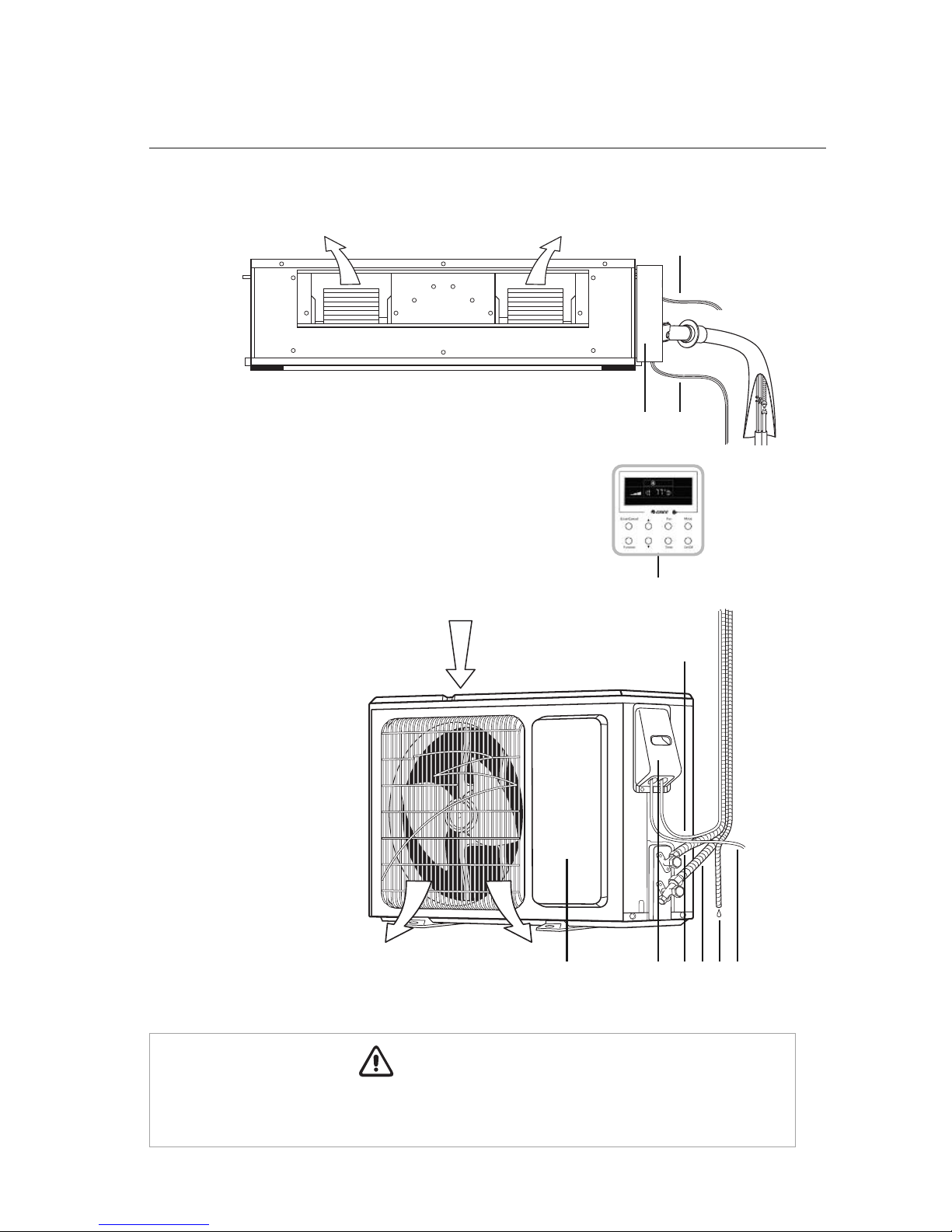

SYSTEM PARTS

Indoor Unit

Part Name

1. Indoor Power Supply

2. Electric Box

3. Communication Cable

4. XK-60 Wired Tether Controller

5. Communication Cable

6. Front Panel

7. Service Cover

8. Liquid Pipe

9. Gas Pipe

10. Drain ose

11. Outdoor Power Supply

Outdoor Unit

Air outlet

Air inlet

The refrigerant pipe, drain pipe, electrical wiring, and duct for this unit should be installed

by a qualified VAC professional only.

CAUTION

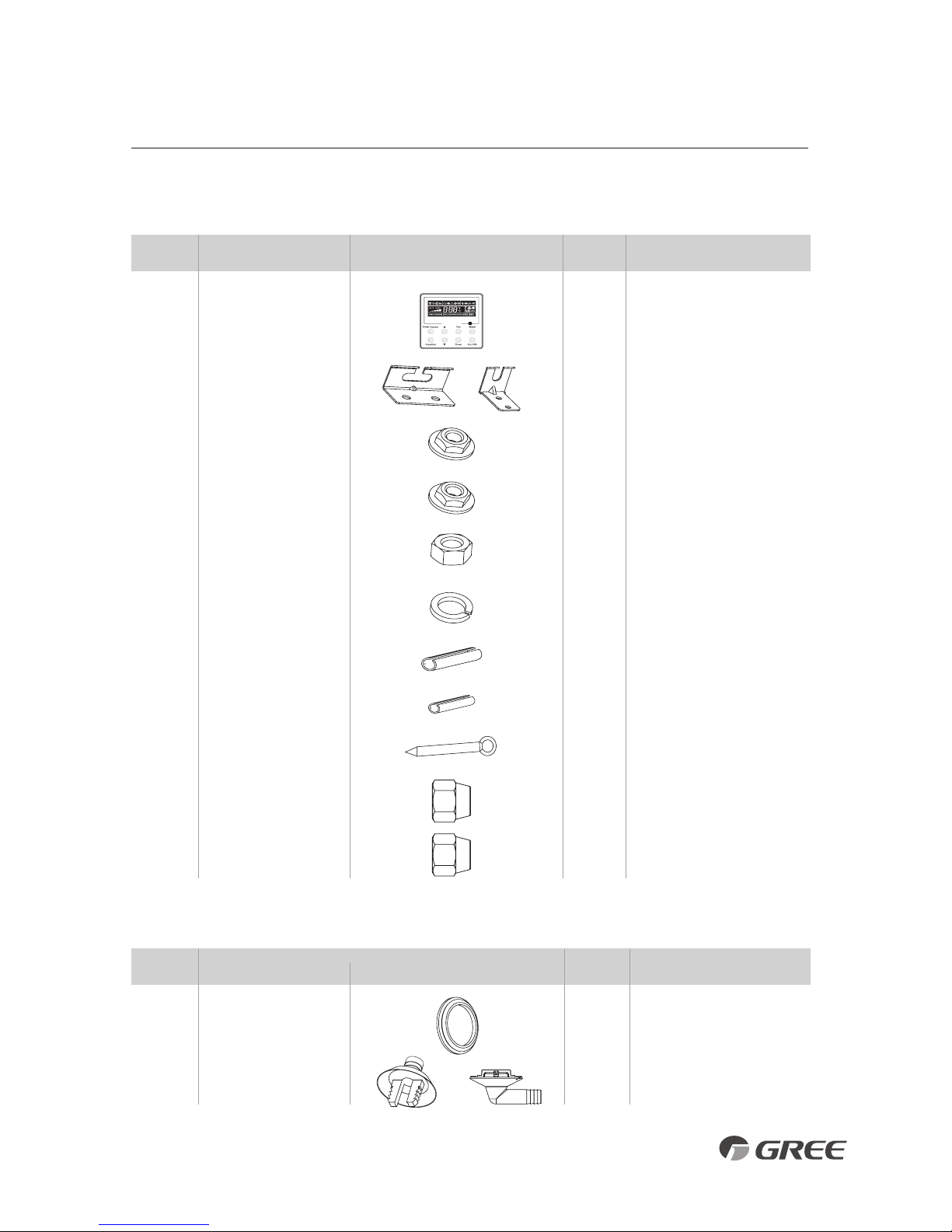

STANDARD PARTS

Indoor Unit Accessories

Outdoor Unit Accessories

No. Name Appearance Qty Usage

1 Wired Controller 1 Controls the indoor unit

2 anger or 4 Supports the indoor unit

3 Nut with Washer 8 Fastens the hanger brackets

to the cabinet of the unit

4 Nut with Washer 4 Fastens the hanger brackets

to the cabinet of the unit

5 Nut 4 Used with the suspension

bolt for installing the unit

6 Washer 4 Used with the suspension

bolt for installing the unit

7 Pipe Insulation 1 Insulates the gas pipe

8 Pipe Insulation 1 Insulates the liquid pipe

9 Fastener 4

Fastens the insulation blanket

10 Flare Nut 1 Connects the liquid pipe

11 Flare Nut 1 Connects the gas pipe

No. Name Appearance Qty Usage

1 Drain Plug 2 or 3 Plugs the unused drain hole

2 Drainage Connecter

1Connects with the hard

PVC drain pipe

INSTA ATION SITE INSTRUCTIONS

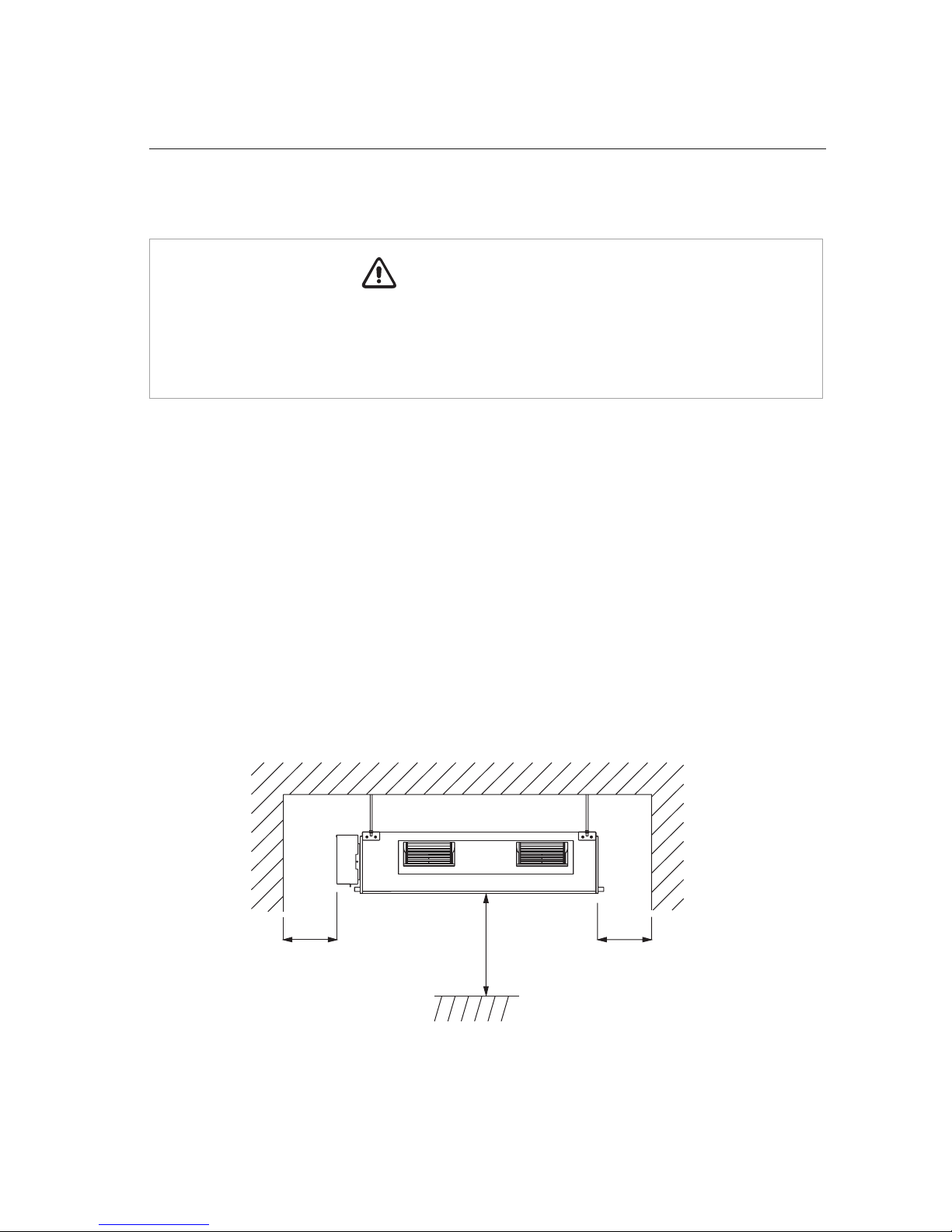

Indoor Unit

The unit must be installed in a location which can withstand twice the weight of the unit.

Inadequate building support at the installation location may result in serious property

damage and injuries.

Review the installation location with the customer as follows:

1. Ceiling is strong enough to support twice the weight of the unit.

2. Ductwork can easily be installed using the shortest amount of duct.

3. Location allows easy installation of drain pipe.

4. Electrical power can easily be run as a dedicated circuit.

5. Space is left around the unit as required in Fig. 1.1 for future service and maintenance.

6. Air inlet and outlet of the unit should never be blocked, so airflow can reach every

corner of the room.

WARNING

Fig. 1.1

>12 in.

>72 in.

>12 in.

INSTA ATION SITE INSTRUCTIONS

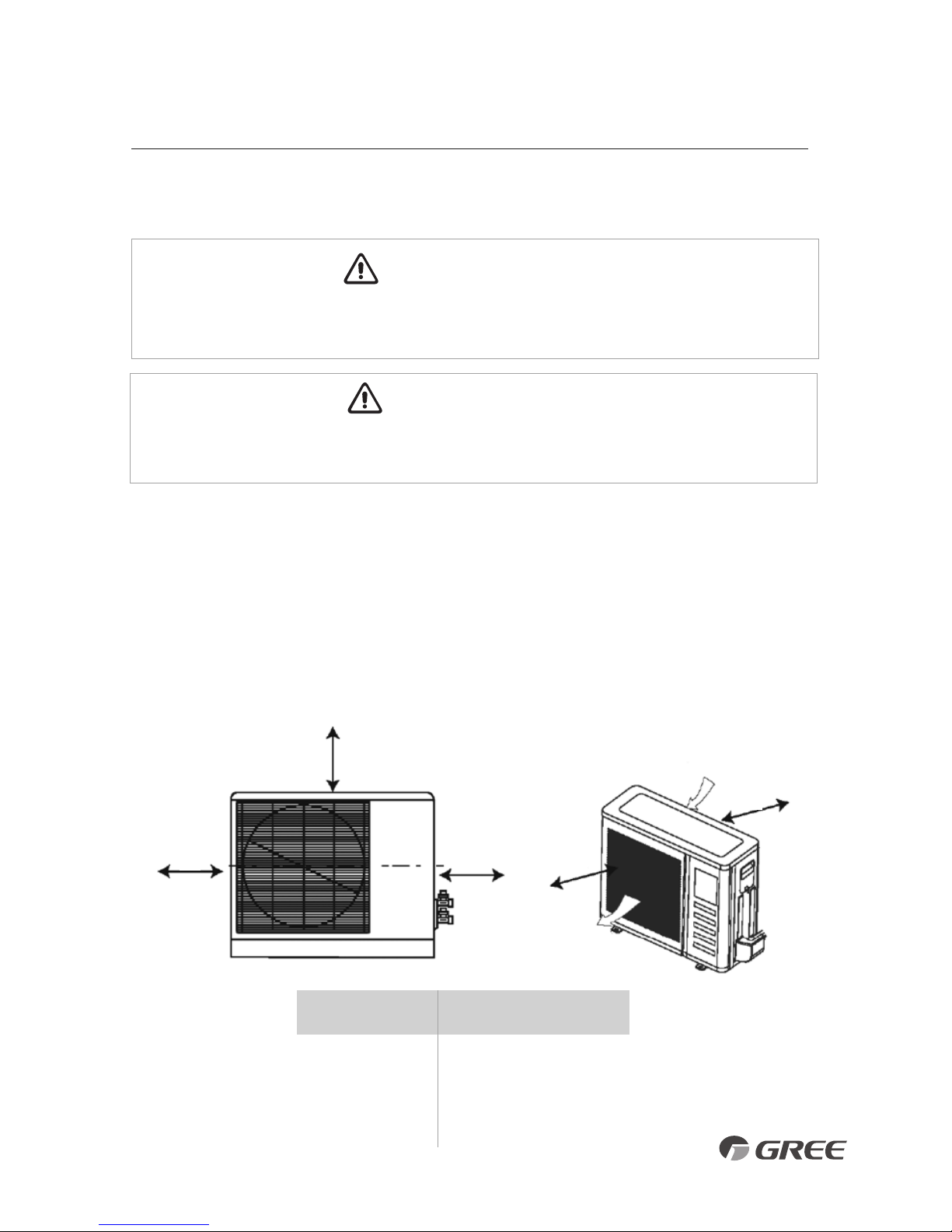

Outdoor Unit

Do not install the unit at a location where the distance exceeds the maximum length indicated in

the table. The maximum length of the connection pipe is listed in the System Requirements section.

CAUTION

WARNING

Outdoor Unit Minimum Distances

in (mm)

A 20 (500)

B 20 (500)

C 24 (610)

D 12 (305)

E 12 (305)

Air inlet

Air outlet

BC D

Fig. 1.2

The unit should be installed level on a pad that can support twice the weight of the unit.

If the outdoor unit will be exposed to strong winds, it must be adequately secured.

1. Install the outdoor unit at a location that is capable of withstanding twice the weight of the unit.

2. Install the outdoor unit where it is convenient to connect refrigerant lines to the indoor unit.

3. I nstall the outdoor unit where the condensate water can be drained unobstructed during the

heating mode to a safe location.

4. Do not locate the unit where the noise may be objectionable to neighbors.

5. Provide the space shown in Fig. 1.2, so that the air flow is not blocked and future service and

maintenance can be performed.

Autres manuels pour U match UMAT18HP230V1AD

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gree Climatiseur

Gree

Gree GWC30LB-D3DNA3H Manuel utilisateur

Gree

Gree Fresh Air Series Manuel utilisateur

Gree

Gree GJC15BY-A6NRNC5A Manuel utilisateur

Gree

Gree GPC12AJ-K3NNA1A Manuel utilisateur

Gree

Gree GWH09MA-A3DNC5A Manuel utilisateur

Gree

Gree GICF209BXAE Manuel utilisateur

Gree

Gree GUD160W/NhB-X Manuel utilisateur

Gree

Gree FGR20Pd/DNa-X Manuel utilisateur

Gree

Gree GMV-ND18PHS/A-T Manuel utilisateur

Gree

Gree GWC30QF-D3DNB4G Manuel utilisateur

Gree

Gree G17-6ESCWAC1 Manuel utilisateur

Gree

Gree GWH24YE-S6DBA2A/I Manuel utilisateur

Gree

Gree G1707M Manuel utilisateur

Gree

Gree 26TTW09AC115V1A Manuel utilisateur

Gree

Gree GWH09ACC-K6DNA1F/I Manuel utilisateur

Gree

Gree GWC18KG-K3DNA5A Manuel utilisateur

Gree

Gree GWH12AAB-K3NNA1A Manuel utilisateur

Gree

Gree GMV-ND22T/C-T Manuel utilisateur

Gree

Gree Thermocore GM-WAC-25ESE-C Manuel utilisateur

Gree

Gree GWH09ACC-K6DN A1 A/I Manuel utilisateur

Gree

Gree GUHD18ND3FO Manuel utilisateur

Gree

Gree GUHD09NK3FO Manuel utilisateur

Gree

Gree GWH09QB-K3DNA1G Manuel utilisateur

Gree

Gree GPC09AK-K6NNA1A Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
