Installation & Owner's Manual

Original Instructions

Split Type Wall-mounted Air Conditioner

Model:

MULTIU18HP230V1DO

MULTIU24HP230V1DO

MULTIU36HP230V1DO

MULTIU42HP230V1DO

Thank you for choosing our product.

Please read this Owner’s Manual carefully before operation and

retain it for future reference.

If you have lost the Owner's Manual, please contact your local

distributor or visit www.greecomcomfort.com/resources for the

electronic version.

CONTENTS GENERAL INFORMATION

Technical Data

Electrical Connections

Installing The Outdoor Unit

Maintenance

Installation Dimension Diagram

Check After Installation

Bleeding

Conformity And Range

The Instructions Before Use

Name of Parts

Outdoor Unit Working Temperature Range

GENERAL

INSTALLER INFORMATION

In line with the company’s policy of continual product improvement, the aesthetic and dimensional

characteristics, technical data and accessories of this appliance may be changed without notice.

The products in this manual may be different from the ones you receive, due to different

models, some models have a display, some models do not. For the position and shape of the

display please refer to the your model.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

Children should be supervised to ensure that they do not play with the appliance.

Exception Clauses

Manufacturer will bear no responsibilities when personal injury or

property loss is caused by the following reasons.

Explanation of Symbols

Please read this owner's manual carefully before operating the unit and retain it for consultation.

Instructions for installation and use of this product are provided by the manufacturer.

Only use the air conditioner as instructed in this booklet. These instructions are not intended to

cover every possible condition and situation. As with any electrical household appliance, common sense

and caution are therefore always recommended for installation, operation and maintenance.

Indicates a hazardous situation that, if not avoided, will

result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could

result in death or serious injury.

Indicates a hazardous situation that, if not avoided, may

result in minor or moderate injury.

Indicates important but not hazard-related information,

used to indicate risk of property damage.

Indicates a hazard that would be assigned a signal word

WARNING or CAUTION.

WARNING

CAUTION

DANGER

N OTIC E

1. Damage the product due to improper use or misuse of the product;

2. Altering, changing, servicing or using the product with other equipment without

abiding by the instruction manual of manufacturer.

3. Upon verification, the defect of product is directly caused by corrosive gas;

4. Upon verification, the defects are due to transportation damage.

5. Operating, repairing or servicing the unit without following the instruction manual

or related regulations.

6. Upon verification, the problem or dispute is caused by the quality specification or

performance of parts and components that produced by other manufacturers;

7. Damage caused by natural disasters, corrosive environments or force majeure.

CONFORMITY AND RANGE

GENERAL INFORMATION This appliance can be used by children aged from 8 years and above and persons

with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

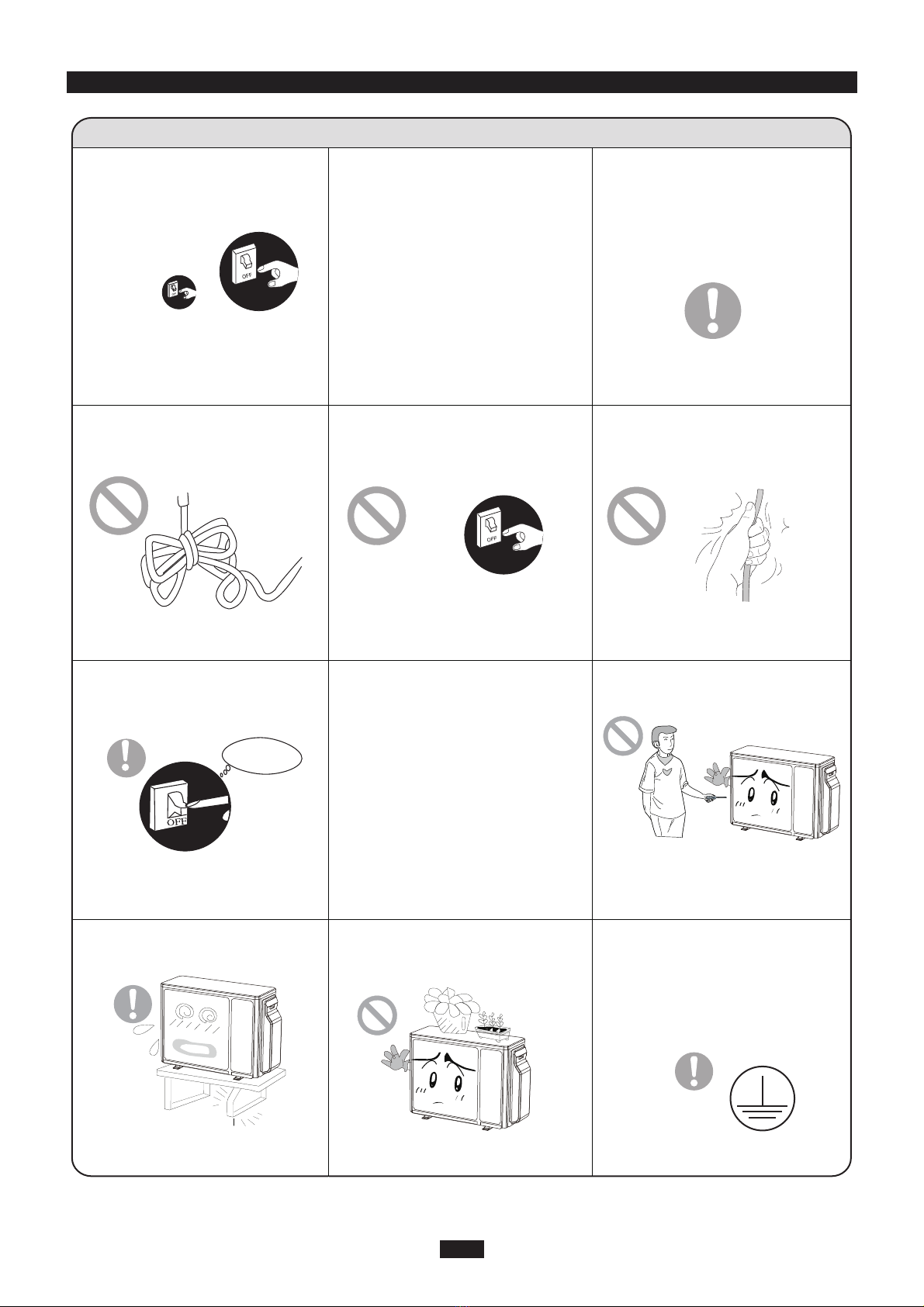

THE INSTRUCTIONS BEFORE USE GENERAL INFORMATION

WARNING

If you smell something burning or

see smoke, turn off the power supply

and contact an HVAC technician.

If the abnormity still exists,the unit

may be damaged,and may cause

electric shock or fire.

All power wiring must comply

with local, regional or national

electric codes.

Improper wiring can cause

electrical shock or fire.

If you won't be using your unit for

extended periods, disconnect the

power supply.

Residual dust build up could

cause overheating or fire.

Never damage electrical wiring or

use the electrical wire which is not

suited for this application.

It could cause overheating or fire.

When cleaning, turn the unit off

and disconnect power supply at

the breaker.

Cut off power supply

Not doing so may cause

electrical shock or damage.

The power supply must be

connected to a properly sized

circuit breaker. The unit will cycle

automatically according to your

settings. Do not frequently turn

your unit on or off, this may

interfere with its normal operation

Rated voltage of this air conditi-

oner 208/230V, 60Hz, The com-

pressor will vibrate sharply if the

voltage is too low, resulting in

damage to the refrigeration

system.

Electrical componentsare easy

damagedif the voltage is too

high.

Don't attempt to repair the air

conditioner yourself.

Improper repair could lead to an

electrical shock or fire, always

contacts an HVAC technician to

service or repair you unit.

Don't step on or place anything

on top of the outdoor unit.

Improper installation may cause

damage to the unit or injure

someone

Make sure the unit is safely

and securely installed.

Grounding: The unit must be

properly grounded. The ground

wire must be connected to the

appropriate grounding terminal

in the unit.

Serious injury or irreparable damage

could occur.

Never cut off or damage power

and control wiring. If the power

and signal control wiresare

damaged, have them replaced

by an HVAC technician.

★ ★

★

★ ★

★

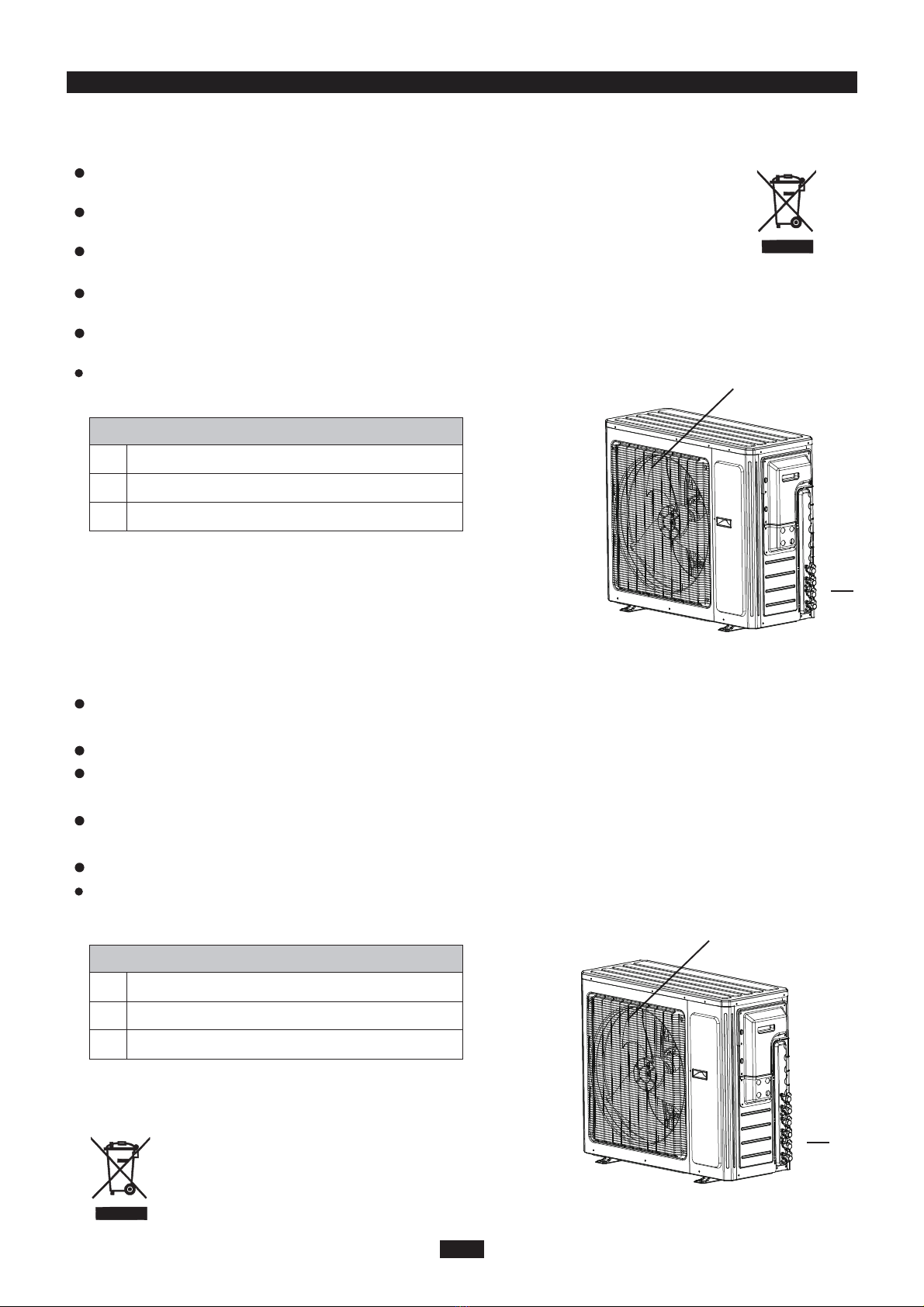

MULTIU18HP230V1DO

WARNING

If the supply wire is damaged, it must be replaced by the manufacturer or a licensed

HVAC technician or a similarly qualified person in order to avoid a hazard.

Be sure to disconnect the power supply before cleaning the air conditioner; to avoid an

electrical shock.

Wetting of air conditioner may cause the risk of electrical shock. Make sure not to wash

your air conditioner under any circumstance.

Volatile liquids such as thinner or gasoline will cause damage to the appearance of air

conditioner. (Only use soft dry cloth moist cloth clean the air conditioner cabinet).

Do not dispose this product as unsorted municipal waste. Dispose according to local

waste regulations.

The temperature of refrigerant circuit is high, please keep the interconnecting wire away

from the copper refrigerant lines.

Note: The above figures are only intended to be a simple

diagram of the appliance and may not correspond to

the appearance of the units that have been purchased.

No. Description

1 Air outlet grille

2Valve

OUTDOOR UNIT

MULTIU24HP230V1DO

WARNING

If the supply wire is damaged, it must be replaced by the manufacturer or a licensed HVAC technician or a

similarly qualified person in order to avoid a hazard.

Be sure to disconnect the power supply before cleaning the air conditioner; to avoid an electrical shock.

Wetting of air conditioner may cause the risk of electrical shock. Make sure not to wash your air conditioner

under any circumstance.

Volatile liquids such as thinner or gasoline will cause damage to the appearance of air conditioner. (Only use

soft dry cloth moist cloth clean the air conditioner cabinet).

Do not dispose this product as unsorted municipal waste. Dispose according to local waste regulations.

The temperature of refrigerant circuit is high, please keep the interconnecting wire away from the copper

refrigerant lines.

Note: The above figures are only intended to be a simple

diagram of the appliance and may not correspond to

the appearance of the units that have been purchased.

No. Description

1 Air outlet grille

2Valve

OUTDOOR UNIT

NAME OF PARTS GENERAL INFORMATION

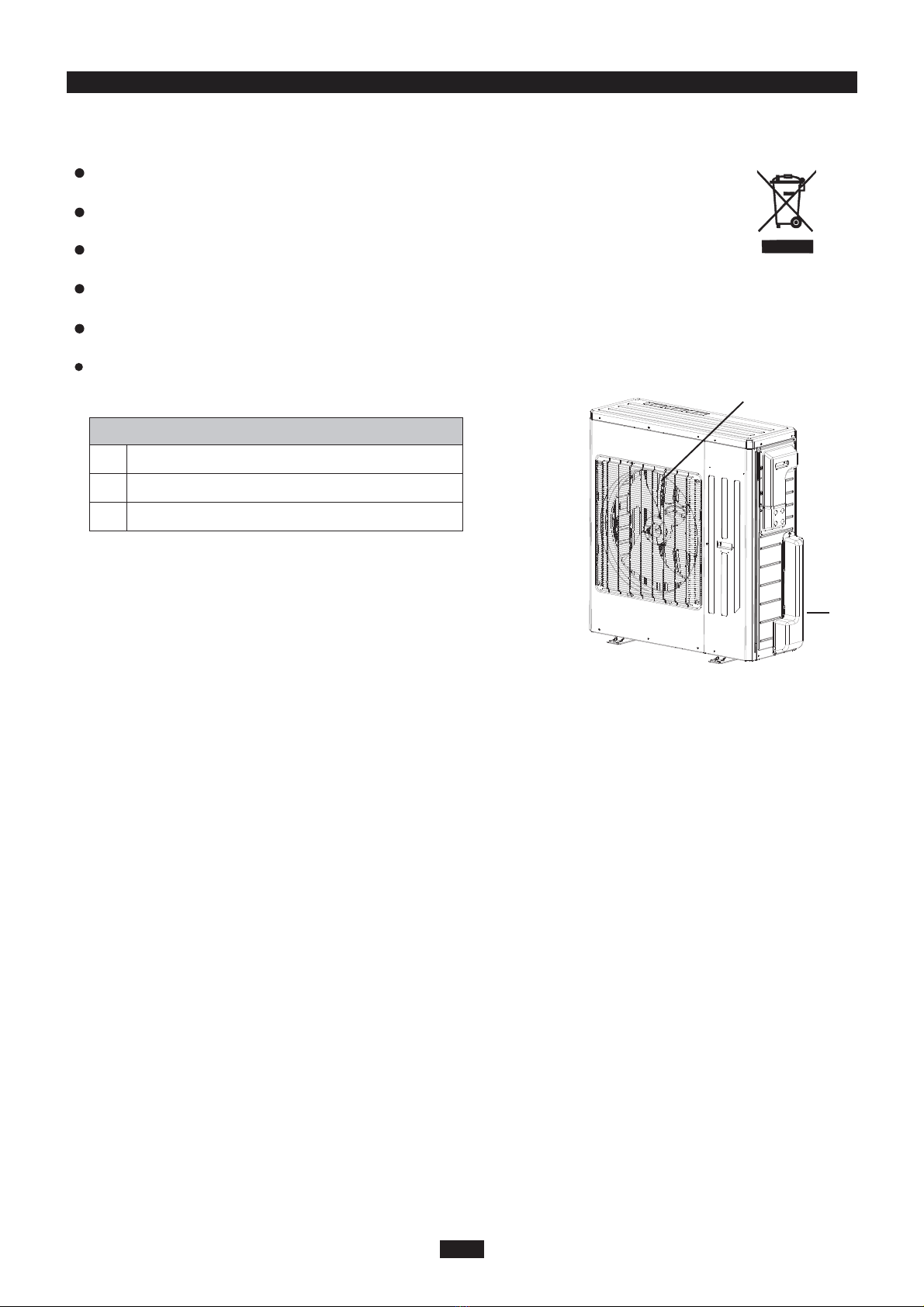

MULTIU36HP230V1DO MULTIU42HP230V1DO

WARNING

If the supply wire is damaged, it must be replaced by the manufacturer or a licensed

HVAC technician or a similarly qualified person in order to avoid a hazard.

Be sure to disconnect the power supply before cleaning the air conditioner; to avoid an

electrical shock.

Wetting of air conditioner may cause the risk of electrical shock. Make sure not to wash

your air conditioner under any circumstance.

Volatile liquids such as thinner or gasoline will cause damage to the appearance of air

conditioner. (Only use soft dry cloth moist cloth clean the air conditioner cabinet).

Do not dispose this product as unsorted municipal waste. Dispose according to local

waste regulations.

The temperature of refrigerant circuit is high, please keep the interconnecting wire away

from the copper refrigerant lines.

Note: The above figures are only intended to be a simple

diagram of the appliance and may not correspond to

the appearance of the units that have been purchased.

No. Description

1 Air outlet grille

2Valve

OUTDOOR UNIT

NAME OF PARTS GENERAL INFORMATION

Minimum power wire section

Fuse or circuit breaker

920

380

790

MODE

208/230V,60Hz

MULTIU18HP230V1DO

5.3

Electrical data

Electricity supply

Size and clearance

Minimum power wire section

Fuse or circuit breaker

920

380

790

MODE

208/230V,60Hz

MULTIU24HP230V1DO

5.3

Electrical data

Electricity supply

Size and clearance

Minimum power wire section

Fuse or circuit breaker

1016

440

1103

MODE

208/230V,60Hz

MULTIU36HP230V1DO MULTIU42HP230V1DO

8.4

Electrical data

Electricity supply

Size and clearance

TECHNICAL DATA GENERAL INFORMATION

OUTDOOR UNIT WORKING TEMPERATURE RANGE GENERAL INFORMATION

Maximum cooling

Maximum heating

115°F(46°C)/-

75.2°F(24°C)/-

OutdoorsideDB/WB( °F/ °C )

Note: The above figures are only intended to be a simple

diagram of the appliance and may not correspond to the

appearance of the units that have been purchased.

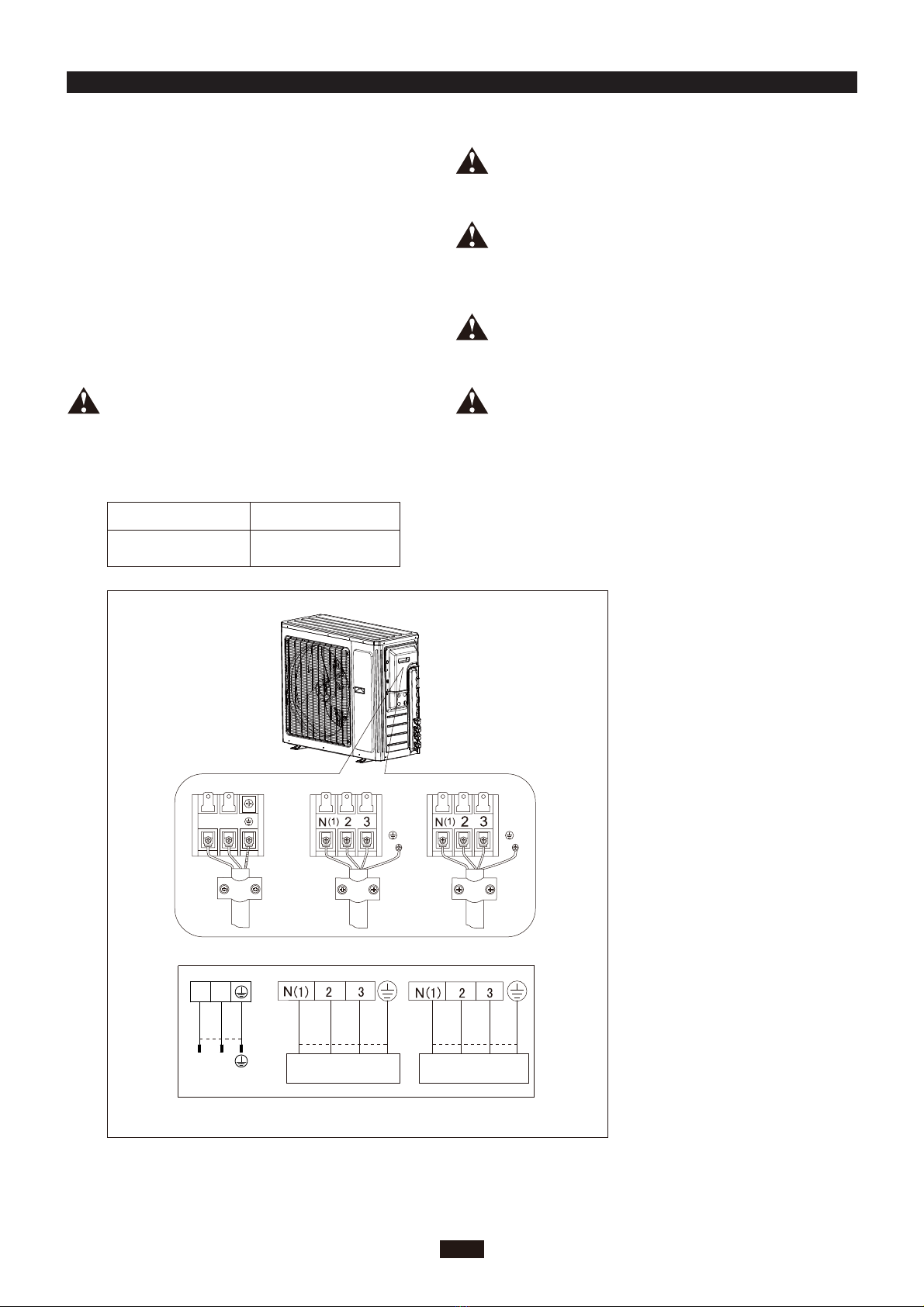

An all-pole disconnect switch having a contact

separation of at least 3mm in all poles should be

connected to supply power wiring.

Wrong wire connections may cause malfunction of

some electric components. After fixing wire,

ensure that leads between connection to fixed

point have some space.

The connection pipes and the connection wiring of

unit A, unit B, unit C and unit D must correspond

to each other respectively.

The appliance shall be installed in accordance

with national wiring regulations.

MULTIU18HP230V1DO

Provide a circuit breaker with suitable capacity,

please note the following table. Circuit

breakers will prevent short-circuits and

overload. (Caution: do not use a fuse only for

circuit protection.

35A

Breaker capacity

Air-conditioner

MULTIU18HP230V1DO

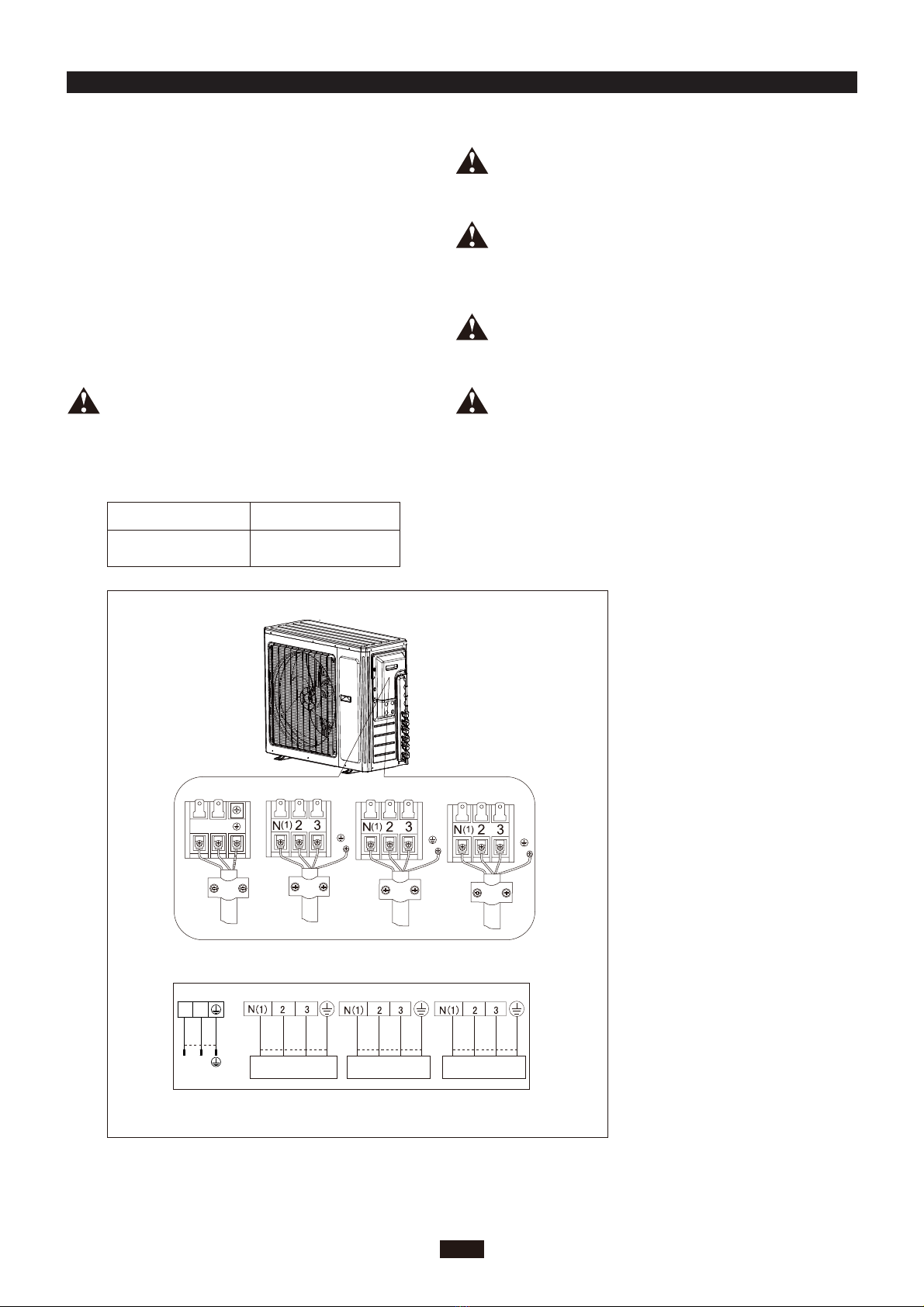

ELECTRICAL CONNECTIONS INSTALLER

To the power supply

To unit B

Power wire

To unit A

connecting

wire

connecting

wire

INDOOR UNIT A INDOOR UNIT B

white

(blue)

white

(blue)

black

(brown)

red

(brown)

POWER

L1 L2

(yellow-

green)

green

(yellow-

green)

green

black white

(blue)

red

(brown)

(yellow-

green)

green

black

1. Remove the handle at the right side plate of the

outdoor unit (one screw).

2. Remove the wire clamp, connect the power

connection wire to the appropriate terminal and

secure the connection. The wiring connections

must be consistent with the indoor unit terminal

connections. Wiring should match that of indoor

unit.

3. Secure power connection wire with a wire clamp.

4. Ensure all wire is securely attached.

5. Install the handle.

An all-pole disconnect switch having a contact

separation of at least 3mm in all poles should be

connected to supply power wiring.

Wrong wire connections may cause malfunction of

some electric components. After fixing wire, ensure

that leads between connection to fixed point have

some space.

The connection pipes and the connection wiring of

unit A, unit B, unit C and unit D must correspond to

each other respectively.

The appliance shall be installed in accordance with

national wiring regulations.

1. Remove the handle at the right side plate of the

outdoor unit (one screw).

2. Remove the wire clamp, connect the power

connection wire to the appropriate terminal and

secure the connection. The wiring connections

must be consistent with the indoor unit terminal

connections. Wiring should match that of indoor

unit.

3. Secure power connection wire with a wire clamp.

4. Ensure all wire is securely attached.

5. Install the handle.

Note: The above figures are only intended to be a simple

diagram of the appliance and may not correspond to the

appearance of the units that have been purchased.

Provide a circuit breaker with suitable capacity,

please note the following table. Circuit

breakers will prevent short-circuits and

overload. (Caution: do not use a fuse only for

circuit protection.

40A

Breaker capacity

Air-conditioner

MULTIU24HP230V1DO

ELECTRICAL CONNECTIONS INSTALLER

Power wire

L1 L2

To the power supply

To unit A

connecting

wire

To unit B

connecting

wire

To unit C

connecting

wire

INDOOR UNIT A INDOOR UNIT B

white

(blue)

white

(blue)

black

(brown)

red

(brown)

POWER

L1 L2

(yellow-

green)

green

(yellow-

green)

green

black white

(blue)

red

(brown)

(yellow-

green)

green

black

INDOOR UNIT C

white

(blue)

red

(brown)

(yellow-

green)

green

black

CBA

Autres manuels pour Multi+ Ultra MULTIU18HP230V1DO

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gree Climatiseur

Gree

Gree VIREO+ VIR09HP230V1B Manuel utilisateur

Gree

Gree U-Crown GWH09UB-K6DNA4A Manuel utilisateur

Gree

Gree GWH18QD-K3DNA3G Manuel utilisateur

Gree

Gree KF-20GW/A20 Manuel utilisateur

Gree

Gree GMV-ND36TS/A-T Manuel utilisateur

Gree

Gree GUHN24NK3HO Manuel utilisateur

Gree

Gree GWH09UC-D3DNA4AGWH12UC-D3DNA4AGWH18UC-D3DNA4A Manuel utilisateur

Gree

Gree GWC09QB-K3DNA1B Manuel utilisateur

Gree

Gree GPC-09-AK-R290 Manuel utilisateur

Gree

Gree GWH18YD-K6DNA2A Manuel utilisateur

Gree

Gree GPE12AF-K3NNA7A Manuel utilisateur

Gree

Gree GPC08AH-K3NNC5A Manuel utilisateur

Gree

Gree GJC08BK-A6NRNE2D Manuel utilisateur

Gree

Gree VIREO+ VIR12HP230V1B Manuel utilisateur

Gree

Gree GWH09RB-K3DBA3E Manuel utilisateur

Gree

Gree GWH18YD-K6DNA1A Manuel utilisateur

Gree

Gree GWCN24 B9NK1BA Manuel utilisateur

Gree

Gree GWH09AAB-K6DNA1A Manuel utilisateur

Gree

Gree Butterfly KF-23GW/A13 Manuel d'utilisation

Gree

Gree GWH07PA-K3NNA1A Manuel utilisateur

Gree

Gree GWH09KF-K3DN series Manuel utilisateur

Gree

Gree SAP09HP230V1AH Manuel utilisateur

Gree

Gree GMV series Manuel utilisateur

Gree

Gree GMV-ND07T/C-T Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
