Service Manual

Model:GWC36LB-K3NTA5A

GWH36LB-K3NTA5A

(Refrigerant R410a)

Service Manual

Table of contents

Table of Contents

Part Ė: Technical Information......................................................................... 1

1. Summary........................................................................................................................ 1

6SHFL¿FDWLRQV............................................................................................................ 2

6SHFL¿FDWLRQ6KHHW............................................................................................................. 2

2.2 Capacity Curve in Different Outdoor Temperature ............................................................. 4

2.3 Operation Data ................................................................................................................... 4

3. Outline Dimension Diagram.......................................................................... 5

3.1 Indoor Unit.......................................................................................................................... 5

3.2 Outdoor Unit ....................................................................................................................... 5

4. Refrigerant System Diagram........................................................................ 6

5. Electrical Part............................................................................................................. 7

5.1 Wiring Diagram................................................................................................................... 7

5.2 PCB Printed Diagram .........................................................................................................9

6. Function and Control........................................................................................ 12

6.1 Remote Controller Introduction ....................................................................................... 12

6.2 Brief Description of Modes and Functions........................................................................ 16

Part ė: Installation and Maintenance ................................................... 21

7. Notes for Installation and Maintenance............................................ 21

8. Installation.................................................................................................................. 23

8.1 Installation Dimension Diagram........................................................................................ 23

,QVWDOODWLRQ3DUWVFKHFNLQJ .............................................................................................. 25

8.3 Selection of Installation Location...................................................................................... 25

8.4 Electric Connection Requirement..................................................................................... 25

8.5 Installation of Indoor Unit.................................................................................................. 25

8.6 Installation of Outdoor Unit............................................................................................... 28

9DFXXP3XPSLQJDQG/HDN'HWHFWLRQ ............................................................................. 29

&KHFNDIWHU,QVWDOODWLRQDQG7HVW2SHUDWLRQ ..................................................................... 29

Service Manual

Table of contents

9. Maintenance.................................................................................................................30

9.1 Error Code...........................................................................................................................30

3URFHGXUHRI7URXEOHVKRRWLQJ .............................................................................................32

0DLQWHQDQFH0HWKRGIRU1RUPDO0DOIXQFWLRQ......................................................................37

10. Exploded View and Parts’ List ..................................................................39

10.1 Indoor Unit.........................................................................................................................39

10.2 Outdoor Unit ......................................................................................................................41

11. Removal Procedure............................................................................................45

11.1 Removal Procedure of Indoor Unit ....................................................................................45

11.2 Removal Procedure of Outdoor Unit .................................................................................54

Appendix:.............................................................................................................................60

$SSHQGL[5HIHUHQFH6KHHWRI&HOVLXVDQG)DKUHQKHLW .........................................................60

$SSHQGL[&RQ¿JXUDWLRQRI&RQQHFWLRQ3LSH.......................................................................... 60

Appendix 3: Pipe Expanding MHWKRG ........................................................................................61

Appendix 4: List of Resistance for Temperature Sensor ........................................................... 62

7HFKQLFDO,QIRUPDWLRQ

Service Manual

1. Summary

Part Ė: Technical Information

GWC36LB-K3NTA5A/I

GWH36LB-K3NTA5A/I

Indoor Unit:

GWC36LB-K3NTA5A/O

GWH36LB-K3NTA5A/O

Outdoor Unit:

YB1F2(XFAN)

Remote Controller:

FAN

AUTO

OPER

HEALTH

AIR

FILTER

TURBO

ON/OFF

X-FAN

HOUR

HUMIDITY

ON/OFF

MODE

FAN

X-FAN

TURBO

TEMP TIMER

SLEEP LIGHT

27HFKQLFDO,QIRUPDWLRQ

Service Manual

6SHFL¿FDWLRQV

6SHFL¿FDWLRQ6KHHW

Model GWC36LB-K3NTA5A GWH36LB-K3NTA5A

Product Code CA169004200 CA169004300

Rated Voltage

Rated Voltage V~ 220-240 220-240

Rated Frequency Hz 50 50

3KDVHV 11

Power Supply Mode Outdoor Outdoor

Cooling Capacity %WXK 33000(T1)28000(T3) 33000(T1)27500(T3)

Heating Capacity W / 10200

Cooling Power Input W 3440(T1)3900(T3) 3440(T1)3900(T3)

Heating Power Input W / 3300

Cooling Power Current A 18.6(T1)21.1(T3) 18.6(T1)21.1(T3)

Heating Power Current A / 16.2

Rated Input W 4800 4800

Rated Current A 25 25

Air Flow Volume(SH/H/M/L/SL) m3K 1400/1300/1150/1000/- 1400/1300/1150/1000/-

'HKXPLGLI\LQJ9ROXPH /K 3.5 3.5

EER %WXK: 9.6(T1)7.15(T3) 9.80(T1)/7.05(T3)

COP W/W / 3.10

SEER W/W / /

HSPF W/W / /

Application Area m246-70 46-70

Indoor unit

Model of indoor unit GWC36LB-K3NTA5A/I GWH36LB-K3NTA5A/I

Indoor Unit Product Code CA169N04200 CA169N04300

Fan Type &URVVÀRZ &URVVÀRZ

'LDPHWHU/HQJWK';/ mm ĭ; ĭ;

Fan Motor Cooling Speed(SH/H/M/L/SL) r/min 1400/1300/1150/990/- 1400/1300/1150/990/-

Fan Motor Heating Speed(SH/H/M/L/SL) r/min / 1450/1350/1200/1050/-

Output of Fan Motor W 60 60

Fan Motor RLA A 0.40 0.40

Fan Motor Capacitor ȝ) 33

Input of Heater W / /

Evaporator Form AluminumFin-copperTube Aluminum Fin-copper Tube

Pipe Diameter mm ĭ ĭ

5RZ¿Q*DS mm 2.5-1.5 2.5-1.5

&RLO/HQJWK/;';: mm 1074X25.4X381 1074X25.4X381

Swing Motor Model MP24BA MP24BA

Output of Swing Motor W 1.5 1.5

Fuse A 5 5

Sound Pressure Level (SH/H/M/L/SL) dB (A) 55/52/48/45/- 55/52/48/45/-

Sound Power Level (SH/H/M/L/SL) dB (A) 65/62/58/55/- 65/62/58/55/-

Dimension (WXHXD) mm 1350X326X253 1350X326X253

Dimension of Carton Box (LXWXH) mm 1438X418X343 1438X418X343

'LPHQVLRQRI3DFNDJH/;:;+ mm 1441X421X358 1441X421X358

1HW:HLJKW NJ 20 20

*URVV:HLJKW NJ 24.5 24.5

7HFKQLFDO,QIRUPDWLRQ

Service Manual

Outdoor unit

Model of Outdoor Unit GWC36LB-K3NTA5A/O GWH36LB-K3NTA5A/O

Outdoor Unit Product Code CA169W04200 CA169W04300

&RPSUHVVRU0DQXIDFWXUHU7UDGHPDUN .XOWKRUQ.LUE\3XEOLF&2/7' .XOWKRUQ.LUE\3XEOLF&2/7'

Compressor Model AW5540B AW5540B

Compressor Oil Mineral Oil Mineral Oil

Compressor Type Reciprocating Reciprocating

L.R.A. A 85.00 85.00

Compressor RLA A 17.00 17.00

Compressor Power Input W 3530 3530

Overload Protector KGE 656-17 KGE 656-17

7KURWWOLQJ0HWKRG Capillary Capillary

Operation Temp °C 16~30 16~30

Ambient Temp (Cooling) °C 18~52 18~52

Ambient Temp (Heating) °C / -7~24

Condenser Form Aluminum Fin-copper Tube Aluminum Fin-copper Tube

Pipe Diameter mm ĭ ĭ

5RZV¿Q*DS mm 2.5-1.5 3-1.6

&RLO/HQJWK/;';: mm 953X57.15X748 953X57.15X748

Fan Motor Speed rpm 780 780

Output of Fan Motor W 90 90

Fan Motor RLA A 0.80 0.80

Fan Motor Capacitor ȝ) 44

Air Flow Volume of Outdoor Unit m3K 4000 4000

Fan Type $[LDOÀRZ $[LDOÀRZ

Fan Diameter mm ĭ ĭ

'HIURVWLQJ0HWKRG / Automatic Defrosting

Climate Type T3 T3

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

IRUWKH'LVFKDUJH6LGH MPa 4.3 4.3

Permissible Excessive Operating Pressure

IRUWKH6XFWLRQ6LGH MPa 2.5 2.5

Sound Pressure Level (H/M/L) dB (A) 60/-/- 60/-/-

Sound Power Level (H/M/L) dB (A) 70/-/- 70/-/-

Dimension (WXHXD) mm 1000X790X427 1000X790X427

Dimension of Carton Box (LXWXH) mm 1140X480X865 1140X480X865

'LPHQVLRQRI3DFNDJH/;:;+ mm 1143X483X880 1143X483X880

1HW:HLJKW NJ 81 83

*URVV:HLJKW NJ 86 88

Refrigerant R22 R22

5HIULJHUDQW&KDUJH NJ 2.35 2.40

Connection

Pipe

/HQJWK m 5 5

*DV$GGLWLRQDO&KDUJH g/m 50 50

Outer Diameter Liquid Pipe mm ĭ ĭ

Outer Diameter Gas Pipe mm ĭ ĭ

0D['LVWDQFH+HLJKW m 20 20

0D['LVWDQFH/HQJWK m 30 30

1RWH7KHFRQQHFWLRQSLSHDSSOLHVPHWULFGLDPHWHU

7KHDERYHGDWDLVVXEMHFWWRFKDQJHZLWKRXWQRWLFH3OHDVHUHIHUWRWKHQDPHSODWHRIWKHXQLW

47HFKQLFDO,QIRUPDWLRQ

Service Manual

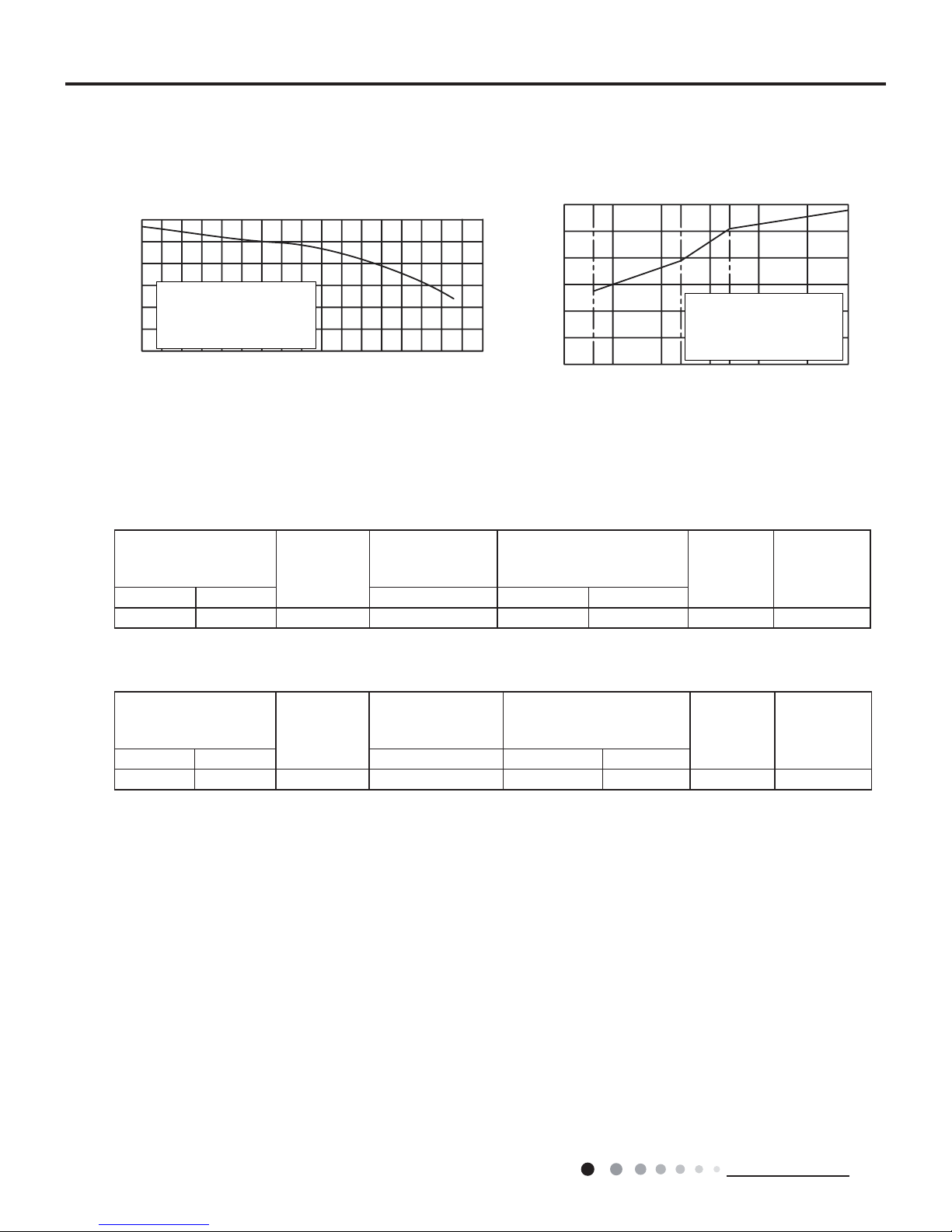

2.2 Capacity Curve in Different Outdoor Temperature

Rated cooling condition(°C)

(DB/WB) Model

Pressure of gas pipe

connecting indoor and

outdoor unit

Inlet and outlet pipe temperature

RIKHDWH[FKDQJHU Fan speed of

indoor unit

Fan speed of

outdoor unit

Indoor Outdoor P (MPa) T1 (°C) T2 (°C)

27/19 35/24 36K 0.9 to 1.1 8~11 to 11~14 75~85 to 37~43 6XSHU+LJK +LJK

2.3 Operation Data

Cooling

Heating

5DWHGKHDWLQJFRQGLWLRQ&

(DB/WB) Model

Pressure of gas pipe

connecting indoor and

outdoor unit

Inlet and outlet pipe temperature

RIKHDWH[FKDQJHU Fan speed of

indoor unit

Fan speed of

outdoor unit

Indoor Outdoor P (MPa) T1 (°C) T2 (°C)

20/- 7/6 36K 2.8 to 3.0 85 to 35 2 to 4 6XSHU+LJK +LJK

Instruction:

T1: Inlet and outlet pipe temperature of evaporator

T2: .Inlet and outlet pipe temperature of condenser

33UHVVXUHDWWKHVLGHRIELJYDOYH

&RQQHFWLRQSLSHOHQJWKP

Cooling Heating

Capacity ratio(%)

110

100

50 51 53 55494745434139373533312927252321

1574220-7-10 -5

100

120

510

Capacity ratio(%)

Condition Cooling

Indoor:DB27°C WB19°C

Indoor air flow: Super High

Pipe length:5m

Condition Heating

Indoor:DB20°C

Indoor air flow: Super High

Pipe length:5m

Outdoor temp.(°C)

7HFKQLFDO,QIRUPDWLRQ

Service Manual

1350

326

253

295 90

350 254746

Φ70

395

427

395

620

1000

790

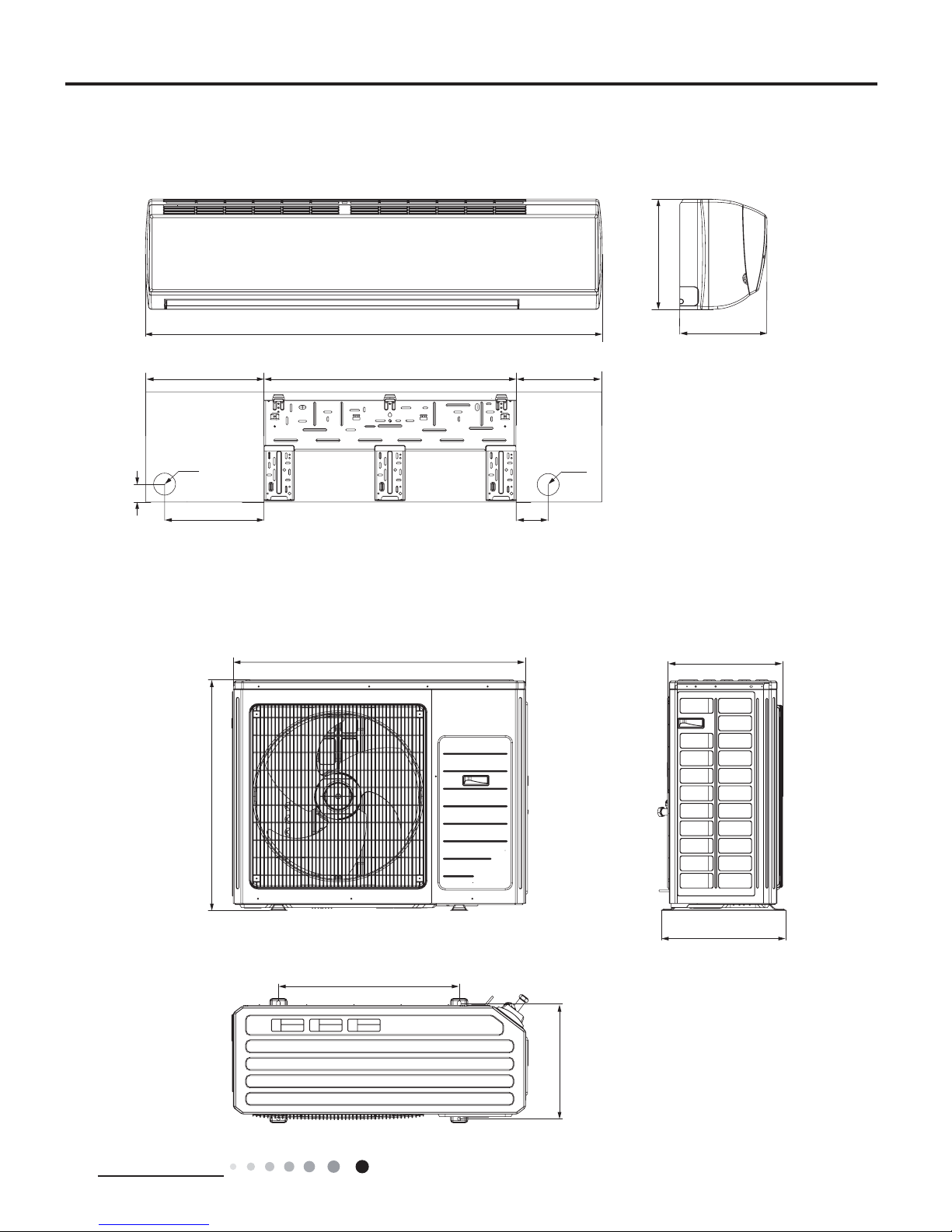

3. Outline Dimension Diagram

3.1 Indoor Unit

Unit: mm

3.2 Outdoor Unit

Unit: mm

67HFKQLFDO,QIRUPDWLRQ

Service Manual

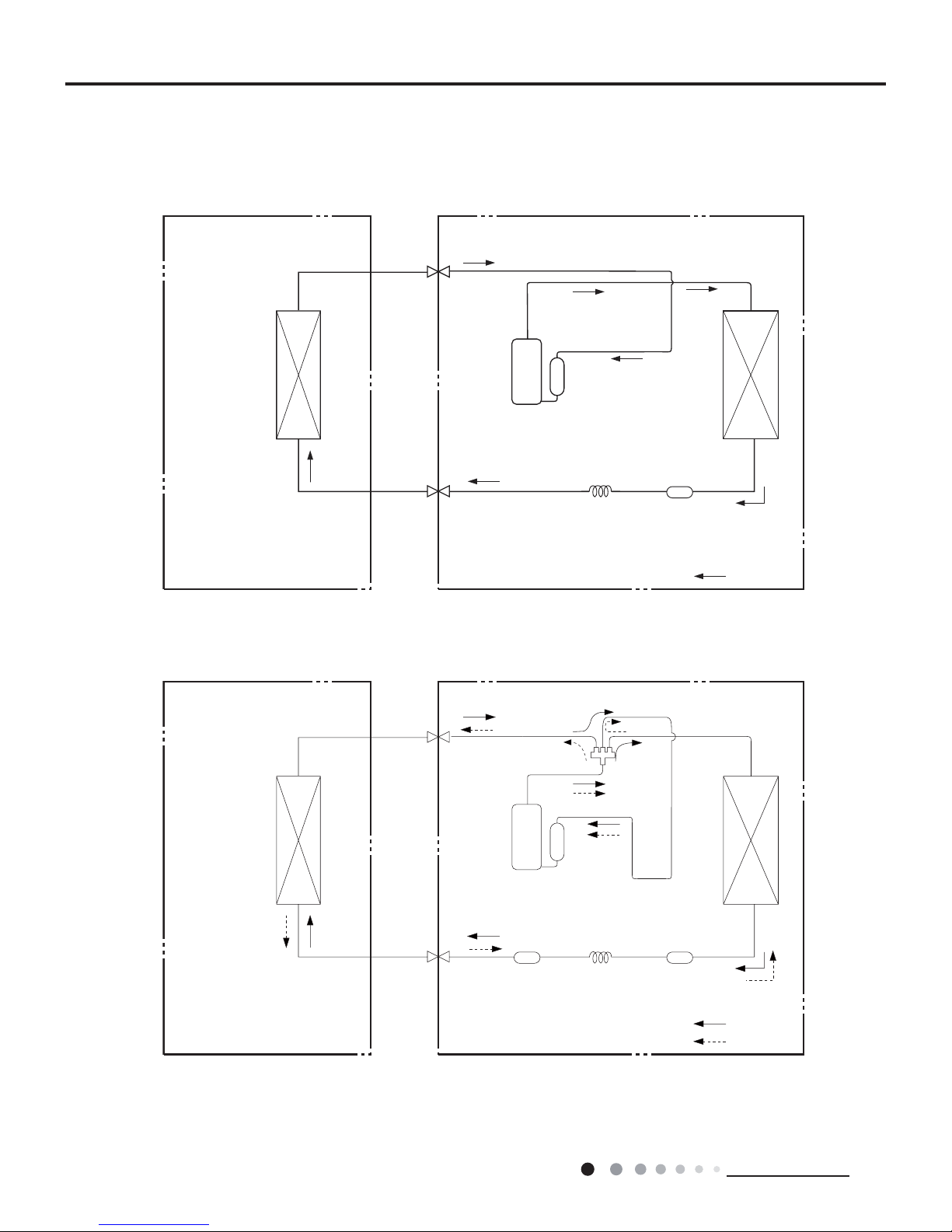

4. Refrigerant System Diagram

Cooling only model

Cooling and heating model

Indoor unit Outdoor unit

COOLING

HEATING

Accumlator

4-Way valve

COOLING

Discharge

Suction

Discharge

Suction

Heat

exchanger

(evaporator)

Heat

exchanger

(evaporator) Heat

exchanger

(condenser)

Valve

Liquid pipe

side

Gas pipe

side

Liquid pipe

side

Gas pipe

side

Compressor

Strainer

Capillary

Accumlator

Compressor

Strainer

Capillary

Heat

H[FKDQJHU

(condenser)

Refrigerant pipe diameter

Liquid :1/4" (6 mm)

Gas :3/4" (19mm)

7HFKQLFDO,QIRUPDWLRQ

Service Manual

5. Electrical Part

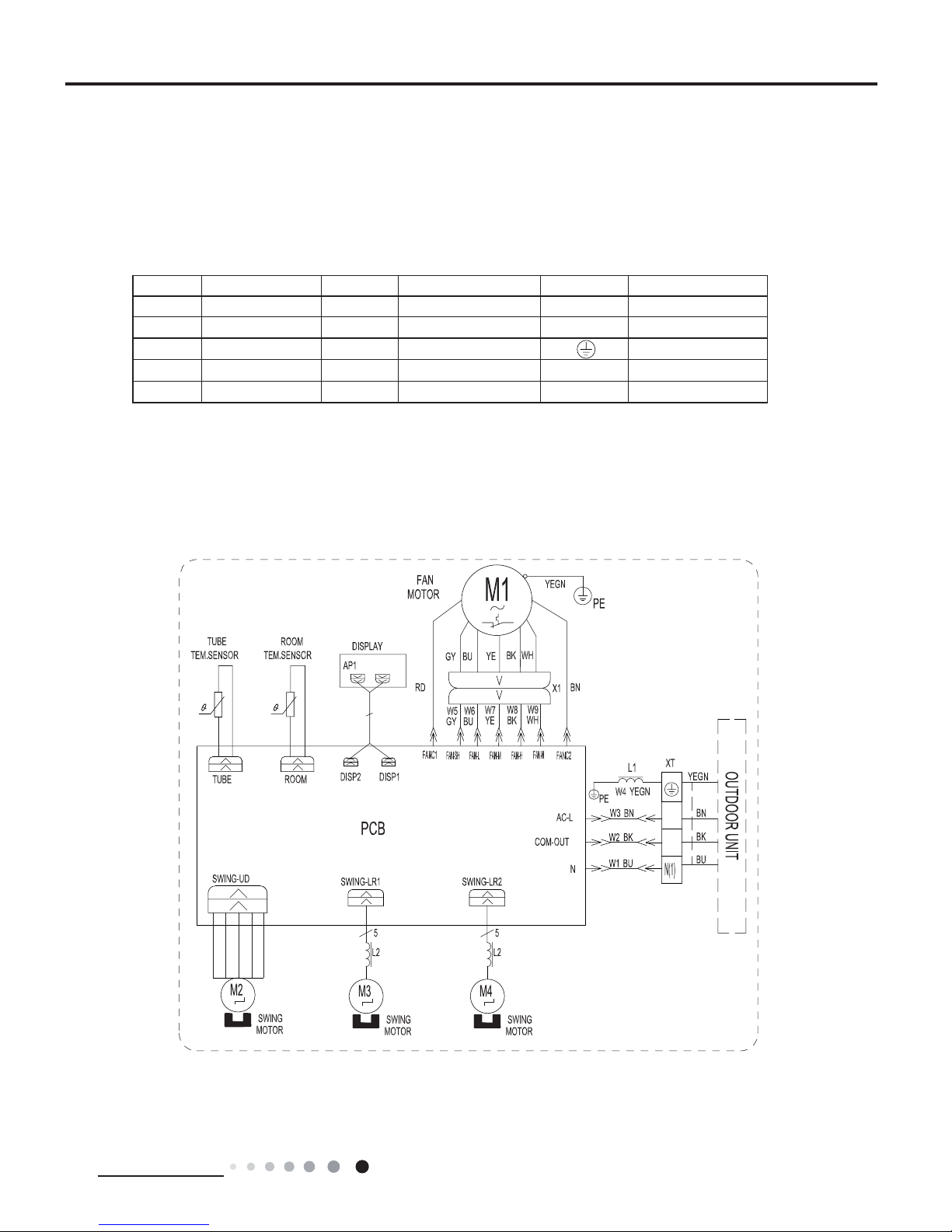

5.1 Wiring Diagram

Ɣ,QGRRU8QLW

Ɣ,QVWUXFWLRQ

Symbol Symbol Color Symbol Symbol Color Symbol Name

WH :KLWH GN Green CAP Jumper cap

YE Yellow BN Brown COMP Compressor

RD Red BU Blue Grounding wire

YEGN Yellow/Green BK %ODFN //

VT Violet OG Orange / /

1RWH-XPSHUFDSLVXVHGWRGHWHUPLQHIDQVSHHGDQGWKHVZLQJDQJOHRIKRUL]RQWDOORYHUIRUWKLVPRGHO

RT2

RT1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gree Climatiseur

Gree

Gree GPC09AI-K3NNC6D Manuel utilisateur

Gree

Gree Soleus Air GM-PAC-12E1 Manuel utilisateur

Gree

Gree Cassette B Series Manuel utilisateur

Gree

Gree SUPER FREE MATCH Series Manuel utilisateur

Gree

Gree GMV-ND28C/A-T Manuel utilisateur

Gree

Gree G-Cloud ME31-00/C4 Manuel utilisateur

Gree

Gree GWH09ACC-K6DN A1 A/I Manuel utilisateur

Gree

Gree G17-8PACSW Manuel utilisateur

Gree

Gree GWH18PD-K3NNA1A Manuel utilisateur

Gree

Gree GRH085DA-K3NA1A Manuel utilisateur

Gree

Gree MULTI30HP230V1CO Manuel utilisateur

Gree

Gree GWH12MB-K3DNE3G Manuel utilisateur

Gree

Gree G17-12PACSH-CA Manuel utilisateur

Gree

Gree NEO09HP115V1A Manuel utilisateur

Gree

Gree GPC12AE-A3NNA8A Manuel utilisateur

Gree

Gree GWC18QD-D3DNA6E (LC) Manuel utilisateur

Gree

Gree GMV-ND28ZD/A-T Manuel utilisateur

Gree

Gree SAP09HP230V1AO Manuel utilisateur

Gree

Gree GUHN18NK3HO Manuel utilisateur

Gree

Gree GWH09MB-K3DNA2K Manuel utilisateur

Gree

Gree GWC09KF-K3DNA5A Manuel utilisateur

Gree

Gree U-Match UMAT18HP230V1AF Manuel utilisateur

Gree

Gree GAE08AD-A3RNB2A Manuel utilisateur

Gree

Gree GEH09AA-K6DNA1E/I Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
