GRAUPNER Taifun Manuel utilisateur

No. 2280

X-Cat model to be powered by 2 Power Seven Engines

Raceboat „Taifun“

Manual

3 / 14

2280_MP_V1

Inhaltsverzeichnis

For your notes.............................................................................4

Introduction.................................................................................5

Service Adresses .......................................................................5

Intended use ..............................................................................6

Package content ........................................................................6

Required components ..............................................................6

Declaration of conformity........................................................7

Symbols explication ..................................................................8

Safety notes ................................................................................8

Assembling of the model .........................................................9

Apply the stickers: .....................................................................11

Partlist.........................................................................................12

Electric wiring...........................................................................13

Controlling the two motors ......................................................13

Telemetry ..................................................................................13

Spareparts: ................................................................................13

Optionparts: ..............................................................................14

For your notes

5 / 14

2280_MP_V1

Introduction

Thank you for choosing a Graupner racing boat Typhoon. This

is extremely versatile.

Read these instructions carefully to ensure the proper functio-

ning of the module and above all to safely control your models.

If any problems occur during operation, please refer to the

manual or ask your dealer or the Graupner Service Center.

Due to technical changes, the information in this manual is sub-

ject to change without notice. Inform yourself in regular intervals

on the Internet at www.graupner.de to stay up to date with the

product and the instructions.

This product complies with the legal national and European

requirements.

To maintain this condition and to ensure safe operation, you as a user

must read and follow these instructions and the safety instructions

before putting the product into operation!

NOTE

This manual is part of the product. It contains important instructions

for commissioning and handling. Therefore, save the instructions for

reading and give them to third parties when the product is distribu-

ted.

Service Adresses

Graupner-USA

3941 Park Dr Suite 20-571,

El Dorado Hills, CA. 95762

Servicehotline



(+001) 855-572-4746

[email protected]

Graupner UK A.Brimingham@graupner.co.uk

Graupner in the Internet You can find all adresses on our webside www.graupner.com

6 / 14 2280_MP_V1

Intended use

The model is controlled by 2 remote control sticks and is intended

for use only as a battery or battery-operated radio-controlled

models, otherwise operation is not permitted. No warranty or lia-

bility is accepted for any improper use.

Read the entire instructions carefully before connecting and using

the module.

Graupner / SJ is constantly working on the further development of

all products; We must therefore reserve the right to change the

scope of delivery in terms of form, technology and equipment.

target group

The product is not a toy. It is not suitable for children under 14

years. Installation and operation may only be carried out by experi-

enced modelers. If you do not have sufficient knowledge of how to

handle remote-controlled models, contact an experienced modeler

or model-making club.

Package content

hull fiberglass

canopy fiberglass

2 motorhoods fiberglass

linkages for Power Seven Engines

Servomount Laserparts from wood

3 pcs. Decale Sheet

Manual

Required components

2x Outboard Engines„Power Seven“ No.1996

1x Propeller left No.1996.1

1x Propeller right No.1996.2

2x Inline Motor No.6646

2x watercooling No.6645.1

2x ESC No.33770.D35

1x rudderservo No.7951

2x Battery No.78145.3

1x Transmitter S1002.PRO.77.DE (more please visit www.graup-

ner.com)

7 / 14

2280_MP_V1

Declaration of conformity

No. 2280 Raceboat Taifun

Graupner/SJ declares that the product is conform to CE norms

Technichal Data

Raceboat Taifun

Battery recommendation 2 x 2S oder 2 x 3S Lipo

meassures 900 x 285 x 170 mm with Power

Seven engines

Weight 3.000g

Speed depending on motors up to 70

km/h

required channels 2 (bzw. 1x Mixchannel or Y-cable)

NOTE

You will find the procedure of the mixing channel in the manual Part

2 of the transmitter.

function description

With the racing boat typhoon you have a thoroughbred Rennkatam

aran at the start. The geometry of the hull gives the model extre-

mely good handling on the water including sharp turns.

Both recommended outboards are connected via a linkage and con-

trolled with only one strong servo.

The fuselage, hood and hood are laminated from laminated fiber-

glass and are dyed white and trimmed to install the RC components.

Two inline engines No.6645 to 6649 provide different speeds depen-

ding on the ability and experience of the rider.

It is essential to operate the motors together with the

water cooling system No.6645.1 so that they do not over-

heat during operation and are damaged.

For the connection of the ESC`s there are two ways:

1. Both controllers on channel 1 are operated via Y cable No.S8187.

(First of all the controllers have to be taught in individually on the

control stick)

2. Operate the controller via mixer on the remote control. To do

this, the second controller is plugged into channel 6 and assigned

via the free mixers. Only one controller may supply the receiver

with BEC. For the second pull the red wire on the receiver cable!

Insert the telemetry cable from the BEC control to channel 5 (on the

GR-12).

8 / 14

Symbols explication

Always observe the information marked with this warning picto-

gram. Especially those which are additionally marked by CAUTION

or WARNING. The signal word WARNING alerts you to possible seri-

ous injuries, the signal word CAUTION for possible minor injuries.

Note warns you of possible malfunctions.

Attention warns you about possible property damage.

Safety notes

These safety instructions are not only for your own safety

and the safety of others, but also for the protection of the

product. Therefore, read this chapter carefully before

using the product!

Do not leave the packing material careless, this could be a dan-

gerous toy for children.

Persons, including children, who due to their physical, sensory

or mental capabilities or inexperience or ignorance are unable to

operate the transmitter safely, may not use the transmitter

without supervision or instruction by a responsible person.

The operation and operation of remote-controlled models must

be learned! If you have never steered such a model, be very

careful and familiarize yourself with the model‘s responses to the

remote commands. Always act responsibly. It also means that

you have a liability insurance for your own protection.

Protect all devices from dust, dirt and moisture. Never expose it

to vibration, excessive heat or cold. Remote control operation

may only be carried out at „normal“ outdoor temperatures, ie.

H. in a range of -10 ° C to +55 ° C. The racing boat Typhoon

was developed for use in model making and may be used accor-

ding to its intended use only there.

Please note that the model may only be operated within the spe-

cified limits (see technical data).

Check the correct operation of the model before each use.

9 / 14

2280_MP_V1

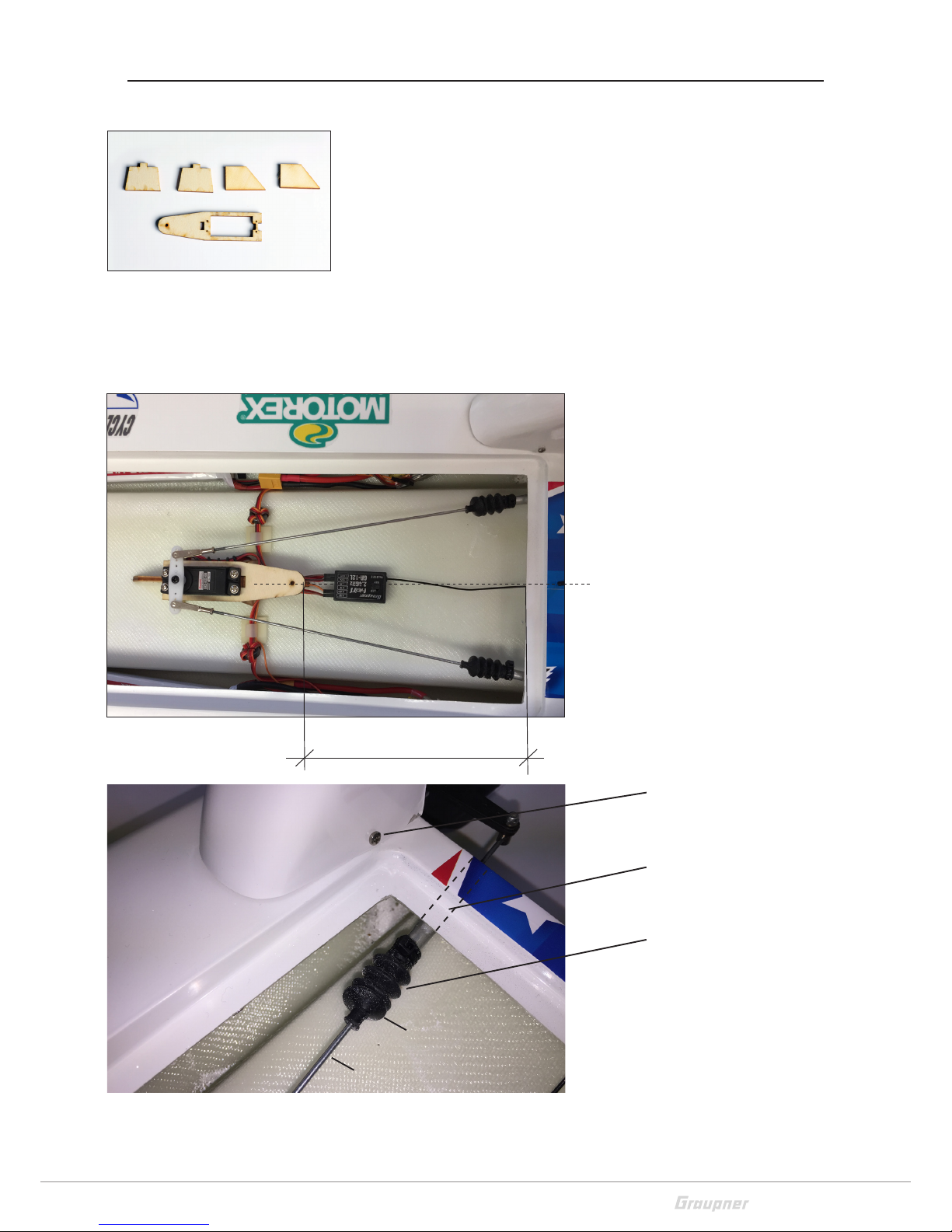

Assembling of the model

138 mm

Middle

Teilesatz 4

The fiberglass parts are all finished cropped. The wood laser parts

are glued together using the pictures (superglue No. 5821)

To install the servo base (4) in the fuselage, Stabilit Express no.

960.85. The position of the base is provided centrally in the fuse-

lage. Rear cut-out hull hull to end socket is 138 mm.

Also with Stabilit Expres, the two aluminum tubes (7) for the rud-

der links are glued into the existing holes.

Drill 4 holes for attaching the

trims (3). Use screws (19)

Glue the aluminum tube (7)

into the fuselage. Overhang

on the outside about 2-3 mm

The rubber grommet (8) is

mounted on the tube and

fixed with a drop of superg-

lue, as well on the linkage to

the outboard.

Glue the pre-glued servo

base in the middle of the

fuselage at a distance of 138

mm from the rear cut-out

edge. Prior to this, connect

both linkage systems as a

test. Align the aluminum

tubes so that they do not

touch the poles. Only then

glue and push on the rubber

grommets.

(8)

(6)

10 / 14 2280_MP_V1

Use the hook and loop strap (20) to attach

the batteries.

The rubber sleeves (8) can be fixed with

some superglue or alternatively with cable

ties (optionally available under No. S8436)

Always place the antenna of the receiver

outwards and as far up as possible, as the

water surface can strongly reflect the radio

signal.

Seal the antenna bushing with some Fixo-

gum No.575.

Align and glue the aluminum tubes (7)

slightly overhanging.

Thread the motor connection cables

through the socket on the fuselage. Then

close the maintenance opening of 20 mm

with the waterproof adhesive tape.

Secure all screws well with screw lock (No.

952)

On the engines the heat sink no. Mount

6645.1 and the nipples for feeding with sili-

cone hose no. 1668.3 connect.

The discharge from the heat sink is in turn

out of the housing of the outboard motor.

To do this, use the lower recess on the rear

of the hood to guide the hose outwards.

Both outboards are connected via clevises

(5) and threaded rod (15). The outboards

themselves are screwed to the hull via the

8 screws (16).

2x Gestängeanschluß(9)

2x Sicherungsmutter (10)

No. 6645.1

Table des matières

Autres manuels GRAUPNER Jouet

GRAUPNER

GRAUPNER THEODOR HEUSS model boat Manuel utilisateur

GRAUPNER

GRAUPNER Mirage Manuel utilisateur

GRAUPNER

GRAUPNER JODEL ROBIN DR 400/180 Manuel utilisateur

GRAUPNER

GRAUPNER RANZOW Mode d’emploi

GRAUPNER

GRAUPNER ELEKTRO-ROOKIE S Mode d’emploi

GRAUPNER

GRAUPNER SKY HERO II Mode d’emploi

GRAUPNER

GRAUPNER V-VENTURE Manuel utilisateur

GRAUPNER

GRAUPNER Skalar Manuel utilisateur

GRAUPNER

GRAUPNER GF-5 Manuel utilisateur

GRAUPNER

GRAUPNER BERNHARD GRUBEN model boat Manuel utilisateur

GRAUPNER

GRAUPNER 9 metre class sea rescue boat Mode d’emploi

GRAUPNER

GRAUPNER AMIGO V Manuel utilisateur

GRAUPNER

GRAUPNER altona 2146 Manuel utilisateur

GRAUPNER

GRAUPNER HoTT Deluxe 9932.100 Manuel utilisateur

GRAUPNER

GRAUPNER life at the extreme 2131 Manuel utilisateur

GRAUPNER

GRAUPNER North American Harvard AT 6 Manuel utilisateur

GRAUPNER

GRAUPNER NANO STAR 2 GYRO Manuel utilisateur

GRAUPNER

GRAUPNER anja sl 35 Manuel utilisateur

GRAUPNER

GRAUPNER X44 Manuel utilisateur

GRAUPNER

GRAUPNER MINI DISCUS 2C Mode d’emploi

GRAUPNER

GRAUPNER GF-18C HORNET Manuel utilisateur

GRAUPNER

GRAUPNER P-47 THUNDERBOLT Manuel utilisateur

GRAUPNER

GRAUPNER Smaragd Mode d’emploi

GRAUPNER

GRAUPNER HoTT-FAN Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
