Grasslin talento 812 Manuel utilisateur
1. Contents Page
2. Safety instructions 3
3. Assembly, putting into operation, connection 4
4. Control elements 5
5. Display 6
6. General 7
7. Factory setting 8
7.1 Changing the settings 10
7.2 Selecting the operating mode 11
7.2.1 AU = Automatic switchover 11
7.2.2 cHA = Weekday-related switchover 12
7.2.3 no = No switchover 13
8. Switching commands 14
9. Date 16
9.1 Single date without/with year 17
9.2 Date range without/with year 18
10. Priority 20
11. Pulse switching commands 21
12. Cycle switching commands 23
13. Read – Change – Delete – Reset 26
14. Manual switch 30
15. DCF77 radio mode 30
16. Technical data 31
http://waterheatertimer.org/Intermatic-timers-and-manuals.html#talento-800
2. Safety information 3
GB
Installation must be carried out and inspected by a specialist or
under his supervision.
For assembly:
• Suitable for use in ambient conditions with normal
contamination levels
• Use the appropriate Grässlin accessories for wall
surface-mounting.
If correctly installed in accordance with VDE 0100, Part 40,
the parts with which contact is still possible can be regarded
as double-insulated (protection class II).
For operation:
• We place high demands on the EMC interference resistance of
the electronics when developing our products. The interference
immunity achieved significantly exceeds the currently valid
requirements of the appropriate EN standards.
• In individual cases, check whether additional protection
measures are still necessary, e.g. the installation of appropriate
components (varistor, suppresser diode, RC element).
• In extreme cases, it is recommended to install another module,
e.g. isolating relay or switching contacter, mains interference
suppresser filter.
For operation:
• No metallic pointed objects (e.g. needles) may be used on keys
pressed with a tool.
Important:
• Only safety extra-low voltage may be connected for operating
the clock with safety extra-low voltage.
• When operating the clock with function extra-low voltage, either
the mains voltage (230 V AC) or function extra-low voltage may
be connected. In these cases, it is not permissible to connect
safety extra-low voltage.
3. Assembly, putting into operation, connection 4
3.1 Assembly
Fit the time switch
• on a DIN rail
• Wall surface-mounting is
optional
Surface-mounting set for 6 modular
spacings Article No.
03.59.0046.2
3.2 Putting into operation
The time and date have been set at
the factory.
The time switch is in power-save mode.
Only the colon flashes.
Press any key:
• The time switch is active
• It shows the time (day of the week)
3.3 Connection
See information on the unit.
Press any key:
• The time switch is active
•
It shows the date, time and day of the week
Note:
The time switch is
automatically active after
approx. 1–2 minutes
4. Control elements 5
GB
Hand switch
Select days of the week
1 = Monday
2 = Tuesday
3 = …
Summer time/winter time switchover
Select pulse
Reset
Select cycle
Current date, time settings
Begin program input
Send/receive IR
Priority
Delete
up to, for date range
Calendar day
Calendar month
Years
Hours
Minutes
Select minutes/seconds
for cycle/pulse functions
set
set
5. Display 6
Day (US month)
Pulse (minutes)
Cycle (minutes)
Channel 1
Continuous operation
Manual operation
Automatic operation
Switching state
Channel 2
Channel 3
Channel 4
Hours
Year number
1234567 = Day of the week
Month (US day)
Pulse (seconds)
Cycle (seconds)
Automatic operation
Cycle
Pulse
DCF 77
Radio reception
Year number
Block number
Priority
Summer time/
winter time
switchover
12 h/24 h displayMinute
6. General 7
6.1 Block numbers
Block numbers are automatically issued during programming.
There are block numbers from 00 ....... 99 (note block principle).
All switching commands without date assignment always receive
the block number 00. (Priority 0 is always assigned to the
block number 00 – it cannot be changed).
All switching commands with date assignment receive the block
numbers from 01 ..... 99.
These are issued in ascending order.
6.2 Priority
Switching commands with a date assignment can be occupied
with different priorities.
If you start with a date when entering the program, a new block
number and priority 2 are always offered.
The priority can be changed between 1 and 9,
(see Section 10).
The switching command with a higher priority is
executed first.
6.3 Saving the switching program
In the current operating state (colon flashing), the time switch
offers the possibility of using the entered switching program
with the function:
•Back Up – can be saved in “background“
•Restore – restores to the foreground
•Change – 2 switching program alternately
GB
6. General 8

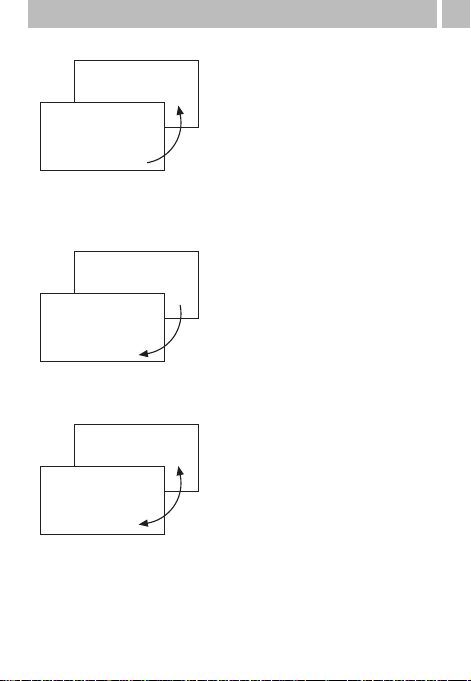

Back Up
with the key Prog and 1(Day key)
The switching program in the
foreground is preserved and can be
changed as required.
If necessary, call up the original
switching program again with the
Restore function.
Restore
with the key Prog and 7(Day key)
The switching program in the
foreground can be changed as required.
The saved and the current switching
programs can be used alternately
with the Change function.
Change
with the key Prog and 4(Day key)
Both switching programs can be used,
changed and saved independently
of each other.
Program saved
current program
Program saved
current program
Program saved
current program
6. General 9
6.4 Programming at the desk
The control section can be
removed and programming
can be conveniently
performed at the desk.
6.5
Programming with the talento taxxi (manual programming unit)
The talento taxxi offers the most convenient method for
transferring the switching programs.
6.5.1
From time switch to time switch (from control section to control
section – without mains voltage!). The switching programs
are read out from one time switch and are transferred to
the next one – see the talento taxxi operating instructions.
Note: If the data is not correctly transferred, the error
message Er 02 appears in the display of the
time switch.
• Check the time switch type
A switching program can only be transferred
to a time switch of the same type.
• Transfer the program again.
There may be a read/wire error.
talento taxxi
GB
6. General 10
6.5.2 Compile your switching programs on a PC with the
software talento dialog. They are then transferred to
the taxxi via the PC interface.
With the taxxi, the switching programs are now
transferred to the relevant time switch (control section)
via the infrared interface. Refer to the talento dialog
manual.
Note: Software and accessories can be ordered separately:
•talento taxxi set Art.No.: 07.01.0029.1
consisting of:
• Software talento dialog, including manual
• talento taxxi (manual programming unit)
• Cable 1:1 for the serial interface
• talento taxxi Art.No.: 07.01.0030.1
talento taxxi
6. General 11
6.6
Service
6.6.1 Error messages
The time switch signals malfunctions:
•Er 04 – in the event of incorrect access to
the EEProm. This error message can appear in
individual cases. Press any key and the time
switch will continue to run normally.
If this error message appears often, we recommend
that the time switch be replaced.
Consult your dealer.
•Er 02 – in the event of incorrect transfer via the
IR interface.
Transfer the program again.
There may be read/write errors.
•Er 01 – If the battery voltage is too low.
6.6.2 Lithium battery (service life, type: see Technical data)
If the battery voltage falls to below a value which
does not guarantee functioning of the time switch
(error message Er 01) , replace the battery.
Order the battery from your dealer with the
article number 09.02.0007.8.
Replacing the battery:
• Remove the control section, see 6.4
• Remove the battery casing
• Carefully remove the connector
• Insert a new battery
• Carefully insert the connector
• Replace the battery casing
GB
