GRASS VALLEY T2 Manuel

Additional Function Manual SP4.3

www.grassvalley.com F3951310081

October 2013

INTELLIGENT DIGITAL DISK RECORDER

or in part, or otherwise reproduced except as speciﬁcally permitted under U.S. copyright law,

without the prior written consent of Grass Valley, Inc., P.O. Box 59900, Nevada City, California

95959-7900. This product may be covered by one or more U.S. and foreign patents.

Grass Valley is a trademark of GVBB Holdings S.a.r.l.

Disclaimer Product options and speciﬁcations subject to change without notice. The information in

this manual is furnished for informational use only, is subject to change without notice, and

should not be construed as a commitment by Grass Valley, Inc. Grass Valley, Inc. assumes

no responsibility or liability for any errors or inaccuracies that may appear in this publication.

U.S. Government

Restricted Rights Legend

Use, duplication, or disclosure by the United States Government is subject to restrictions as

set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software

clause at DFARS 252.277-7013 or in subparagraph c(1) and (2) of the Commercial Computer

Software Restricted Rights clause at FAR 52.227-19, as applicable.

Trademarks and Logos Grass Valley is a trademark of GVBB Holdings S.a.r.l. Grass Valley USA, LLC products are

covered by U.S. and foreign patents, issued and pending. Additional information regarding

Grass Valley USA, LLC trademarks and other proprietary rights may be found at www.

grassvalley.com.

Other trademarks and logos used in this document are either registered trademarks or

trademarks of the manufacturers or vendors of the associated products, such as Microsoft®

Windows®operating system, Windows Media®player, Internet Explorer®internet browser, and

SQL Server™. QuickTime and the QuickTime logo are trademarks or registered trademarks

of Apple, Inc., used under license therefrom. Intel and Core i7 are the trademarks or

registered trademarks of Intel Corporation or its subsidiaries in the United States of America

and other countries. Adobe and Adobe Premiere are registered trademarks of Adobe Systems

Incorporated. Final Cut Pro is a trademark of Apple Inc., registered in USA and other countries.

Dolby, Dolby and the Double D symbol are registered trademarks of Dolby Laboratories. They

are manufactured based on their own license. XDCAM, MPEG HD422 and XDCAM EX are

trademarks or registered trademarks of Sony Corporation. XDCAM EX, SxS, and their logos

are trademarks of Sony Corporation. GF and GFPAK are trademarks of Toshiba Corporation.

Grass Valley Web Site This public Web site contains all the latest manuals and documentation, and additional

support information. Use the following URL.

http://www.grassvalley.com.

2T2 Additional Function Manual SP4.3 October 8, 2013

Manual Explanation • If there are any variations between the explanation in this manual and the actual application

method, priority is given to the actual application method.

• Screenshots and illustrations in this manual may vary from those of the actual product.

• The screenshots used as examples in this manual are those of the development stage, so

they may vary from those in the ﬁnal product.

• This manual is written for users who have a basic knowledge of how to use a computer.

If there are no special instructions, perform the same operation as a normal computer

operation.

• The contents of this product may modify without prior notice.

T2 Additional Function Manual SP4.3

Ver 1.0

October 8, 2013 T2 Additional Function Manual SP4.3

Contents

1 Introduction

About this manual.......................................................................... 5

2 2ch view in Workstation Mode

Screen elements ........................................................................... 6

3 Preroll/Postroll

P1/P2 settings .............................................................................. 8

P1/P2 – Monitor & Remote settings ..........................................................8

4 Appendix

Keyboard shortcut list in workstation mode ........................................... 9

4T2 Additional Function Manual SP4.3 October 8, 2013

Section 1

Introduction

About this manual

This manual describes additional functions included in SP4.3. For basic

functionality please refer to the User Manual.

The steps described in this manual is operated in front panel mode.

October 8, 2013 T2 Additional Function Manual SP4.3

Section 2

2ch view in Workstation Mode

You can use 2ch view in additon to 1ch and 3ch view in workstation mode.

Screen elements

¾Full display – 2ch view

(2)

(4)

(3)

(1)

(1) Menu bar Please refer to the user manual.

(2) Channel display

part Displays R1, P1, and P2 channels in 3ch view.

(3) Status bar Please refer to the user manual.

(4)

Bin/transfer

screen display

part

Please refer to the user manual.

6T2 Additional Function Manual SP4.3 October 8, 2013

Section 2 ― 2ch view in Workstation Mode

¾Menu bar

[System] Please refer to the user manual.

[View]

By clicking, displays the next menu.

[2ch (R1+P1)]

Displays R1 and P1 channels in channel display part.

[2ch (R1+P2)]

Displays R1 and P2 channels in channel display part.

[2ch (P1+P2)]

Displays P1 and P2 channels in channel display part.

[3ch]

Displays R1, P1 and P2 channels in channel display part.

[Option] Please refer to the user manual.

[Help] Please refer to the user manual.

October 8, 2013 T2 Additional Function Manual SP4.3

MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)

Section 3

Preroll/Postroll

You can use preroll and postroll in P1/P2 seing.

P1/P2 settings

P1/P2 – Monitor & Remote settings

You can make seings for the monitor output from P1/P2 output section and

remote control of P1/P2 channel.

1. Tap [P1] (or [P2]), and then tap the [Monitor & Remote] tab in the

setting screen.

¾[Monitor & Remote] tab

[Monitor out]

Please refer to the user manual.

[Remote protocol:] Please refer to the user manual.

[Enable local

operations while being

remote controlled.]

Please refer to the user manual.

[Preroll :] Rewinds a short duration of time before the In

point and starts playback from the point.

[Postroll :]

Allows to set the playback duration by the

seconds in order to play back video later than

the Out point.

2. Set each item and tap [OK].

8T2 Additional Function Manual SP4.3 October 8, 2013

Section 3 ― Preroll/Postroll

Section 4

Appendix

New shortcuts are added in workstation mode.

Keyboard shortcut list in workstation mode

The following list shows the keyboard shortcuts.

Category Action Shortcut

[General] [Select R1 channel] [1]

[Select P1 channel] [2]

[Select P2 channel] [3]

[Change focus to the folder list]

[Change focus to the content list]

[Change focus to the playlist of the selected channel]

[Switch between 1ch View and 2ch/3ch View] *Update

[Change the content’s tab]

[Show the Conguration screen]

[Show the content search screen]

[Lock/Unlock the selected channel]

[Turn On/O the Loop in the selected channel (P1/P2)]

[Turn On/O the EtoE in the selected channel (P1/P2)]

[Turn On/O the Remote of the selected channel (P1/P2)]

[Turn the sync play mode On/O]

[Eject the selected channel]

[Start Recording the selected channel (R1)] [M]

[Start playback in the selected channel] [L]

[Play reverse in the selected channel] [J]

[Play or pause the selected channel] [Space]

[Stop playing/recording in the selected channel] [K]

[Fast Forward (skip) in the selected channel] [;]

[Rewind (1 step back) in the selected channel] [H]

October 8, 2013 T2 Additional Function Manual SP4.3

MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)

Category Action Shortcut

[Increase (1 step forward) the VAR speed in the selected

channel] [.]

[Slower (1 step back) the VAR speed in the selected channel] [,]

[Increase (0.1 forward) the VAR speed in the selected

channel]

[Slower (0.1 back) the VAR speed in the selected channel]

[Increase (0.01 forward) the VAR speed in the selected

channel]

[Slower (0.01 back) the VAR speed in the selected channel]

[Move to top frame(previous event) of the selected channel] [A]

[Move to last frame(next event) of the selected channel] [S]

[Move to In point of the selected channel] [Shi+I]

[Move to Out point of the selected channel] [Shi+O]

[Move to the previous frame in the selected channel] [<-]

[Move to the next frame in the selected channel] [->]

[Set the In point of the selected channel] [I]

[Set the Out point of the selected channel] [O]

[Clear the In/Out points of the selected channel] [Ctrl]+[I]

[Ctrl]+[O]

[Fast forward (0.01 forward) the current speed in the

selected channel] *New

[Fast forward (0.1 forward) the current speed in the selected

channel] *New

[Slow (0.01 back) the current speed in the selected channel]

*New

[Slow (0.1 back) the current speed in the selected channel]

*New

[Load the content(s) to the selected channel]*1

[Load the content(s) to P1]*1

[Load the content(s) to P2]*1

[Cue up to the event within the playlist in the selected

channel]*2

[Cue up to the event within the playlist in the selected

channel and pause]*2

[Cue up to the event within the playlist in the selected

channel and play]*2

[Cue up to the event within the playlist P1]*2

10 T2 Additional Function Manual SP4.3 October 8, 2013

Section 4 ― Appendix

Autres manuels pour T2

Table des matières

Autres manuels GRASS VALLEY Équipement d'enregistrement

GRASS VALLEY

GRASS VALLEY M-Series Manuel utilisateur

GRASS VALLEY

GRASS VALLEY KARRERA K-FRAME Supplément

GRASS VALLEY

GRASS VALLEY Ignite JSC-2300 SHOT Manuel utilisateur

GRASS VALLEY

GRASS VALLEY T2 Manuel utilisateur

GRASS VALLEY

GRASS VALLEY T Manuel utilisateur

GRASS VALLEY

GRASS VALLEY T2 Manuel utilisateur

GRASS VALLEY

GRASS VALLEY Profile PDR 100 Manuel utilisateur

GRASS VALLEY

GRASS VALLEY KAYENNE - V2.0 Manuel utilisateur

GRASS VALLEY

GRASS VALLEY 8964FS - Manuel utilisateur

GRASS VALLEY

GRASS VALLEY INDIGO Manuel utilisateur

GRASS VALLEY

GRASS VALLEY KARRERA K-FRAME Manuel

GRASS VALLEY

GRASS VALLEY KAYENNE - Manuel utilisateur

GRASS VALLEY

GRASS VALLEY K2 HD-00 Manuel utilisateur

GRASS VALLEY

GRASS VALLEY Kaleido-IP X310 Manuel utilisateur

GRASS VALLEY

GRASS VALLEY T2 Manuel utilisateur

GRASS VALLEY

GRASS VALLEY KAYENNE - Manuel utilisateur

GRASS VALLEY

GRASS VALLEY Turbo Manuel utilisateur

GRASS VALLEY

GRASS VALLEY MAESTRO Manuel utilisateur

GRASS VALLEY

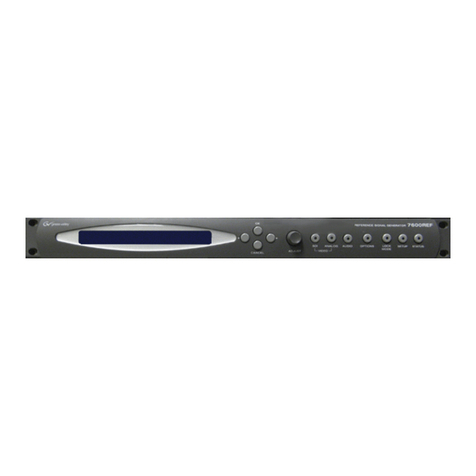

GRASS VALLEY 7600REF - Guide de l'utilisateur
