ISO9001:2000

International Certication

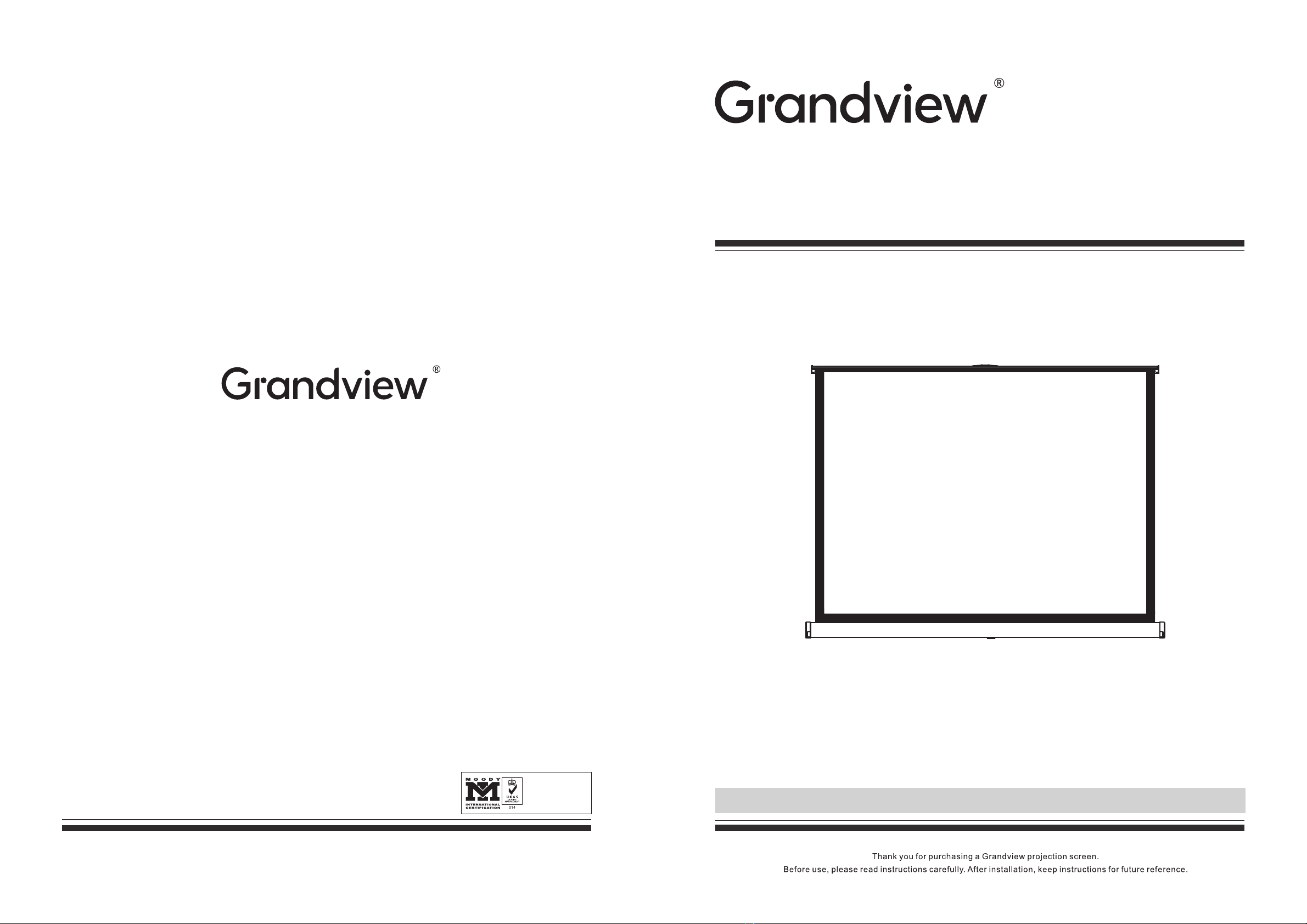

Manual Instruction

for Table-Top Screen

Model: PT-Uxx

U-WORK

Grandview Crystal Screen Canada Ltd.

#11- 3751 North Fraser Way,

Marine Way Business Centre,

Burnaby, BC, Canada V5J 5G4

Tel: 1-604-412-9777 Fax: 1-604-412-9796

Website: www.grandviewscreen.ca

Guangzhou Grandview Crystal Screen Co., Ltd.

No.43,Guomao Road South, Hualong Town,

Panyu District, Guangzhou City, China

Tel: +8620-8489-9499 Fax: +8620-8480-3343

Website: www.grandviewscreen.com

www.grandviewscreen.com.cn

Description

Accessories

Bag (1pcs) Manual Instruction (1psc)

Illustration

Part name

Opener

Foot

Casing

Left End Cap

Black Border

Fabric

End Cap

Cover

End Cap

Right End Cap

Conjugation

Support Lever

Joint

Support Lever

Locker

Front RearSide

W (mm) L (mm) H (mm) A (mm)

PT-U-32

488 742 566

650

4:3

PT-U-40

813 610 905 688

4:3

Specications

Format Model Specication

(In)

Viewing area Screen dimension

Net weight

(kg)

Note: Sizes and specications are subject to change at any time. Refer to real product for exact data.

The tolerance for L is ± 5mm.

The surface of screen is processed to achieve good performance of the reector. Any

damage of surface will inuence projection effects so please use this product in right way.

Caution

Please do not shake the screen by hand.

Please do not make any marks on screen

surface.

Prohibited

Prohibited Prohibited

Prohibited

Please do not use any cloth with water, volatile oil and

corrosive cleaning agents to clean the screen, because

they will make the surface metamorphism and paint off.

Please do not pull the screen strongly that it will cause

the risk of damage.

Any stains on the casing, please use dry-cloth to

clean softly. If too serious, please use soft-cloth

with water-diluted neutral detergent to clean.

Neutral

Detergent

Please use a brush to clean the dust of screen surface

softly.

Please keep the screen far away from sunshine,dust and wet. Avoid using the screen in strong wind.

Tips The surface of screen is dried

before shipment; if have any

strong smell, please open the

windows.

Note

Maintenance

Location Caution

Please contact your local dealer for repairing and

replacing. Please contact us if you have any questions.

Avoid taking apart the xture yourself.

Prohibited

Taking Apart

Caution

1.13

1.46

1. According to gure 3-1 and 3-2, following the steps to close the screen.

2. According to gure 4-1, using ngers to hold the opener and push the screen down (gure 4-2). Please

ensure that the cover is locked to the casing that the retracting is completed (gure 4-4).

Figure4-1 Figure4-2

Figure4-3

Figure 3-1 Figure 3-2 Figure 3-3

收合银幕

Retracting

1. Stay the screen on suitable position and the screen faces to projector, and the set up the

foot of screen (gure 1, 2 and 3)

2. According to gure 2-1, use ngers to hold the opener, and then pull the screen up to your desired

position slowly (gure 2-2)

Figure1

Figure 2

Figure 3

Figure 2-1 Figure 2-2

Expanding

Figure4-3

Note: Avoid hurting ngers while running those operations(gure 4-3).

Be careful
