PLEASE NOTE! THIS CONFIGURATION MANUAL IS NOT READY, WORK IN PROGRESS.
Contents
1 Introduction
■
2 Requirements
■
2.1 Identifying phone model
■
2.2 Phone firmware
■
2.3 DHCP server
■
2.4 PBXware version
■
3 Installation
■
3.1 Power adapter
■
3.2 Power over Ethernet (PoE)
■
3.3 Reset to factory settings
■
4 Registering phone
■
4.1 Manual configuration
■
4.2 Auto provisioning
■
Introduction
This User Guide is written as a general guide on how to set up the Grandstream phone model
GXP-2124 to work with PBXware 3.8.2.
Requirements
Identifying phone model
To start and successfully complete registration of your phone you need to check the phone
model.

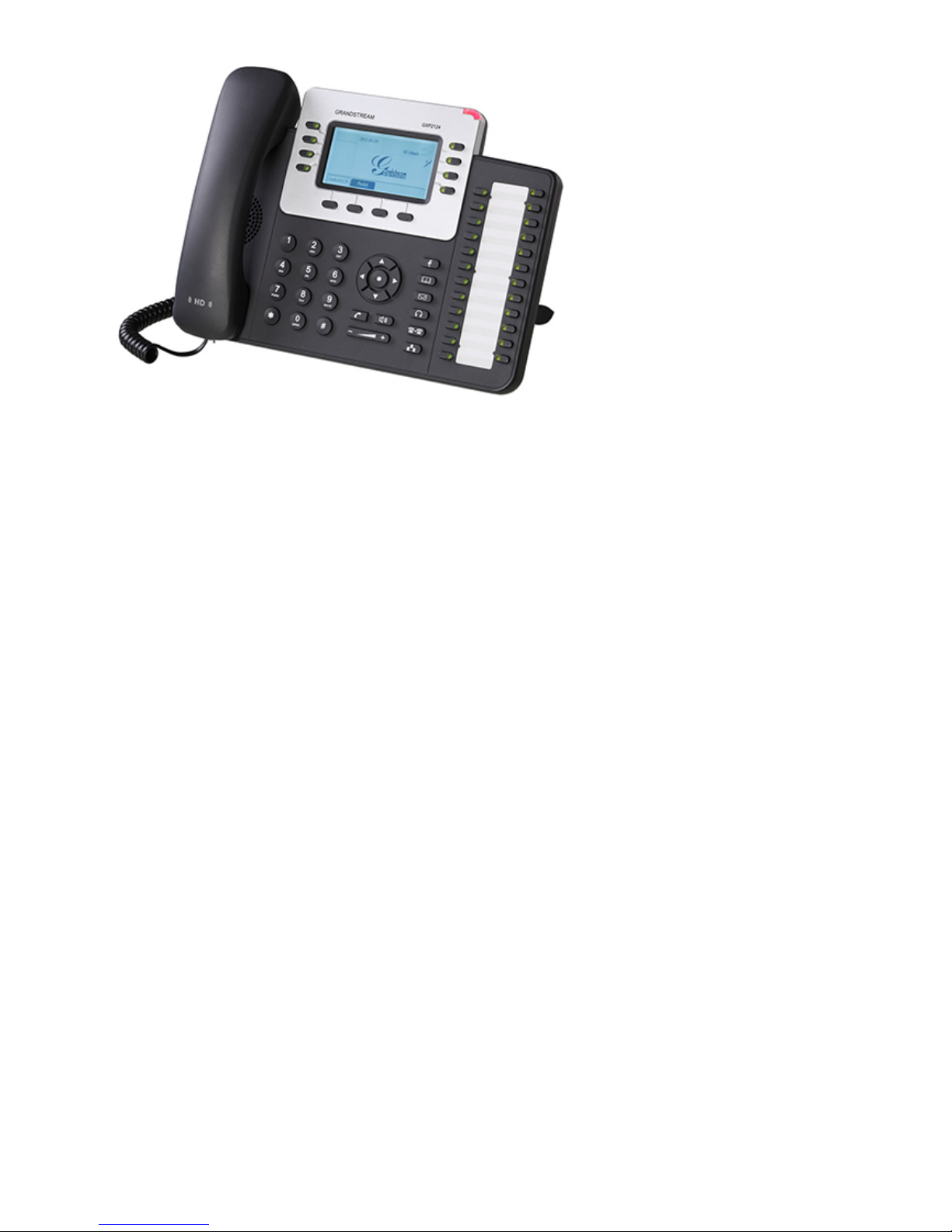

At the front, just above the phone display on the right side you'll see phone model information.
Although different phone models can have exactly the same requirements and installation
procedure, phone models can also have significantly different requirements and installation
procedure, so that ignorance of your own model may result in the inability to successfully set up
your phone.
Phone firmware
Make sure that your phone is loaded with firmware version 1.0.1.23
In order to check your firmware version:
Press the Menu button.
■
Go to Status and press the Select button.
■
Go to Network Status and press the Select button.
■
Your IP address should be displayed, so log into the web interface using the IP address.
■
Login to the web interface with the password admin.
■
The Firmware version should be displayed near the top right of the page.
■
DHCP server
Fully configured and operational DHCP server.
PBXware version
In order to find out the PBXware version, please login to PBXware and navigate to Settings:
About. On the top of About page is a code similar to this one "PBXware Edition: Business,
Release: 3.1 (041373f), Running: 1.4.24-gc-75ee203", where "Release" denotes the exact version
of your PBXware.
Installation
This chapter describes how to install and connect the phone to the electrical power and data
network as well as how to apply factory settings.
The following topics are covered:
Power adapter
■
Power over Ethernet (PoE)
■
Factory settings
■
Power adapter
Connect the Network and Power
Connect the DC plug on the power adapter to the DC port on the phone and connect the other
■
end of the power adapter into an electrical power outlet.
Connect the ethernet cable between the Internet port on the phone and the network port on a
■
router or switch to access LAN.
NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter.
Make sure the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.
Power over Ethernet (PoE)
Connect the Network (only)
Using a regular ethernet cable your phone can be powered from a Power over Ethernet (PoE)
compliant router or switch.
Connect the Ethernet cable between the Internet port on the phone and an available port on
■
the in-line power router or switch.
NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter.
Make sure the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.
Reset to factory settings
Reset to factory settings.
This step is not required for out-of-the-box phones, however, if the phone has been already used
then it is a must.
Press Menu button.
■
Go to Config and press the Select button.
■
Go to Factory Resest and press the Select button.
■
You'll be asked if you are sure you want to factory reset the phone, press the Ok button.
■
You'll be prompted that you will lose all configuration settings and data , press the Ok button
■
to factory resets your device.
Registering phone
This chapter describes how to register the phone using manual configuration or auto
provisioning.
The following topics are covered:
Manual configuration
■
Auto provisioning
■
Manual configuration
This chapter describes how to set UAD settings, create PBXware extension and register the
phone.
The following topics are covered:
UAD settings
■
Creating extension
■
Registering phone
■
UAD Settings
UAD settings
Login to PBXware web administration interface.
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10
Login to PBXware with your e-mail address and password.
■

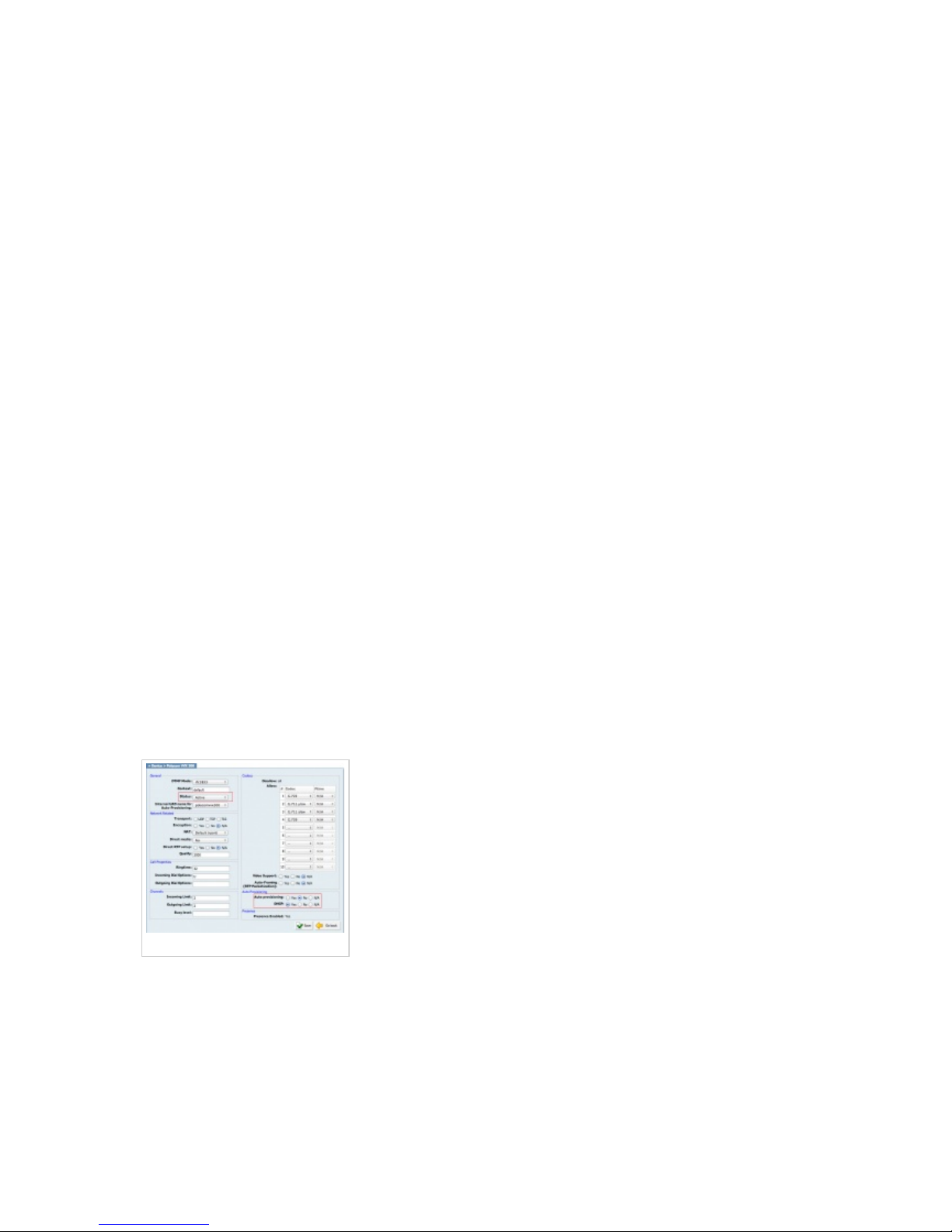

UAD settings
Navigate to Settings:UAD.
■
Make sure Grandstream UAD is enabled. To check the UAD status click on the edit icon
■
corresponding to your Grandstream phone.
Make sure Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.
■
Click on the Save button to save changes.
■
Creating extension
Creating Extension
Add extension.

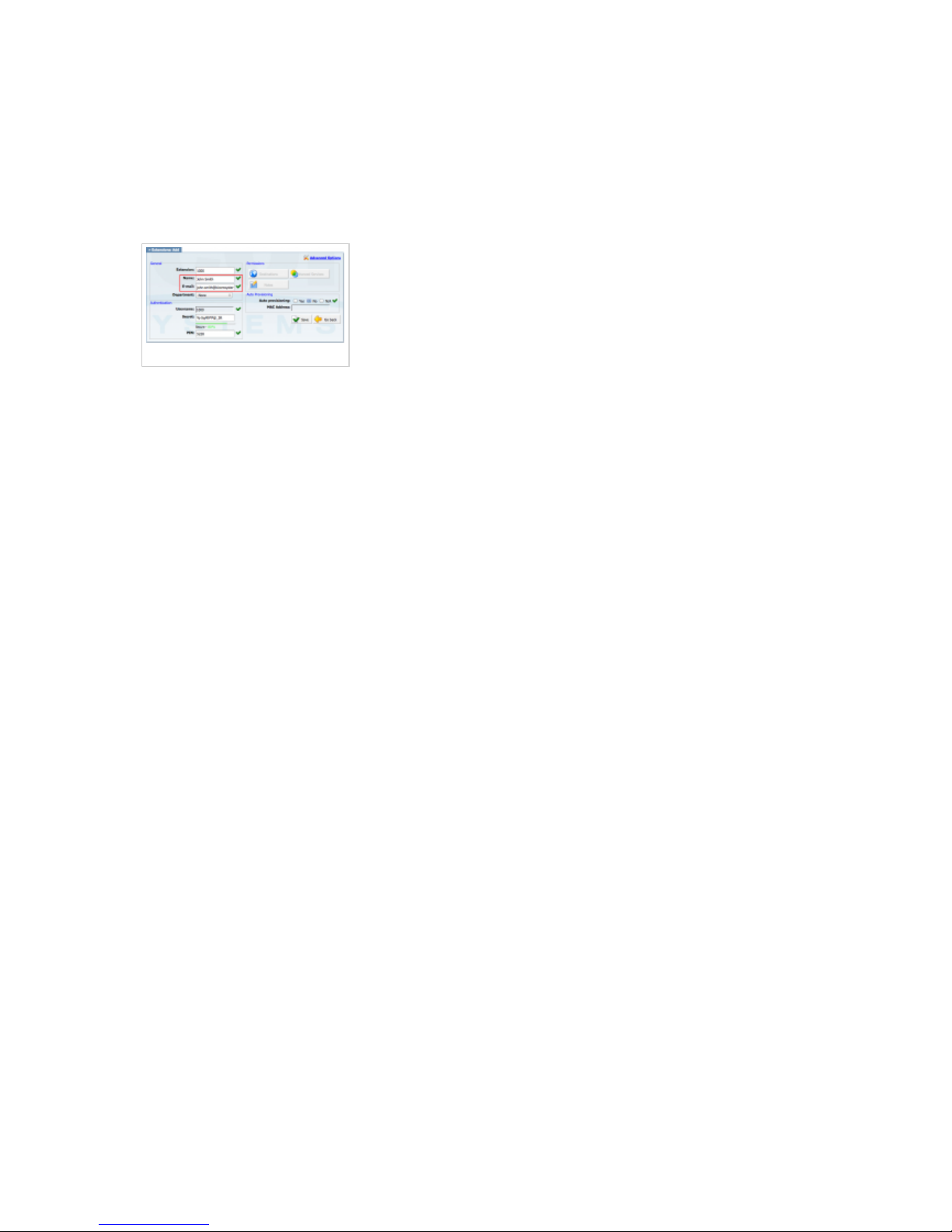

Navigate to Extensions. Click on Add Extension.
■
The standard options window will be shown below.
■
Select Grandstream phone model from the UAD select box.
■
Select Location: Local or Remote.
■
Local is for all extensions registered on the LAN and Remote is for all extensions
registered from remote networks, WAN, Internet etc.
Click on the Next step button.
■

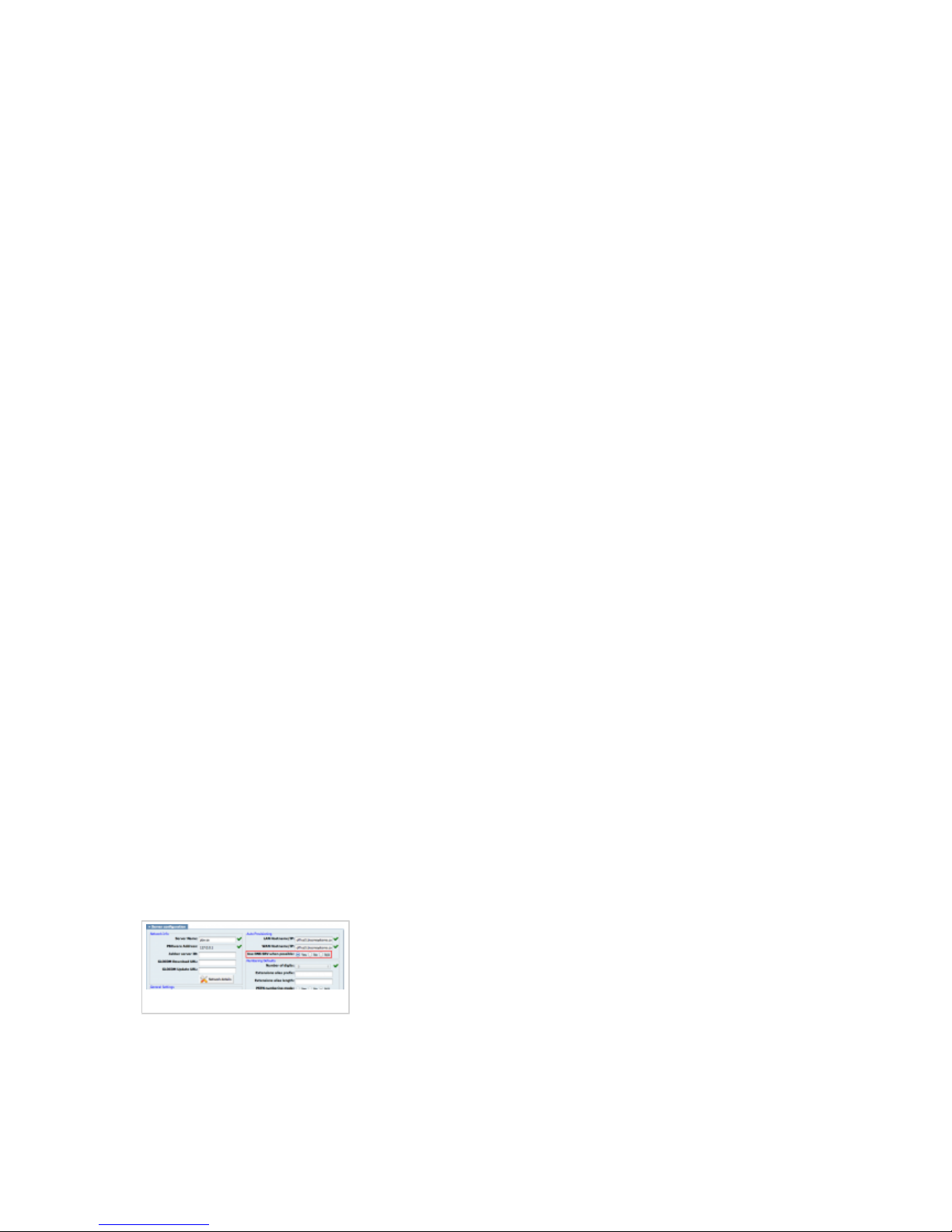

Extension values.
Enter values into the required field text boxes.
REQUIRED FIELDS:
Name
■
Enter a name for the extension being created. Example: John Smith.
E-mail
■
Enter the e-mail address associated with this extension. This e-mail address will receive all
system notification messages. Example: [email protected].
Click on the Save button.
■
Registering phone
This chapter describes how to register Grandstream phone using Hostname or IP Address, or
DNS SRV.
The following topics are covered:
Hostname or IP Address
■
DNS SRV
■
Registering your device
A) Line configuration from devices web interface.
To access the web interface of your Grandstream phone, first you must know it's IP address on
your network.
To find the IP address of your device please:
Press the Menu button.
■
Go to Status and press the Select button.
■
Go to Network Status and press the Select button.
■
IP address is displayed under IPv4: e.g. 192.168.8.198
■
Then in your web browser enter the IP address of your Phone, if everything is OK, you should
■
be displayed with Password prompt. If your Grandstream device is at factory defaults the
password should be admin.
NOTE: Depending on your Grandstream device and its firmware, web interface settings may
vary.
After you log in, under Account you should select Account 1.
■
Then use the toggling show/hide button to reveal the content of the SIP Server group.
■
Enter your PBXware IP address into Address field.
■
Enter 5060 into Port field.
■
After this has been completed you should then use the toggling show/hide button to reveal the
■
content of the IP Line Identification
Enter extension into the Address field.
■
Enter extension into the Authentication User ID field.
■
Enter extension secret into the Authentication Password field.
■
Press Save button to preserve changes. Your phone should register after couple of seconds, if
■
not, please reboot your phone.
B) Line configuration on device
Press the Home button on your phone.
■
Go to Settings and press the Select button.
■
Go to Advanced and press the Select button.
■
Enter password and press the Enter button. Please note, factory default password is 456.
■
Press the Select button to enter Administration Settings.....
■
Go to Line Configuration and press the Select button.
■
Go to Line 1 and press the Select button.
■
Go to Address and press the Edit button and enter PBXware extension number. Example:
■
1003 and press the Ok button.
Go to Authentication and press the Select button.
■
Go to User ID: and press the Edit button. Enter PBXware extension number then press the
■
Ok""" button.
Go to Password and press the Edit button, enter PBXware extension secret e.g.
■
%3DfChBz59, then press the Ok button.
Press the Back button three times.
■
Press the Select button for Save Config.
■
Press the Home button on your phone.
■
Go to Settings and press the Select button.
■
Go to Advanced and press the Select button.
■
Enter the password and press the Enter button. Please note, factory default password is 456.
■
Press the Select button to enter Administration Settings.....
■
Go to Call Server Configuration and press the Select button.
■
Press the Select button to enter SIP....
■
Press the Select button to enter Server 1....
■
Press the Edit' button to edit Address and enter PBXware IP address e.g. 192.168.8.185
■
then press the Ok button.
Press the Back button three times.
■
Press the Select button for Save Config.
■
If everything is done as above described, you should have successfully registered your phone
■
to PBXware. Dial *123 to verify registration.
DNS SRV
DNS SRV
This chapter describes how to use a DNS SRV record which specifies the location of the
PBXware. NOTE: Your DNS Server needs to be configured correctly for this to work. Bicom
Systems can provide service to set up this for you.
Check if the DNS SRV is enabled in your PBXware
Contact your PBXware administrator to find out if the DNS SRV is enabled in your PBXware,
■
or if you have access to the PBXware you can check this yourself.
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10.
Login to PBXware with your e-mail address and password.
■
Navigate to Settings: Servers. Click on the server corresponding edit button.
■
In Auto Provisioning group, make sure Use DNS SRV when possible: is set to Yes. If it is
■
set to No or N/A, set to Yes and click on the Save button. NOTE: You must re-save all your
extensions configured for Auto Provisioning.
Configure Line
Press the Menu button on your phone.
■
Scroll to Settings and press the Select button.
■
Scroll to Advanced and press the Select button.
■
Enter password and press the Enter button. Please note, factory default password is 456.
■
Press the Select button to enter Admin Settings.
■
Go to Line Configuration and press the Select button.
■
Go to Line 1 and press the Select button.
■
Go to Server 1 and press the Select button.
■
Press the Edit button to edit Address line and enter the Hostname.
■
Example for the Hostname: abc.bicomsystems.com
■
Make sure you replace Hostname from this example with your PBXware Hostname.
■
Make sure DNS server is configured to automatically route registration request to a PBXware
■
which is actually under another domain name, example: abc.bicomsystems.com.
Go to Authentication and press the Select button.
■
Press Edit button to edit User ID enter PBXware extension number. Example: 1003. Then
■
press the Ok button.
Go to Password and press the Edit button, enter secret of the extension as received in the e-
■
mail associated with this extension. Example: %3DfChBz59. Then press the Ok button.
Press the Back button twice, then press the Select button to Save Configuration.
■
Auto provisioning process will start during phone reboot process, phone will pickup
■
appropriate configuration file from PBXware. If everything is done as above described, you
should have successfully registered your phone to PBXware. Dial *123 to verify registration.
Auto provisioning
This chapter describes how to set UAD settings, create PBXware extension and register the
phone using DHCP or Static IP address.
The following topics are covered:
UAD settings
■
Creating extension
■
Registering phone
■
UAD Settings
UAD settings
Login to PBXware web administration interface
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10.
Login to PBXware with your e-mail address and password.
■
UAD settings
Navigate to Settings:UAD.
■
Make sure Grandstream UAD is enabled. To check the UAD status click on the edit icon
■
corresponding to your Grandstream phone.
Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.
■
Click on the Save button to save changes.
■
Creating Extension
Creating Extension
Add Extension
Navigate to Extensions. Click on Add Extension.
■
The standard options window will be shown below.
■
Select Grandstream phone model from the UAD select box.
■
Select Location: Local or Remote.
■
Local is for all extensions registered on the LAN and Remote is for all extensions
registered from remote networks, WAN, Internet etc.
Click on the Next step button.
■

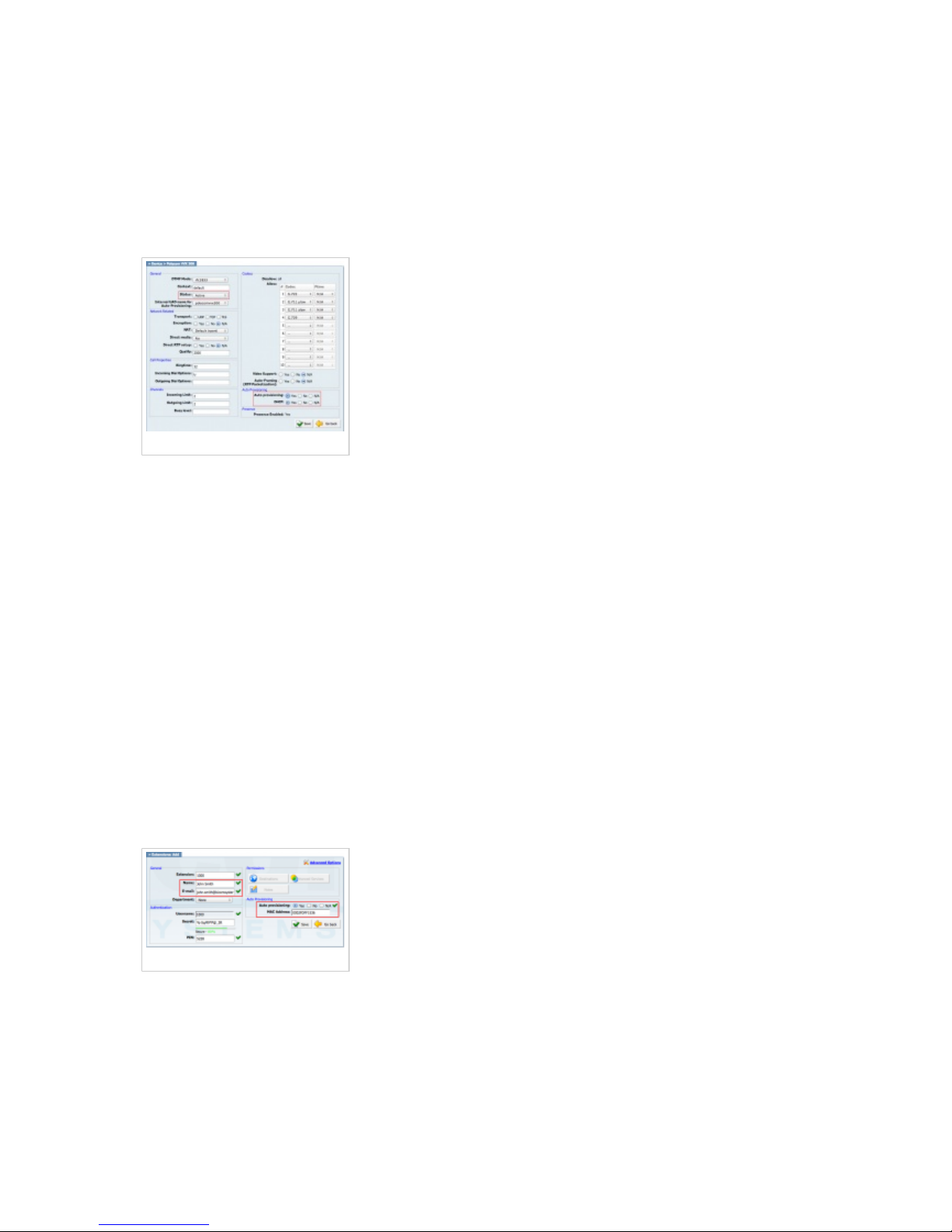

Extension values
Enter values into the required field text boxes.
REQUIRED FIELDS:
Name
■
Enter a name for the extension being created. Example: John Smith.
E-mail
■
Enter the e-mail address associated with this extension. This e-mail address will receive all
system notification messages. Example: [email protected]
Auto Provisioning
■
Set to Yes.
MAC Address
■
Enter Grandstream phone MAC address. Example: 0004F2FF1536. MAC address can be
found at the back of the phone.
Additional Config
■
You can set additional settings to be sent to this phones configuration:
For BLF/Presence
■
<feature feature.1.name="presence" feature.1.enabled="1" >
For a custom Digit Map:
■
<digitmap dialplan.digitmap="[2-9]11|0T|011xxx.T|[0-1][2-9]xxxxxxxxx|[2-9]xxxxxxxxx|[2-9]
xxxT" dialplan.digitmap.timeOut="3"/>
Click on the Save button.
■
Autres manuels pour GXP2124
7
Table des matières
Autres manuels Grandstream Networks Téléphone IP
Grandstream Networks
Grandstream Networks GXV3275 Manuel utilisateur
Grandstream Networks
Grandstream Networks GRP2616 Manuel utilisateur
Grandstream Networks
Grandstream Networks BudgeTone-100 Series Manuel utilisateur
Grandstream Networks
Grandstream Networks BudgeTone-100 Series Manuel utilisateur
Grandstream Networks
Grandstream Networks WP810 Manuel utilisateur
Grandstream Networks
Grandstream Networks GRP26 Series Manuel utilisateur
Grandstream Networks
Grandstream Networks WP822 Manuel utilisateur
Grandstream Networks
Grandstream Networks GXV3240 Manuel utilisateur
Grandstream Networks
Grandstream Networks GXP-1400 Manuel utilisateur
Grandstream Networks
Grandstream Networks GXP2135 Manuel utilisateur
Grandstream Networks
Grandstream Networks GXP1780 Manuel utilisateur
Grandstream Networks
Grandstream Networks GXV3175 Xml based downloadable phonebook Manuel utilisateur
Grandstream Networks
Grandstream Networks GXP2124 Manuel utilisateur
Grandstream Networks
Grandstream Networks GXP2130 Series Mode d’emploi
Grandstream Networks
Grandstream Networks GXP-1100 Manuel utilisateur
Grandstream Networks
Grandstream Networks GXP1450 Manuel utilisateur
Grandstream Networks
Grandstream Networks GXP1450 Manuel utilisateur
Grandstream Networks
Grandstream Networks Grandstream GXP-2010 Manuel utilisateur
Grandstream Networks
Grandstream Networks GRP2601 Mode d’emploi
Grandstream Networks
Grandstream Networks GXP2160 Manuel utilisateur
