IVR Quick Start Guide V1.0 P.1
16CH IVR
Quick Start Guide
1. Packing........................................P.1
2. Hard Disk Installation................P.3
3. DVD-RW Installation...................P.4
4. Front Panel Controls..................P.8
5. Rear Panel Connectors............P.10
IVR Quick Start Guide V1.0 P.2
1. IVR
2. Quick Start
3. IR Remote Control *Pressed "DVR1" Button before use
4. Battery
5. CD
6. Hard Disk Mount
7. Screws
8. Power Cord
9. SATA Cord
Note: Standard shipping products do not include HDD
IVR Quick Start Guide V1.0 P.3
3

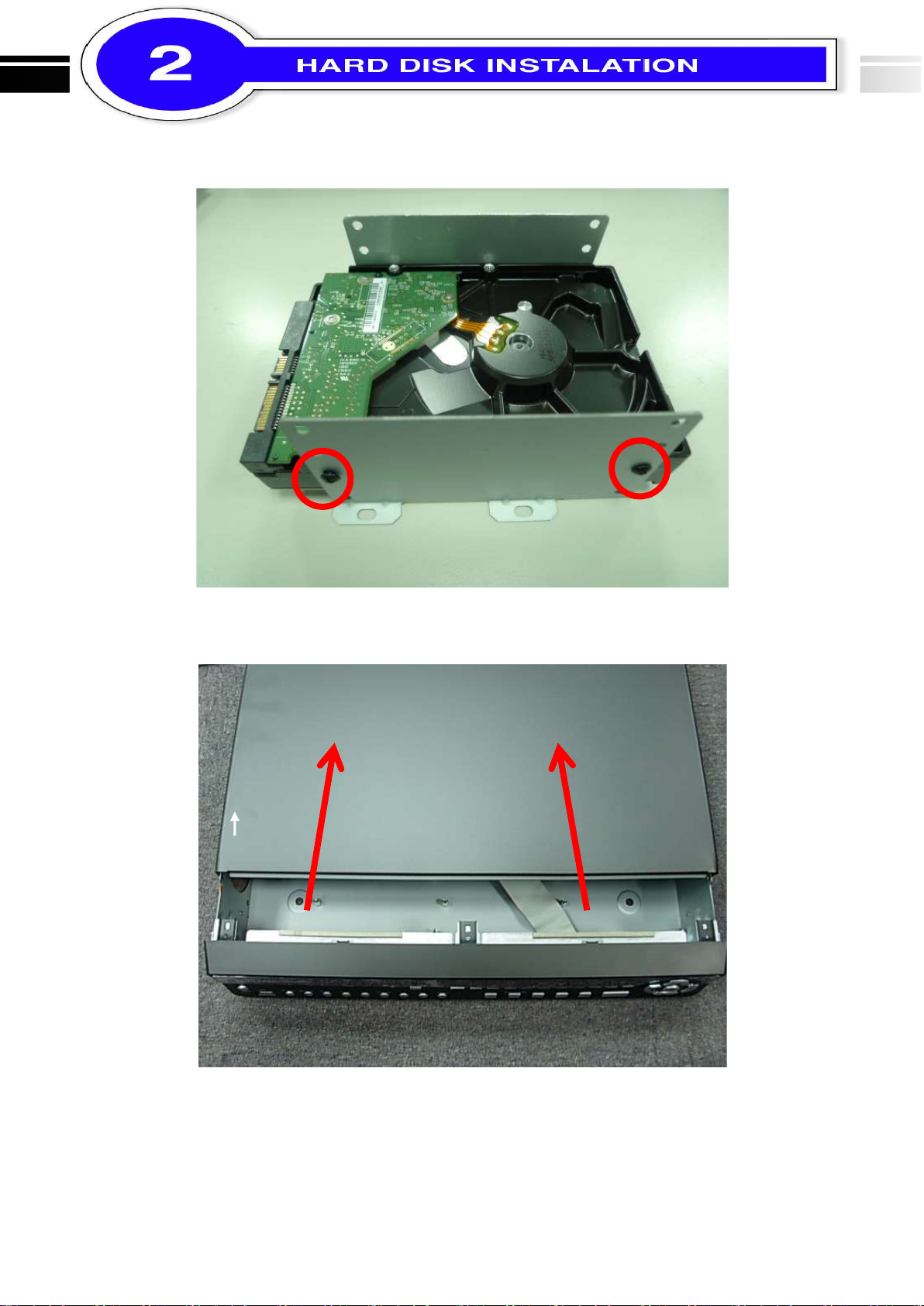

Step 1) Fix the HDD to rack mount with the screws as indicated.
Step 2) Remove all screws and remove the machine cover in accordance with the
direction of the arrow.
IVR Quick Start Guide V1.0 P.4
4
Step 3) Place the HDD on the HDD plate and screw it as indicated.
Step 4) Connect the power and the SATA cables as indicated.
Note: After installation, please initialize Hard Disk before starting to record. For more detailed
information, please check out User Manual “Storage Setup” for reference.
IVR Quick Start Guide V1.0 P.5
5
DVD-RW Installation
(
Standard shipping products do not include HDD and DVD-RW)
Step 1) Remove the riser of DVR-RW.
Step 2) Fix the DVD-RW to rack mount with the screws as indicated
Remove the riser of
DVD
-
R
W
IVR Quick Start Guide V1.0 P.6
6
Step 3) Remove all screws and remove the machine cover in accordance with the
direction of the arrow.
Step 4) Fix the DVD-RW rack mount with the screws into to housing as indicated
IVR Quick Start Guide V1.0 P.7
7
Step 5) Connect the power and the SATA cables as indicated.
IVR Quick Start Guide V1.0 P.8
8
⑪ ⑩ ⑨ ⑧ ⑦
① ② ③ ④ ⑤
⑥
① LOCK On / Off Key Lock in live mode.
② USB 2.0 USB port
③ IR Sensor Input sensor for the remote control
④ LED Display
(From left to right)
HDD：Hard disk drive
Power：Power is on
LAN：Network connected
LOGIN：User login
REC：Recording
PLAY：DVR play video
⑤ REW In PLAYBACK mode, press to play rewind 4x, 8x, 16x, 32x
⑤ PLAY / PAUSE
In PLAYBACK mode, pause / resume playback
⑤ STOP In PLAYBACK mode, stop playback
⑤ FF In PLAYBACK mode, press to play forwards 4x, 8x, 16x, 32x
⑥ SEARCH In LIVE mode, press to display time search menu.
⑦ Arrow keys In SETUP mode, move the cursor up / down, reduce / increase
the value of key.。
⑧ SEL In SETUP mode, press to enter sub-menu
⑨ Number 0~9、
10+
Select the full screen channel in live mode.
Select the full screen channel in playback.
⑩ STATUS In live mode, enter the System Information menu
⑩ BACKUP In LIVE mode, press to display the BACKUP menu.
⑩ MUTE In LIVE mode, enable/ disable live audio
⑩ ZOOM In LIVE mode, enlarge the display of a channel.
⑩ PIP In LIVE mode, display with picture in picture format.
⑩ FREEZE In LIVE mode, display can be FREEZE.
IVR Quick Start Guide V1.0 P.9
9
⑩ PTZ Display PTZ Menu.
⑩ ESC In SETUP mode, Exit / Return to previous setup menu
⑩ MENU In LIVE mode, press to display menu.
⑪ DVD Writer Optional DVD-RW backup device. (Option)
IVR Quick Start Guide V1.0 P.10
10
Rear Panel
1. eSATA eSATA
2. EXTERNAL I/O External I/O port.
3. AC-in AC 100~240V
4. AUDIO OUT RCA output port for audio signal.
5. AUDIO IN RCA input port for audio signal.
6. WAN Connect Router or Internet
7. VGA VGA Port
8. HDMI HDMI Port
9. USB 3.0 USB 3.0 Port
10. USB USB 2.0 Port
11. PoE Connect IP Camera or PoE Camera (802.11af)
12. LAN Connect PC or IP Camera
45 6 7 8 9 10 11 12
321
