1 Introduction

The described antennas are especially suited for outdoor applications, as the elec-

tronic units are sealed within the antenna cases. All important settings, adjustable val-

ues and software updates can be effected via a serial interface.

Unlike Transponder Positioning System S_I13933 (128 kHz operating frequency),

Transponder Positioning Antenna HG 98780-A is operating at 13.56 MHz. This en-

sures sufficient frequency separation to interference sources such as, e.g., drives,

power converters and switching power supply.

Both systems supply a similarly structured output format in which additional system in-

formation can be configured by the user. This information can, for example, be saved

in a visualization system and enables statements about the condition and availability/

accessibility of the transponders and antennas. This system description applies to de-

vices with the firmware 98780B2 version 1.06 and higher.

1.1 Accessories

The following accessories are available for the one-dimensional Transponder Position-

ing Reader HG 98780-A:

Figure 1 Components

1. Transponder reader with preamplifier and interpreter HG 98780-A with different

interfaces (see Table 1 on page 6)

2. Transponder HG 70661 (on the pavement)

3. Optional interface HG 06150-A serial/parallel converter

4. Optional desktop reading and programming unit HG 81830VA (not shown in pic-

ture)







Introduction HG 98780-A

Englisch, Revision 09, Date: 30.11.2012 6

1.2 Function

As the antenna passes over the transponder, it energizes the latter with an energy field

of 13.56 MHz. The transponder returns its code through frequency modulation to the

antenna. An additional coil generates the positioning pulse. The interpreter which is

integrated within the antenna decodes the transponder code.

Furthermore several antenna parameters, e. g. current consumption and supply volt-

age, are measured and, if desired, added to the serial output protocol.

The serial signal is made available via potentially separated RS 422 or RS 232 inter-

faces. In addition, the positioning pulse is dc-insulated. Furthermore, CAN Bus or Pro-

fibus interfaces are provided optionally.

As an option, the serial signal can be converted into a 16 bit parallel output signal

(24 Volts switched) for the code within an external interface device. This interface de-

vice is suited for mounting rail (top-hat rail) installation and should be installed in a

place protected from any environmental influences.

1.3 Positioning Pulse

For the generation of the positioning pulse, it is necessary that the following precondi-

tions are met:

-The reception voltage S (refer to Table 18 on page 29) must exceed the set

threshold for Level for Positioning (refer to section 5.2.2.2 on page 31).

-A transponder code must be decoded without error.

-The measured voltage X must fall below a certain threshold (refer to Table 18 on

page 29).

If the above listed preconditions are met, a positioning pulse with changeable duration

is generated. For the generation of a new positioning pulse it is essential that the re-

ception voltage S has fallen below the threshold set for Threshold for Decoding

(refer to section 5.2.2.2 on page 31) first.

Thus only one pulse per transponder crossing is possible. Therefore, if a vehicle/crane

stops above the transponder after the positioning pulse was generated and then

changes its direction of travel, no renewed positioning pulse is generated during the

center crossing!

HG 98780-A

Variant Profibus CAN Bus RS 422 RS 232

ZA X X

YA X X

XA X X

WA X X

Table 1 Overview of G 98780 variants

Introduction HG 98780-A

Englisch, Revision 09, Date: 30.11.2012 7

Positioning Accuracy

As the field compensation for the corresponding measuring coil is not infinitely sharp

and is also depending on the reading height (refer to Appendix, Section A on page

46), the positioning pulse is generated at different but reproducible locations, depend-

ing on the direction of travel. Since the antenna is not aware of its direction of travel,

but depends on the physical effect of the field strength, only the vehicle/crane control

can carry out the direction-depending compensation. The appendix, section B on

page 49 shows the locations of the positioning pulse related to the X and Y coordinates

and the reading height.

Mounting HG 98780-A

Englisch, Revision 09, Date: 30.11.2012 8

2Mounting

2.1 Transponders

2.1.1 Dimensions and Specifications

The maximum reading distance for all transponders can only be achieved when the

minimum distance to metal surfaces is maintained. It is recommended to maintain the

minimum distances within the metal-free area (Figure 2). The impact on positioning ac-

curacy and range also depends on the size and distance of metal parts.

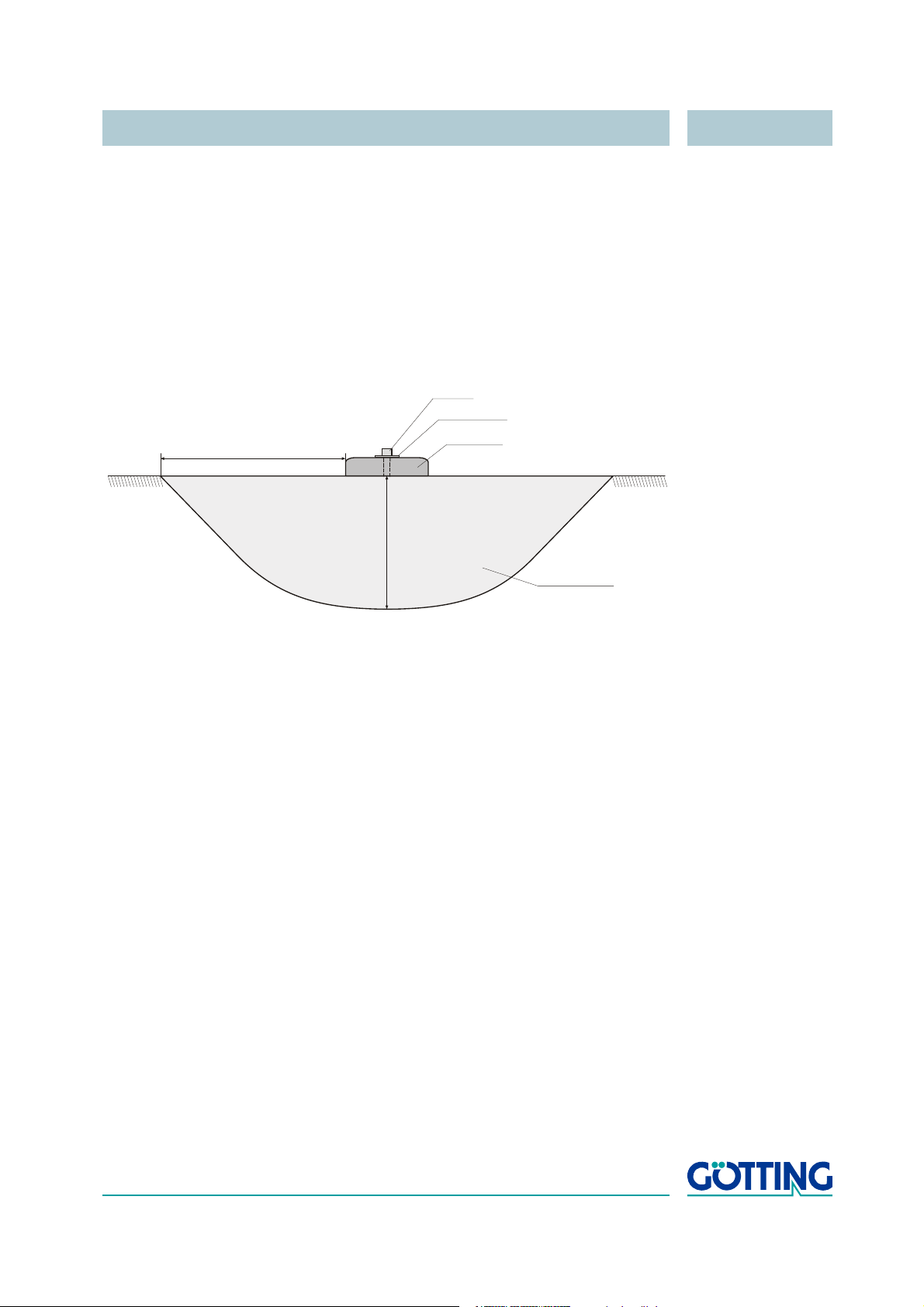

Figure 2 Minimum iron-free area around Puck Transponder HG 70661

As rule of thumb it can be said that if the metal-free area behind the transponder has

to be at least of the same range as the reading distance between transponder and an-

tenna. The reception of the transponder signal will be largely unattenuated (also refer

to Table 24 on page 51). It is essential, that the transponder does not dip into the

meshs/loops of steel reinforcement grids. Single metal rods, on the other hand,

hardly have any influence on the performance.

2.1.2 Mounting Instructions

The Transponders may be mounted on even ground using a metal screw and a wash-

er. The maximum fastening torque is not allowed to exceed 4 Nm. The diameter of the

metal washer should not be max. 18 mm.

Screw

Washer

Transponder

approx. 200 mm

approx. 100 mm

Metal-free area

Mounting HG 98780-A

Englisch, Revision 09, Date: 30.11.2012 9

2.2 Antenna HG 98780ZA/YA/XA/WA

The antenna has four predrilled holes for four M5 screws.

ATTENTION! Make sure the antenna is mounted correctly with regards to its

reading side!

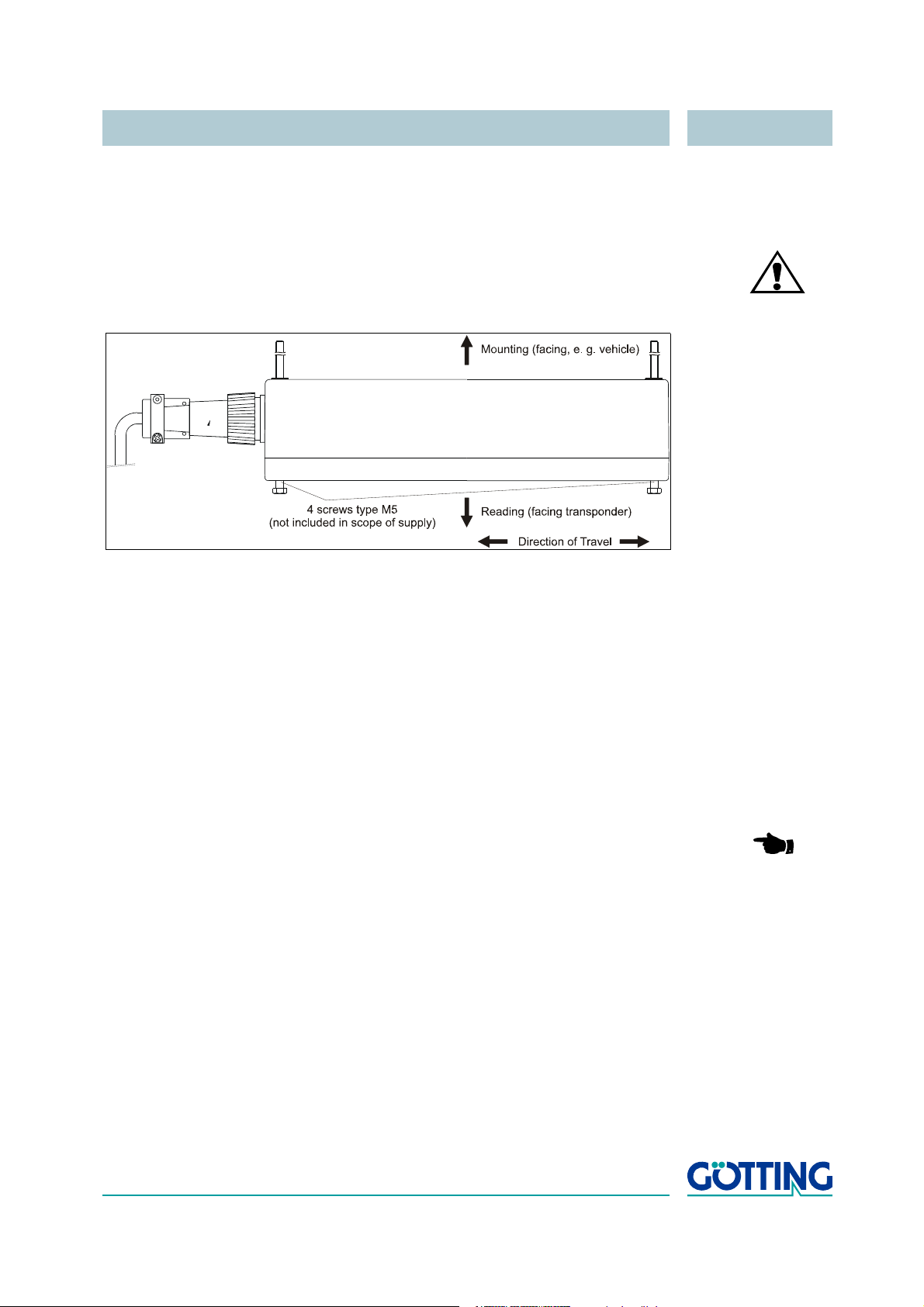

Figure 3 Mounting the antenna

In order to prevent any adverse effects on the system:

-The space above and around the antenna should be metal-free.

-Do not operate the reading antenna while the reading side is located directly

above a metal surface, as this would mistune the antenna severely in such a way

that the power consumption of the output stage would increase considerably.

-Perfect transponder readings are only guaranteed if the transponders are placed

within max. ±4 cm tolerance from the center line of the antenna! Outside these

limits, the transponder readings become less reliable due to decreasing signal

levels.

NOTE! Whenever the antenna is operated at temperatures below 0oC, it

is necessary to use the integrated heater! As the warm-up time

with heater at -20oC surrounding temperature is approx. 1 hour,

the heater should be connected to a stand-by power supply.

Mounting HG 98780-A

Englisch, Revision 09, Date: 30.11.2012 10

2.3 Interface HG 06150ZA/XA (optional)

The optional interface has to be mounted in a climated enclosure on a mounting bar

with the following connections:

Figure 4 Outline of the interface mounting bar case

Interface connection plan

1Code Bit 1 (lowest Bit) 15 Code Bit 15

2Code Bit 2 16 Code Bit 16 (highest Bit)

3Code Bit 3 17 Data Ready

4Code Bit 4 18 Data Valid

5Code Bit 5

6Code Bit 6

7Code Bit 7

8Code Bit 8

9Code Bit 9

10 Code Bit 10 Version ZA Version XA

11 Code Bit 11 20 Rx+ (RS 422 input) RxD (RS232 Input)

12 Code Bit 12 21 Rx- (RS 422 input) not connected

13 Code Bit 13 37 +24 V operating voltage

14 Code Bit 14 38 GND ground

Table 2 Interface connection plan

Table des matières

Autres manuels Gotting Antenne

Gotting

Gotting HG 71453-A Manuel utilisateur

Gotting

Gotting HG G-98830ZA Manuel de la liste des pièces

Gotting

Gotting HG G-98760-C Series Instructions d'utilisation et d'installation

Gotting

Gotting HG G-71910-C Instructions d'utilisation et d'installation

Gotting

Gotting HG G-19334-A Manuel utilisateur

Gotting

Gotting HG 06150ZA Manuel utilisateur

Gotting

Gotting HG G-98780-A Instructions d'utilisation et d'installation

Gotting

Gotting HG G-98830YA Manuel utilisateur

Gotting

Gotting HG G-98810-C Manuel de la liste des pièces

Gotting

Gotting HG G-71910-C Instructions d'utilisation et d'installation

Gotting

Gotting HG G-98810-C Manuel utilisateur

Gotting

Gotting HG G-71450-A Manuel utilisateur

Gotting

Gotting HG 71451-A Manuel utilisateur

Gotting

Gotting HG G-98820ZA Manuel de la liste des pièces

Gotting

Gotting HG 98860ZA Manuel de la liste des pièces

Gotting

Gotting HG G-98780-A Instructions d'utilisation et d'installation

Gotting

Gotting HG 71450-A Manuel utilisateur

Gotting

Gotting HG G-71915ZA Instructions d'utilisation et d'installation

Manuels Antenne populaires d'autres marques

Alfa Network

Alfa Network APA-L01 Manuel utilisateur

Naval

Naval PR-422CA Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manuel utilisateur

TERK Technologies

TERK Technologies TV44 Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manuel utilisateur

HP J8999A Manuel utilisateur

MobilSat

MobilSat MSP-S Manuel utilisateur

Steren

Steren ANT-UHF 13 Manuel utilisateur

Novatel

Novatel 600-G Manuel d'utilisation

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manuel utilisateur

TRENDnet

TRENDnet TEW-AO12O Manuel utilisateur

Radio Shack

Radio Shack 15-1837 Manuel utilisateur

CommScope

CommScope CMAX-OMFX-43M-I53 Manuel utilisateur

Ramsey Electronics

Ramsey Electronics DAP25 Manuel utilisateur

COBHAM

COBHAM SAILOR 800 VSAT Manuel d'utilisation et d'entretien

Trango Systems

Trango Systems AD900-9 Manuel utilisateur

Steren

Steren ANT-100 Manuel utilisateur

Proxim

Proxim 5054-PA-23 Manuel utilisateur
