INSTALLATION, OPERATION,

AND MAINTENANCE MANUAL

WITH PARTS LIST

D SERIES PUMP

MODEL

3D-B

Gorman‐Rupp pump online at

www.grpumps.com

Valid serial number and e‐mail address required.

RECORD YOUR PUMP MODEL AND SERIAL NUMBER

Please record your pump model and serial number in the

spaces provided below. Your Gorman‐Rupp distributor

needs this information when you require parts or service.

Pump Model:

Serial Number:

TABLE OF CONTENTS

INTRODUCTION PAGE I - 1...................................................

SAFETY ‐ SECTION A PAGE A - 1.............................................

INSTALLATION - SECTION B PAGE B - 1.....................................

Pump Dimensions PAGE B - 1........................................................

PREINSTALLATION INSPECTION PAGE B - 1...............................................

POSITIONING PUMP PAGE B - 2..........................................................

Lifting PAGE B - 2....................................................................

Mounting PAGE B - 2................................................................

SUCTION AND DISCHARGE PIPING PAGE B - 2............................................

Materials PAGE B - 2.................................................................

Line Configuration PAGE B - 2.........................................................

Fixed, Rigid Piping PAGE B - 2........................................................

Gauges PAGE B - 3..................................................................

SUCTION LINES PAGE B - 3..............................................................

Fittings PAGE B - 4..................................................................

Strainers PAGE B - 4.................................................................

Sealing PAGE B - 4..................................................................

DISCHARGE LINES PAGE B - 4...........................................................

Siphoning PAGE B - 4................................................................

Valves PAGE B - 4...................................................................

ALIGNMENT PAGE B - 4.................................................................

ELECTRICAL CONNECTIONS PAGE B - 5..................................................

OPERATION - SECTION C PAGE C - 1.......................................

STARTING PAGE C - 1...................................................................

OPERATION PAGE C - 1.................................................................

Priming PAGE C - 1..................................................................

OPERATION CHECKS PAGE C - 1.........................................................

Gearbox Check PAGE C - 1...........................................................

Leakage Check PAGE C - 1...........................................................

Strainer Check PAGE C - 1............................................................

Accumulator Chamber Check PAGE C - 1..............................................

STOPPING PAGE C - 2...................................................................

Cold Weather Preservation PAGE C - 2.................................................

GEARBOX TEMPERATURE CHECK PAGE C - 2.............................................

TROUBLESHOOTING - SECTION D PAGE D - 1...............................

PUMP MAINTENANCE AND REPAIR ‐ SECTION E PAGE E - 1..................

STANDARD PERFORMANCE CHART PAGE E - 1...........................................

PARTS LISTS:

Pump Model PAGE E - 3.............................................................

Diaphragm Pot Assembly PAGE E - 5..................................................

Plunger Rod Assembly PAGE E - 7....................................................

Gearbox Assembly PAGE E - 9........................................................

TABLE OF CONTENTS

(continued)

PUMP AND GEARBOX DISASSEMBLY AND REASSEMBLY PAGE E - 10.......................

Suction And Discharge Check Valve Removal PAGE E - 10...............................

Diaphragm Removal PAGE E - 10......................................................

Plunger Rod Removal And Disassembly PAGE E - 11....................................

Gearbox Removal And Disassembly PAGE E - 11........................................

Gearbox Reassembly And Installation PAGE E - 13......................................

Plunger Rod Reassembly And Installation PAGE E - 14...................................

Diaphragm Installation PAGE E - 15....................................................

Suction And Discharge Check Valve Installation PAGE E - 15.............................

LUBRICATION PAGE E - 15...............................................................

Plunger Rod Assembly PAGE E - 15...................................................

Gearbox PAGE E - 16................................................................

D SERIES OM-01490

PAGE I - 1INTRODUCTION

INTRODUCTION

Thank You for purchasing a Gorman‐Rupp pump.

Read this manual carefully to learn how to safely

install and operate your pump. Failure to do so

could result in personal injury or damage to the

pump.

This is a D Series, positive displacement pump util

izing a single‐action diaphragm to produce a

straight‐through flow of liquid. The pump is ideally

suited to industrial and contractor's applications

since it will handle liquids ranging from clear water

to construction‐site muck. The basic material of

construction for wetted parts is aluminum, with

neoprene flap valves and diaphragm.

This manual will alert personnel to known proce

dures which require special attention, to those

which could damage equipment, and to those

which could be dangerous to personnel. However,

this manual cannot possibly anticipate and provide

detailed precautions for every situation that might

occur during maintenance of the unit. Therefore, it

is the responsibility of the owner/maintenance per

sonnel to ensure that only safe, established main

tenance procedures are used, and that any proce

dures not addressed in this manual are performed

only after establishing that neither personal safety

nor pump integrity are compromised by such prac

tices.

If there are any questions regarding the pump or

its application which are not covered in this man

ual or in other literature accompanying this unit,

please contact your Gorman‐Rupp distributor, or

the Gorman‐Rupp Company:

The Gorman‐Rupp Company

P.O. Box 1217

Mansfield, Ohio 44901-1217

Phone: (419) 755-1011

or:

Gorman‐Rupp of Canada Limited

70 Burwell Road

St. Thomas, Ontario N5P 3R7

Phone: (519) 631-2870

The following are used to alert maintenance per

sonnel to procedures which require special atten

tion, to those which could damage equipment, and

to those which could be dangerous to personnel:

Immediate hazards which WILL result in

severe personal injury or death. These

instructions describe the procedure re

quired and the injury which will result

from failure to follow the procedure.

Hazards or unsafe practices which

COULD result in severe personal injury

or death. These instructions describe

the procedure required and the injury

which could result from failure to follow

the procedure.

Hazards or unsafe practices which COULD

result in minor personal injury or product

or property damage. These instructions

describe the requirements and the possi

ble damage which could result from failure

to follow the procedure.

NOTE

Instructions to aid in installation, operation,and

maintenance, or which clarify a procedure.

D SERIES OM-01490

PAGE A - 1WARNINGS

SAFETY‐ SECTION A

This information appllies to D Series ba

sic diaphragm pumps. Gorman‐Rupp

has no control over or particular knowl

edge of the power source which will be

used. Refer to the manual accompany

ing the power source before attempting

to begin operation.

Because pump installations are seldom

identical, this manual cannot possibly

provide detailed instructions and pre

cautions for each specific application.

Therefore, it is the owner/installer's re

sponsibility to ensure that applications

not addressed in this manual are per

formed only after establishing that nei

ther operator safety nor pump integrity

are compromised by the installation.

Before attempting to open or service the

pump:

1. Familiarize yourself with this man

ual.

2. Lock out incoming power to the

power source to ensure that the

pump will remain inoperative.

3. Allow the pump to completely cool

if overheated.

4. Close the discharge valve (if

used).

5. Drain the pump.

This pump is designed to handle non‐

volatile non‐flammable liquids contain

ing specified entrained solids. Do not

attempt to pump volatile, corrosive, or

flammable liquids which may damage

the pump or endanger personnel as a

result of pump failure.

After the pump has been installed, block

the wheels and secure the pump to pre

vent creeping. Make certain that the

pump and all piping or hose connec

tions are tight, properly supported and

secure before operation.

Do not operate the pump without the ec

centric and coupling guards in place

over the rotating parts. Exposed rotat

ing parts can catch clothing, fingers, or

tools, causing severe injury to person

nel.

The gearbox provided on this pump is

designed for operation at 1750 RPM

maximum input speed. If operated at a

higher RPM, pump components may be

destroyed.

Install and operate only an explosion

proof motor in an explosive atmo

sphere. Install, connect, and operate

the motor in accordance with the Na

tional Electric Code and all local codes.

If there is a conflict between the instruc

tions in the manual accompanying the

unit and the National Electric Code or

the applicable local code, the National

or local code shall take precedence.

D SERIESOM-01490

PAGE A - 2 WARNINGS

Never install a positive shut‐off valve in the

discharge line; discharge restrictions will

cause excessive friction loss resulting in

overloading and destruction of pump and

drive components. It is strongly recom

mended that unless absolutely necessary,

no positive shut‐off valve be installed in the

suction line; excessive restriction will

cause incomplete filling of the diaphragm

chamber and result in shortened dia

phragm life.

D SERIES OM-01490

PAGE B - 1INSTALLATION

INSTALLATION - SECTION B

Review all SAFETY information in Section A.

Since pump installations are seldom identical, this

section offers only general recommendations and

practices required to inspect, position, and ar

range the pump and piping.

For further assistance, contact your Gorman‐Rupp

distributor or the Gorman‐Rupp Company.

Pump Dimensions

See Figure 1 for the approximate physical dimen

sions of this pump.

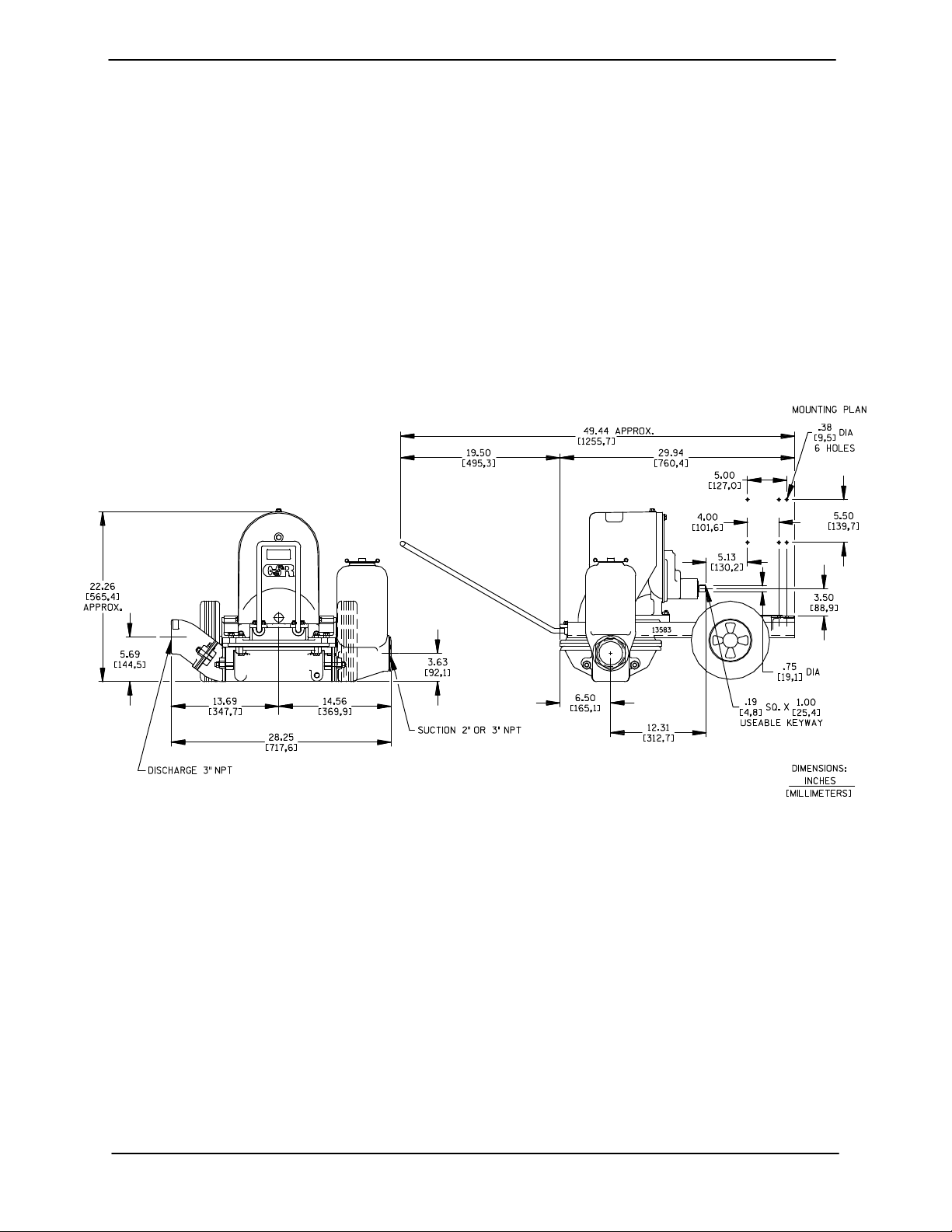

OUTLINE DRAWING

Figure 1. Pump Model 3D‐B

PREINSTALLATION INSPECTION

The pump assembly was inspected and tested be

fore shipment from the factory. Before installation,

inspect the pump for damage which may have oc

curred during shipment. Check as follows:

a. Inspect the pump for cracks, dents, damaged

threads, and other obvious damage.

b. Check for and tighten loose attaching hard

ware. Since gaskets tend to shrink after dry

ing, check for loose hardware at mating sur

faces.

c. Carefully read all tags, decals, and markings

on the pump assembly, and perform all duties

indicated.

d. Check levels and lubricate as necessary. Re

fer to LUBRICATION in the MAINTENANCE

AND REPAIR section of this manual and per

form duties as instructed.

e. If the pump and motor have been stored for

more than 12 months, some of the compo

nents or lubricants may have exceeded their

maximum shelf life. These must be inspected

or replaced to ensure maximum pump serv

ice.

OM-01490 D SERIES

PAGE B - 2 INSTALLATION

If the maximum shelf life has been exceeded, or if

anything appears to be abnormal, contact your

Gorman‐Rupp distributor or the factory to deter

mine the repair or updating policy. Do not put the

pump into service until appropriate action has

been taken.

ELECTRIC MOTOR INSTALLATION

The pump is designed to be flex‐coupled to a 1750

RPM synchronous speed electric motor. The pump

base will accept either a 143T or 145T motor frame.

Be sure the motor to be used meets these specifi

cations and is compatible with the intended appli

cation.

Install and operate only an explosion

proof motor in an explosive atmo

sphere. Install, connect, and operate

the motor in accordance with the Na

tional Electric Code and all local codes.

If there is a conflict between the instruc

tions in the manual accompanying the

unit and the National Electric Code or

the applicable local code, the National

or local code shall take precedence.

POSITIONING PUMP

Lifting

Pump unit weights will vary depending on the

mounting and drive provided. Check the shipping

tag on the unit packaging for the actual weight, and

use lifting equipment with appropriate capacity.

Drain the pump and remove all customer‐installed

equipment such as suction and discharge hoses

or piping before attempting to lift existing, installed

units.

The pump assembly can be seriously

damaged if the cables or chains used to lift

and move the unit are improperly wrapped

around the pump.

Mounting

Locate the pump in an accessible place as close as

practical to the liquid being pumped. Level mount

ing is essential for proper operation.

The pump may have to be supported or shimmed

to provide for level operation or to eliminate vibra

tion.

After the pump has been positioned, block the

wheels and secure the pump to prevent creeping.

SUCTION AND DISCHARGE PIPING

Pump performance is adversely effected by in

creased suction lift, discharge elevation, and fric

tion losses. See Page E‐1 to be sure your overall

application allows the pump to operate within the

safe operation range.

Materials

Either pipe or hose maybe used for suction and

discharge lines; however, the materials must be

compatible with the liquid being pumped. If hose is

used in suction lines, it must be the rigid‐wall, rein

forced type to prevent collapse under suction. Us

ing piping couplings in suction lines is not recom

mended.

Line Configuration

Keep suction and discharge lines as straight as

possible to minimize friction losses. Make mini

mum use of elbows and fittings, which substan

tially increase friction loss. If elbows are necessary,

use the long‐radius type to minimize friction loss.

Never pull a line into place by tightening connec

tions at the pump. Lines near the pump must be in

dependently supported to avoid strain on the

pump which could cause excessive vibration and

increased diaphragm and gear train wear. If hose‐

type lines are used, they should have adequate

support to secure them when filled with liquid and

under pressure.

D SERIES OM-01490

PAGE B - 3INSTALLATION

Fixed, Rigid Piping

This pump is equipped with an integral suction ac

cumulator chamber which promotes an efficient

flow of liquid and acts as an air cushion against

shock. Since the air in this chamber will leak away

during pump operation, the air must be replen

ished periodically. To introduce air into the cham

ber, stop the pump and remove the suction accu

mulator plug and integral gasket; this will break

prime and allow the liquid in the chamber to drain

away through the suction line.

If the pump is mounted in a system with fixed, rigid

piping, it is recommended that a flexible connec

tion be installed at or near the suction and dis

charge ports to absorb shock which would other

wise be transmitted through the drive train and

greatly accelerate pump wear.

In a fixed piping installation, properly sized surge

suppressors must be installed in both suction and

discharge lines. If commercial surge suppressors

are not readily available, air chambers may be fab

ricated from pipe as shown in Figure 2.

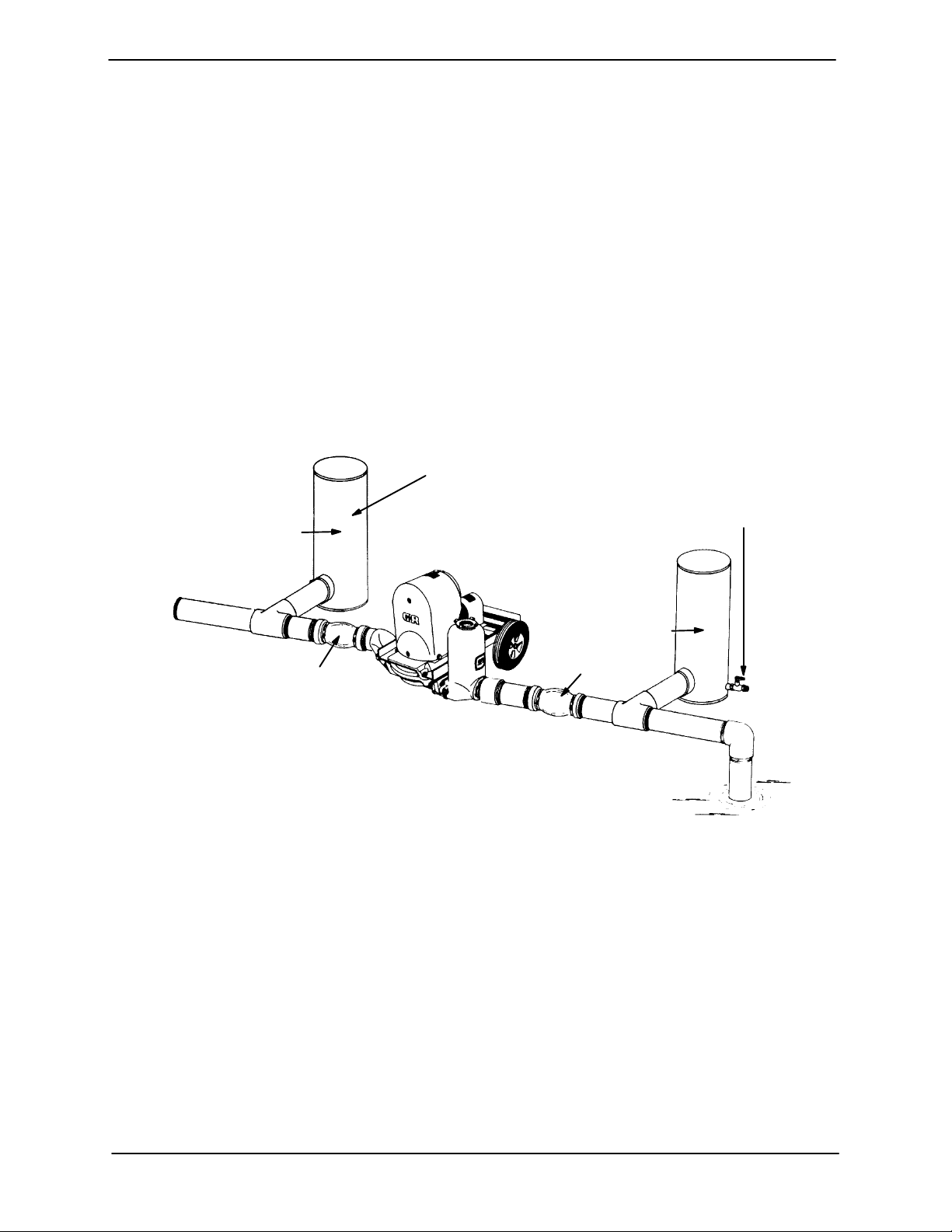

AIR CHAMBERS

(18 TO 24 INCH LENGTHS OF

6 TO 8 INCH DIAMETER PIPE

WITH WELDED CAPS)

DISCHARGE

CHAMBER

DISCHARGE

FLEXIBLE JOINT FLEXIBLE JOINT

SUCTION

CHAMBER

1/2‐INCH VALVE FOR

RECHARGING AIR

CHAMBER WITH

COMPRESSED AIR

(ALSO ON DISCHARGE

CHAMBER)

SUCTION

NOTE: INSTALL AIR CHAMBERS OFF FLOW LINE TEES

TO AVOID SURFACE TURBULENCE WITHIN CHAMBERS.

Figure 2. Fixed Piping Installation

Note that the air chambers have not been installed

directly in the flow line, but have been installed off

tees to avoid turbulence within the chambers. The

air chambers are fitted with valves to permit intro

duction of small amounts of compressed air to fur

ther dampen shock; this compressed air will leak

away during operation, and should be replaced

from time to time. If the suction chamber floods,

open the suction chamber valve to break prime

and allow the liquid in chamber to drain through

the suction line.

Gauges

If discharge pressure and vacuum suction gauges

are desired, drill and tap the suction and discharge

lines not less than 18 inches (457,2 mm) from the

suction and discharge ports and install the lines.

Installation closer to the pump may result in erratic

readings.

Autres manuels pour D Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels GORMAN-RUPP PUMPS Pompe à eau

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T4A65-B Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 46146-041 Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 10 16C2-F5L Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS AMT 3690Series Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS SF4A Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS U3B65-B Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA Seris Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T4B61-B Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02D3-E1 1P Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02K31-X2 1P Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 10 Series Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA3A60-4045H/S1 Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 81 1/4A52-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS SE1 1/2D Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 10 Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02E3-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 60 Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS SUPER T T4A60S-4LE2T FT4 Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 86A52-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA6C60-4045T FT4 Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS ULTRA V Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02K11-X2 1P Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 83C52-B Guide d'application

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
