INSTALLATION, OPERATION,

AND MAINTENANCE MANUAL

WITH PARTS LIST

80 SERIES PUMP

MODEL

86A2−F300

The engine exhaust from this

product contains chemicals

known to the State of California to

cause cancer, birth defects or

other reproductive harm.

TABLE OF CONTENTS

INTRODUCTION PAGE I − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SAFETY - SECTION A PAGE A − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTALLATION − SECTION B PAGE B − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Dimensions PAGE B − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PREINSTALLATION INSPECTION PAGE B − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery Specifications And Installation PAGE B − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

POSITIONING PUMP PAGE B − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lifting PAGE B − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Mounting PAGE B − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SUCTION AND DISCHARGE PIPING PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Materials PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Line Configuration PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connections to Pump PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Gauges PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SUCTION LINES PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fittings PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Strainers PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sealing PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Suction Lines In Sumps PAGE B − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Suction Line Positioning PAGE B − 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DISCHARGE LINES PAGE B − 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Siphoning PAGE B − 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Valves PAGE B − 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bypass Lines PAGE B − 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ALIGNMENT PAGE B − 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATION − SECTION C PAGE C − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PRIMING PAGE C − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STARTING PAGE C − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATION PAGE C − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lines With a Bypass PAGE C − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lines Without a Bypass PAGE C − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Leakage PAGE C − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Liquid Temperature And Overheating PAGE C − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Strainer Check PAGE C − 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Vacuum Check PAGE C − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STOPPING PAGE C − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cold Weather Preservation PAGE C − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BEARING TEMPERATURE CHECK PAGE C − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING − SECTION D PAGE D − 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PUMP MAINTENANCE AND REPAIR - SECTION E PAGE E − 1. . . . . . . . . . . . . . . . .

PARTS LISTS:

TABLE OF CONTENTS

(continued)

Pump Model PAGE E − 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump End Assembly PAGE E − 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Drive Assembly PAGE E − 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PUMP AND SEAL DISASSEMBLY AND REASSEMBLY PAGE E − 7. . . . . . . . . . . . . . . . . . . . . . . . .

Suction Check Valve Removal PAGE E − 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Casing and Wear Plate Removal PAGE E − 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Impeller Removal PAGE E − 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seal Removal PAGE E − 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Separating Intermediate And Drive Assembly From Engine PAGE E − 8. . . . . . . . . . . . . . . . . .

Shaft and Bearing Removal and Disassembly PAGE E − 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shaft and Bearing Reassembly and Installation PAGE E − 9. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Securing Intermediate And Drive Assembly To Engine PAGE E − 10. . . . . . . . . . . . . . . . . . . . . .

Seal Reassembly and Installation PAGE E − 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Impeller Installation PAGE E − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Casing and Wear Plate Installation PAGE E − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Suction Check Valve Installation PAGE E − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Final Pump Reassembly PAGE E − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LUBRICATION PAGE E − 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seal Assembly PAGE E − 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bearings PAGE E − 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine PAGE E − 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8O SERIES OM−00956−03

PAGE I − 1INTRODUCTION

INTRODUCTION

This Installation, Operation, and Maintenance

manual is designed to help you achieve the best

performance and longest life from your Gorman-

Rupp pump.

This pump is an 80 Series, semi-open impeller, self-

priming centrifugal model with a suction check

valve. The pump is close-coupled to a six cylinder

Ford C5PG liquid cooled gasoline engine, with a

10−inch over-the-center clutch.

The pump is designed for handling most non-vola-

tile, non-flammable liquids containing specified en-

trained solids. The basic material of construction

for all wetted parts is gray iron and steel.

If there are any questions regarding the pump or its

application which are not covered in this manual or

in other literature accompanying this unit, please

contact your Gorman-Rupp distributor, or write:

The Gorman-Rupp Company or Gorman-Rupp of Canada Limited

P.O. Box 1217 70 Burwell Road

Mansfield, Ohio 44901−1217 St. Thomas, Ontario N5P 3R7

For information or technical assistance on the engine, contact the engine manufacturer’s local dealer or

representative.

The following are used to alert maintenance personnel to procedures which require special attention, to

those which could damage equipment, and to those which could be dangerous to personnel:

Immediate hazards which WILL result in

severe personal injury or death. These

instructions describe the procedure re-

quired and the injury which will result

from failure to follow the procedure.

Hazards or unsafe practices which

COULD result in severe personal injury

or death. These instructions describe

the procedure required and the injury

which could result from failure to follow

the procedure.

Hazards or unsafe practices which COULD

result in minor personal injury or product

or property damage. These instructions

describe the requirements and the possi-

ble damage which could result from failure

to follow the procedure.

NOTE

Instructions to aid in installation, operation,and

maintenance, or which clarify a procedure.

80 SERIES OM−00956−03

PAGE A − 1SAFETY

SAFETY − SECTION A

This information applies to 80 Series

Engine Driven pumps. Refer to the man-

ual accompanying the engine before at-

tempting to begin operation.

Before attempting to open or service the

pump:

1. Familiarize yourself with this man-

ual.

2. Switch off the engine ignition and

remove the key to ensure that the

pump will remain inoperative.

3. Allow the pump to completely cool

if overheated.

4. Check the temperature before

opening any covers, plates, or

plugs.

5. Close the suction and discharge

valves.

6. Vent the pump slowly and cau-

tiously.

7. Drain the pump.

This pump is designed to handle most

non-volatile, non-flammable liquids

containing specified entrained solids.

Do not attempt to pump volatile, corro-

sive, or flammable materials, or any liq-

uids which may damage the pump or en-

danger personnel as a result of pump

failure.

Use lifting and moving equipment in

good repair and with adequate capacity

to prevent injuries to personnel or dam-

age to equipment. The bail is intended

for use in lifting the pump assembly

only. Suction and discharge hoses and

piping must be removed from the pump

before lifting.

After the pump has been positioned,

make certain that the pump and all pip-

ing or hose connections are tight, prop-

erly supported and secure before oper-

ation.

Do not operate the pump against a

closed discharge valve for long periods

of time. If operated against a closed dis-

charge valve, pump components will

deteriorate, and the liquid could come

to a boil, build pressure, and cause the

pump casing to rupture or explode.

Do not remove plates, covers, gauges,

pipe plugs, or fittings from an over-

heated pump. Vapor pressure within the

pump can cause parts being disen-

gaged to be ejected with great force. Al-

low the pump to cool before servicing.

Do not operate an internal combustion

engine in an explosive atmosphere.

When operating internal combustion

engines in an enclosed area, make cer-

tain that exhaust fumes are piped to the

outside. These fumes contain carbon

monoxide, a deadly gas that is color-

less, tasteless, and odorless.

80 SERIESOM−00956−03

PAGE A − 2 SAFETY

Fuel used by internal combustion en-

gines presents an extreme explosion

and fire hazard. Make certain that all

fuel lines are securely connected and

free of leaks. Never refuel a hot or run-

ning engine. Avoid overfilling the fuel

tank. Always use the correct type of fuel.

Never tamper with the governor to gain

more power. The governor establishes

safe operating limits that should not be

exceeded. The maximum continuous

operating speed for this pump is 2200

RPM.

80 SERIES OM−00956−03

PAGE B − 1INSTALLATION

INSTALLATION − SECTION B

Review all SAFETY information in Section A.

Since pump installations are seldom identical, this

section offers only general recommendations and

practices required to inspect, position, and ar-

range the pump and piping.

Most of the information pertains to a standard

static lift application where the pump is positioned

above the free level of liquid to be pumped.

If installed in a flooded suction application where

the liquid is supplied to the pump under pressure,

some of the information such as mounting, line

configuration, and priming must be tailored to the

specific application. Since the pressure supplied

to the pump is critical to performance and safety,

be sure to limit the incoming pressure to 50% of the

maximum permissible operating pressure. If the

pump is fitted with a Gorman-Rupp double grease

lubricated seal, the maximum incoming pressure

must be reduced to 10 p.s.i.

For further assistance, contact your Gorman-Rupp

distributor or the Gorman-Rupp Company.

Pump Dimensions

See Figure 1 for the approximate physical dimen-

sions of this pump.

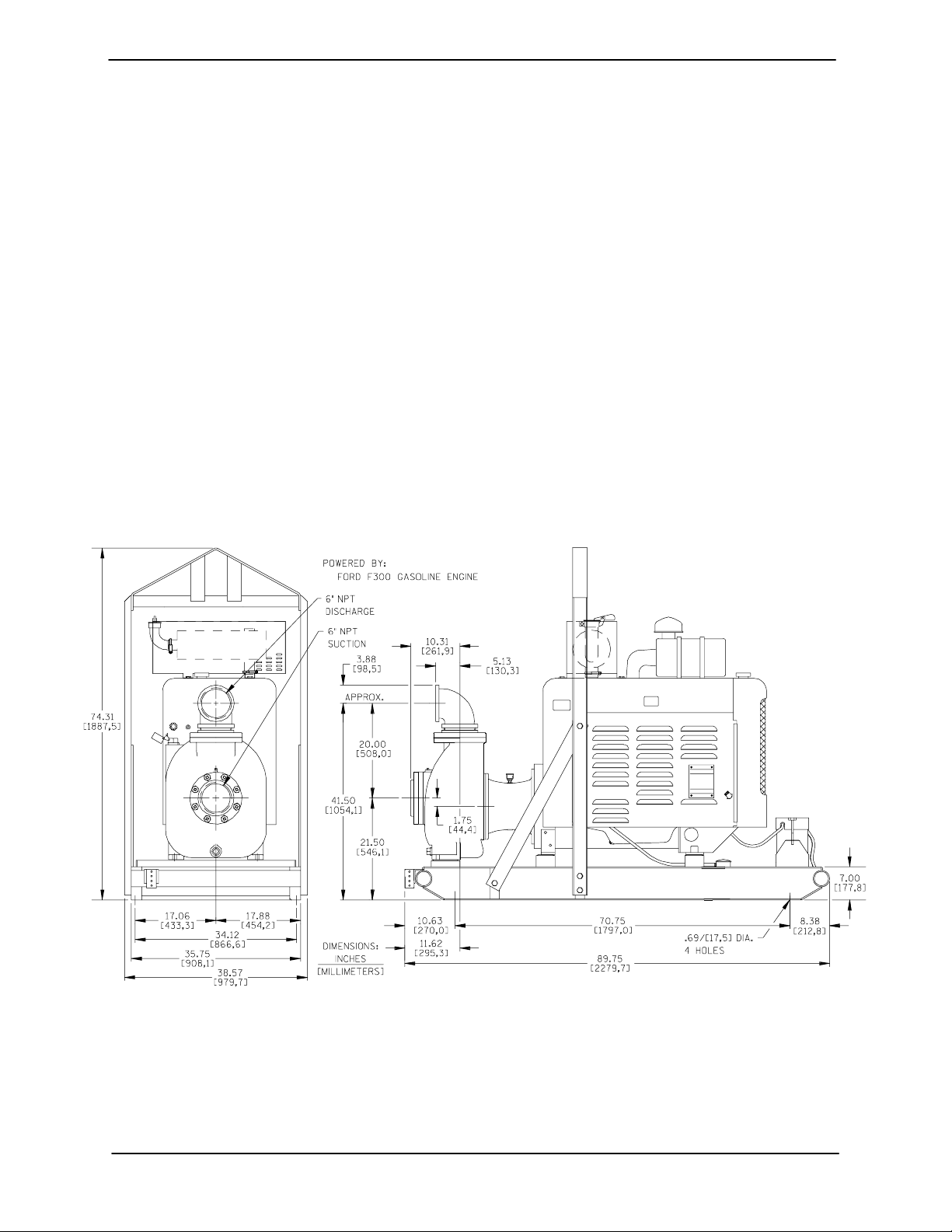

OUTLINE DRAWING

Figure 1. Pump Model 86A2−F300

PREINSTALLATION INSPECTION

The pump assembly was inspected and tested be-

fore shipment from the factory. Before installation,

inspect the pump for damage which may have oc-

curred during shipment. Check as follows:

a. Inspect the pump and engine for cracks,

dents, damaged threads, and other obvious

damage.

b. Check for and tighten loose attaching hard-

ware. Since gaskets tend to shrink after dry-

OM−00956−03 80 SERIES

PAGE B − 2 INSTALLATION

ing, check for loose hardware at mating sur-

faces.

c. Carefully read all tags, decals, and markings

on the pump assembly, and perform all duties

indicated.

d. Check levels and lubricate as necessary. Re-

fer to LUBRICATION in the MAINTENANCE

AND REPAIR section of this manual and per-

form duties as instructed.

e. If the pump end has been stored for more than

12 months, some of the components or lubri-

cants may have exceeded their maximum

shelf life. These must be inspected or re-

placed to ensure maximum pump service.

If the maximum shelf life has been exceeded, or if

anything appears to be abnormal, contact your

Gorman-Rupp distributor or the factory to deter-

mine the repair or updating policy. Do not put the

pump into service until appropriate action has

been taken.

Battery Specifications And Installation

Unless otherwise specified on the pump order, the

engine battery was not included with the unit. Re-

fer to the following specifications when selecting a

battery.

Table 1. Battery Specifications

Crank

@ 0F

Reserve

Capacity

(Minutes)

@ 80F

Overall

Dims.

(Inches)

350−385 76

10.25L

Cold

Amps

Approx.

Amp/

Hr.

Rating

57 6.75W

8.88H

Voltage

12 Volts

Refer to the information accompanying the battery

and/or electrolyte solution for activation and charg-

ing instructions.

Before installing the battery, clean the positive and

negative cable connectors, and the battery termi-

nals. Secure the battery by tightening the

holddown brackets. The terminals and clamps

may be coated with petroleum jelly to retard corro-

sion. Connect and tighten the positive cable first,

then the negative cable.

POSITIONING PUMP

Use lifting and moving equipment in

good repair and with adequate capacity

to prevent injuries to personnel or dam-

age to equipment. The bail is intended

for use in lifting the pump assembly

only. Suction and discharge hoses and

piping must be removed from the pump

before lifting.

Lifting

Use lifting equipment with a capacity of at least

8,800 pounds (3992 kg). This pump weighs ap-

proximately 1,750 pounds (794 kg), not including

the weight of accessories and customer installed

options and accessories. Customer installed

equipment such as suction and discharge piping

must be removed before attempting to lift.

The pump assembly can be seriously

damaged if the cables or chains used to lift

and move the unit are improperly wrapped

around the pump.

Mounting

Locate the pump in an accessible place as close as

practical to the liquid being pumped. Level mount-

ing is essential for proper operation.

The pump may have to be supported or shimmed

to provide for level operation or to eliminate vibra-

tion.

If the pump has been mounted on a moveable

base, make certain the base is stationary by setting

the brake and blocking the wheels before attempt-

ing to operate the pump.

80 SERIES OM−00956−03

PAGE B − 3INSTALLATION

To ensure sufficient lubrication and fuel supply to

the engine, do not position the pump and engine

more than 15off horizontal for continuous opera-

tion. The pump and engine may be positioned up

to 30off horizontal for intermittent operation

only; however, the engine manufacturer should be

consulted for continuous operation at angles

greater than 15.

SUCTION AND DISCHARGE PIPING

Materials

Either pipe or hose maybe used for suction and

discharge lines; however, the materials must be

compatible with the liquid being pumped. If hose is

used in suction lines, it must be the rigid-wall, rein-

forced type to prevent collapse under suction. Us-

ing piping couplings in suction lines is not recom-

mended.

Line Configuration

Keep suction and discharge lines as straight as

possible to minimize friction losses. Make mini-

mum use of elbows and fittings, which substan-

tially increase friction loss. If elbows are necessary,

use the long-radius type to minimize friction loss.

Connections to Pump

Before tightening a connecting flange, align it ex-

actly with the pump port. Never pull a pipe line into

place by tightening the flange bolts and/or cou-

plings.

Lines near the pump must be independently sup-

ported to avoid strain on the pump which could

cause excessive vibration, decreased bearing life,

and increased shaft and seal wear. If hose-type

lines are used, they should have adequate support

to secure them when filled with liquid and under

pressure.

Gauges

Most pumps are drilled and tapped for installing

discharge pressure and vacuum suction gauges. If

these gauges are desired for pumps that are not

tapped, drill and tap the suction and discharge

lines not less than 18 inches (457 mm) from the

suction and discharge ports and install the lines.

Installation closer to the pump may result in erratic

readings.

SUCTION LINES

To avoid air pockets which could affect pump prim-

ing, the suction line must be as short and direct as

possible. When operation involves a suction lift, the

line must always slope upward to the pump from

the source of the liquid being pumped; if the line

slopes down to the pump at any point along the

suction run, air pockets will be created.

Fittings

Suction lines should be the same size as the pump

inlet. If reducers are used in suction lines, they

should be the eccentric type, and should be in-

stalled with the flat part of the reducers uppermost

to avoid creating air pockets. Valves are not nor-

mally used in suction lines, but if a valve is used,

install it with the stem horizontal to avoid air pock-

ets.

Strainers

If a strainer is furnished with the pump, be certain

to use it; any spherical solids which pass through a

strainer furnished with the pump will also pass

through the pump itself.

If a strainer is not furnished with the pump, but is

installed by the pump user, make certain that the

total area of the openings in the strainer is at least

three or four times the cross section of the suction

line, and that the openings will not permit passage

of solids larger than the solids handling capability

of the pump.

This pump is designed to handle up to 1 3/4 inch

(44,4 mm) diameter spherical solids.

Sealing

Since even a slight leak will affect priming, head,

and capacity, especially when operating with a

high suction lift, all connections in the suction line

should be sealed with pipe dope to ensure an air-

tight seal. Follow the sealant manufacturer’s rec-

ommendations when selecting and applying the

pipe dope. The pipe dope should be compatible

with the liquid being pumped.

Autres manuels pour 80 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels GORMAN-RUPP PUMPS Pompe à eau

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 04A13-(4/10) /S1 Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS SF4B Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS SBM-00192 Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS JSV3H60-E5 230/1 Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS ULTRA V V4A60-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS J Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA Series Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 86B52-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS U4A60S-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS SUPER T T4A60S-4LE2T FT4 Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS RP Series Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T8A61S-B Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA Series Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 80 Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS AMT 337 Series Instructions de montage

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T3A61-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 81 1/2A52-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 11 1/2A52-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T2C60SC-B Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS ULTRA V V4C60SC-B Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T10A60S-6068H Manuel utilisateur

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA Series Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 811/4A3-B Guide d'application

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS JW Series Manuel utilisateur

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
