Gorilla Playsets Frontier Manuel utilisateur

™

playsets

190 Etowah Industrial Court

Canton, GA 30114

www.gorillaplaysets.com

Frontier

Model: 1500BW

[BOXES: 1501, 1503N, 1510,

1511, 1530, 1523, Tire Swing

Box & Slide Box)

Amber Post Option

BOXES: 1520-2bx, 1522,

1524

Timber Shield Post Option

BOXES: W-1, TSB, 120

*51-0004-W*

51-0004-W

™

playsets

Please inspect and inventory all parts immediately upon accepting delivery. Use the

inventory pages in the manual to make sure you have received all necessary parts.

The quickest method to get any parts that are missing or damaged is to use our “Quick

Response Center” located at:

www.gorillaplaysets.com/support

DO NOT RETURN THIS PRODUCT TO THE RETAILER OR CONTACT THE RETAILER DIRECTLY.

THE RETAILER DOES NOT STOCK COMPONENTS.

PLEASE RETAIN ALL INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE

PLACE WHERE YOU CAN REFER TO THEM AS NEEDED. CHECK FOR REVISED INSTRUC-

TIONS AT:

www.gorillaplaysets.com/manuals

GORILLA PLAYSETS WARRANTY –2016

Gorilla Playsets® (“Gorilla”) warrants its play sets to be free from defects in workmanship and materials, under

normal use and conditions, for 10 years for above ground structural wood components and for one year for all

other components (e.g., swings, hardware, plastics, tarps, rope ladder, etc.).

Gorilla warrants all remaining products, including but not limited to its , Free Standing Swing Set, Free Standing

Tire Swing, See-Saw, Children’s Picnic Table with Umbrella, Play-Zee-Bo™, Cedar Toy Chest and spring riders to be

free from defects in workmanship and materials, under normal use and conditions, for a period of 1 year.

Cosmetic imperfections and natural tendencies of wood such as peeling, splintering, warping, seasonal checking

or cracking, knots or knot holes, etc. are normal characteristics of all outdoor wooden play equipment and are

not covered by this warranty. Checks or cracks in wood components that do not affect the intended function of

the part, piece or overall swing set are not covered under this warranty.

Wood rot or decay that develops because the product was installed in an area with poor drainage is not covered

under this warranty. Lumber that has been damaged by wood boring bees, or conditions that develop as a result of

faulty or improper installation of the product, are not covered by this warranty. Fading of stain, discoloration or

mold on any wood part or accessory is not covered by this warranty. Cracks in plastic components, surface rust on

hardware and chips on powder coated materials are not considered defects in material as long as they do not

affect the functionality or structural integrity of the part or component.

It is the owner’s responsibility to maintain the swing set. This includes but is not limited to staining and sealing

the lumber as needed and regular inspection to be sure all hardware is tight. Instructions for proper

maintenance can be found on Gorilla’s website. Imperfections or conditions that develop because of a failure to

properly maintain the swing set are not covered by this warranty.

Gorilla will, at its discretion, replace any above ground part within the stated warranty period that is defective in

workmanship or materials. This decision is subject to verification of the defect, which, at Gorilla’s discretion, may

be accomplished by submitting photographs or by delivery of the defective part to Gorilla Playsets • 190 Etowah

Industrial Ct. • Canton, GA 30114 • 1-800-882-0272 Monday to Friday 9AM-5PM EST. Any warranty claim must

include proof of purchase, including the date of purchase. In addition, within the first 30 days from the date of

purchase, Gorilla will replace any parts discovered to be missing from or damaged in the original packaging.

This warranty is valid only if the product is used for the purpose for which it was designed and installed at a

residential, single-family dwelling. This warranty is void if the product is used in a commercial, institutional or

multi-family setting. This warranty does not cover normal wear and tear or (a) products that have been damaged

by acts of God and/or nature, negligence, misuse or accident; (b) products that have been modified or repaired

by unauthorized persons; (c) the cost of labor; or (d) the cost of shipping any replacement product or part.

GORILLA DISCLAIMS ALL OTHER REPRESENTATIONS AND WARRANTIES OF ANY KIND, EXPRESSED, IMPLIED,

STATUTORY OR OTHERWISE, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. GORILLA WILL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. This

warranty is non-transferable and does not extend to the owners of the product subsequent to the original

purchaser. Some states do not allow limitations on implied warranties or exclusion of incidental or consequential

damages, so these restrictions may not be applicable to you. This warranty gives you specific legal rights. You may

also have other rights which vary from state to state.

IMPORTANT SAFETY GUIDELINES

This product is recommended for use by children ages 3-11. This product is intended

for residential use only and not intended for use in any public setting. A safety surface

such as mulch or recycled tire should be used under the play set to prevent injury from

falls. Also a 6 foot safety zone should be used around the entire play set.

As with any home project, good judgment and respect for power tools will greatly

reduce the risk of injury. Gorilla recommends you follow all tool manufacturers’ safety

guidelines. Always wear eye protection and safety gloves to prevent injury. In several

phases of construction two people may be required for lifting and securing of lumber.

While the play set is being constructed, please keep children off the equipment until the

project is complete. Bolts and screw heads should be checked regularly for tightness.

The ground ladder, rope ladder, slide, swings and other areas where children spend a

majority of their playtime should be checked more frequently.

Gorilla shall not be liable for incidental, indirect or consequential damages or

injuries that result from building and/or playing on our play sets. Adult supervision is

recommended anytime a play set is being used.

WEIGHT LIMITS FOR GORILLA PLAYSETS

• FORT PLATFORMS: 800 LBS. TOTAL WEIGHT

• SWING BELT: 225 LBS.

• TANDEM SWINGS: 70 LBS. PER CHILD. UP TO 140 LBS. TOTAL WEIGHT.

• TRAPEZE: 125 LBS.

• FULL BUCKET SWING/ HALF BUCKET SWING: 50 LBS.

• HEAVY DUTY TODDLER BUCKET SWING: 85 LBS.

• INFANT SWING: 35 LBS.

• TIRE SWING: 125 LBS. TOTAL WEIGHT

• ROPE LADDER: 75 LBS.

• ROCK WALL: 150 LBS.

• CLIMBING RAMP: 150 LBS.

• MONKEY BARS: 175 LBS.

• ALL SLIDES: 150 LBS.

Gorilla recommends that the weight limits for all components must not be exceeded.

Failure to adhere to these and other safety guidelines could result in damage to the play

set and injury to the users.

WARRANTY REGISTRATION

Gorilla Playsets™manufactures

the nest quality products that

are designed for outstanding

strength and durability. We back

our products with an unparalleled

warranty. In the unlikely event

that you will need to contact us

about covered repairs, we must

have a valid Warranty Registration

on le.

3 EASY WAYS TO REGISTER

OPTION 1 Fax this completed form to:

(800) 880-3300 OR

Mail this completed form to:

Gorilla Playsets

190 Etowah Industrial Court

Canton, GA 30114

OPTION 2 Complete the online registration form at:

http://www.gorillaplaysets.com/register

OPTION 3

Scan this QR Code with your

smartphone to complete the

form using your phone:

Name:_______________________________________________________ Email: ______________________________________

Address: __________________________________________________________________________________________________

Comments:________________________________________________________________________________________________

____________________________________________________________________________________________________________

Would you recommend this product to friends & family?

Please select

your age

How would

you rate the

quality of this

product?

18-30

2-3

41-50

6-7

Yes

 Excellent

 Above Average

 Average

 Below Average

Poor

31-40

4-5

51+

How old are

your children?

Where did you buy this product?

Your registration information:

Date of Purchase Store Store City Store State

Street City State Zip

- FRONTIER -

THIS PAGE INTENTIONALLY LEFT BLANK

IMPORTANT –PLEASE READ

Congratulations! You have just purchase one of the finest residential wooden swing sets available today. As

with any wooden product that spends its entire life outside, in varying elements, it is important to know what to

expect with your new swing set so that your family can enjoy it for many years.

As your swing set acclimates to its new environment, natural characteristics of the wood can show in the form

of checks, or “cracks” in the lumber. In almost all cases this is normal and it will not affect the structural

integrity of your play set and is not covered under warranty.

KEEPING YOUR PLAYSET LIKE NEW

MUST DO’s

The following owner responsibilities are crucial to the safety, integrity and aesthetic appeal of your

swing set and may affect the warranty if not adhered to.

WITHIN 60 DAYS

• Check and tighten Hex Bolts/T-nuts, Carriage Bolts/Lock-nuts, and Lag Screws within the first 60 days and

then twice annually –once before each season and then once during the season.

WITHIN 90 DAYS

• Apply a sealant or semi-transparent stain with sealant within the first 90 days of owning the swing set. Our

own Stain/sealant is available online here: http://www.gorillaplaysets.com/Playground-Sealant-p/10-0003.htm

Oil based stain or water based stain may be used. Should you choose to use other stain we suggest asking

the product covering specialists at any number of specialty paint stores or home improvement centers for a

product that would work best for your local environment. ** TIP –while the set is new, take a small board from

to the store with you so they can color match the tint of the stain or sealant.

SEASONAL REMINDERS

•If your area experiences regular snowfall, remove your fabric tarp/canopy to avoid stretching, sagging or

tearing of the material. Store it inside, folded up, and it will be as good as new when winter is over.

•If your area experiences extremely cold temperatures, remove swing belts and other pliable features to

prolong the lifespan of these play activities.

OTHER TIPS

• Spray swing hangers with Pam, Mazola or olive oil to stop squeaking; do not use petroleum based products

such as WD-40 or motor oil.

• To repel yellow jackets and wasps, use a cotton ball and dab interior wooden corners

underneath the play set

deck with a liquid dish soap. Avoid using insecticides.

•To speed up the slide wipe the center of slide with wax paper every 2 - 3 weeks.

For additional safety and maintenance guidelines, please visit our website.

IMPORTANT DOCUMENTS

CUSTOMER MUST READ AND RETAIN

Please go to the following links and read important SAFETY information prior

to using your new play structure.

http://www.gorillaplaysets.com/Swing-Set-Safety-s/85.htm

https://www.gorillaplaysets.com/Maintenance-s/129.htm

http://www.gorillaplaysets.com/manuals.html (Click on your specific model)

http://www.gorillaplaysets.com/Warranty-s/82.htm

NOTE: Your children’s safety is our #1 concern. Observing the following statements

and warnings reduces the likelihood of serious injury. Please review these safety rules

regularly with your children.

WARNING:

Children must NOT use this play set until it has been

completely assembled and inspected by an adult to

ensure it has been properly installed.

Gorilla Playsets

190 Etowah Industrial Court

Canton, GA. 30114

Models: 1500BW

1500BWF

[BOXES: 1501, 1503N,

1510, 1511, 1523, 1525*, 1530,

Tire Swing Box & Slide Box]

*1525 only included with

1500BWF Treehouse model.

REV: 9.17.2015

Amber Post Option

BOXES: 1520-2bx, 1522,

1524

Timber Shield Post Option

BOXES: W-1, TSB, 120

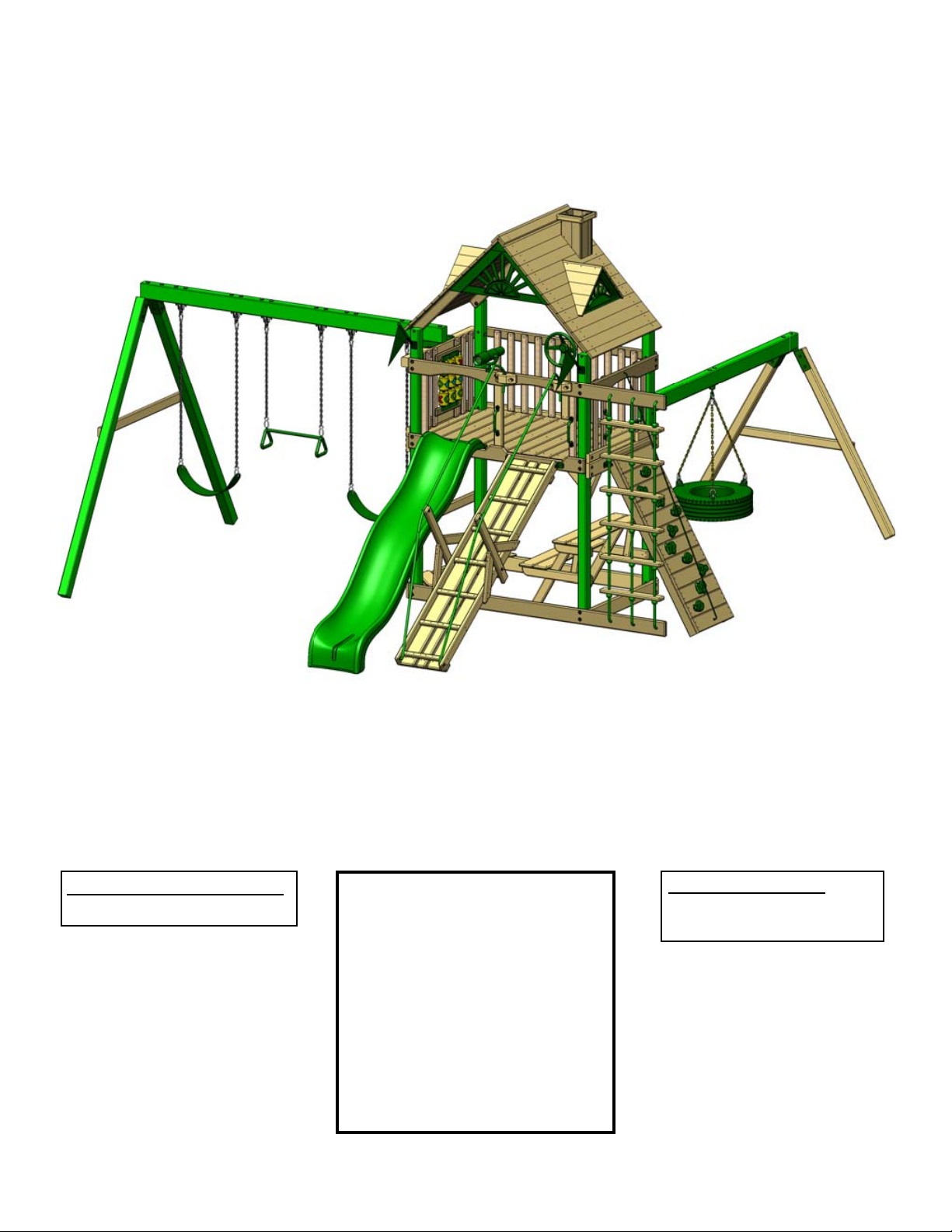

Model 1500BW shown.

See cover of manual for

the image of your model

when it is completed.

Safety Guidelines………………………………………...............................……...Pages 3-6

Leveling Fort, General Information and Denitions……………………...............Pages 6-8

How to Install T-Nuts, Board Identication, Predrill Lag Screw Directions and

Swing Beam Loading........................................................................................Pages 9-13

Site Plan, Required Tool List and Kit Contents...............................................Pages 14-15

Hardware, Lumber and Accessory Checklists.………………………………....Pages 16-35

Adding T-Nuts to Corner Posts...…………………………………..………...…........... Step 1

Framing Fort……………………………………..…………………………..……..... Steps 2-9

Mounting Deck...............…………………………....……………….…………...….... Step 10

Rock Wall Assembly and Installation…..…………...…..……..……...….…….. Steps 11-15

Ramp Assembly and Installation.……………………..……............................. Steps 16-19

Angle Supports, Center Post and Panel Slat Installation............................... Steps 20-22

Swing Beam Assembly……….……………………..……..............................… Steps 23-30

Roof Assembly.……...……………………….………........................................ Steps 31-34

Hanging Swings, Safety Board…………………………………............…........ Steps 35-36

Picnic Table Assembly and Installation...……………………………......…....... Steps 37-39

Tire Swing Assembly and Installation…………………………….....……......... Steps 40-47

Rope Ladder Assembly and Installation…………………….…….……................... Step 48

Slide, Telescope…………………………………………………..……................ Steps 49-50

Tic Tac Toe Assembly and Installation...…..................................................... Steps 51-52

Safety Handles, Climbing Ropes and Flag Kit…............................................ Steps 53-56

Sandbox Seats/Name Plate, Plastic Sunbursts, Ground Stakes and

Steering Wheel.............................................................................................. Steps 57-60

Appendix: Chimney and Dormer Instructions, etc.............................................. Page 106

PLEASE READ OWNER’S MANUAL CAREFULLY

BEFORE STARTING ASSEMBLY!

TABLE OF CONTENTS

Ce manuel convient aux modèles suivants

Autres manuels Gorilla Playsets Équipements de jeux et d'aires de jeux

Gorilla Playsets

Gorilla Playsets Highcrest Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Pioneer Peak 1500DT Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Mountaineer Treehouse 1500CWF Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Nantucket Deluxe Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Hemisphere 2500W Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Great Skye II 1500HW Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Treasure Trove II 1500KT Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Navigator 1500EWF Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Treasure Trove II - Wood Roof Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Rio Manuel utilisateur

Gorilla Playsets

Gorilla Playsets 1500AWSL Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Riverview Manuel utilisateur

Gorilla Playsets

Gorilla Playsets 4434 Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Great Skye I Treehouse Manuel utilisateur

Gorilla Playsets

Gorilla Playsets 01-7020 Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Frontier Treehouse Manuel utilisateur

Gorilla Playsets

Gorilla Playsets 1500JWSL Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Everest Elite Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Wedgewood Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Sun Valley Deluxe 722 Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Chateau Tower Treehouse with Fort Add On... Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Malibu Pioneer Peak 1500DWR Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Hideaway Manuel utilisateur

Gorilla Playsets

Gorilla Playsets Wilderness Gym II 1500JWF Manuel utilisateur

Manuels Équipements de jeux et d'aires de jeux populaires d'autres marques

Ledon

Ledon 302040 Manuel utilisateur

FUNormous

FUNormous Disney Junior MICKEY MOUSE Manuel utilisateur

b4Adventure

b4Adventure Slackers TREEZONE ADVENTURE THREE HOUSE Manuel utilisateur

PoolMaster

PoolMaster 72775 Manuel utilisateur

Palmako

Palmako 4743142009857 Manuel de l'installateur

BOERPLAY

BOERPLAY PSTE000.019 Manuel utilisateur

MGA Entertainment

MGA Entertainment Little Tikes Dunk'n Toss Bouncer Guide de l'utilisateur

stilum

stilum Erika Manuel utilisateur

Costway

Costway NP10816 Manuel utilisateur

Trigano

Trigano VABI Manuel utilisateur

Outward

Outward OUT116 Manuel utilisateur

GALOPIN

GALOPIN ARC02 Manuel utilisateur

stilum

stilum levis Caractéristiques techniques

Ledon

Ledon BASIC Bai LB012 Manuel utilisateur

BOERPLAY

BOERPLAY PSTE115.002 Manuel utilisateur

Europlay

Europlay S306 Manuel de programmation

SportsPlay Equipment

SportsPlay Equipment 361-509H Manuel utilisateur

Ledon

Ledon 302250 Manuel utilisateur
