Goodwe ES Series Manuel utilisateur

ES/EM/SBP + Lynx-U

Battery Connection

Ver.1.0

UpdatedonMay7th,2021 www.goodwe.com

ThisisaninstructionforquickinstallationofES,EM,SBPseriesenergystorageinvertersand

GOODWE Lynx-U battery. For details of the connection or commissioning, please go to user

manualoftheinverterandthebatteryifyoucannotﬁnditinthisinstruction.

ES,EM,SBPhaveasimilarconnectionandcommissioningprocess.HereinwetakeESinverter

andGOODWELynx-Ubatteryasanexampleforconnectionandcommissioning.

Removethepackageandholdthebatteryhandletotakethebatteryout.Formoredetailed

information,pleaserefertoLynx-UbatteryUserManual.

Makesurebatteryandinverterarenotdamaged.Inverterandbatterybreakeristurnedoﬀ

beforemakinganyfurthermove.

Precaution

A.(a).Crimpthepowercable.(b).Puttherubbersealingring.(c).Securethebackshell.

B.Putbatterypowercablethroughbatterycoverplateandpresscableintotherightport.

MakesurethecableconnectedtightlybyconﬁrmingtheClicksound.

Powercabledimension:20~25mm2

Note: Please use the power connector in accessory bag of Lynx-U battery.

Please follow the instruction in the User Manual of battery for more detailed information.

Note: Please follow inverter’s requirement to select power cable if there is conﬂ ict on ES or

Battery manual.

Please install the protective cover for the poles which is not connect to power cable.

Step 1: Power Cable Wiring

Click

C.Makebatteryterminalsandconnectbatteryterminalstoinverter.

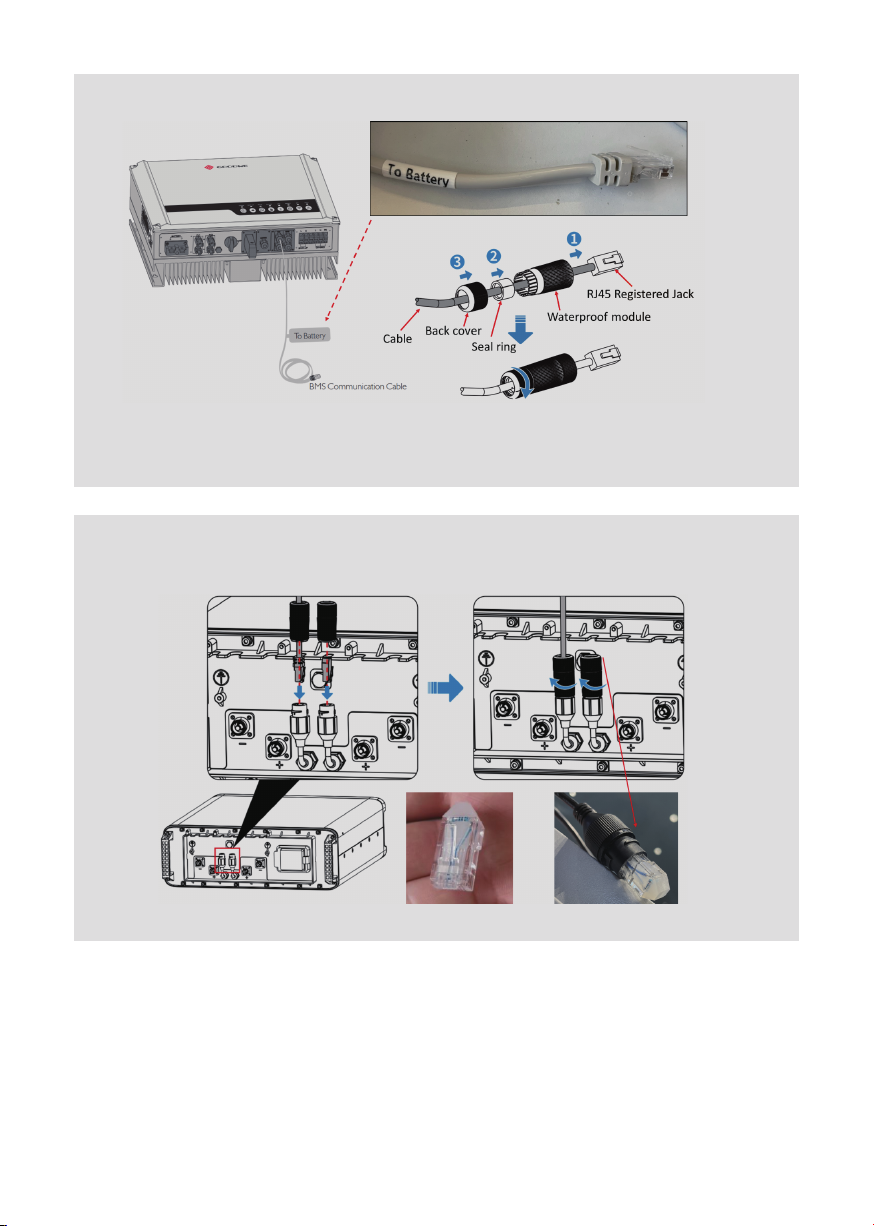

A. Removethewaterproofmodule.

B. RoutethecableandRJ45RegisteredJackthroughsealringthewaterproofmodule.

Note: Please use the battery connectors in the components box of solar inverter.

Please follow the instruction in the User Manual of inverter for more detailed information.

Note: Two COM port are same. You can connect any one to inverter or to next battery.

Step 2: Communication Cable Wiring

C. Securethebackcover.

D. Connectthecommunicationcabletothebattery.Securethecover.LastoneCOM

portneedtoinstallterminalresistance.

Note: For ES, EM, SBP, the BMS communication cable and RJ45 connector already have

been installed on the inverter. No longer need to crimp the RJ45 Registered Jack any more.

CAN COM Port

PIN Deﬁ nition

4 CAN_H

5 CAN_L

1,2,3,6,7,8 N/A

RJ45 Registered Jack

12345678

PinFunctionofBMSCommunicationConnectoronBatterySide

A.Putthewireharnessonthecorrespondingslot.

B. InstallthebarusingM5screws.

Note: please use professional tools to do build up communication cable if you want to

extend the cable.

Step 3: Install the Wire Harness Fix Bar of Lynx-U Battery

A. Putthewireharnessonthecorrespondingslot.

A. DownloadandinstallPVMasteronyoursmartphoneandconnectinverterviawireless.

B. Selectthe“Lynx-U”batterymodelonPVMaster→BasicSetting.

B. InstallthebarusingM5screws.

Note: wrong commissioning will

cause BMS communication failure.

Step 4: Install the plastic cover

Step 5: Commissioning

Download

and Install

PV Master

Connect the smartphone

with the inverter.

Wi-Fi SSID: Solar-WiFi**

Passwaord: 12345678

Select “LX U5.4-L” on PV Master.

LX U5.4-L*1

LX U5.4-L*2

LX U5.4-L*3

LX U5.4-L*4

LX U5.4-L*5

LX U5.4-L*6

Battery Paralleling

Fordetails,pleasefollowGOODWEinstructions.

→1–6Lynx-UBatteriesParalleling

Note:

1. Power cables and communication cables need to be installed wire harness 󽗉x bar.

2. There is no priority of COM port and Battery Port. You can connect any one of the

positive/negative port and COM port to inverter or to next battery.

3. The last one battery need to insert terminal resistance at COM port and install

protective cover.

4. The last power poles need to install protective covers.

......

COM PORT

COM

To inverter

COM PORTCOM PORT COM PORT

Terminal Resistance

Protective Cover

Battery 1 Battery 2 Battery 6

......

JIANGSU GOODWE POWER SUPPLY TECHNOLOGY CO.,LTD

No.90ZijinRd.,NewDistrict,Suzhou,215011,China

www.goodwe.com

servic[email protected]om
