Goodmans 347113 Manuel utilisateur
Water Speaker
USER MANUAL
MODEL: 347113
Welcome
Your Water Speaker
Quick Setup
Troubleshooting
1
2
3
4
2.1
2.3
2.2
In The Box
Back View
Side View
3.1
3.3
3.2
Charging Your Water Speaker
Pairing with a Bluetooth Device
Using the LINE IN Connection3.4
Playing Your Music
Technical Specifications5
Customer Support6
Welcome1
Thank you for choosing this Goodmans product. We have been making
electrical products for the British people for over 90 years. Each of our
products have been carefully designed to be great at what they do and this
one is no exception. We hope you enjoy your Water Speaker.
Your Water Speaker2
Carefully remove your Water Speaker from the packaging.
Inside the box you will find:
●Water Speaker
●LINE IN Cable
●Quick Start Guide
●Instruction Manual
●USB Charging Cable
●Speakers Connecting Cable
● Safety & Guarantee Leaflet
2.1 In The Box
Increase Volume / Next Track
Decrease Volume / Previous Track
Play / Pause
2.2 Side View
Mode
Power ON / OFF Button
Press the button to switch to the
next track.
Hold the button to increase the
volume.
Press the button to switch to the
previous track.
Hold the button to decrease the
volume.
Press the button to play or pause
the music.
Press the button to select Bluetooth /
LINE IN function.
Press and hold the button for three
seconds to switch the power ON or OFF.
2.3 Back View
Micro USB Charging Socket
Used to charge the battery.
LINE IN Input
Used to connect the Water Speaker
to devices without Bluetooth.
Main box stereo connection.
Pair box stereo connection.
Quick Setup3

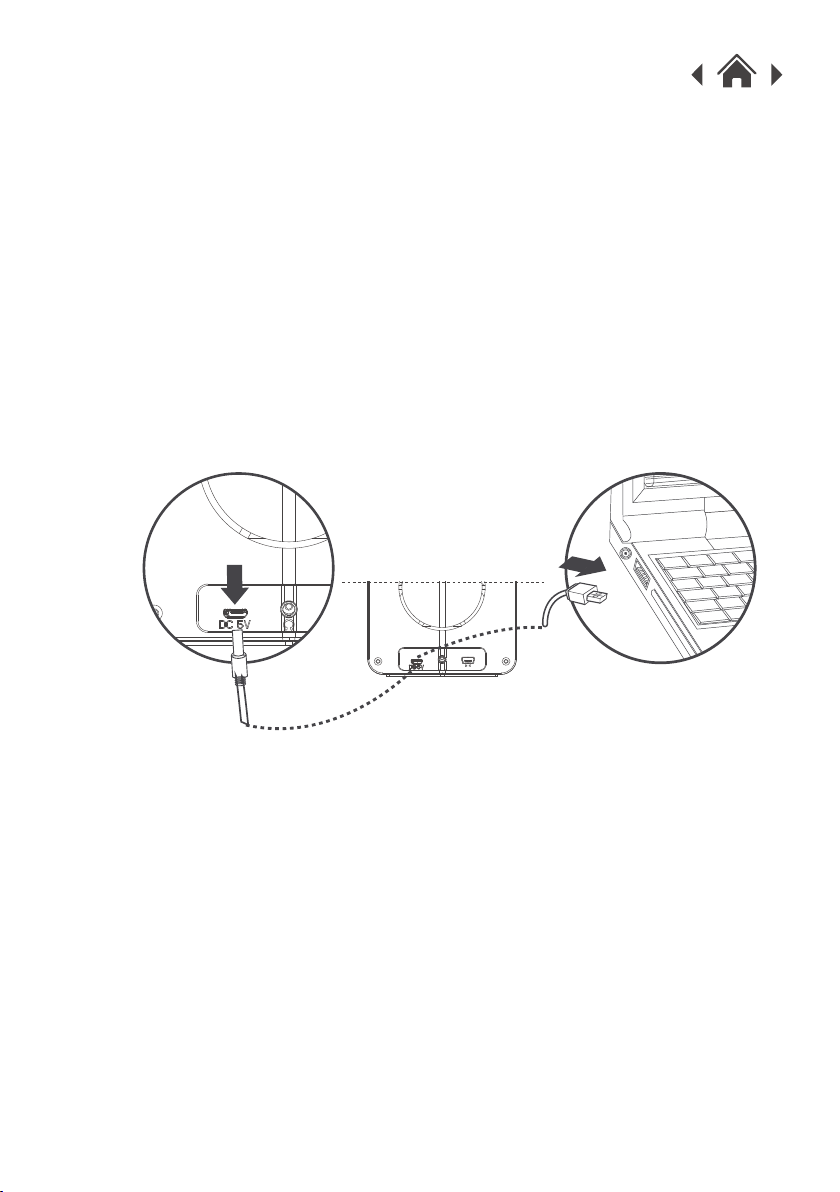

3.1 Charging Your Water Speaker
1. Your Water Speaker has a built in rechargeable battery so it can be used
anywhere indoors, before using it for the first time please fully charge the
battery.
2. To charge, connect the USB cable provided to the USB port on your Water
Speaker.
3. Connect the other end of the USB cable to a USB port on your computer,
or a 5V 1A USB wall charger. A wall charger is not included, when your
Water Speaker is charging the LED indicator will show RED.
4. When the Water Speaker is fully charged the RED LED indicator will turn off.
5. When charging is completed, remove the USB cable.
Note: when the battery is getting low, the low battery warning alert will
sound, when you hear this, please recharge the battery.
1. Press and hold the power ON/OFF button to ON; you will hear “Bluetooth
mode, pairing”.
2. Using your Bluetooth phone or tablet, turn on Bluetooth and search for
Bluetooth devices.
3. Enable Bluetooth on your Smartphone and search for Bluetooth connections,
Select “GOODMANS WATER SPKR” from the list of devices, if you are asked
for pass code enter “0000”.
4. When successfully paired, you will hear “connected”.
5. Once you have paired the Water Speaker with a smartphone, the Water
Speaker will remember this device and will pair automatically when the
device’s Bluetooth is activated and in range, you do not need to re-pair any
previously connected devices.
6. The Water Speaker will attempt to automatically connect to the last device
it was paired with if Bluetooth mode is turned on, if you want to pair it with
a new device, please turn off your last Bluetooth device and then use your
new device to search and select the pairing name.
3.2 Pairing with a Bluetooth Device
1. Connect the two speakers together with the speaker connecting cable.
2. When your smartphone phone or tablet is paired to the Water Speaker, use
your music app to playback your music.
3.3 Playing Your Music
Note: When a Line In cable is connected your Water Speaker will
disconnect from your Bluetooth device.
1. If your device doesn’t have Bluetooth, you can use the LINE IN connection.
2. Connect the LINE IN cable to the Water Speaker and connect the other end
to your device.
3. Select your music on your device and play.
3.4 Using the LINE IN Connection
Troubleshooting4
Problem What to do
I can’t turn ON my
Water Speaker.
Make sure that the Water Speaker is fully
charging.
Press the ON/OFF button for 3 seconds to
turn it ON.
I can’t hear my music.
I can’t pair the Water
Speaker with my
Bluetooth device.
Turn on the Water Speaker.
Make sure that the LINE IN cable is not
connected.
Turn the Water Speaker ON.
Use the volume control on your device to
turn the volume up.
My device keeps on
disconnecting from
the Water Speaker.
Make sure the Water Speaker is fully charged.
If the LINE IN cable is connected, remove it.
Make sure that your device is not further than
10 meters away from the Water Speaker.
Bluetooth Specification
Operating Distance
Frequency Response 80Hz~18KHz
Built-in Battery 3.7V / 1200mAh
10 meters (max.)
Bluetooth V 4.2
External Power Supply
Speaker Power
Product Size 9.6 x 7.5 x 30cm
2 x 3W
DC 5V
5
Model Number 347113
Technical Specifications
Customer Support
6
This product is intended for use within the UK
is a trademark on a registered trademark of Bluetooth SIG Inc.
Declaration of Conformance
The full test of the EU declaration of
Conformity is available at the following
Internet address:
http://www.bmstores.co.uk/technical-information
2014/30/EU Electromagnetic Compatibility Directive
2014/35/EU Low Voltage Directive
2011/65/EU Restriction of Hazardous Substances Directive
2014/53/EU RED
